SL-002-C 0° Spiral Bevel Gear (T18 Handwheel), 20CrMo, module 1.1, 18 teeth left hand, blackened & marked, for sewing equipment.
Description

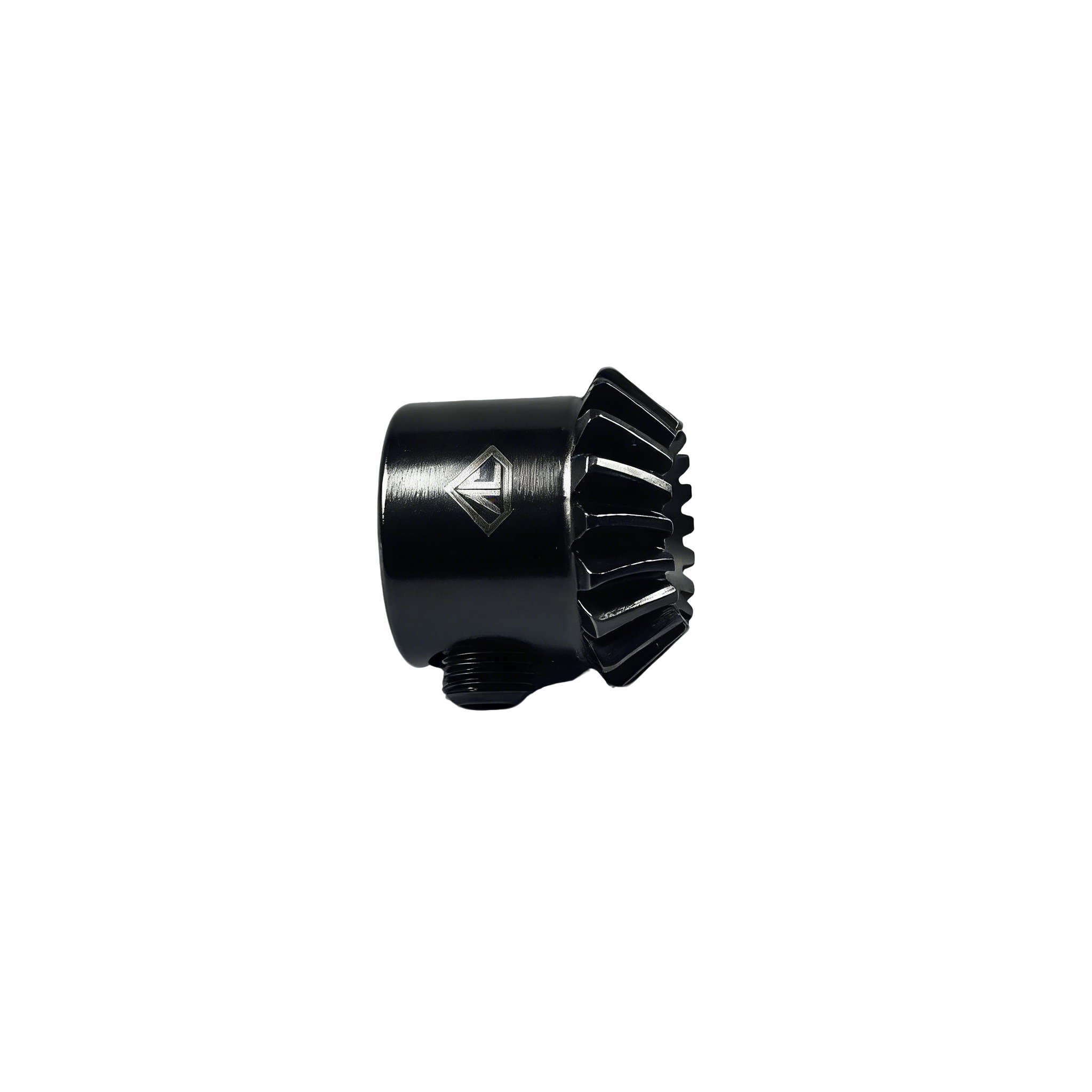

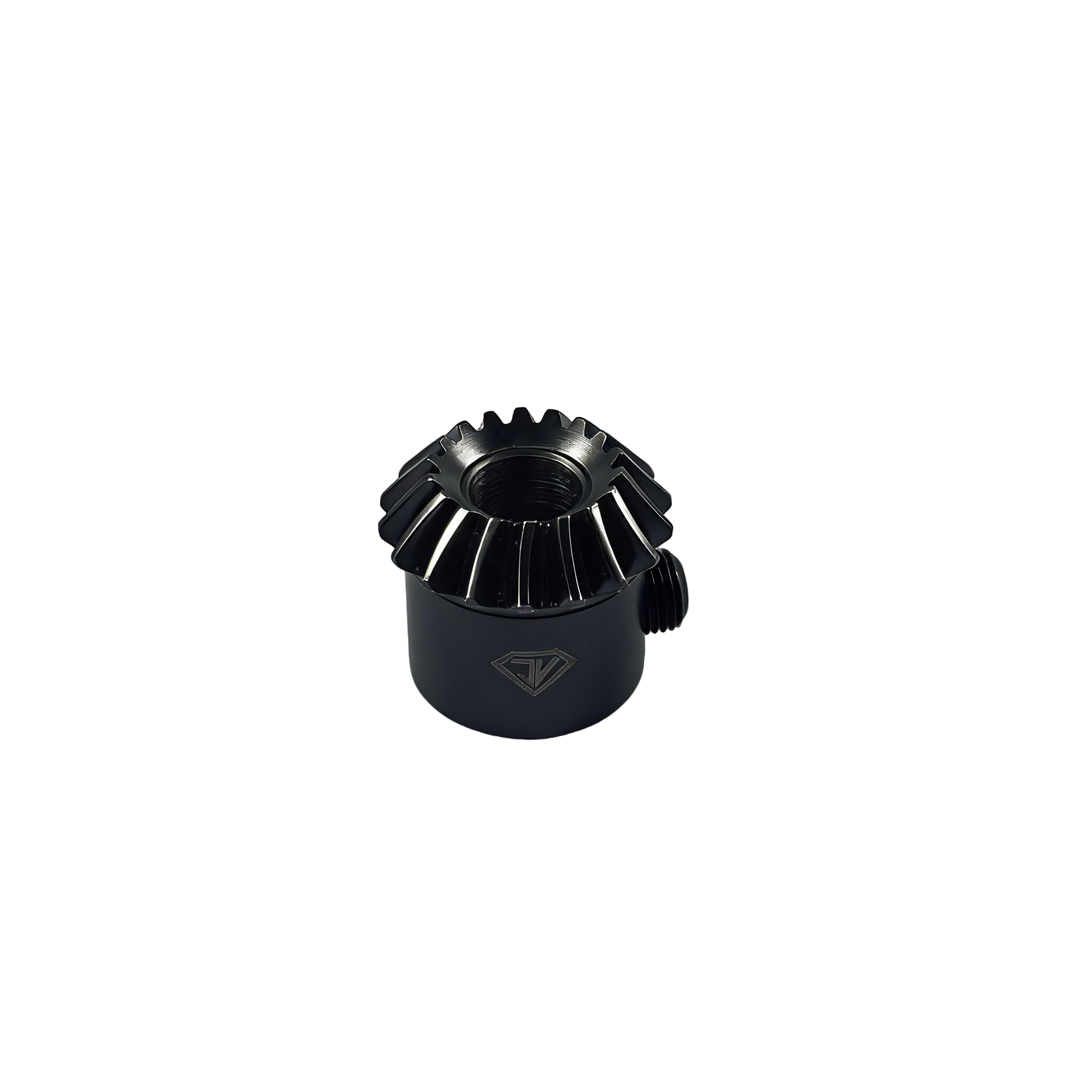

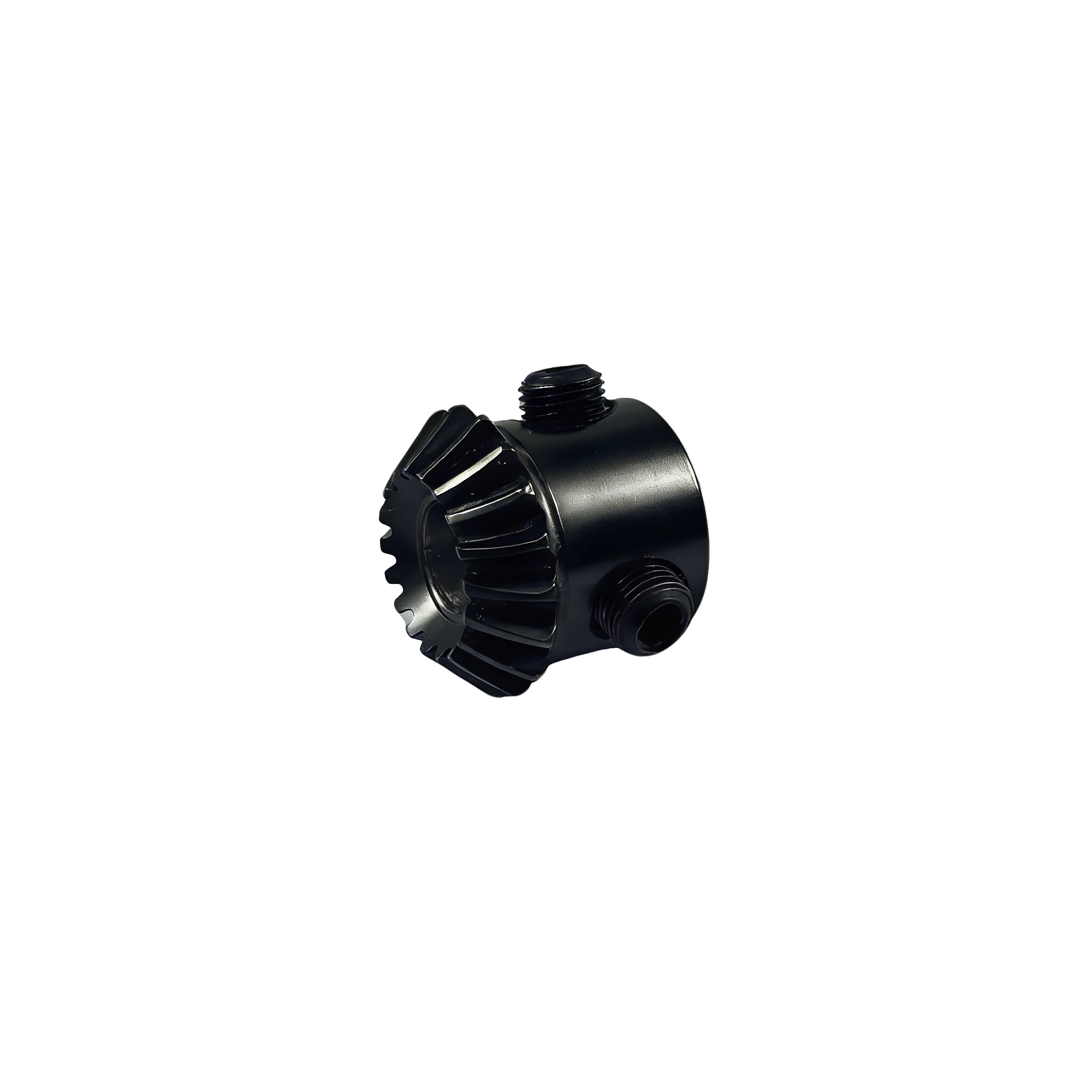

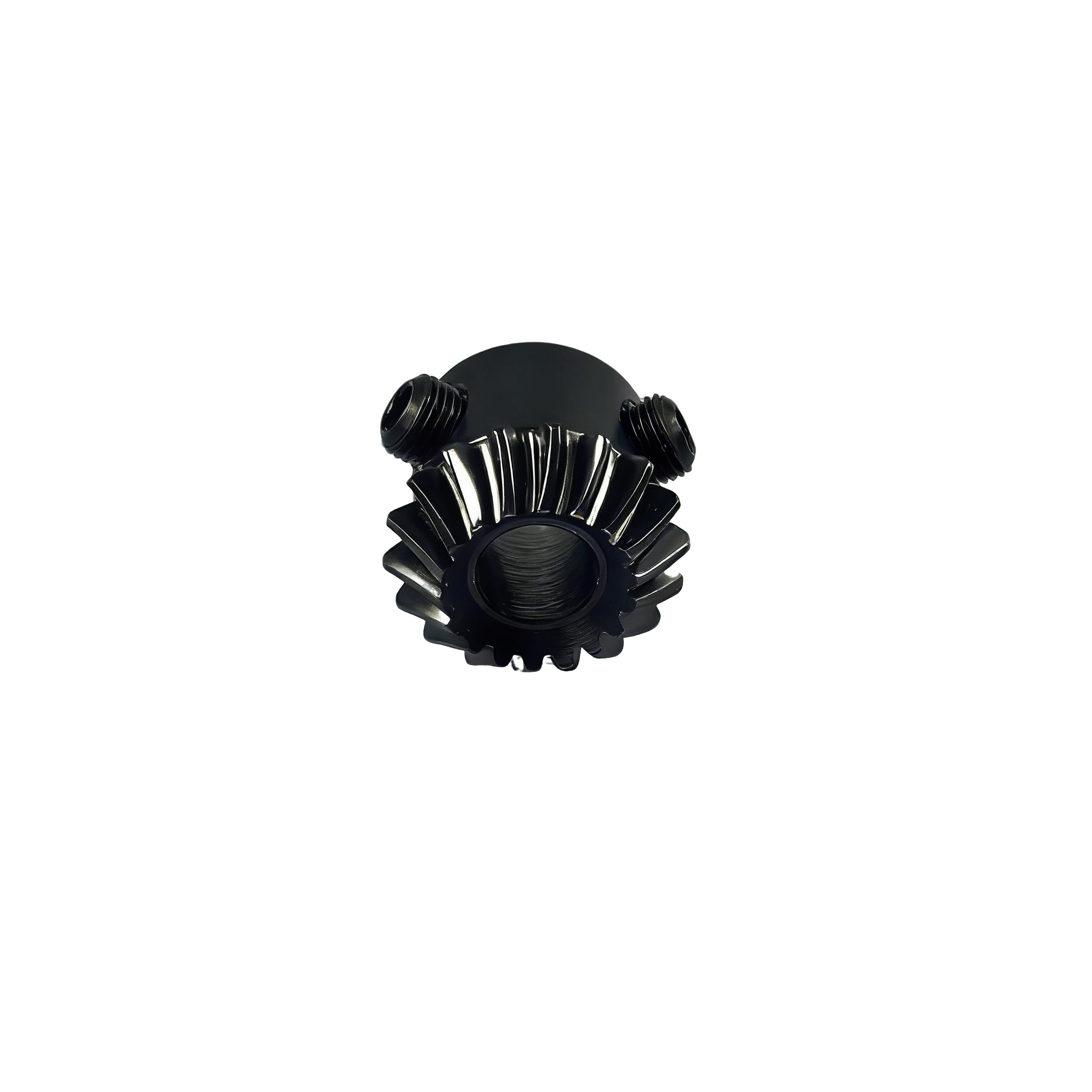

Model: SL-002-C (T18 Handwheel, 0° Straight Tooth)
This is a 0° spiral bevel gear for sewing equipment, made of 20CrMo alloy steel.
Parameters: pressure angle 20°, module 1.1, 18 teeth, helix angle 0° left hand, inner bore 7.94mm, gear OD 21.15mm, total length 18.4mm, weight 0.0229kg.
Process: sawing, turning, threaded hole machining, reaming, gear milling, heat treatment, shot blasting, blackening, marking, reaming, screw assembly.
With high precision, stable meshing and wear resistance, it is used for handwheel drive in sewing equipment.
Additional information
| weight |
0.0229 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Milling |
