SA4624001 Handwheel Gear for Template Sewing Machine, φ15, Right (with marking line)
$1.12piece

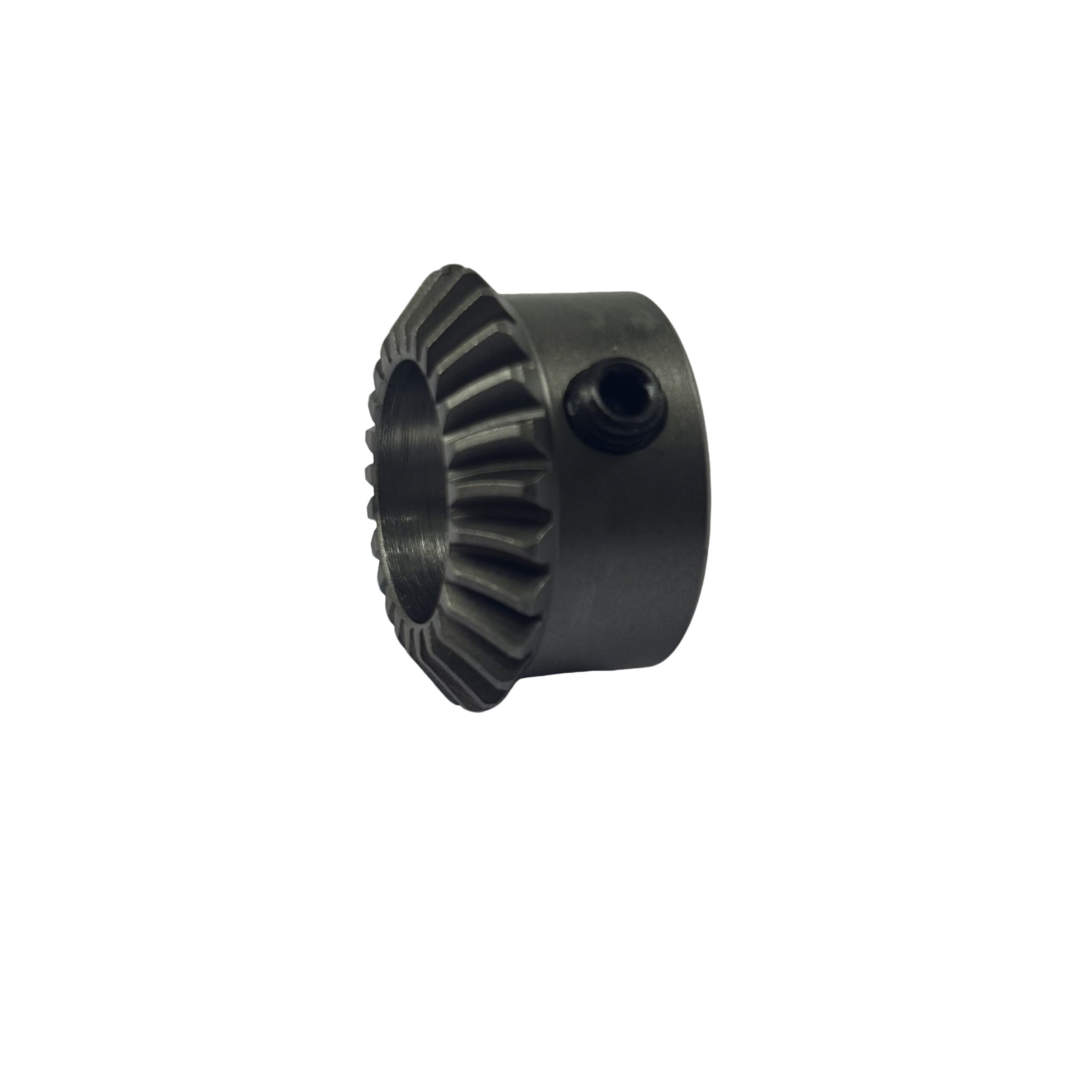

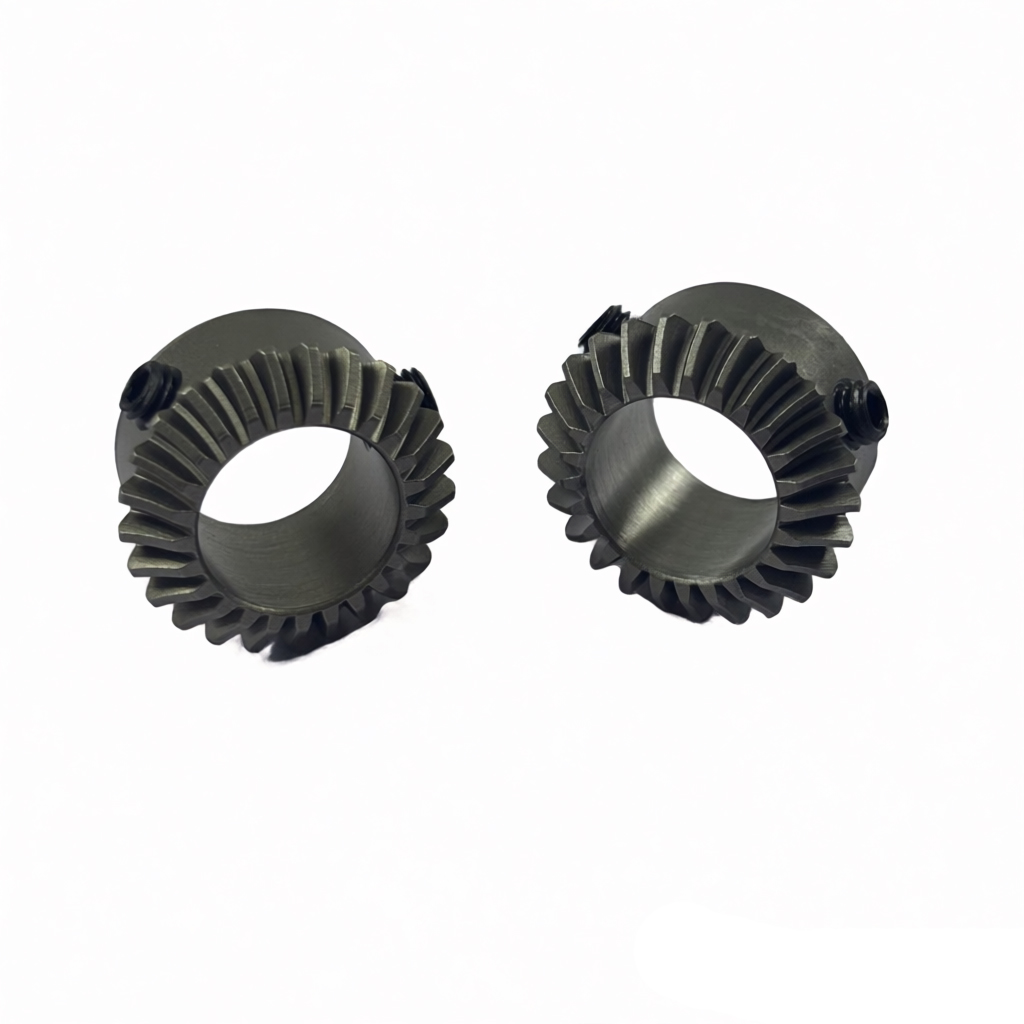

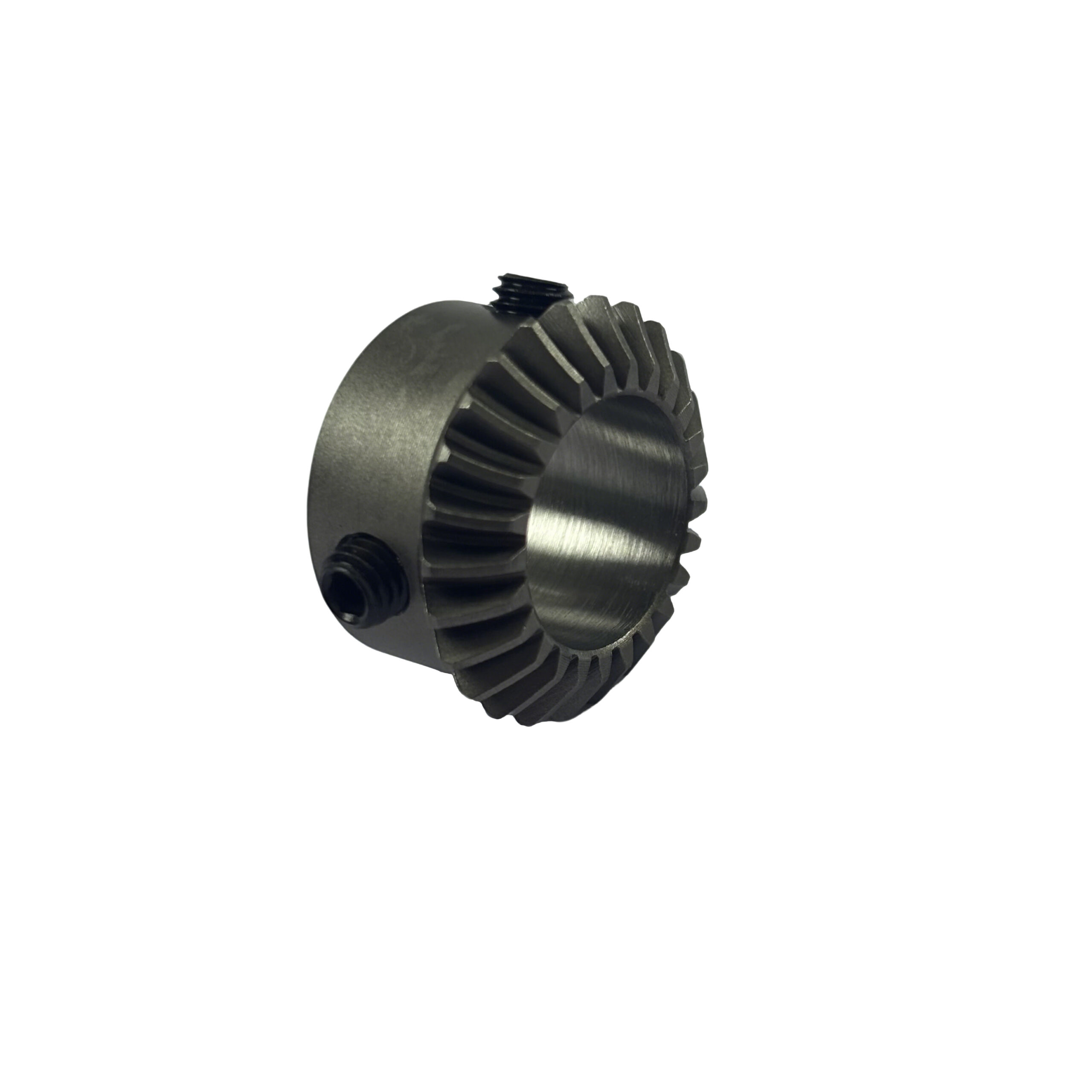

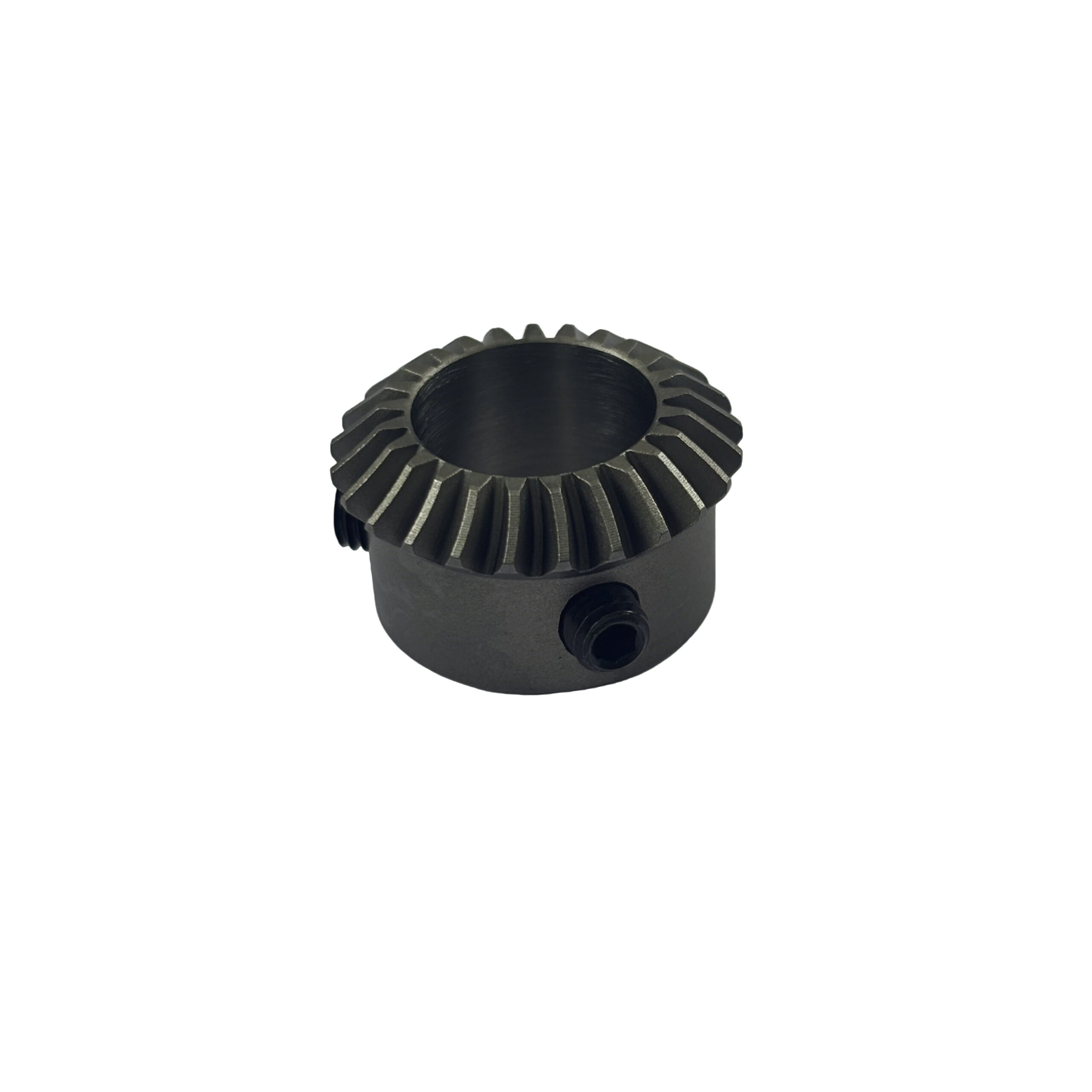

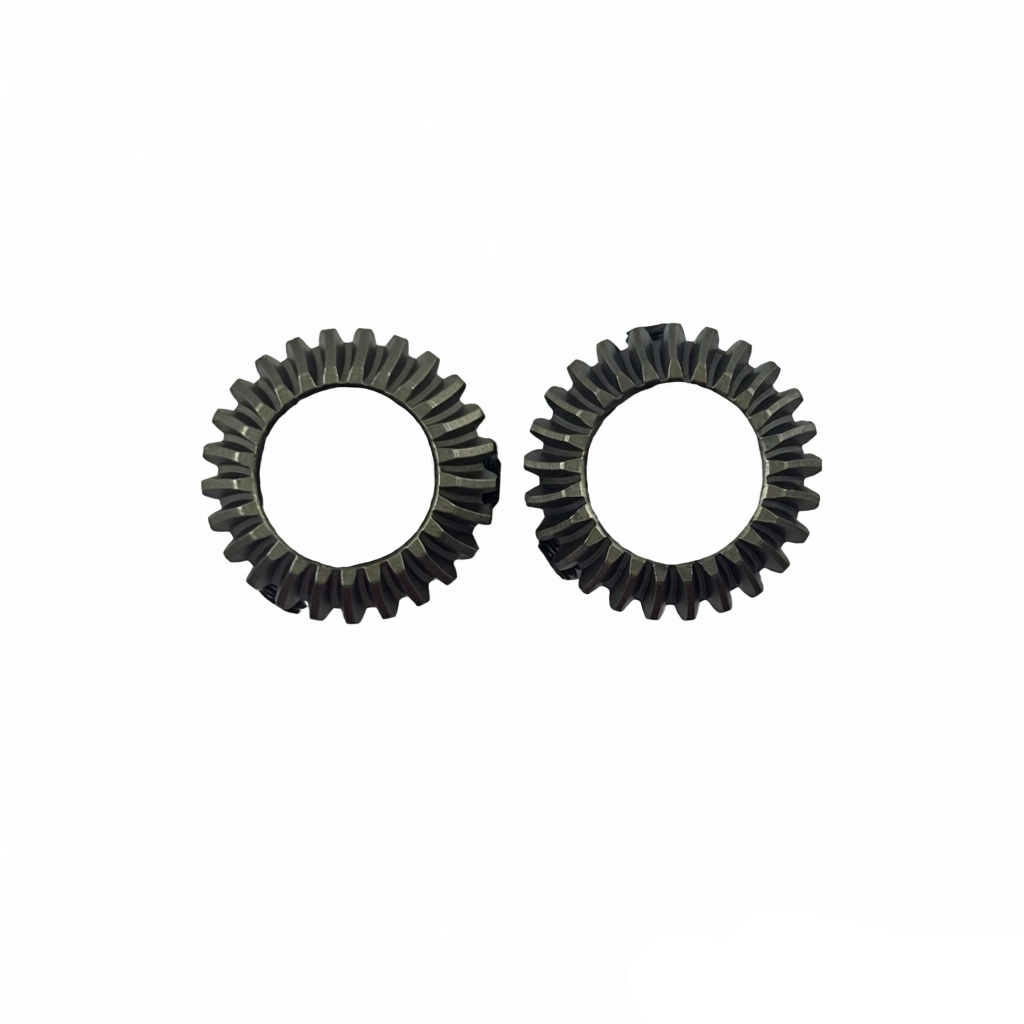

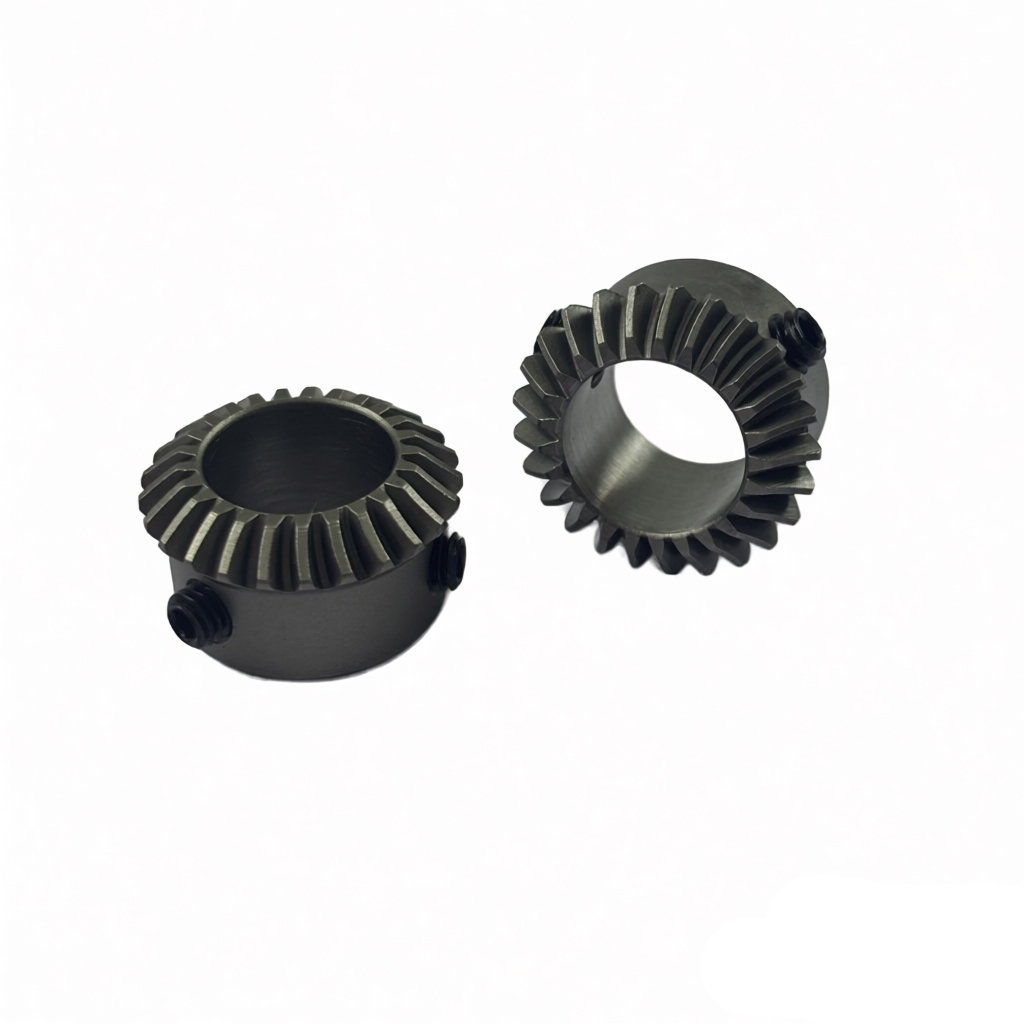

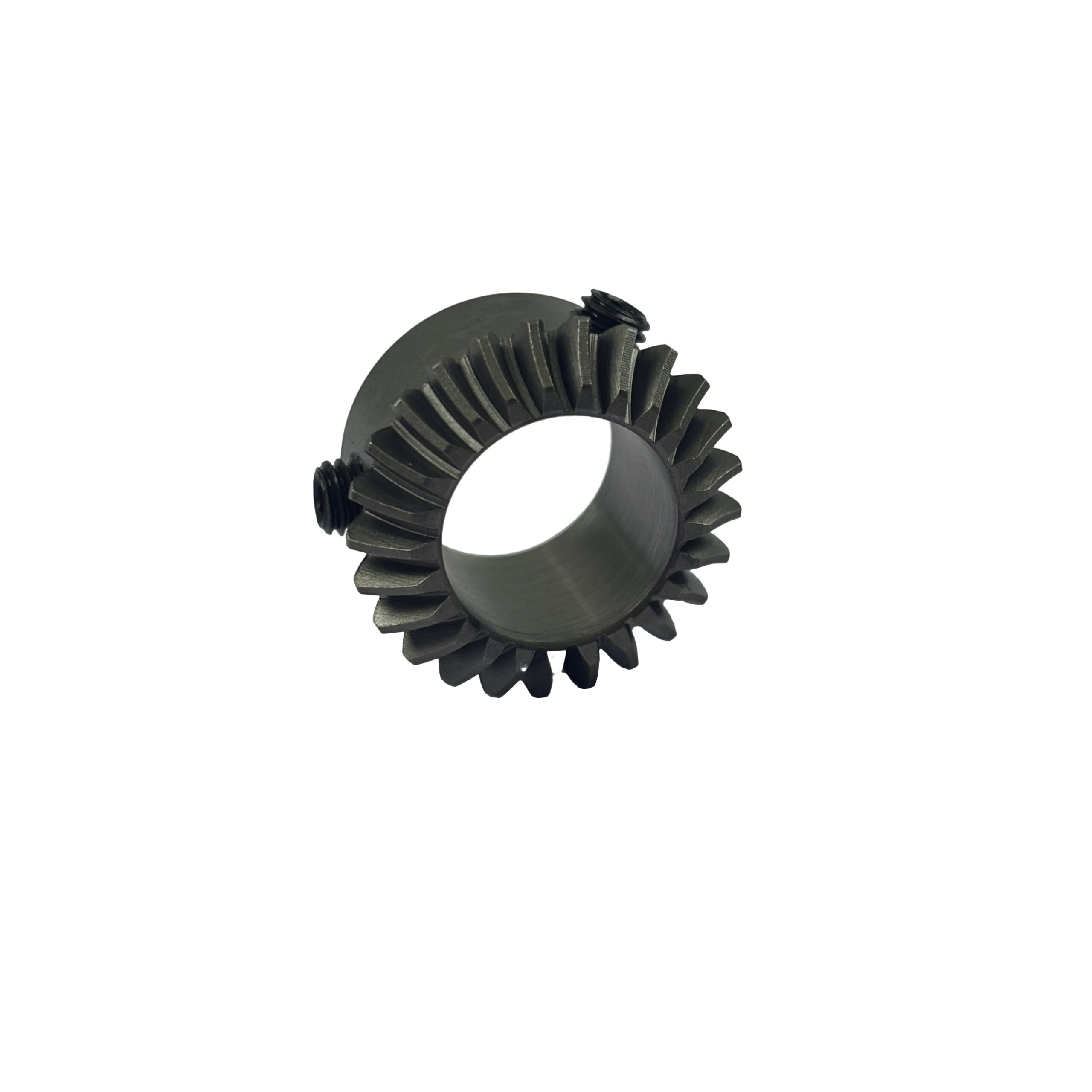

HYJ-001-C2 Spiral Bevel Gear, 20CrMo, module 1, 25 teeth, bore Φ15, right with mark line, assembled, for embroidery / pattern sewing machines.
Description
Model: HYJ-001-C2 (SA4624001 Handwheel Gear for Template Sewing Machine, Φ15, Right, with marking line)
This is a 0° spiral bevel gear for embroidery machines / pattern sewing machines, made of 20CrMo alloy steel.
Parameters: pressure angle 20°, module 1, 25 teeth, helix angle 0°, inner bore 15mm, gear OD 25.5mm, total length 14.3mm, weight 0.0175kg.
Process: normalizing, turning, threaded hole machining, reaming, gear milling, heat treatment, shot blasting, reaming, screw assembly.
With marking line on the right side, high precision and stable transmission, for handwheel drive of embroidery and pattern sewing machines.
Additional information
| weight |
0.0175 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Milling |
