TE02A11700 Chuan-Type H-Shaft Main Spindle Gear
$0.84piece

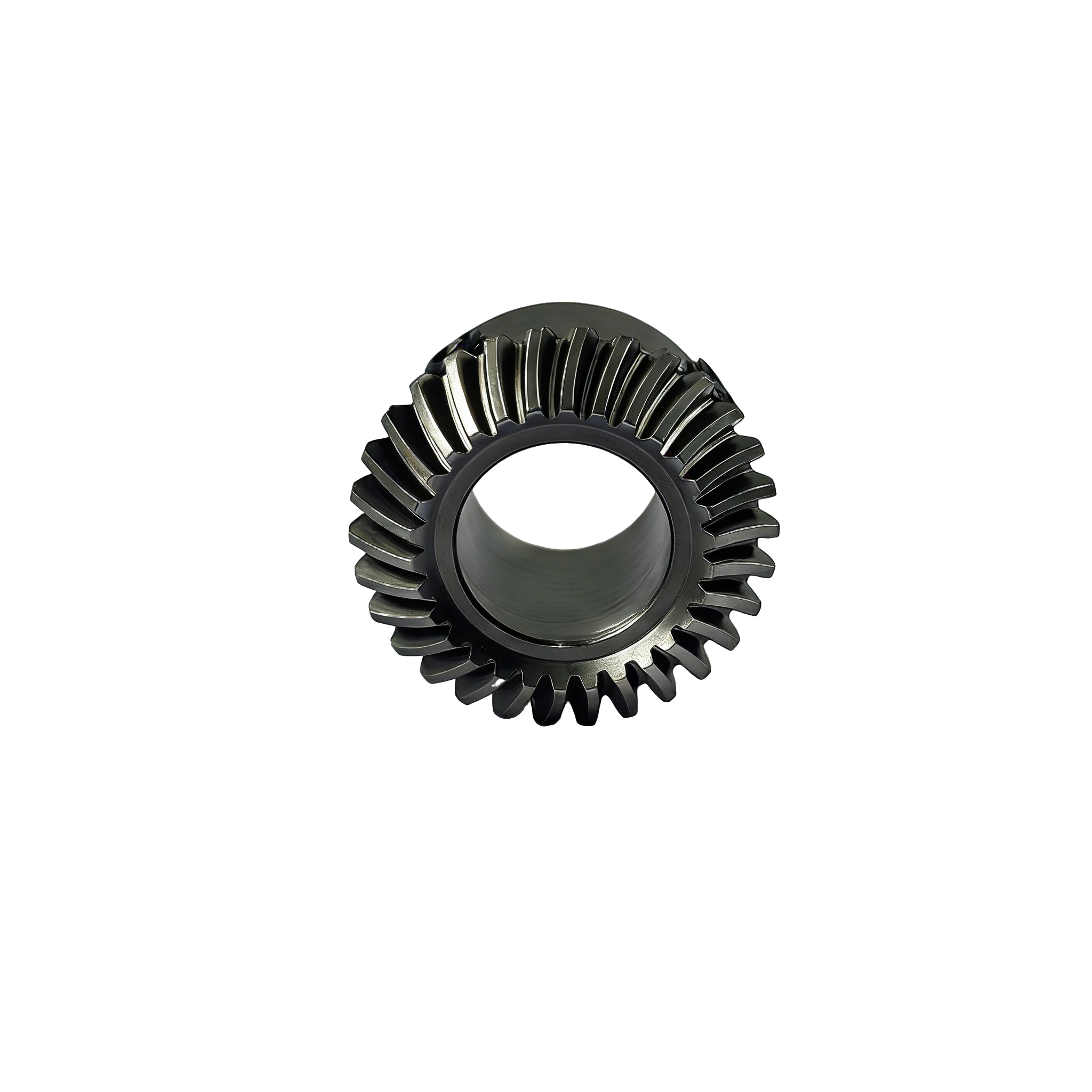

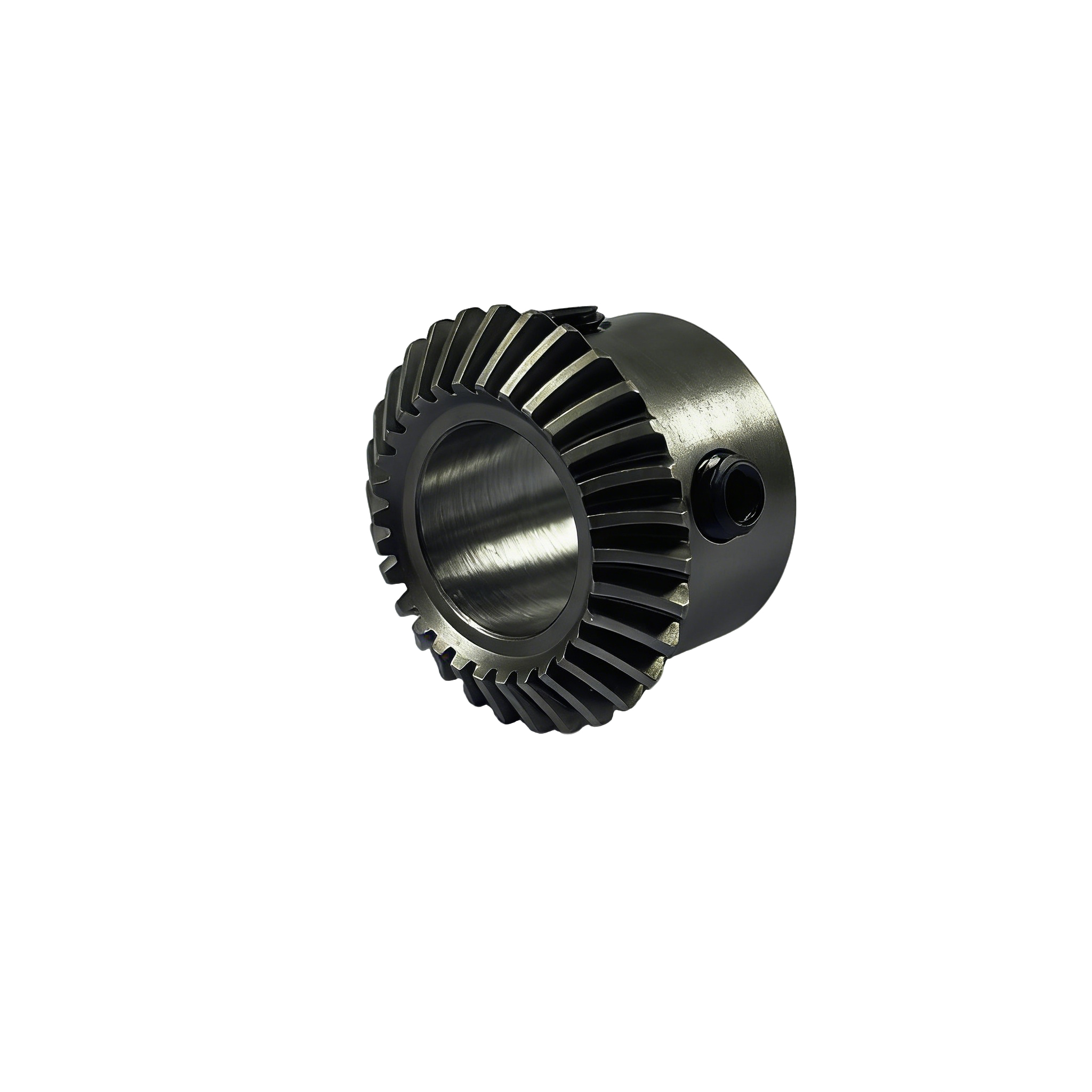

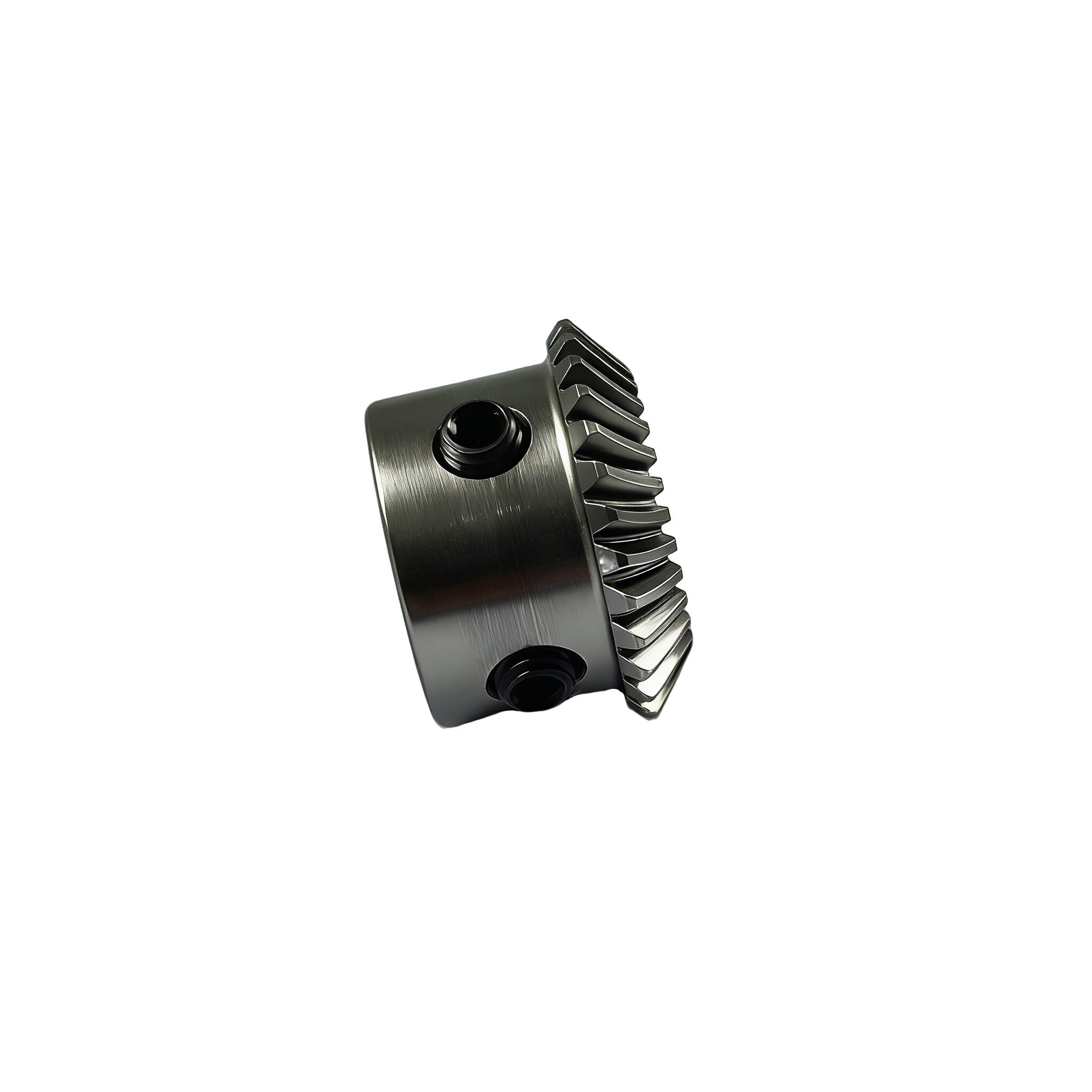

PMK-004-C 0° Spiral Bevel Gear, 20CrMo, module 1, 30 teeth left hand, high assembly precision, for embroidery machine spindle.
Description
Model: PMK-004-C (TE02A11700 Chuan-Type H-Shaft Main Spindle Gear)
This is a 0° spiral bevel gear for embroidery machines and pattern sewing machines, made of 20CrMo alloy steel.
Parameters: pressure angle 20°, module 1, 30 teeth, helix angle 0° left hand, inner bore 15mm, shaft diameter 25mm, gear OD 30.5mm, total length 19.75mm, weight 0.0465kg.
Process: normalizing, turning, threaded hole machining, reaming, gear milling, heat treatment, shot blasting, reaming, screw assembly.
It features stable transmission and reliable strength, suitable for spindle drive of embroidery and pattern sewing machines.
Additional information
| weight |
0.0465 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Milling |
