4825 Brushless Motor, 18V Finished Product
$5.00piece

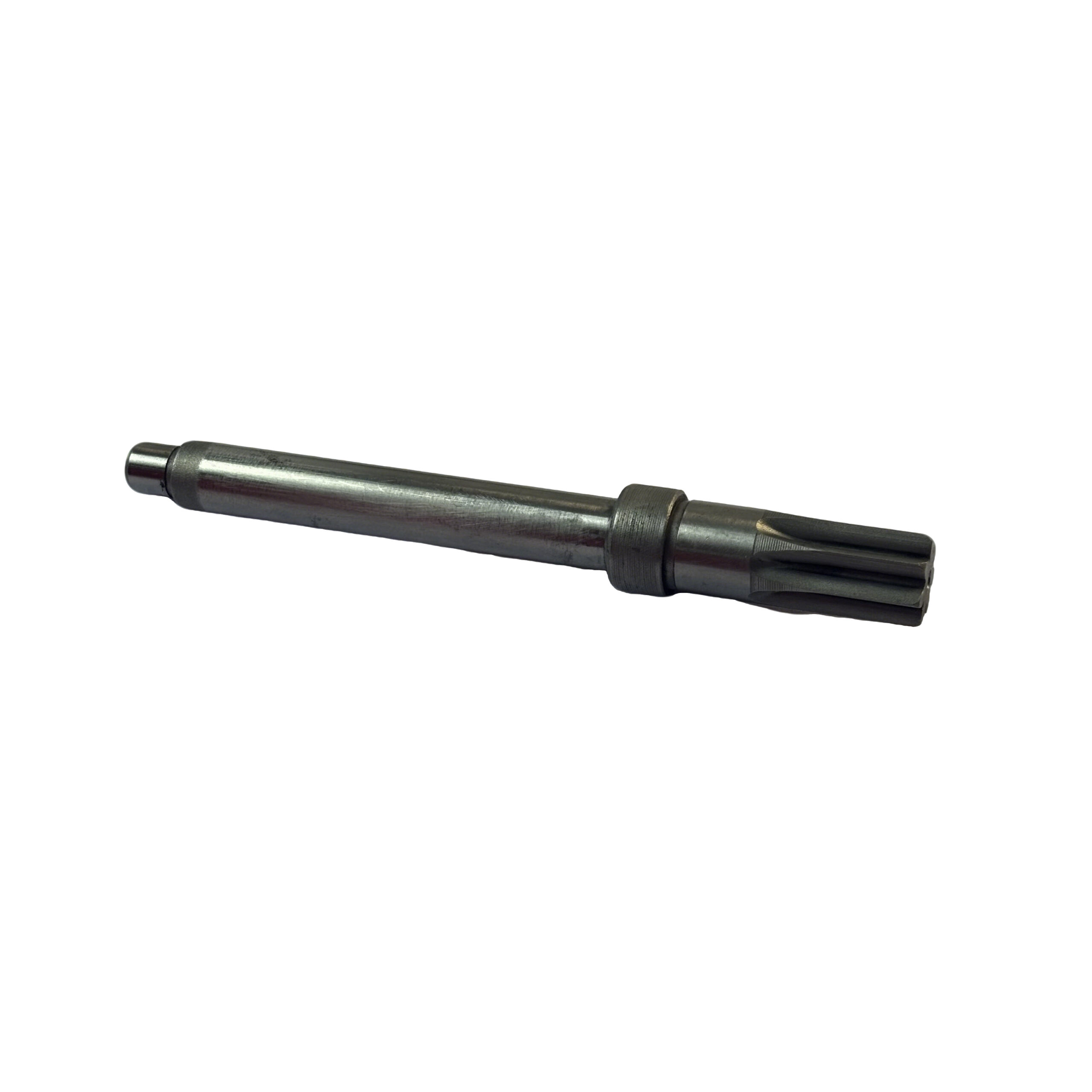

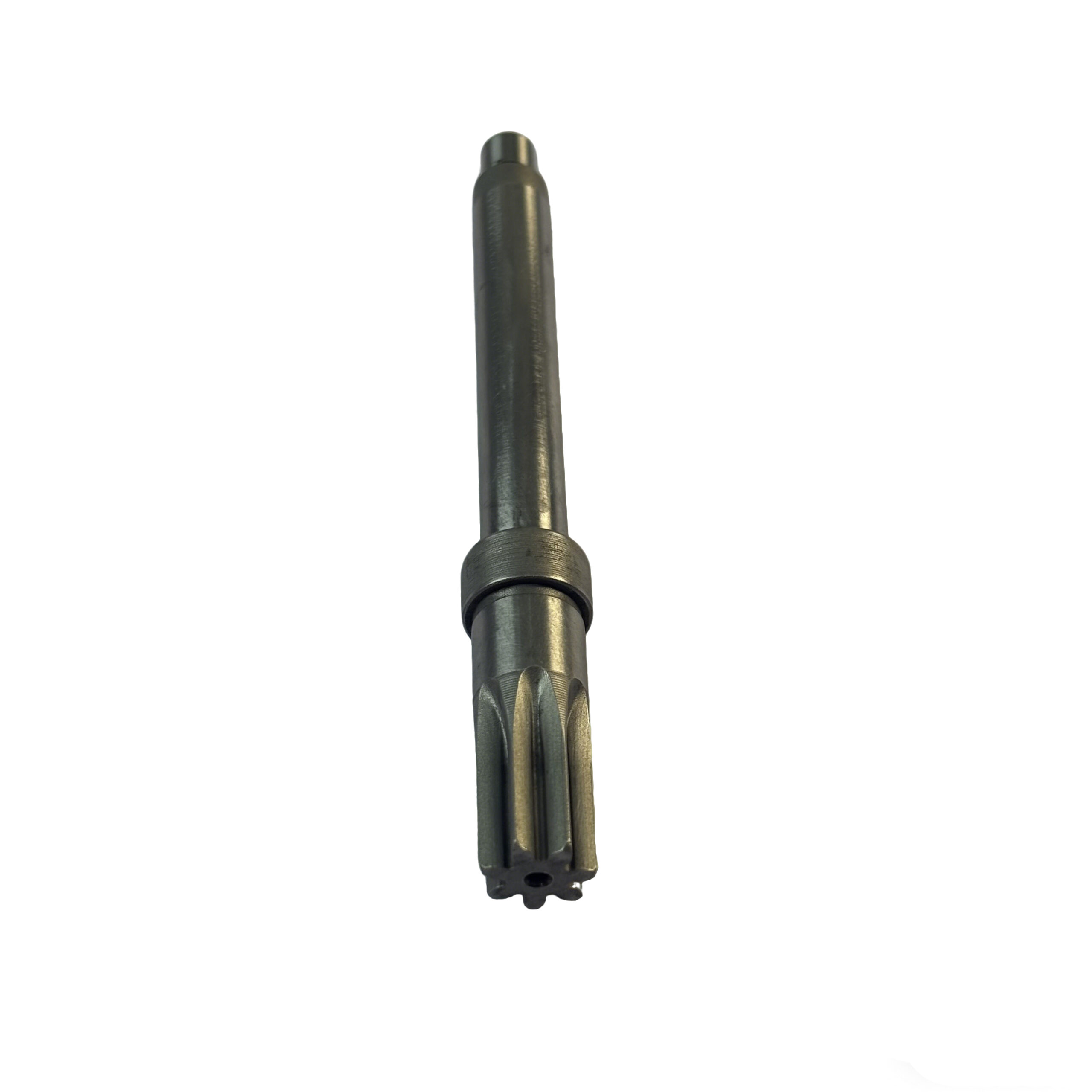

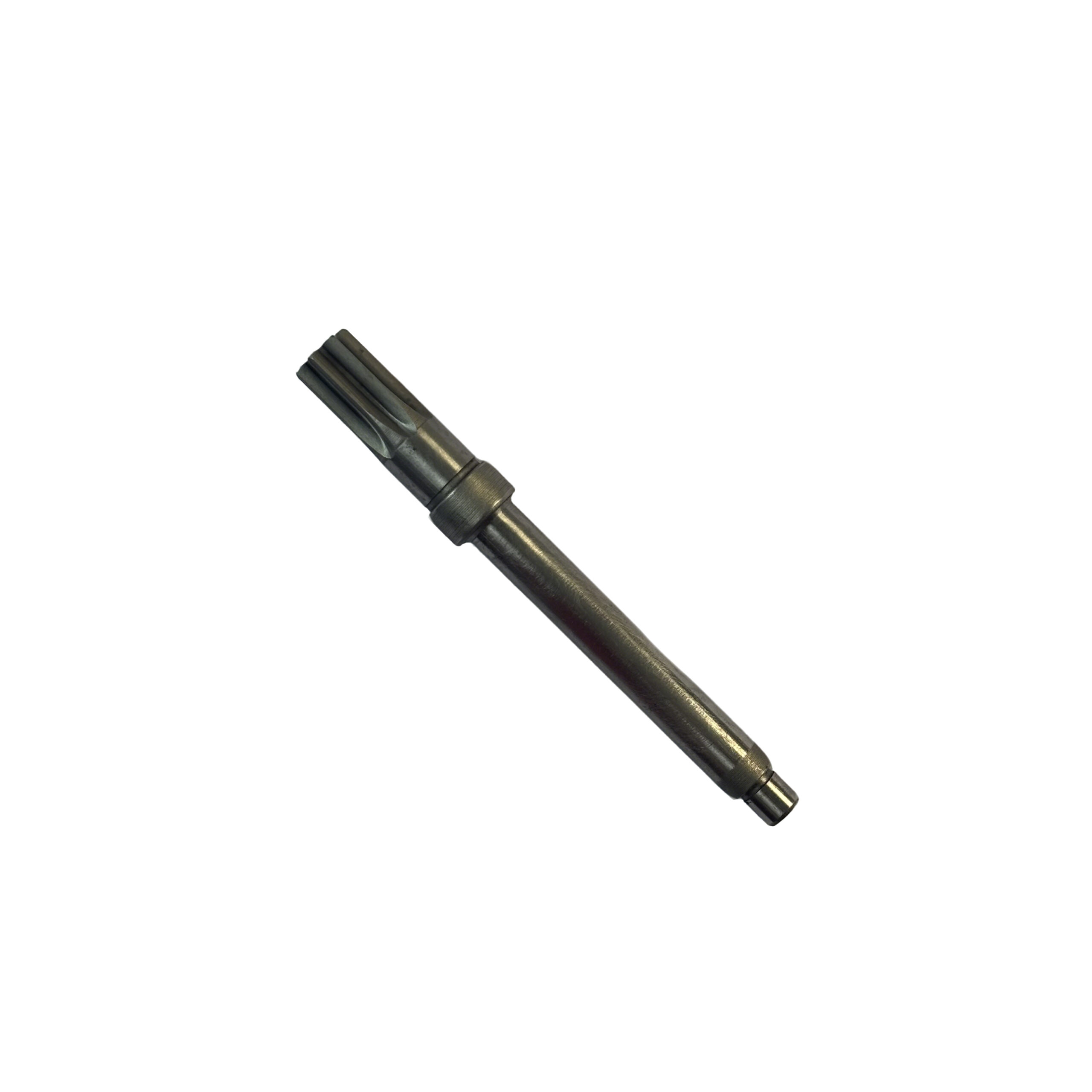

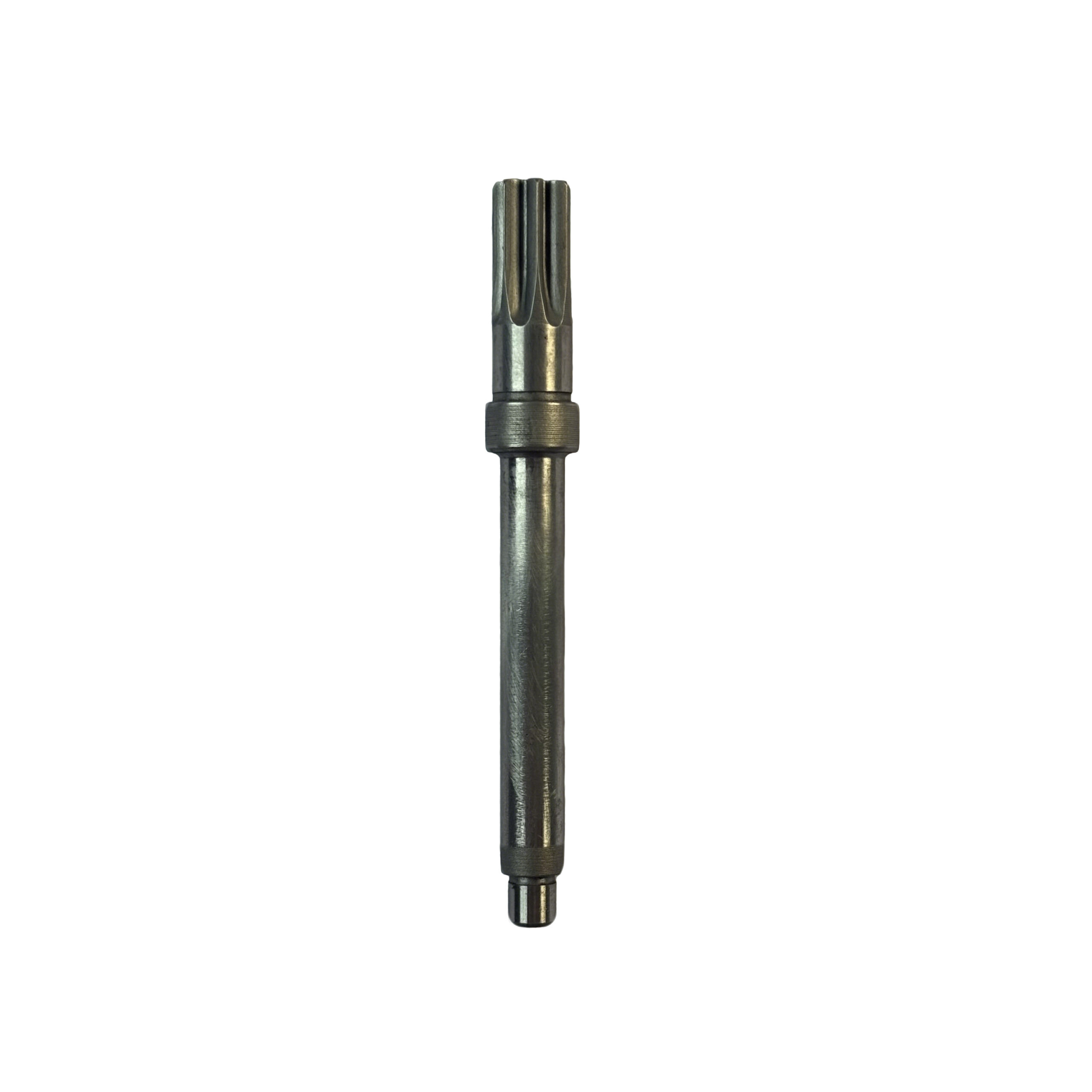

The 4825 Brushless Motor 18V Finished Product is a spur gear with module 1, 7 teeth and 0° helix angle. Its shaft diameter is 8mm, tooth outer diameter 9.6mm and total length 91.4mm. Manufactured through precision processes like normalizing, hobbing and heat treatment, it is a high-performance transmission component for power tools.
Description
Product Name: 4825 Brushless Motor, 18V Finished ProductProduct Category: Spur GearCore Technical Parameters: Module 1, number of teeth 7, helix angle 0°, shaft diameter 8mm, tooth outer diameter 9.6mm, total length 91.4mm. Parameters including pressure angle, speed ratio, offset distance and weight are to be supplemented.Production Process: Adopting a full set of precision processes including normalizing → turning → rough grinding of clamping position → hobbing → heat treatment → shot blasting → outer diameter grinding. Multiple processes are strictly controlled to ensure the dimensional accuracy and structural stability of the gear.Application Field: It is a dedicated matching gear designed for power tools, compatible with the 18V 4825 brushless motor. It can meet the transmission requirements of power tools under high-load operation scenarios and realize efficient power transmission.
Additional information
| weight |
0.0405 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Hobbing |
