HR-3000-T46 (Outer Diameter: 48 mm)
$4.30piece

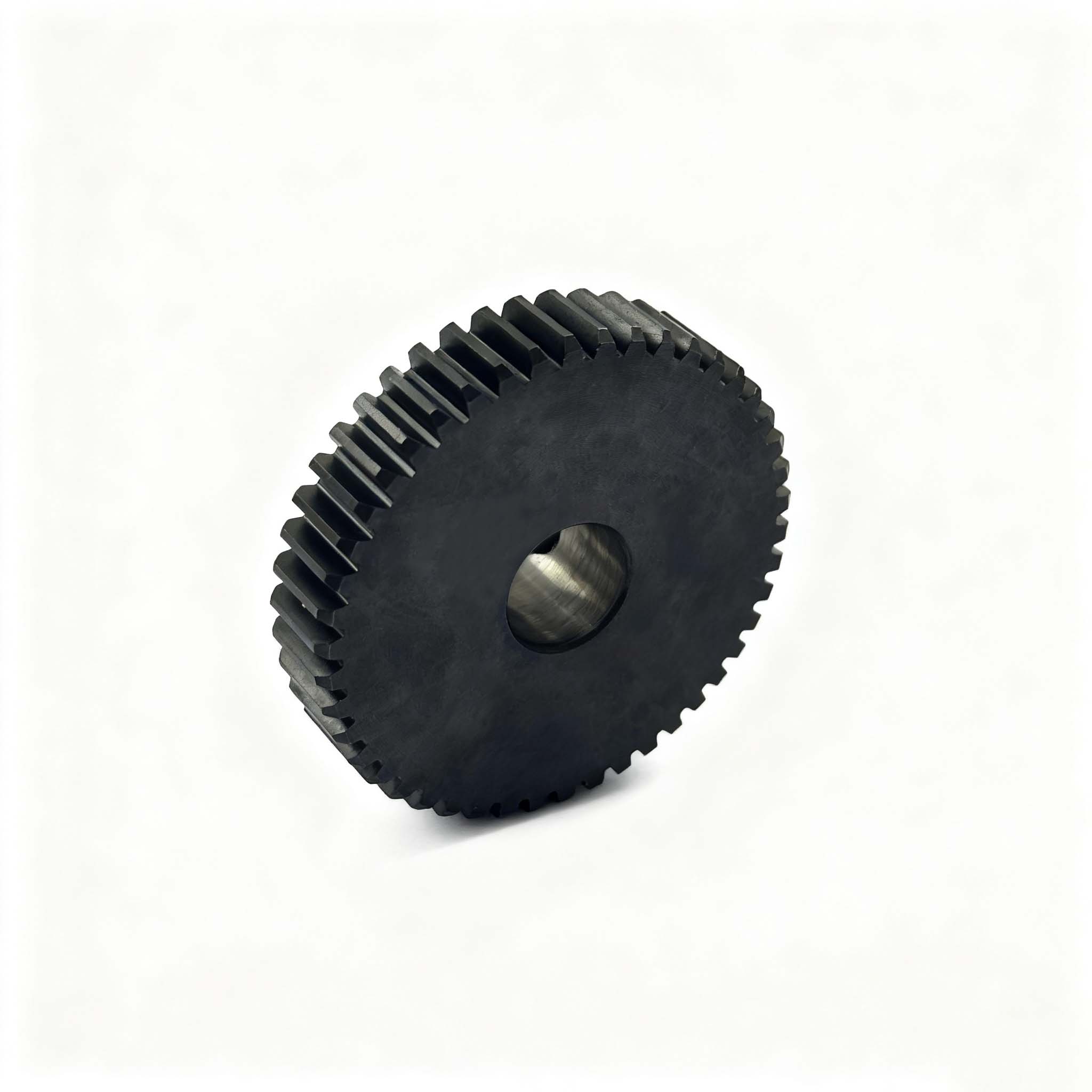

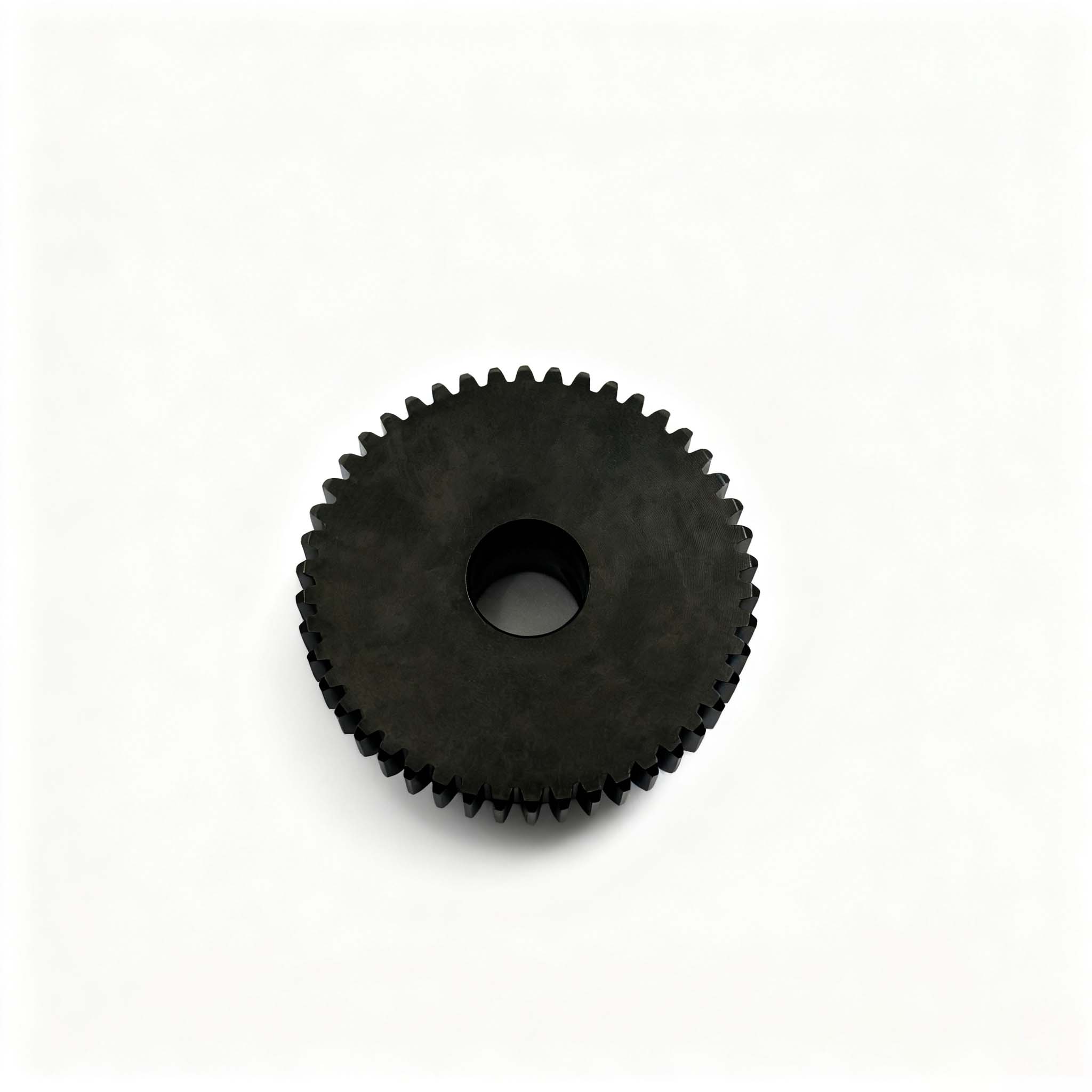

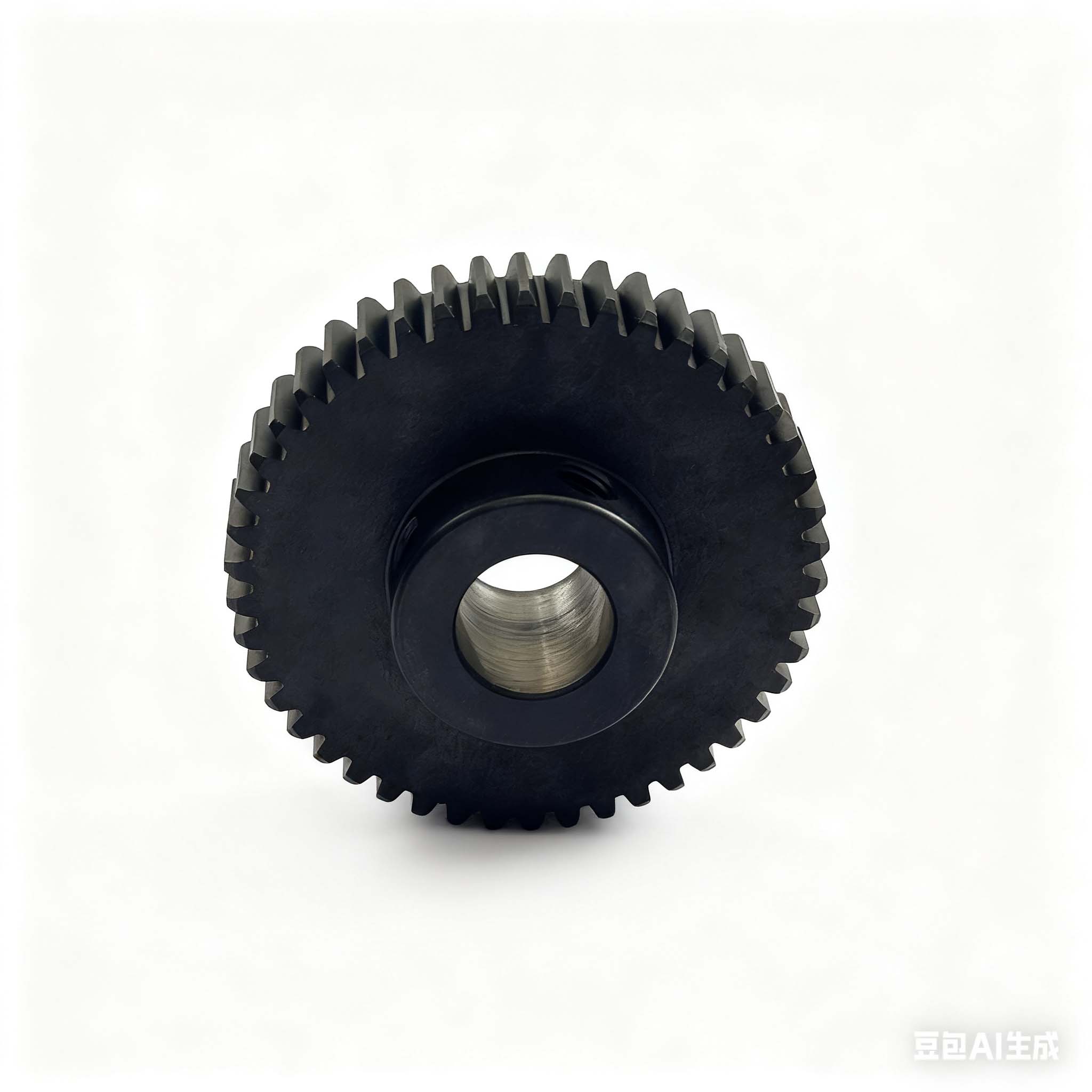

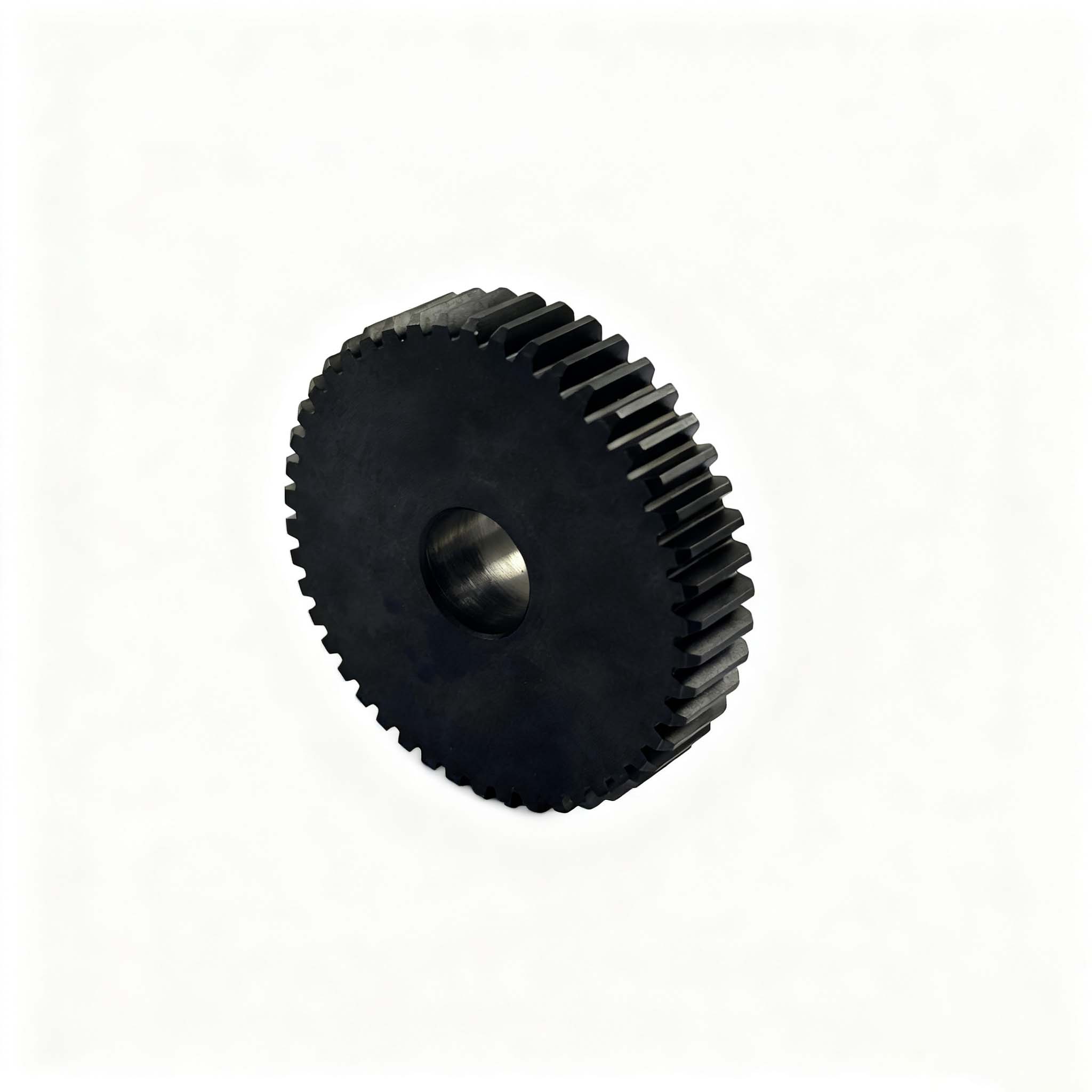

The HR-3000-T46 (Outer Diameter: 48 mm) is a spur gear component made of 20CrMo steel. It features a pressure angle of 20°, module of 1, 46 teeth, and a helix angle of 0°, with an inner diameter of 12mm, outer tooth diameter of 48mm, total length of 18mm, and unit weight of 0.1364kg. Precision-machined through multiple processes, it is a dedicated transmission gear for power tools.
Description
Product Name: HR-3000-T46 (Outer Diameter: 48 mm)
Product Category: Spur Gear
This product is made of high-quality 20CrMo alloy steel, with accurate and reliable core technical parameters: pressure angle of 20°, module of 1, number of teeth of 46, helix angle of 0°, inner diameter of 12mm, outer tooth diameter of 48mm, total length of 18mm, and unit weight of 0.1364kg.
The product is manufactured in compliance with standardized precision processes: sawing → turning → screw hole machining → gear hobbing → heat treatment → shot blasting → blackening → reaming. Each process strictly controls machining accuracy and surface quality to ensure stable product performance.
As a professional power tool gear, it is suitable for the transmission mechanisms of various power tools, capable of efficiently transmitting power and providing strong support for the stable operation and durability of power tools.
Additional information
| weight |
0.1364 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Hobbing |
