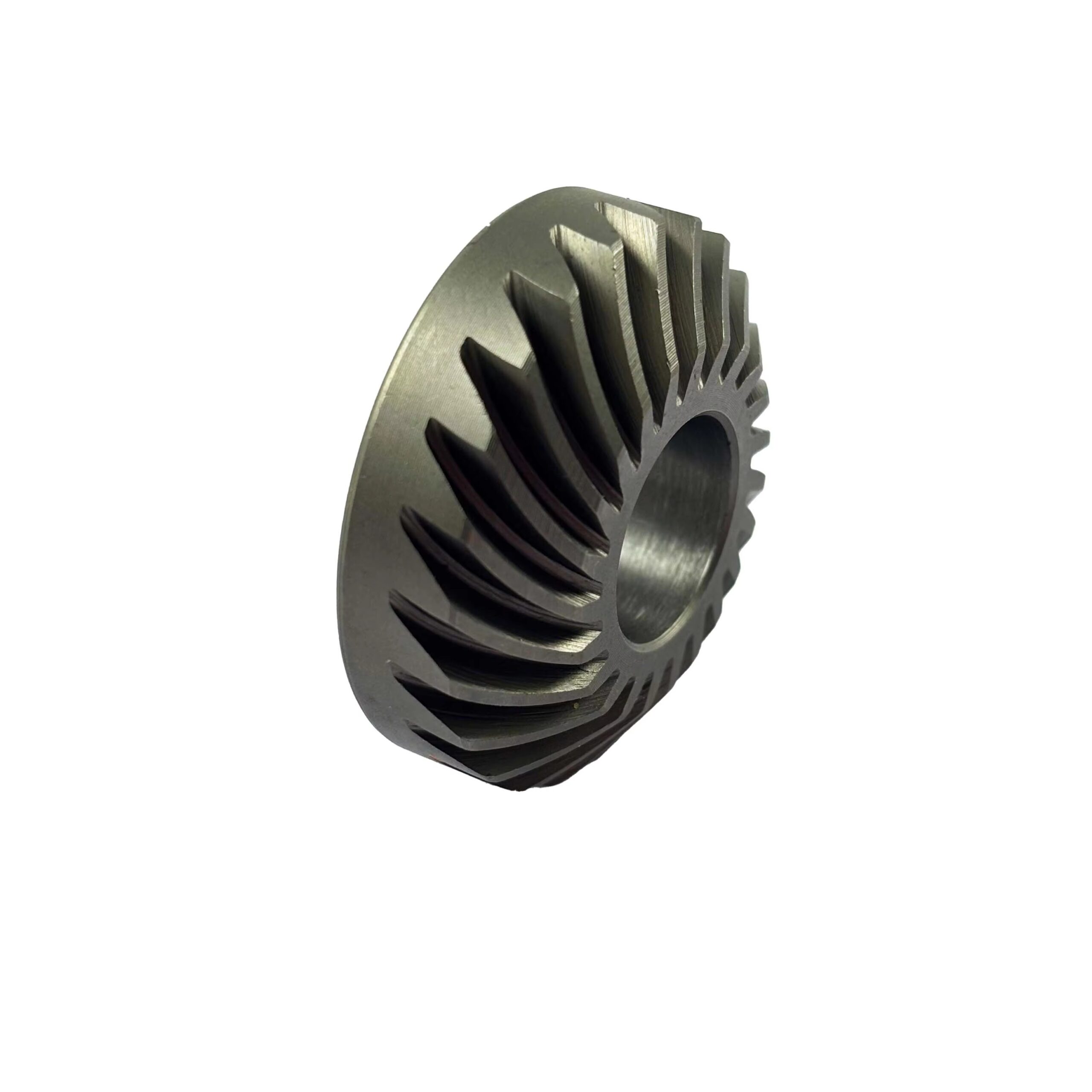

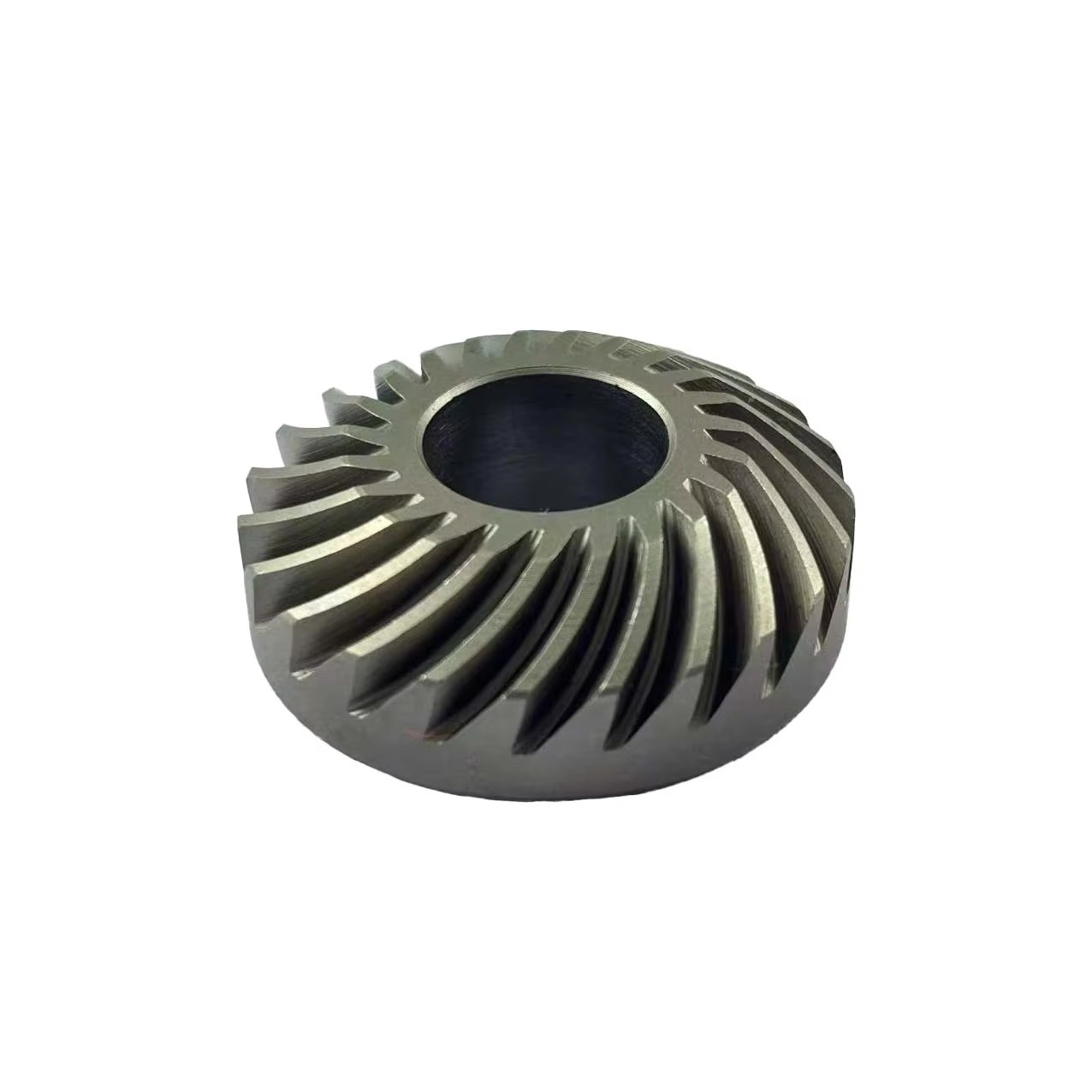

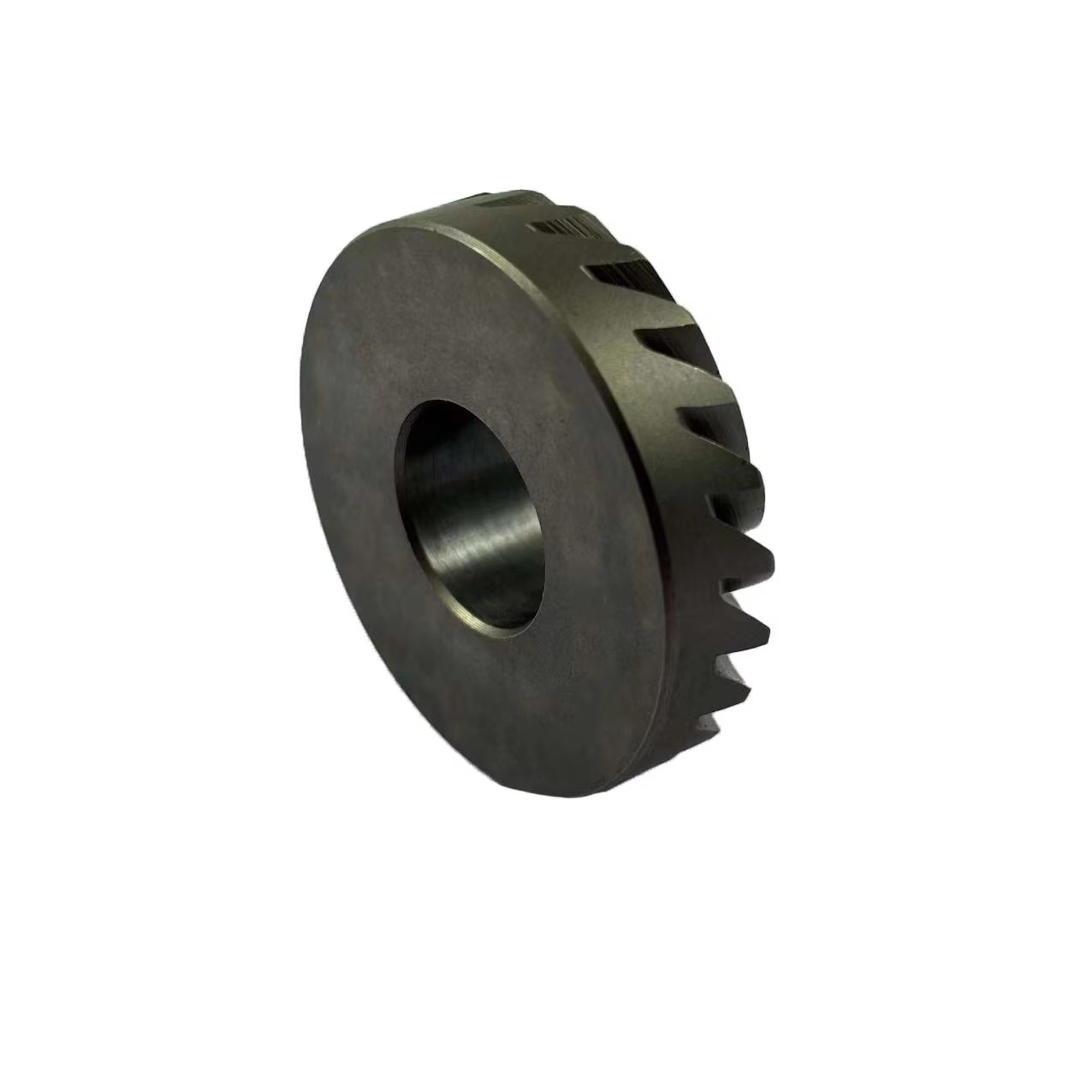

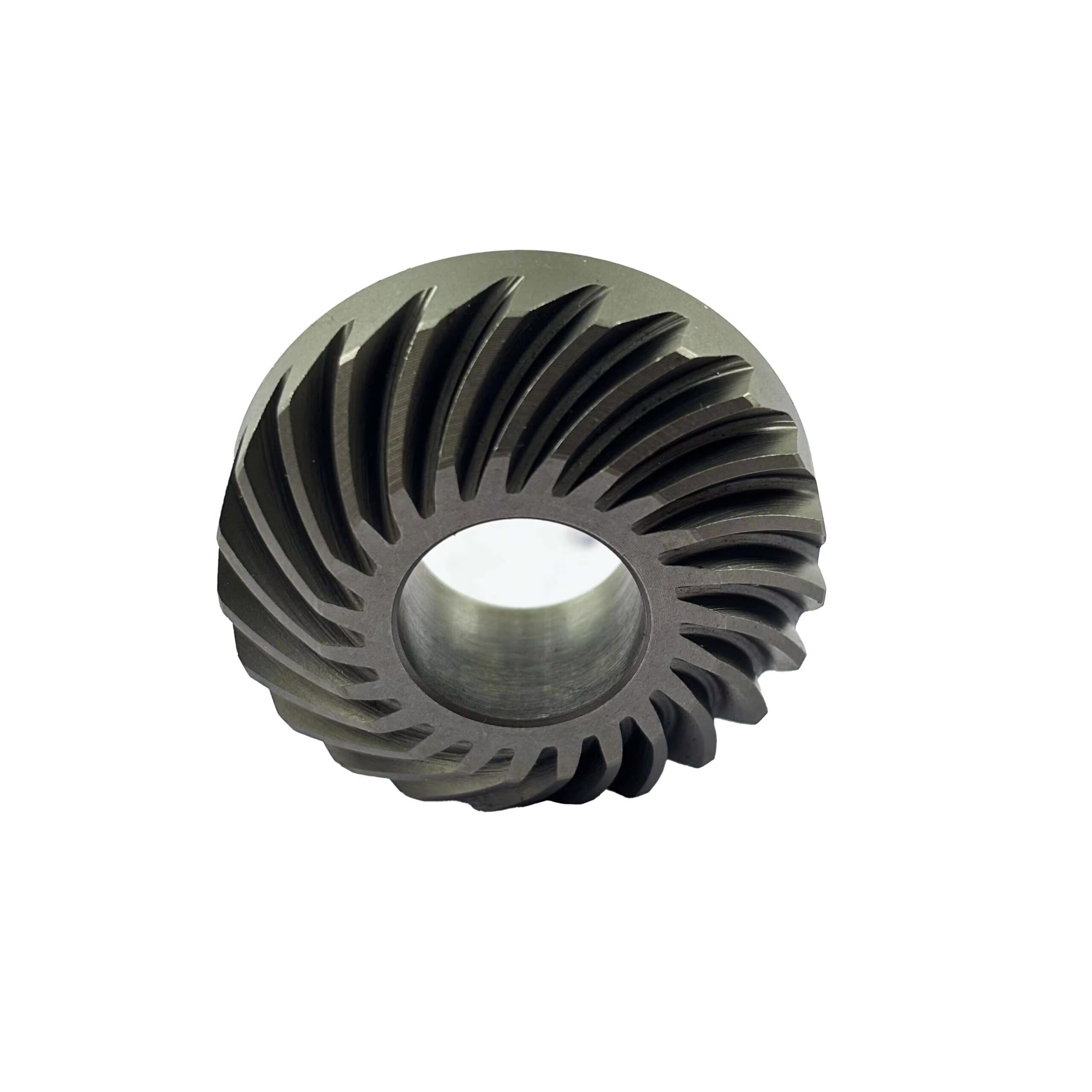

QY-006-C is a spiral bevel gear made of 20CrMnTi, with pressure angle 20°, module 1.5, 23 teeth, spiral angle 35°R, inner diameter 14mm, outer tooth diameter 35.64mm, total length 12.19mm, weight 0.0466kg. Precision machined, it is used in power tool transmissions.
Description
Product Name: QY-006-C
Category: 2024501 Spiral Bevel Gear
This product is made of 20CrMnTi alloy steel with key parameters: pressure angle 20°, module 1.5, number of teeth 23, spiral angle 35° (Right Hand), inner diameter 14mm, outer tooth diameter 35.64mm, total length 12.19mm, unit weight 0.0466kg.
Manufacturing process: normalizing → turning → gear milling → heat treatment → shot blasting → reaming → 100% visual inspection. The whole process is precisely controlled to ensure gear accuracy and service stability.
It is a special gear for power tools, suitable for transmission systems of various power tools.
Additional information
| weight |
0.0466 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Milling |
