200171 and 194460
$20.37piece

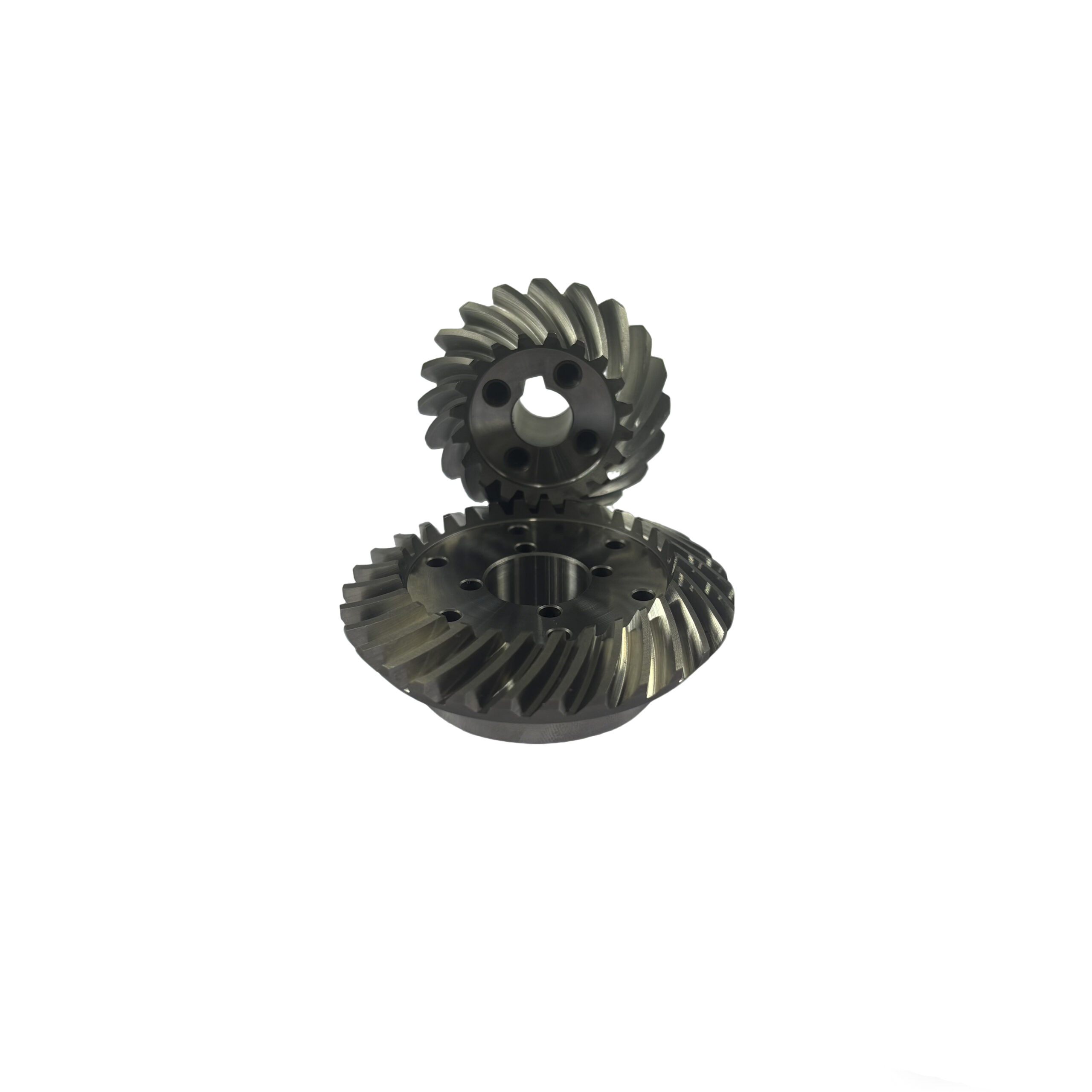

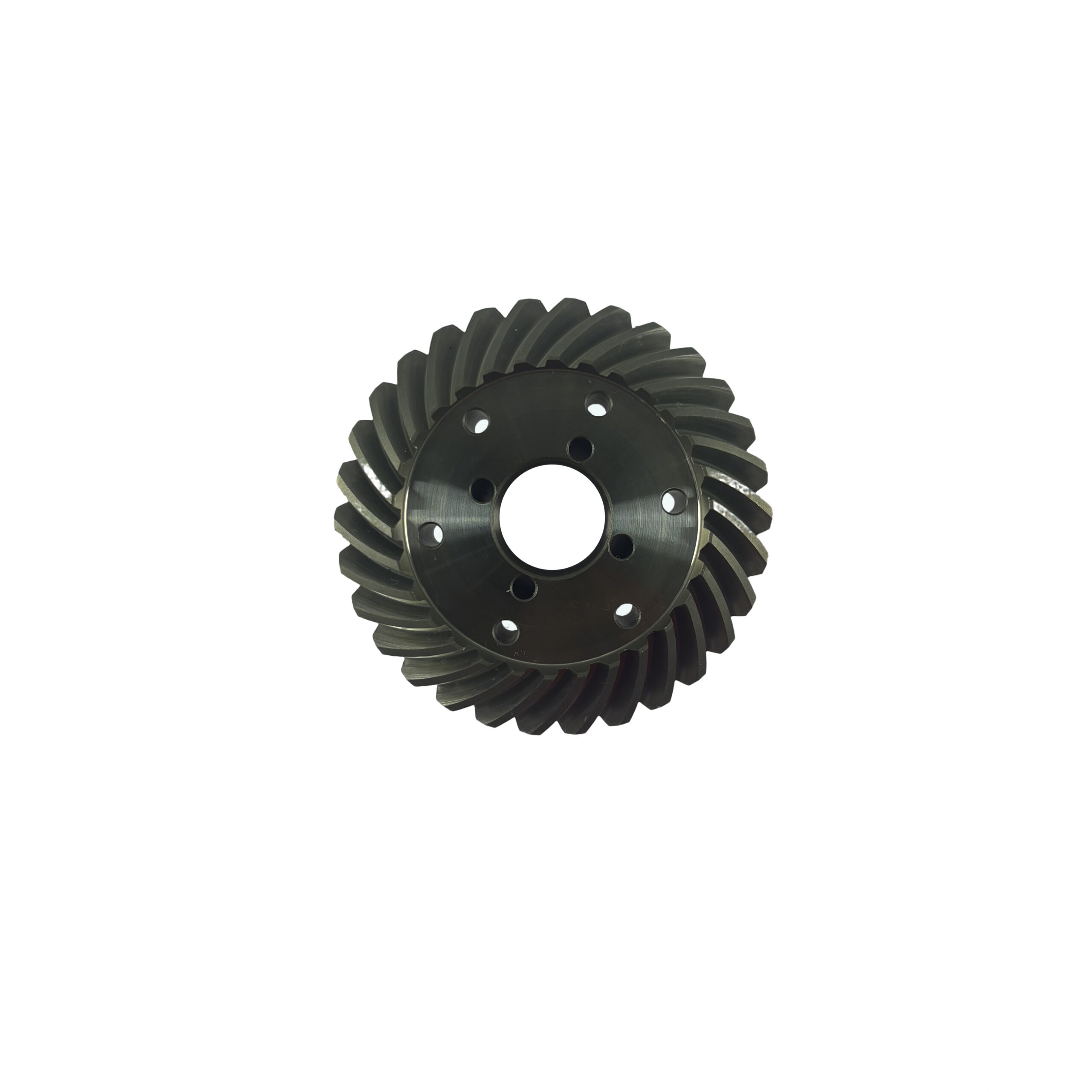

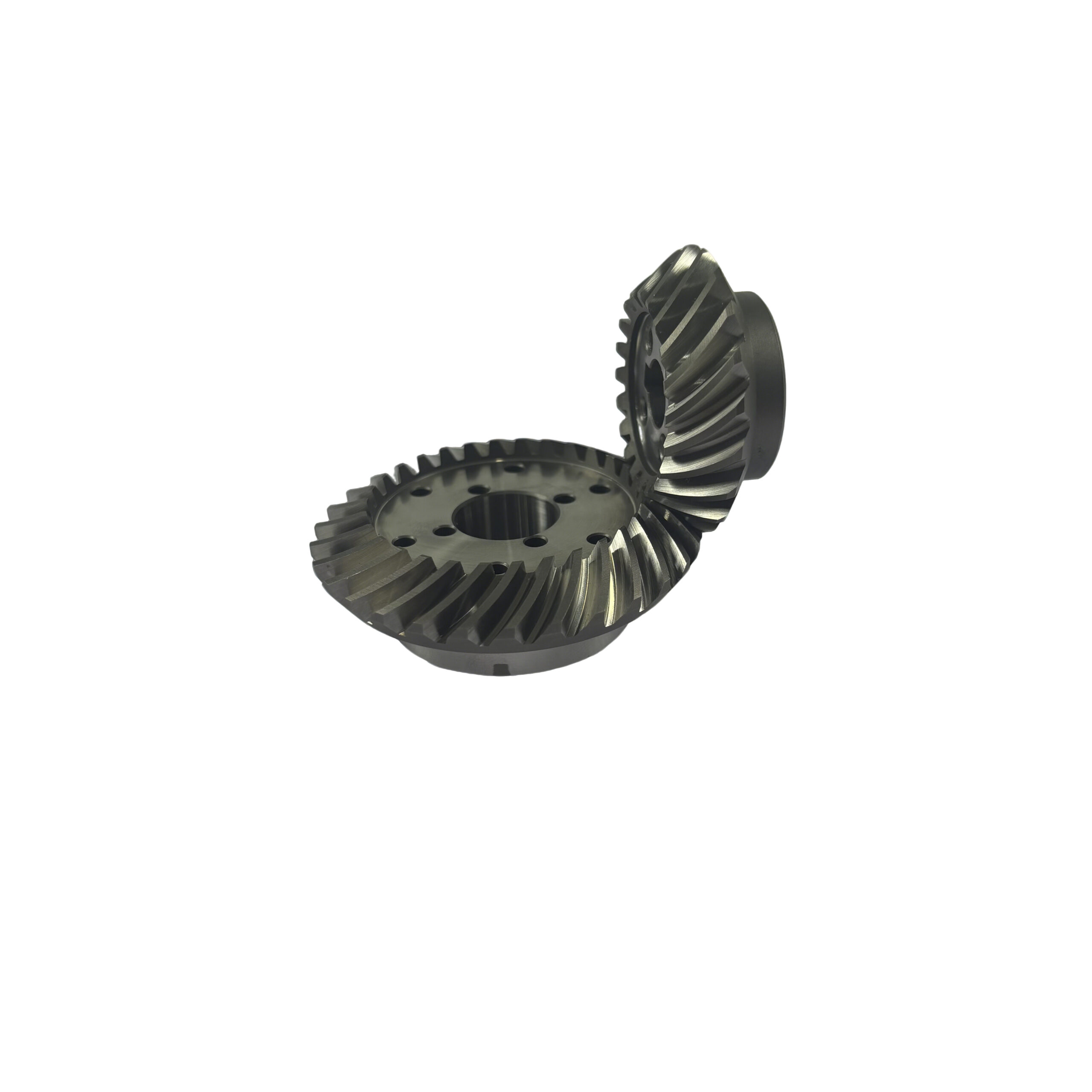

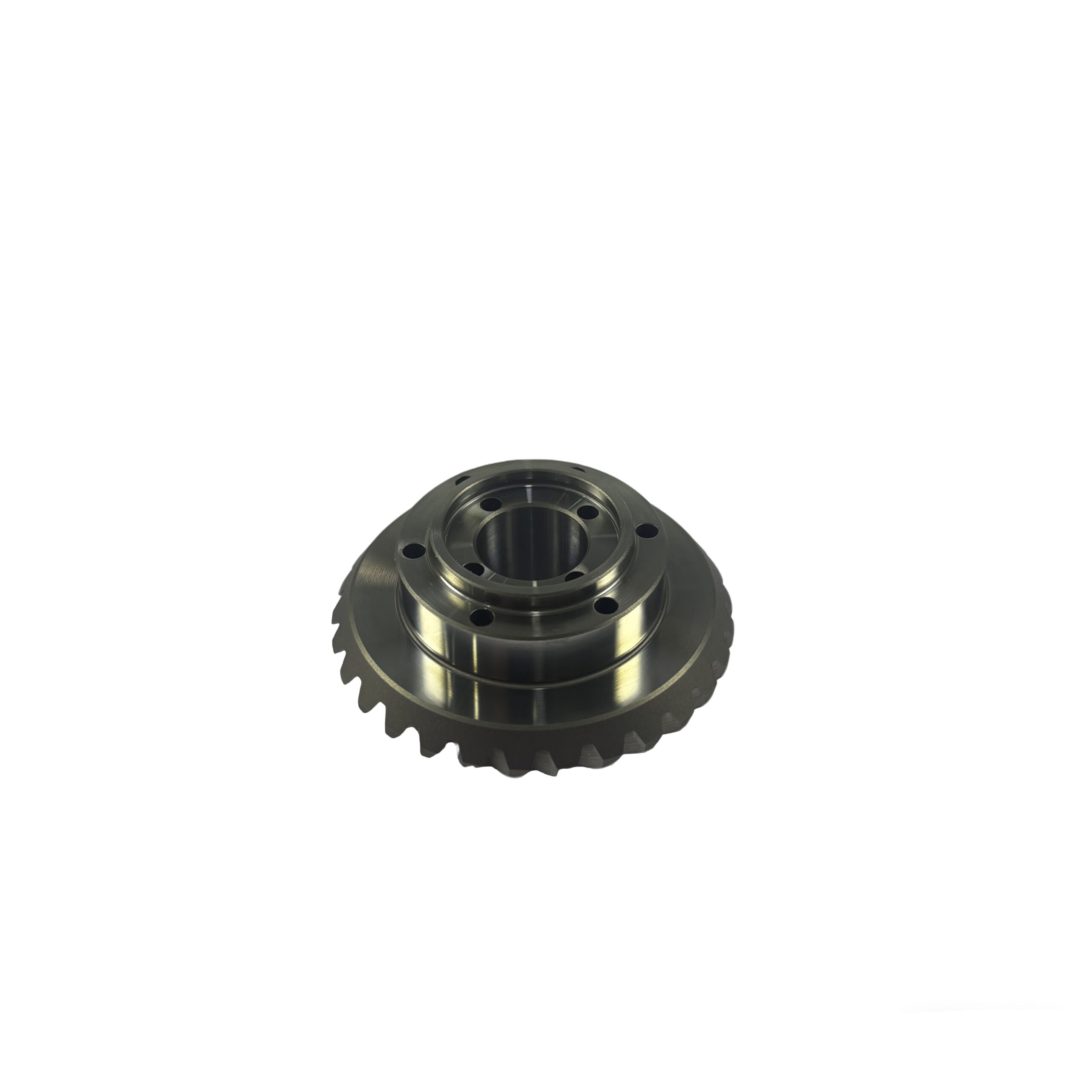

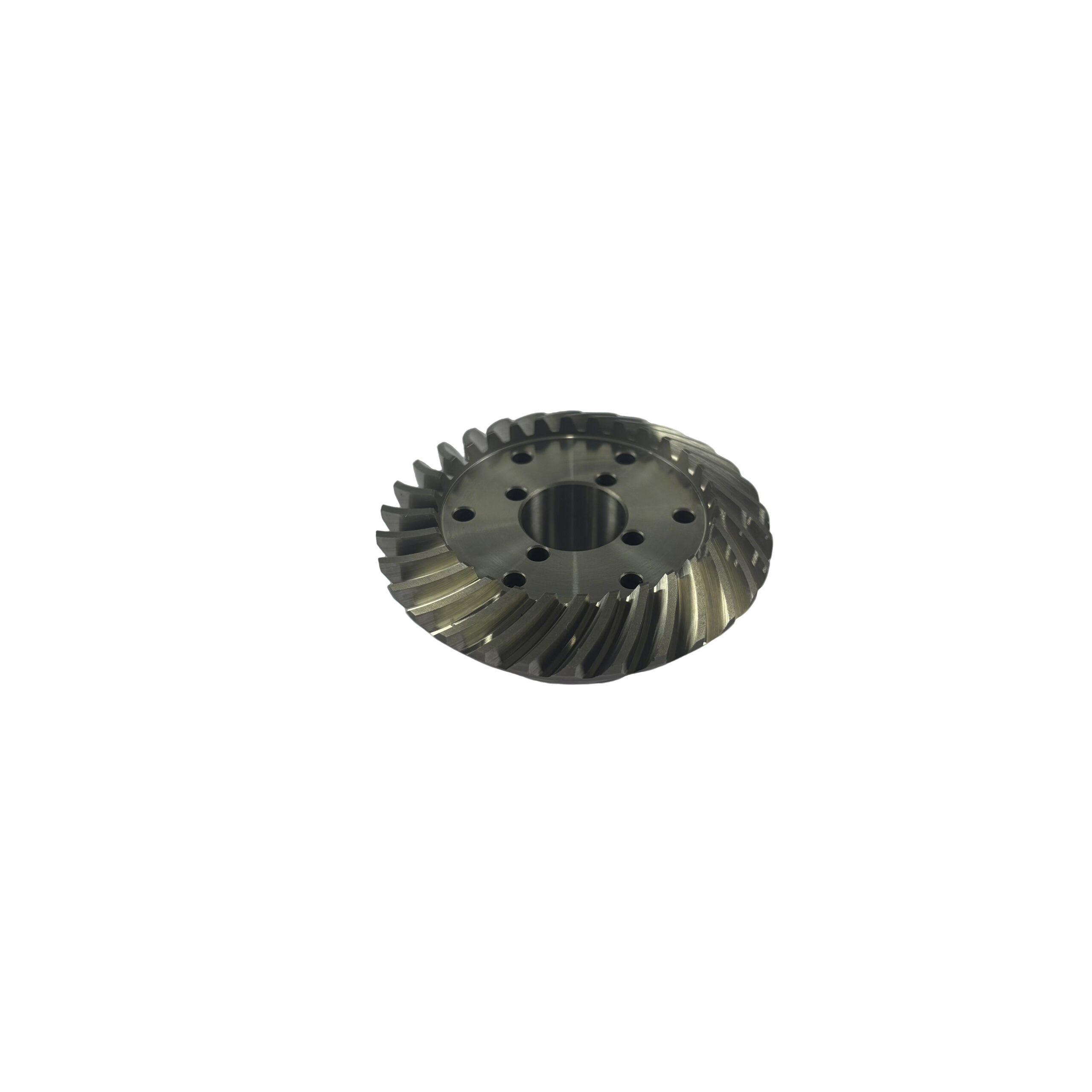

FBJG-230802-002 (20L Module 2 Bevel Gear) and FBJG-230802-003 (30R Module 2 Bevel Gear)
$30.56piece
QZ-015-C
Module 2 Left-Hand Spiral Bevel Gear, 20° pressure angle, 20 teeth, 35°L spiral angle.
Size: ID 10mm, OD 43.19mm, total length 17.96mm, weight 0.0948kg.
20CrMo steel, finished with heat treatment, shot blasting and precision grinding. Applied for power tools.
QZ-016-C
Module 2 Right-Hand Spiral Bevel Gear, 20° pressure angle, 20 teeth, 35°R spiral angle.
Size: ID 10mm, OD 43.19mm, total length 17.96mm, weight 0.2108kg.
20CrMo alloy steel with full precision machining & heat treatment. Suitable for power tool transmission parts.
Description
QZ-015-C （FBJG-230802-002）

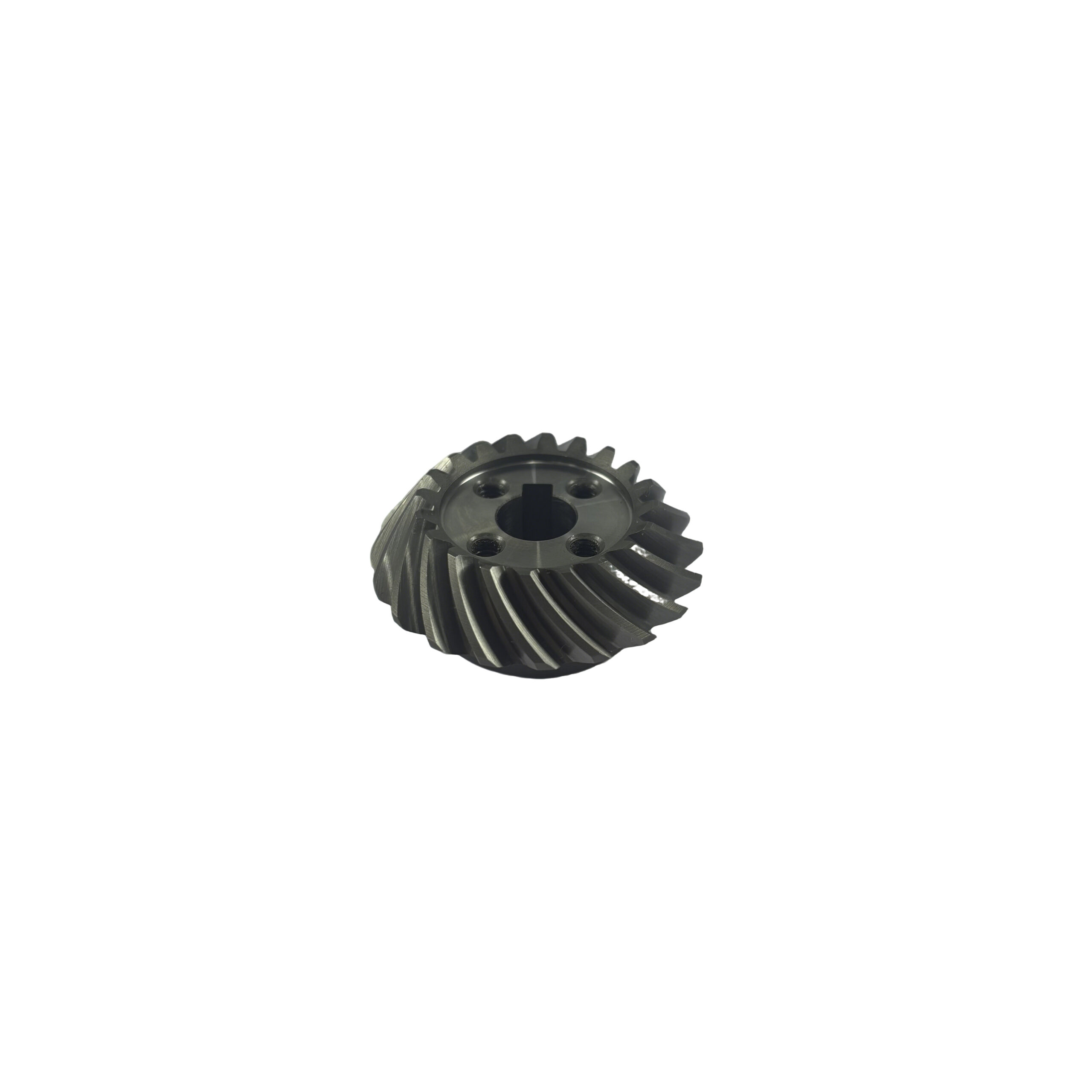

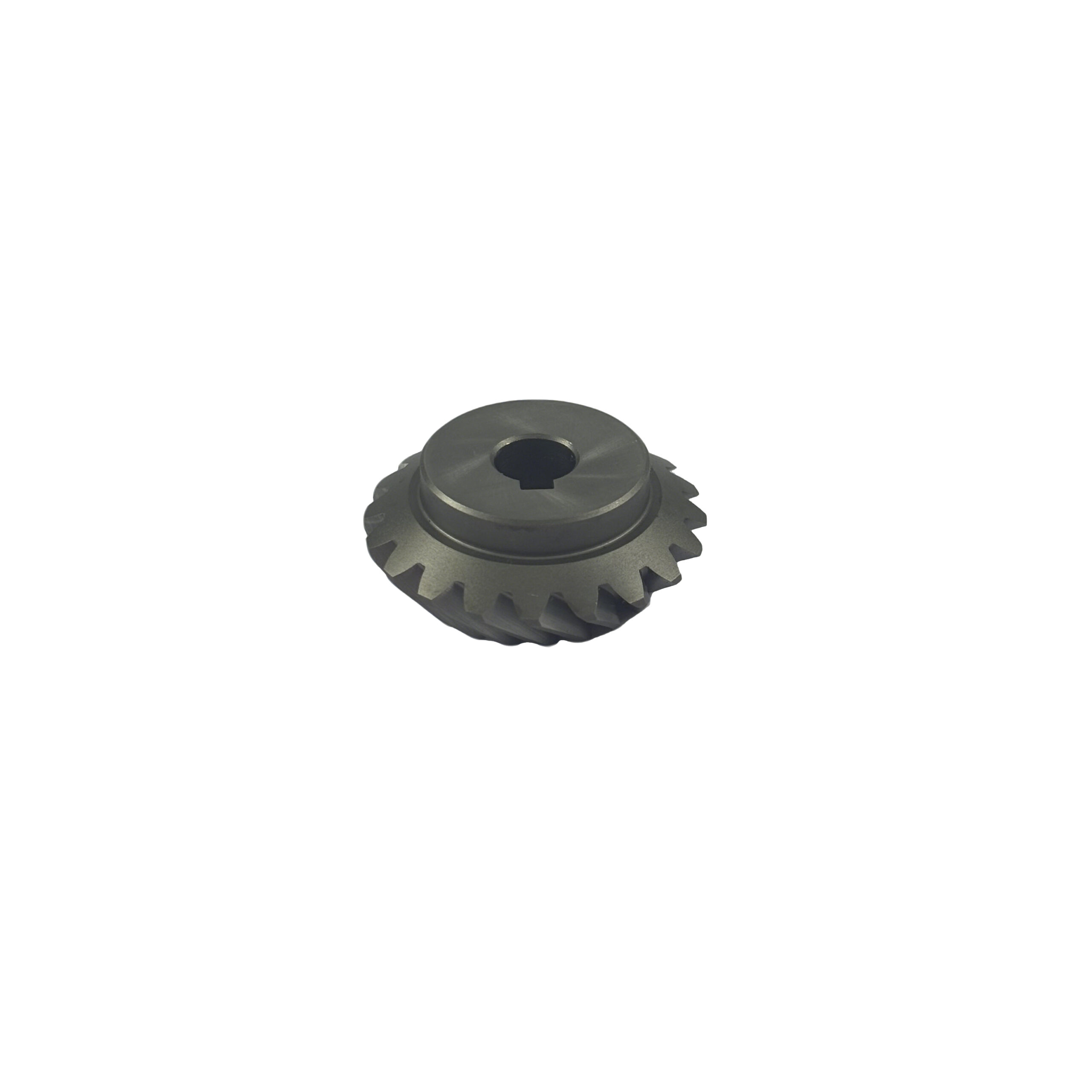

Model FBJG-230802-002 is a Module 2 Left-Hand Spiral Bevel Gear.
Pressure angle: 20°, tooth number: 20, gear ratio: 1, spiral angle: 35°L.
Inner diameter: 10mm, outer gear diameter: 43.19mm, total length: 17.96mm, weight: 0.0948kg.
Made of 20CrMo alloy steel.
Processing flow: Sawing, turning, wire cutting keyway, screw hole machining, gear milling, heat treatment, hanging shot blasting, reaming, facing, length finishing and gear grinding.
High precision and high mechanical strength, specially used for power tool transmission.
QZ-016-C （FBJG-230802-003）

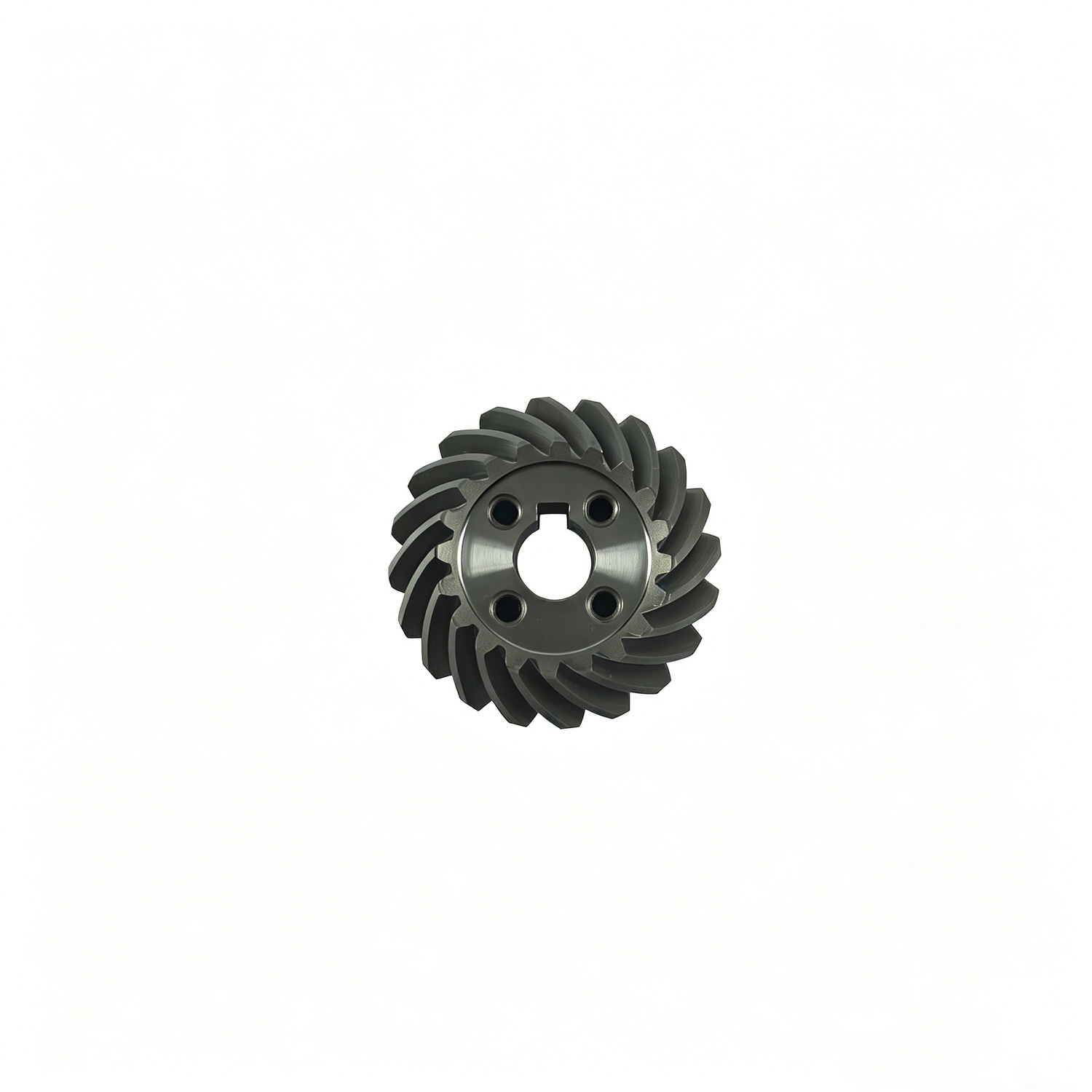

Model FBJG-230802-003 is a Module 2 Right-Hand Spiral Bevel Gear.
Pressure angle: 20°, tooth number: 20, gear ratio: 1, spiral angle: 35°R.
Inner diameter: 10mm, outer gear diameter: 43.19mm, total length: 17.96mm, weight: 0.2108kg.
Adopt 20CrMo alloy steel material.
Manufactured by sawing, turning, CNC machining center processing, gear milling, heat treatment, hanging shot blasting, boring & facing and precision gear grinding.
Stable performance, ideal for power tool gear matching.
Additional information
| QZ-015-C andQZ-016-C weight |
0.0948and0.2108 |
|---|---|
| QZ-015-C andQZ-016-C Core Components |
gear |
| QZ-015-C andQZ-016-C Craftsmanship |
Milling |
