7J10105 Pinion
$1.00piece
Description

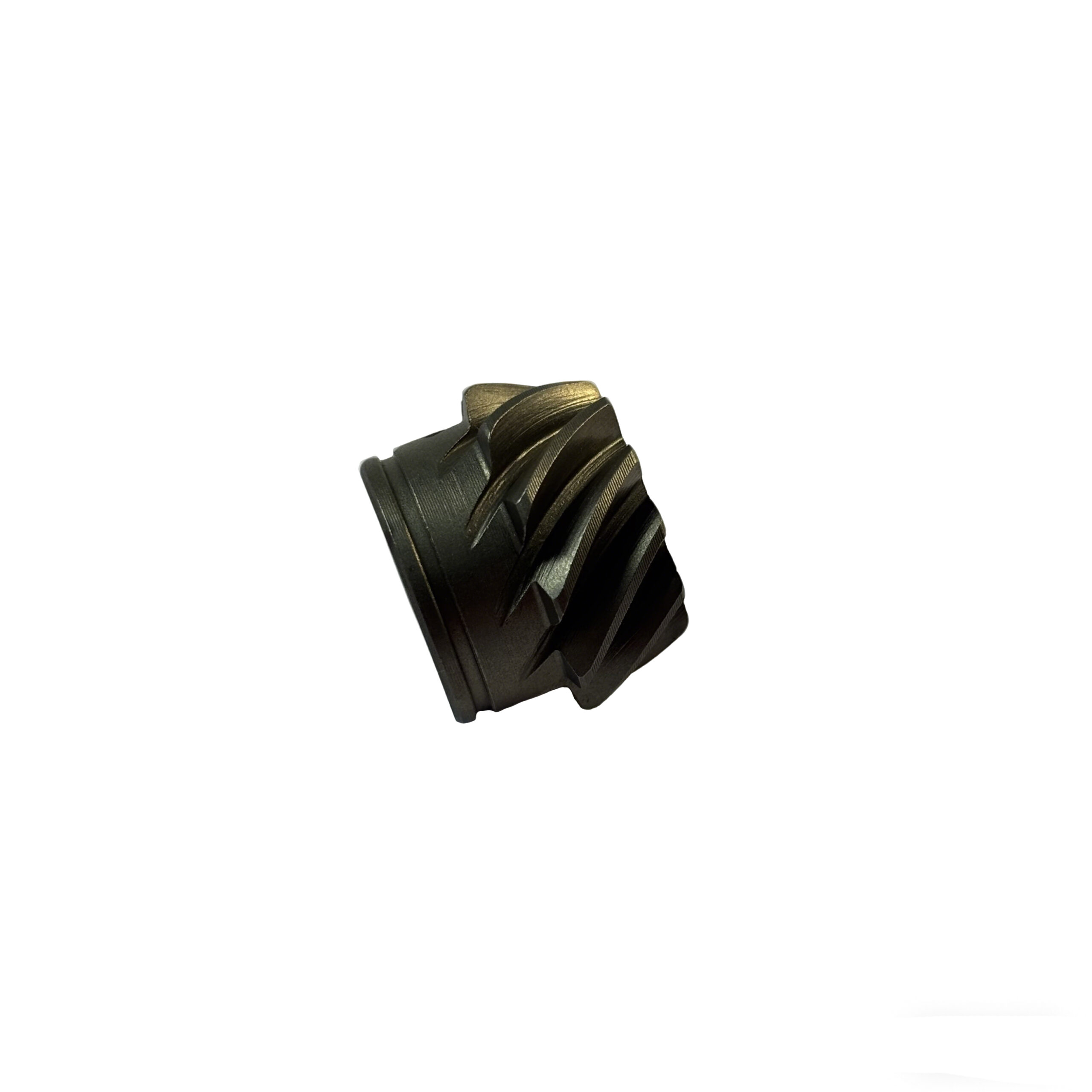

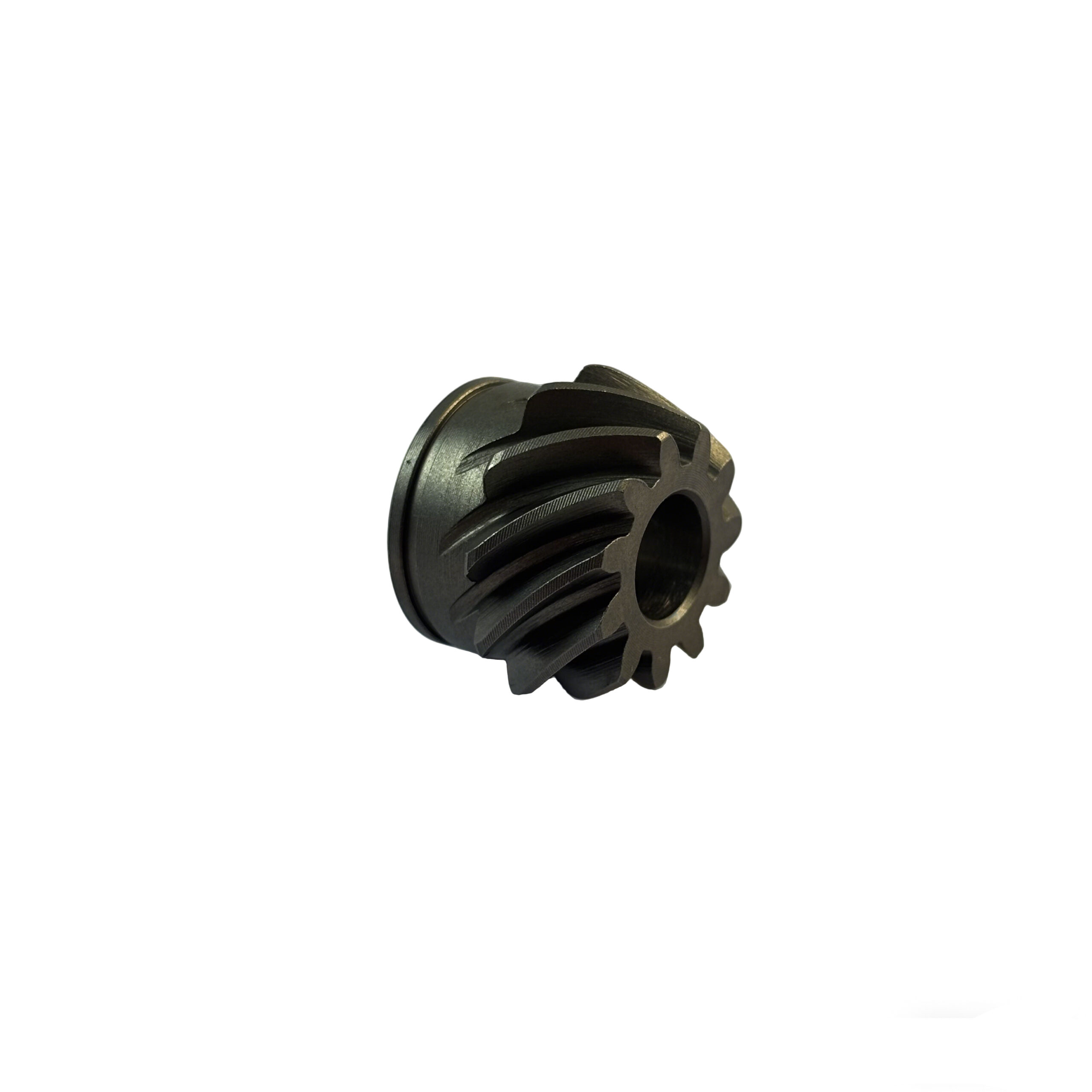

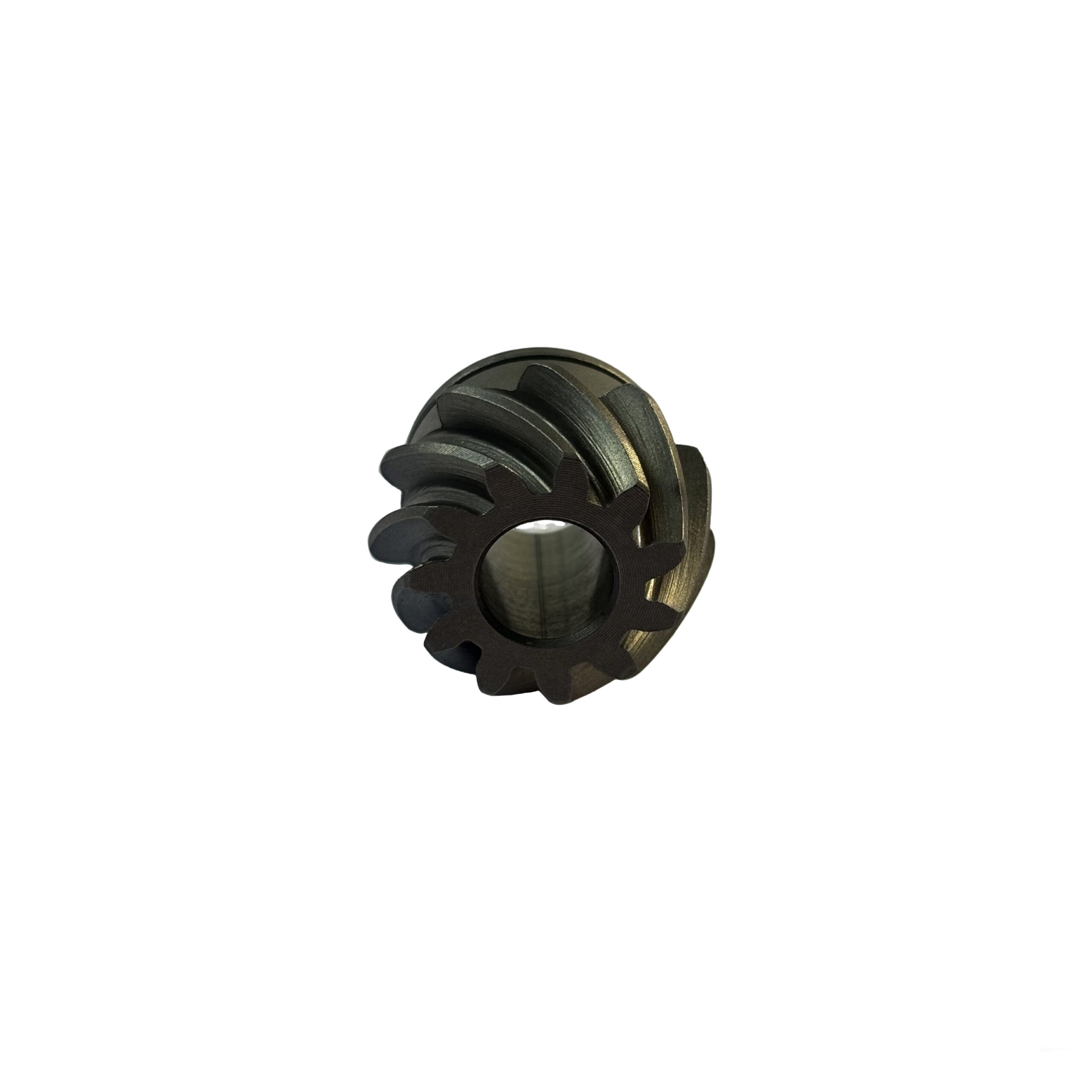

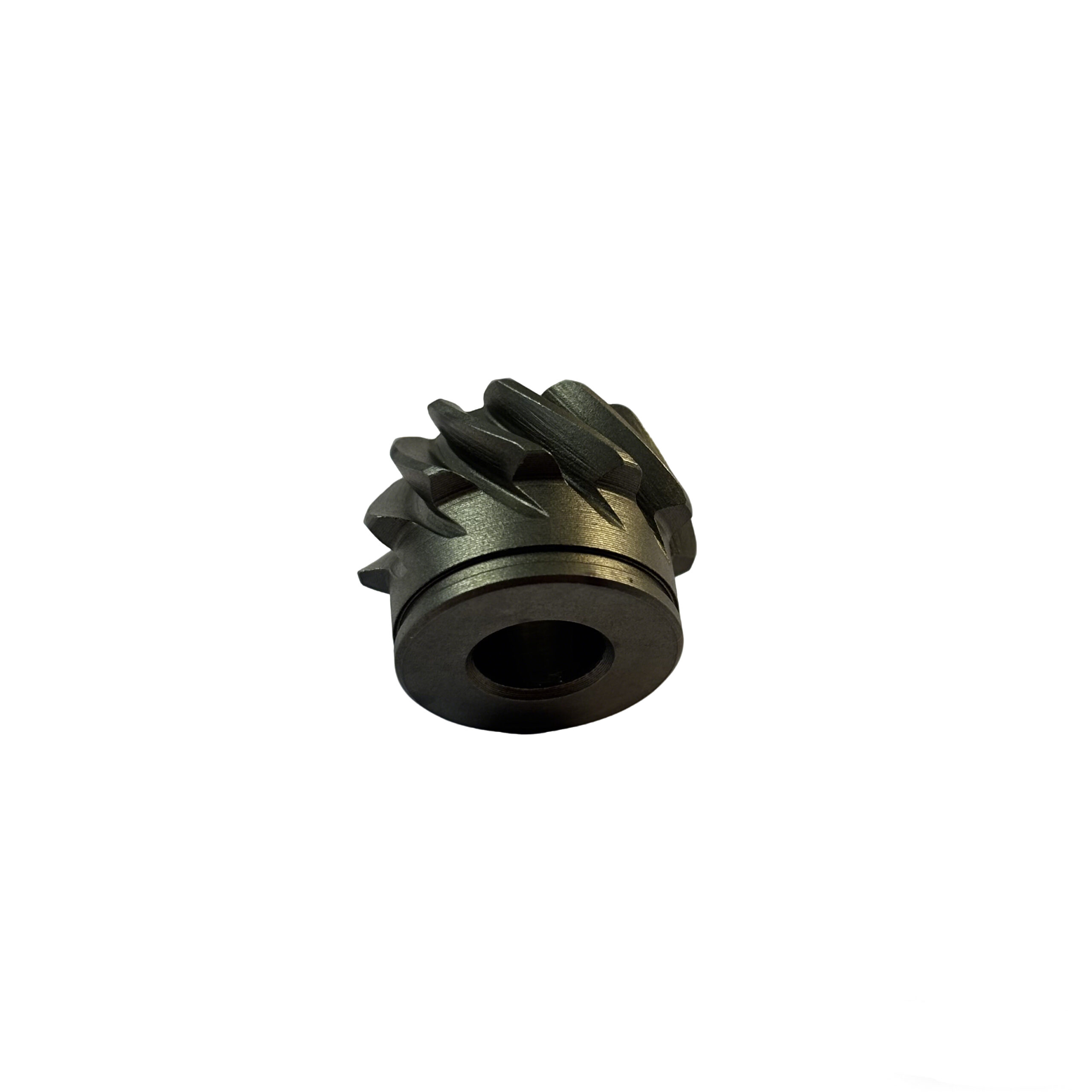

Product No. 7J10105 pinion belongs to the category of spiral bevel gears and is a dedicated transmission component for sewing machinery. The core technical parameters of this gear are as follows: pressure angle of 20°, module of 1.75, 11 teeth, and spiral angle of 35° left-hand (35°/L). In terms of structural dimensions, it has an inner diameter of 8mm, an outer tooth diameter of 22mm, an overall length of 16mm, with a unit weight of only 0.0222kg. Made of high-quality alloy steel 20CrMnTi, it undergoes a precision manufacturing process consisting of normalizing → turning → gear milling → heat treatment → shot blasting → reaming. Multiple production procedures ensure the dimensional accuracy and tooth surface quality of the gear. This gear can meet the low-noise and high-precision operation requirements of the transmission system of sewing machinery, and serves as a key component to guarantee the stable operation of sewing equipment.
Additional information
| weight |
0.0222 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Precision Casting |
Reviews (0)
Shipping & Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
2020802
2020802 Spiral Bevel Gear is a dedicated transmission component for electric tools. Made of 20CrMnTi material, it has a pressure angle of 20°, a module of 1.5, 18 teeth, and a spiral angle of 35°/L, with a shaft diameter of 12mm, an outer diameter of 29.165mm, a total length of 145.5mm, and a single weight of 0.147kg. Produced via multiple correction and precision machining procedures, it features accurate transmission and high stability.
2024044
2024044 Spiral Bevel Gear is a dedicated transmission component for electric tools. Made of 20CrMnTi material, it has a pressure angle of 20°, a module of 1.5, 38 teeth, and a spiral angle of 35°/R, with an inner diameter of 37mm, an outer diameter of 57.4mm, a total length of 33.49mm, and a single weight of 0.1706kg. Produced via multiple precision machining and full inspection procedures, it ensures stable transmission and high durability.

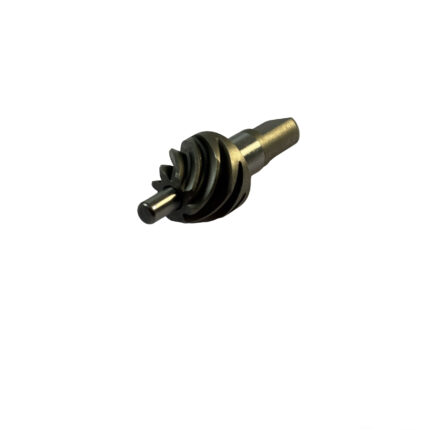

2024413（2024405 )
2024413 (2024405) Spiral Bevel Gear is a dedicated transmission component for electric tools. Made of 20CrMnTi material, it has a pressure angle of 20°, a module of 1.75, 7 teeth, and a spiral angle of 35°/L, with a shaft diameter of 12mm, an outer diameter of 17.1mm, a total length of 41mm, and a single weight of 0.0344kg. Produced via multiple grinding and full inspection procedures, it features high transmission accuracy and low loss.

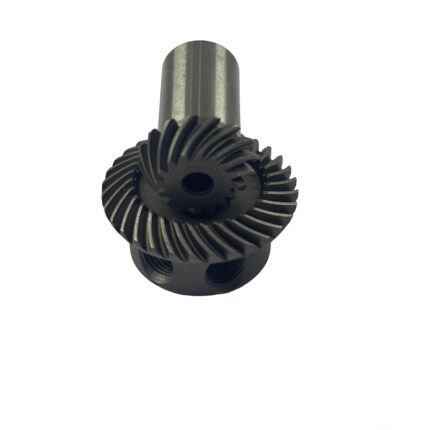

32721.150020 Bevel Gear-32721.150010 Bevel Gear
32721 series spiral bevel gears (including 32721.150020/32721.150010) are specially designed for sewing equipment. Made of 20CrMo, they are manufactured through full-process precision processes such as normalizing and turning + full appearance inspection. Core parameters: pressure angle 17°30′, module 1.05, helix angle 40° (right-hand/left-hand rotation respectively); Model 150020: 18 teeth, speed ratio 2, inner diameter 8mm, addendum diameter 21mm, weight 0.0118kg; Model 150010: 36 teeth, inner diameter 15mm, addendum diameter 38.33mm, weight 0.0428kg. Suitable for transmission of sewing equipment, with precise transmission, stability and durability.

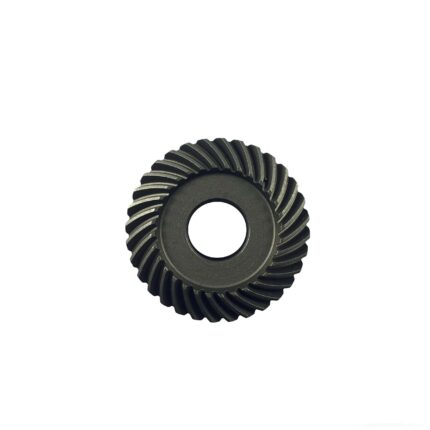

Bevel Gear 4037014 (Large)
The 4037014 Bevel Gear (Large) is made of 20CrMnTi material and manufactured through multiple precision processes including normalization, turning, gear milling and heat treatment. Its core parameters are 20° pressure angle, 2.12 module, 33 teeth and 35° left-hand rotation, with a tooth outer diameter of 70.442mm, total length of 21.91mm and weight of 0.375kg. Specially designed for reducers, this product features stable transmission, wear resistance and durability.

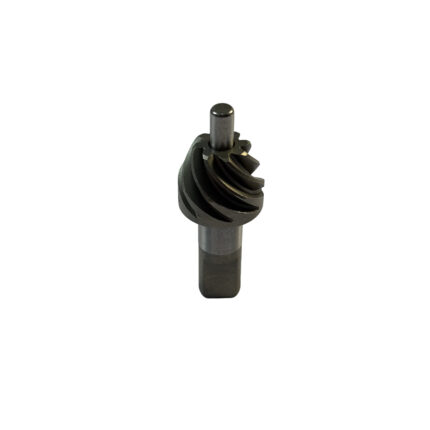

KA09104 Small Steel Gear 15T
KA09104 Small Steel Gear 15T is a dedicated spiral bevel gear for reducers. Made of 20CrMnTi material, it has a pressure angle of 20°, a module of 1.54, 15 teeth, and a spiral angle of 10°/R, with a shaft diameter of 10mm, a tooth outer diameter of 28mm, a total length of 59.25mm, and a single weight of 0.0541kg. Manufactured via multiple precision machining and surface treatment processes, it delivers stable transmission and high wear resistance.
