200171 and 194460
$20.37piece

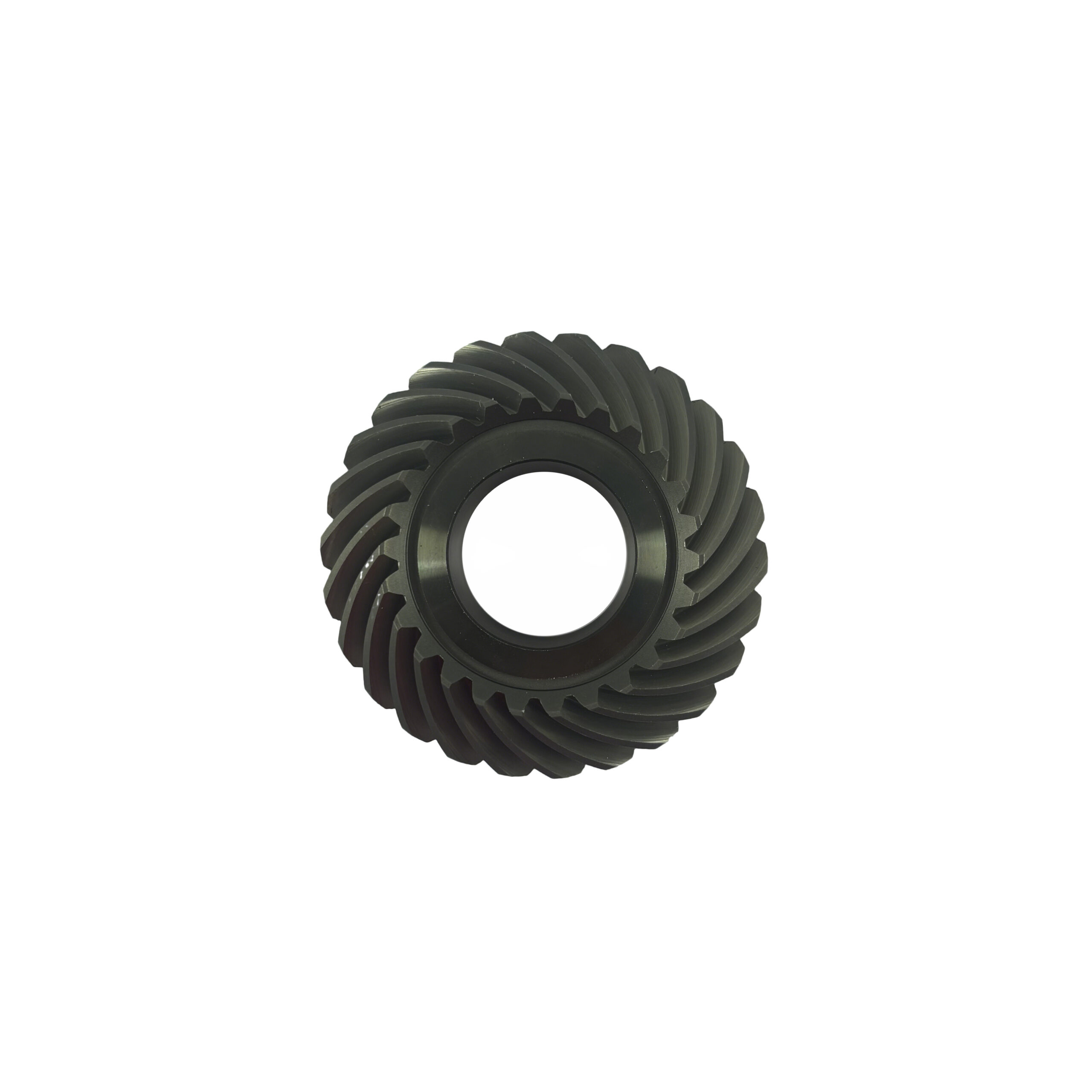

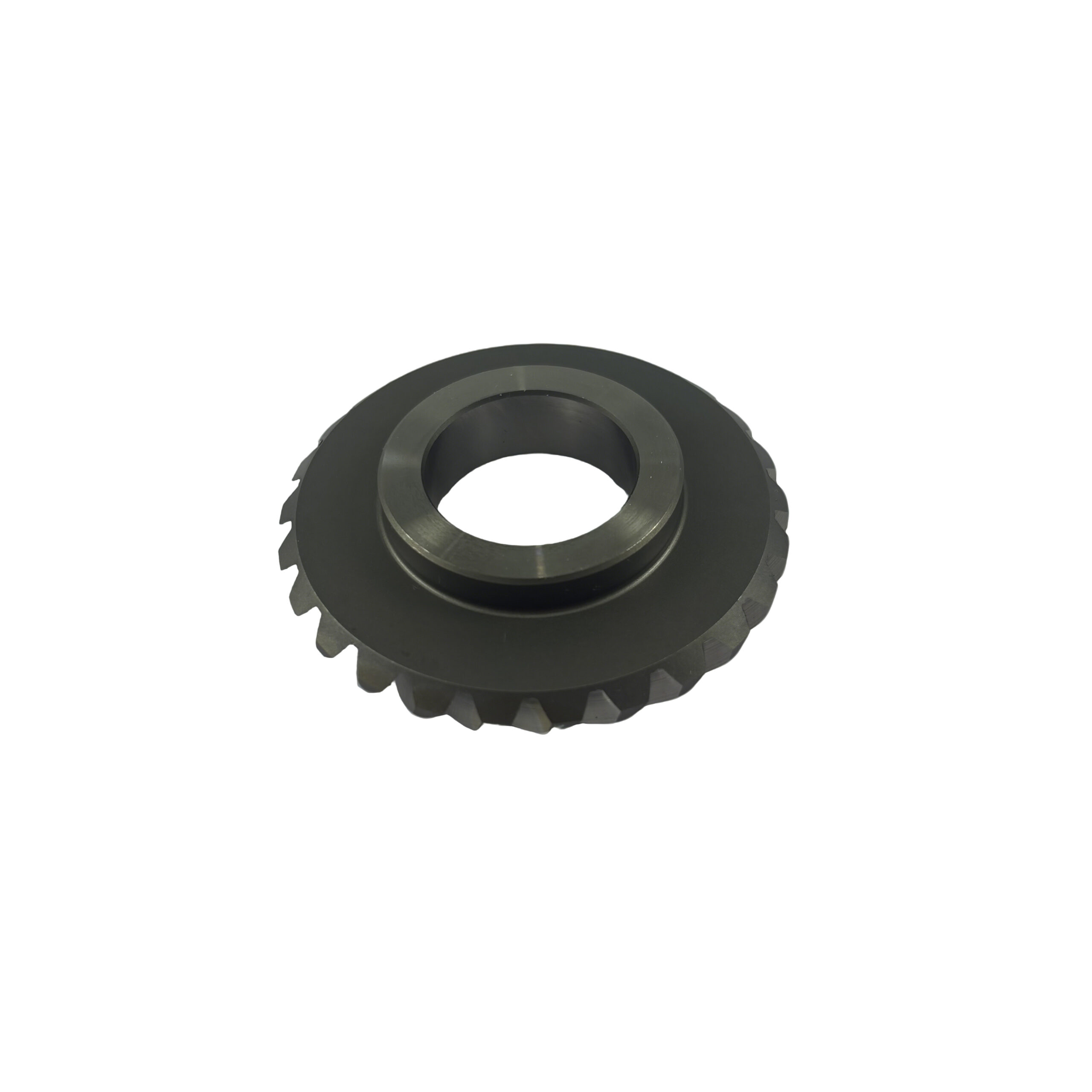

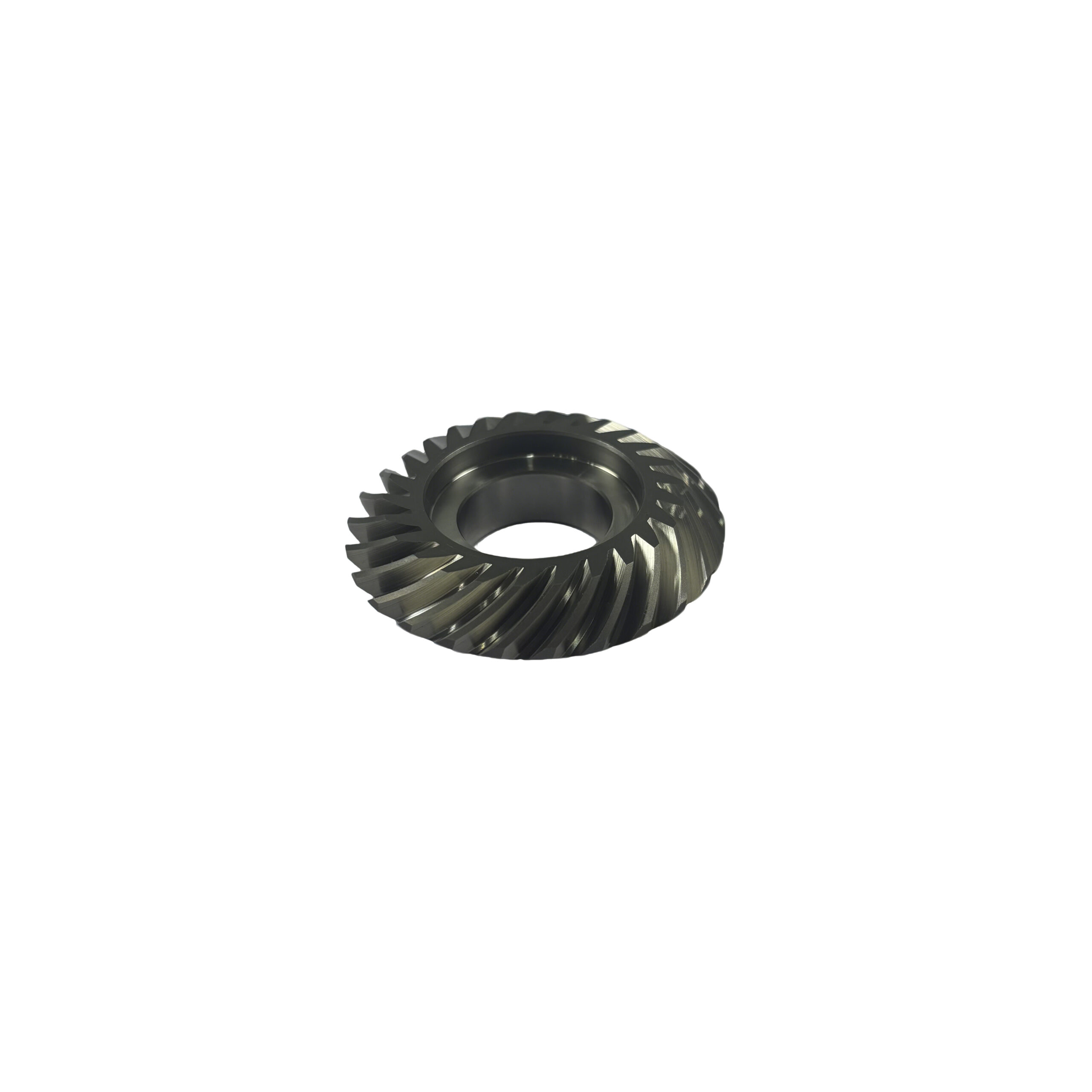

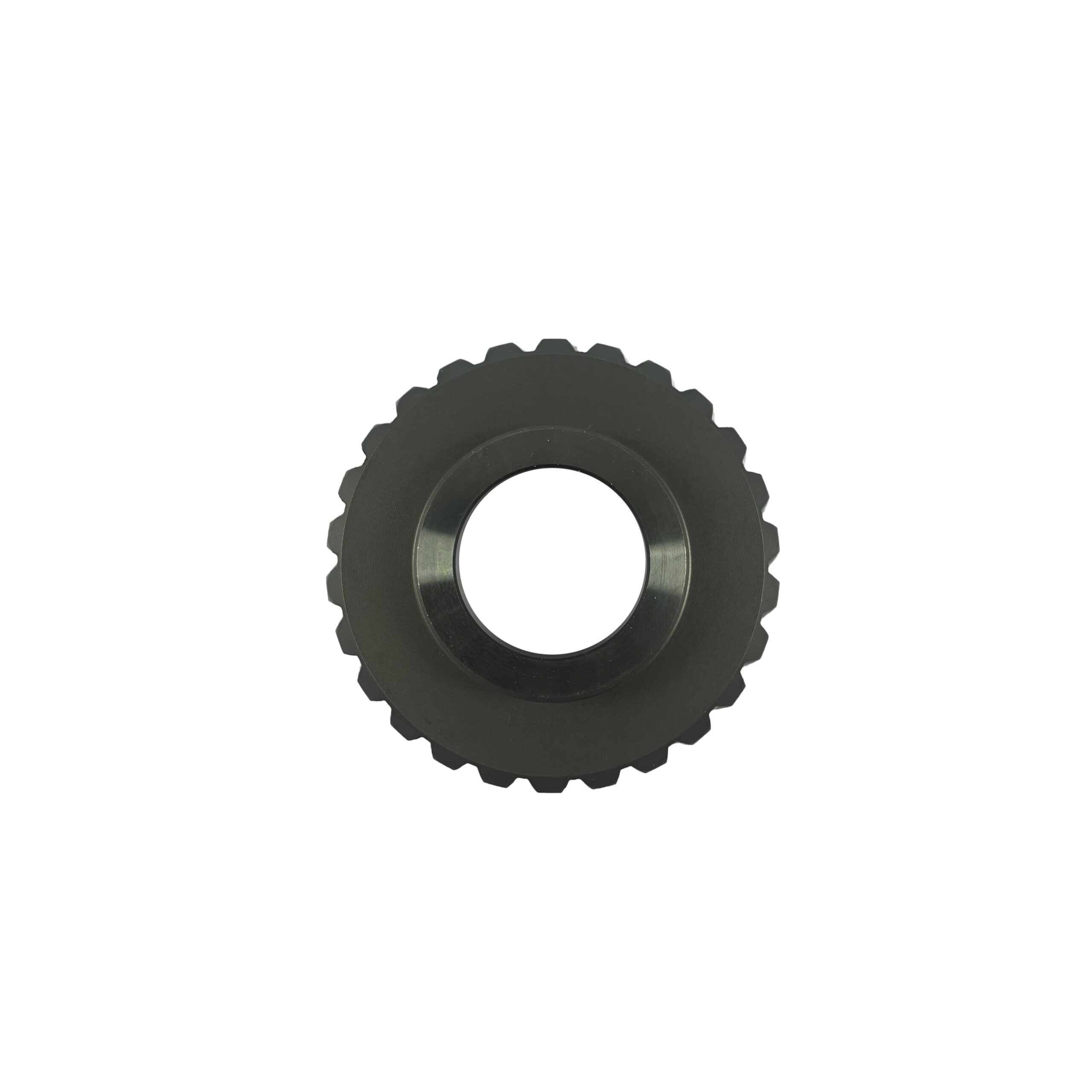

QZ-017-C (Part No.: 200171)
Left-hand spiral bevel gear; 20° pressure angle, module 1.579, 26 teeth, 35°/L spiral angle; ID 25mm, gear OD 62mm, total length 16.07mm, weight 0.0316kg; 20CrMnTi alloy steel, precision machined + heat treated, for power tool transmission.

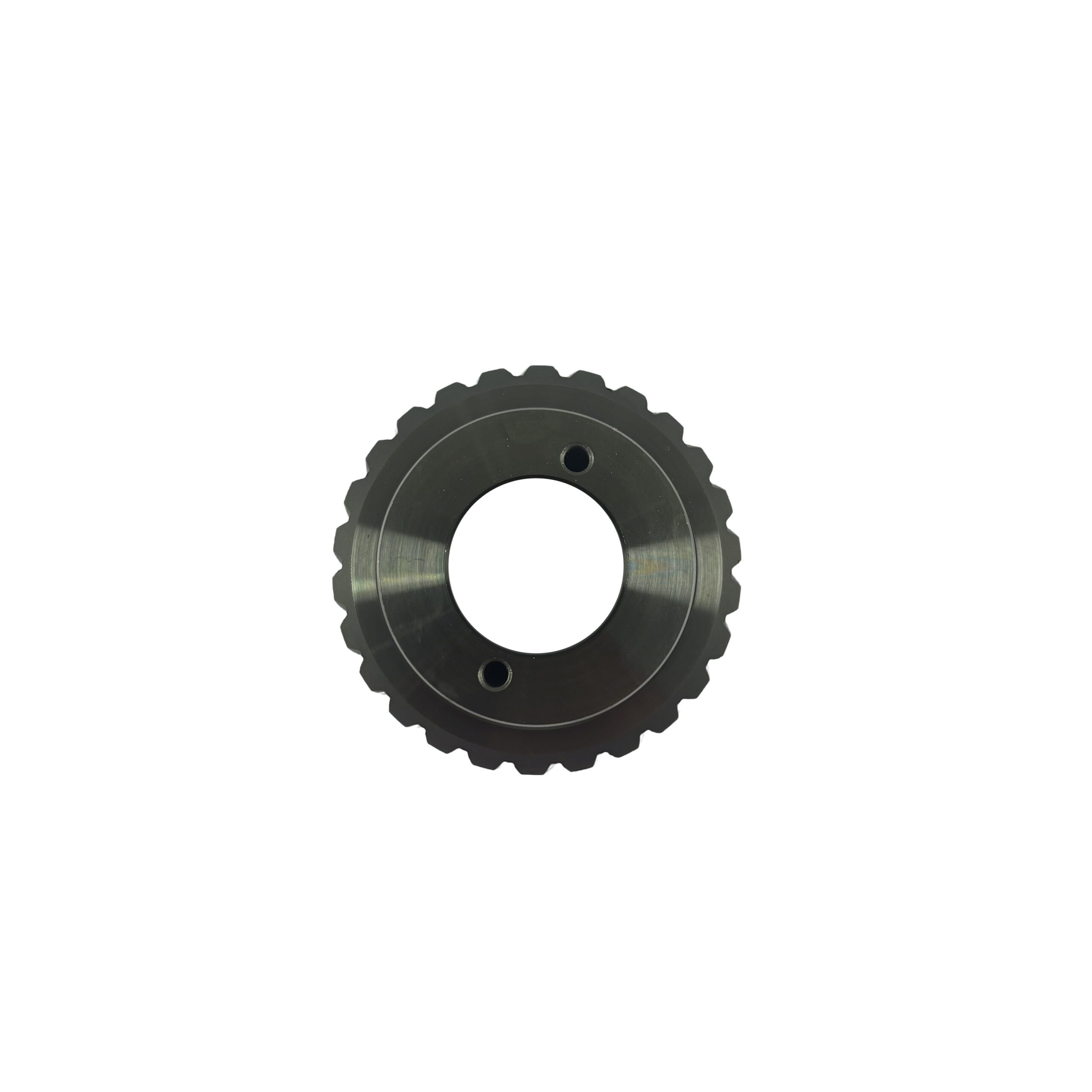

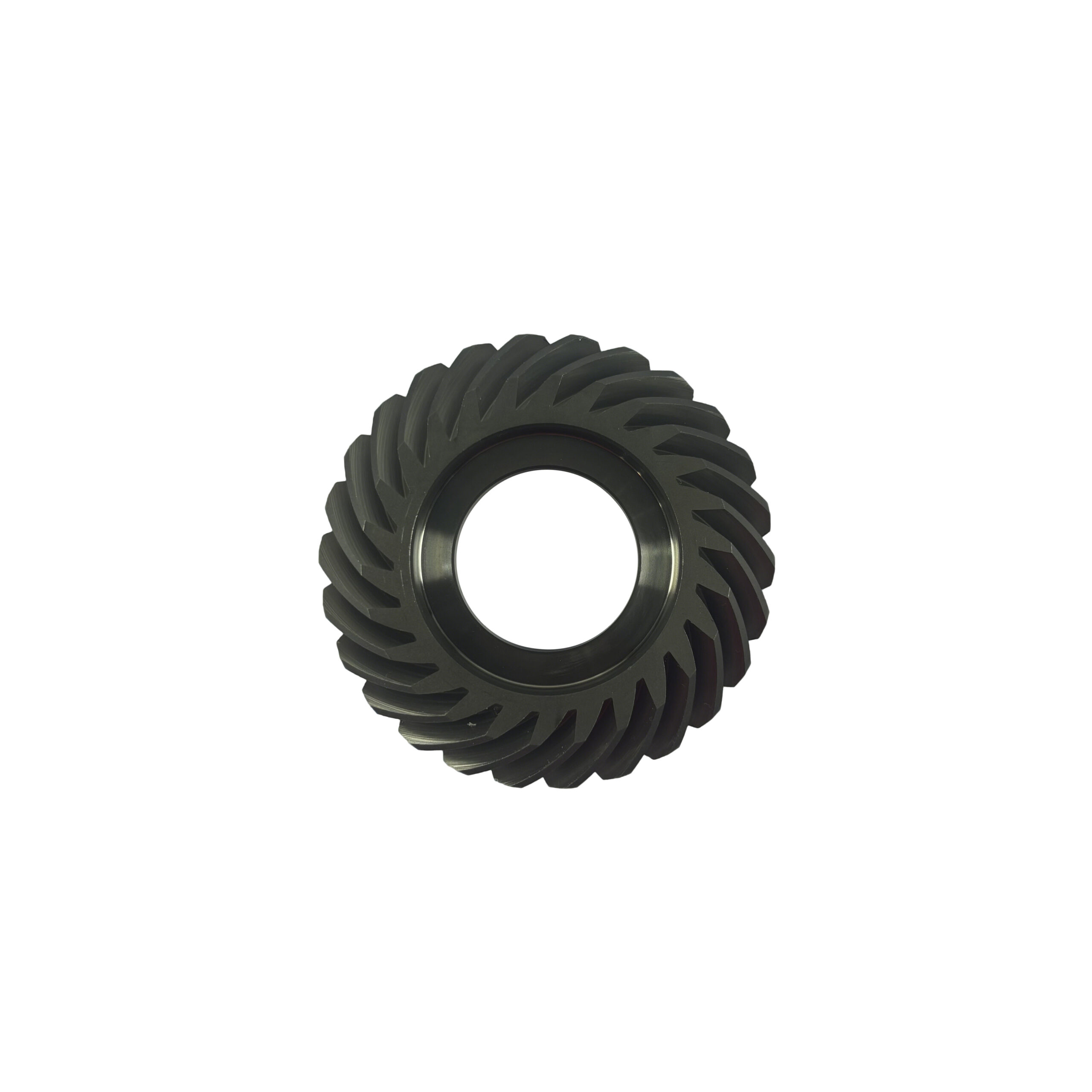

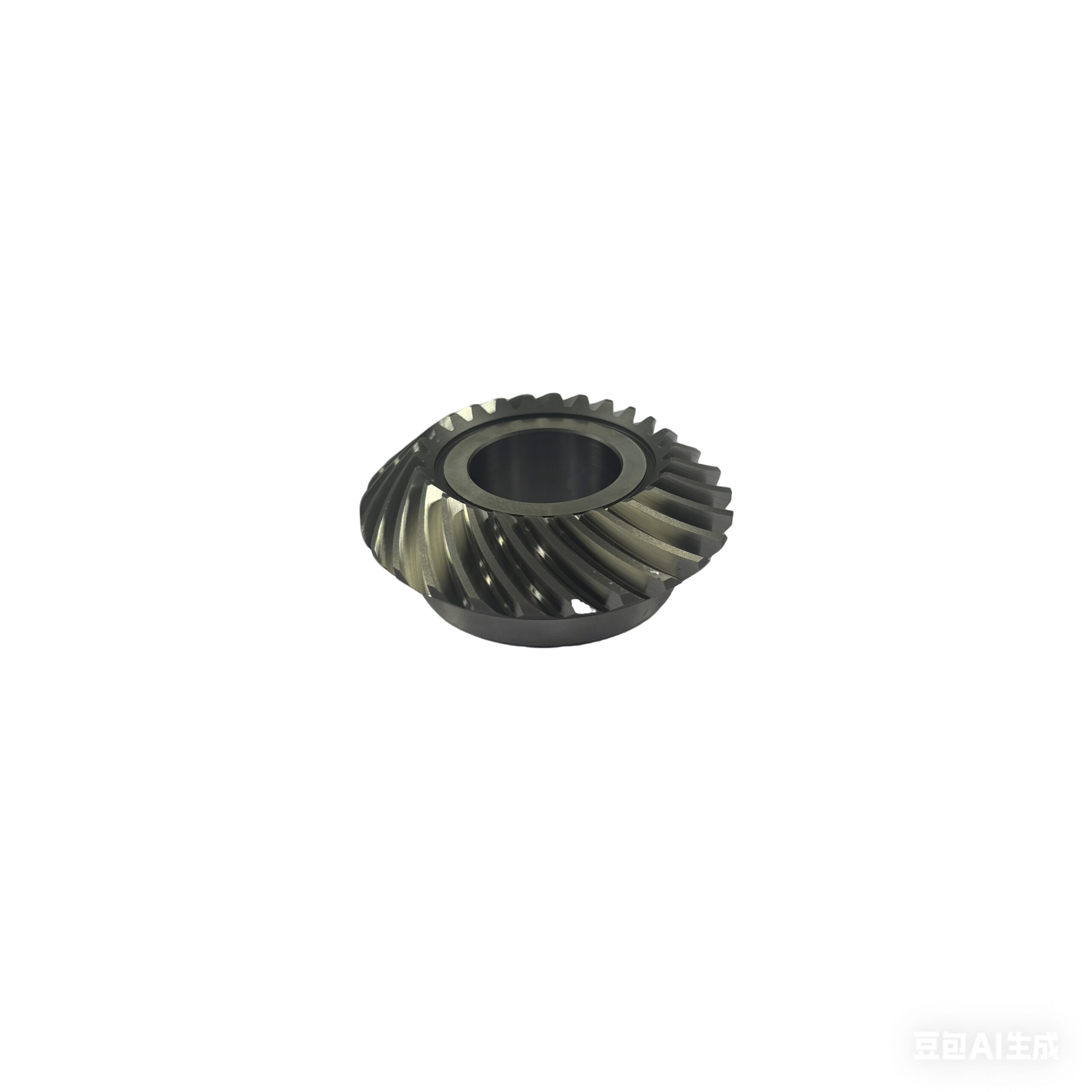

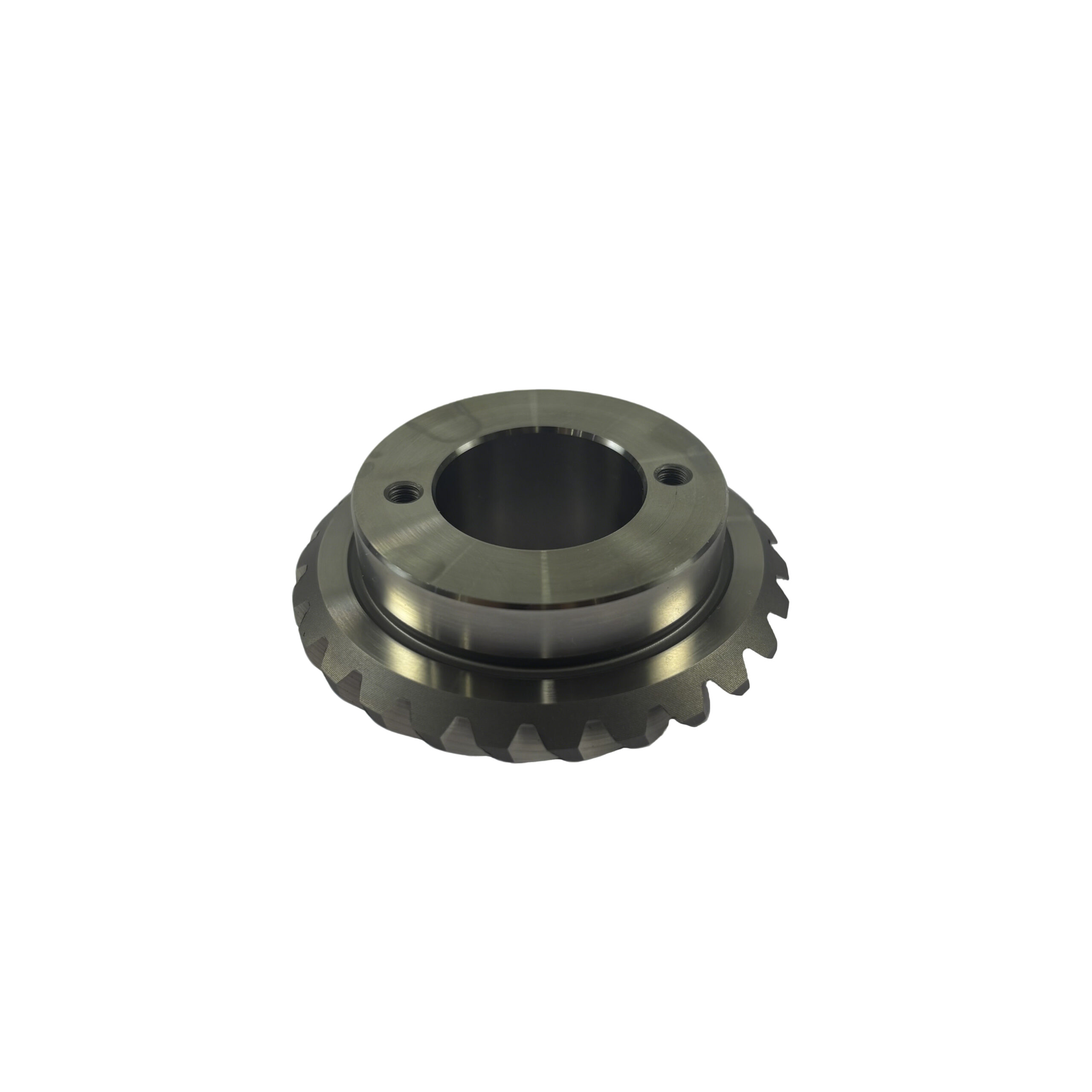

QZ-018-C (Part No.: 194460)
Right-hand spiral bevel gear; 20° pressure angle, module 1.579, 26 teeth, 35°/R spiral angle; ID 25mm, gear OD 62mm, total length 23.6mm, weight 0.2550kg; 20CrMnTi steel, precision grinding & heat treatment, used for power tool gear sets.
Description
QZ-017-C (Part No.: 200171)
This is a left-hand spiral bevel gear designed for power tool transmission systems. Key specifications: pressure angle 20°, module 1.579, number of teeth 26, gear ratio 1, spiral angle 35° Left (35°/L), inner bore diameter 25mm, gear outer diameter 62mm, total length 16.07mm, unit weight 0.0316kg. Manufactured from 20CrMnTi alloy steel for excellent toughness, wear resistance and fatigue strength. The complete precision manufacturing process includes: material sawing, turning, gear milling, heat treatment, hanging shot blasting, boring & end facing, facing, gear grinding, marking, and wire-cut keyway. Strict dimensional control ensures high running accuracy, smooth transmission and stable performance for heavy-duty power tool applications.
QZ-018-C (Part No.: 194460)
This is a right-hand spiral bevel gear engineered for power tool gear assemblies. Core parameters: pressure angle 20°, module 1.579, number of teeth 26, gear ratio 1, spiral angle 35° Right (35°/R), inner bore diameter 25mm, gear outer diameter 62mm, total length 23.6mm, unit weight 0.2550kg. Constructed from 20CrMnTi alloy steel with optimized heat treatment to deliver superior hardness and impact resistance. Production process: material sawing, turning, gear milling, heat treatment, hanging shot blasting, boring & end facing, outer diameter grinding, gear grinding, and marking. Features high precision, reliable durability and consistent transmission efficiency, ideal for industrial-grade power tools.
Additional information
| QZ-017-C andQZ-018-C weight |
0.0316and0.255 |
|---|---|
| QZ-017-C andQZ-018-C Core Components |
gear |
| QZ-017-C andQZ-018-C Craftsmanship |
Milling |
