LCD859-1S Miniature Bevel Gear (Finished Product)

$1.00piece

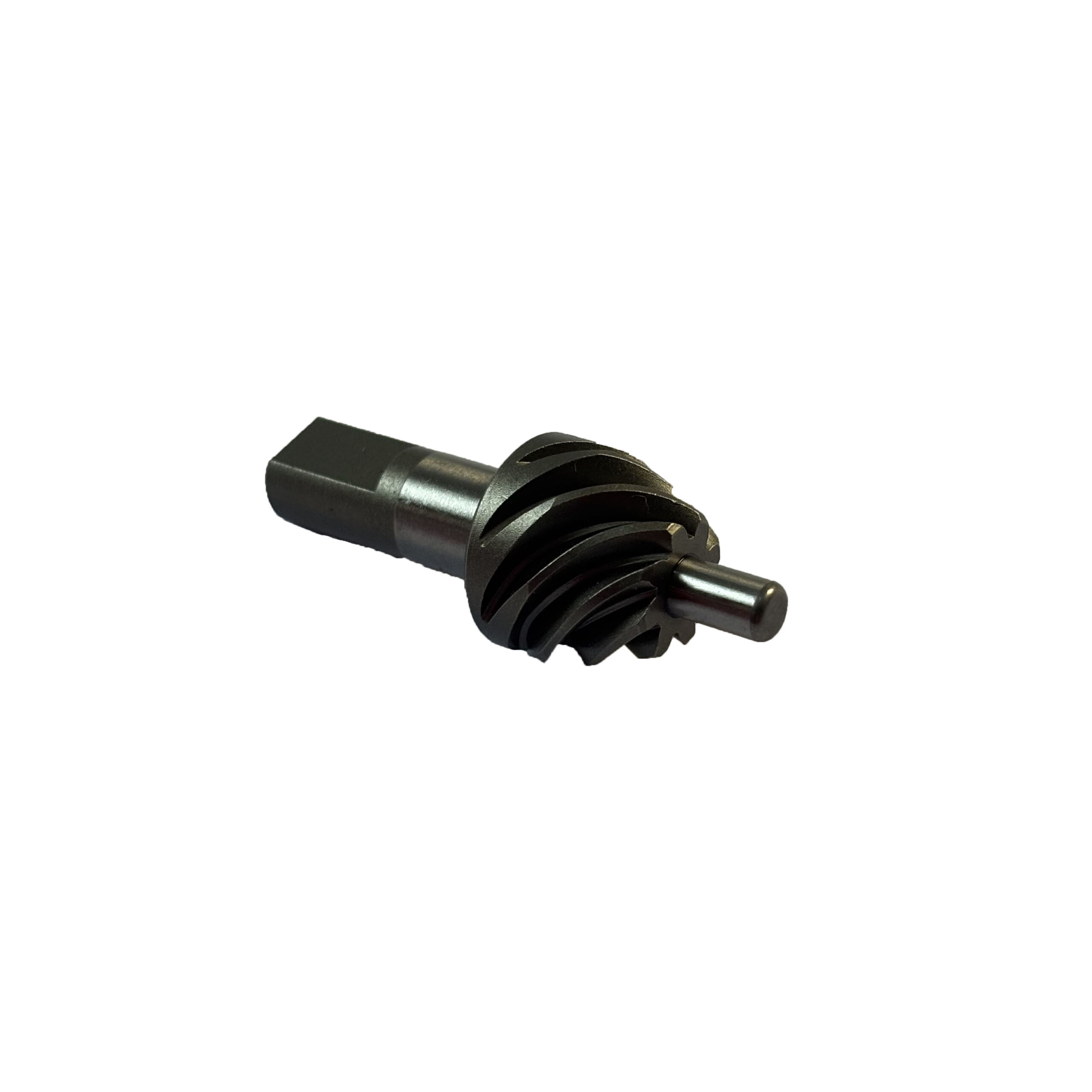

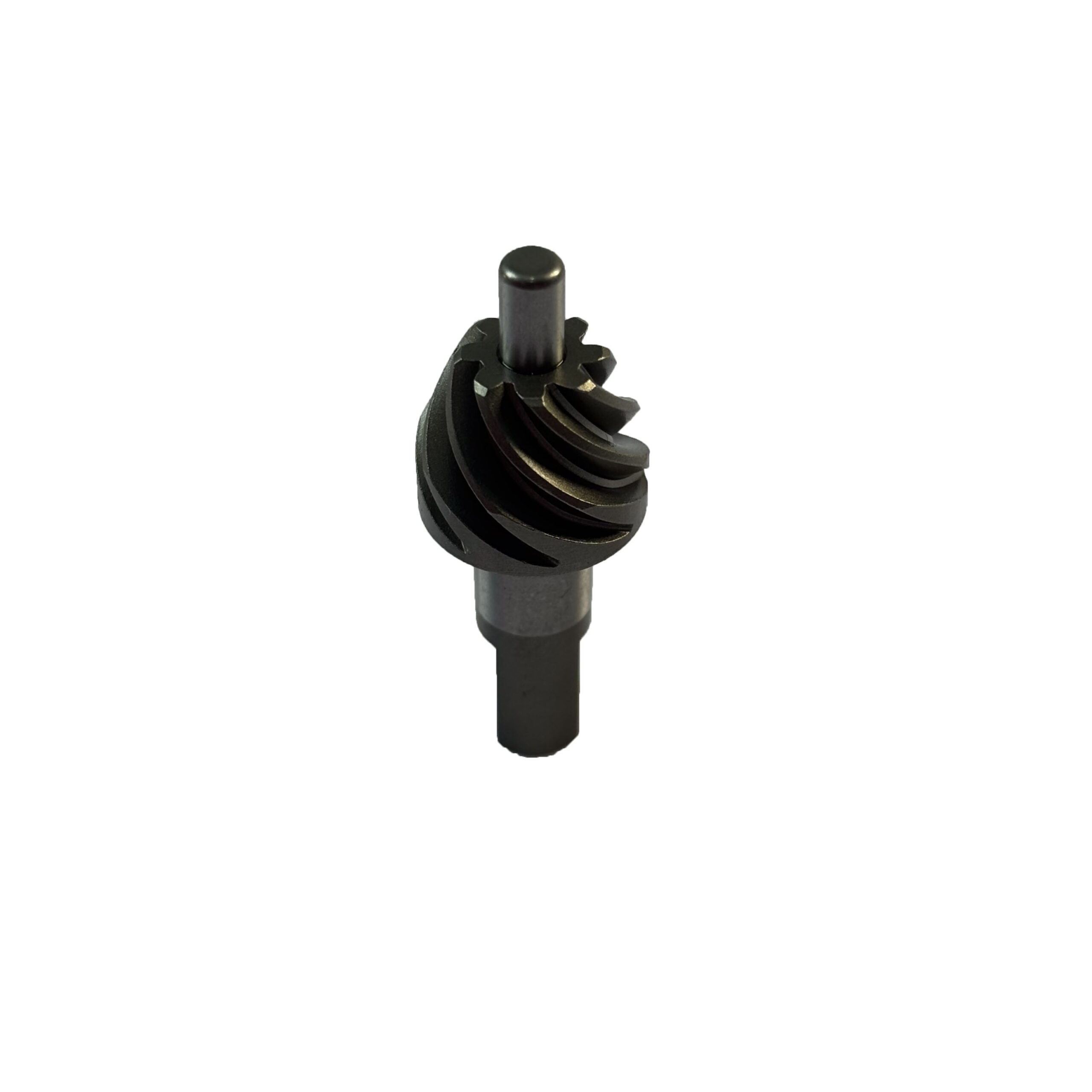

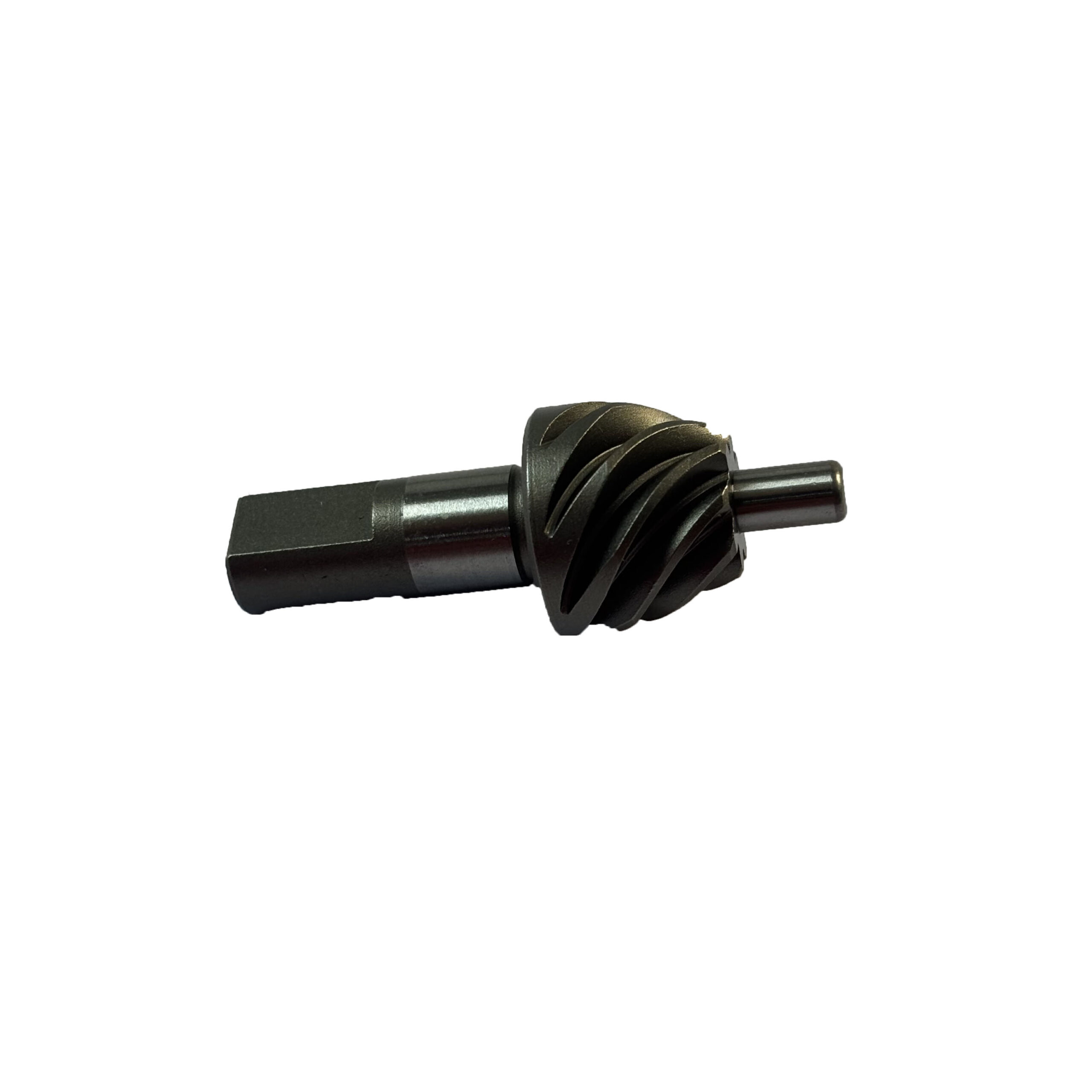

The LCD859-1S Miniature Bevel Gear (Finished Product) is a left-hand spiral bevel gear made of 20CrMnTi material. Produced via multiple precision processes, it has parameters matching power tools, can be directly assembled and features stable transmission and lightweight design.

Add to compare
Add to wishlist
SKU: D-LY-002-C Category:
Description
The LCD859-1S Miniature Bevel Gear (Finished Product) falls into the category of spiral bevel gears and serves as a core transmission component dedicated to power tools. Its parameters are precisely tailored to meet the power output requirements of power tools, featuring a pressure angle of 20°, a module of 1.2962, 8 teeth, a spiral angle of 35°/L, a shaft diameter of 8, an outer tooth diameter of 15, an overall length of 39.8 and a weight of only 0.0172kg. Its compact and lightweight structure can satisfy the transmission demands of power tools for miniaturization and high rotational speed.
Made of high-quality 20CrMnTi alloy material, this gear is manufactured through a series of precision processes including normalizing, turning, gear milling, heat treatment, shot blasting, outer diameter grinding and pin pressing. The full-process precision processing endows the gear with excellent wear resistance and fatigue resistance. As a finished product, it can be directly assembled without secondary processing, providing stable and efficient power transmission for power tools and ensuring the continuous and reliable operation of the equipment.

Additional information
weight

0.0172
Core Components

gear
Craftsmanship

Precision Casting
