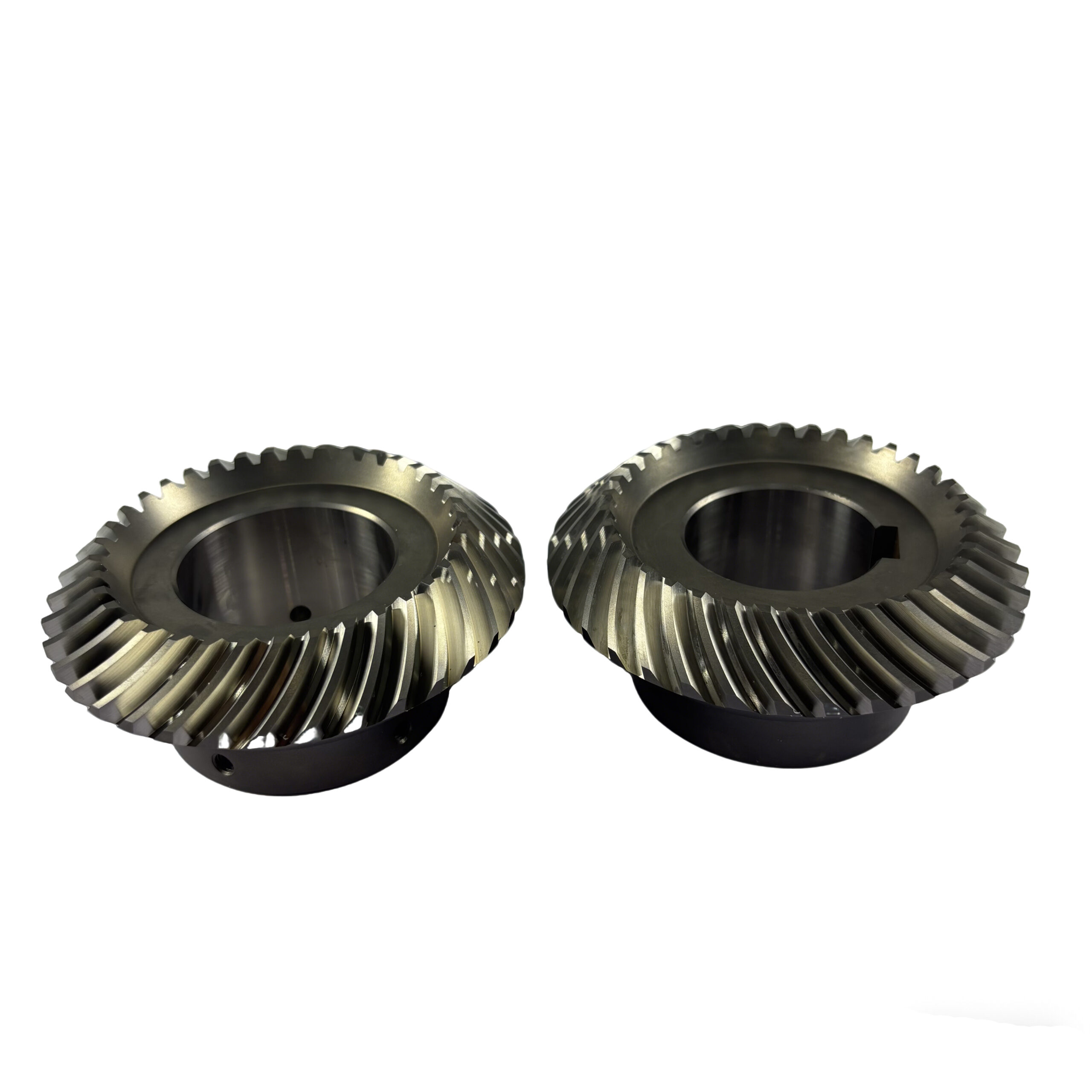

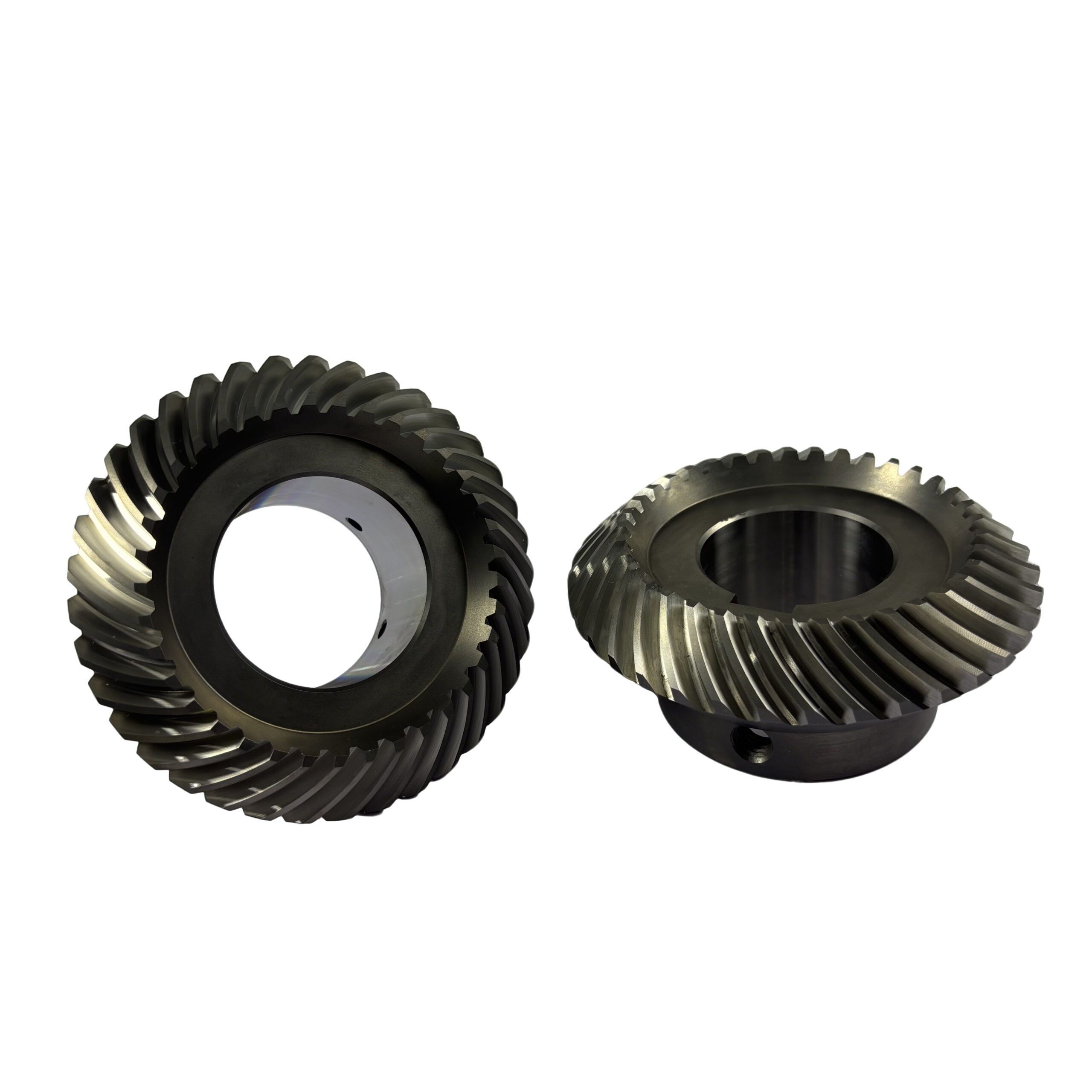

Pattern Comb Rotating Shaft and JBJ-000-002-078 Gear 2
$131.00piece
NX-001-C Pattern Comb Rotating Shaft
20CrMnTi spiral bevel gear shaft, 20° pressure angle, module 3, 37 teeth, 35° left-hand spiral angle.
Processed by turning, gear milling, heat treatment, shot blasting and gear grinding. High precision and wear resistance, dedicated for sewing equipment transmission.
NX-002-C Gear 2
20CrMnTi right-hand spiral bevel gear with 20° pressure angle, module 3 and 37 teeth.
Equipped with wire cutting keyway on the basis of standard precision processing. Stable transmission, professionally matched for sewing machinery.
Description

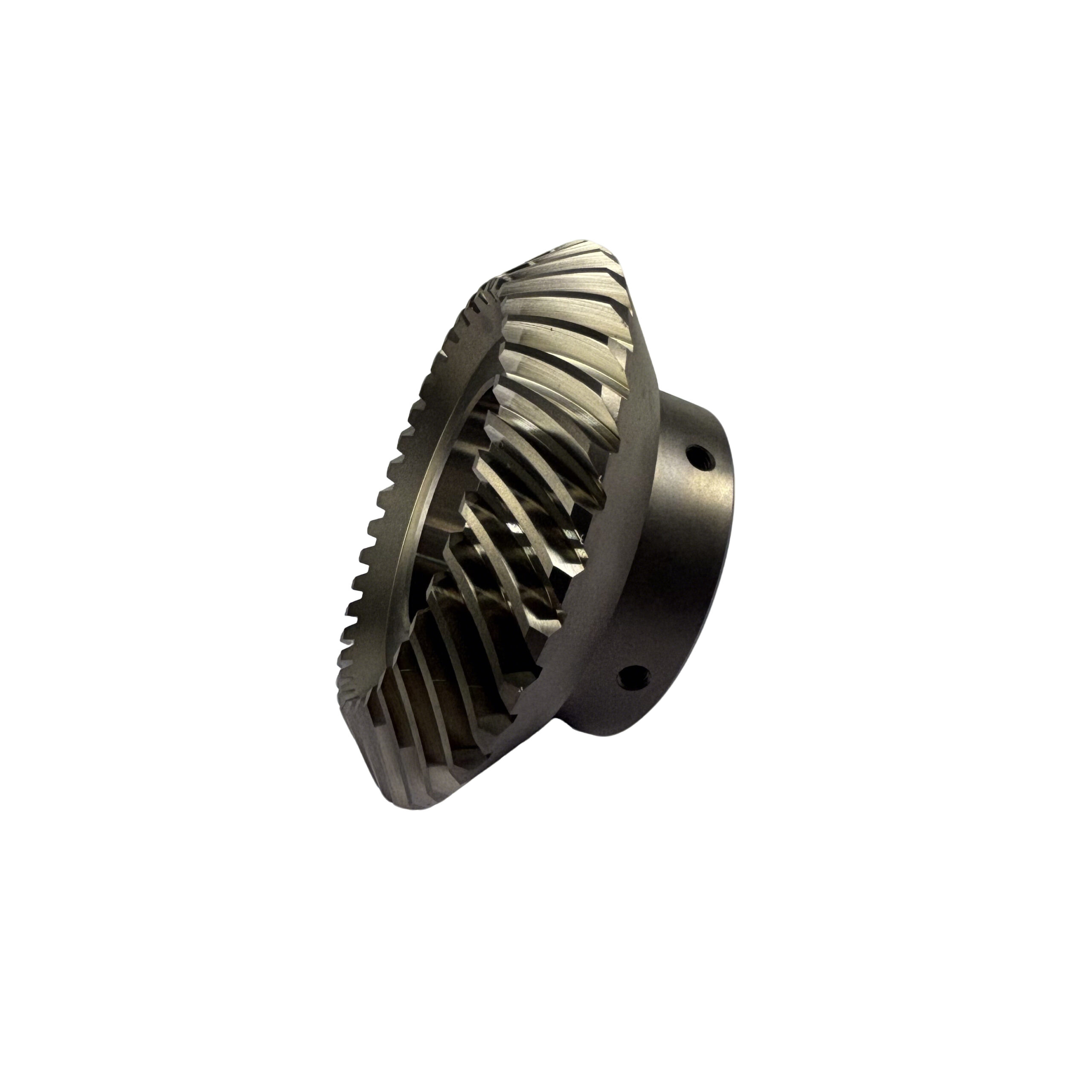

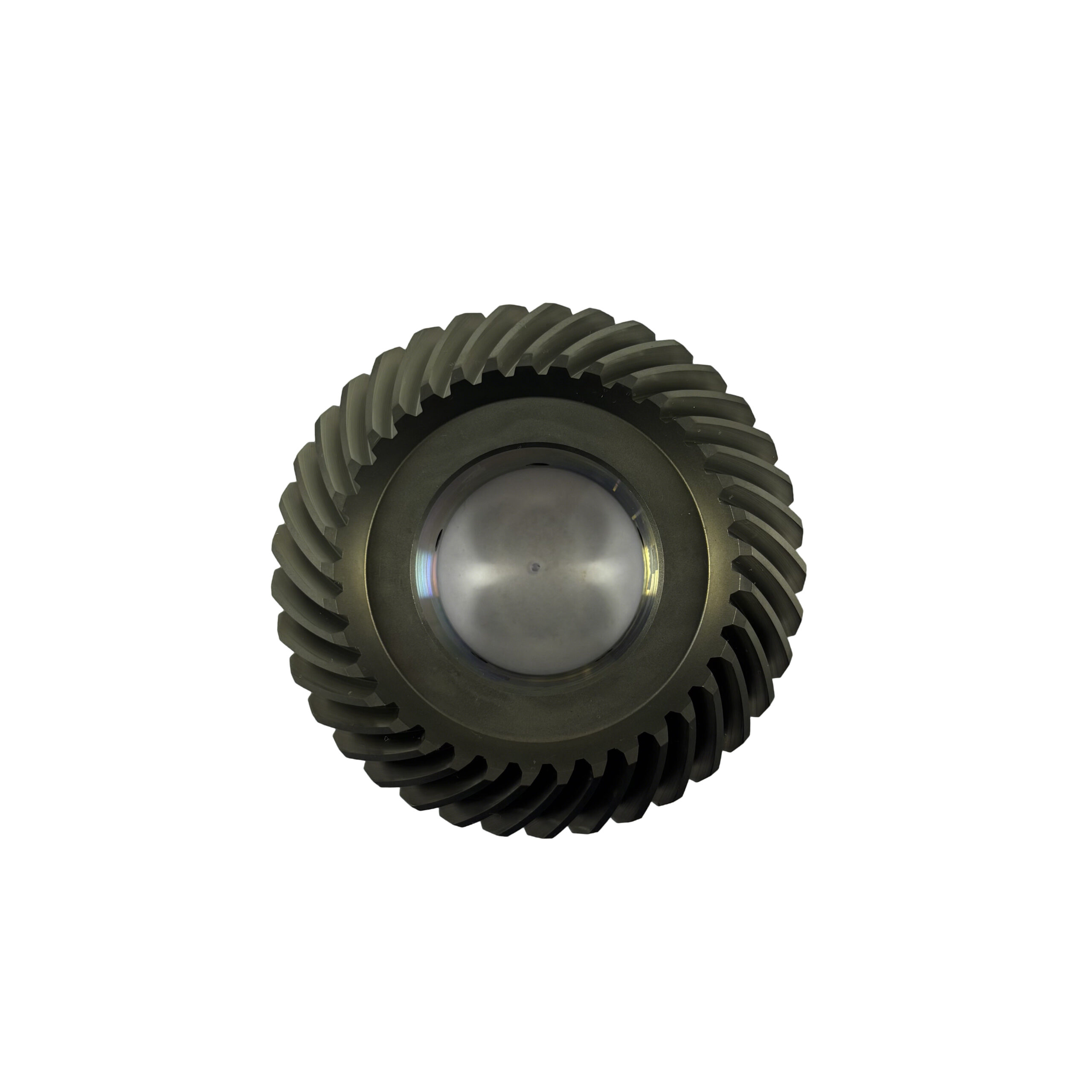

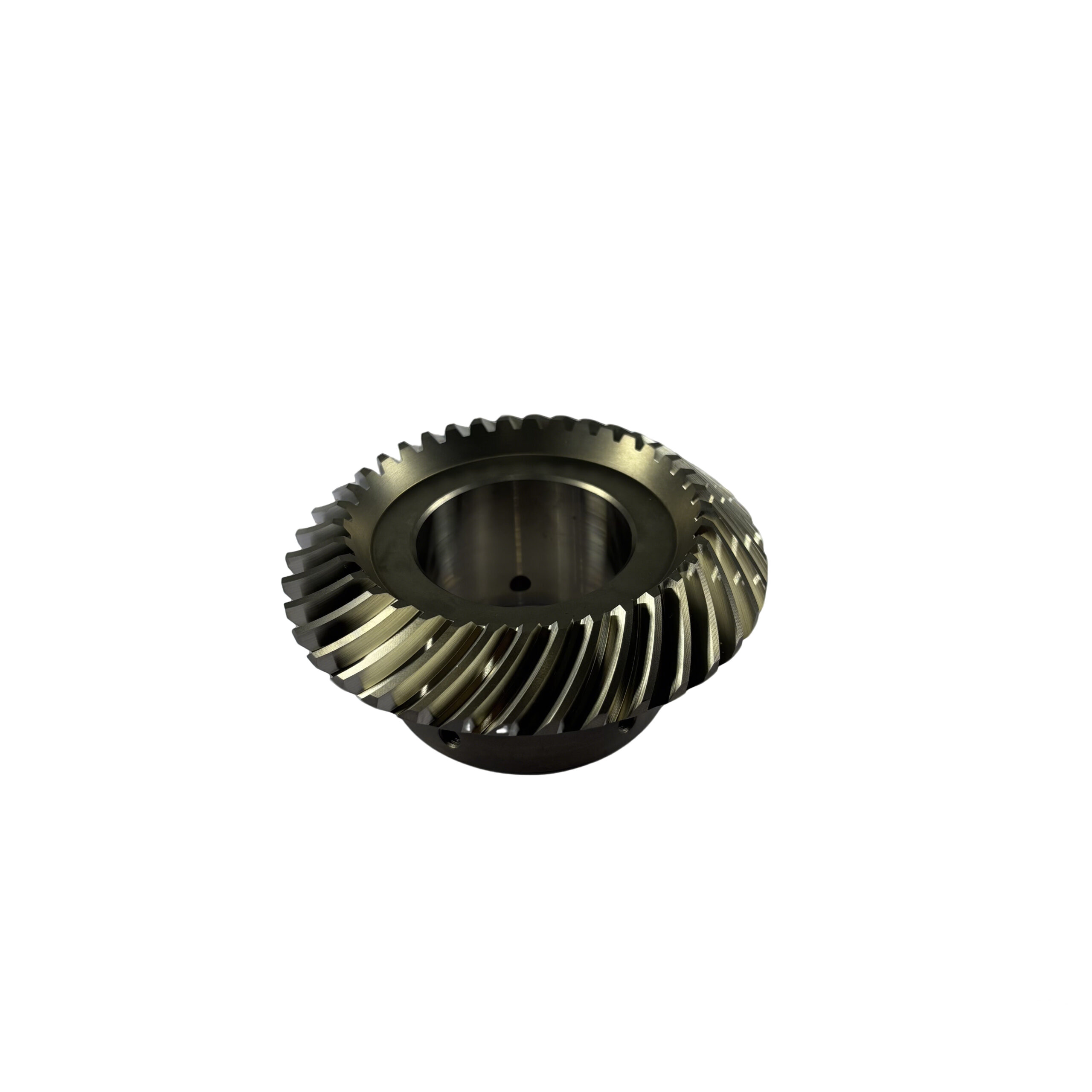

NX-001-C JBJ-000-002-081 Pattern Comb Rotating Shaft
This is a spiral bevel gear pattern comb rotating shaft.
Pressure angle: 20°, Module: 3, Teeth number: 37, Gear ratio: 1, Spiral angle: 35° Left-hand.
Inner diameter: 45mm, Gear outer diameter: 111mm, Overall length: 49.5mm, Weight: 1.3780kg.
Made of 20CrMnTi alloy steel.
Processing technology: Sawing → Turning → Gear milling → Heat treatment → Hanger shot blasting → Boring & facing → Gear grinding.
Features high precision and good wear resistance. It is specially used as a core transmission component for sewing equipment, with stable transmission and strong load-bearing capacity.

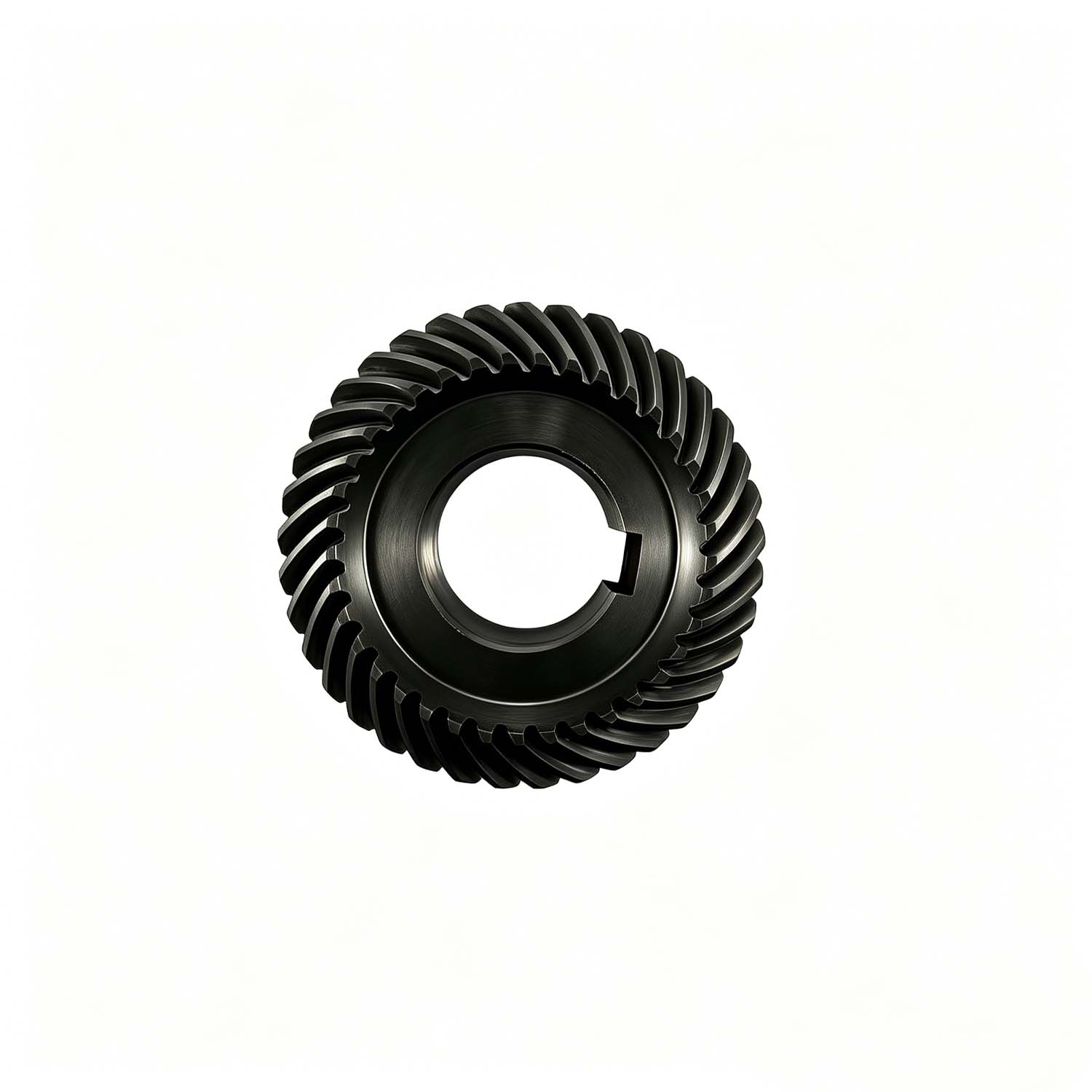

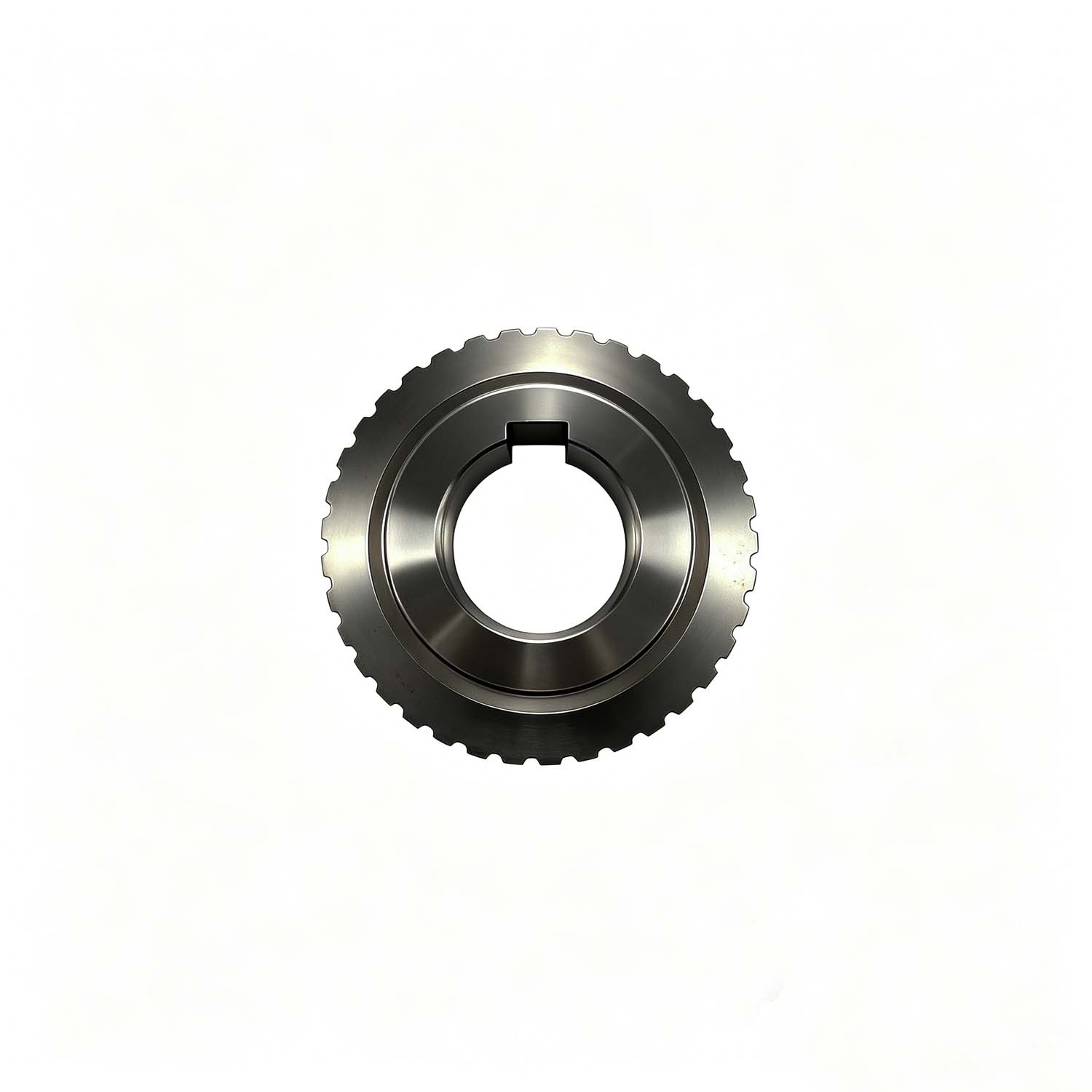

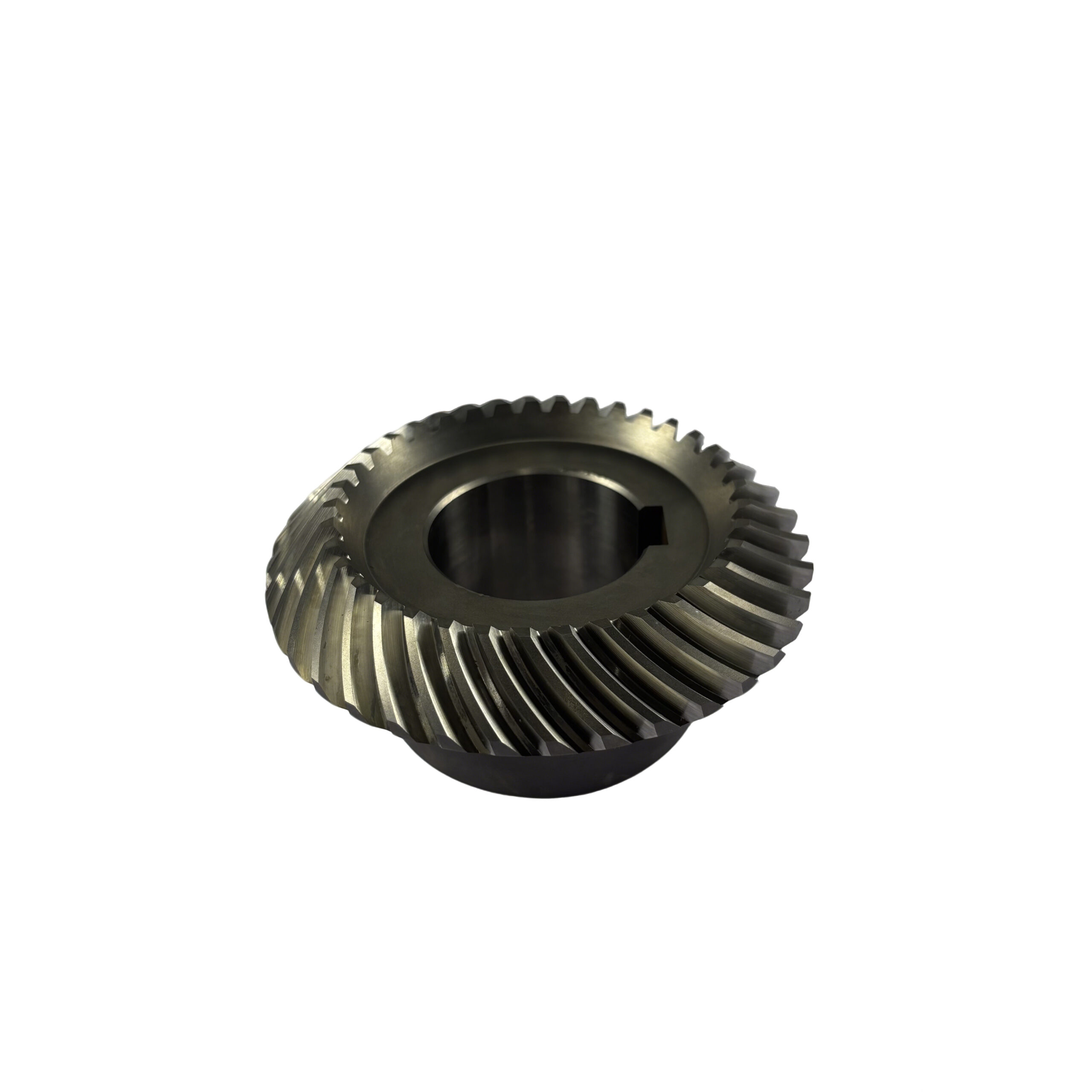

NX-002-C JBJ-000-002-078 Gear 2
This is a spiral bevel gear.
Pressure angle: 20°, Module: 3, Teeth number: 37, Spiral angle: 35° Right-hand.
Inner diameter: 45mm, Gear outer diameter: 111mm, Overall length: 49.5mm, Weight: 1.5075kg.
Adopts 20CrMnTi material.
Manufacturing process: Sawing, turning, gear milling, heat treatment, hanger shot blasting, boring & facing, gear grinding, plus wire cutting keyway process.
It features stable mechanical performance and high precision, suitable for the transmission system of sewing equipment as a matched drive gear part.
Additional information
| NX-001-Cand NX-002-C weight |
1.3780and1.5075 |
|---|---|
| NX-001-Cand NX-002-C Core Components |
gear |
| NX-001-Cand NX-002-C Craftsmanship |
Milling |
