Roller Sewing Machine T26 and Roller Sewing Machine T13

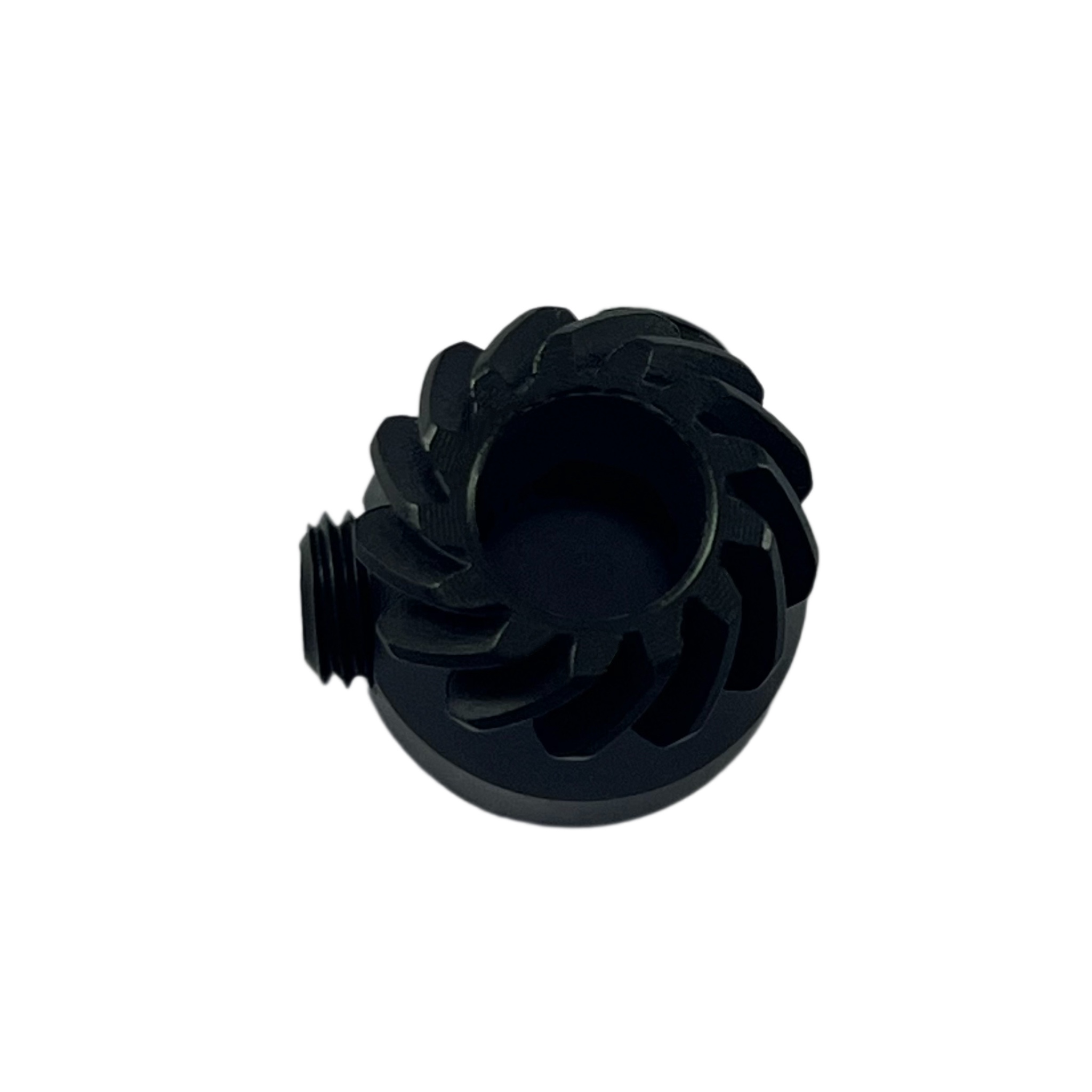

• T20 Spiral Bevel Gear: Pressure angle 20°, module 1, number of teeth 20, speed ratio 1, spiral angle 35°/L, inner diameter 8mm, outer diameter of tooth part 21.5mm, total length 14.1mm. Made of 20CrMo alloy structural steel, it undergoes multiple processes including normalizing, turning, threaded hole machining, reaming, gear milling, heat treatment, shot blasting, blackening, secondary reaming, marking and screw assembly, achieving dual guarantees of structural strength and transmission accuracy.

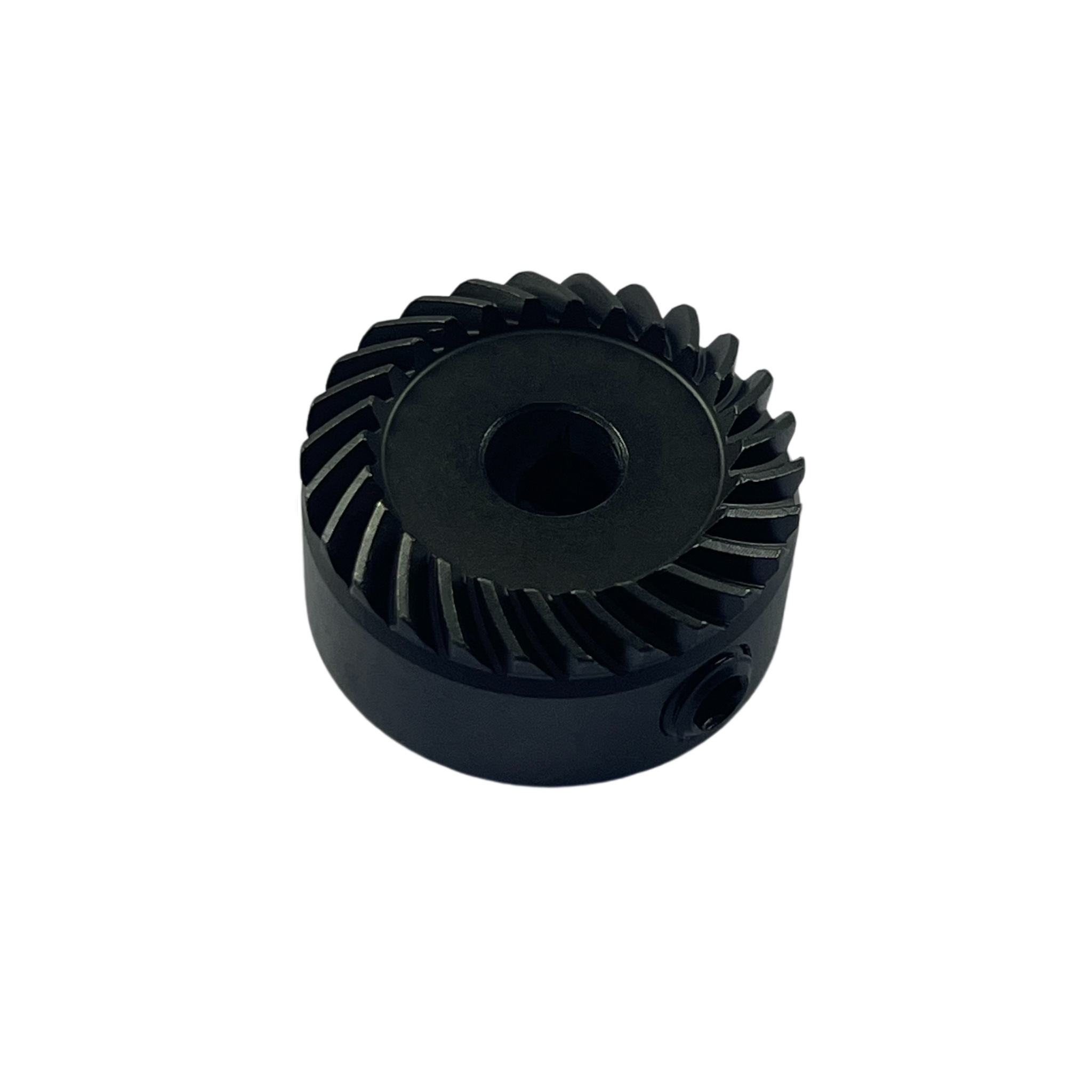

• T24 Long Version Spiral Bevel Gear: Pressure angle 20°, module 1, number of teeth 24, spiral angle 35°/L, inner diameter 7.94mm, outer diameter of tooth part 24.5mm, total length 14.35mm, and single weight 0.0213kg. Also made of 20CrMo material, it follows a rigorous process route of normalizing, turning, threaded hole machining, reaming, gear milling, heat treatment, shot blasting, blackening, marking, secondary reaming and screw assembly, suitable for long-term high-load transmission scenarios of roller sewing machines.

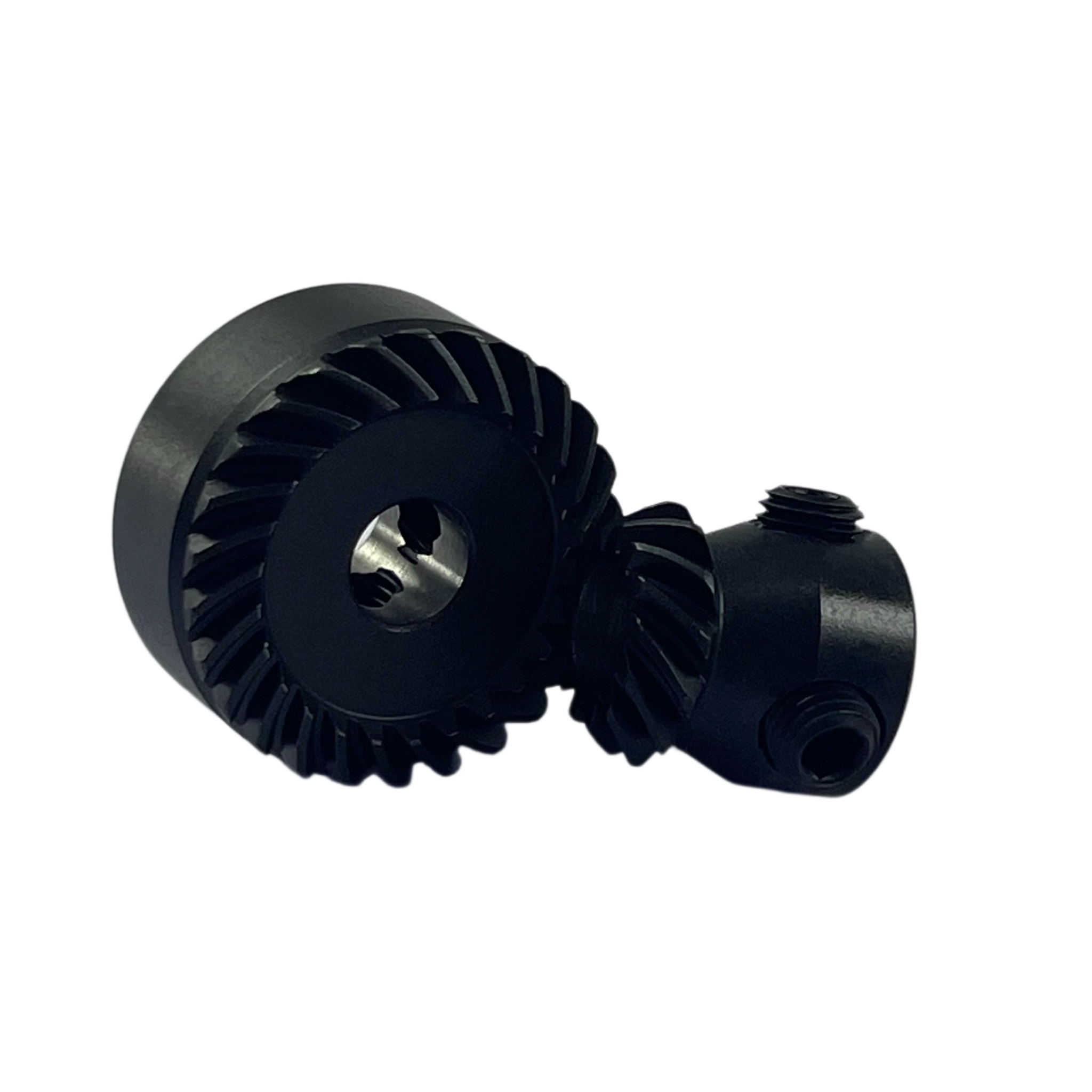

Both gears are made of 20CrMo material and combined with strengthening processes such as heat treatment and shot blasting, featuring excellent wear resistance and impact resistance. The precisely designed pressure angle and spiral angle can effectively reduce transmission noise and improve the operation efficiency of roller sewing machines.

Specialized for the power transmission system of roller sewing machines, they are core supporting gear components for roller sewing machine equipment in the sewing machinery field.
