6K – Upper Vertical Shaft Bevel Gear
$1.26piece

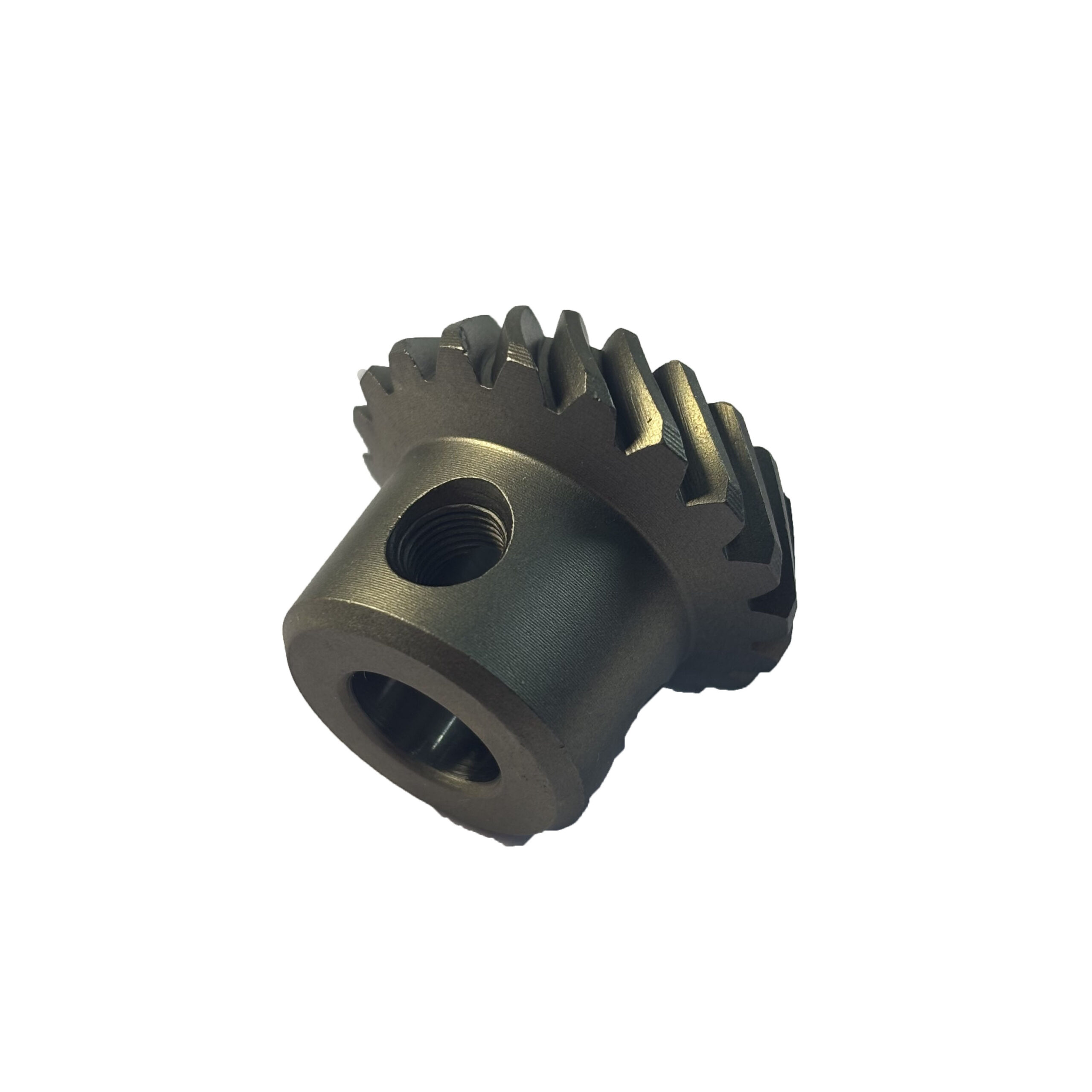

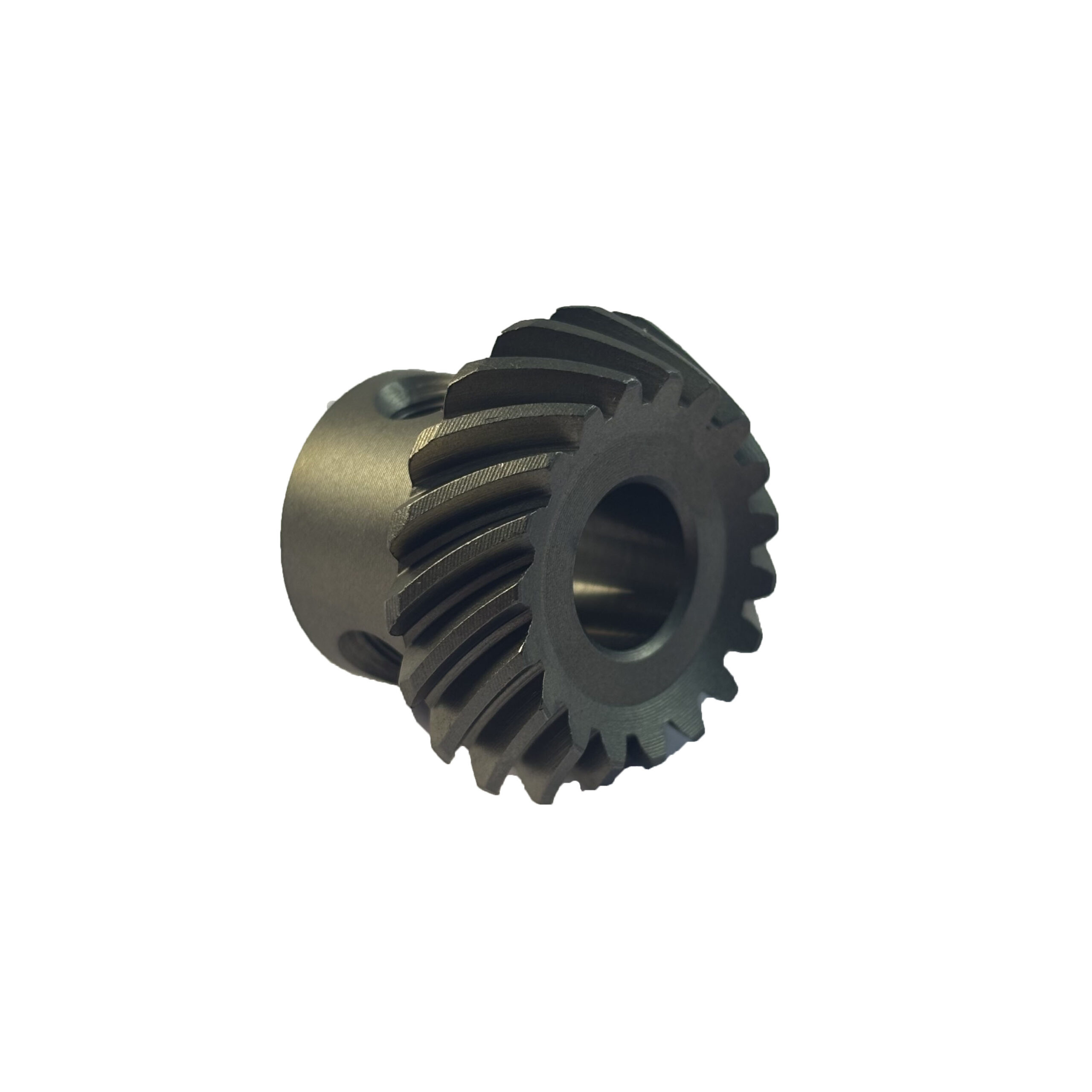

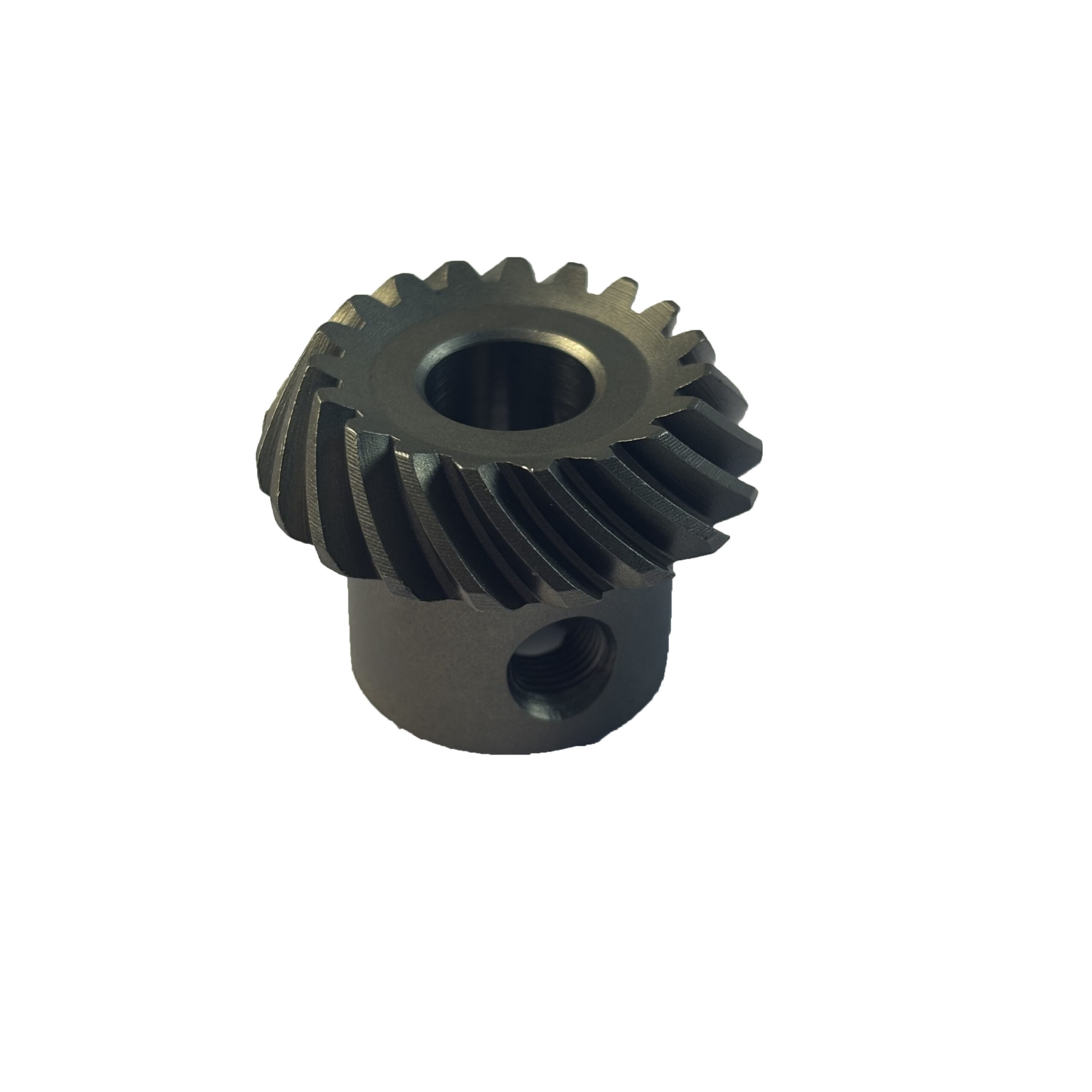

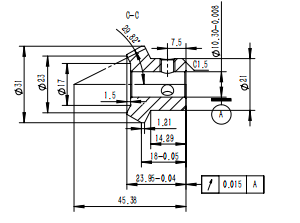

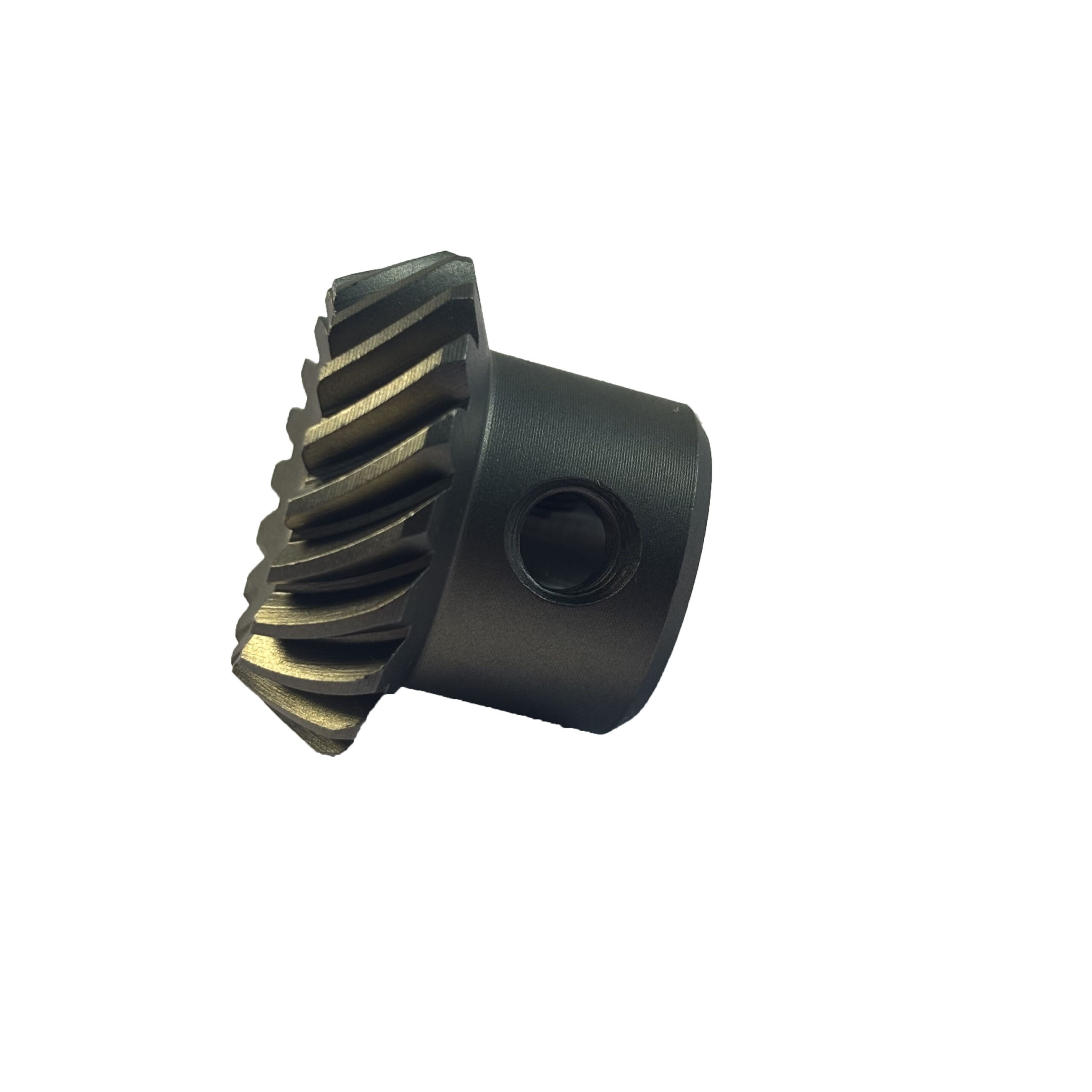

The 6K-Upper Vertical Shaft Bevel Gear is a left-hand spiral bevel gear made of 20CrMo material. Crafted through multiple precision processes, it has parameters matching sewing equipment and features stable transmission as well as a compact and lightweight design.
Description
Additional information
| weight |
0.0568 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Precision Casting |
Reviews (0)
Shipping & Delivery
