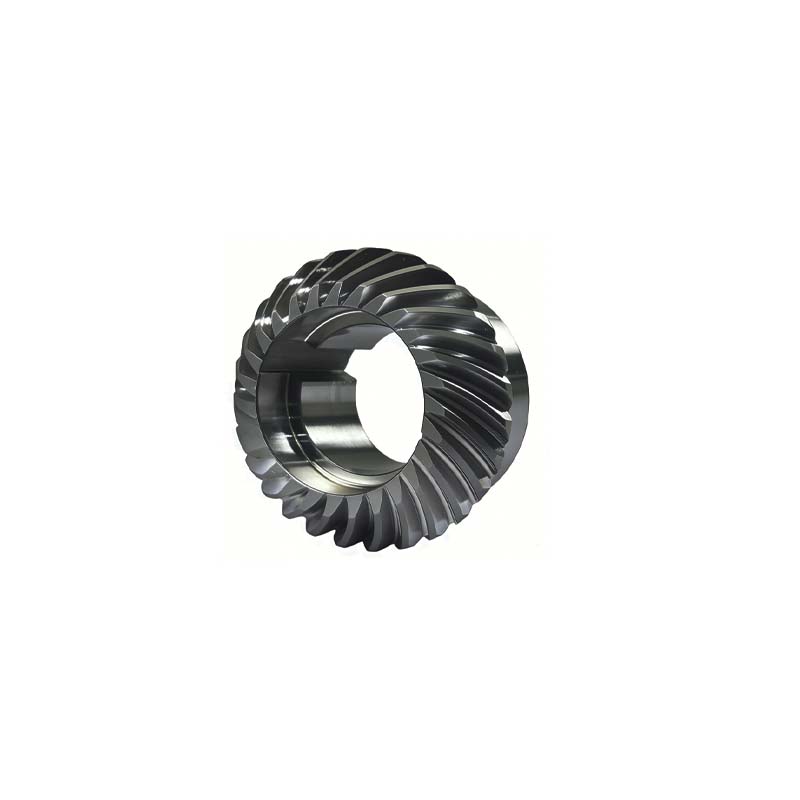

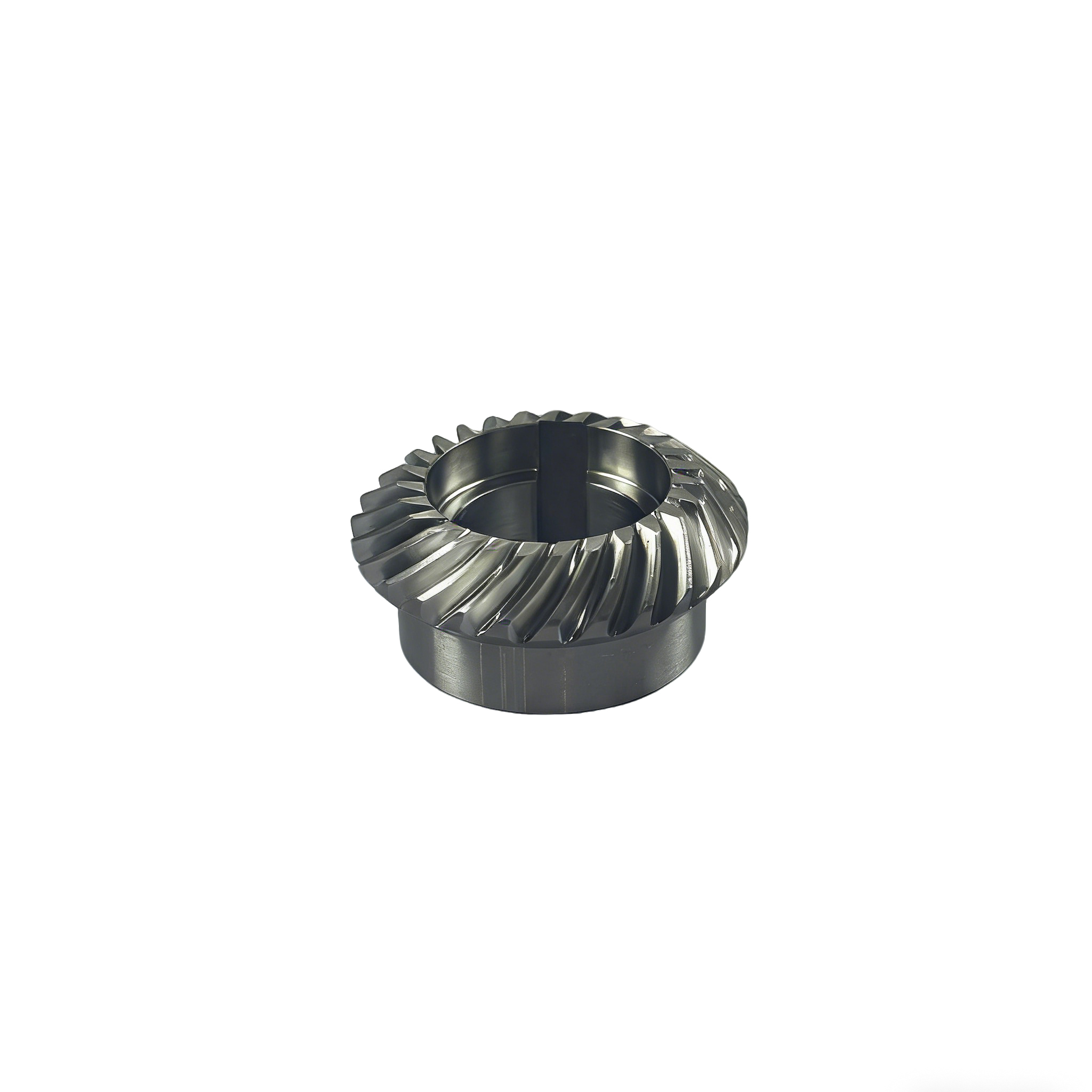

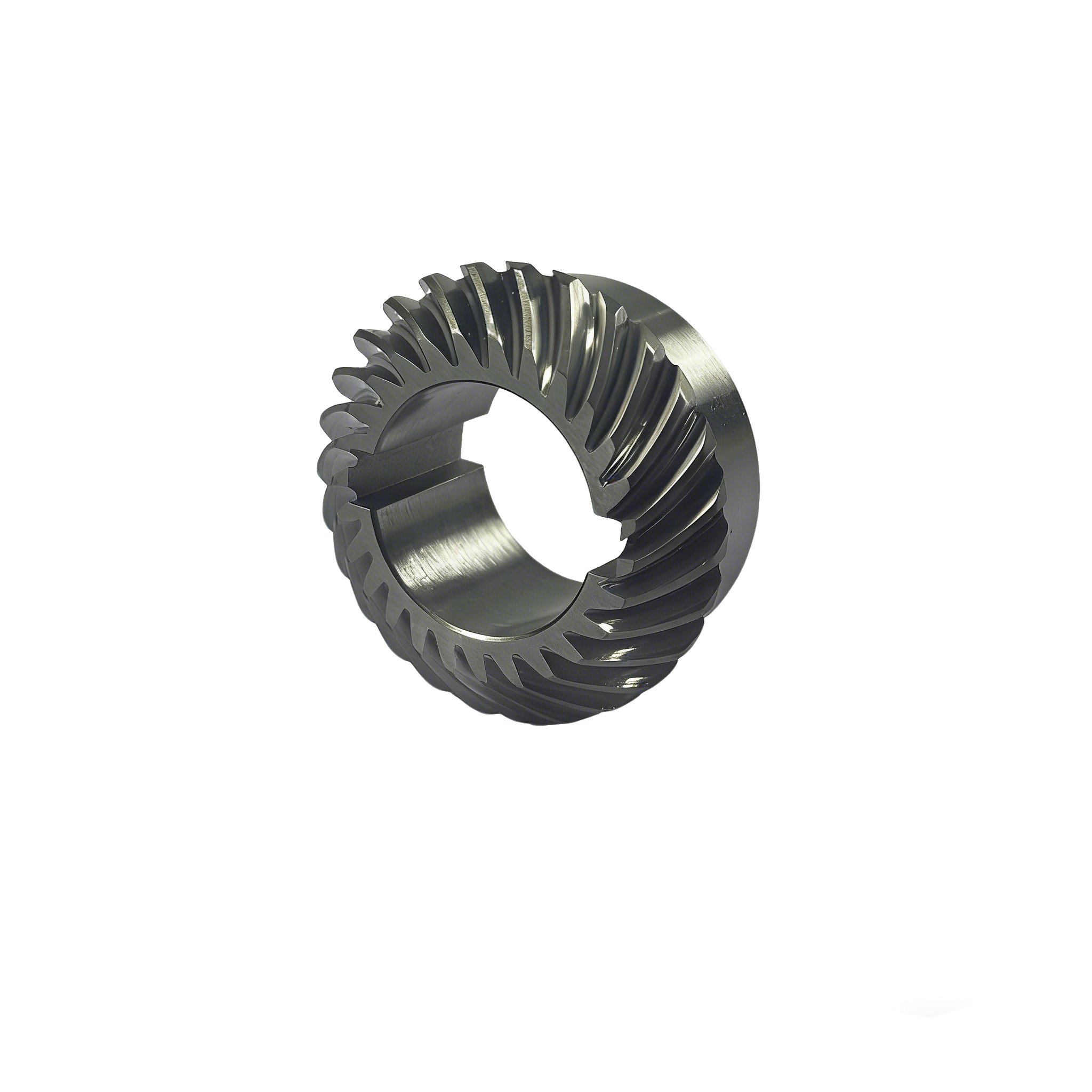

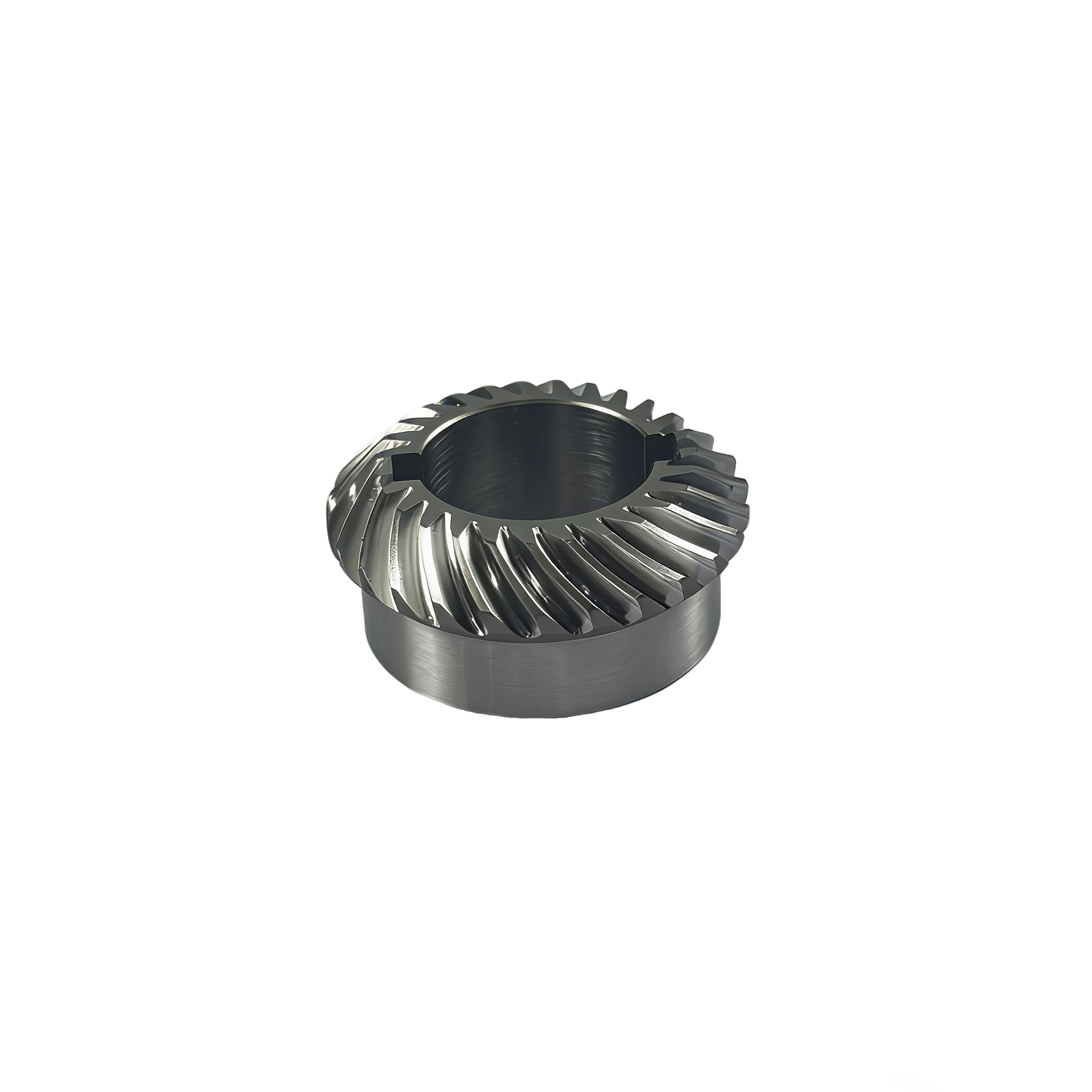

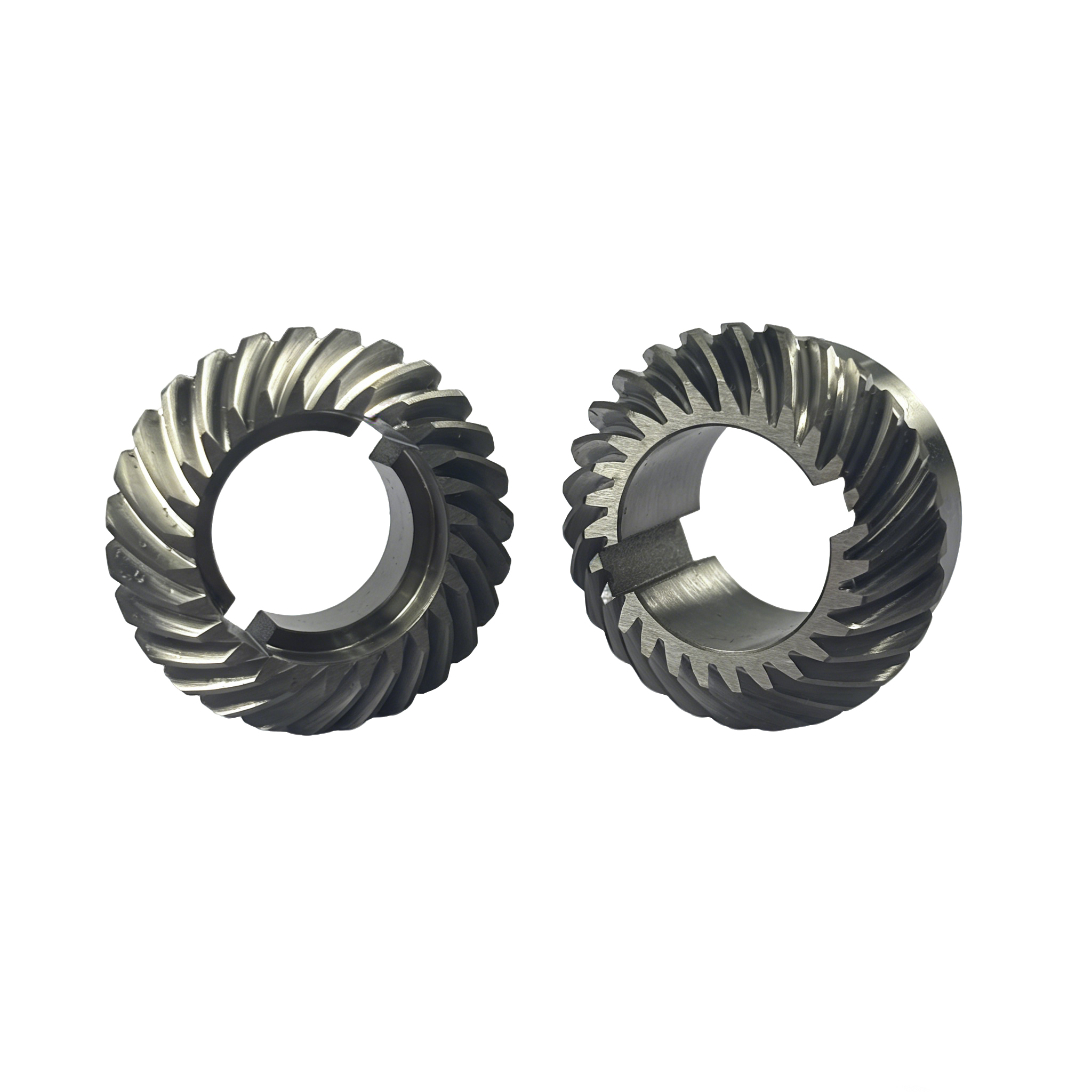

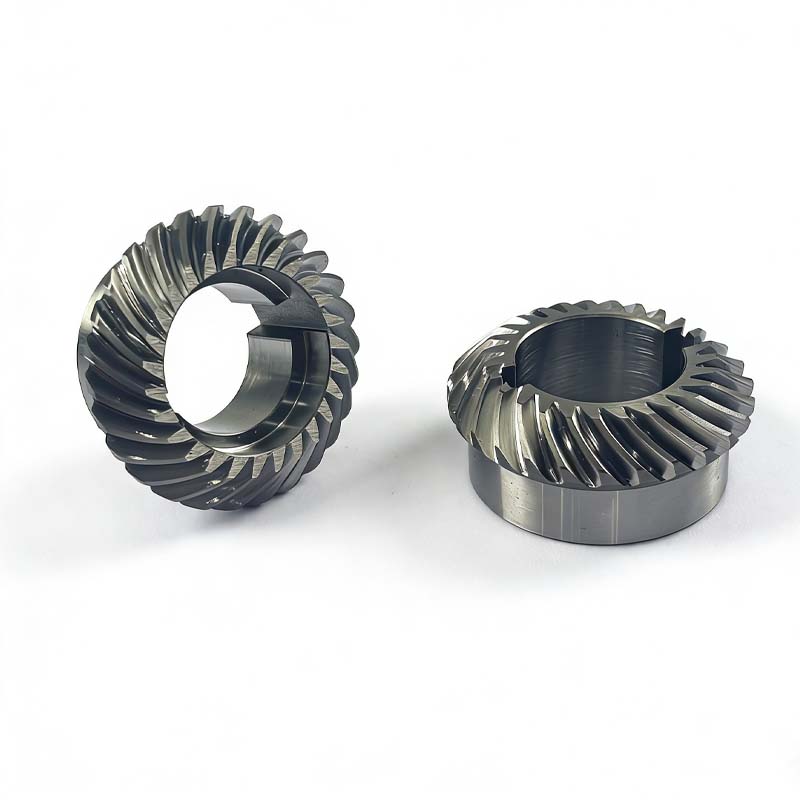

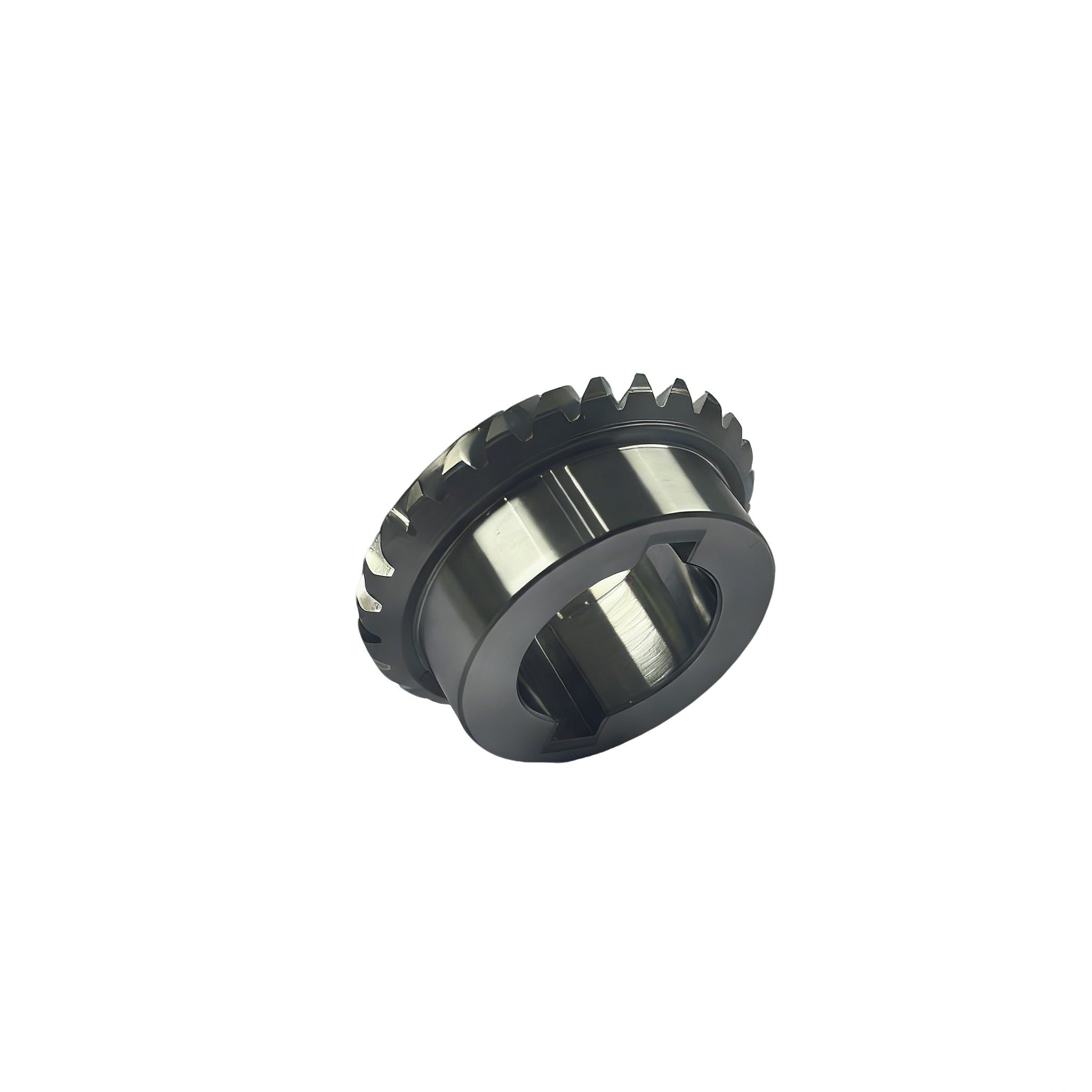

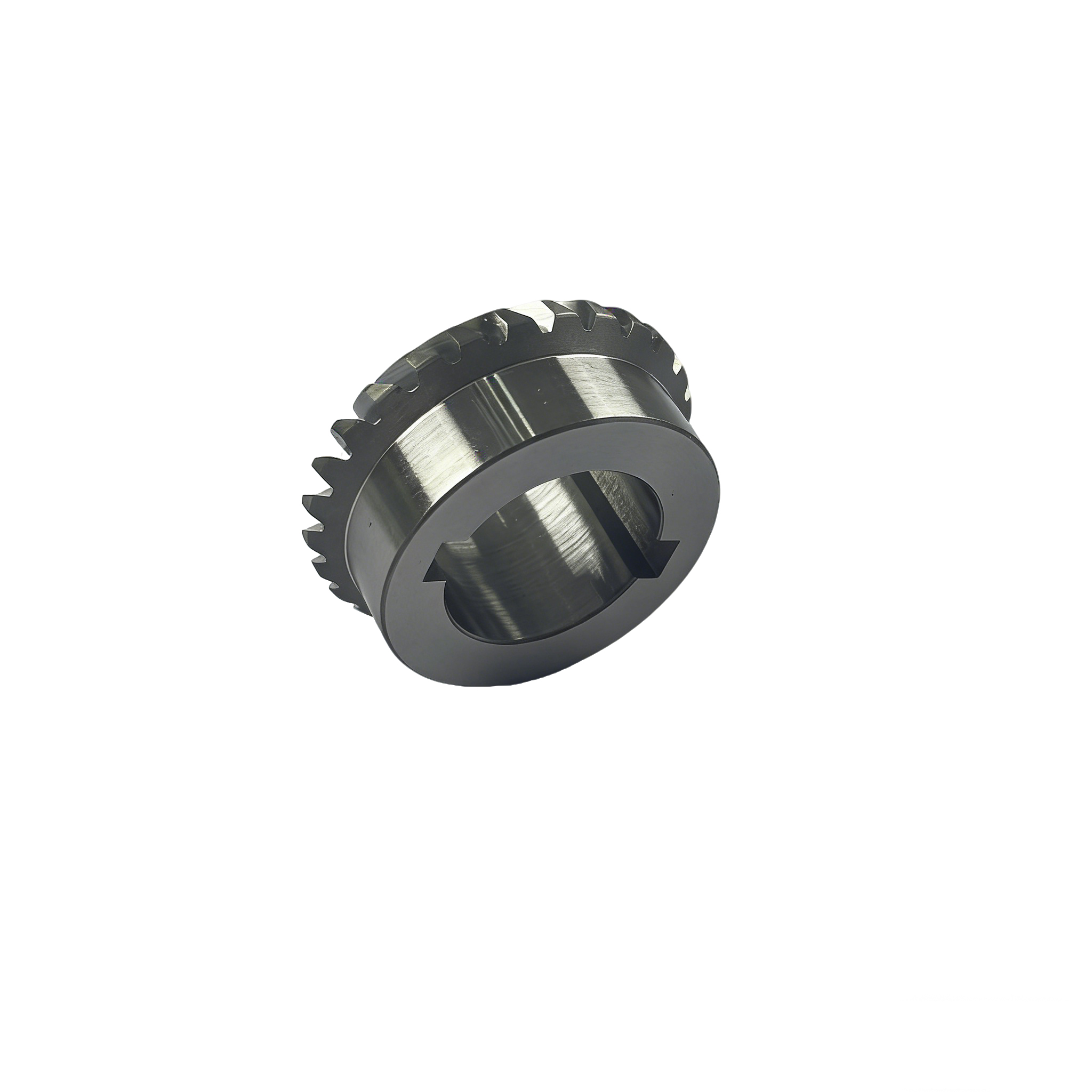

Drive Bevel Gear M1.5-27R and Driven Bevel Gear M1.5-27L
$14.00piece
Two spiral bevel gears made of 20CrMnTi: SN-001-C (drive, right-hand, φ20 ID, 0.0765kg) and SN-002-C (driven, left-hand, φ22 ID, 0.0851kg). With module 1.5, 27 teeth and 20° pressure angle, they are precision-machined and heat-treated for sewing equipment transmission.
Description
This series includes two spiral bevel gear products: SN-001-C Drive Bevel Gear M1.5-27R and SN-002-C Driven Bevel Gear M1.5-27L. Both gears feature a pressure angle of 20°, module of 1.5, tooth count of 27, gear outer diameter of 40.5mm, and total length of 18mm. The drive gear has an inner diameter of 20mm and weighs 0.0765kg with a 35° right-hand spiral angle; the driven gear has an inner diameter of 22mm and weighs 0.0851kg with a 35° left-hand spiral angle, both with a speed ratio of 1. Manufactured from 20CrMnTi alloy steel, they undergo a complete precision process including sawing, turning, gear milling, heat treatment, shot blasting, boring, end facing, outer diameter grinding, surface grinding, keyway wire cutting, ball pressing hole, and gear grinding. Designed specifically for sewing equipment, they deliver stable transmission performance matching the requirements of sewing machinery.
Additional information
| SN-001-C and SN-002-C weight |
0.0765and0.0851 |
|---|---|
| SN-001-C and SN-002-C Core Components |
gear |
| SN-001-C and SN-002-C Craftsmanship |
Milling |
