80501102412 (Gear 12×1.75)
$42.02piece
80501102414 (Gear 45×1.75)
$42.02piece

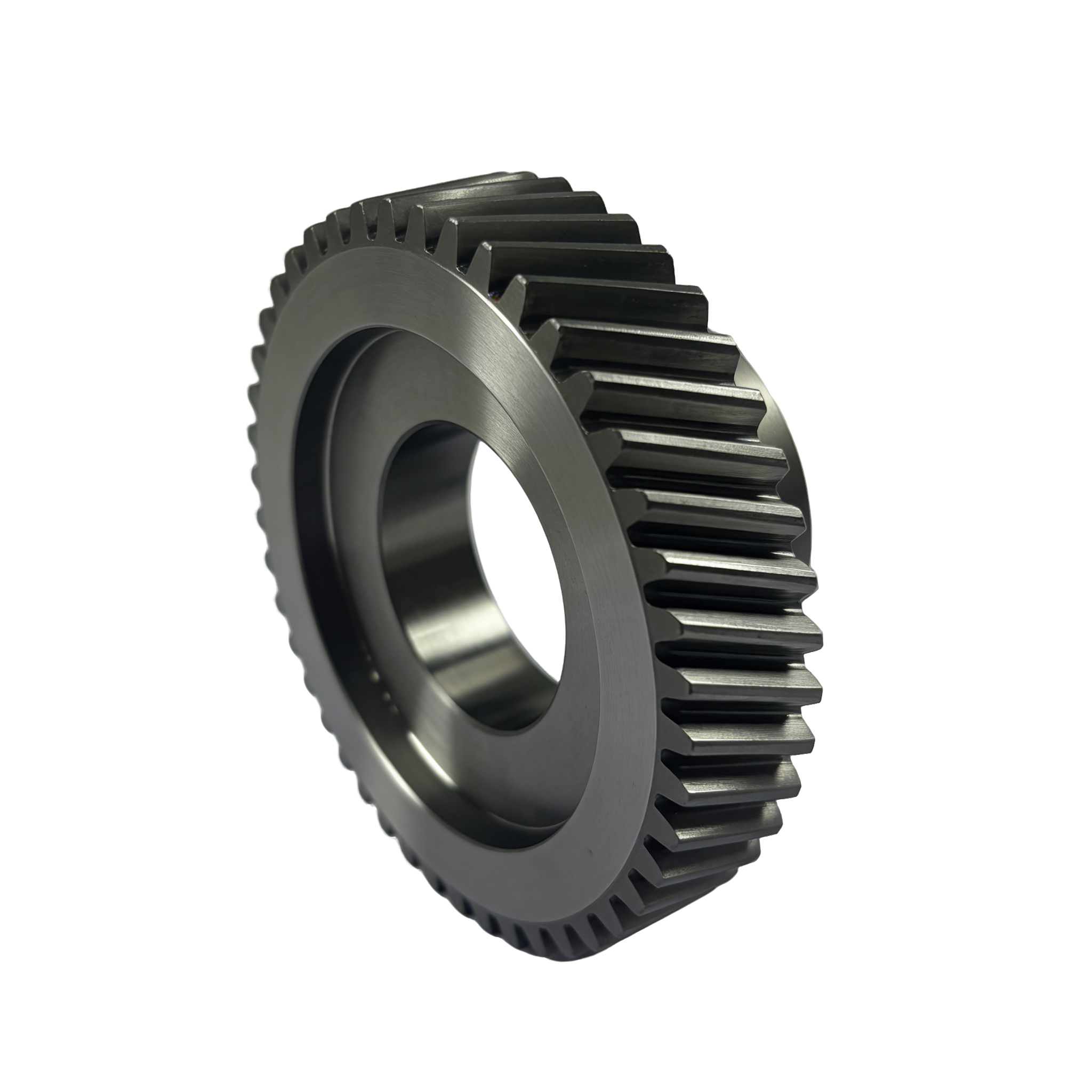

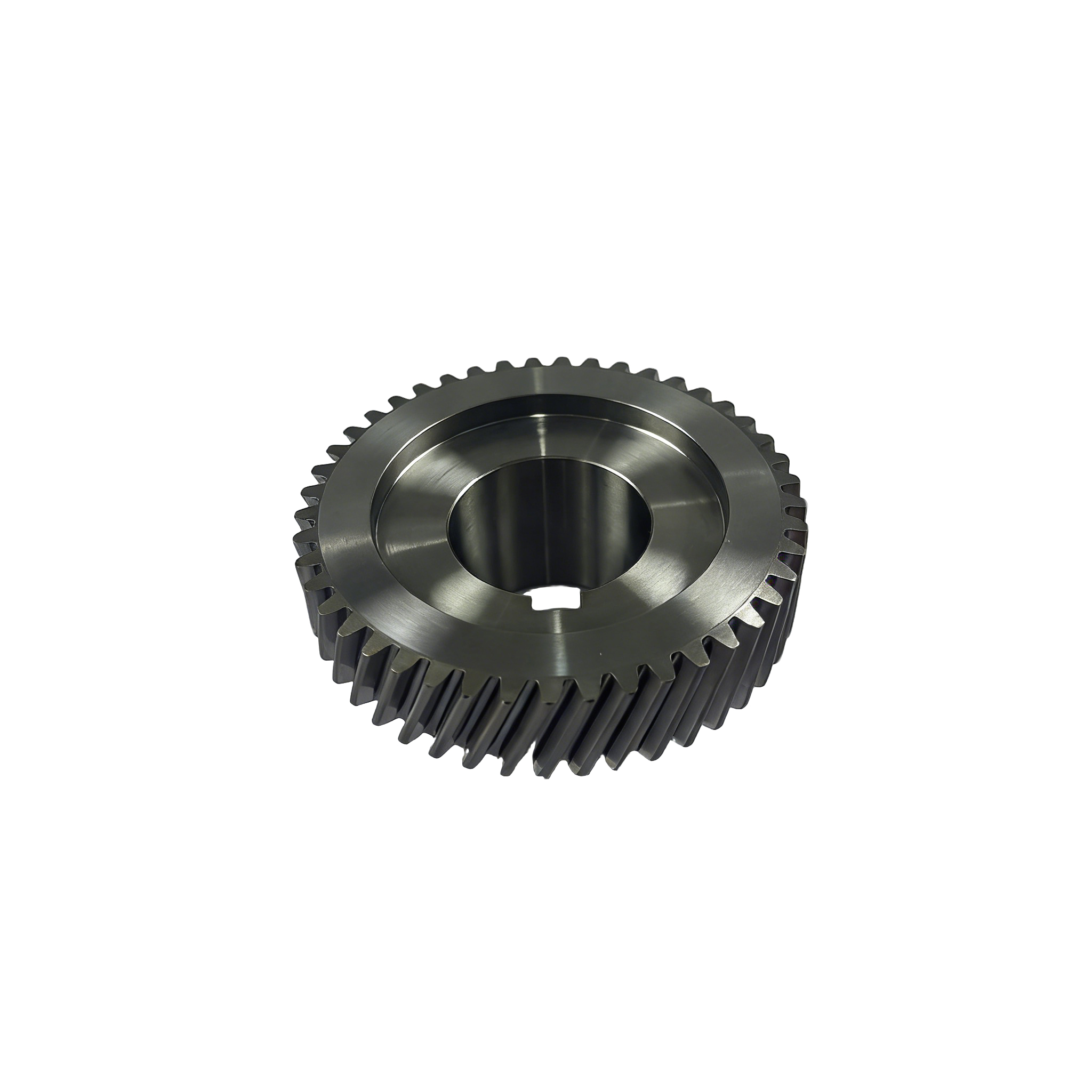

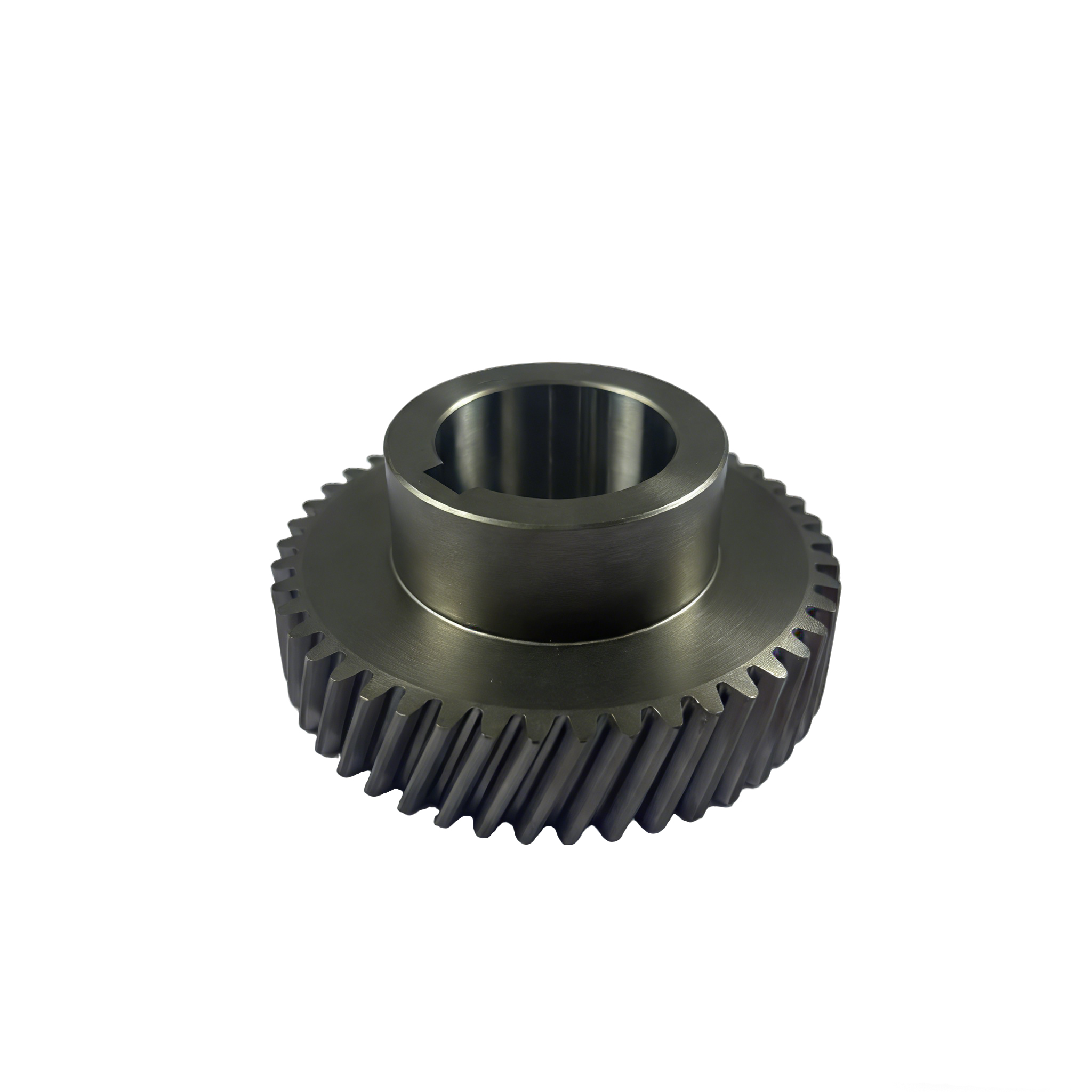

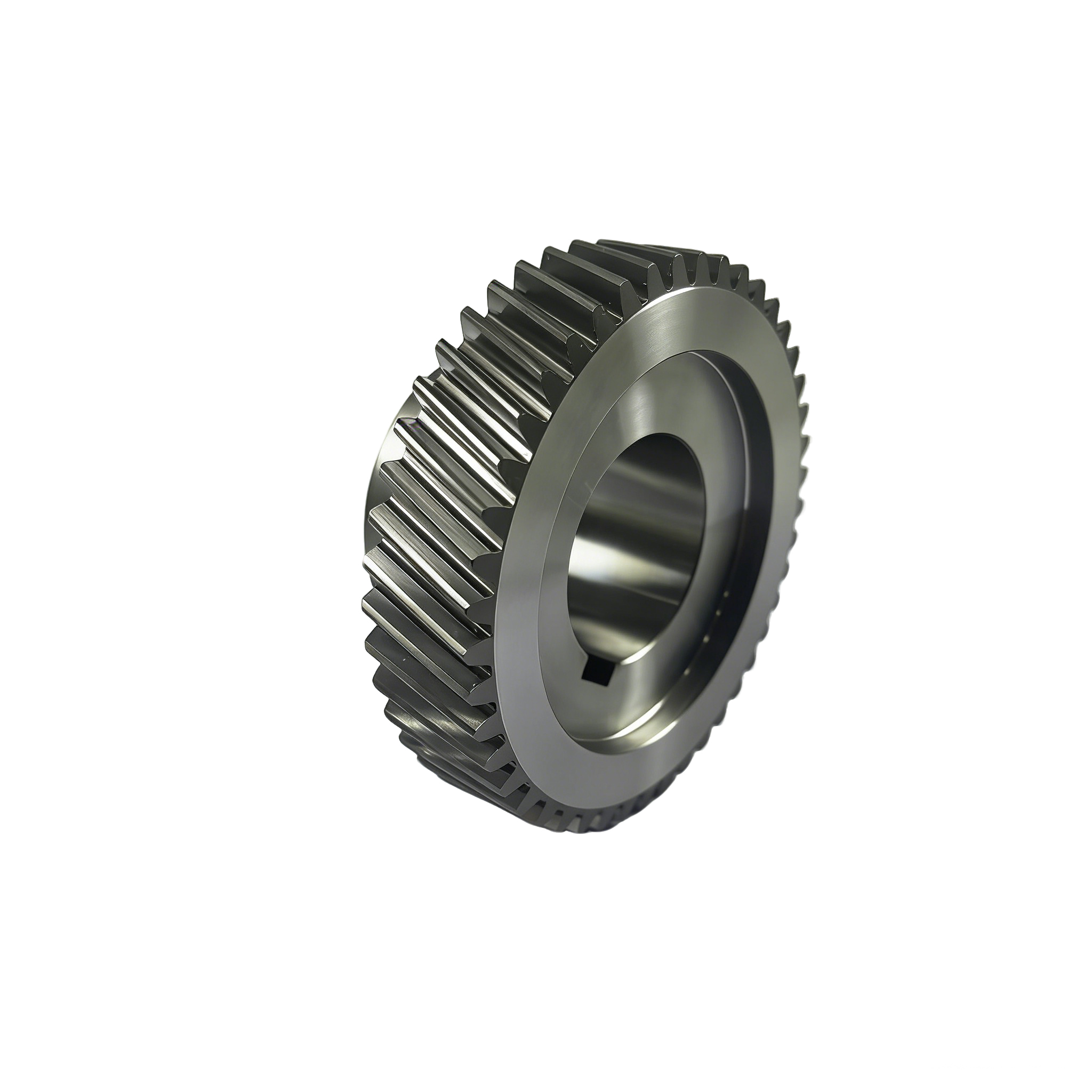

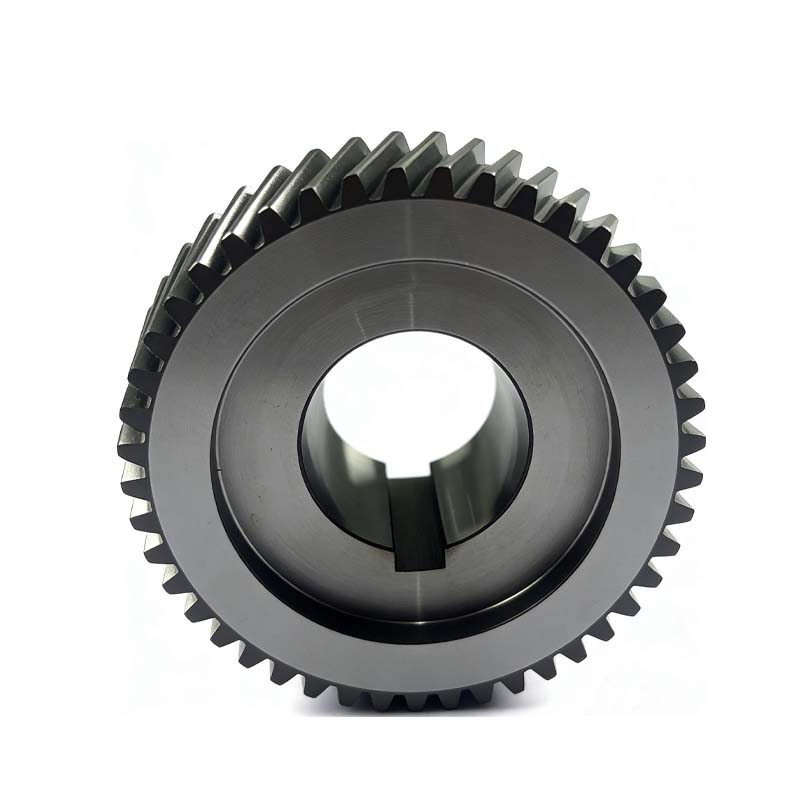

SPKJ-043-C helical gear, module 1.75, 45 teeth, 22° RH helix, 20CrMnTi, for reducer.
Description
SPKJ-043-C (Part No. 80501102414, Gear 45×1.75) is a helical gear for reducers, with pressure angle 20°, module 1.75, 45 teeth, 22° right-hand helix angle, inner diameter 35 mm, addendum diameter 86.51 mm, total length 39 mm, weight 0.7617 kg. Made of 20CrMnTi through processes including sawing, turning, rough hobbing, heat treatment, shot blasting, boring & facing, total length grinding, gear grinding, wire-cut keyway and marking. It is mainly used as a transmission part in reducers.
Additional information
| weight |
0.7617 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Hobbing |
