HL-T19 Right-hand Gear
$6.00piece

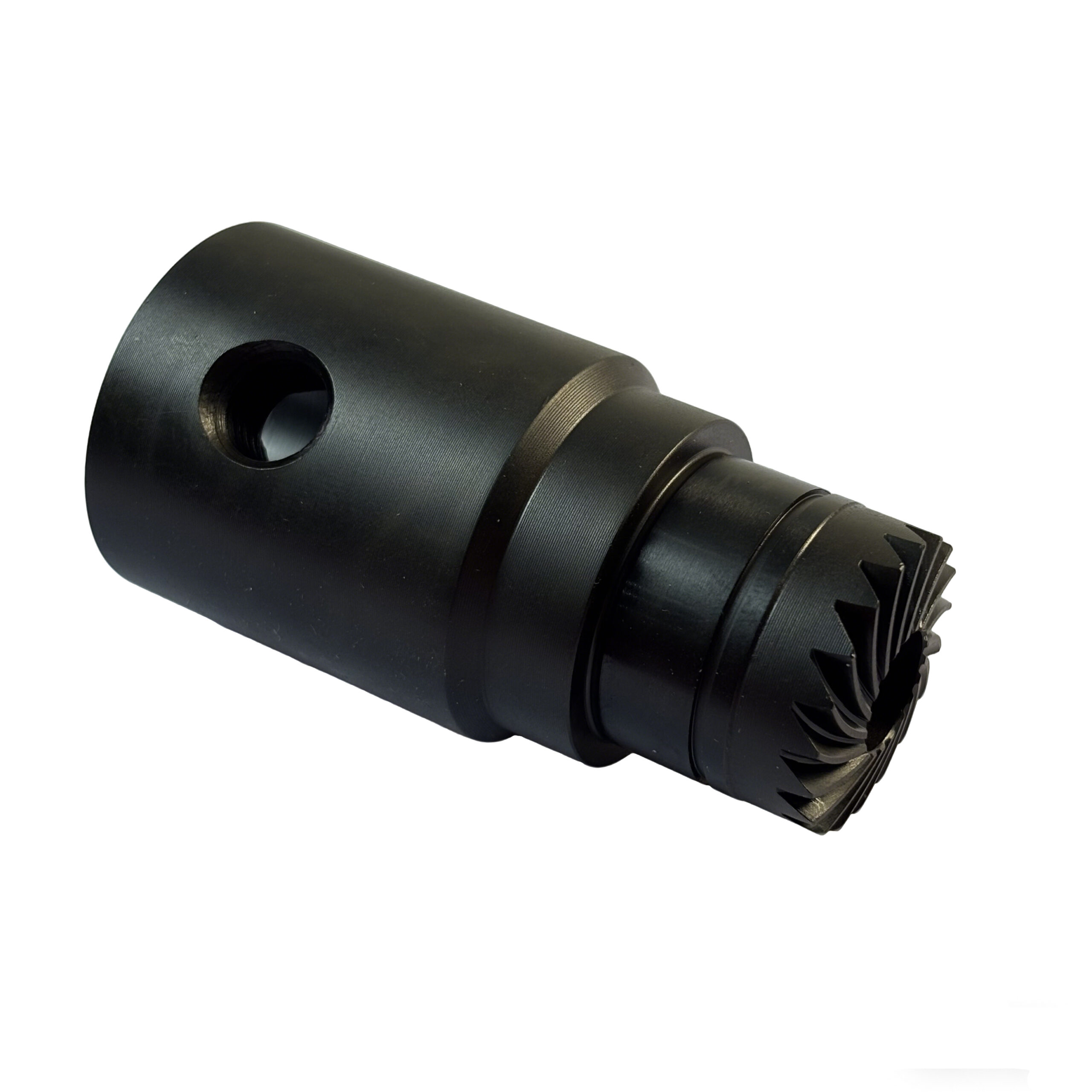

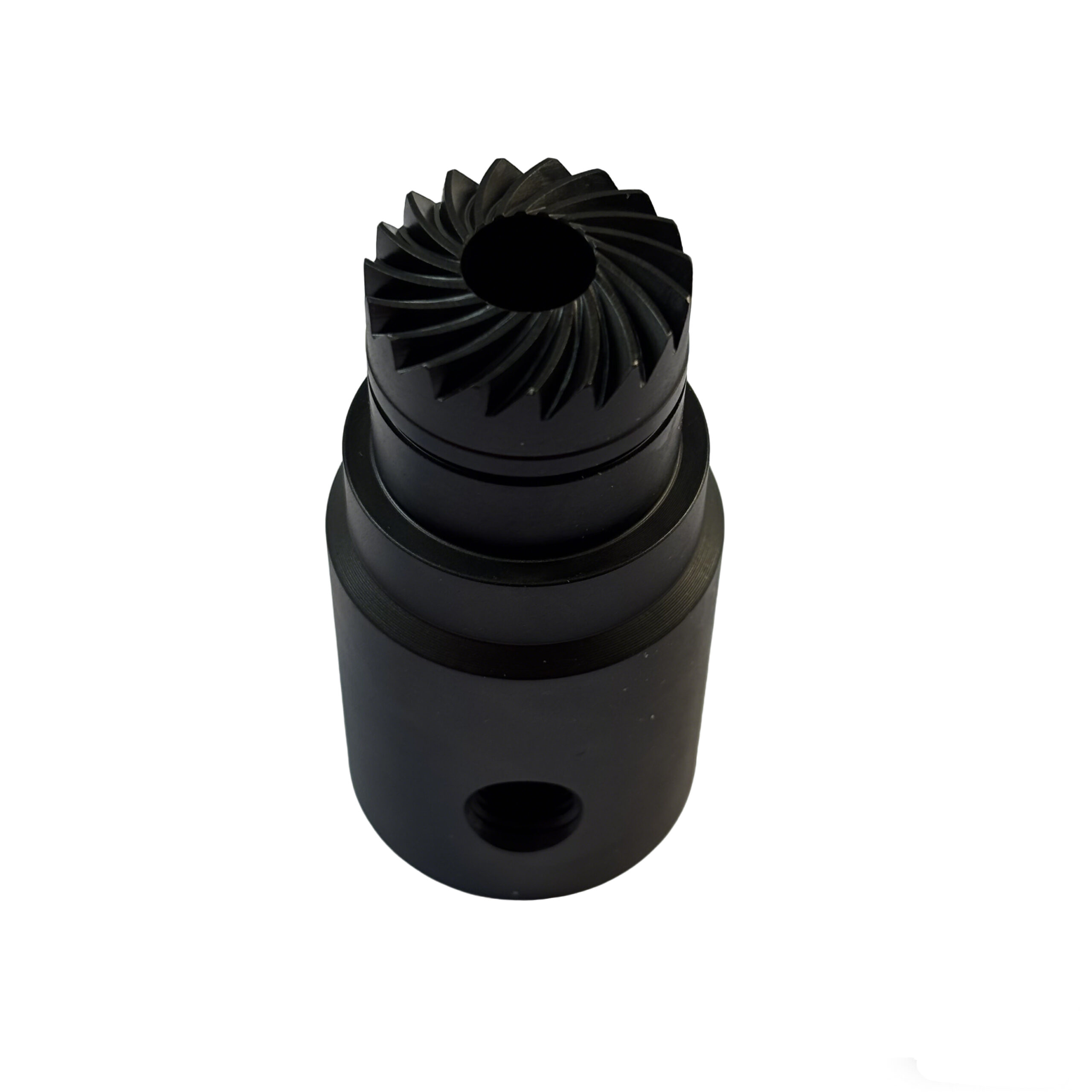

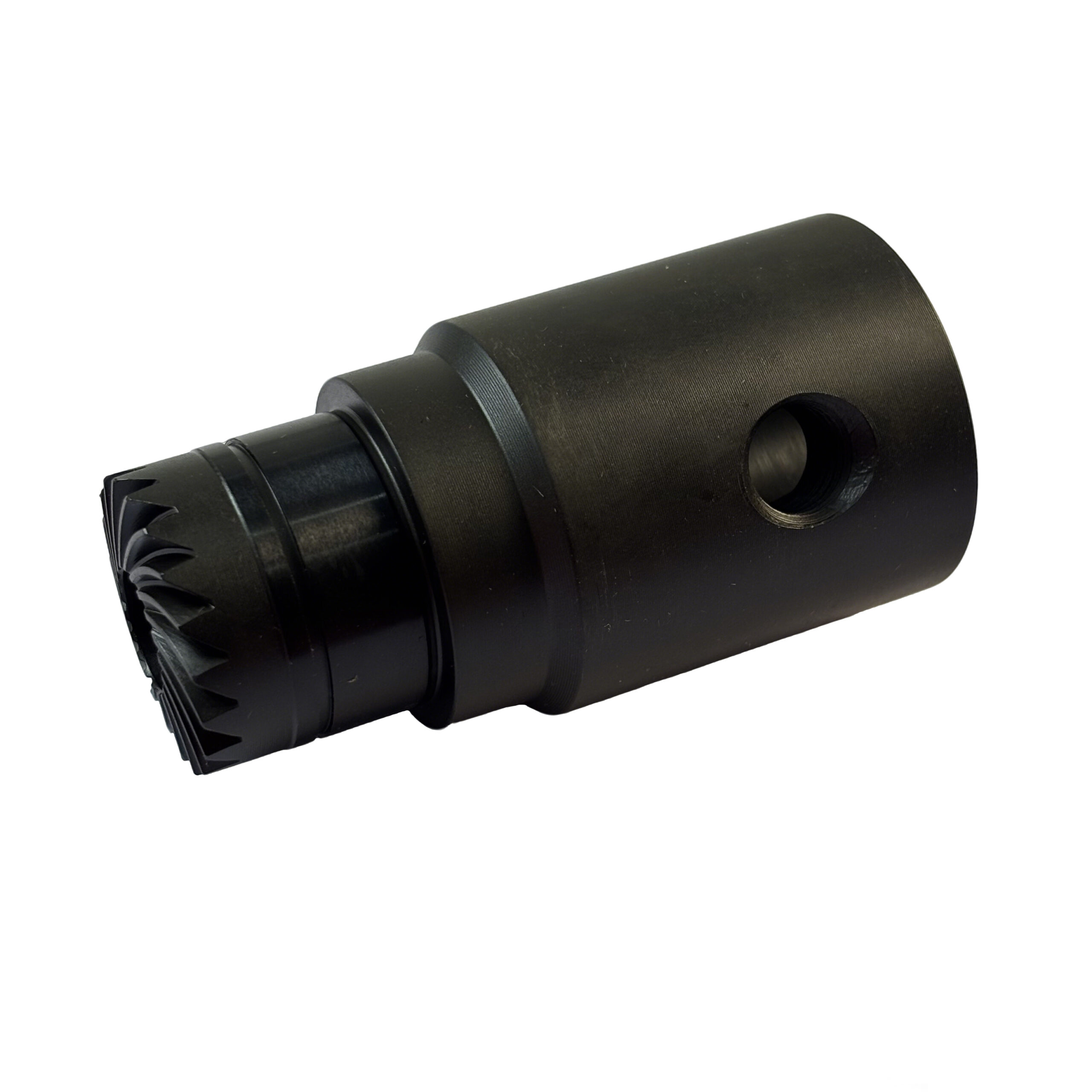

HL-T19 right-hand spiral bevel gear (exclusive for sewing machinery): 20° pressure angle, 1.3 module, 19 teeth, 35°/R spiral angle, 10mm inner diameter, 25mm shaft diameter, 24.7mm outer tooth diameter, 49.92mm overall length, 0.3003kg weight. Made of 20CrMo via multi-step precision processes, it meets the transmission needs of sewing equipment.
Description
Product No. HL-T19 right-hand gear is classified as a spiral bevel gear, serving as a dedicated transmission component for sewing machinery. The core technical parameters of this gear are as follows: pressure angle of 20°, module of 1.3, 19 teeth, and spiral angle of 35° right-hand (35°/R). In terms of structural dimensions, it has an inner diameter of 10mm, a shaft diameter of 25mm, an outer tooth diameter of 24.7mm, an overall length of 49.92mm, with a unit weight of 0.3003kg. Made of 20CrMo alloy steel, it undergoes a sophisticated manufacturing process including sawing → turning → reaming → threaded hole machining → deburring → gear milling → heat treatment → shot blasting → outer diameter grinding → blackening → screw assembly. Full-process quality control ensures the gear’s dimensional accuracy, tooth surface hardness and assembly compatibility. This gear can meet the low-noise and high-stability operation requirements of the transmission system of sewing machinery, and acts as a key transmission component to ensure the reliable operation of sewing equipment.
Additional information
| weight |
0.3003 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Precision Casting |
Reviews (0)
Shipping & Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
32721.150020 Bevel Gear-32721.150010 Bevel Gear
32721 series spiral bevel gears (including 32721.150020/32721.150010) are specially designed for sewing equipment. Made of 20CrMo, they are manufactured through full-process precision processes such as normalizing and turning + full appearance inspection. Core parameters: pressure angle 17°30′, module 1.05, helix angle 40° (right-hand/left-hand rotation respectively); Model 150020: 18 teeth, speed ratio 2, inner diameter 8mm, addendum diameter 21mm, weight 0.0118kg; Model 150010: 36 teeth, inner diameter 15mm, addendum diameter 38.33mm, weight 0.0428kg. Suitable for transmission of sewing equipment, with precise transmission, stability and durability.
50WF1-043 Hook Gear (341 Pinion)and50WF1-040 Lower Shaft (341 Gear Wheel)
BZ-008-C (50WF1-043 Hook Gear/341 Pinion) and BZ-009-C (50WF1-040 Lower Shaft/341 Gear Wheel) are exclusive supporting spiral bevel gears for 341 model sewing equipment. Both are made of 20CrMo and processed through multiple precision processes. Core parameters: pressure angle 20°, module 0.7, helix angle 36.393° (right-hand/left-hand rotation respectively); BZ-008-C: 16 teeth, speed ratio 2, inner diameter 7.94mm, addendum diameter 12mm, weight 0.0617kg; BZ-009-C: 32 teeth, inner diameter 9.5mm, addendum diameter 29.421mm, weight 0.0303kg. Used in supporting pairs, they feature precise and stable transmission, suitable for the transmission needs of sewing equipment.
Bevel Gear 4037014 (Large)
The 4037014 Bevel Gear (Large) is made of 20CrMnTi material and manufactured through multiple precision processes including normalization, turning, gear milling and heat treatment. Its core parameters are 20° pressure angle, 2.12 module, 33 teeth and 35° left-hand rotation, with a tooth outer diameter of 70.442mm, total length of 21.91mm and weight of 0.375kg. Specially designed for reducers, this product features stable transmission, wear resistance and durability.
CJBB002F-1 (5-hole outer diameter non-turned) Finished Product
CJBB002F-1 (5-hole outer diameter non-turned) finished spiral bevel gear features a pressure angle of 20°, module of 1.2118, spiral angle of 35°/L, inner diameter of 5mm, tooth outer diameter of 11.6mm and total length of 19.5mm. It is a dedicated core transmission component for reducers with simplified processes and stable transmission performance.
Φ14.73 Left-hand (LH) Straight Teeth and Φ7.94 Right-hand (RH) Straight Teeth
The two models of spur spiral bevel gears (Φ14.73 Left-hand, Φ7.94 Right-hand) are made of 20CrMo material and manufactured through multiple precision processes. With parameters including 20° pressure angle, 0.97 module, 33 teeth and 0° helix angle, both gears have a tooth outer diameter of 32mm. The Φ14.73 model has a total length of 17.65mm and a weight of 0.0487kg, while the Φ7.94 model has a total length of 15.65mm and a weight of 0.0566kg. Specially designed for sewing equipment, these gears are characterized by stable transmission, wear resistance and durability.
