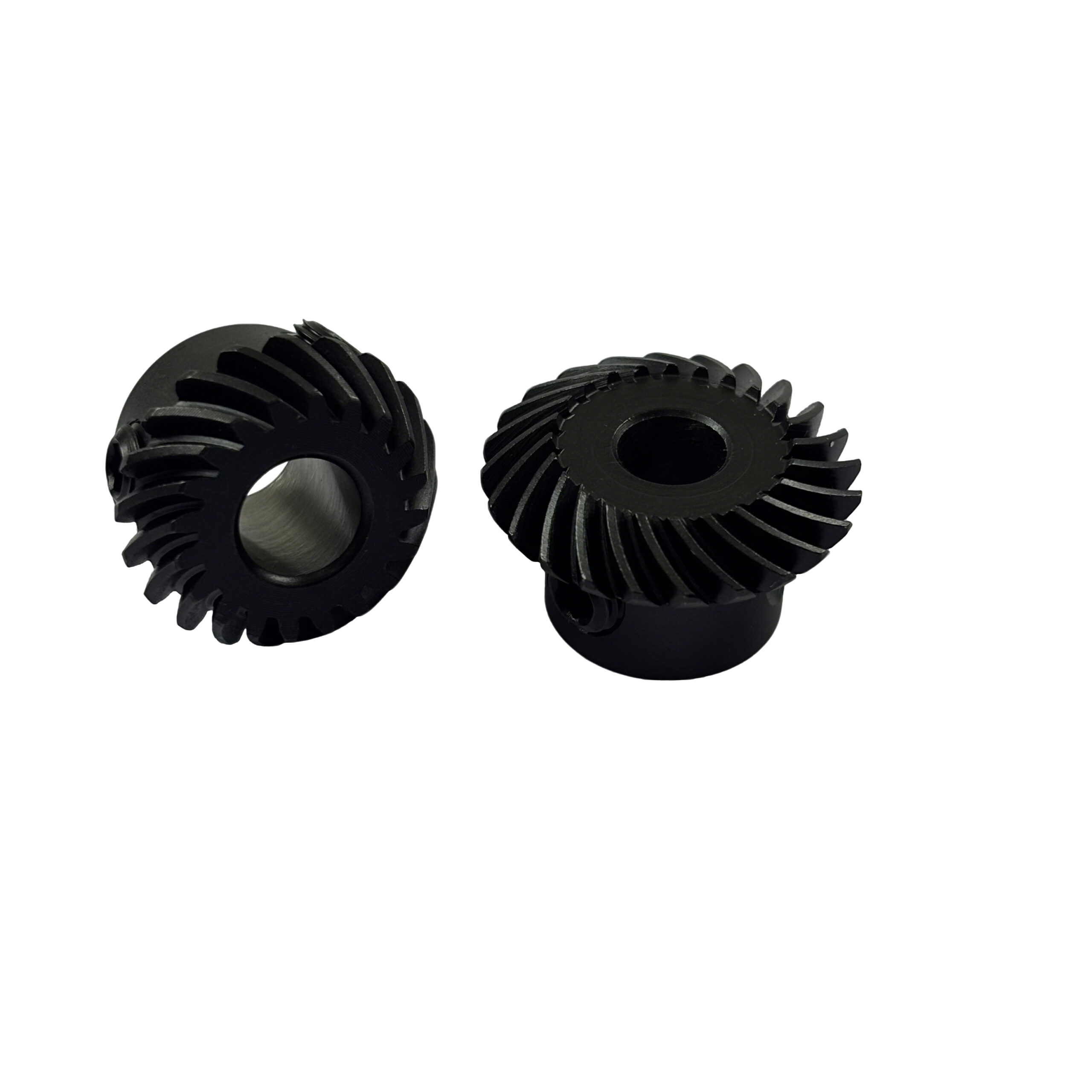

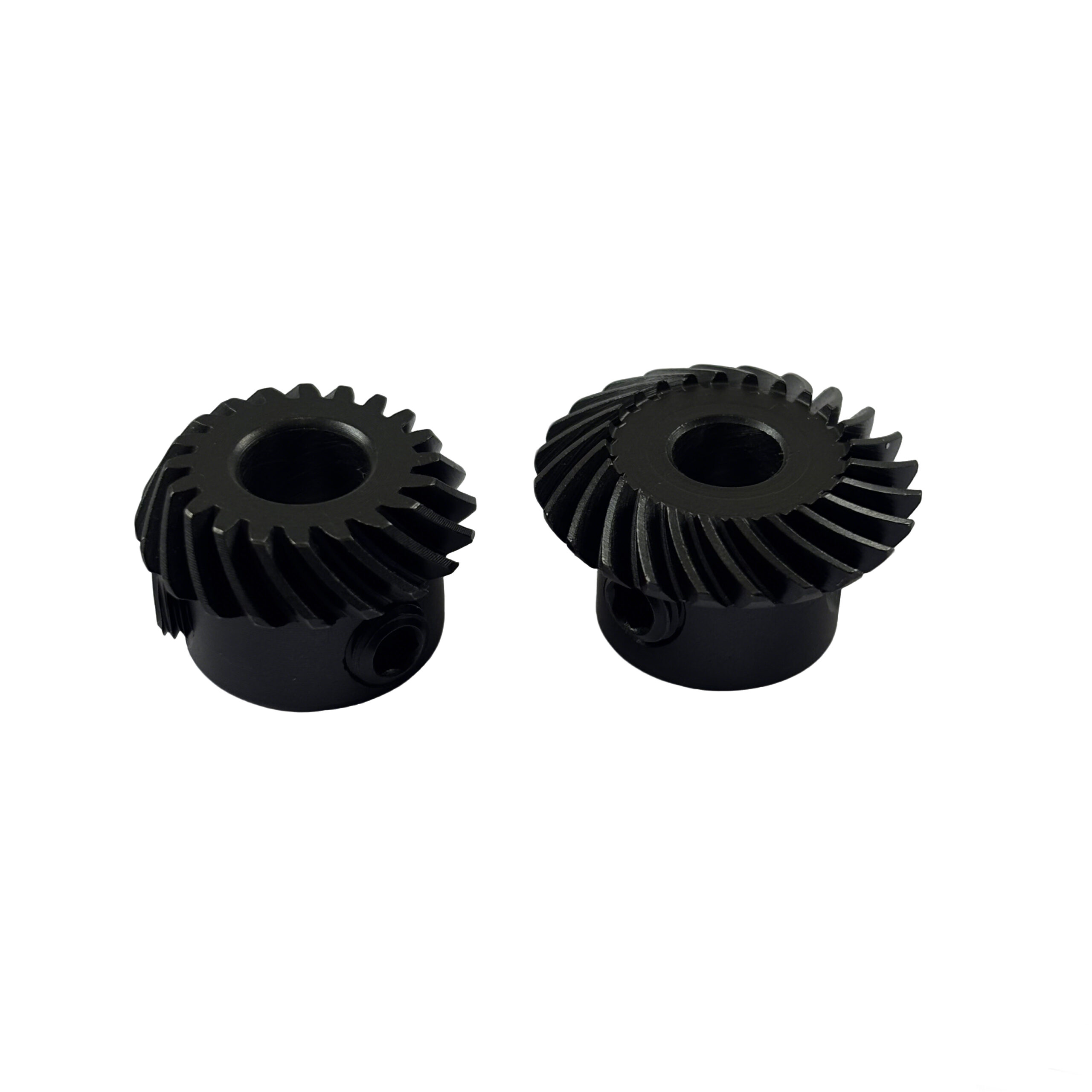

T20 and T24 Long Version

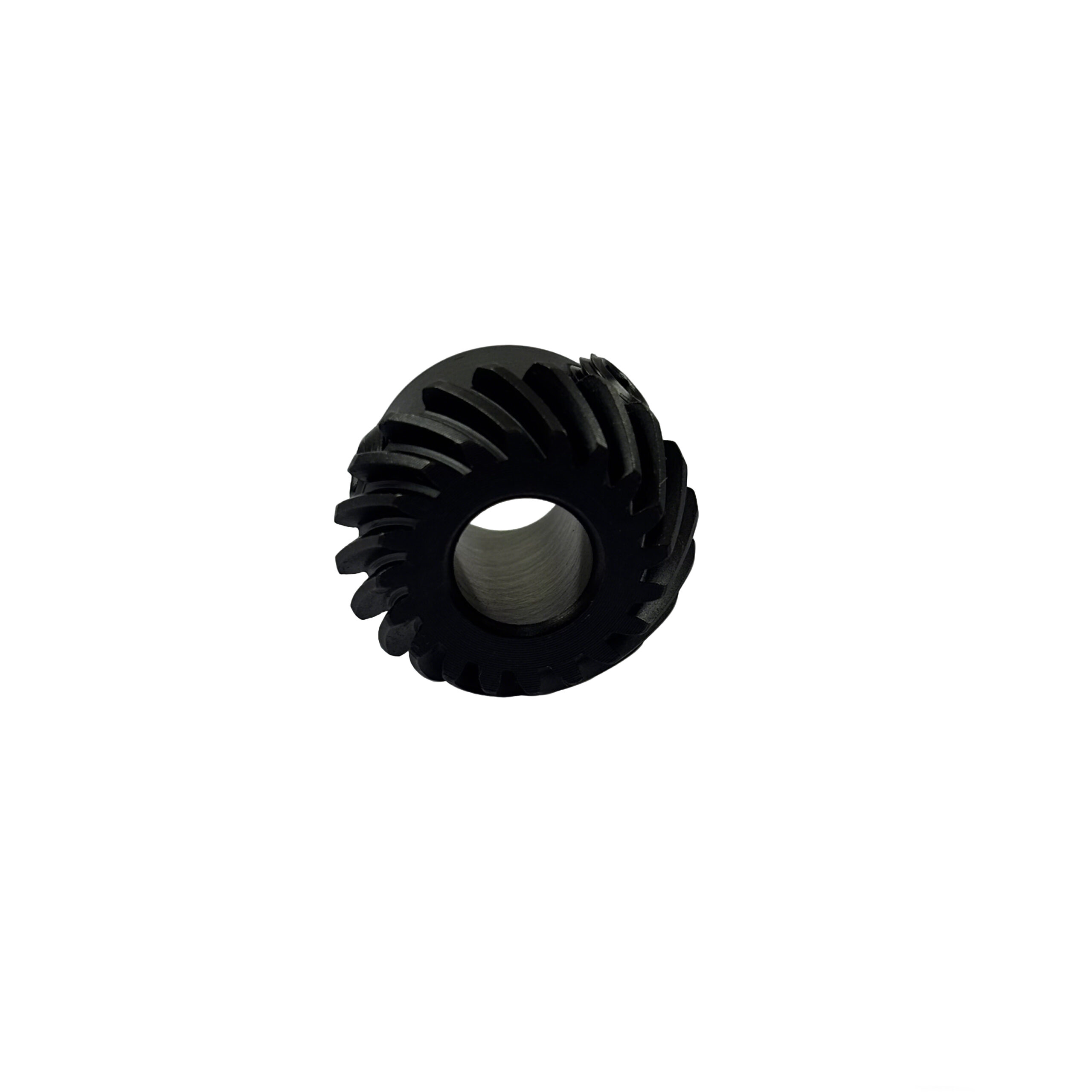

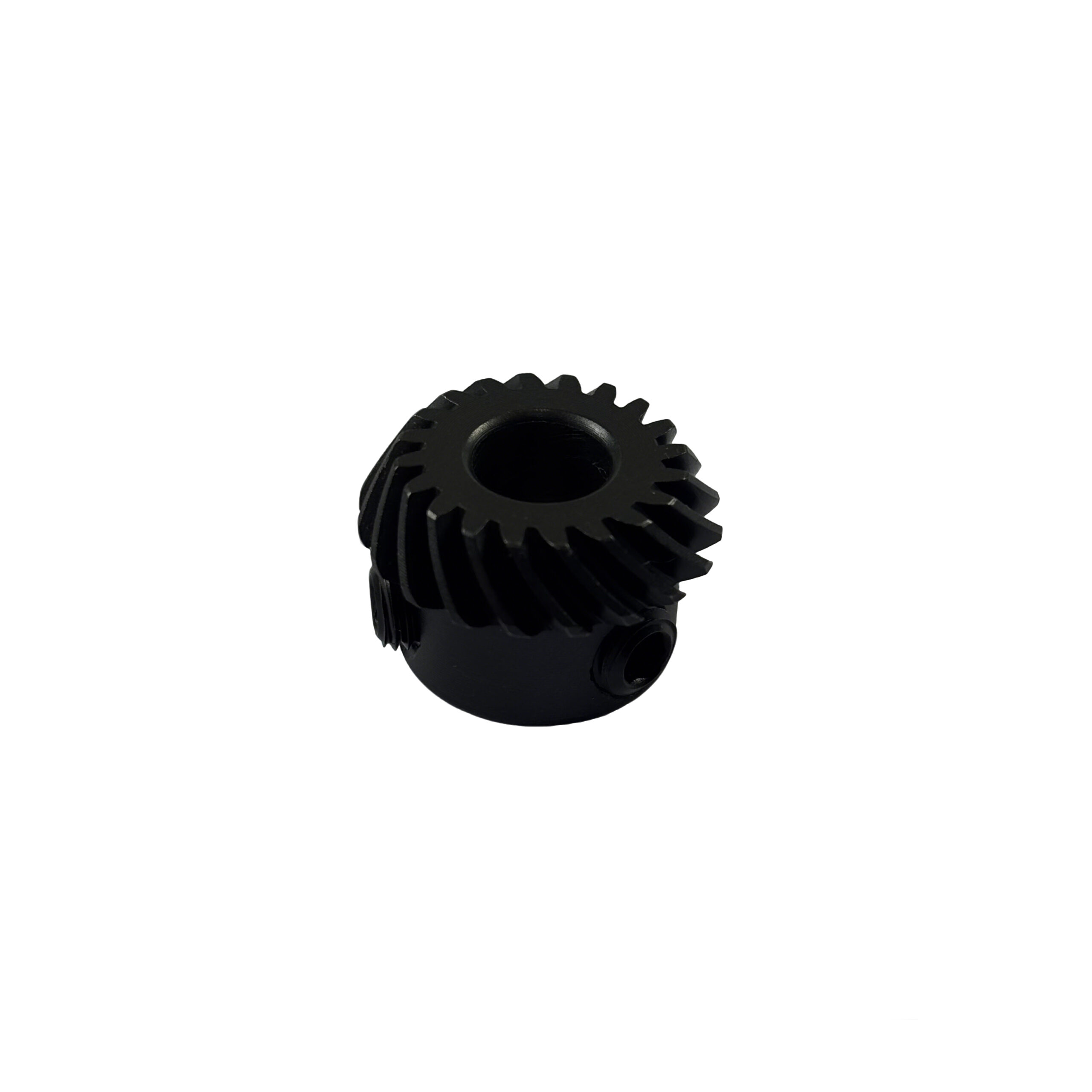

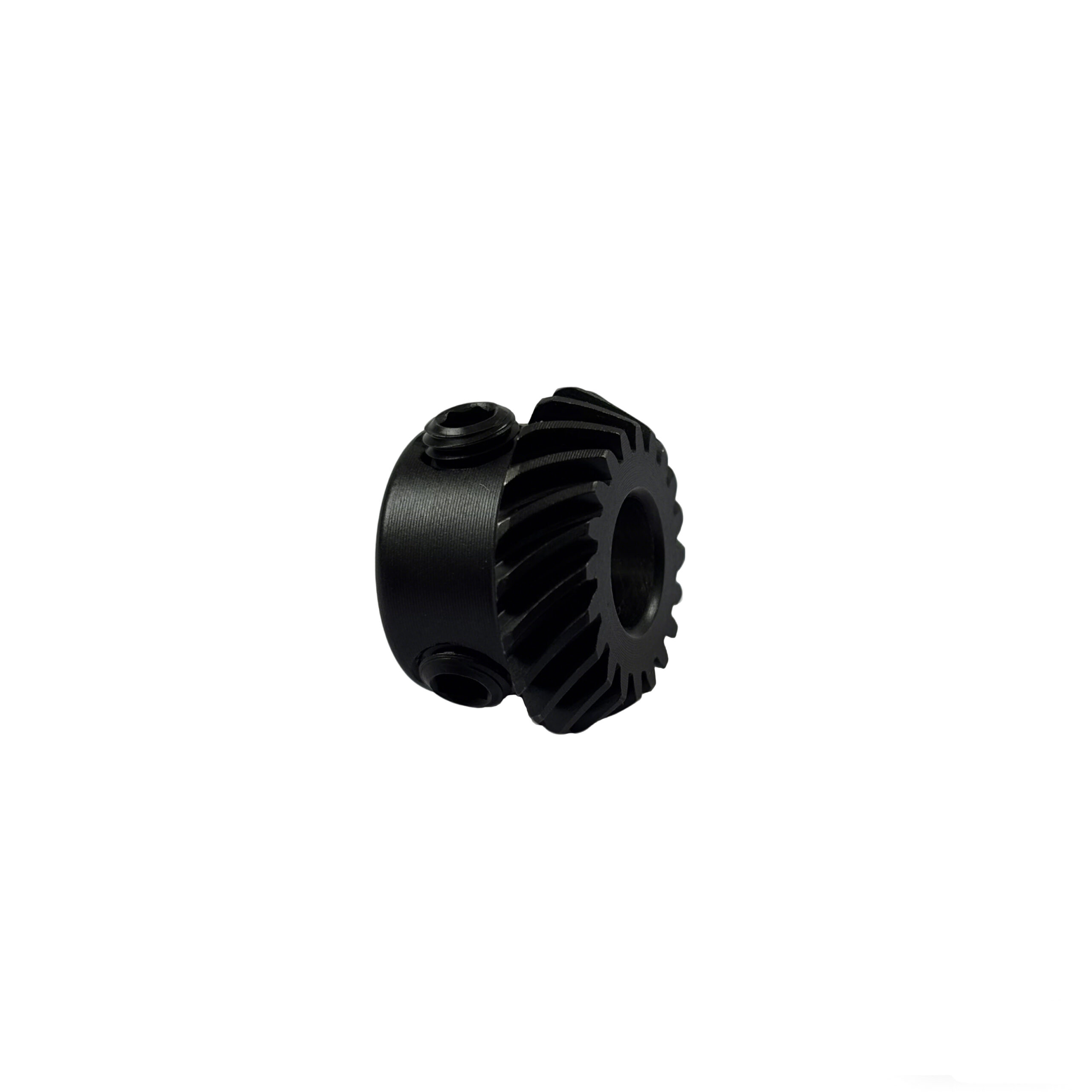

• T20 Spiral Bevel Gear: Pressure angle 20°, module 1, number of teeth 20, speed ratio 1, spiral angle 35°/L, inner diameter 8mm, outer diameter of tooth part 21.5mm, total length 14.1mm. Made of 20CrMo material, it undergoes a complete manufacturing process including normalizing, turning, threaded hole machining, reaming, gear milling, heat treatment, shot blasting, blackening, secondary reaming, marking, and screw assembly, ensuring the structural strength and transmission accuracy of the gear.

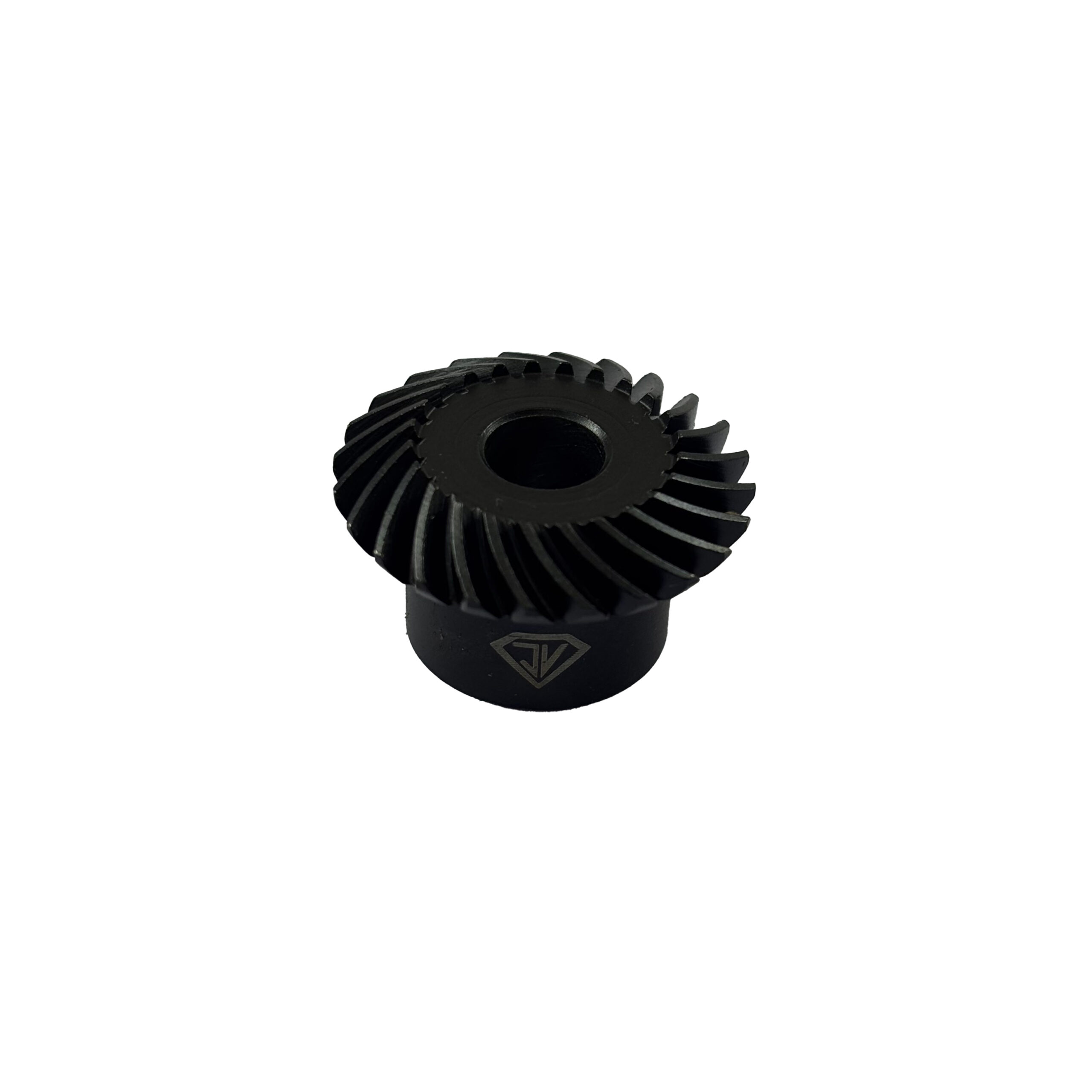

• T24 Long Version Spiral Bevel Gear: Pressure angle 20°, module 1, number of teeth 24, spiral angle 35°/L, inner diameter 7.94mm, outer diameter of tooth part 24.5mm, total length 14.35mm, and single weight 0.0213kg. Also made of 20CrMo material, its production process covers normalizing, turning, threaded hole machining, reaming, gear milling, heat treatment, shot blasting, blackening, marking, secondary reaming and screw assembly. The rigorous process route can meet the long-term stable operation requirements of roller sewing machine transmission systems.

Both gears are made of high-quality alloy structural steel 20CrMo. Combined with multiple precision machining and heat treatment procedures, they have excellent wear resistance and impact resistance. The precise design of spiral angle and pressure angle enables low-noise and high-efficiency operation of the roller sewing machine transmission system.

Specialized for the power transmission system of roller sewing machines, it is a key supporting gear component for roller sewing machines in sewing machinery.
