28-M4-L46-D35(28-M4-J35-D85-L50-V-C-B)
28-M4-L46-D40(28-M4-J40-D85-L50-V-C-B)

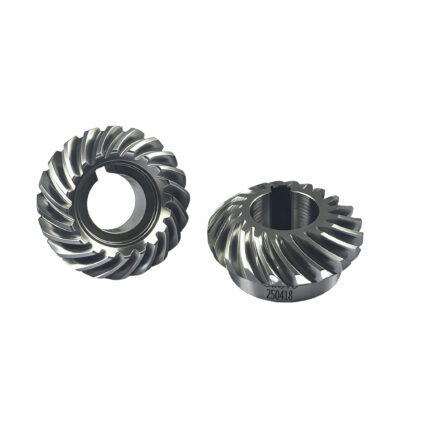

32721.150020 Bevel Gear-32721.150010 Bevel Gear
32721 series spiral bevel gears (including 32721.150020/32721.150010) are specially designed for sewing equipment. Made of 20CrMo, they are manufactured through full-process precision processes such as normalizing and turning + full appearance inspection. Core parameters: pressure angle 17°30′, module 1.05, helix angle 40° (right-hand/left-hand rotation respectively); Model 150020: 18 teeth, speed ratio 2, inner diameter 8mm, addendum diameter 21mm, weight 0.0118kg; Model 150010: 36 teeth, inner diameter 15mm, addendum diameter 38.33mm, weight 0.0428kg. Suitable for transmission of sewing equipment, with precise transmission, stability and durability.

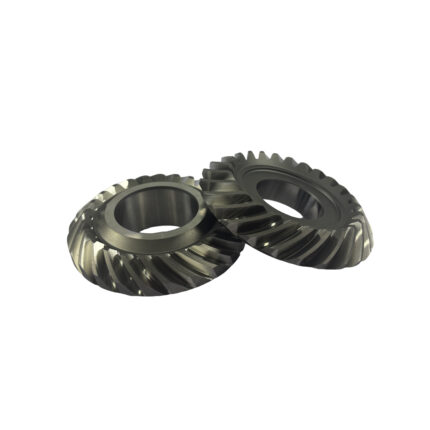

50WF1-043 Hook Gear (341 Pinion)and50WF1-040 Lower Shaft (341 Gear Wheel)
BZ-008-C (50WF1-043 Hook Gear/341 Pinion) and BZ-009-C (50WF1-040 Lower Shaft/341 Gear Wheel) are exclusive supporting spiral bevel gears for 341 model sewing equipment. Both are made of 20CrMo and processed through multiple precision processes. Core parameters: pressure angle 20°, module 0.7, helix angle 36.393° (right-hand/left-hand rotation respectively); BZ-008-C: 16 teeth, speed ratio 2, inner diameter 7.94mm, addendum diameter 12mm, weight 0.0617kg; BZ-009-C: 32 teeth, inner diameter 9.5mm, addendum diameter 29.421mm, weight 0.0303kg. Used in supporting pairs, they feature precise and stable transmission, suitable for the transmission needs of sewing equipment.
532.06-01-29 Bevel Gear
6K – Upper Shaft Bevel Gear
6K – Upper Vertical Shaft Bevel Gear
718WF14-025
AMC005 (Power Tool Holder Gear – φ15) and AMC005 (Power Tool Holder Gear – φ17)
