0370302100 SPIRAL BEVEL GEAR (IN) and 0370302200 SPIRAL BEVEL GEAR (OUT)
$26.32piece
ASPJ-240-C and ASPJ-241-C are a set of matched spiral bevel gears for reducer.Material: 20CrMo; spec: 20° pressure angle, module 2.5, 25 teeth.Left-hand for input, right-hand for output.Processed by precision machining, heat treatment and full inspection, high precision and durable, ideal for reducer transmission.
Description

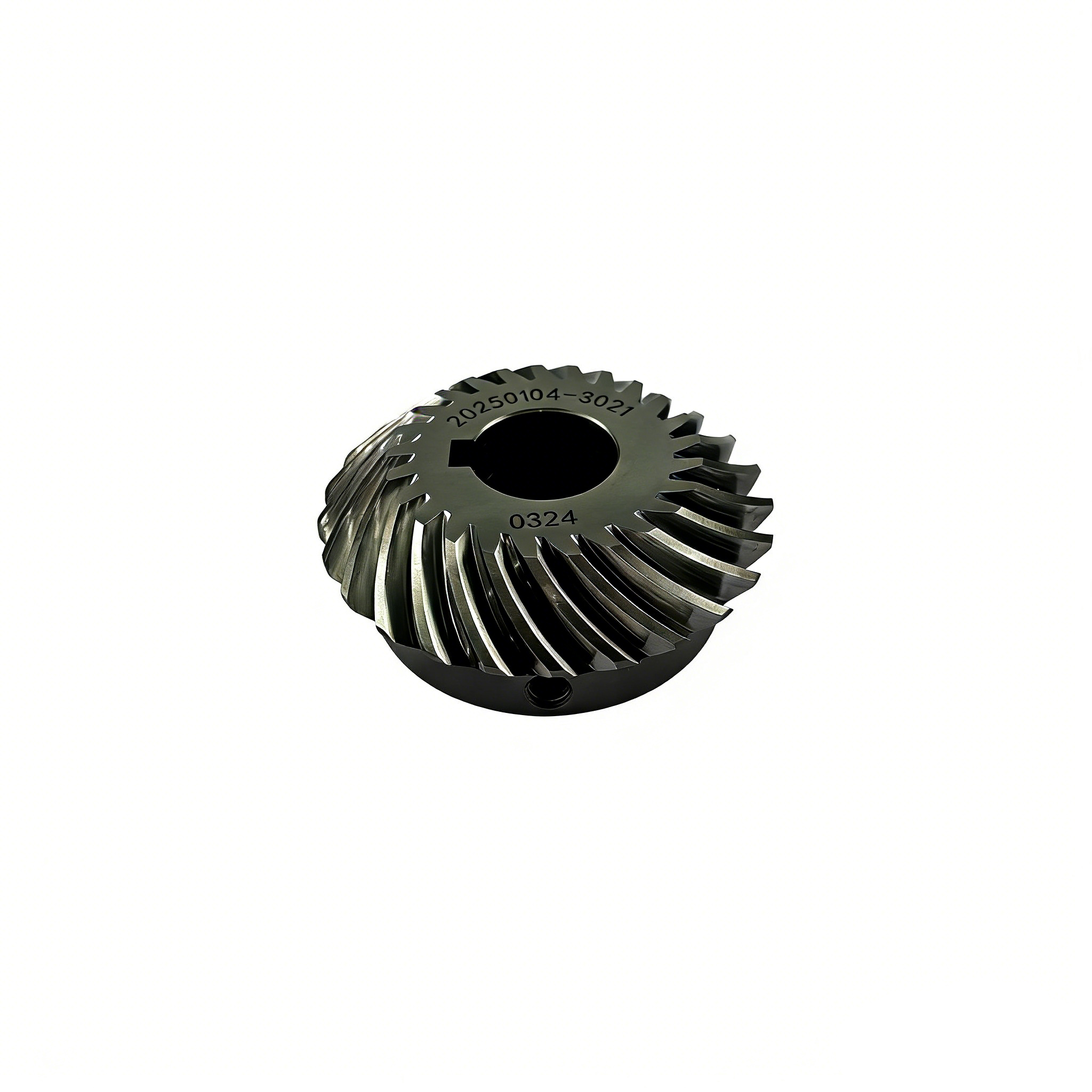

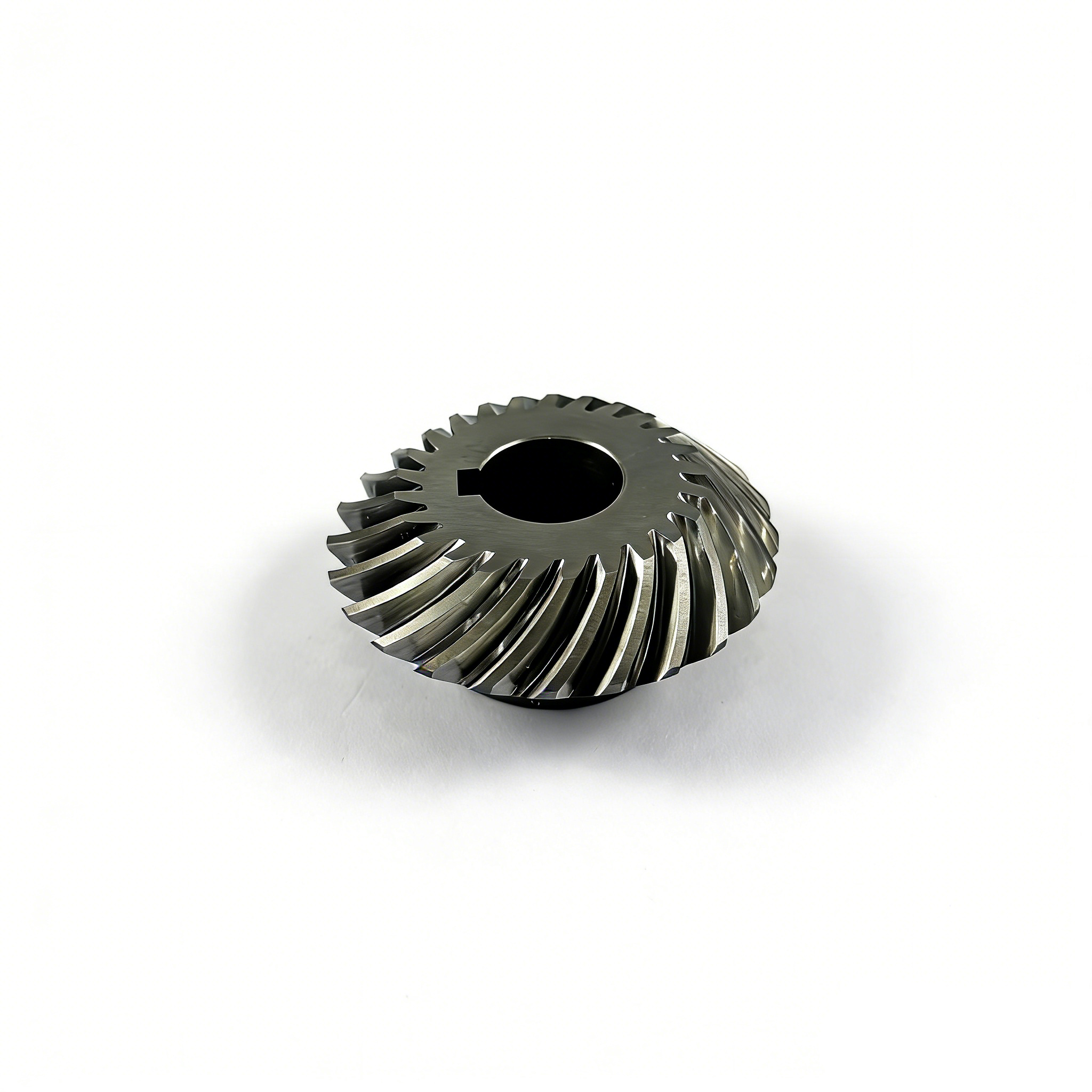

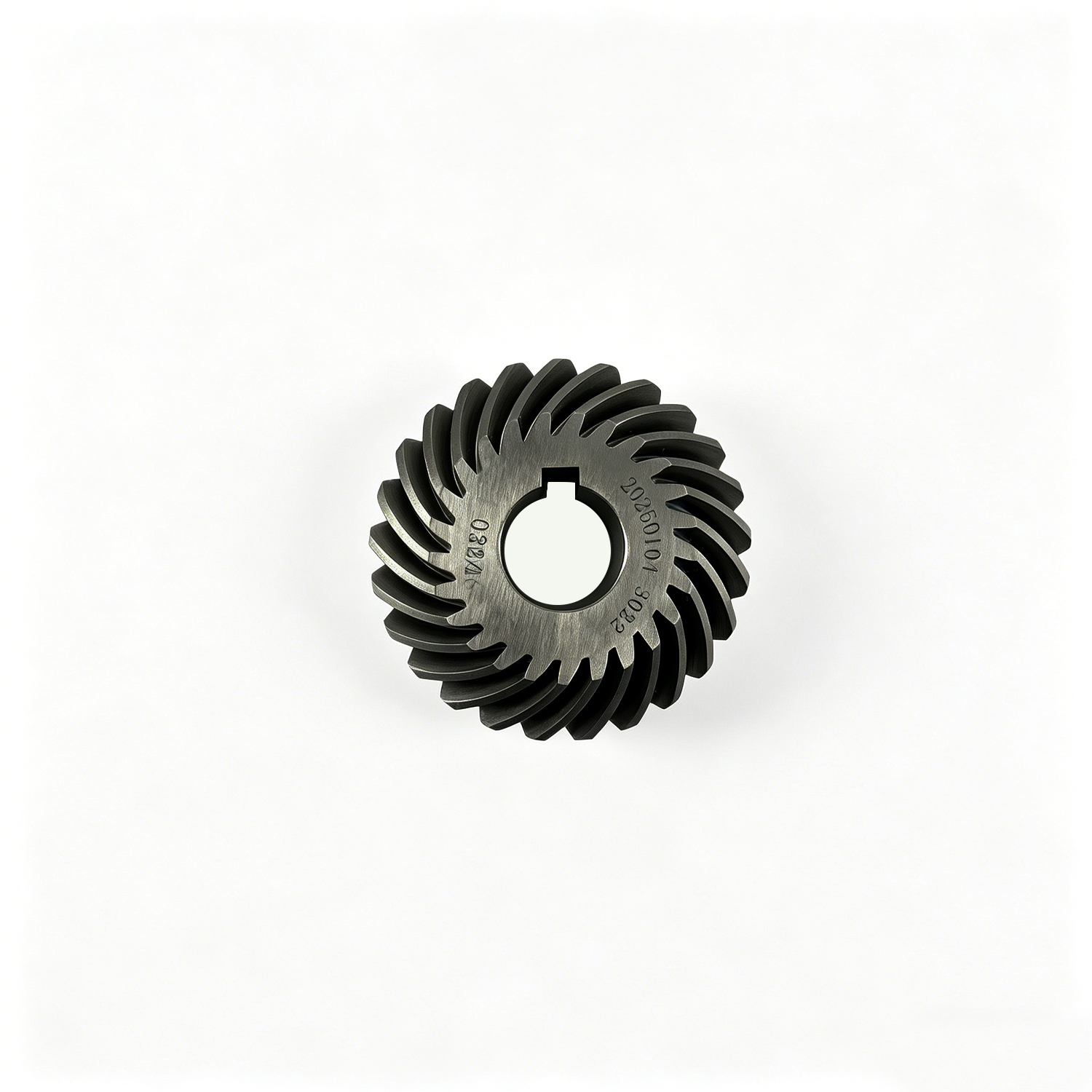

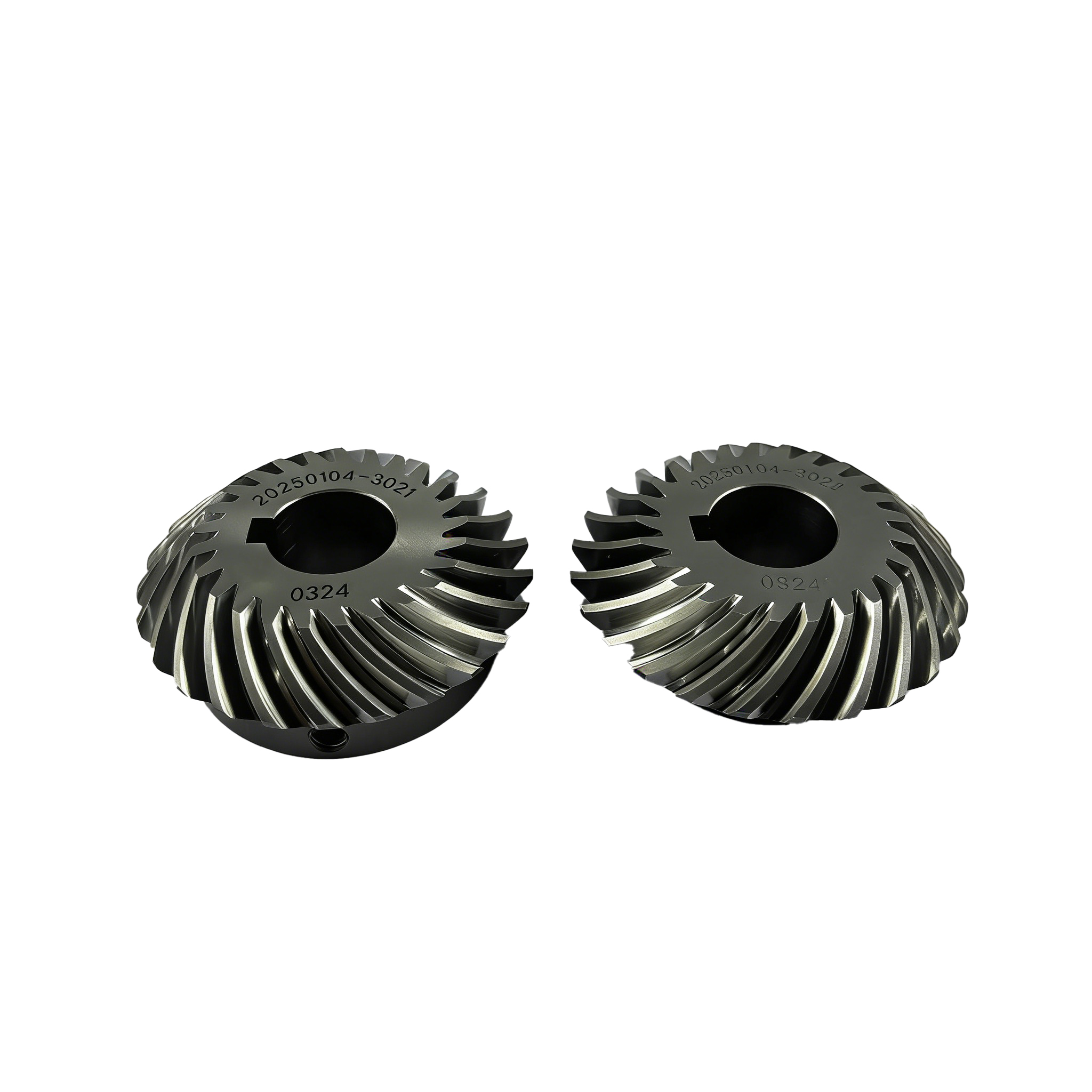

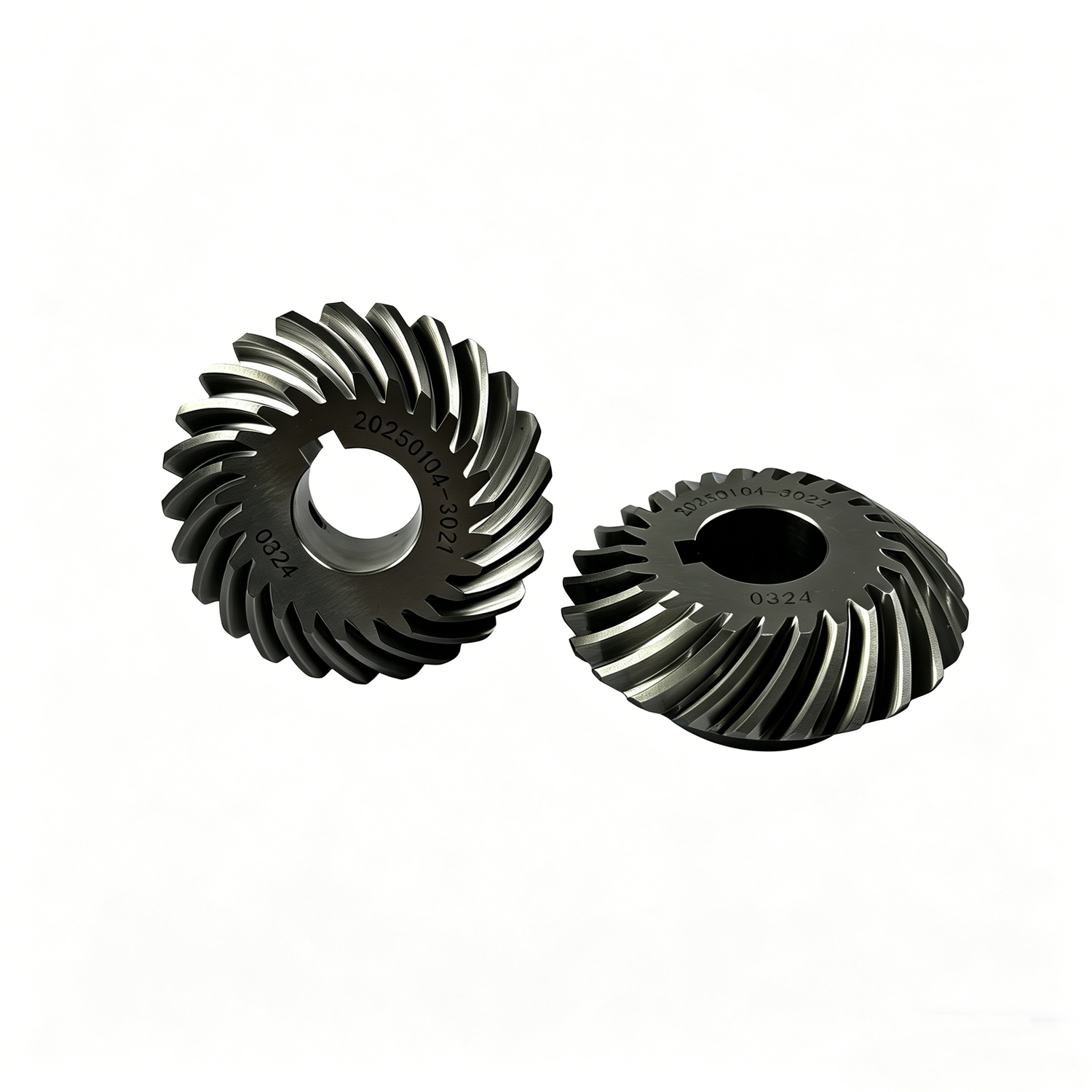

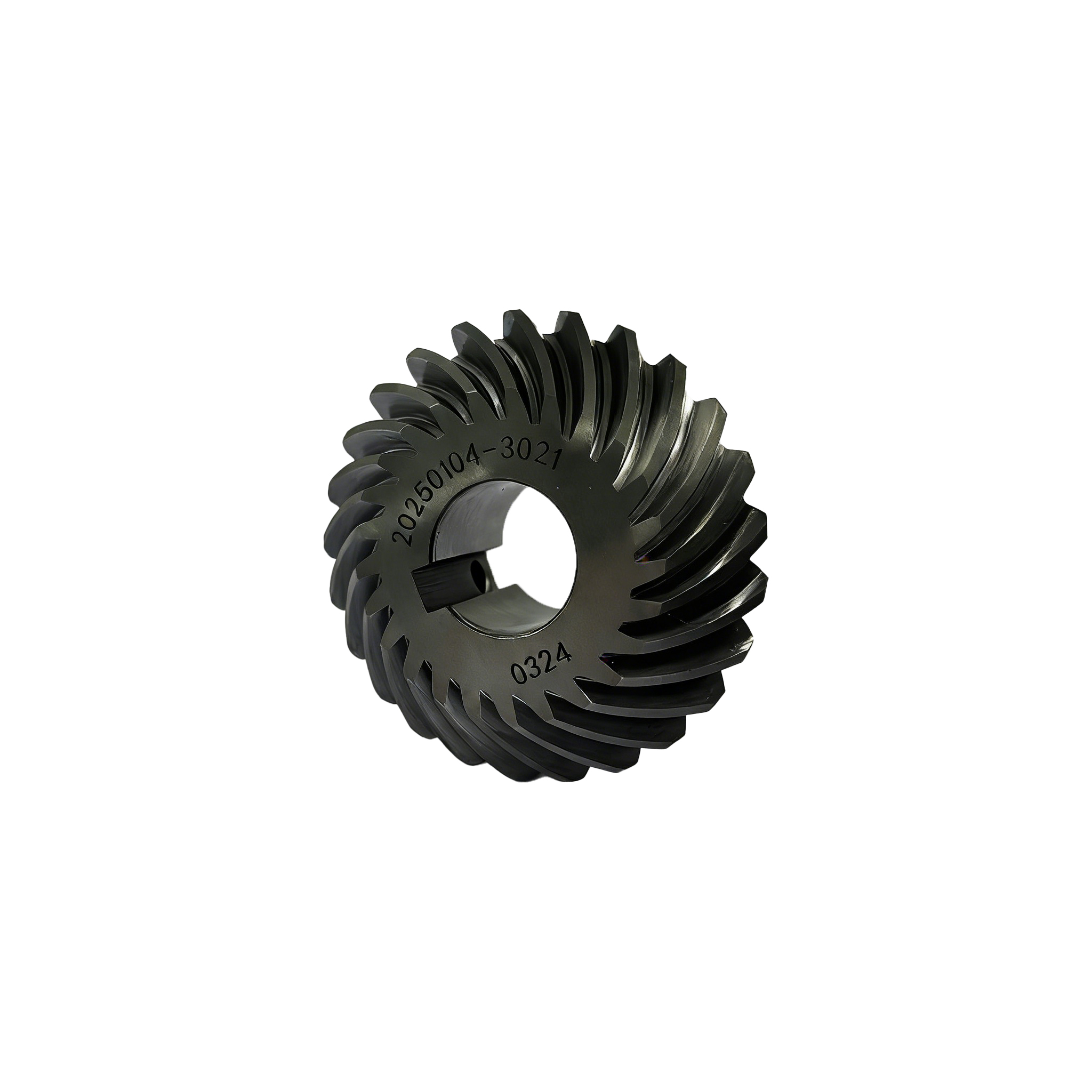

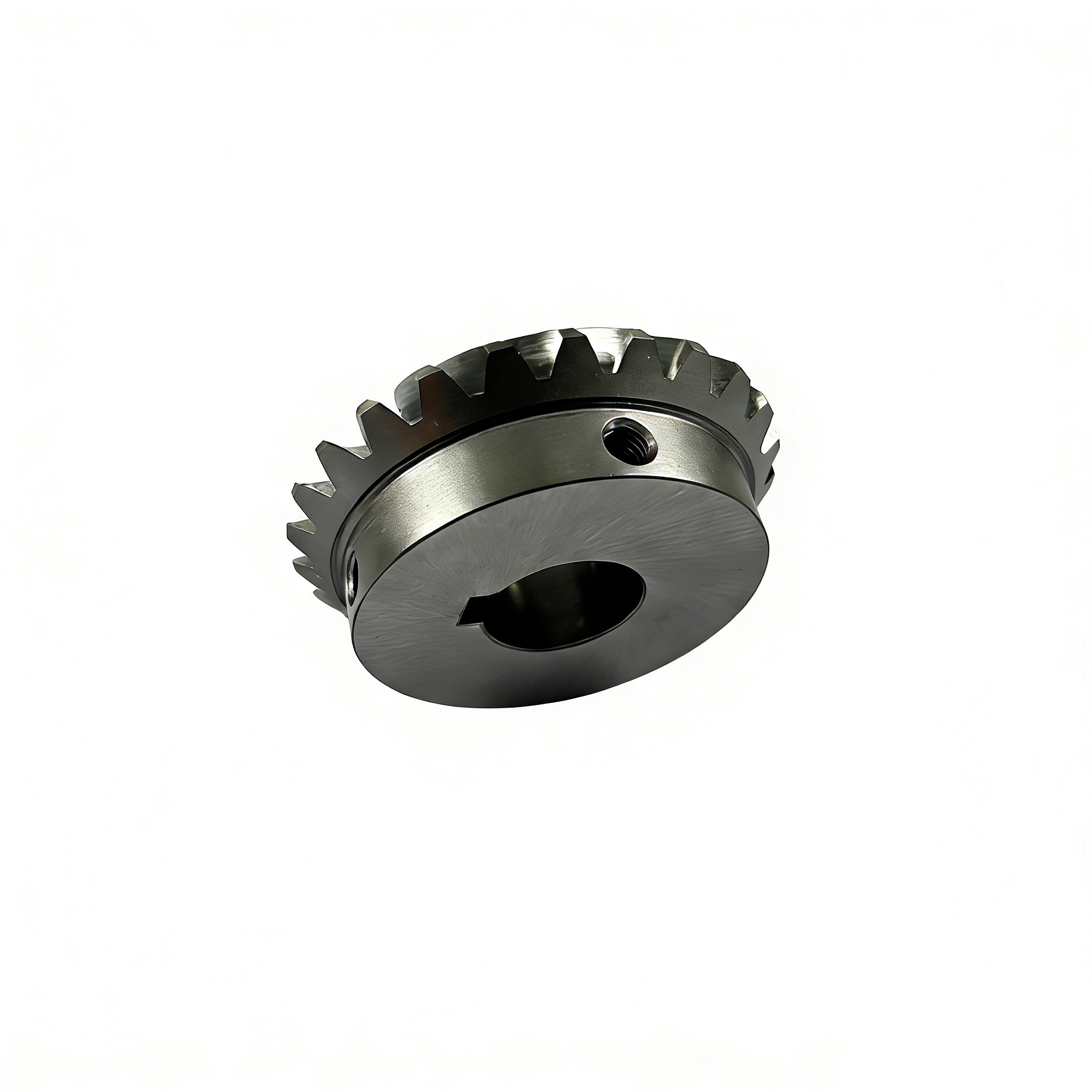

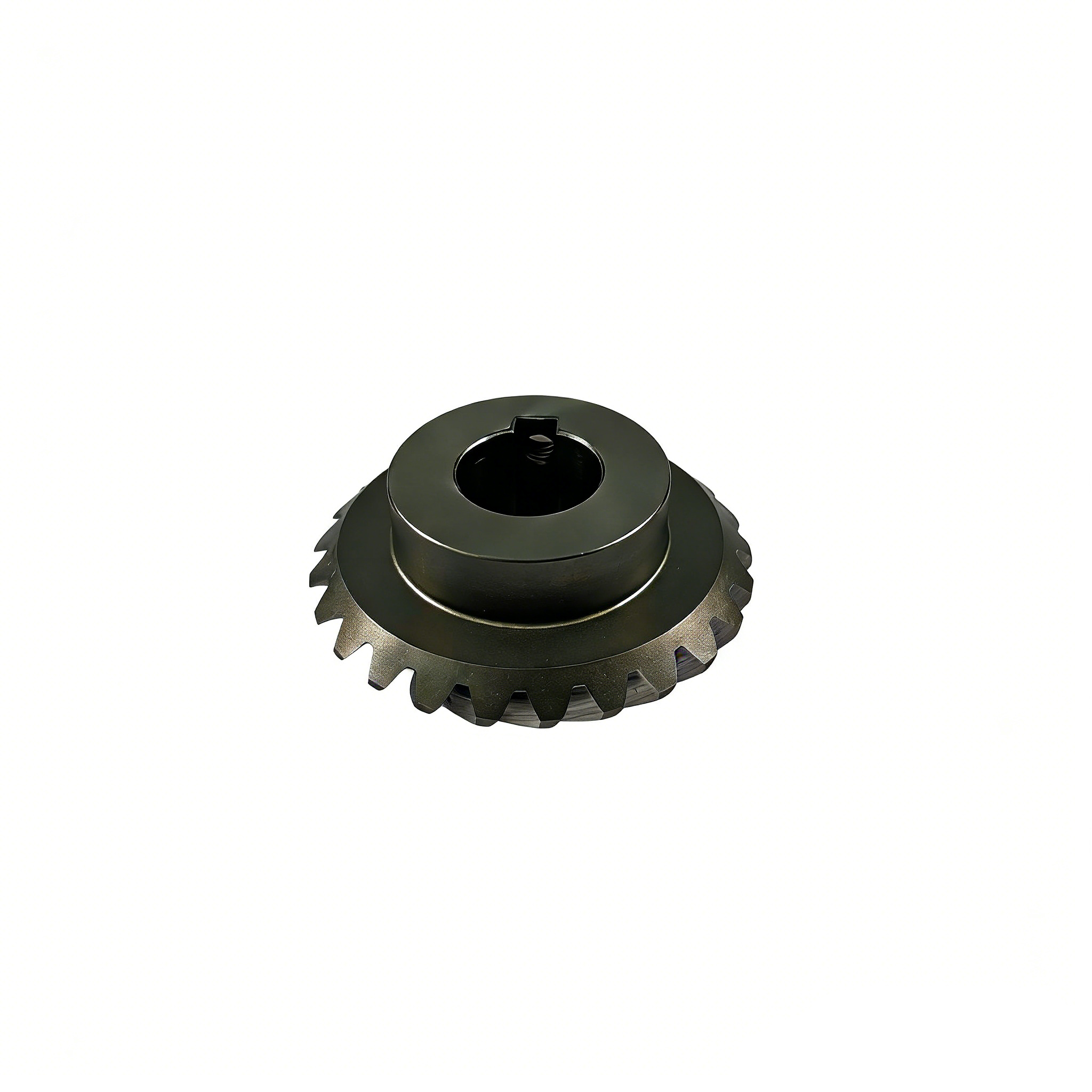

This product consists of two matched spiral bevel gears: ASPJ-240-C (Input) and ASPJ-241-C (Output), Part No. 0370302100 and 0370302200 respectively, specially used for reducer transmission.
Common specifications: pressure angle 20°, module 2.5, number of teeth 25, inner bore 20mm, gear outer diameter 64mm, overall length 25mm. Both are made of 20CrMo alloy steel with high strength and wear resistance.
ASPJ-240-C is input spiral bevel gear with 35° left-hand spiral angle and gear ratio 1, weight 0.3646kg.
ASPJ-241-C is output spiral bevel gear with 35° right-hand spiral angle, weight 0.3026kg, perfectly meshed with the input gear.
Manufacturing process:
Sawing & Turning → Screw hole processing → Reaming → Gear milling → Heat treatment → Hanging shot blasting → Reaming → Facing → Overall length grinding → Gear grinding → Wire-cutting keyway → Marking → Full visual inspection.
Precision processing ensures stable dimension accuracy and reliable performance for reducer assembly.
Additional information
| ASPJ-240-Cand ASPJ-241-C weight |
0.3646and0.3026 |
|---|---|
| ASPJ-240-Cand ASPJ-241-C Core Components |
gear |
| ASPJ-240-Cand ASPJ-241-C Craftsmanship |
Milling |
