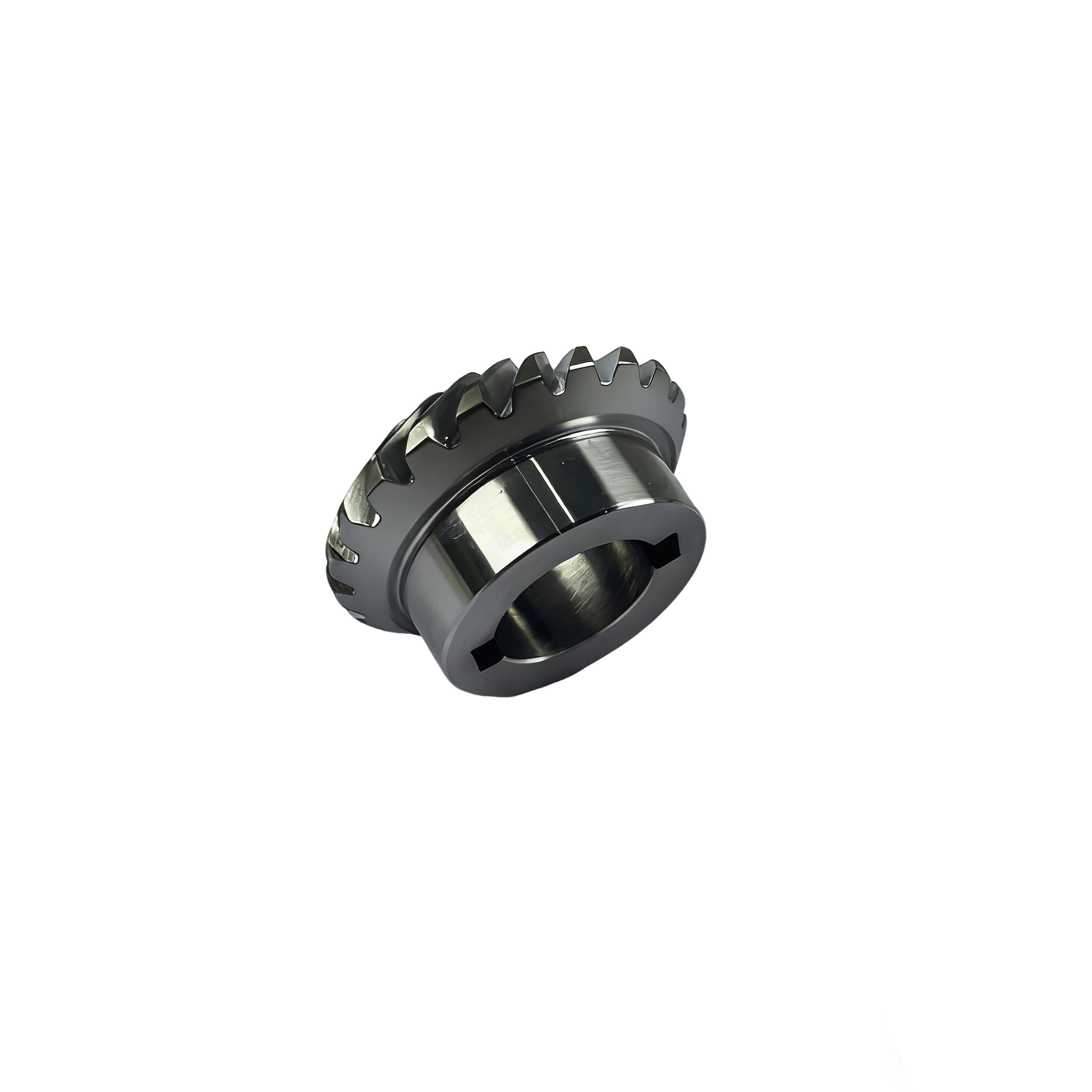

03.08.0001-L (1.5M 21Z) Left-hand Gear and 03.08.0001-R (1.5M 21Z) Right-hand Gear
$9.24piece
A pair of spiral bevel gears made of 20CrMnTi, module 1.5, 21 teeth, 20° pressure angle, one left-hand and one right-hand with same dimensions, precision machined for power tools.
Description

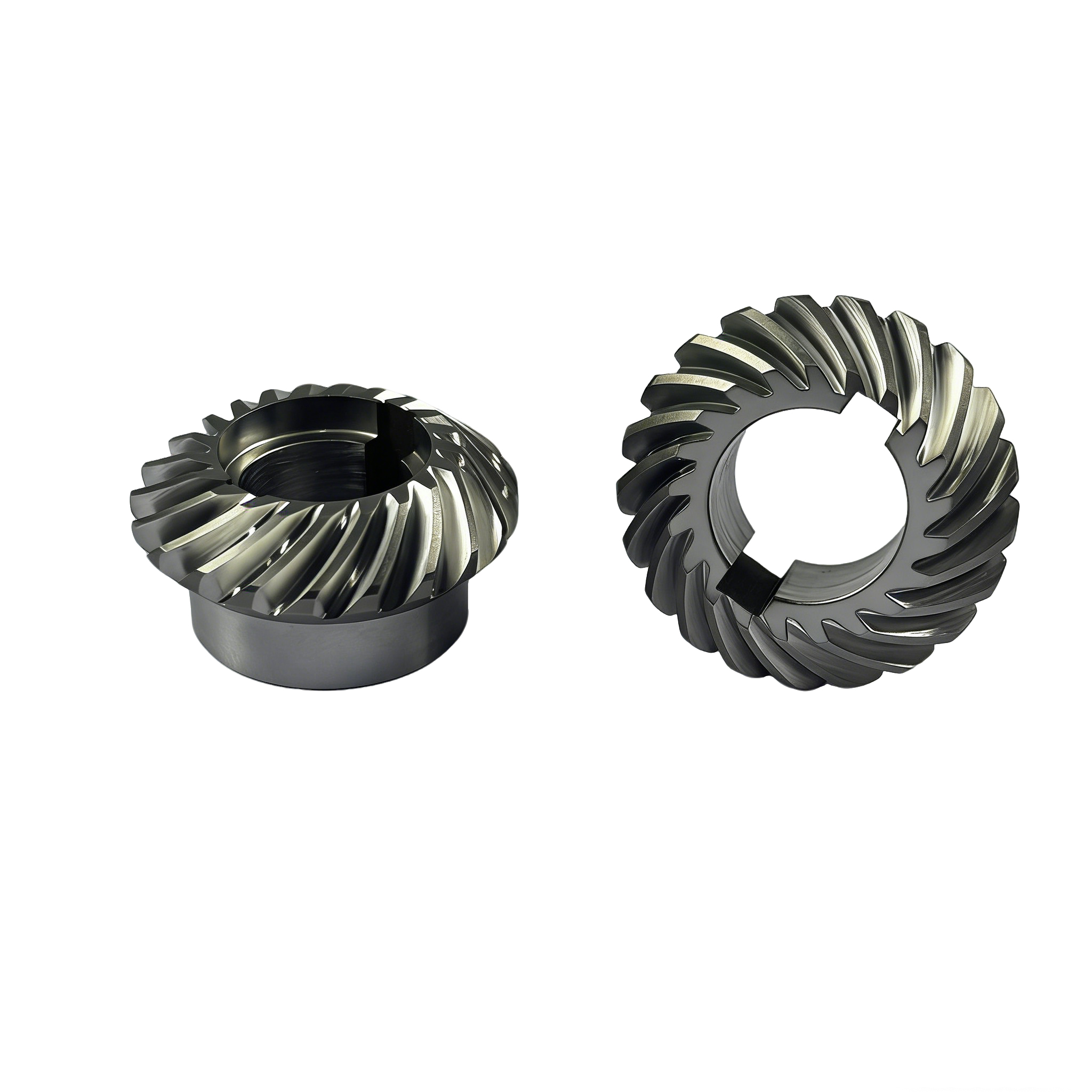

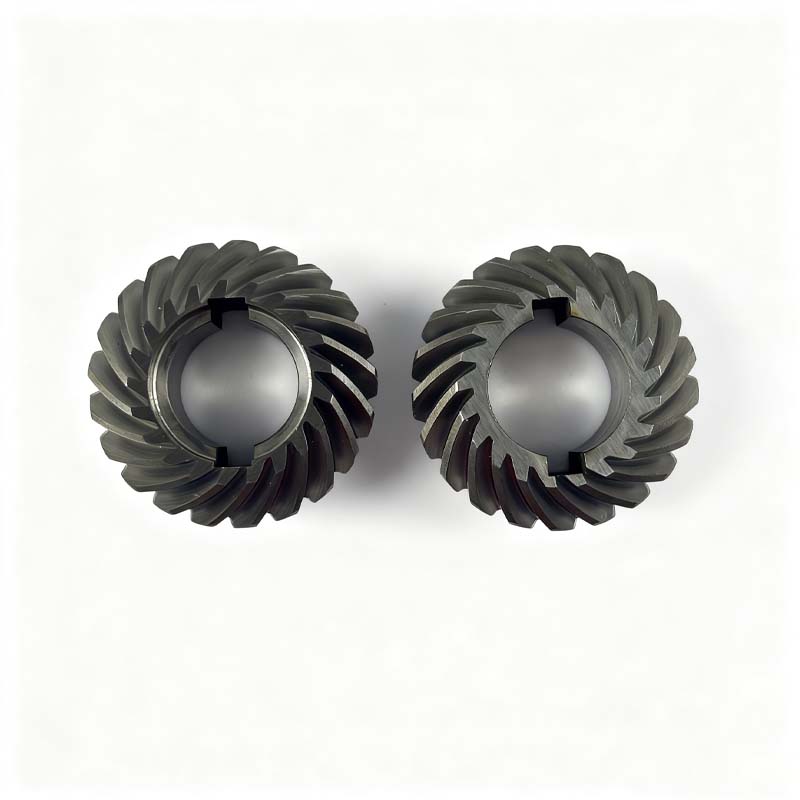

This series includes a pair of matched spiral bevel gears for power tools:

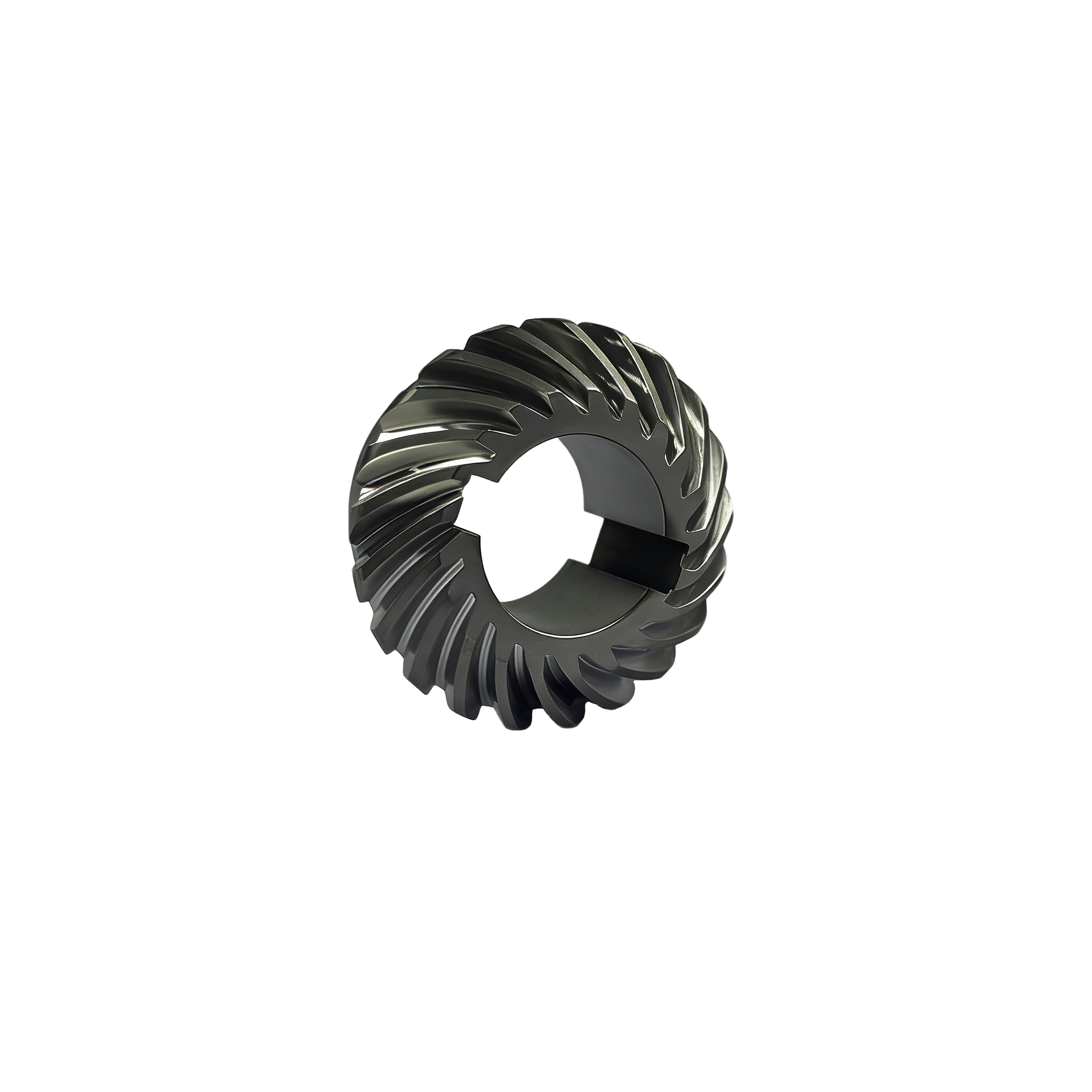

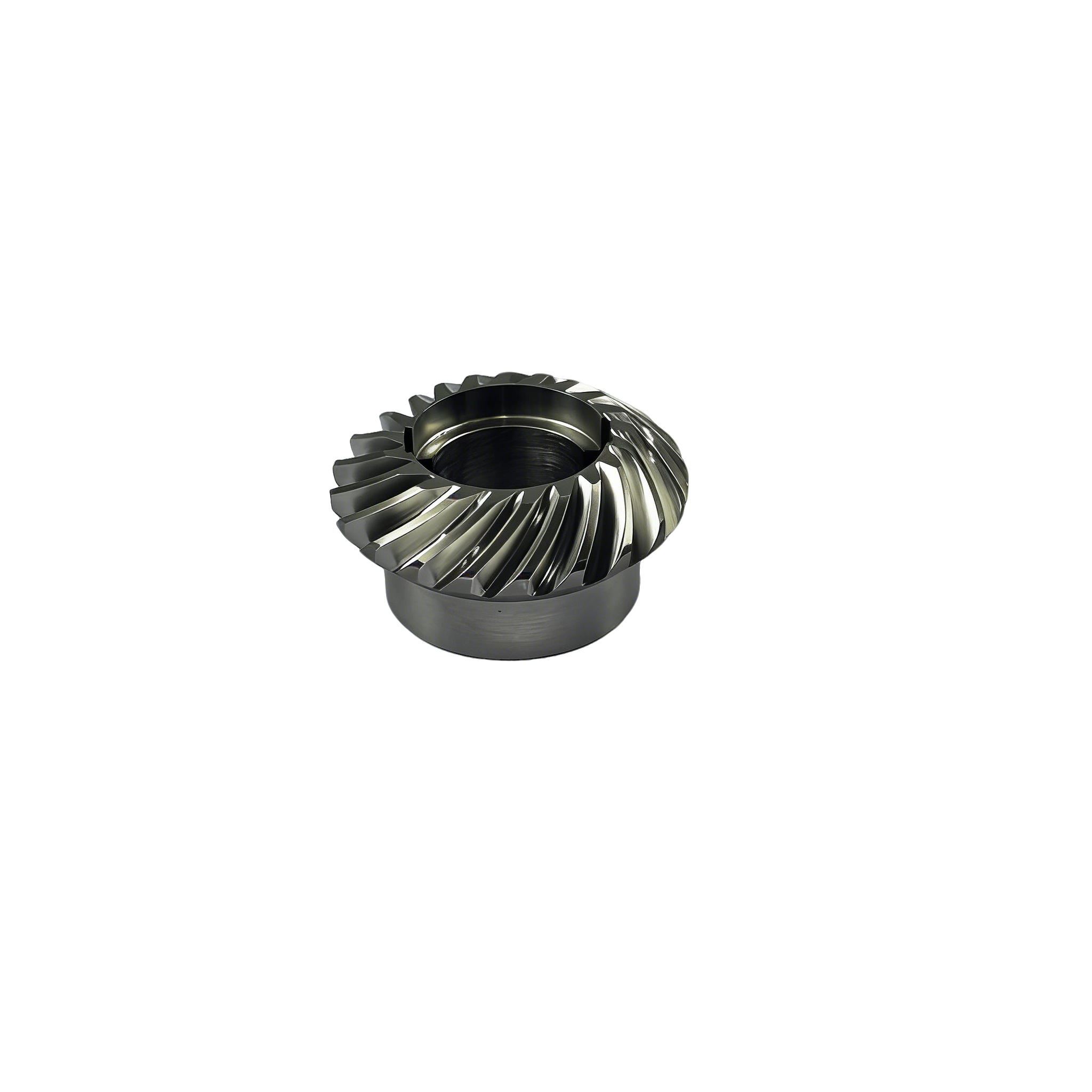

- SuYou-028-C (03.08.0001-L Left-hand Gear): 20° pressure angle, module 1.5, 21 teeth, 35° left-hand spiral, inner diameter 15mm, gear OD 31.4mm, total length 14.7mm, weight 0.0423kg.

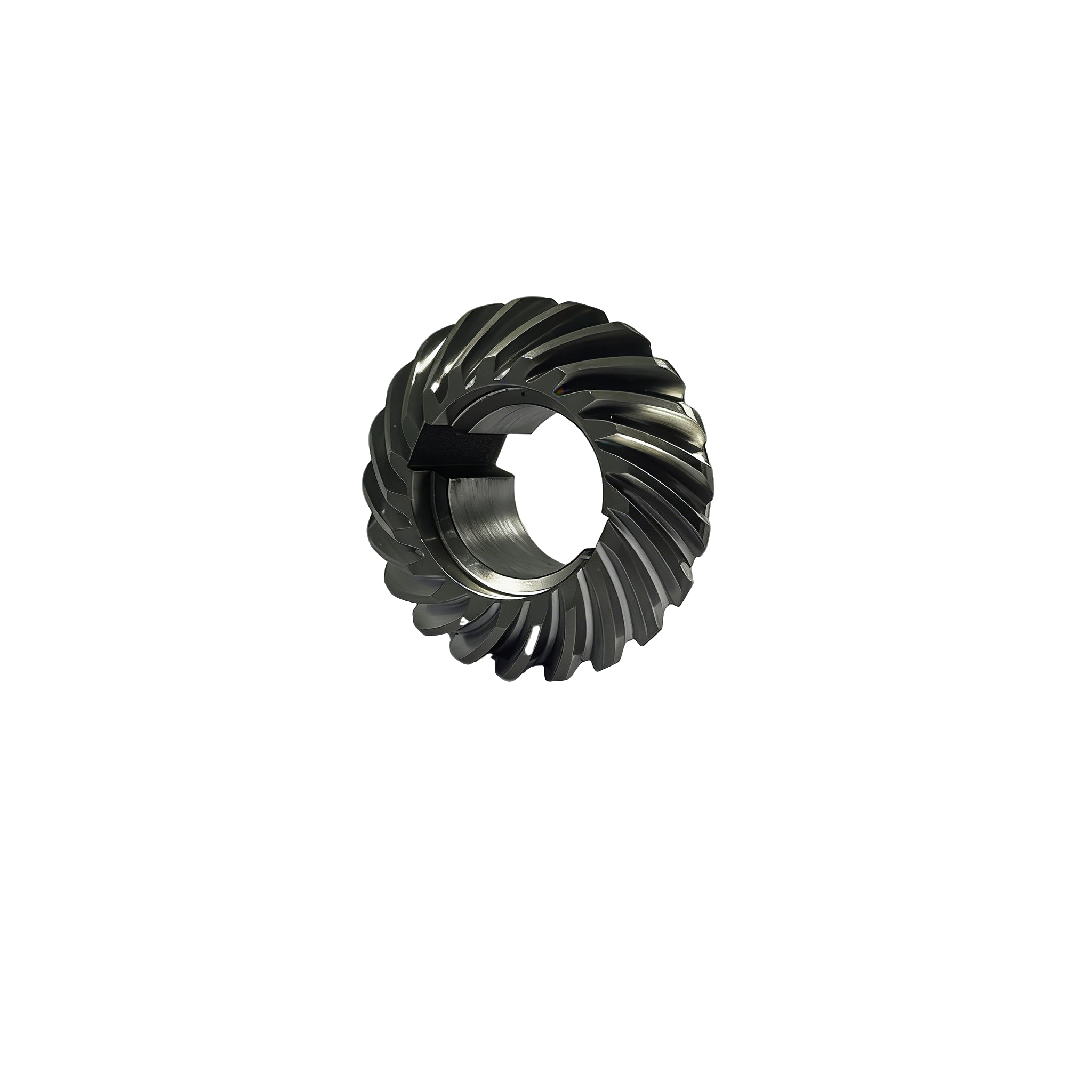

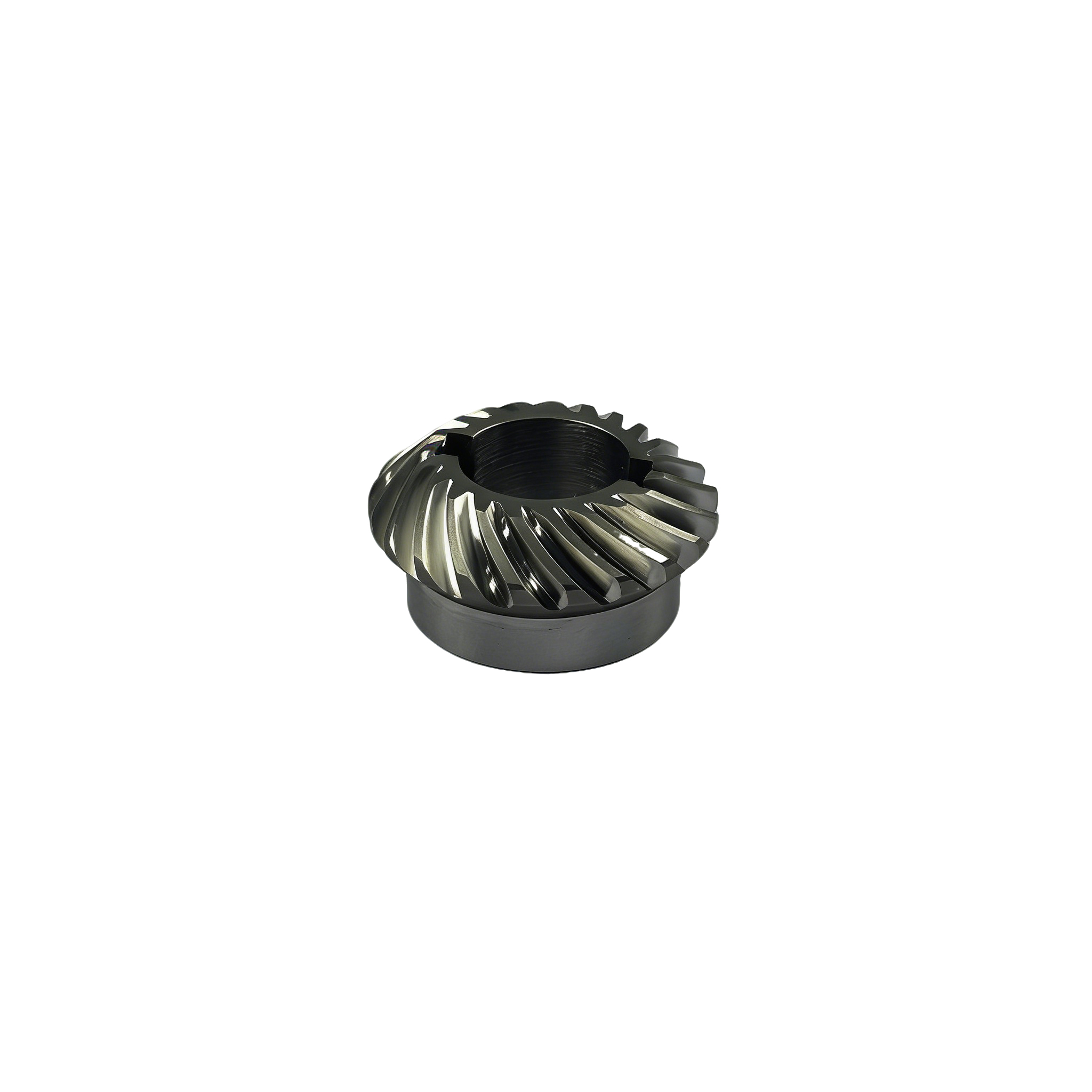

- SuYou-029-C (03.08.0001-R Right-hand Gear): 20° pressure angle, module 1.5, 21 teeth, 35° right-hand spiral, inner diameter 15mm, gear OD 31.4mm, total length 14.7mm, weight 0.0423kg.
Both are made of 20CrMnTi and processed through precise procedures including sawing, turning, rough gear milling, heat treatment, shot blasting, reaming, wire-cut keyway, boring, end facing, turning and gear grinding, featuring high accuracy and good wear resistance for power tool transmission.
Additional information
| SuYou-028-C and SuYou-029-C weight |
0.0423and0.0423 |
|---|---|
| SuYou-028-C and SuYou-029-C Core Components |
gear |
| SuYou-028-C and SuYou-029-C Craftsmanship |
Milling |
