1.5M23Z-L Left Hand Helical Gear and 1.5M23Z-R Right Hand Helical Gear
$25.66piece
TBW-001-C

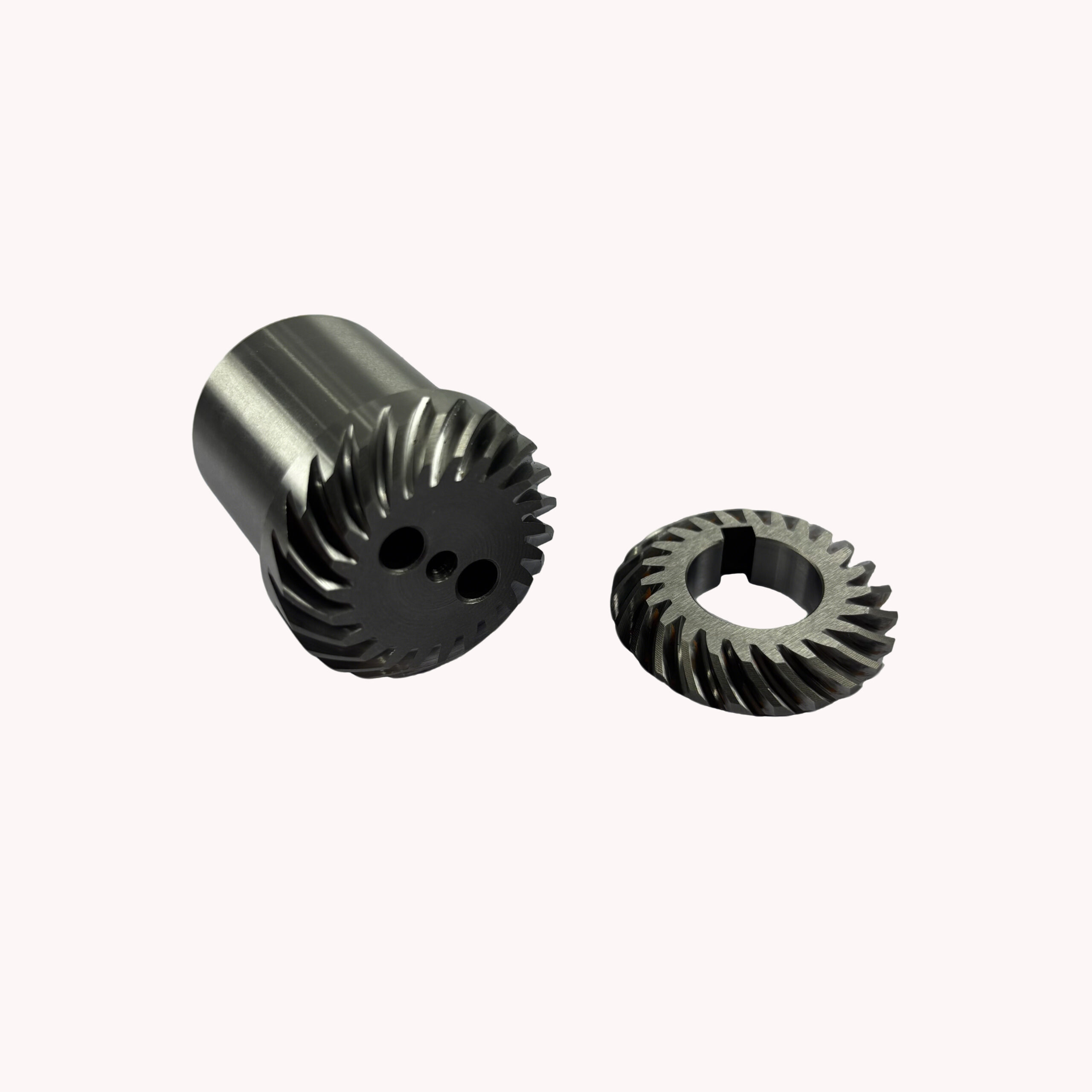

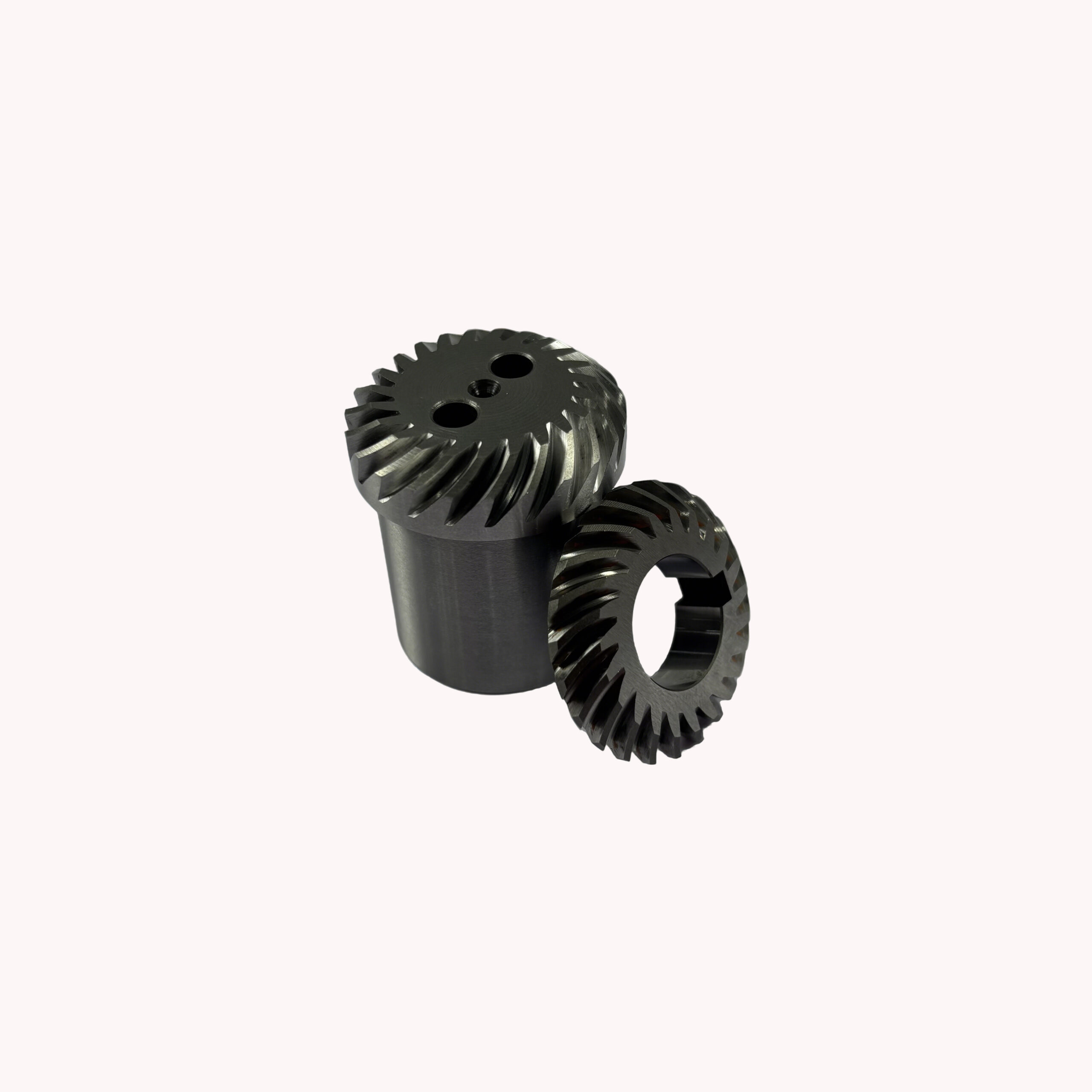

1.5 module, 23 teeth left-hand spiral bevel gear, 20° pressure angle, 35° left-hand spiral angle, 20CrMnTi material. Manufactured via multiple precision processes including turning, gear milling, heat treatment and gear grinding, fully inspected before delivery for sewing equipment transmission.
TBW-002-C
1.5 module, 23 teeth right-hand spiral bevel gear, 20° pressure angle, 35° right-hand spiral angle, made of 20CrMnTi steel. Keyway processed by CNC machining center, finished with multiple grinding procedures and precision gear grinding, full visual inspection, used as transmission fitting for sewing machines.
Description

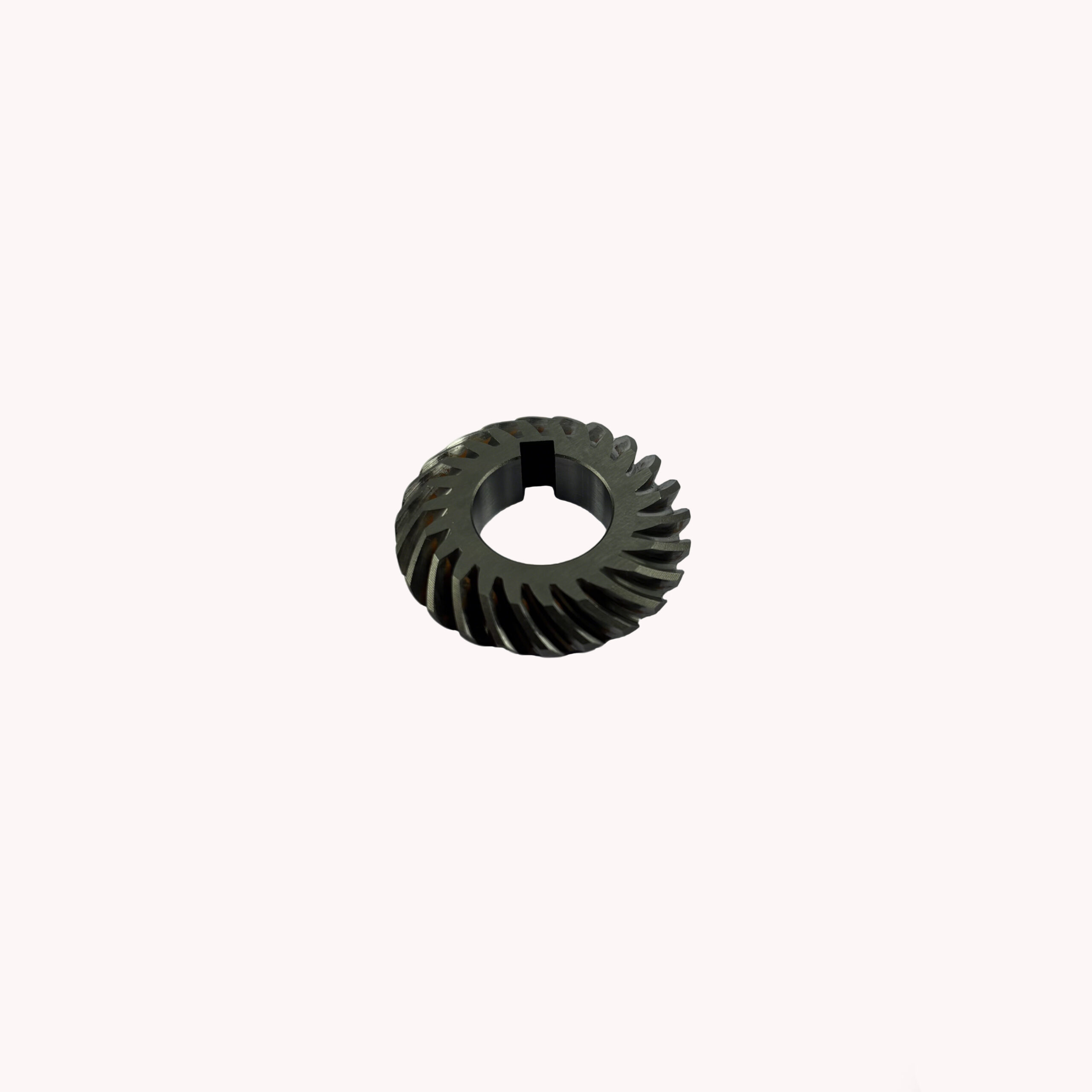

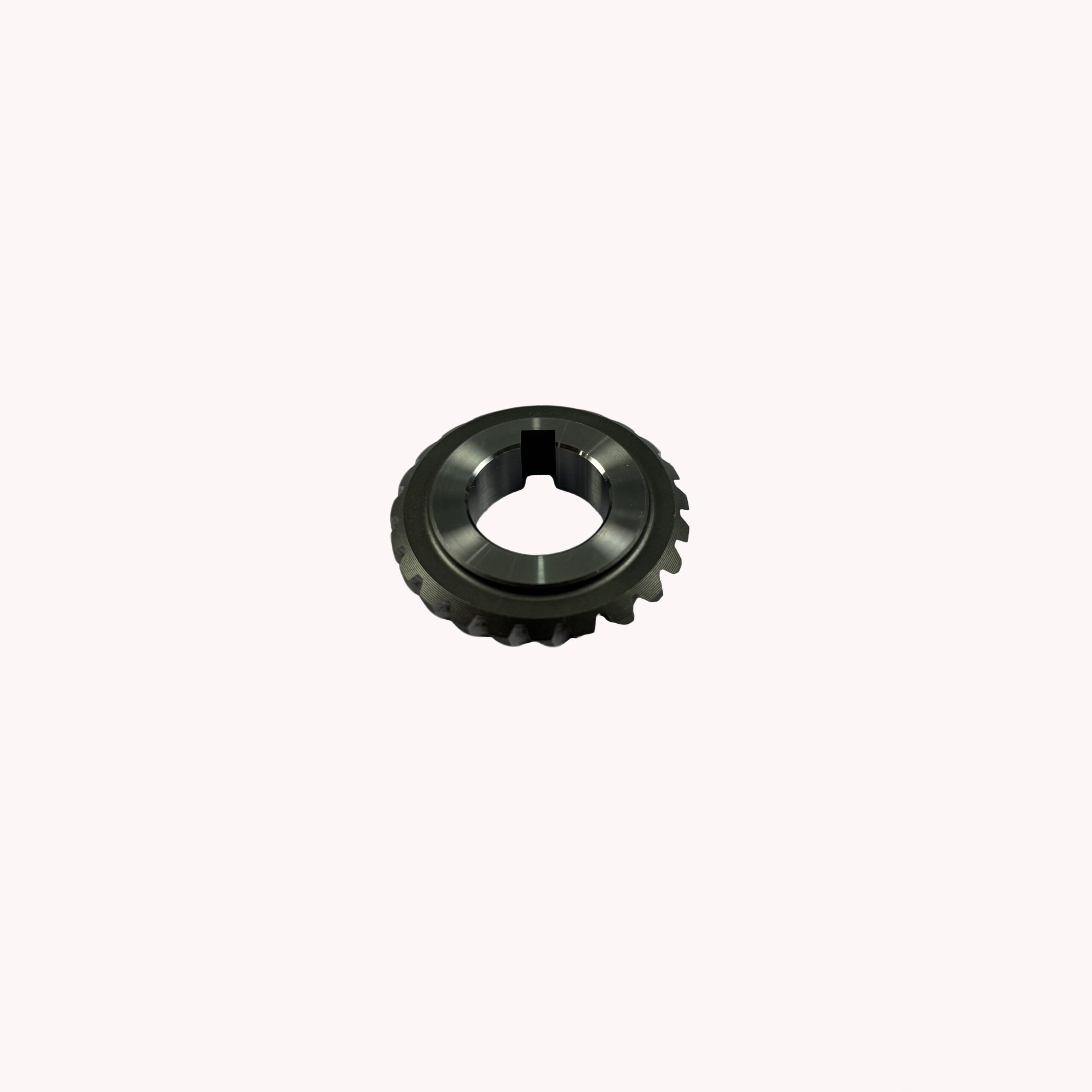

TBW-001-C 1.5M23Z-L Left Hand Spiral Bevel Gear
This is a left-hand spiral bevel gear with 20° pressure angle, module 1.5 and 23 teeth, transmission ratio 1, left-hand spiral angle 35°. Its inner diameter is 16mm, outer diameter of gear teeth 34.5mm, overall length 6mm, and single weight 0.0316kg. It is made of 20CrMnTi carburizing alloy steel.
The complete processing procedures include cutting blank, turning, gear milling, heat treatment, hanging shot blasting, boring, wire cutting for keyway, re-boring & facing, surface grinding, precision gear grinding, and full visual inspection. The gear teeth obtain high hardness after carburizing heat treatment, featuring great wear resistance and fatigue resistance. It serves as a transmission gear specially for sewing equipment.

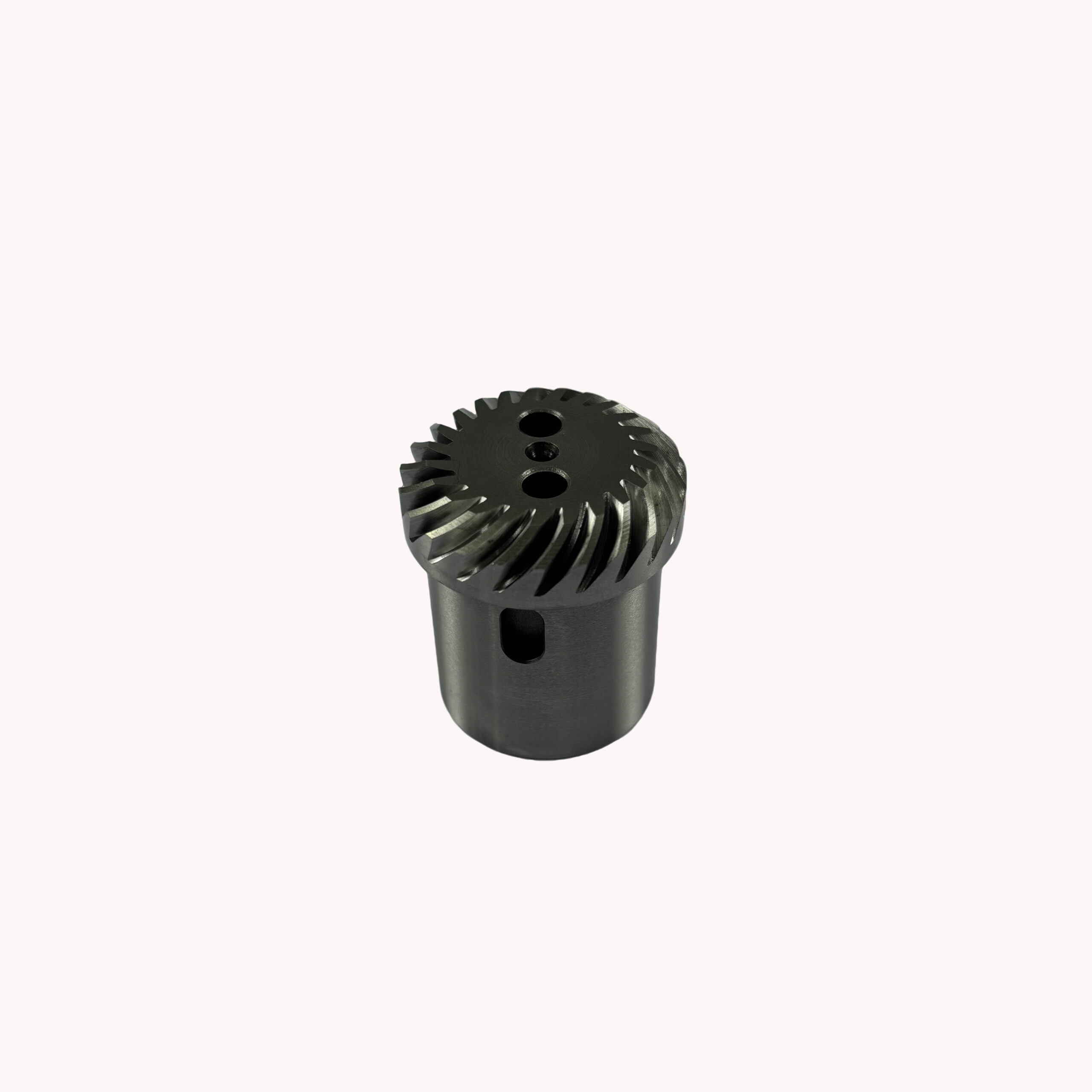

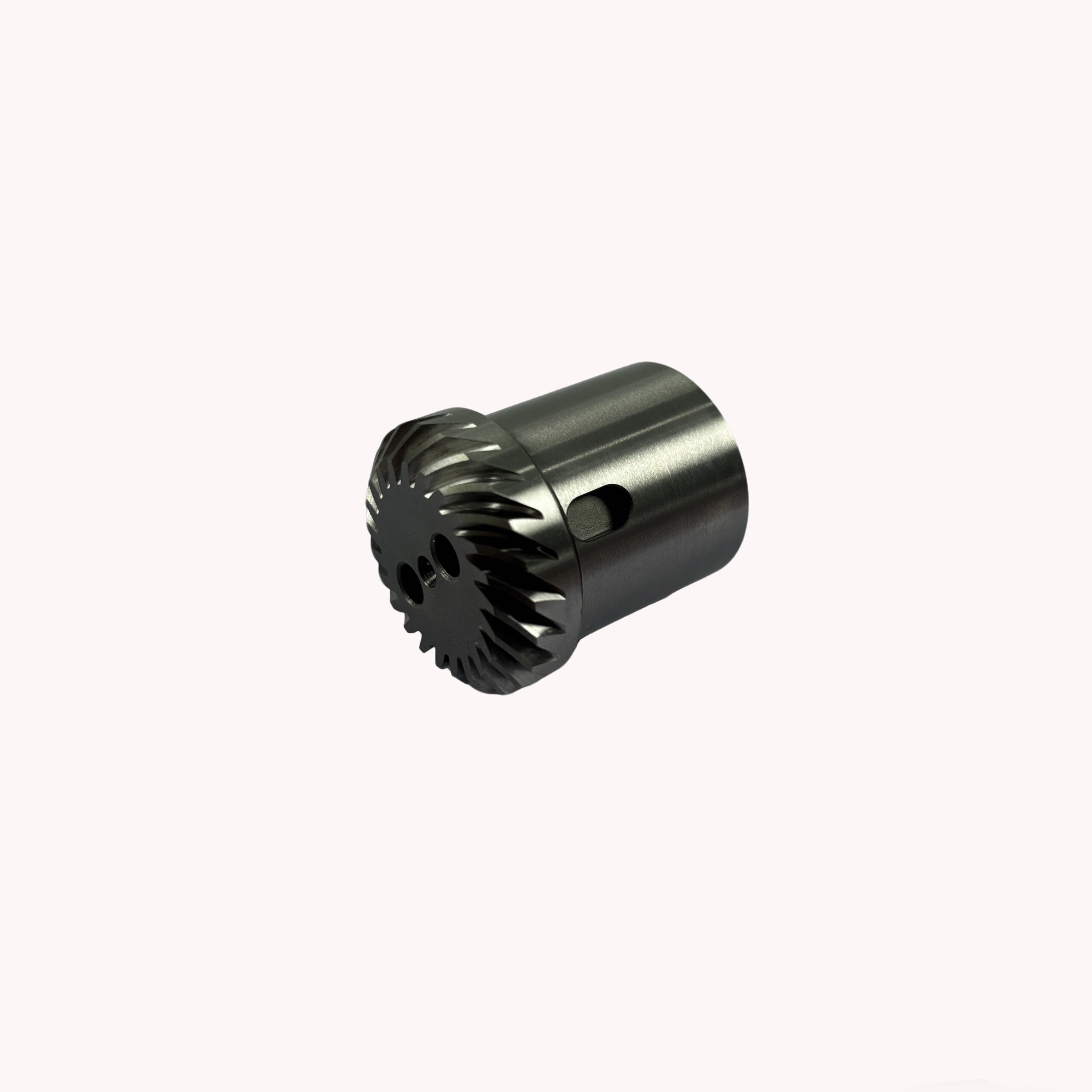

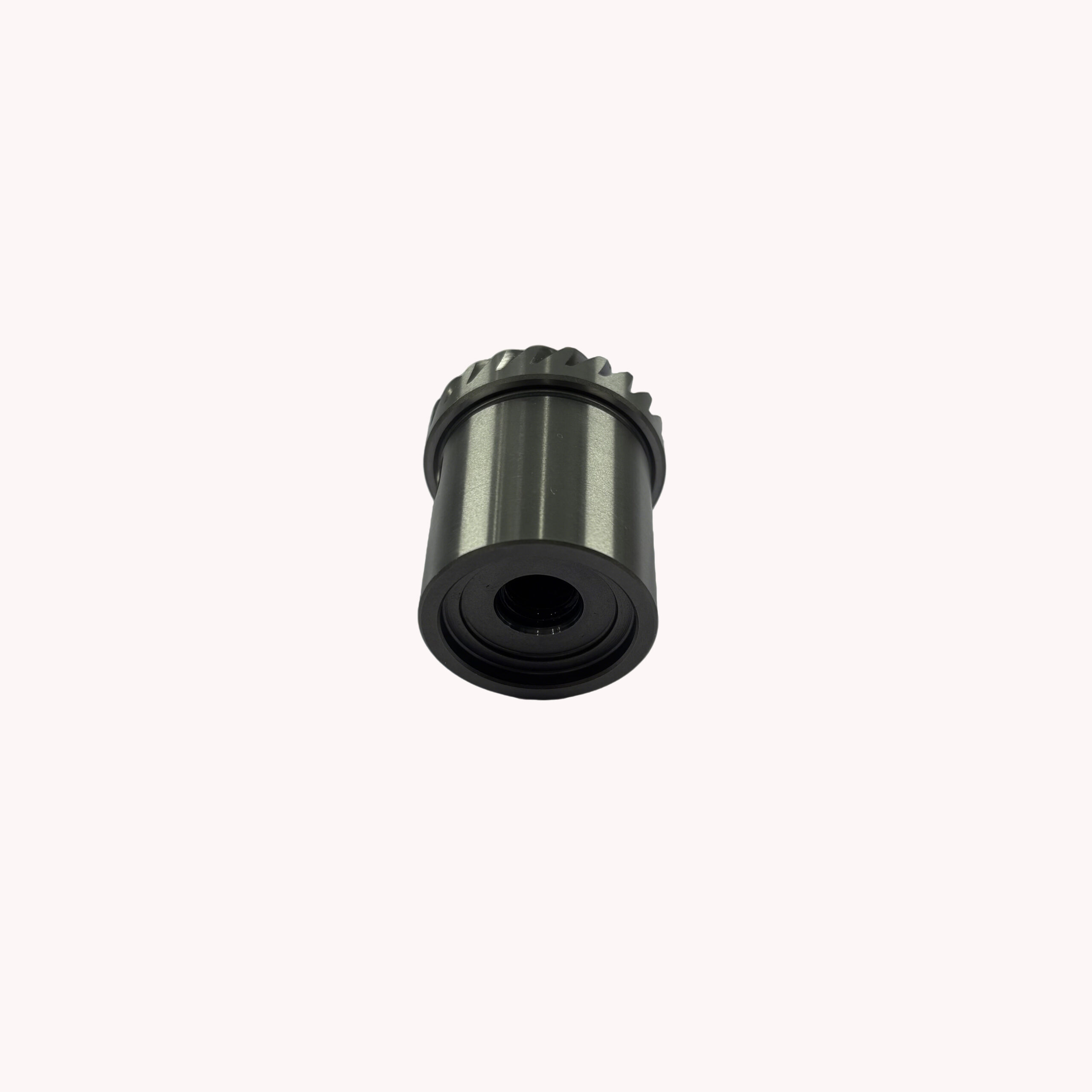

TBW-002-C 1.5M23Z-R Right Hand Spiral Bevel Gear
This is a right-hand spiral bevel gear with 20° pressure angle, module 1.5 and 23 teeth, transmission ratio 1, right-hand spiral angle 35°. Its shaft diameter is 30mm, outer diameter of gear teeth 34.5mm, overall length 38.65mm, and single weight 0.1970kg. The blank material is 20CrMnTi carburizing alloy steel.
Processing flow: blank cutting, turning, rough grinding of clamping position, keyway machining via machining center, gear milling, screw pre-assembly, heat treatment, hanging shot blasting, screw removal, repeated outer circle grinding, facing, precision gear grinding, secondary outer circle grinding and 100% visual inspection. After heat treatment, the gear teeth have sufficient hardness, low transmission noise and long service life. It is a dedicated transmission bevel gear for sewing machines.
Additional information
| TBW-001-C and TBW-002-C weight |
0.0316and0.1970 |
|---|---|
| TBW-001-C and TBW-002-C Core Components |
gear |
| TBW-001-C and TBW-002-C Craftsmanship |
Milling |
Reviews (0)
Shipping & Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
2024044
2024044 Spiral Bevel Gear is a dedicated transmission component for electric tools. Made of 20CrMnTi material, it has a pressure angle of 20°, a module of 1.5, 38 teeth, and a spiral angle of 35°/R, with an inner diameter of 37mm, an outer diameter of 57.4mm, a total length of 33.49mm, and a single weight of 0.1706kg. Produced via multiple precision machining and full inspection procedures, it ensures stable transmission and high durability.
2024479 Gear
2024479 Spiral Bevel Gear is a dedicated transmission component for electric tools. Made of 20CrMnTi material, it has a pressure angle of 20°, a module of 1.5, 47 teeth, and a spiral angle of 35°/R, with an inner diameter of 14mm, an outer diameter of 68.8mm, a total length of 18.05mm, and a single weight of 0.2636kg. Produced via multiple precision machining and full inspection procedures, it delivers stable transmission and high durability.
Bevel Gear 4037014 (Large)
The 4037014 Bevel Gear (Large) is made of 20CrMnTi material and manufactured through multiple precision processes including normalization, turning, gear milling and heat treatment. Its core parameters are 20° pressure angle, 2.12 module, 33 teeth and 35° left-hand rotation, with a tooth outer diameter of 70.442mm, total length of 21.91mm and weight of 0.375kg. Specially designed for reducers, this product features stable transmission, wear resistance and durability.
CJBB002F-1 (5-hole outer diameter non-turned) Finished Product
CJBB002F-1 (5-hole outer diameter non-turned) finished spiral bevel gear features a pressure angle of 20°, module of 1.2118, spiral angle of 35°/L, inner diameter of 5mm, tooth outer diameter of 11.6mm and total length of 19.5mm. It is a dedicated core transmission component for reducers with simplified processes and stable transmission performance.
NBRX-1530 Short-Type – φ8 Gear and NBRX-1530-T24 Long-Type Gear
The NBRX-1530 series of spiral bevel gears (including the short type φ8 and the long type T24) are made of 20CrMo material and manufactured through multiple precision processes. With parameters of 20° pressure angle, 0.9 module and 24 teeth, their helix angles are 35° left-hand rotation and 35° right-hand rotation respectively, and the tooth outer diameter is 21.8mm. The short type has a total length of 10.5mm and a weight of 0.0148kg, while the long type has a total length of 16mm and a weight of 0.0235kg. Specifically designed for sewing equipment, these gears feature stable transmission, wear resistance and durability.
