0370SG8400 Finished Product (JY12)
$37.85piece

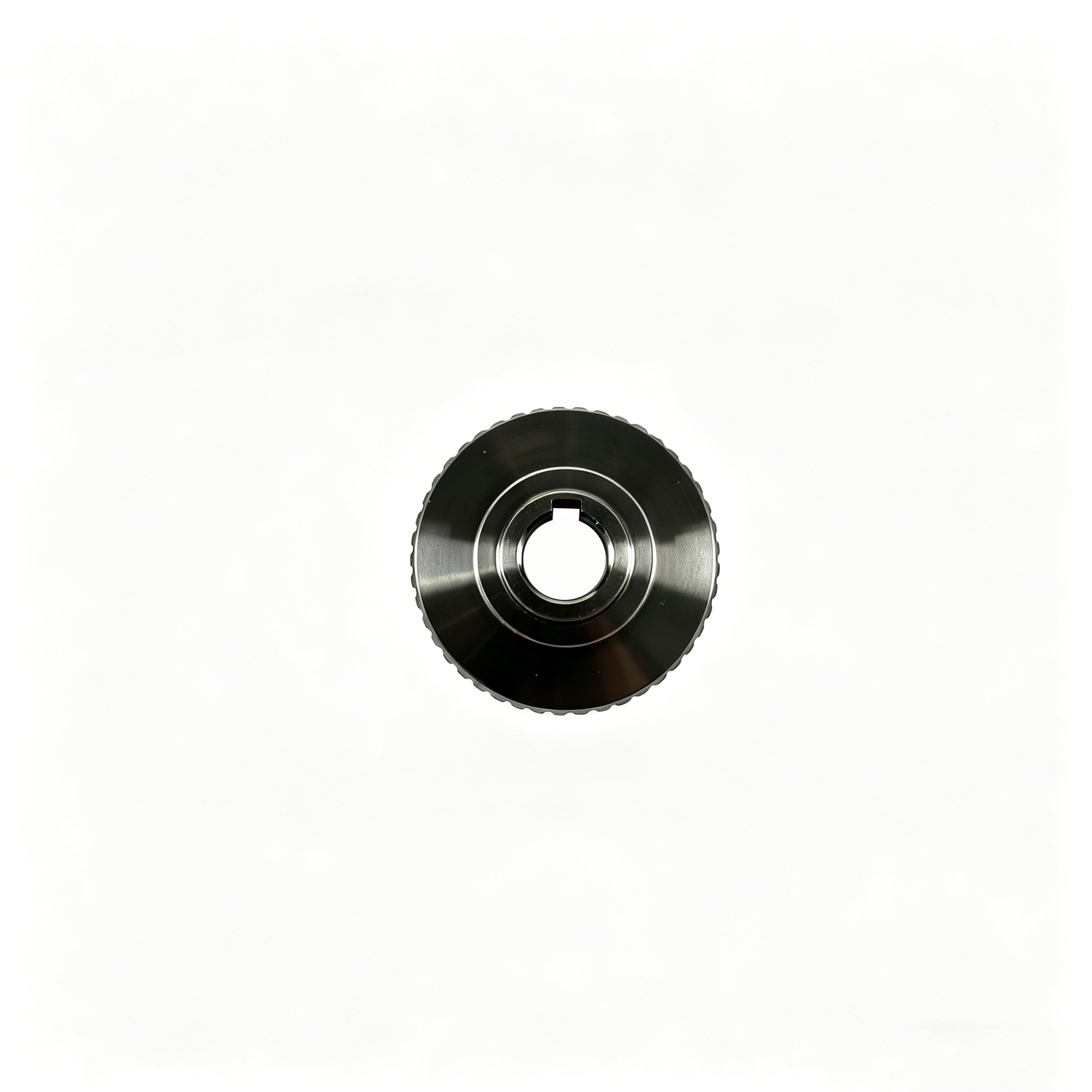

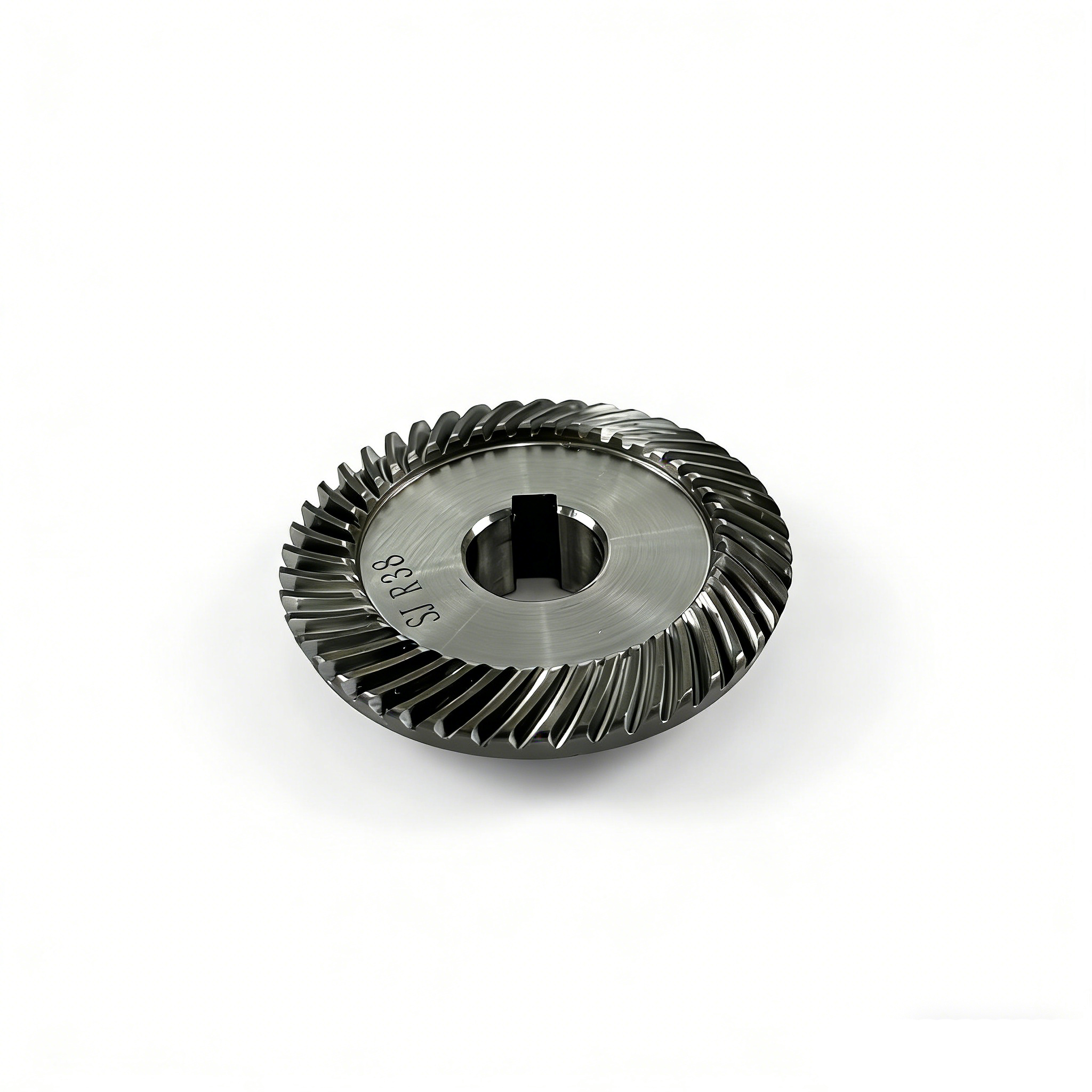

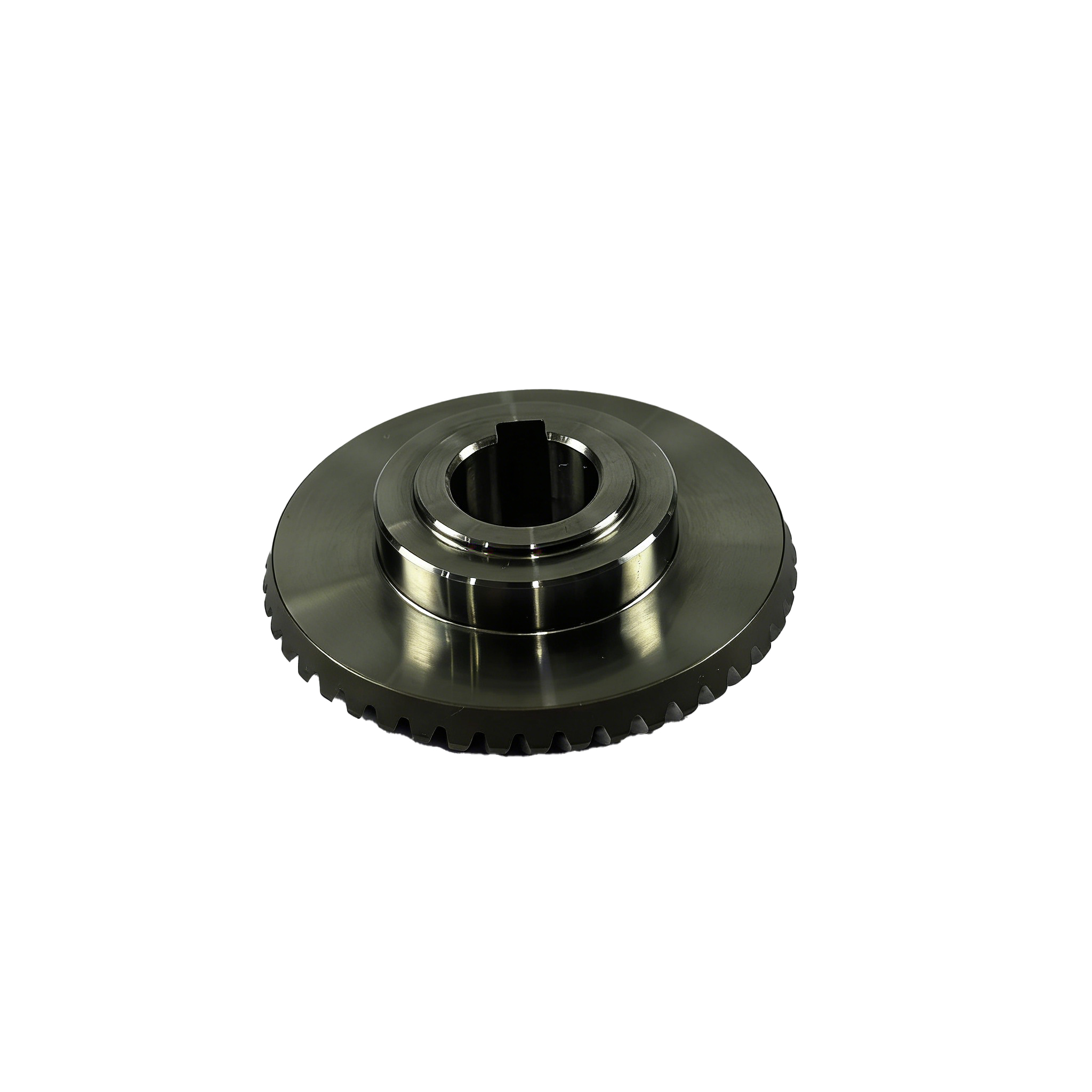

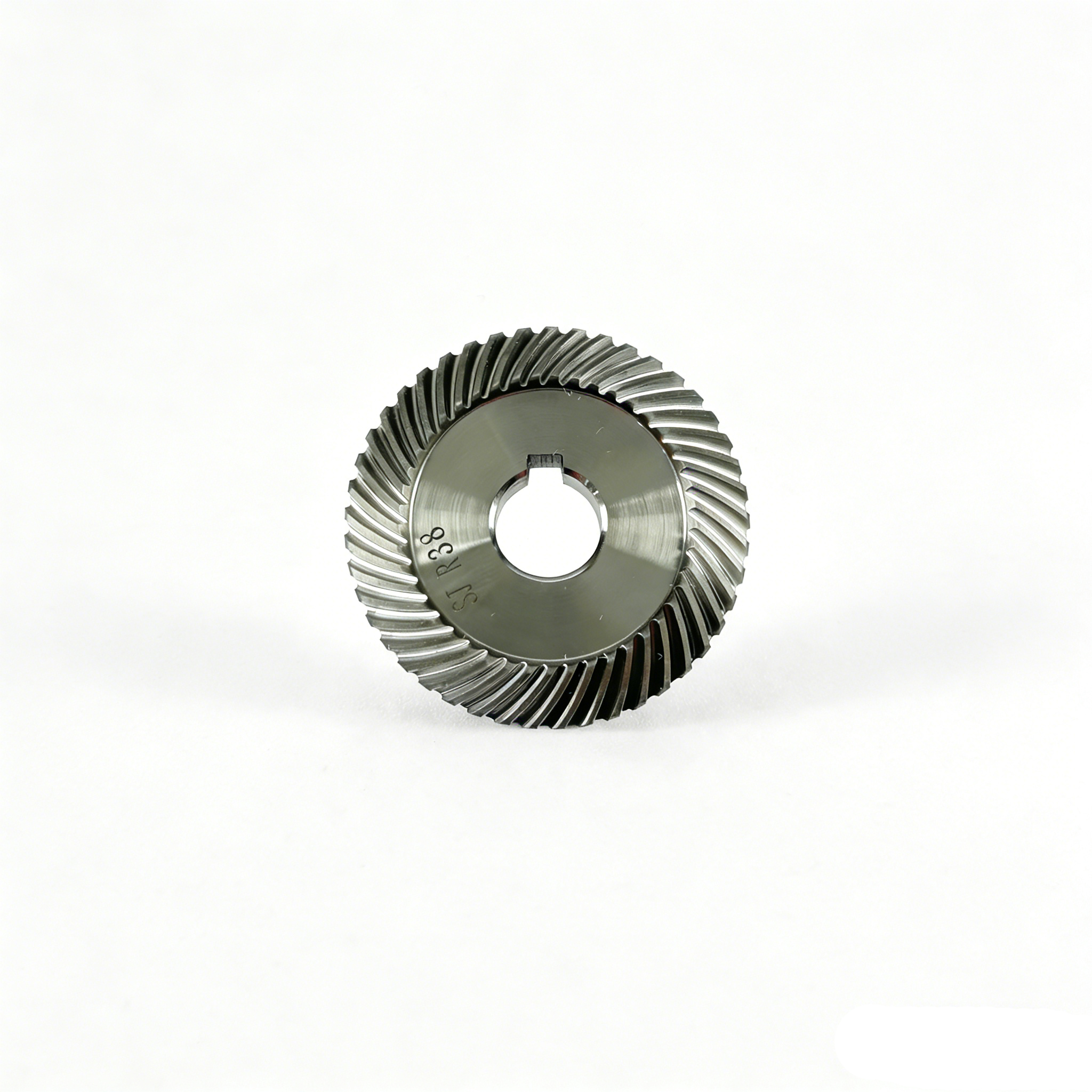

ASPJ-166-C (Part No. 0370SG8400, Finished JY12) is a spiral bevel gear made of 20CrMo.
Specification: pressure angle 20°, module 1, 45 teeth, 35° right hand, bore 12mm, outer diameter 44mm, total length 11.7mm.
Adopted precision machining, heat treatment and full inspection, high precision and durable, applied for reducer transmission.
Description
Model ASPJ-166-C, Part No. 0370SG8400, finished product (JY12), is a spiral bevel gear specially used for reducers.
Main technical parameters: pressure angle 20°, module 1, number of teeth 45, spiral angle 35°/R (right hand), inner bore 12mm, gear outer diameter 44mm, overall length 11.7mm.
The gear is made of 20CrMo alloy steel, featuring high strength, good toughness and wear resistance, suitable for long-term stable power transmission of reducers.
Manufacturing process:Sawing → Turning → Turning → Screw hole processing → Reaming → Gear milling → Heat treatment → Hanging shot blasting → Boring → Gear grinding → Keyway processing (wire cutting) → Full visual inspection.Multiple precision processes ensure high dimensional accuracy, stable performance and qualified appearance quality.
Additional information
| ASPJ-166-C weight |
0.0593 |
|---|---|
| ASPJ-166-C Core Components |
gear |
| ASPJ-166-C Craftsmanship |
Milling |
