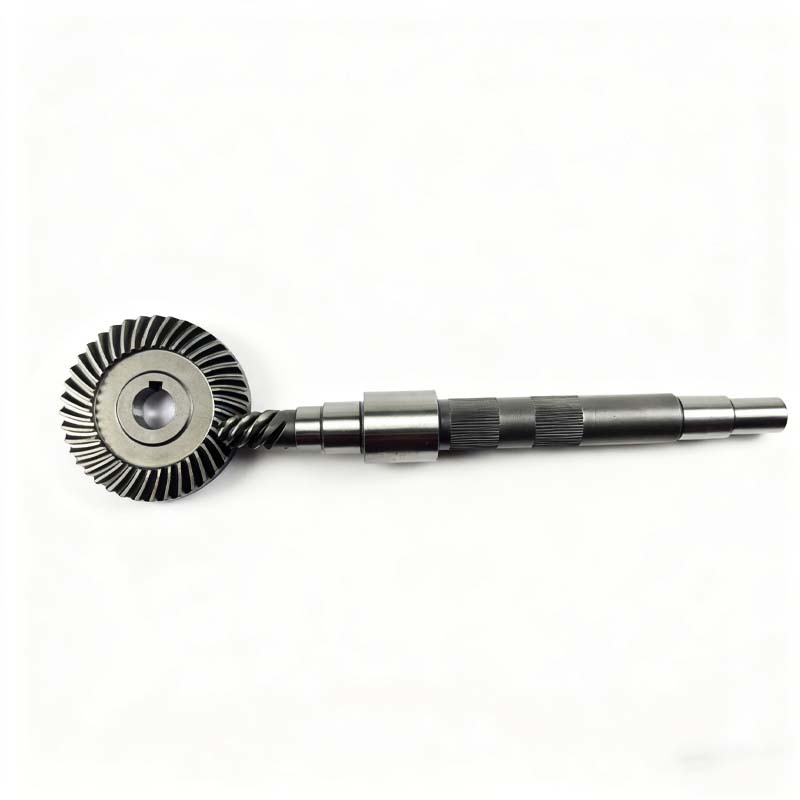

ZDF3-30H60-400-S3-013-00002 Rotating Shaft and ZDF3-30H60-400-516-002 Primary Driven Gear
$9.48piece
ZD-007-C is a hypoid gear shaft with module 1.71, 4T, 50° LH, made of 20CrMnTi, for reducer with high precision and reliable transmission.
ZD-008-C is a hypoid primary driven gear with module 1.71, 41T, 50° RH, made of 20CrMnTi, for reducer with stable and efficient transmission.
Description

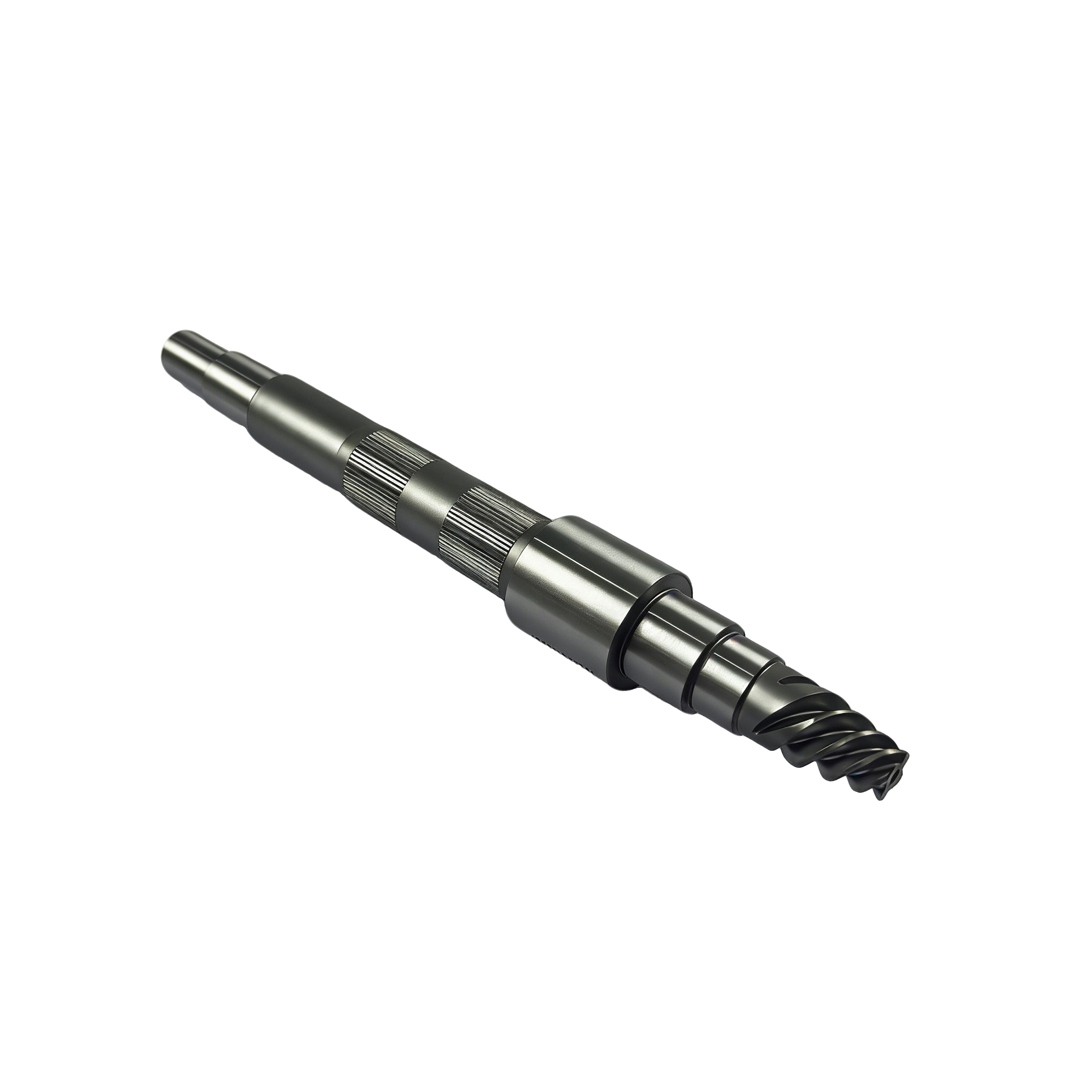

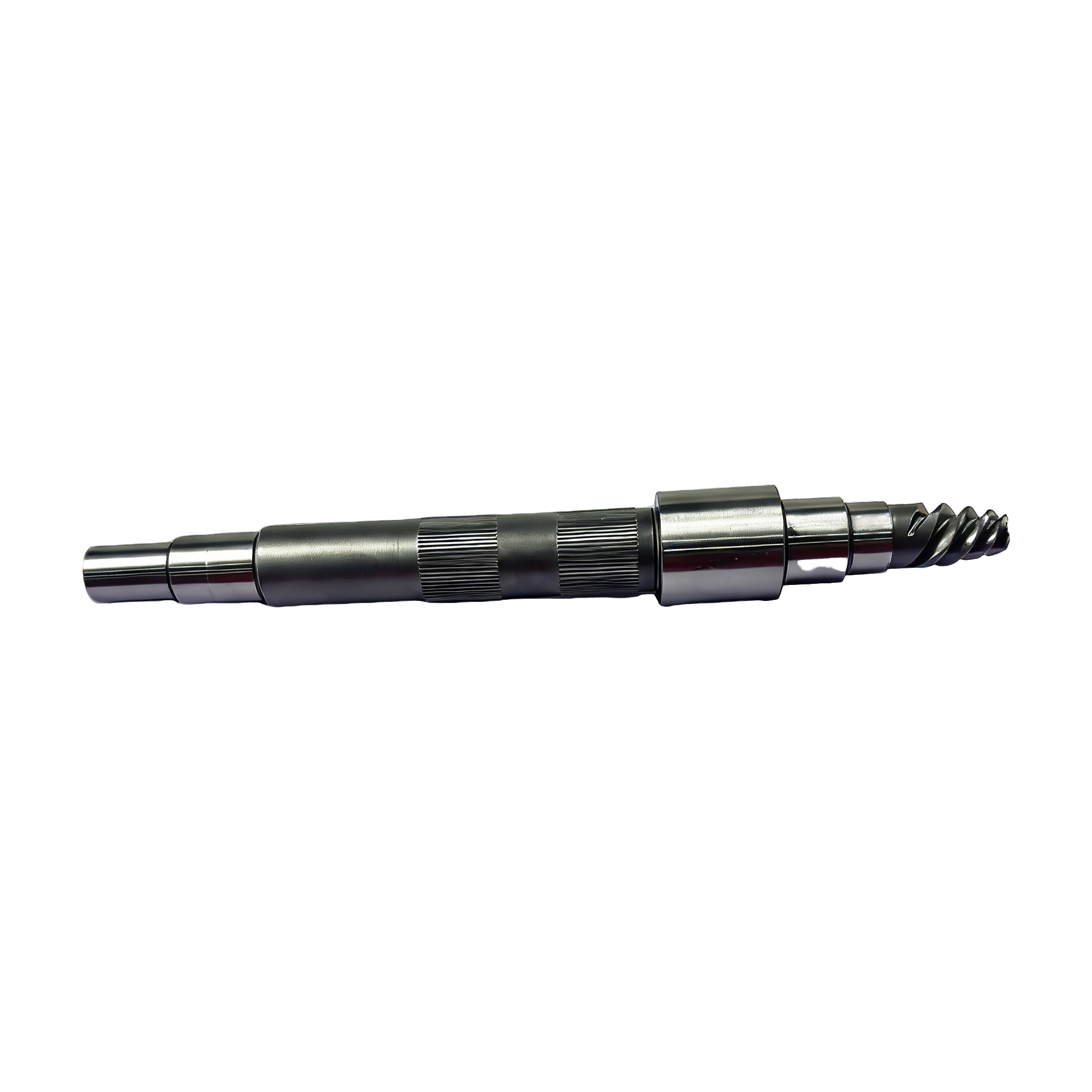

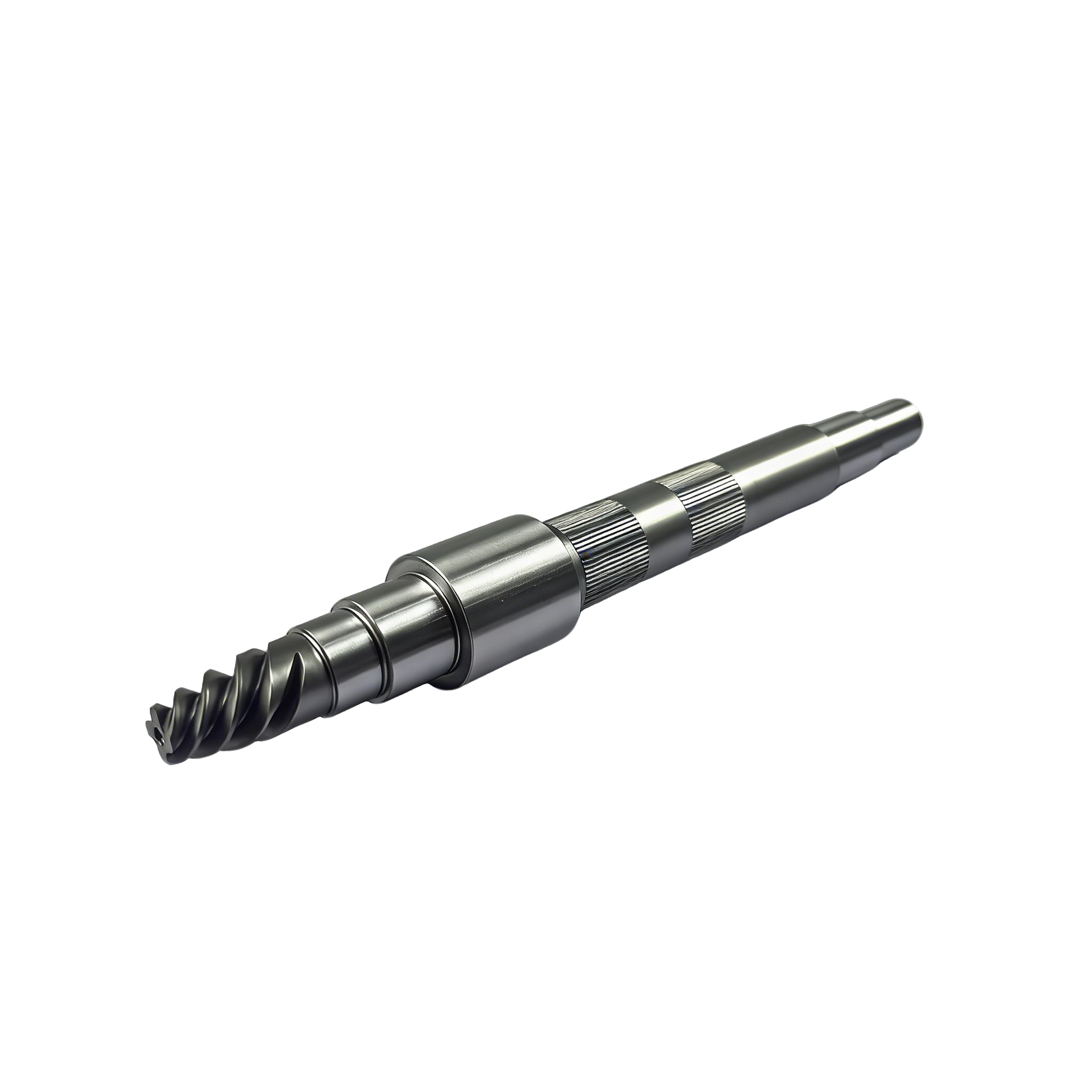

Model: ZD-007-C
Product Name: ZDF3-30H60-400-S3-013-00002 Shaft
Type: Hypoid Gear
Parameters: Pressure angle 20°, module 1.71, 4 teeth, helix angle 50° LH, shaft diameter 27mm, total length 215.72mm, weight 0.4931kg
Material: 20CrMnTi
Process: Sawing – Turning – Rough grinding for positioning – Rough grinding for clamping – Rough grinding for reference – Gear milling – Heat treatment & straightening – Shot blasting – Outer diameter grinding – Marking – Full appearance inspection
Application: Reducer gear
With complete processing and strict precision control, it features stable dimension, high strength and good wear resistance after heat treatment, suitable for reducer transmission.

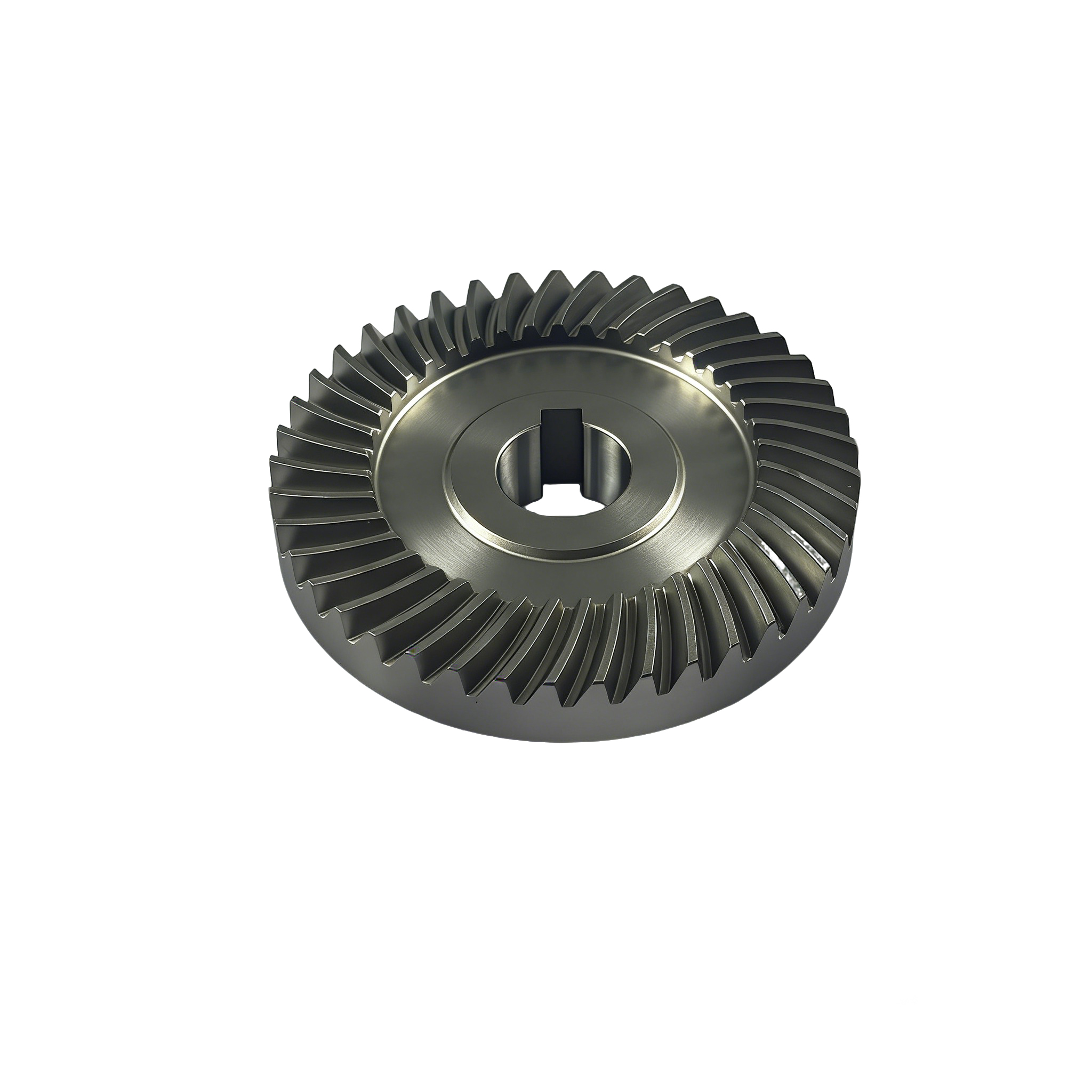

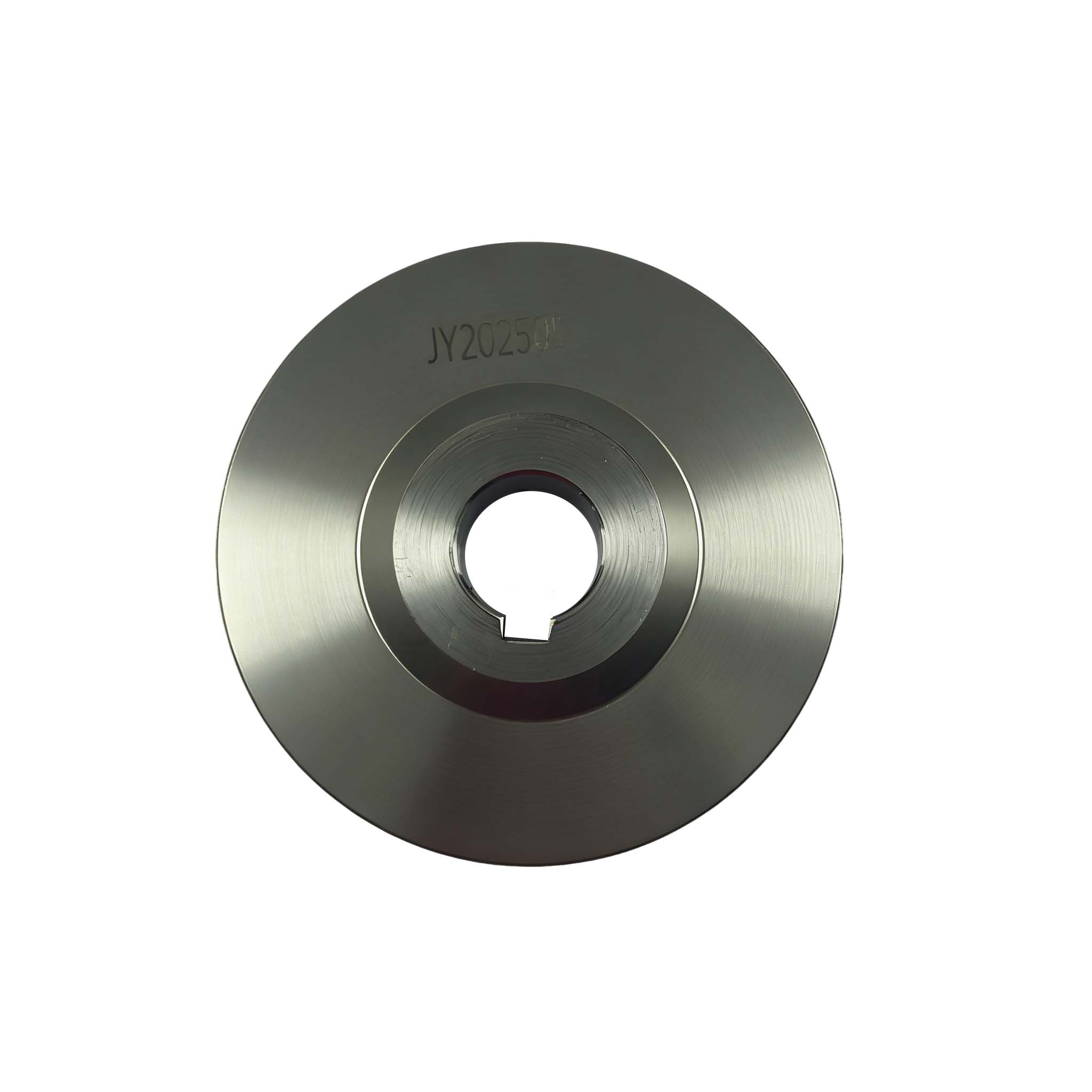

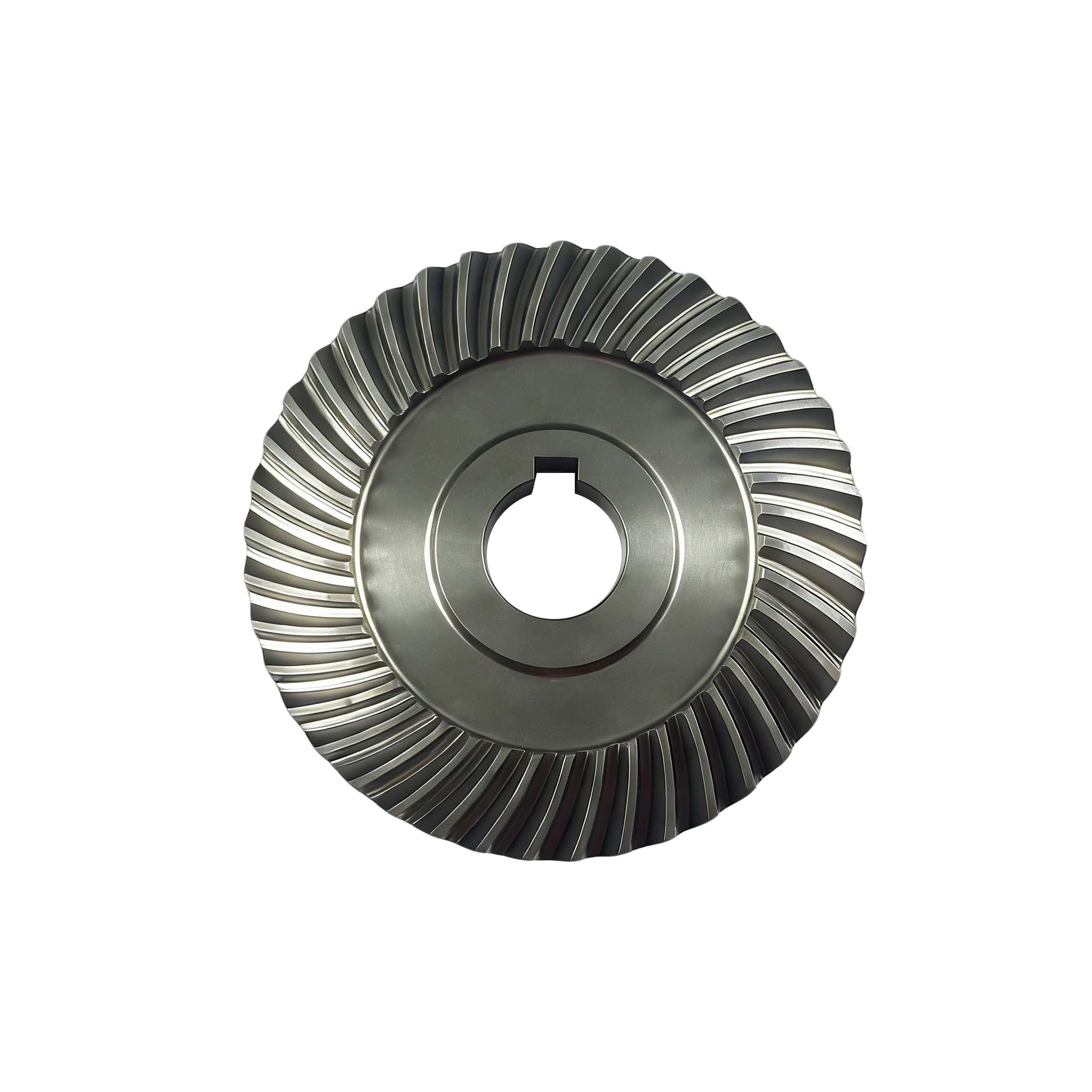

Model: ZD-008-C
Product Name: ZDF3-30H60-400-516-002 Primary Driven Gear
Type: Hypoid Gear
Parameters: Pressure angle 20°, module 1.71, 41 teeth, helix angle 50° RH, inner bore 16mm, outer diameter 70mm, total length 15.71mm, weight 0.2798kg
Material: 20CrMnTi
Process: Sawing – Turning – Gear milling – Heat treatment – Shot blasting – Boring & facing – Total length facing – Marking – Full appearance inspection
Application: Reducer gear
It features high machining accuracy, good surface quality and excellent mechanical properties after heat treatment, suitable for primary transmission of reducers.
Additional information
| ZD-007-C and ZD-008-C weight |
0.4931and0.2798 |
|---|---|
| ZD-007-C and ZD-008-C Core Components |
gear |
| ZD-007-C and ZD-008-C Craftsmanship |
Milling |
