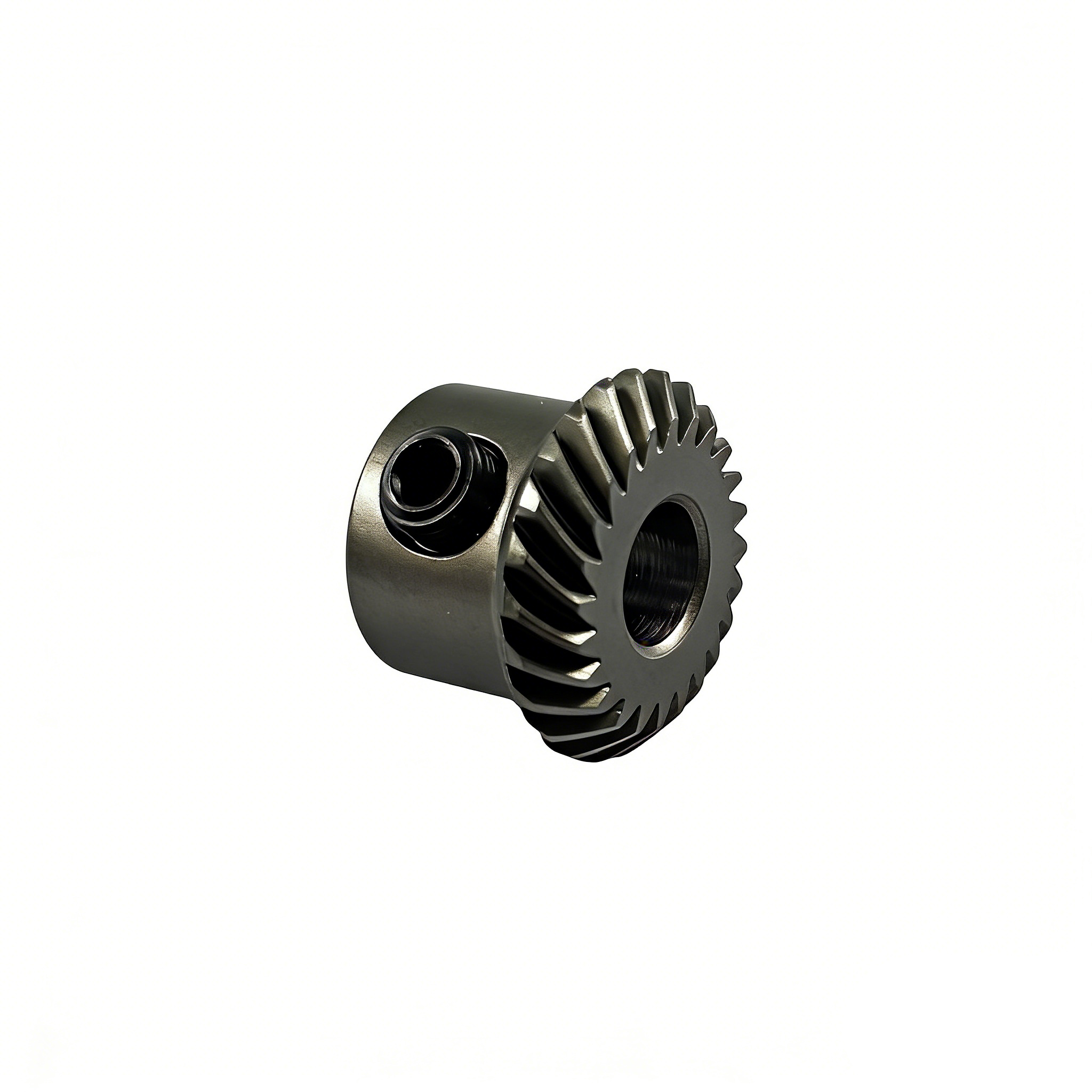

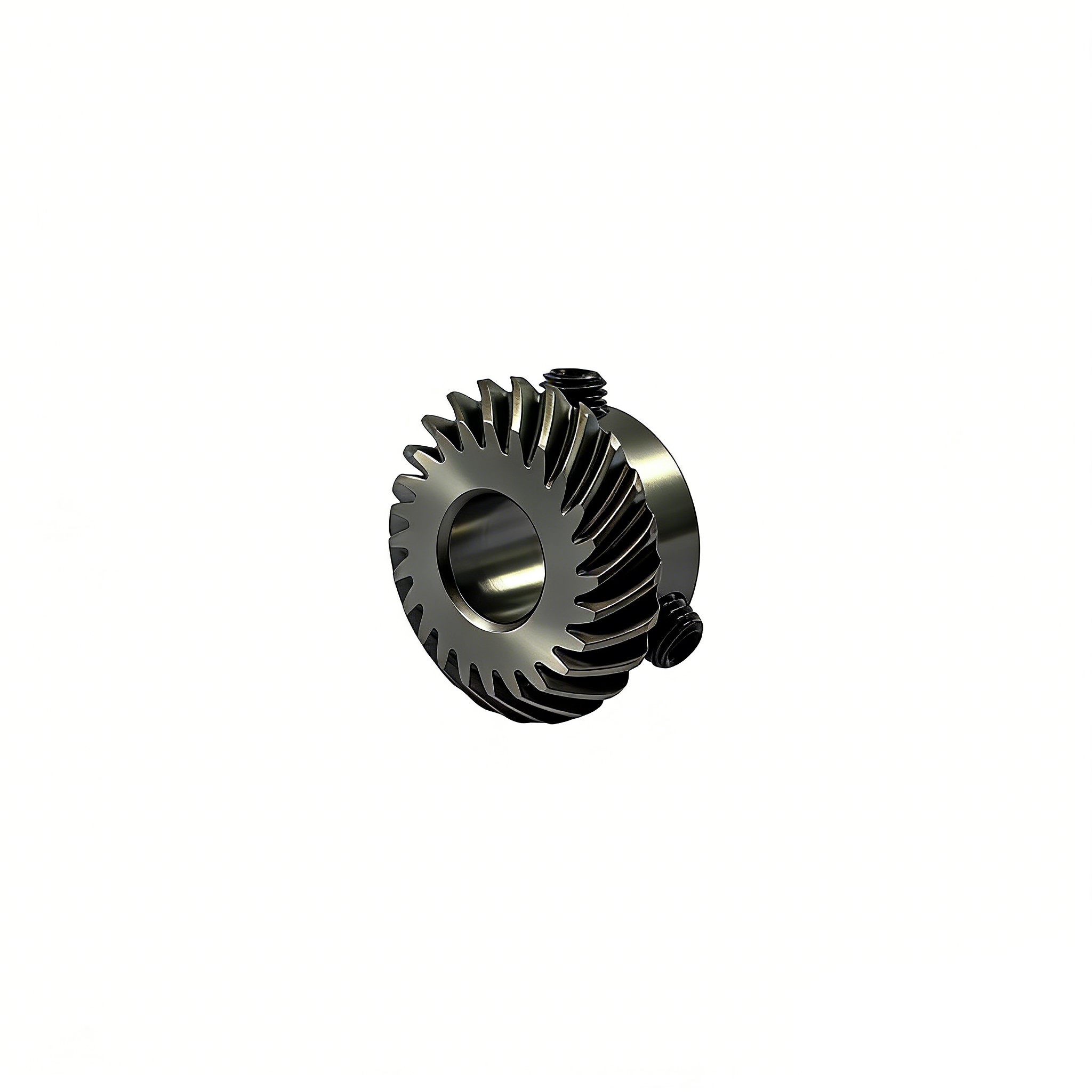

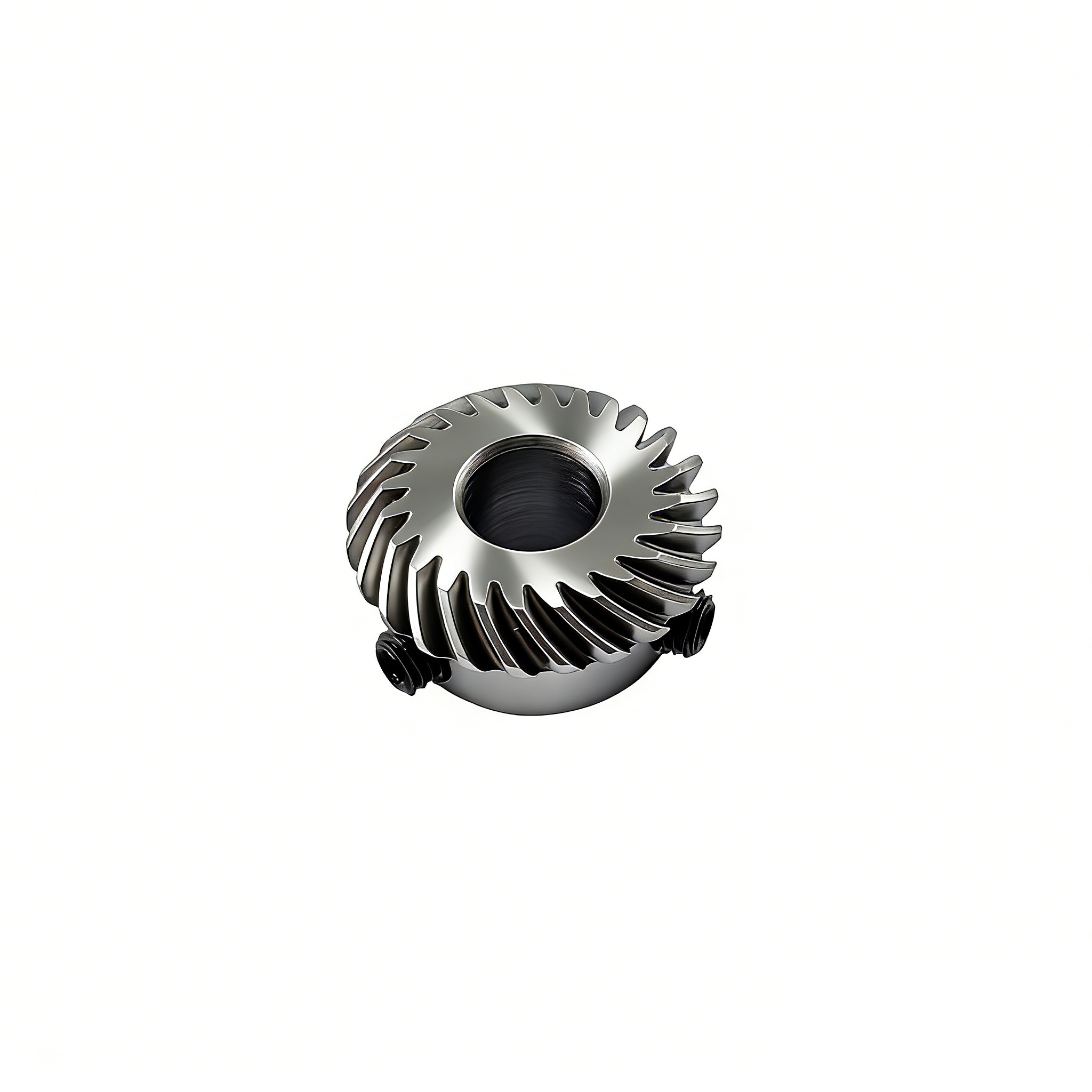

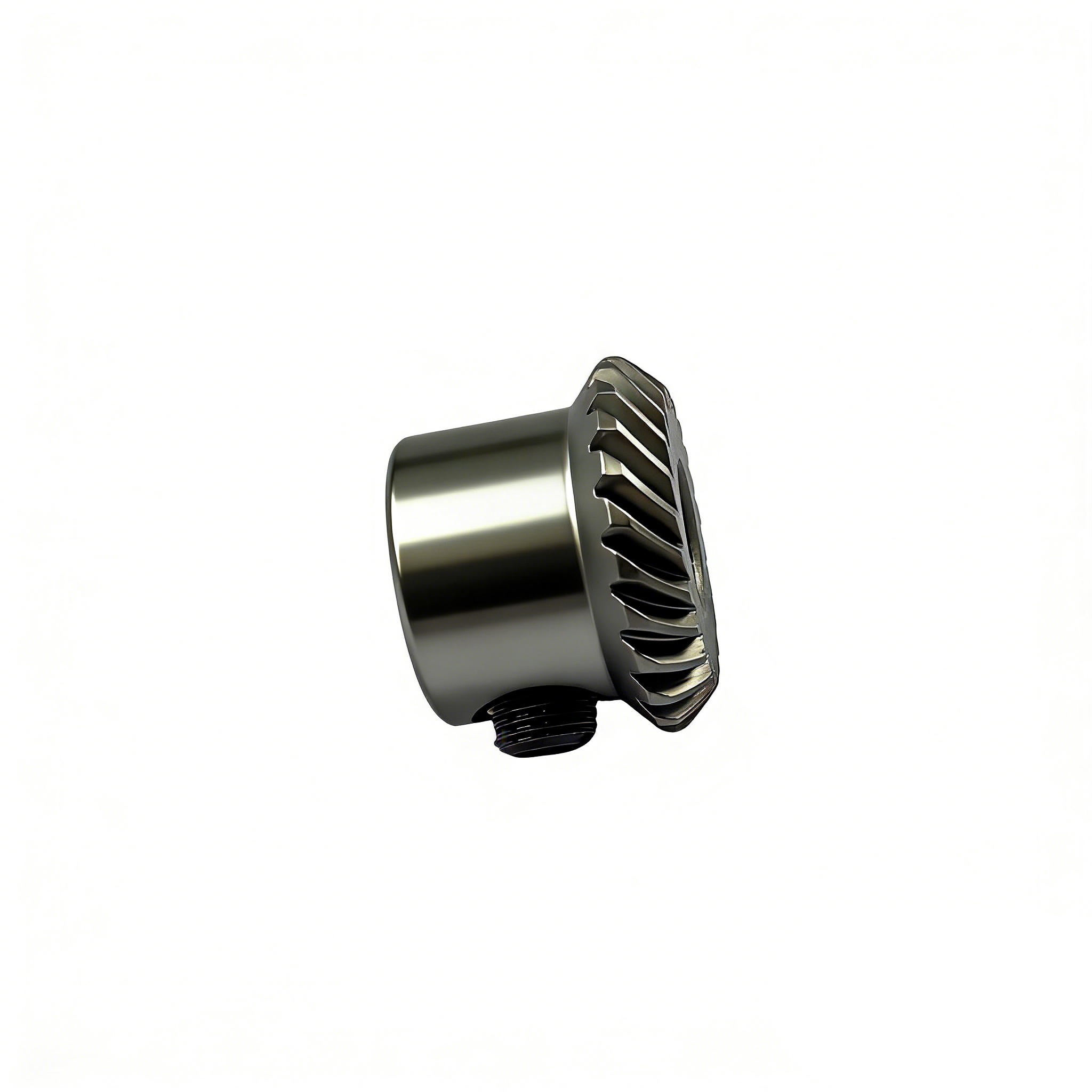

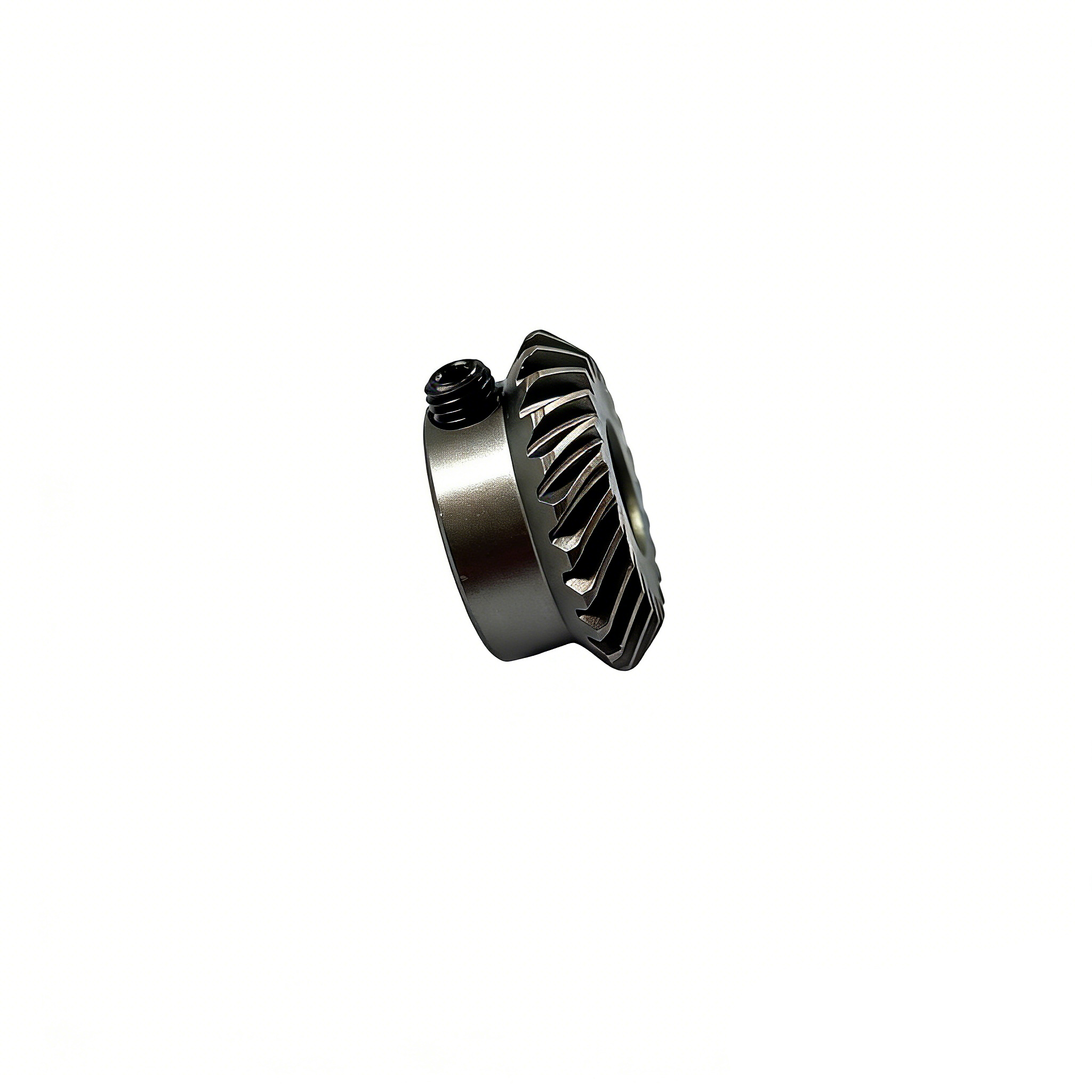

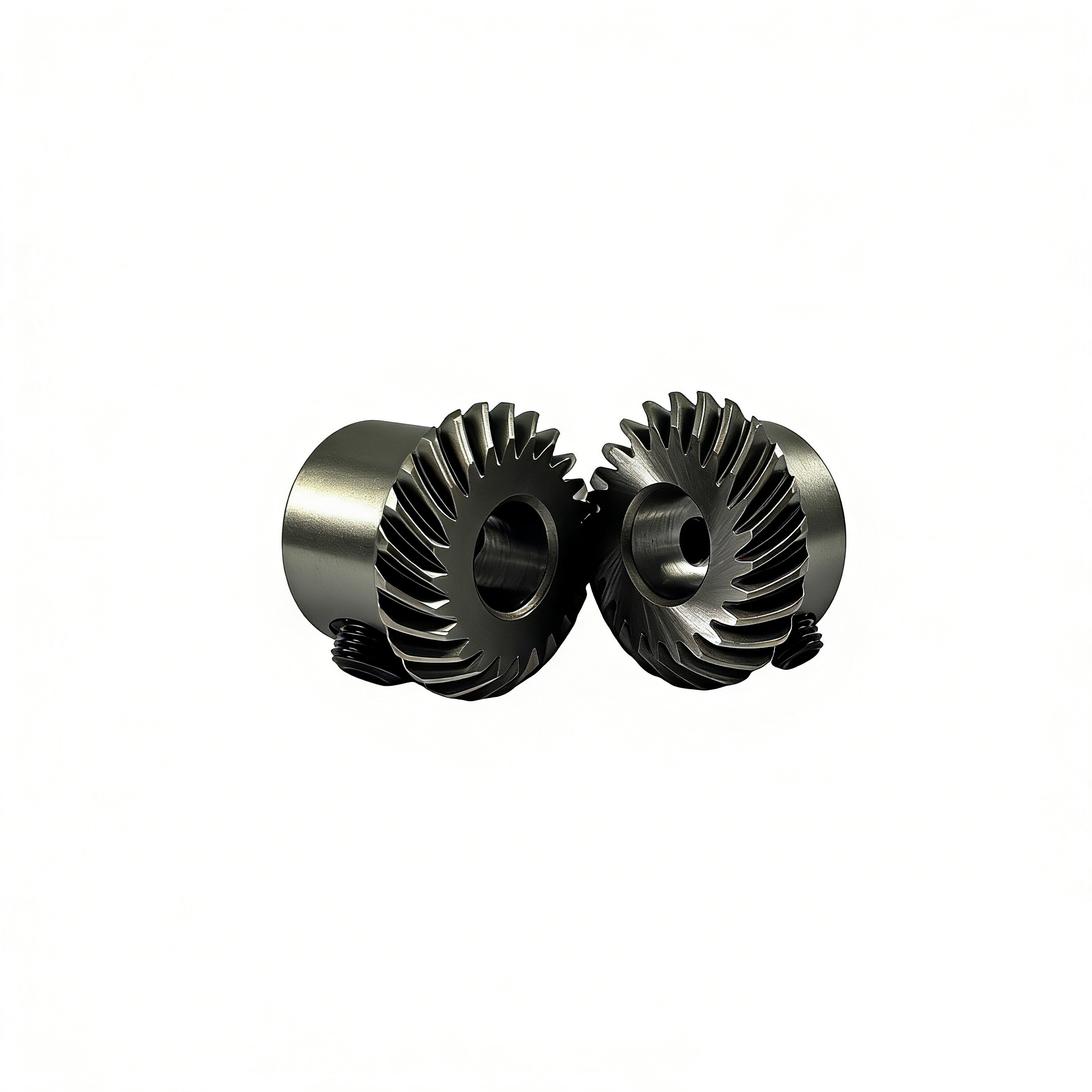

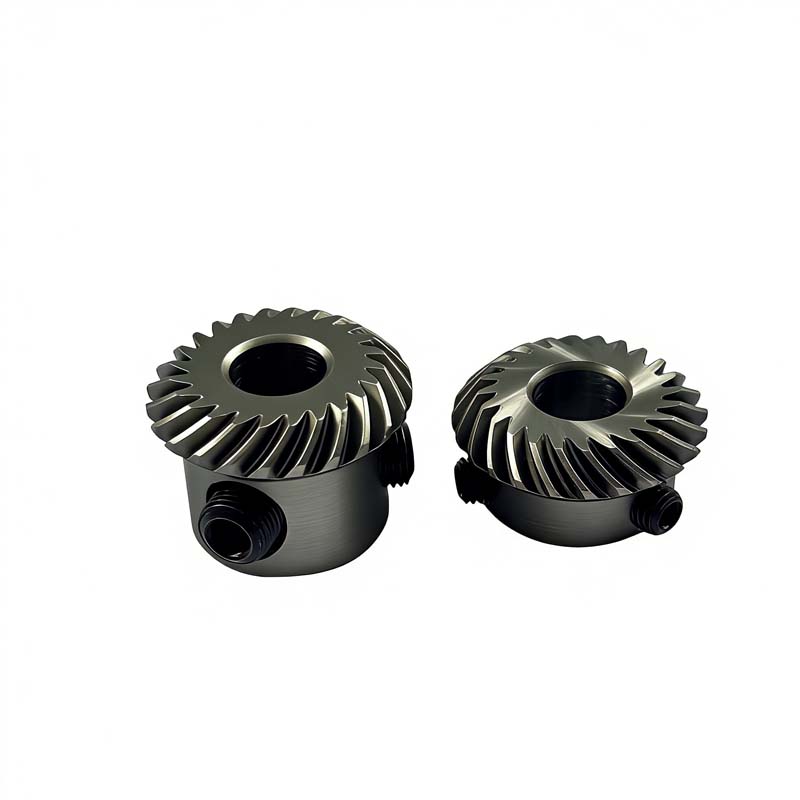

1530 Zigzag Sewing Gear, Left-Hand, Short and 1530 Zigzag Stitch Gear, Right-Hand, Long
$1.80piece
1530-001-C is a short left-hand spiral bevel gear (module 0.9, 24T, 20CrMo), for zigzag stitch sewing equipment with high precision and stable transmission.
1530-002-C is a long right-hand spiral bevel gear (module 0.9, 24T, 20CrMo), for zigzag stitch sewing machinery with reliable wear resistance.
Description
Model: 1530-001-C
Product Name: 1530 Zigzag Stitch Gear, Left-Hand, Short
Type: Spiral Bevel Gear
Parameters: Pressure angle 20°, module 0.9, 24 teeth, helix angle 35° LH, inner bore 7.94mm, outer diameter 21.8mm, total length 10.5mm, weight 0.0161kg
Material: 20CrMo alloy steel
Process: Sawing, turning, threaded hole machining, reaming, gear milling, heat treatment, shot blasting, reaming, capping, screw assembly
Application: Sewing machinery
This gear features high precision, good wear resistance and stable transmission, specially used for zigzag stitch sewing machines.
Model: 1530-002-C
Product Name: 1530 Zigzag Stitch Gear, Right-Hand, Long
Type: Spiral Bevel Gear
Parameters: Pressure angle 20°, module 0.9, 24 teeth, helix angle 35° RH, inner bore 7.94mm, outer diameter 21.8mm, total length 16mm, weight 0.0243kg
Material: 20CrMo alloy steel
Process: Sawing, turning, threaded hole machining, reaming, gear milling, heat treatment, shot blasting, reaming, capping, screw assembly
Application: Sewing machinery
With high machining accuracy and good strength after heat treatment, it is suitable for transmission in zigzag stitch sewing machines.
Additional information
| 1530-001-C and 1530-002-C weight |
0.0161and0.0243 |
|---|---|
| 1530-001-C and 1530-002-C Core Components |
gear |
| 1530-001-C and 1530-002-C Craftsmanship |
Milling |
