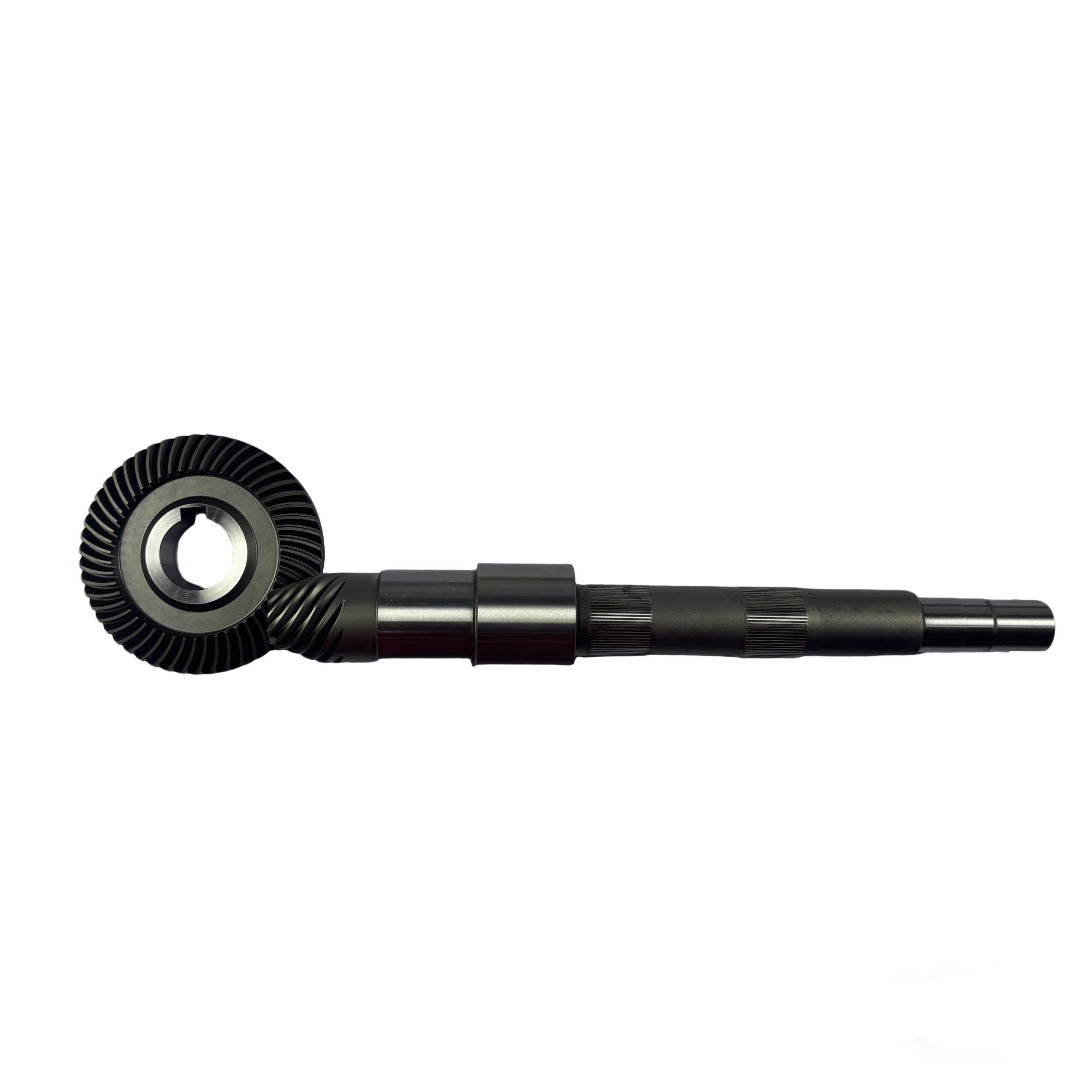

ZDF3-35H5-750-516-002 Primary Driven Gear and ZDF3-35H10-750-S3-013-00002 Shaft
$10.70piece
ZD-015-C is a hypoid primary driven gear made of 20CrMnTi, module 1.47, 51 teeth, 50° right-hand helix, for stable and wear-resistant transmission in reducers.
ZD-016-C is a hypoid gear shaft made of 20CrMnTi, module 1.47, 10 teeth, 50° left-hand helix, designed for reliable and stable transmission in reducers.
Description
Model: ZD-015-C

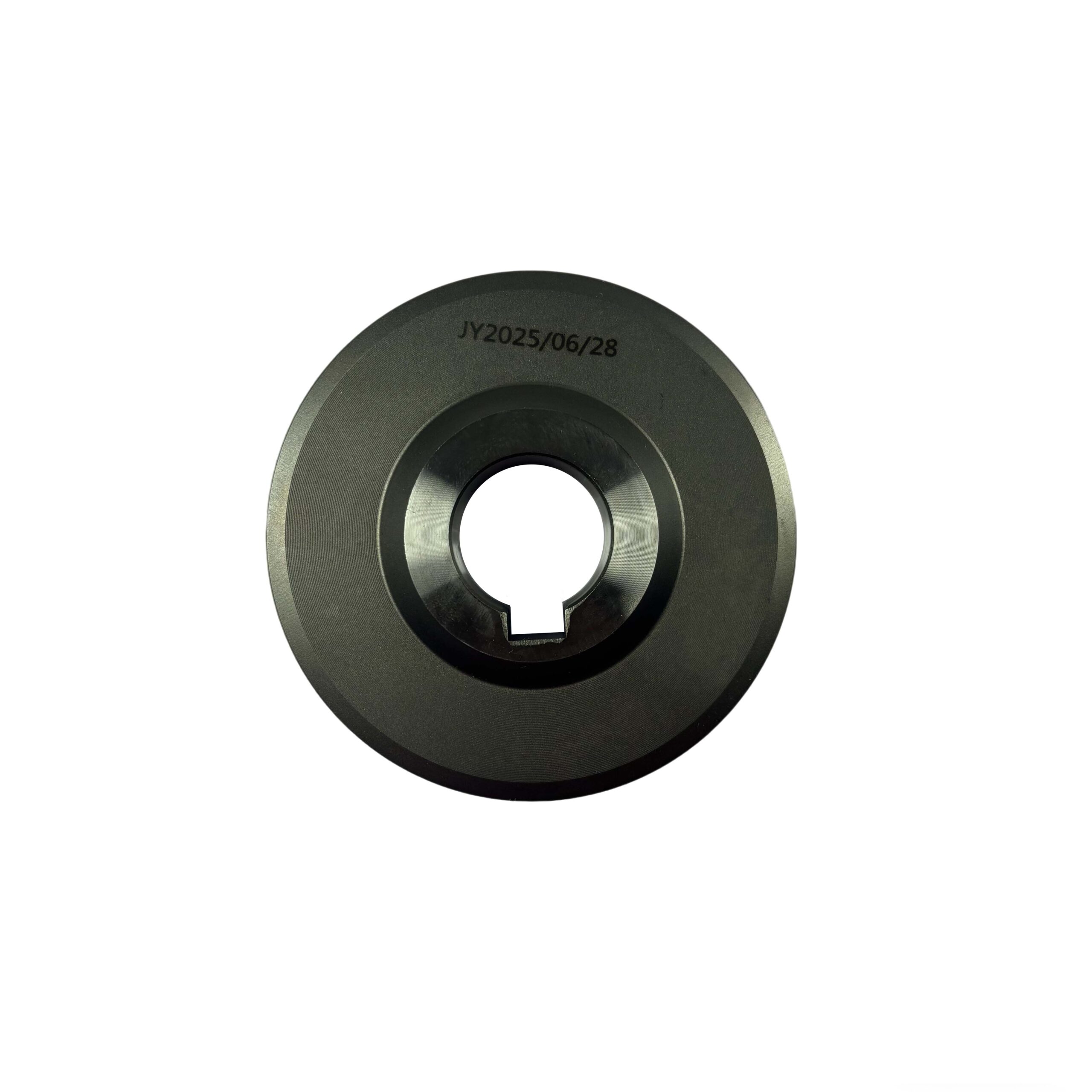

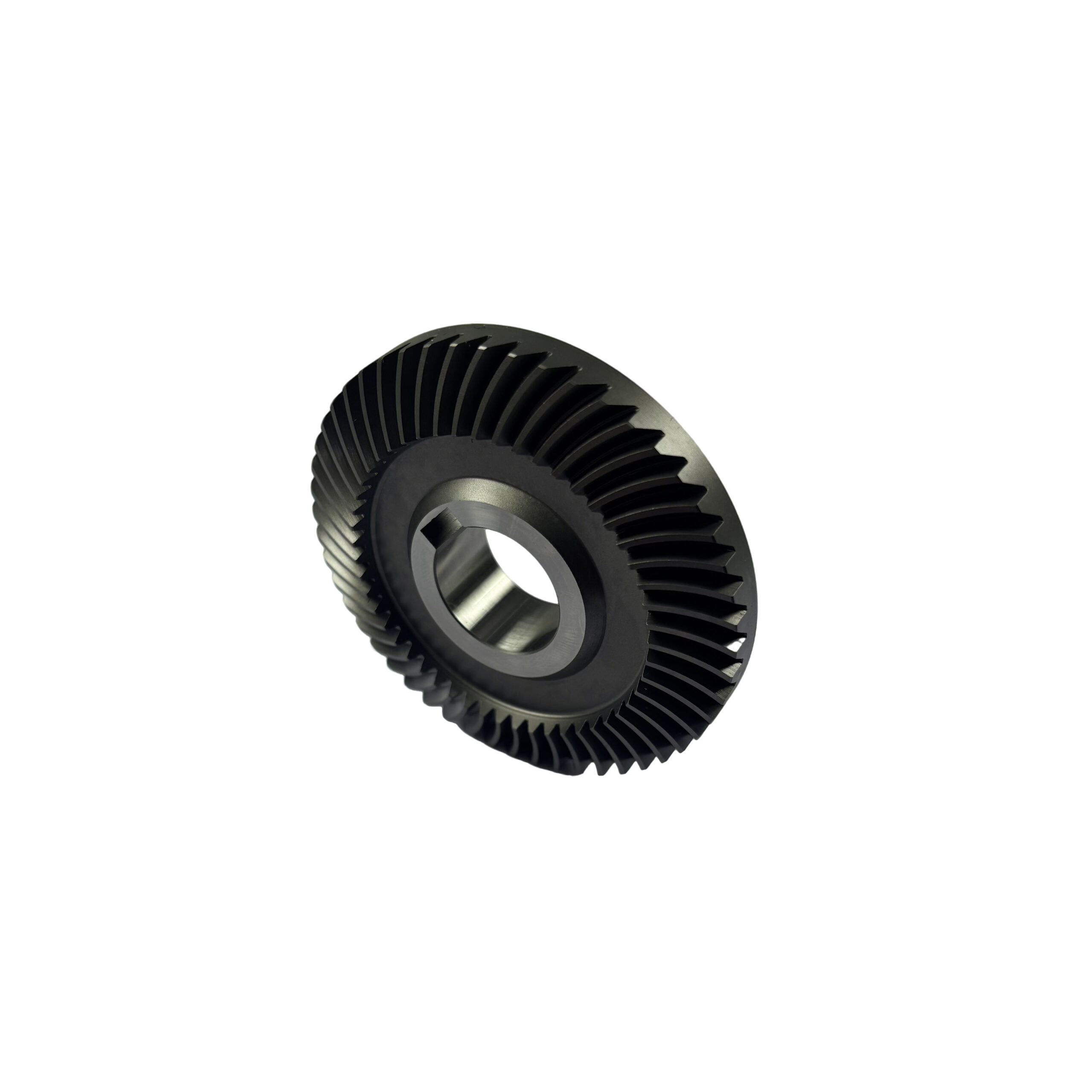

Product Name: ZDF3-35H5-750-516-002 Primary Driven Gear
Type: Hypoid Gear
Parameters: Pressure angle 20°, module 1.47, 51 teeth, offset distance 17, helix angle 50° RH, inner bore 22 mm, tooth outer diameter 75 mm, total length 16.22 mm, weight 0.3051 kg
Material: 20CrMnTi
Process: Sawing, turning, gear milling, heat treatment, shot blasting, boring & facing, total length facing, marking, full appearance inspection
Application: Reducer gear
Made of 20CrMnTi alloy steel, this gear features high machining accuracy, good strength and wear resistance after heat treatment. It runs smoothly and is suitable for primary transmission in reducers.
Model: ZD-016-C

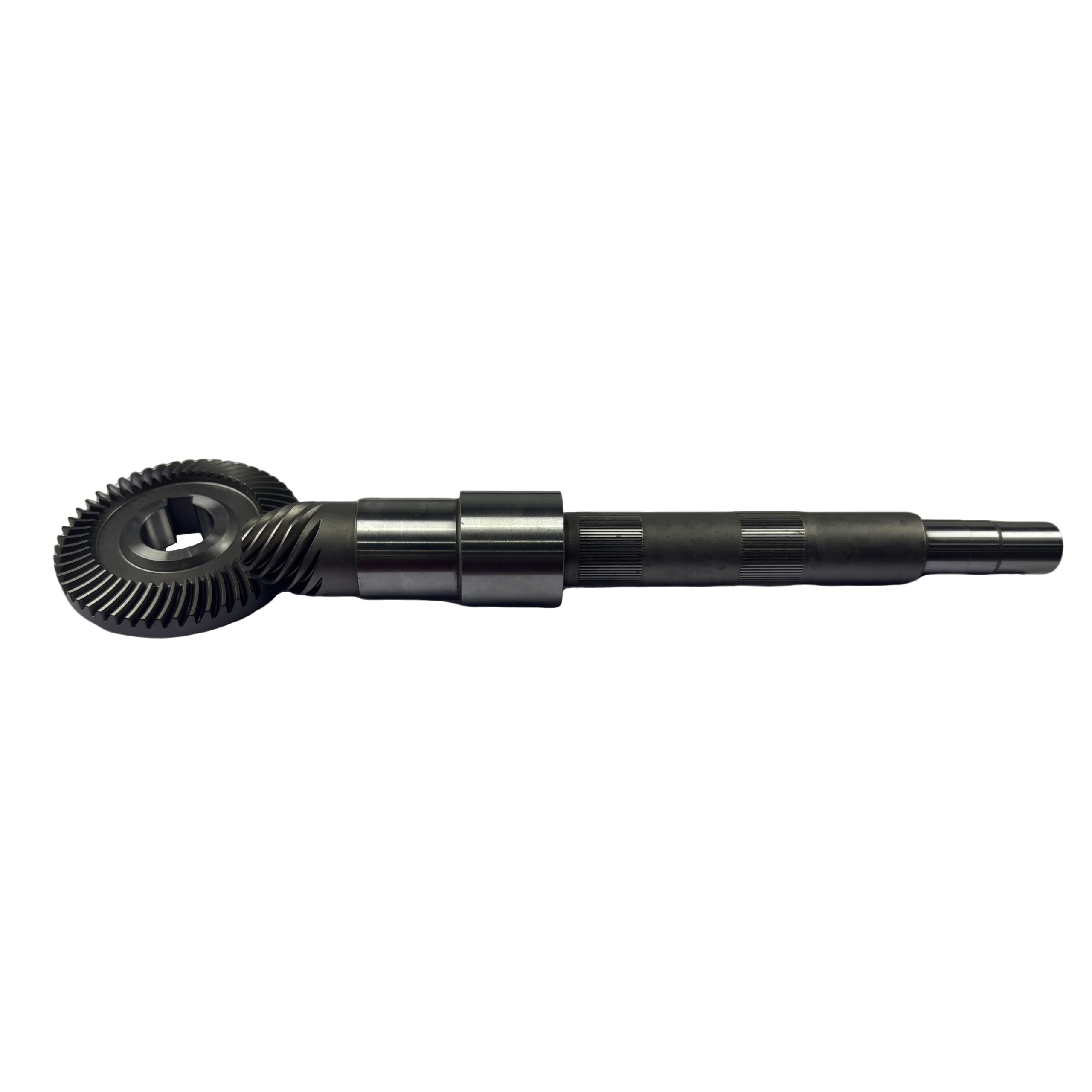

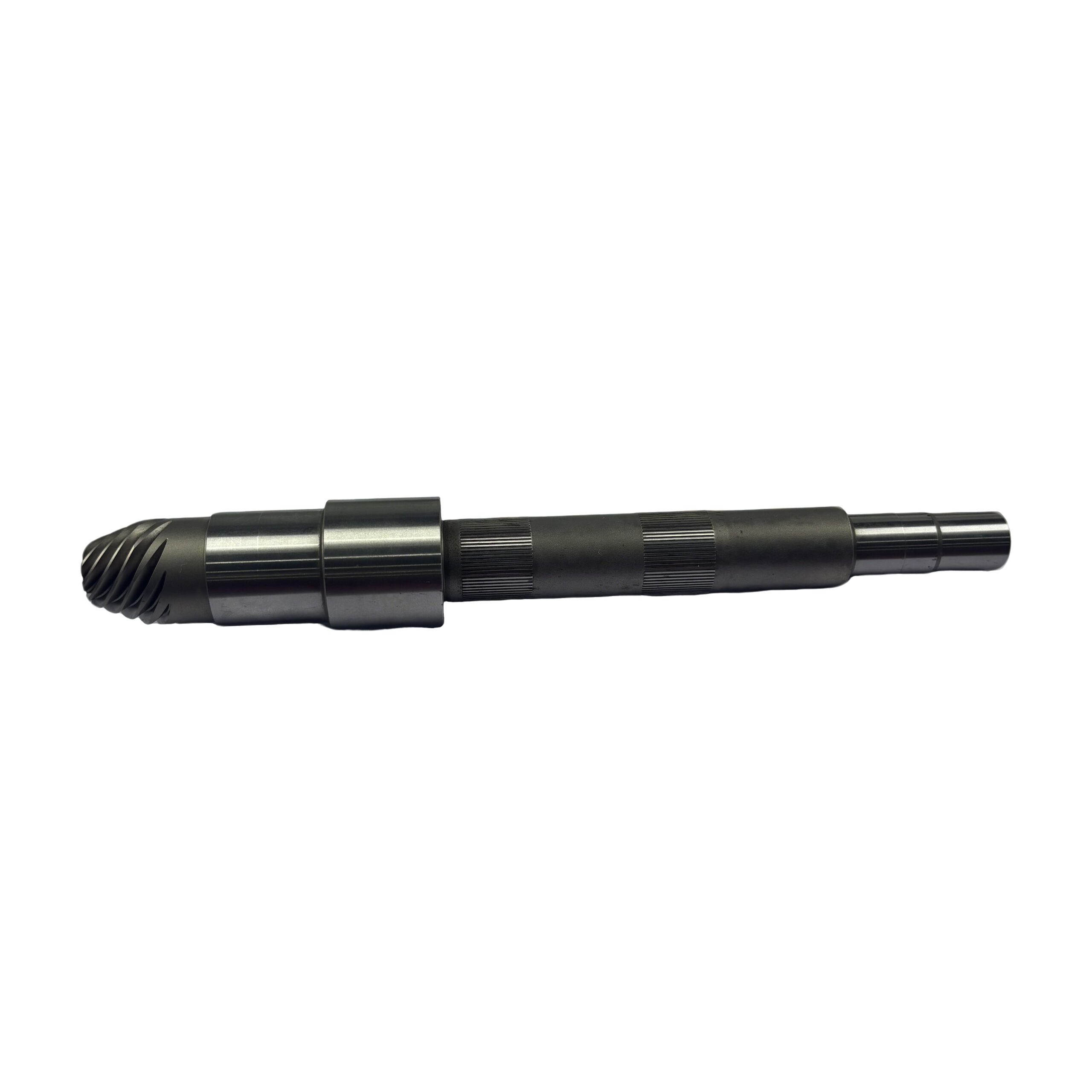

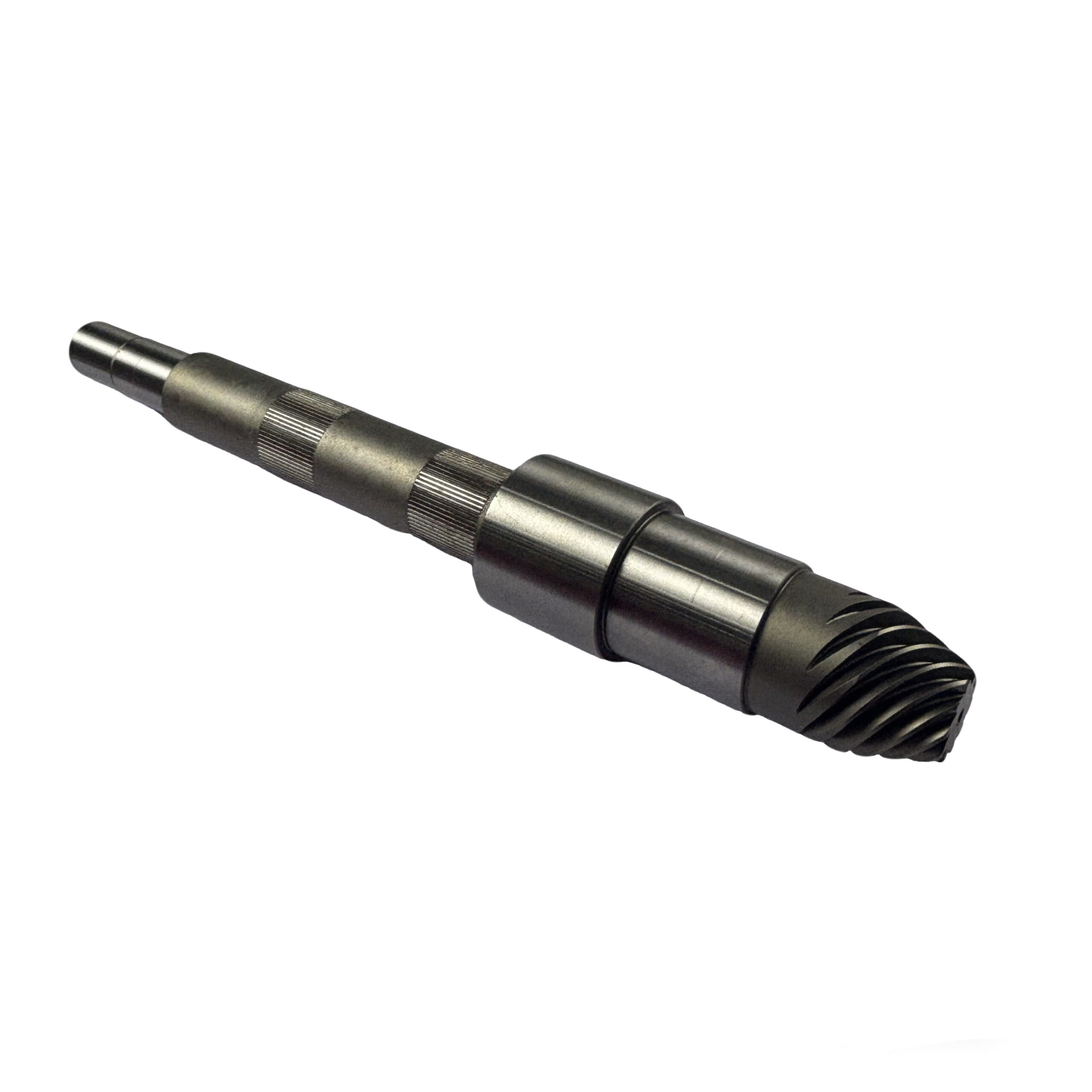

Product Name: ZDF3-35H10-750-S3-013-00002 Shaft
Type: Hypoid Gear
Parameters: Pressure angle 20°, module 1.47, 10 teeth, offset distance 17, helix angle 50° LH, shaft diameter 34.5 mm, tooth outer diameter 27.48 mm, total length 240.06 mm, weight 0.876 kg
Material: 20CrMnTi
Process: Sawing, turning, rough grinding for positioning, rough grinding for clamping, rough grinding for reference, gear milling, heat treatment & straightening, shot blasting, outer diameter grinding, marking, full appearance inspection
Application: Reducer gear
This shaft adopts precise grinding and straightening processes, ensuring high dimensional stability and excellent mechanical properties. It provides reliable power transmission for reducers with high durability.
Additional information
| ZD-015-C and ZD-016-C weight |
0.3051and0.876 |
|---|---|
| ZD-015-C and ZD-016-C Core Components |
gear |
| ZD-015-C and ZD-016-C Craftsmanship |
Milling |
Reviews (0)
Shipping & Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
SCK50-2-2-02
✅ Core Advantages: High-precision transmission, high load-bearing capacity, low noise, long service life, lightweight
✅ Key Parameters (SCK50-2-2-02): 20° Pressure Angle | 1.36 Modulus | 38 Teeth | 28°26′/R Helix Angle | 9mm Offset | 14mm Inner Diameter | 51.65mm Tooth Outer Diameter | 16mm Total Length | 0.1205kg Weight
✅ Exquisite Craftsmanship: Normalizing - Turning - Gear Milling - Heat Treatment - Chamfering - Shot Blasting - Reaming - Facing - Pairing Grinding - Marking - Full Inspection, Full-process Precision Control
✅ Application Scenarios: Power transmission for automobiles, construction machinery, precision instruments, automation equipment, etc.
✅ Product Features: High-quality alloy material | Precise meshing | Impact resistance | Low loss | Compliance with international industrial standards | Adaptation to high-load working conditions
SCK75-2-1-03 and SCK75-2-2-04
1. XG-025-C (SCK75-2-1-03)
XG-025-C (SCK75-2-1-03) Hypoid Gear Shaft, 20CrMnTi, module 1.55, 11T, speed ratio 4, helix angle 48°L, shaft Ø16mm, gear OD 28.62mm, total length 62mm, weight 0.1484kg, precision lapped, for reducers.
2. XG-026-C (SCK75-2-2-04)
XG-026-C (SCK75-2-2-04) Hypoid Gear, 20CrMnTi, module 1.55, 45T, helix angle 25°10′R, inner bore Ø19mm, gear OD 69.9mm, total length 21.36mm, weight 0.3465kg, precision processed, matched with XG-025-C for reducers.
ZDF3-25H20-200-S3-013-00002 Shaft and ZDF3-25H240-100-516-002 Primary Driven Gear
ZD-017-C is a hypoid gear shaft, made of 20CrMnTi. It has 4 teeth, 50° left-hand helix, module 1.27, total length 202.8mm, weight 0.36kg. Processed with precision, it is suitable for reducers, featuring stable transmission and wear resistance.
ZD-018-C is a hypoid primary driven gear, made of 20CrMnTi. It has 41 teeth, 50° right-hand helix, inner diameter 13mm, total length 15.5mm, weight 0.17kg. It is suitable for reducers, with stable transmission and good wear resistance.
ZDF3-45H20-1500-S-013-00001 Rotating Shaft and ZDF3-45H60-1500-516-002 Primary Driven Gear
ZD-011-C is a hypoid gear shaft made of 20CrMnTi, with module 2.586, 4 teeth and 50° left-hand helix. It is precision-machined and heat-treated for stable, durable transmission in reducers.
ZD-012-C is a hypoid primary driven gear made of 20CrMnTi, with module 2.586, 41 teeth and 50° right-hand helix. It is ideal for reducer primary transmission with stable performance and long service life.
