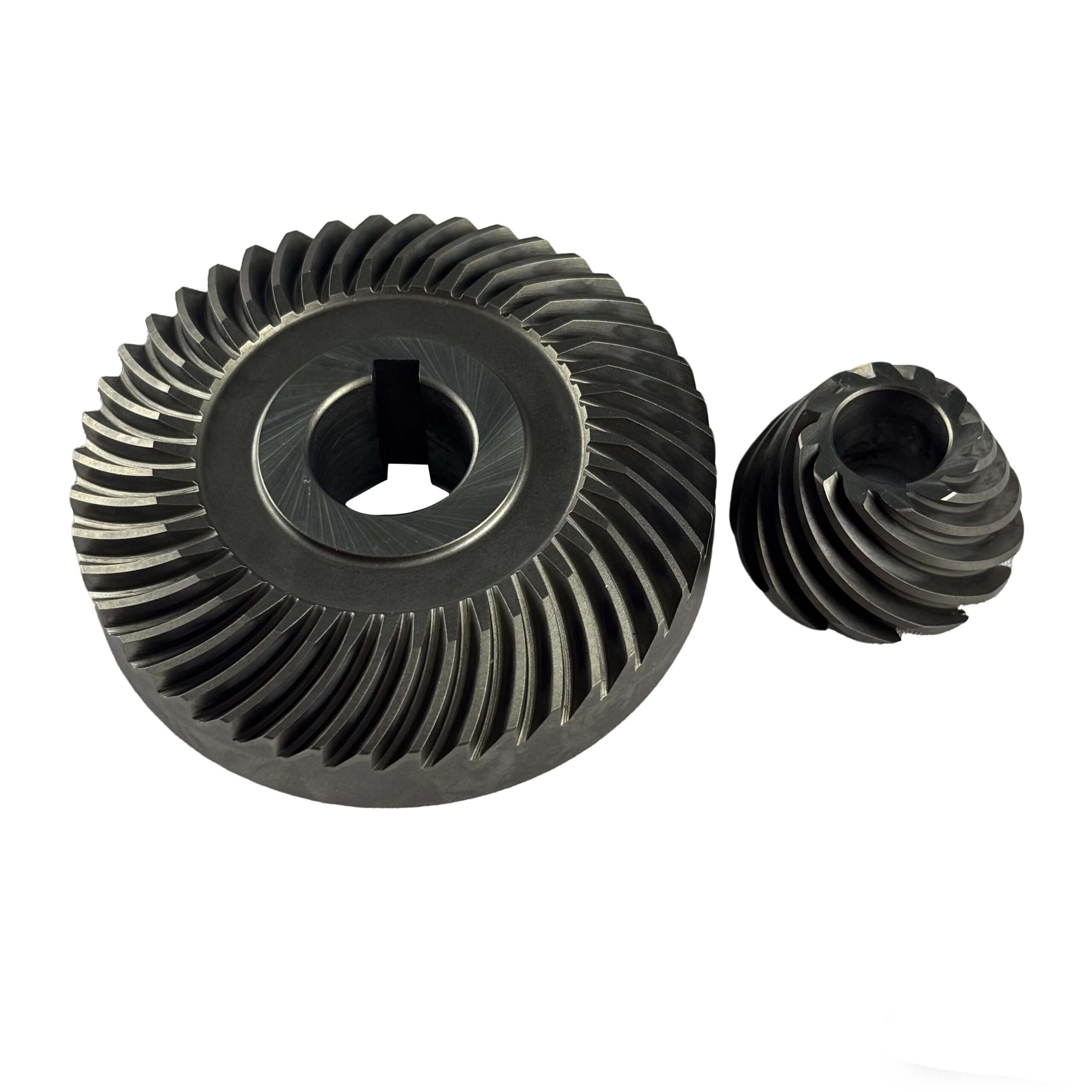

SCK200-1-1-09 Bevel Gear Shaft and SCK200-1-2-10 Bevel Gear
$7.30piece
XG-035-C (SCK200-1-1-09)
XG-035-C Hypoid Bevel Gear Shaft, 20CrMnTi, module 1.55, 12T, 49.98°L, shaft Ø12mm, L=17mm, precision lapped for reducers.
XG-036-C (SCK200-1-2-10)
XG-036-C Hypoid Bevel Gear, 20CrMnTi, module 1.55, 44T, 27.42°R, bore Ø17mm, L=20mm, precision lapped for reducers.
Description

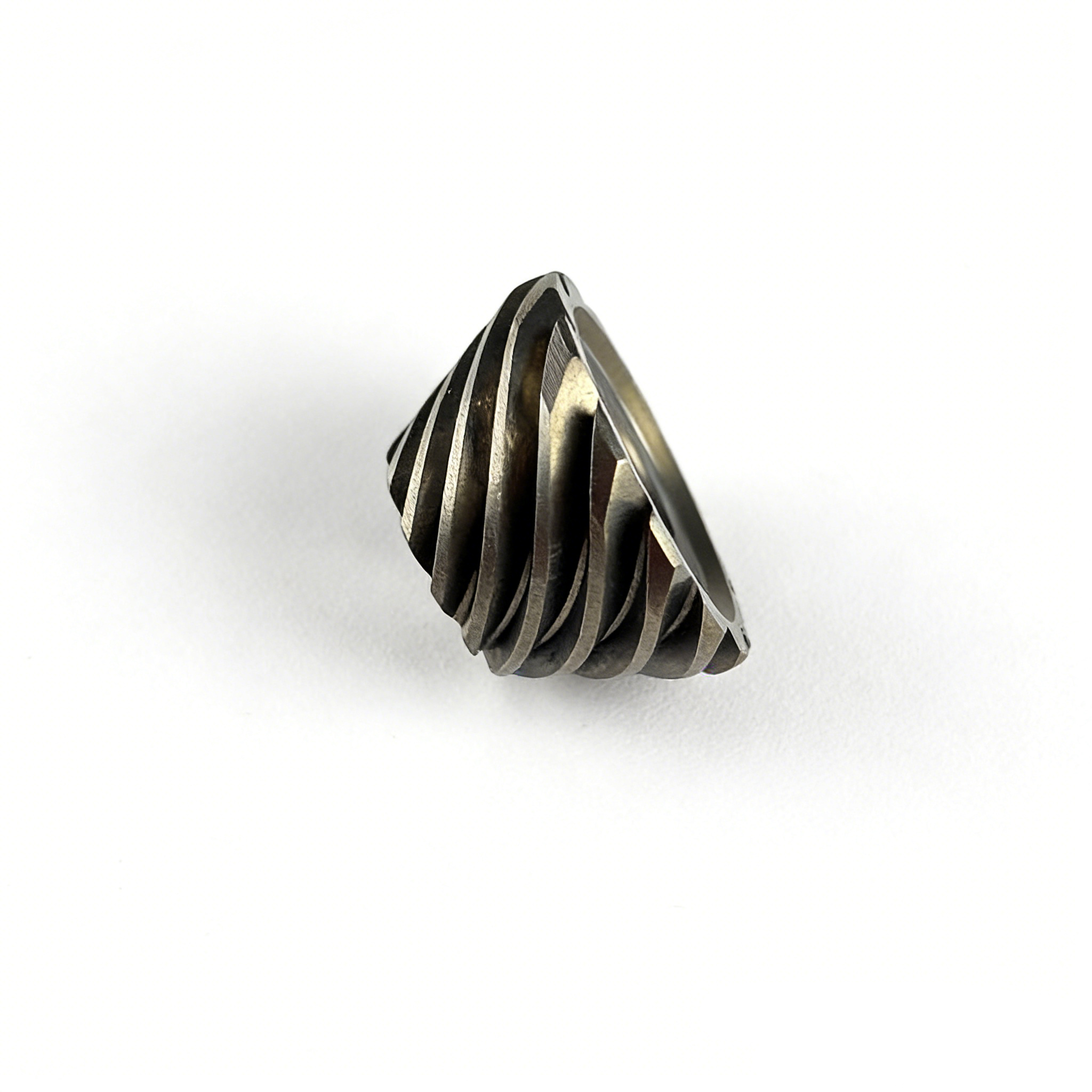

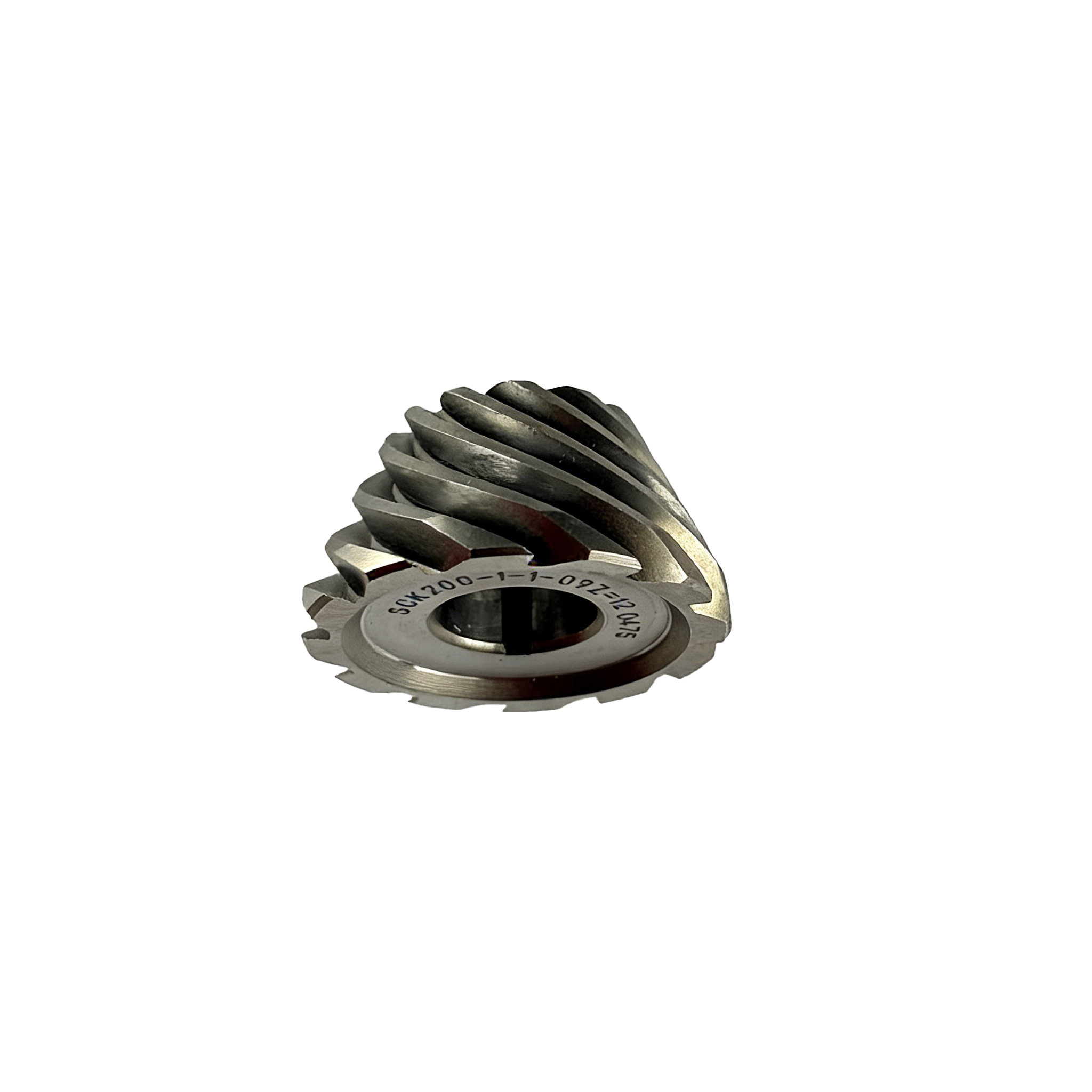

XG-035-C (SCK200-1-1-09) Hypoid Bevel Gear Shaft
This hypoid bevel gear shaft for reducers is made of 20CrMnTi alloy steel.
Parameters: pressure angle 20°, module 1.55, 12 teeth, ratio 3, offset 12mm, helix angle 49.98° Left Hand, shaft diameter 12mm, gear OD 32mm, length 17mm, weight 0.0452kg.
Process: normalizing, turning, gear milling, heat treatment, shot blasting, reaming, wire-cut keyway, facing, turning, matched lapping, marking and full visual inspection.
It features high meshing accuracy and stable transmission for driving parts of reducers.

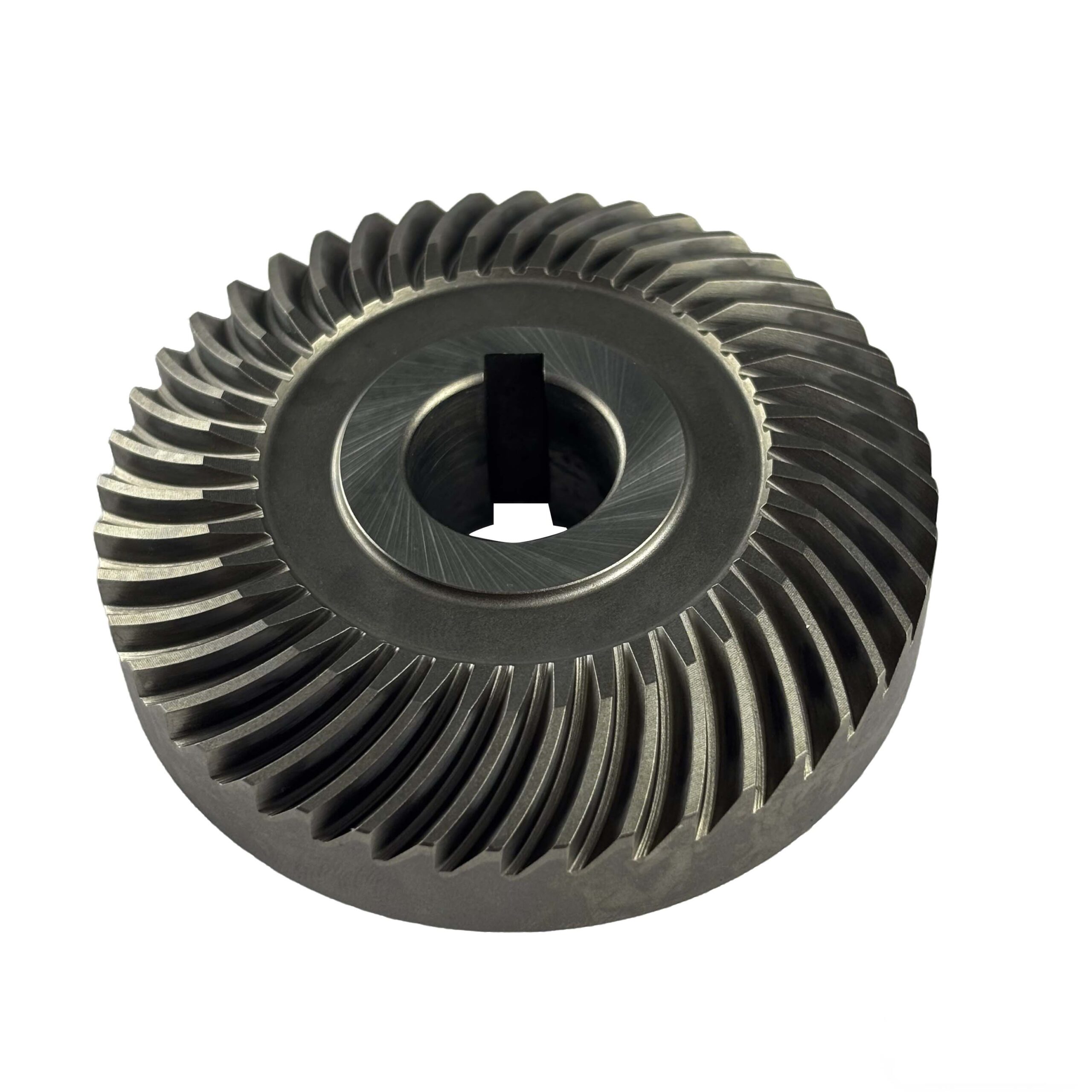

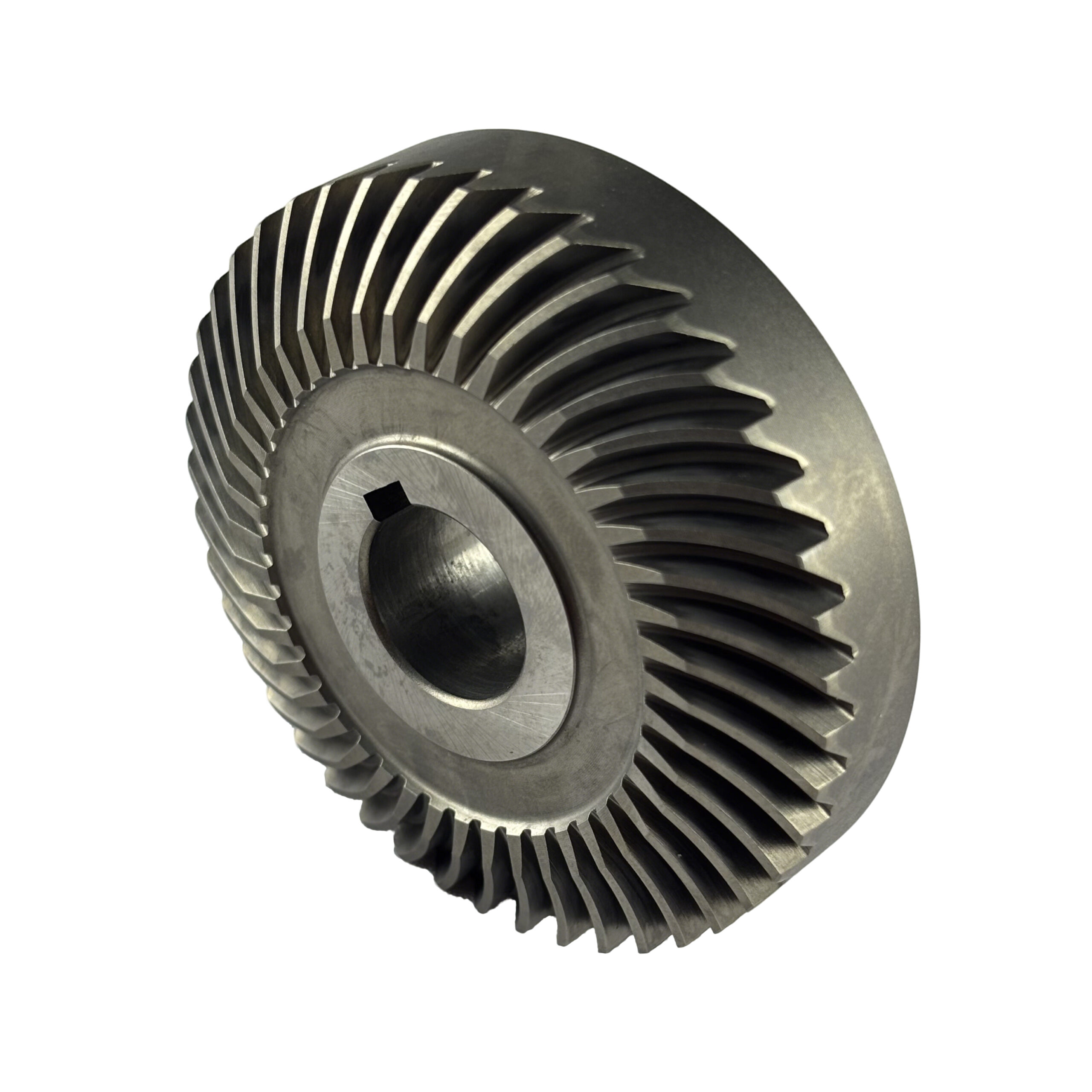

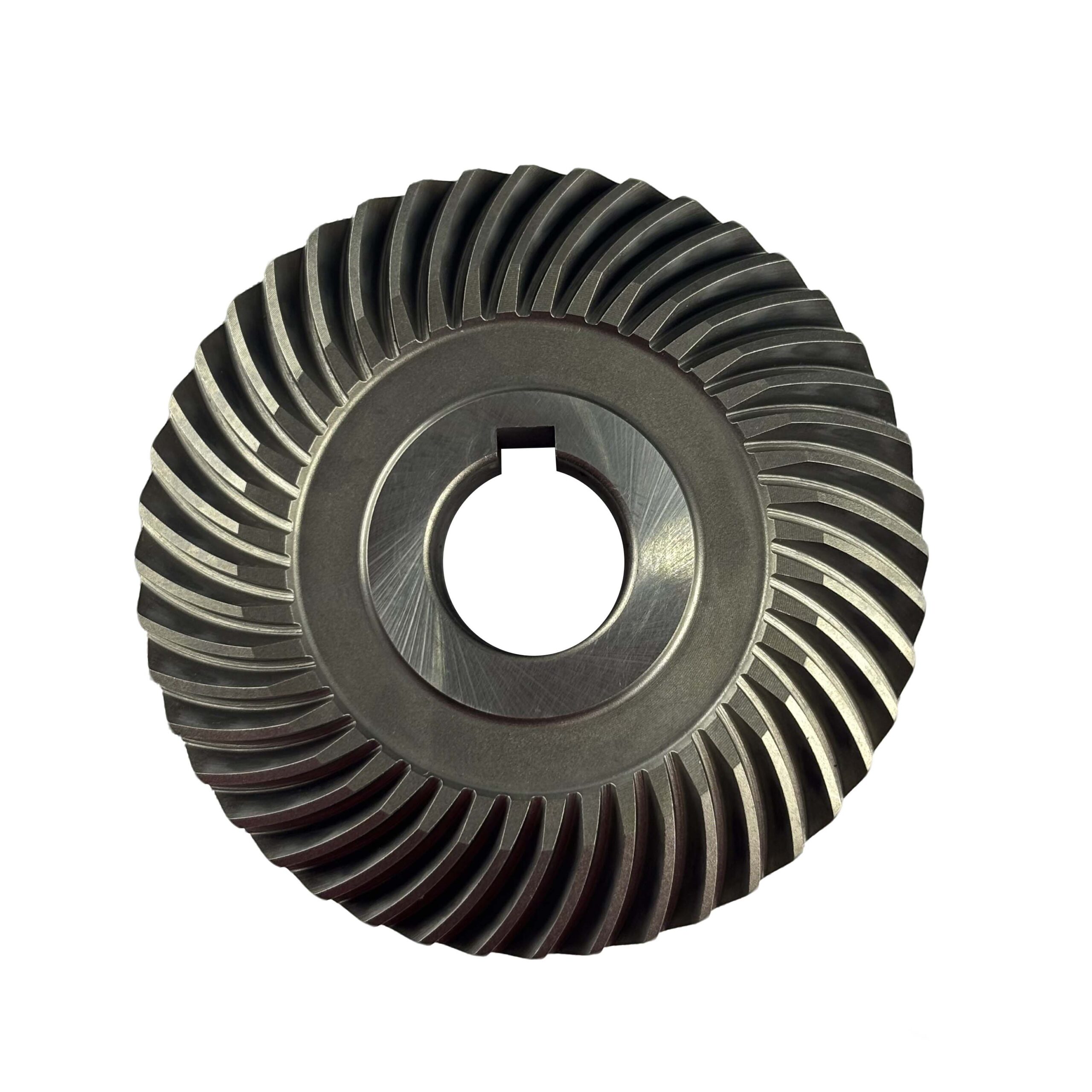

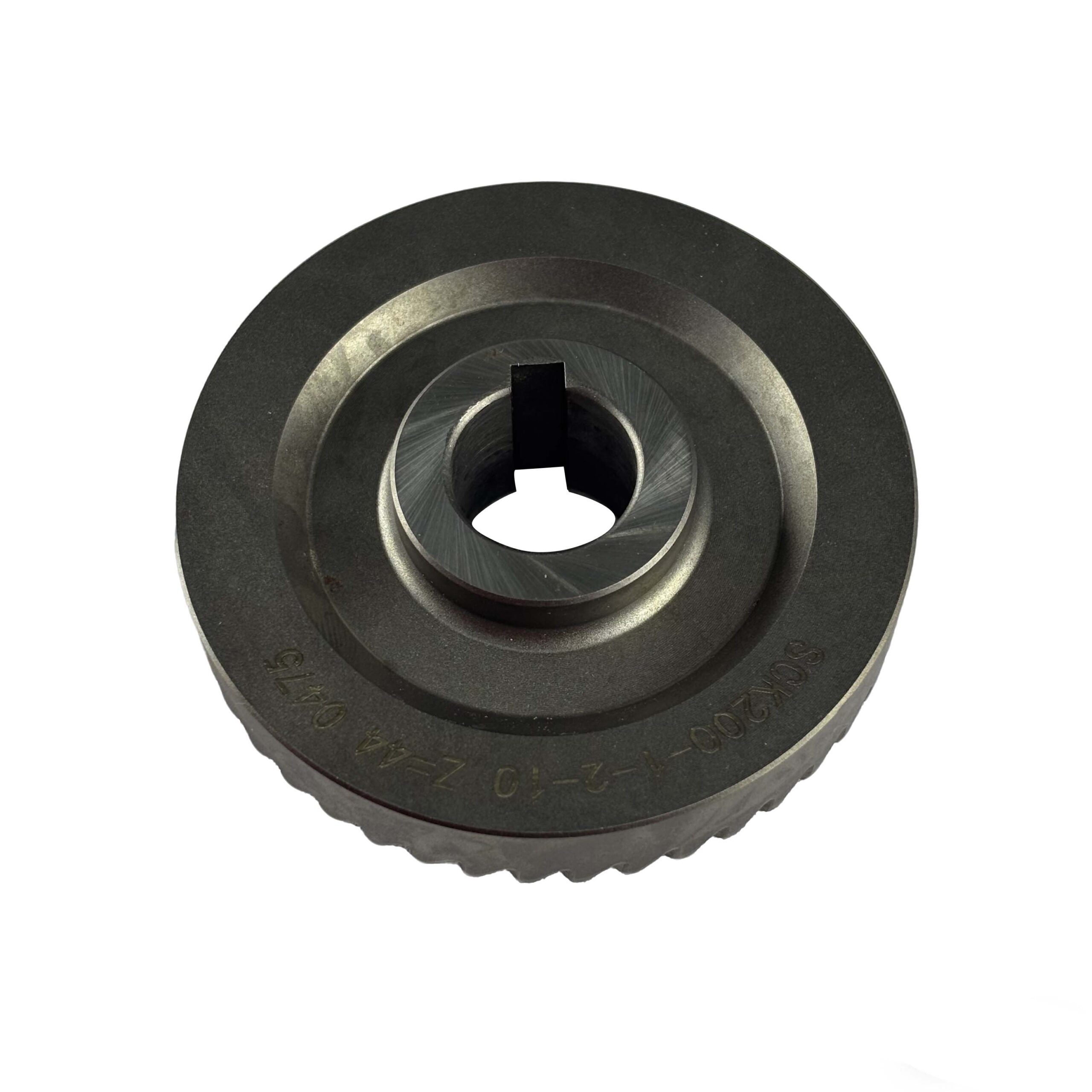

XG-036-C (SCK200-1-2-10) Hypoid Bevel Gear
This hypoid bevel gear for reducers is made of 20CrMnTi alloy steel.
Parameters: pressure angle 20°, module 1.55, 44 teeth, offset 12mm, helix angle 27.42° Right Hand, inner bore 17mm, gear OD 68.49mm, length 20mm, weight 0.3571kg.
Process: normalizing, turning, gear milling, heat treatment, shot blasting, reaming, wire-cut keyway, facing, turning, matched lapping, marking and full visual inspection.
Wear-resistant and high-precision, matched with gear shaft for driven transmission in reducers.
Additional information
| XG-035-C and XG-036-C weight |
0.0452and0.3571 |
|---|---|
| XG-035-C and XG-036-C Core Components |
gear |
| XG-035-C and XG-036-C Craftsmanship |
Milling |
