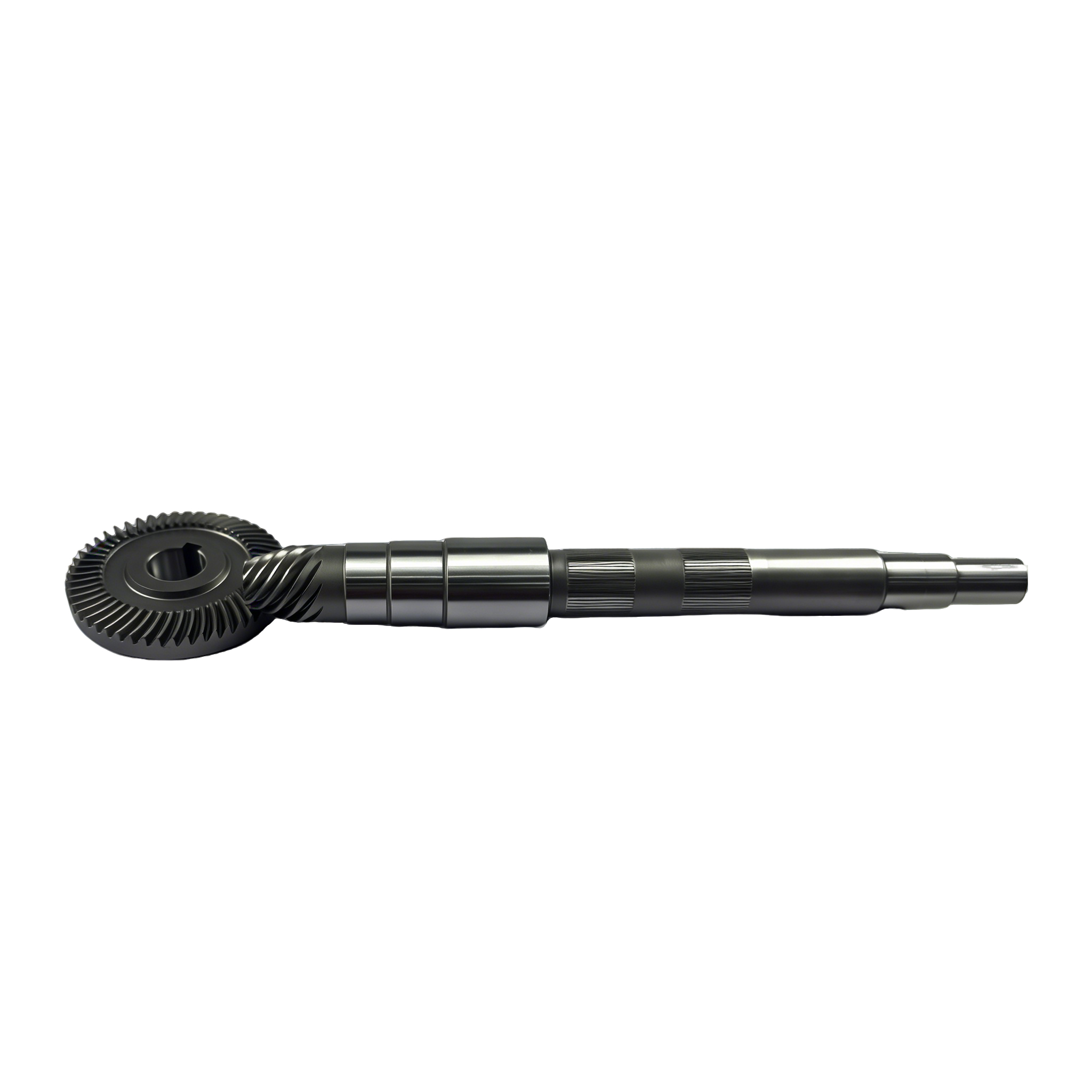

ZDF3-30H5-400-S3-013-00002 Rotating Shaft and ZDF3-30H5-400-516-002 Primary Driven Gear
$8.88piece
ZD-009-C is a hypoid gear shaft with module 1.215, 10T, 50° LH, made of 20CrMnTi, for reducer with high precision and reliable transmission.
ZD-010-C is a hypoid primary driven gear with module 1.215, 51T, 50° RH, made of 20CrMnTi, stable and wear-resistant for reducer.
Description
Model: ZD-009-C

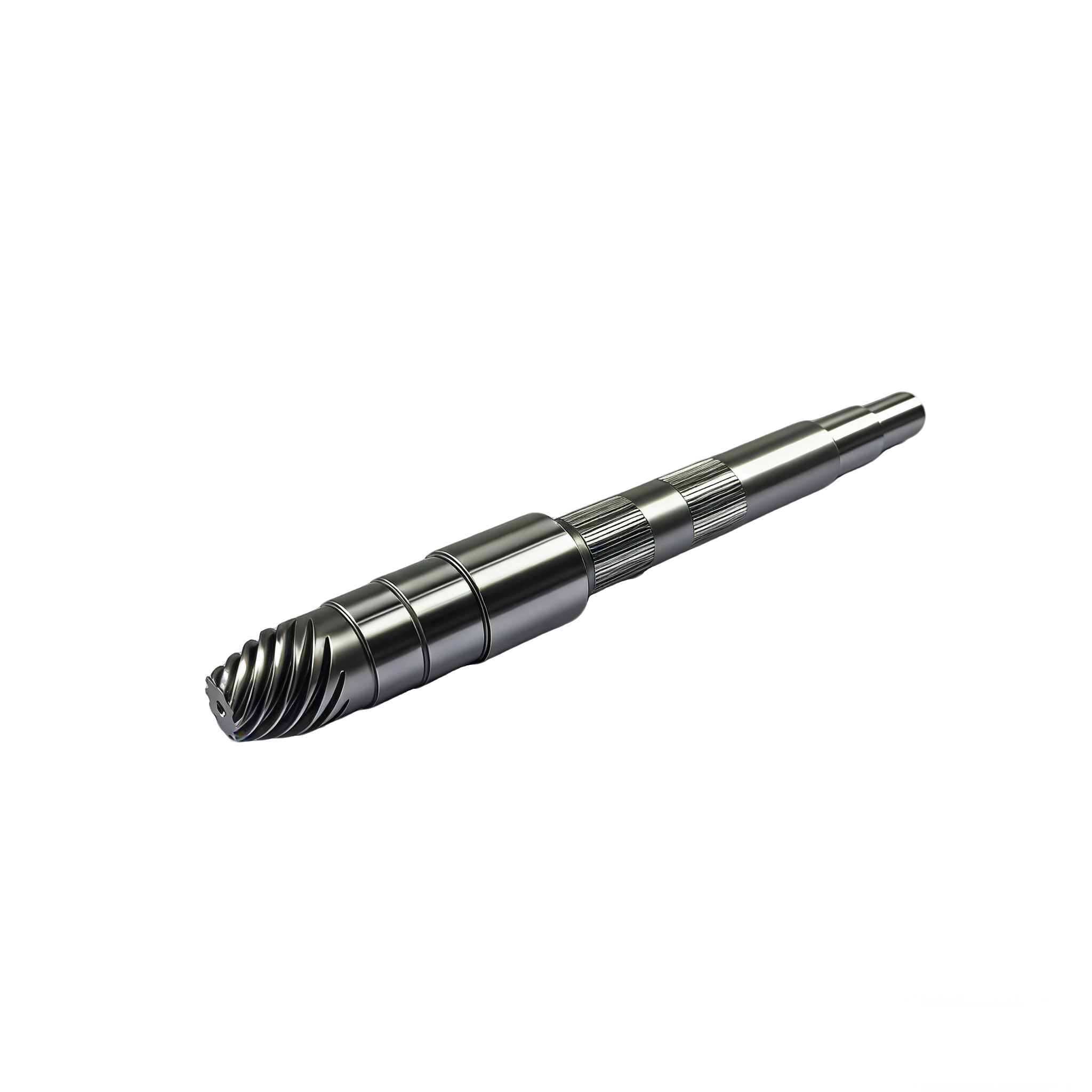

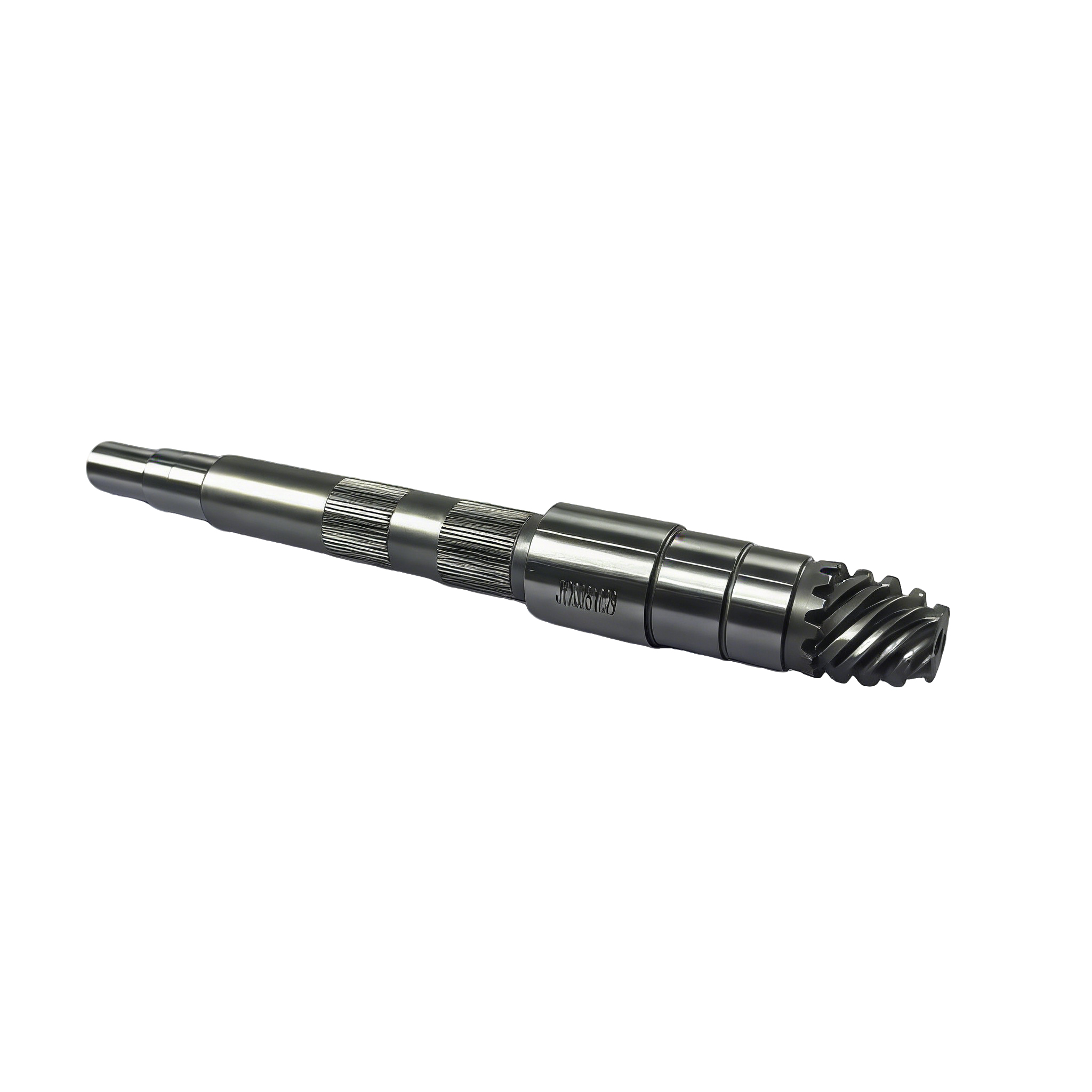

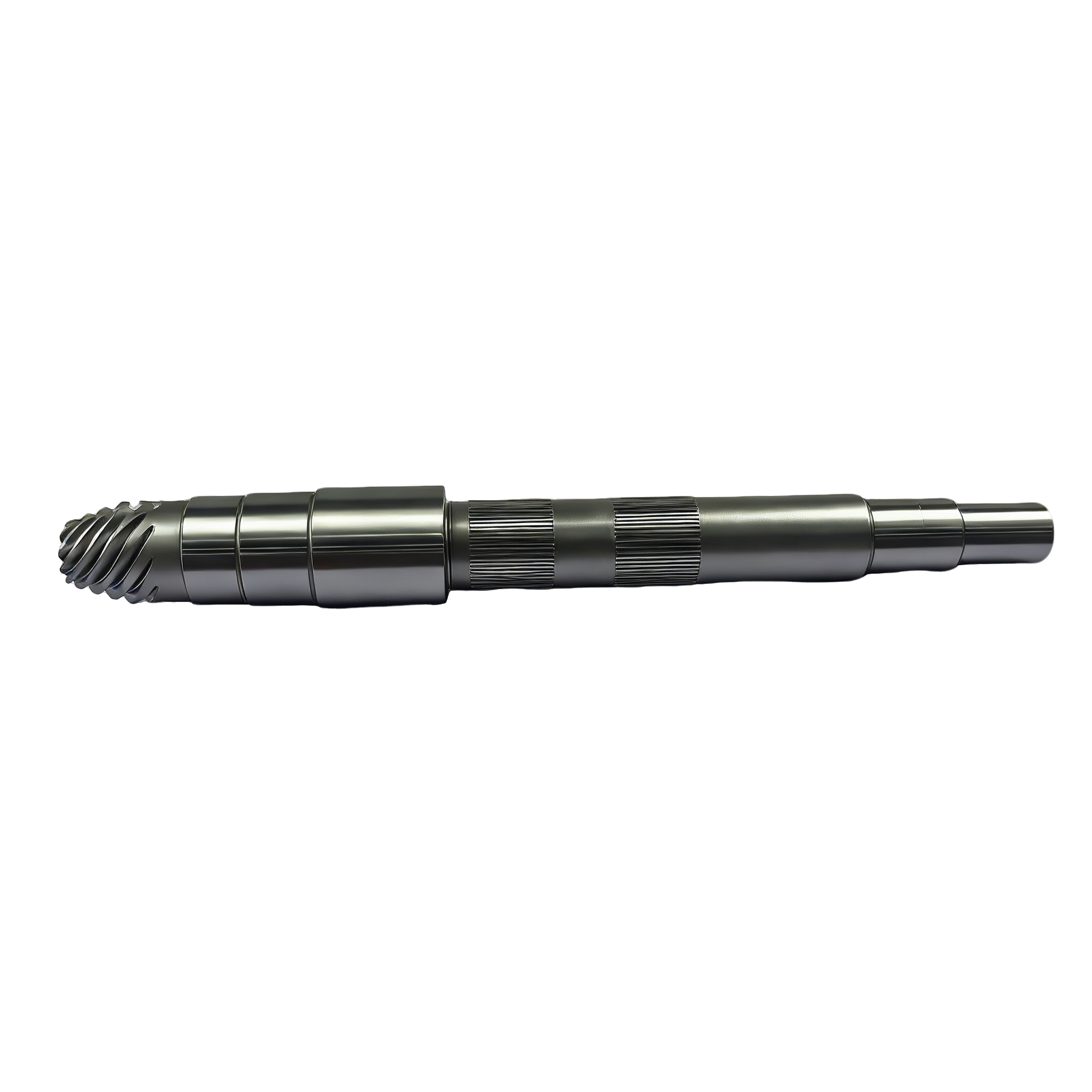

Product Name: ZDF3-30H5-400-S3-013-00002 Shaft
Type: Hypoid Gear
Parameters: Pressure angle 20°, module 1.215, 10 teeth, helix angle 50° LH, shaft diameter 27mm, total length 217.37mm, weight 0.576kg
Material: 20CrMnTi
Process: Sawing – Turning – Rough grinding for positioning – Rough grinding for clamping – Rough grinding for reference – Gear milling – Heat treatment & straightening – Shot blasting – Outer diameter grinding – Marking – Full appearance inspection
Application: Reducer gear
With complete precision machining and correction, it features stable dimension, high strength and good wear resistance after heat treatment, suitable for reducer transmission.
Model: ZD-010-C

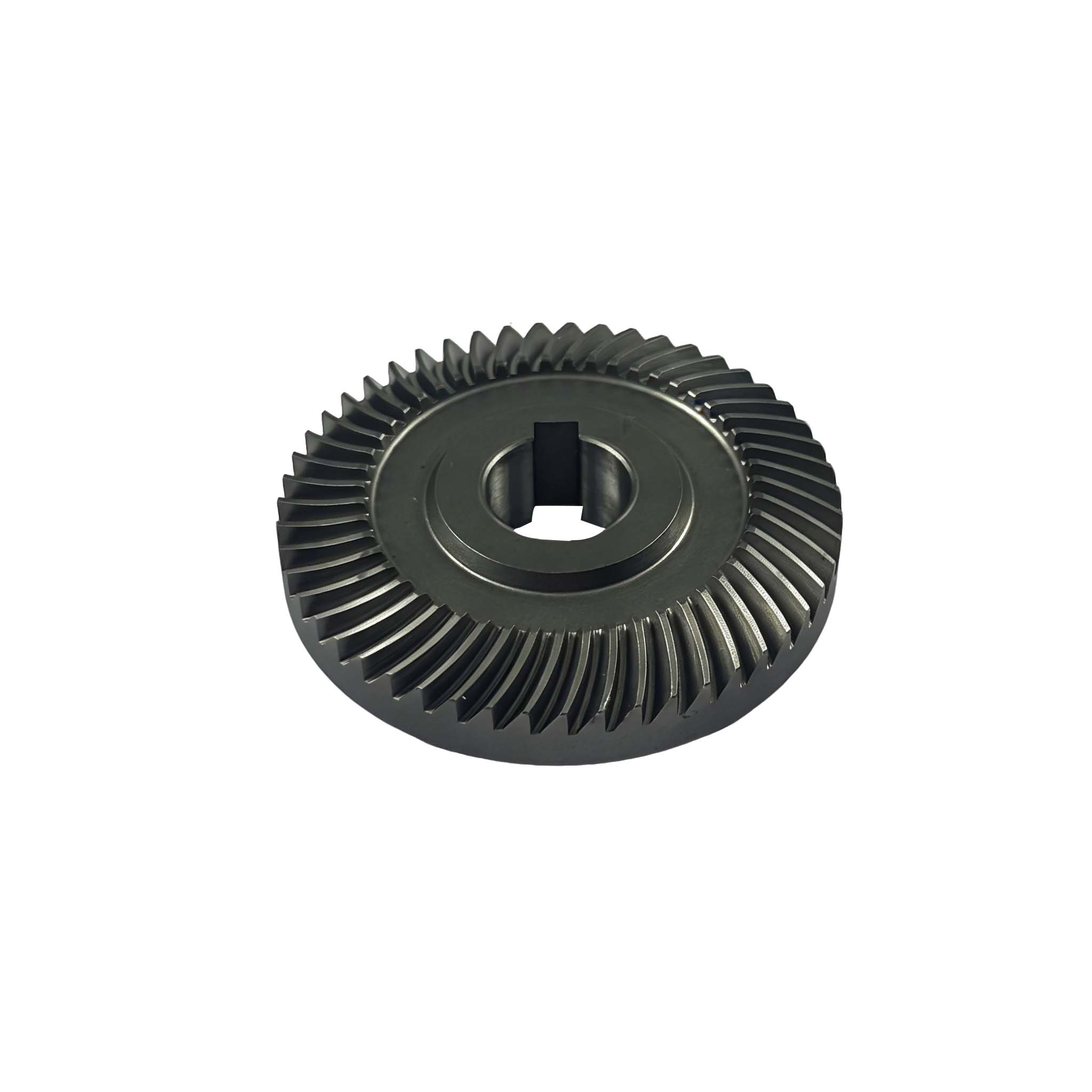

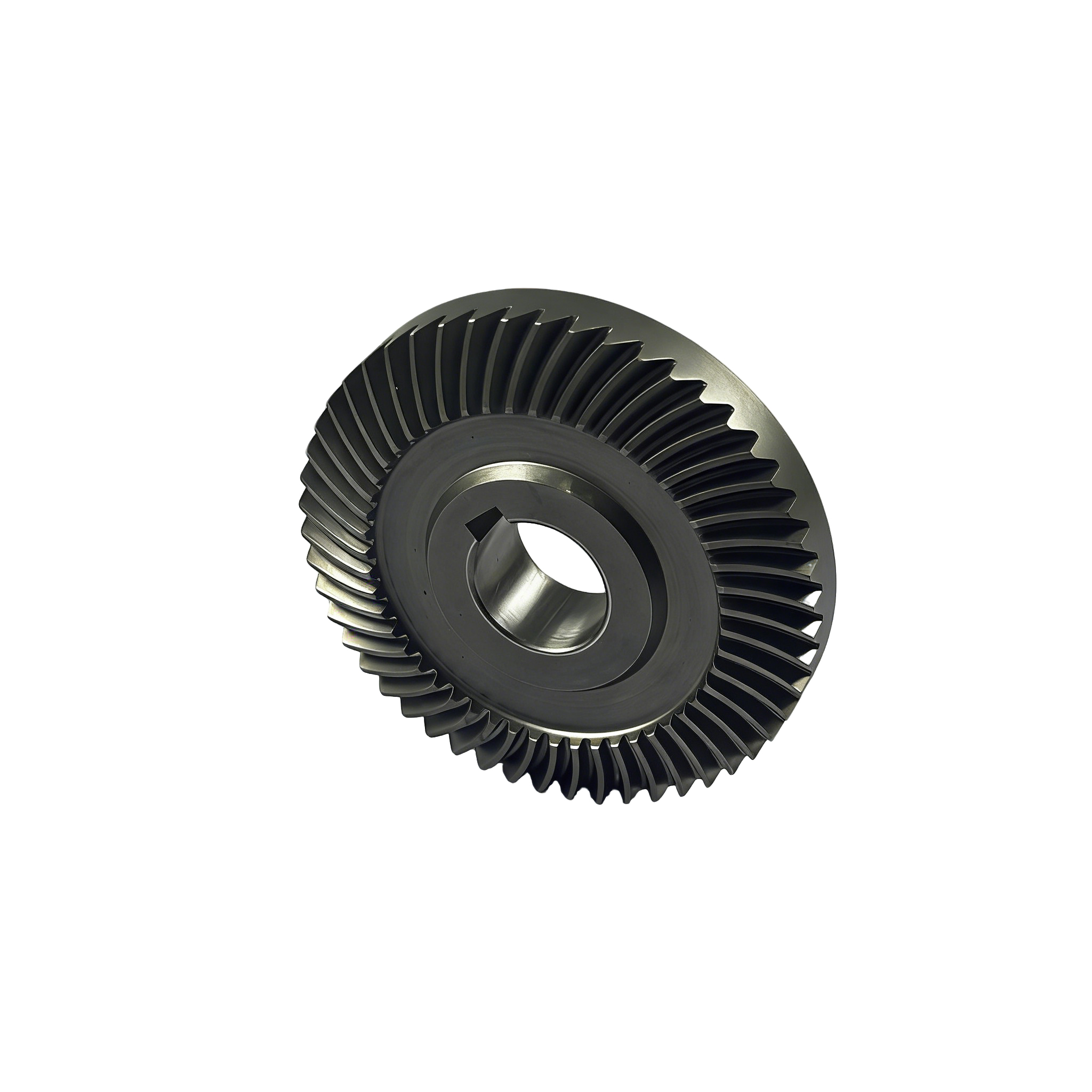

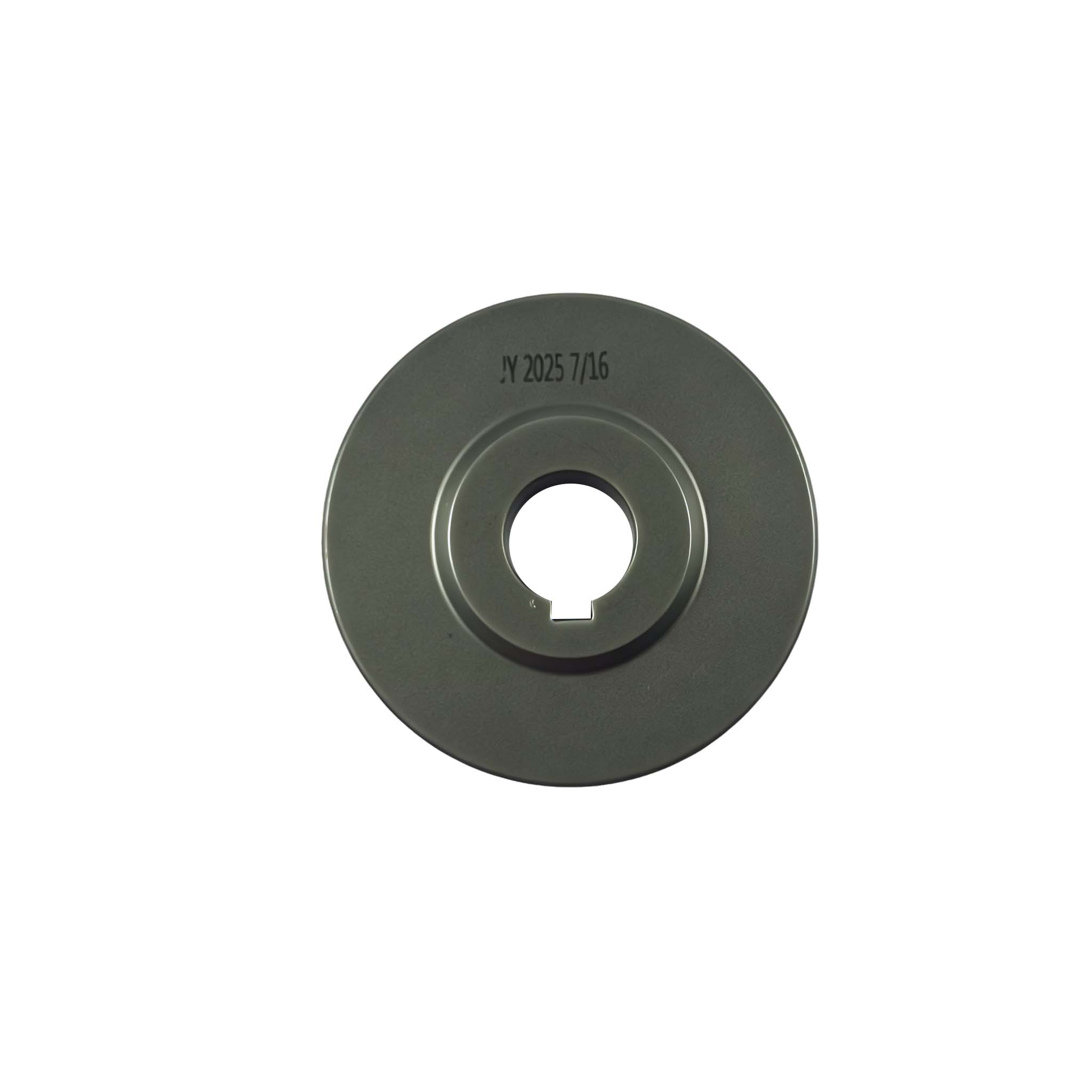

Product Name: ZDF3-30H5-400-516-002 Primary Driven Gear
Type: Hypoid Gear
Parameters: Pressure angle 20°, module 1.215, 51 teeth, helix angle 50° RH, inner bore 16mm, outer diameter 62mm, total length 13.14mm, weight 0.2072kg
Material: 20CrMnTi
Process: Sawing – Turning – Gear milling – Heat treatment – Chamfering – Shot blasting – Boring & facing – Total length facing – Marking – Full appearance inspection
Application: Reducer gear
It features high accuracy, excellent mechanical properties and smooth operation, suitable for primary driven transmission of reducers.
Additional information
| ZD-009-C and ZD-010-C weight |
0.576and0.2072 |
|---|---|
| ZD-009-C and ZD-010-C Core Components |
gear |
| ZD-009-C and ZD-010-C Craftsmanship |
Milling |
Reviews (0)
Shipping & Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
SCK50-2-2-02
✅ Core Advantages: High-precision transmission, high load-bearing capacity, low noise, long service life, lightweight
✅ Key Parameters (SCK50-2-2-02): 20° Pressure Angle | 1.36 Modulus | 38 Teeth | 28°26′/R Helix Angle | 9mm Offset | 14mm Inner Diameter | 51.65mm Tooth Outer Diameter | 16mm Total Length | 0.1205kg Weight
✅ Exquisite Craftsmanship: Normalizing - Turning - Gear Milling - Heat Treatment - Chamfering - Shot Blasting - Reaming - Facing - Pairing Grinding - Marking - Full Inspection, Full-process Precision Control
✅ Application Scenarios: Power transmission for automobiles, construction machinery, precision instruments, automation equipment, etc.
✅ Product Features: High-quality alloy material | Precise meshing | Impact resistance | Low loss | Compliance with international industrial standards | Adaptation to high-load working conditions
SCK75-2-1-03 and SCK75-2-2-04
1. XG-025-C (SCK75-2-1-03)
XG-025-C (SCK75-2-1-03) Hypoid Gear Shaft, 20CrMnTi, module 1.55, 11T, speed ratio 4, helix angle 48°L, shaft Ø16mm, gear OD 28.62mm, total length 62mm, weight 0.1484kg, precision lapped, for reducers.
2. XG-026-C (SCK75-2-2-04)
XG-026-C (SCK75-2-2-04) Hypoid Gear, 20CrMnTi, module 1.55, 45T, helix angle 25°10′R, inner bore Ø19mm, gear OD 69.9mm, total length 21.36mm, weight 0.3465kg, precision processed, matched with XG-025-C for reducers.
ZDF3-25H20-200-S3-013-00002 Shaft and ZDF3-25H240-100-516-002 Primary Driven Gear
ZD-017-C is a hypoid gear shaft, made of 20CrMnTi. It has 4 teeth, 50° left-hand helix, module 1.27, total length 202.8mm, weight 0.36kg. Processed with precision, it is suitable for reducers, featuring stable transmission and wear resistance.
ZD-018-C is a hypoid primary driven gear, made of 20CrMnTi. It has 41 teeth, 50° right-hand helix, inner diameter 13mm, total length 15.5mm, weight 0.17kg. It is suitable for reducers, with stable transmission and good wear resistance.
ZDF3-25H5-200-516-002 Primary Driven Gear and ZDF3-25H5-200-S3-013-00002 Shaft
ZD-013-C is a hypoid primary driven gear made of 20CrMnTi, module 0.96, 51 teeth, 35° right-hand helix, designed for reducers with stable and durable transmission.
ZD-014-C is a hypoid gear shaft made of 20CrMnTi, module 0.96, 10 teeth, 35° left-hand helix, for reducers with high precision and stable performance.
ZDF3-35H5-750-516-002 Primary Driven Gear and ZDF3-35H10-750-S3-013-00002 Shaft
ZD-015-C is a hypoid primary driven gear made of 20CrMnTi, module 1.47, 51 teeth, 50° right-hand helix, for stable and wear-resistant transmission in reducers.
ZD-016-C is a hypoid gear shaft made of 20CrMnTi, module 1.47, 10 teeth, 50° left-hand helix, designed for reliable and stable transmission in reducers.
