SCK75-2-1-01andSCK75-2-2-02
$8.10piece
T27 Handwheel Gear (Spiral Bevel Type)
$1.00piece

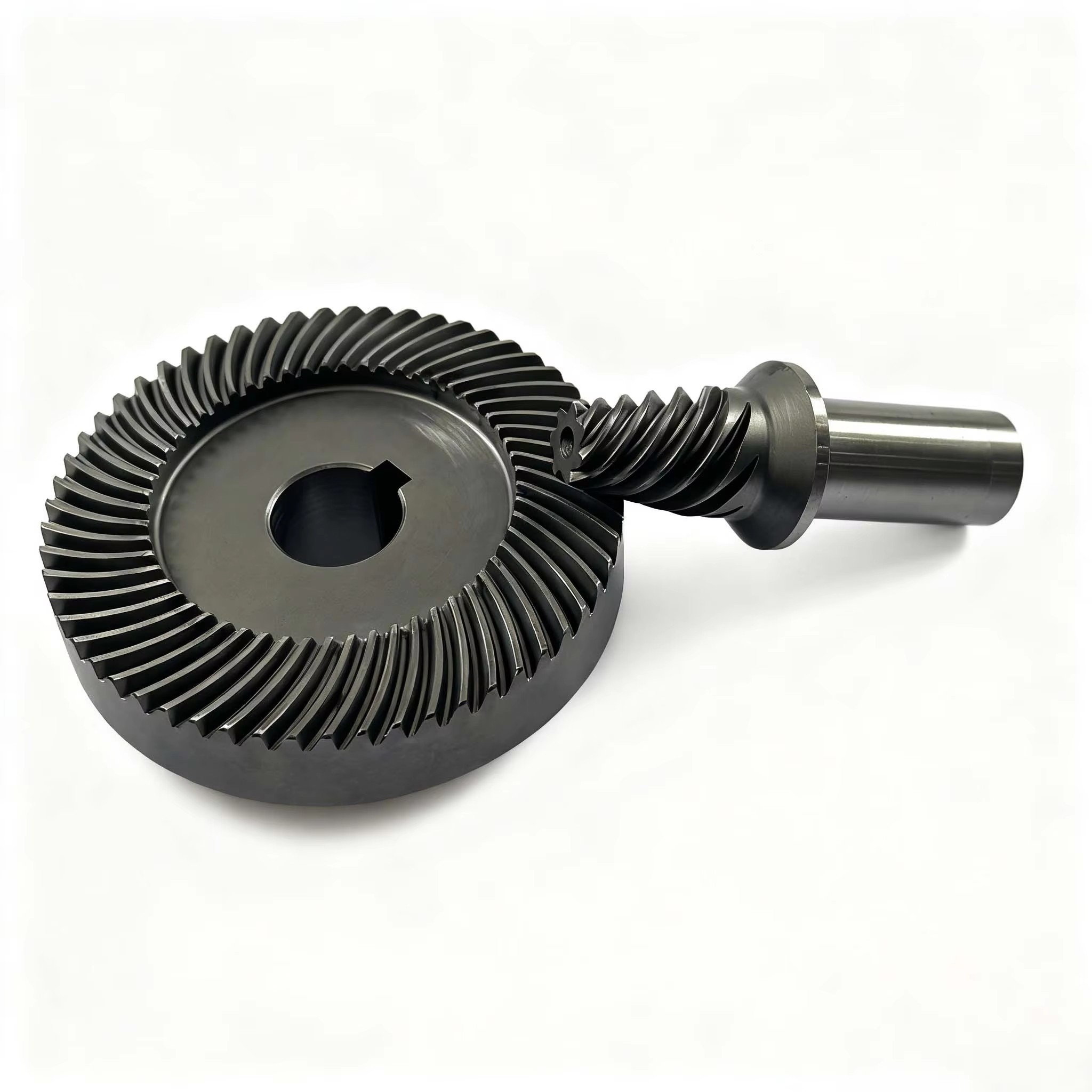

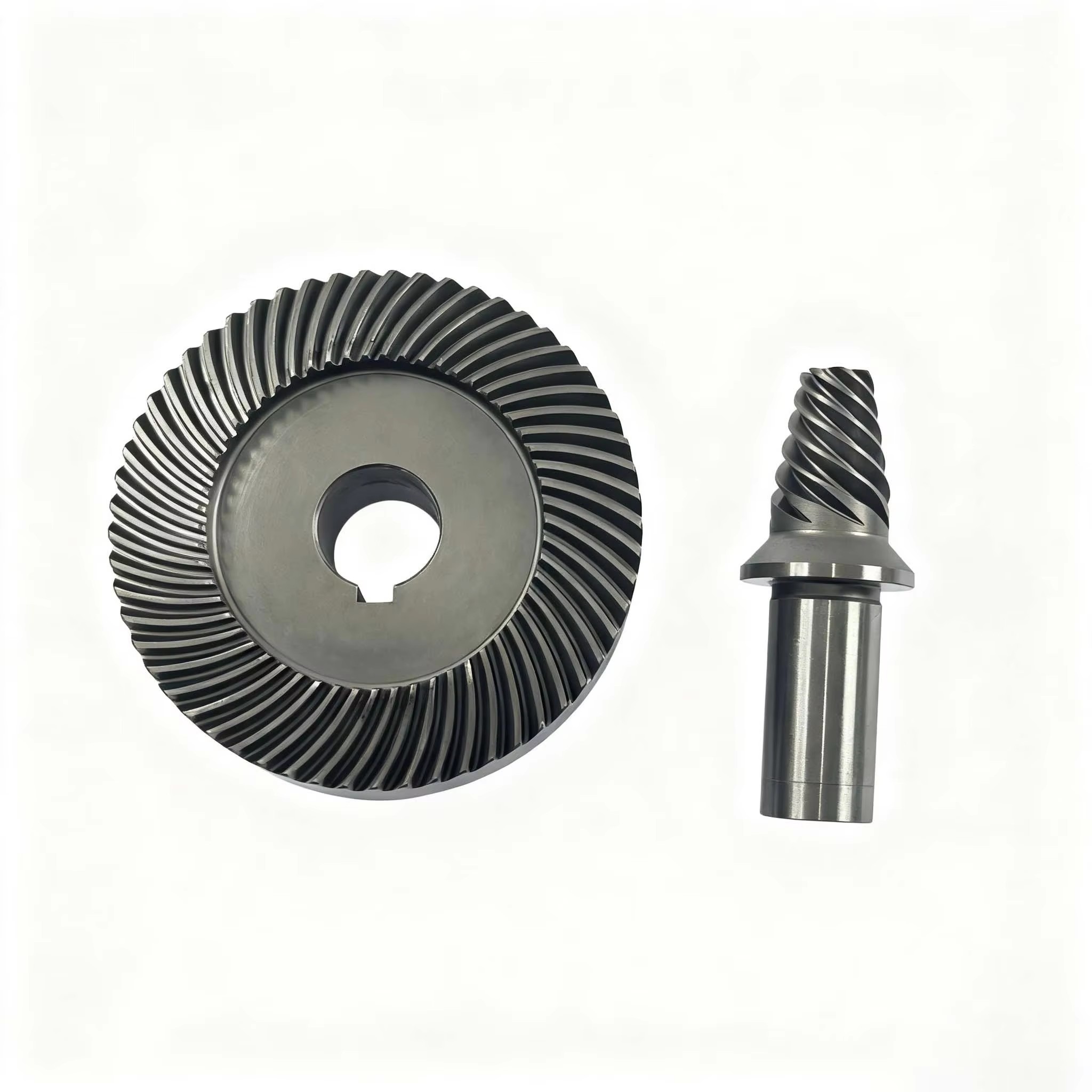

SCK75-2-1-05and SCK75-2-2-06
$6.70piece
XG-031-C (SCK75-2-1-05)
XG-031-C Hypoid Gear Shaft, 20CrMnTi, module 1.3, 7T, 55°L, shaft Ø16mm, L=63.6mm, precision lapped for reducers.
XG-032-C (SCK75-2-2-06)
XG-032-C Hypoid Gear, 20CrMnTi, module 1.3, 57T, 31°57′R, bore Ø19mm, L=24.3mm, precision machined for reducers.
Description

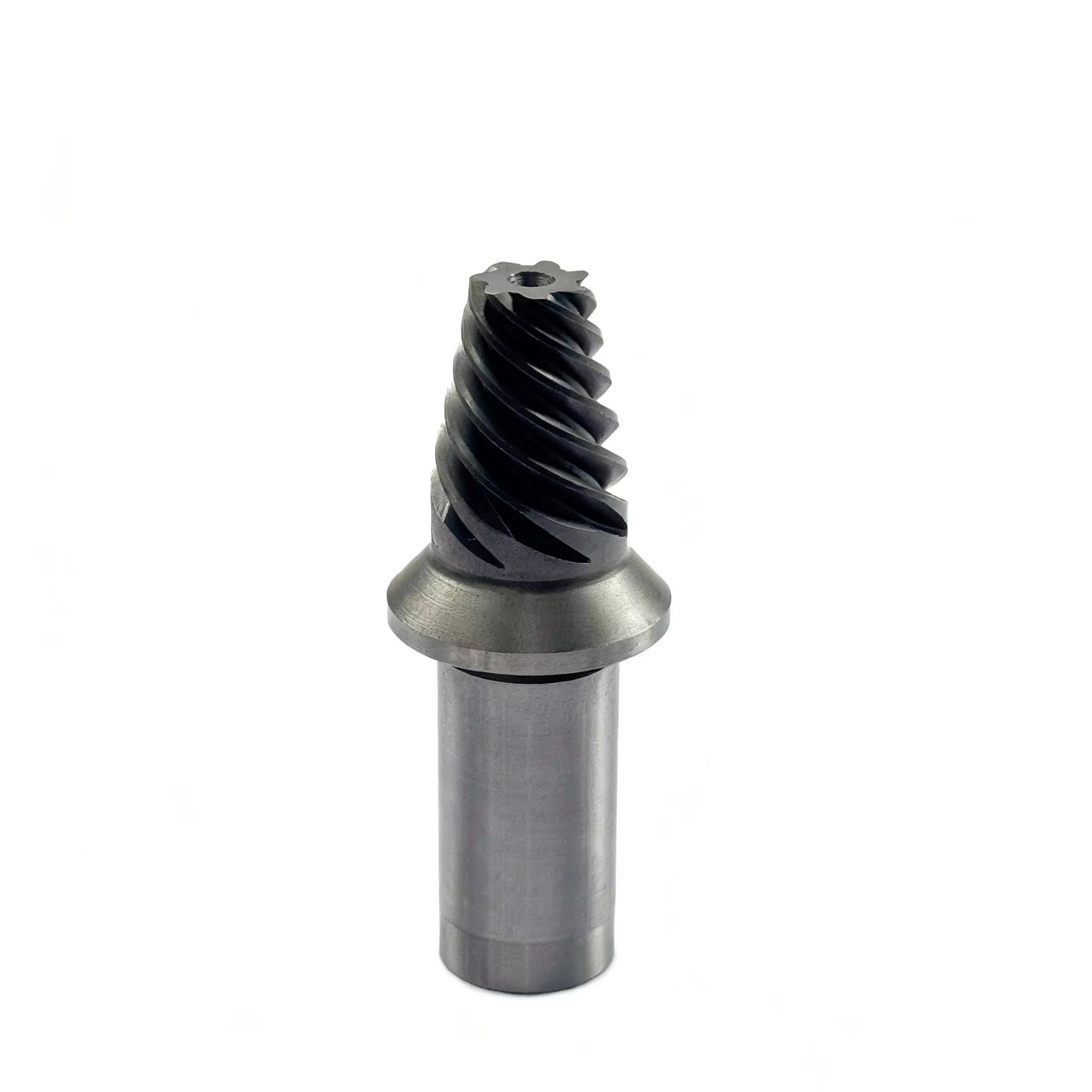

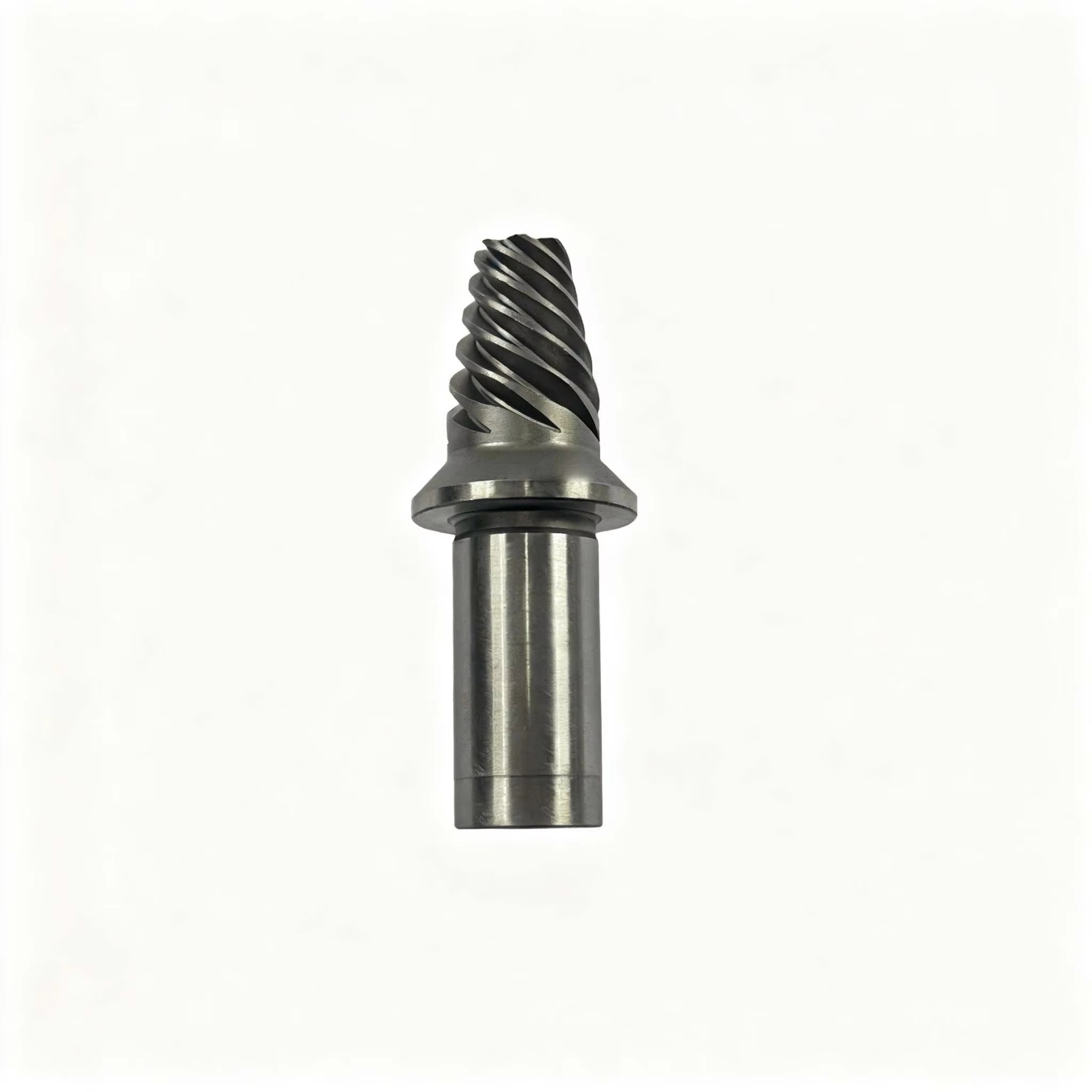

XG-031-C (SCK75-2-1-05) Hypoid Gear Shaft
This hypoid gear shaft for reducers is made of 20CrMnTi alloy steel.Parameters: pressure angle 20°, module 1.3, 7 teeth, ratio 8, offset 12mm, helix angle 55° Left Hand, shaft diameter 16mm, gear OD 16.89mm, length 63.6mm, weight 0.0973kg.Process: normalizing, turning, rough grinding, gear milling, heat treatment, shot blasting, facing, OD grinding, matched lapping, marking and full visual inspection.High meshing accuracy and stable transmission for reducer drive systems.

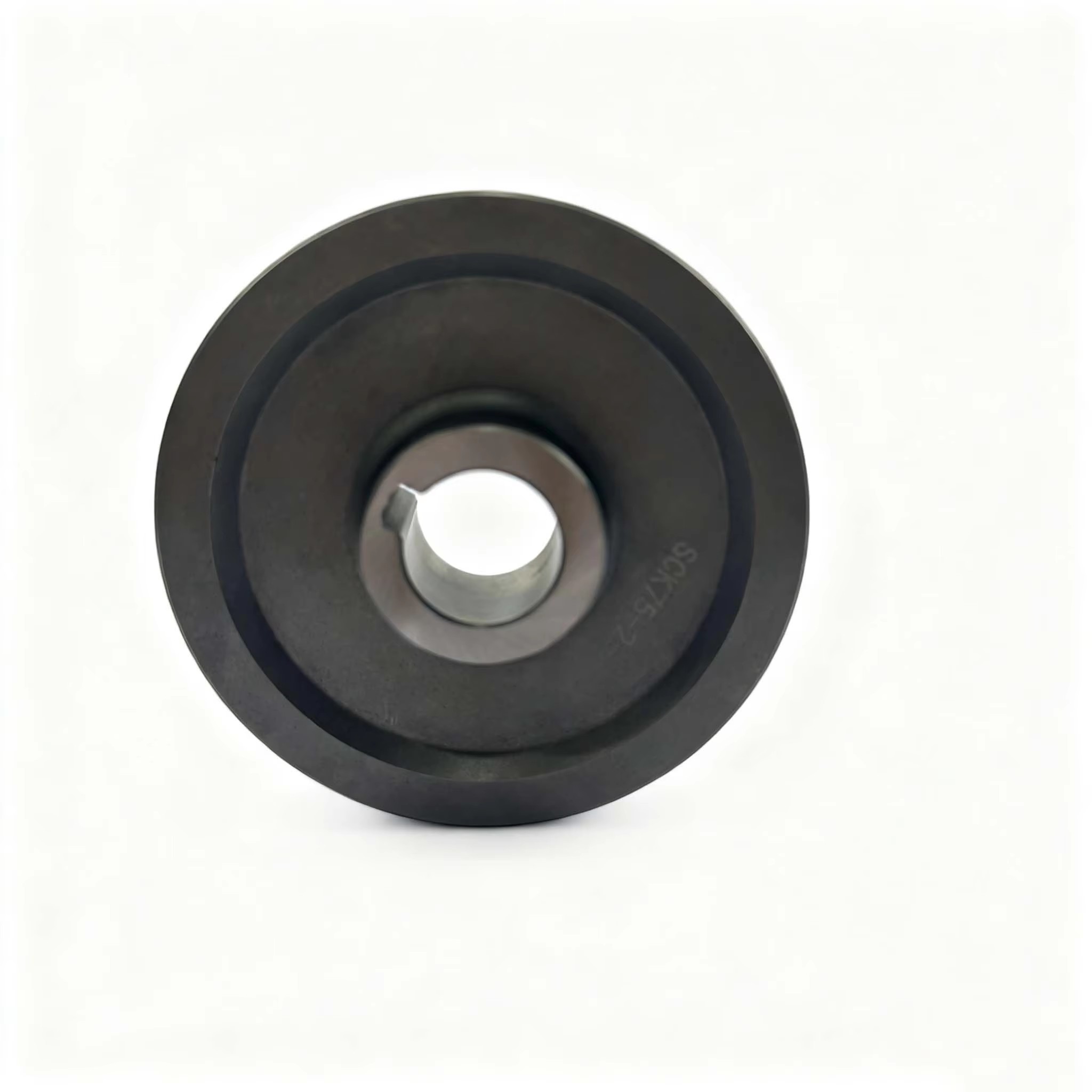

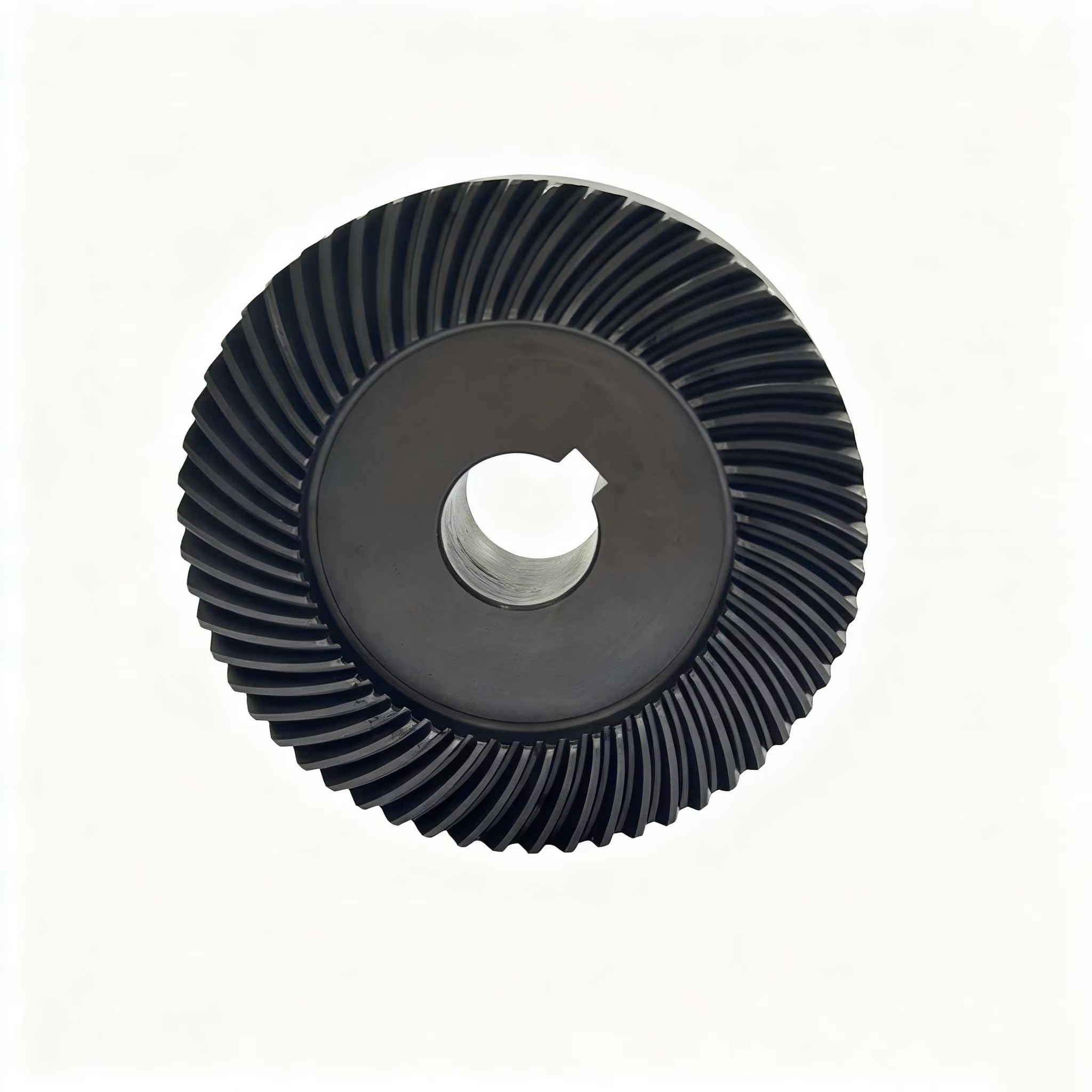

XG-032-C (SCK75-2-2-06) Hypoid Gear
This hypoid gear for reducers is made of 20CrMnTi alloy steel.Parameters: pressure angle 20°, module 1.3, 57 teeth, offset 12mm, helix angle 31°57′ Right Hand, inner bore 19mm, gear OD 74mm, length 24.3mm, weight 0.4089kg.Process: normalizing, turning, gear milling, heat treatment, chamfering, shot blasting, reaming, facing, matched lapping, marking and full visual inspection.Wear-resistant and stable, matched with XG-031-C for reducers.
Additional information
| G-031-C andXG-032-C weight |
0.0973and0.4089 |
|---|---|
| XG-031-C andXG-032-C Core Components |
gear |
| XG-031-C andXG-032-C Craftsmanship |
Milling |
Reviews (0)
Shipping & Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
SCK50-2-2-02
✅ Core Advantages: High-precision transmission, high load-bearing capacity, low noise, long service life, lightweight
✅ Key Parameters (SCK50-2-2-02): 20° Pressure Angle | 1.36 Modulus | 38 Teeth | 28°26′/R Helix Angle | 9mm Offset | 14mm Inner Diameter | 51.65mm Tooth Outer Diameter | 16mm Total Length | 0.1205kg Weight
✅ Exquisite Craftsmanship: Normalizing - Turning - Gear Milling - Heat Treatment - Chamfering - Shot Blasting - Reaming - Facing - Pairing Grinding - Marking - Full Inspection, Full-process Precision Control
✅ Application Scenarios: Power transmission for automobiles, construction machinery, precision instruments, automation equipment, etc.
✅ Product Features: High-quality alloy material | Precise meshing | Impact resistance | Low loss | Compliance with international industrial standards | Adaptation to high-load working conditions
SCK75-2-1-03 and SCK75-2-2-04
1. XG-025-C (SCK75-2-1-03)
XG-025-C (SCK75-2-1-03) Hypoid Gear Shaft, 20CrMnTi, module 1.55, 11T, speed ratio 4, helix angle 48°L, shaft Ø16mm, gear OD 28.62mm, total length 62mm, weight 0.1484kg, precision lapped, for reducers.
2. XG-026-C (SCK75-2-2-04)
XG-026-C (SCK75-2-2-04) Hypoid Gear, 20CrMnTi, module 1.55, 45T, helix angle 25°10′R, inner bore Ø19mm, gear OD 69.9mm, total length 21.36mm, weight 0.3465kg, precision processed, matched with XG-025-C for reducers.
ZDF3-45H20-1500-S-013-00001 Rotating Shaft and ZDF3-45H60-1500-516-002 Primary Driven Gear
ZD-011-C is a hypoid gear shaft made of 20CrMnTi, with module 2.586, 4 teeth and 50° left-hand helix. It is precision-machined and heat-treated for stable, durable transmission in reducers.
ZD-012-C is a hypoid primary driven gear made of 20CrMnTi, with module 2.586, 41 teeth and 50° right-hand helix. It is ideal for reducer primary transmission with stable performance and long service life.
