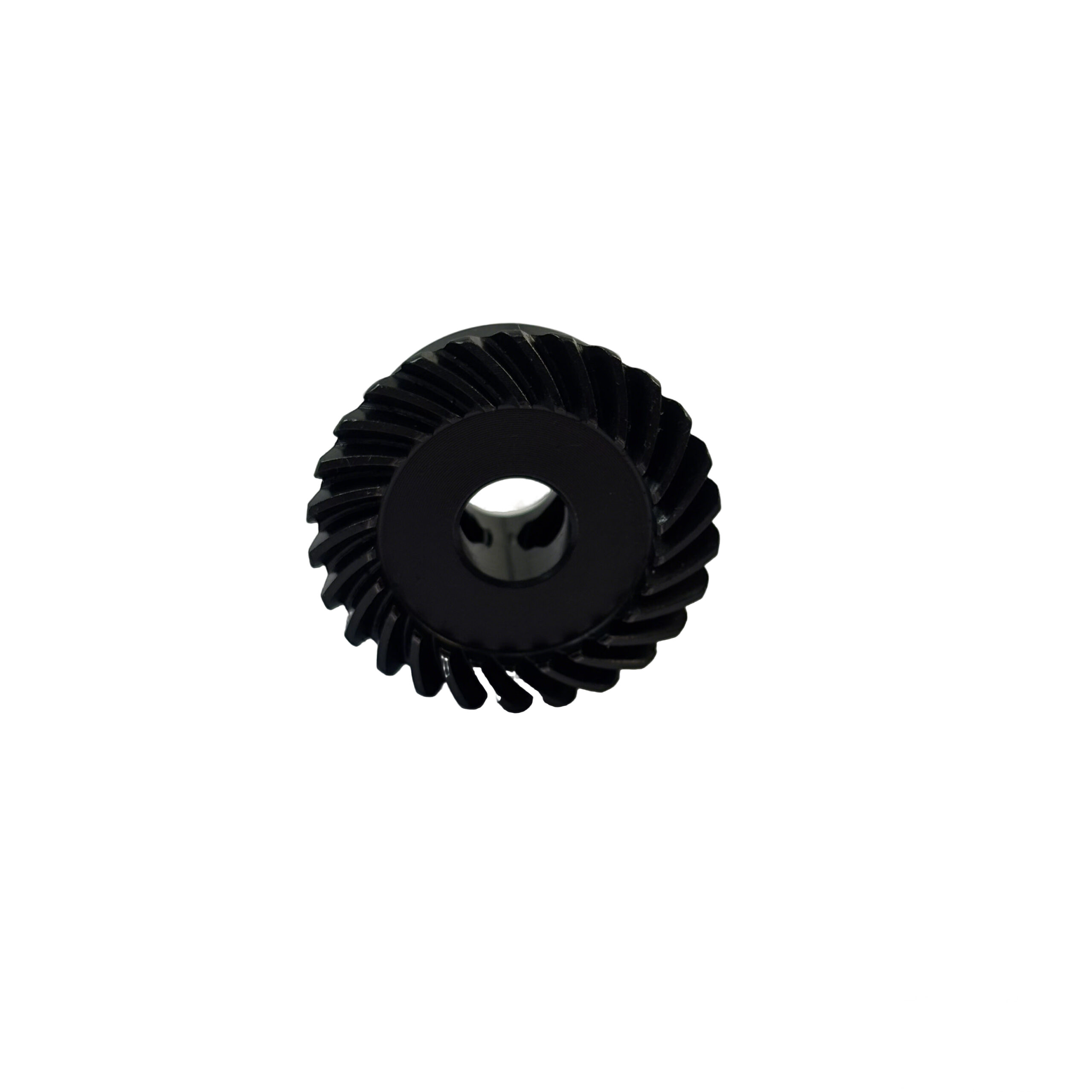

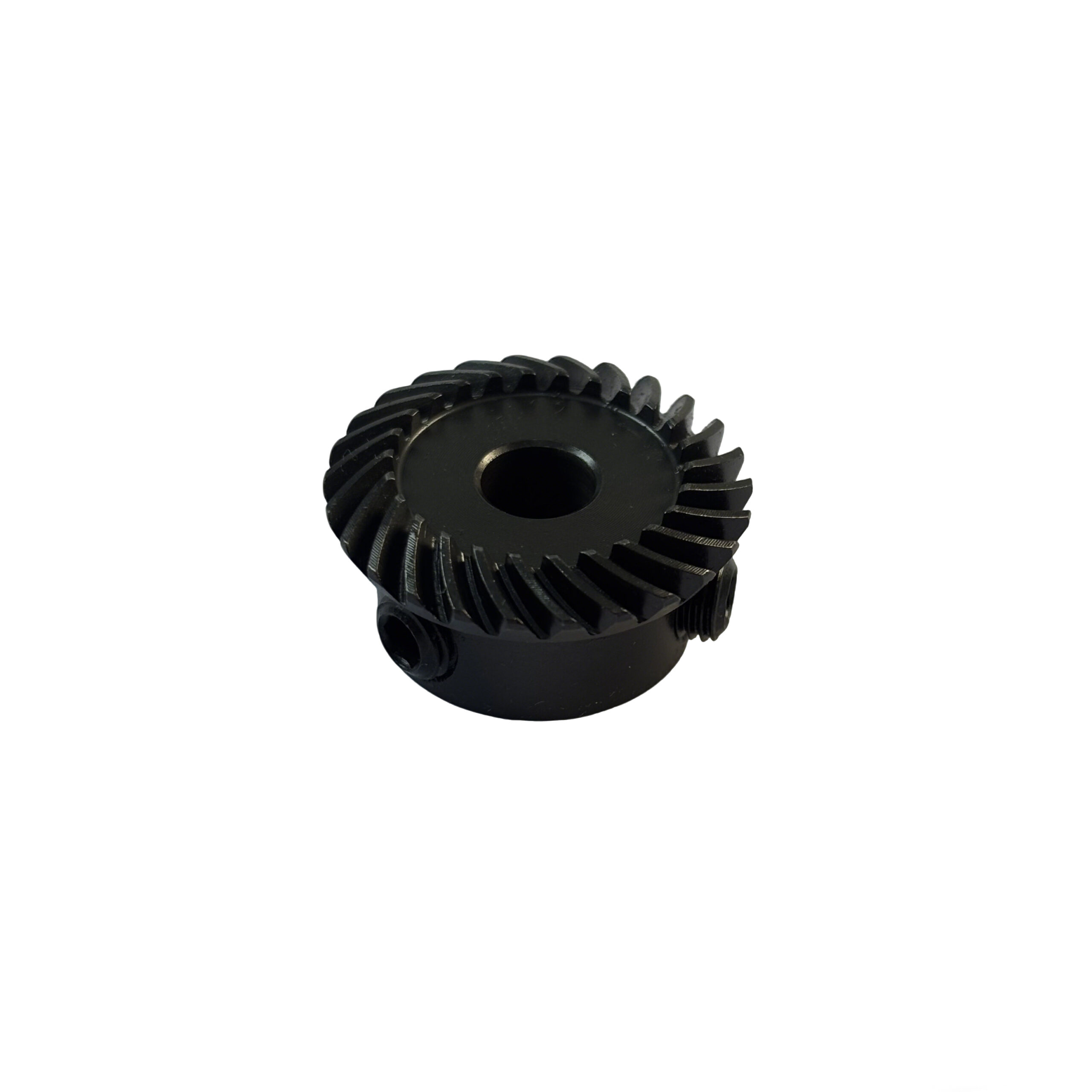

Top Feed Drive Gear
$1.20piece
Top Feed Spiral Bevel Drive Gear (exclusive for sewing machinery): 20° pressure angle, 1 module, 26 teeth, 35°/L spiral angle, 7mm inner diameter, 26mm outer tooth diameter, 12.7mm overall length, 0.0294kg weight. Made of 20CrMo via multi-step precision processes, it meets the transmission needs of the top feed mechanism of sewing equipment.
Description

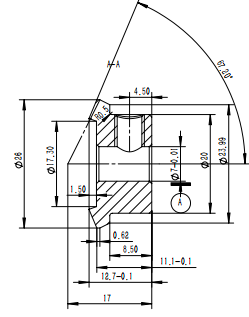

The Top Feed Drive Gear is classified as a spiral bevel gear, serving as a dedicated transmission component for the feeding system of sewing machinery. This gear features a pressure angle of 20°, a module of 1, 26 teeth, and a spiral angle of 35° left-hand (35°/L). In terms of structural dimensions, it has an inner diameter of 7mm, an outer tooth diameter of 26mm, an overall length of 12.7mm, with a unit weight of 0.0294kg. Made of 20CrMo alloy steel, it undergoes a sophisticated manufacturing process including sawing → turning → threaded hole machining → reaming → gear milling → heat treatment → shot blasting → blackening → reaming → screw assembly. Full-process quality control ensures the gear’s tooth surface precision and wear resistance. This gear can accurately match the power transmission requirements of the top feed mechanism of sewing machinery, facilitating stable and efficient feeding movements of the equipment, and acts as a key component to ensure the normal operation of sewing equipment.
Additional information
| weight |
0.0294 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Precision Casting |
