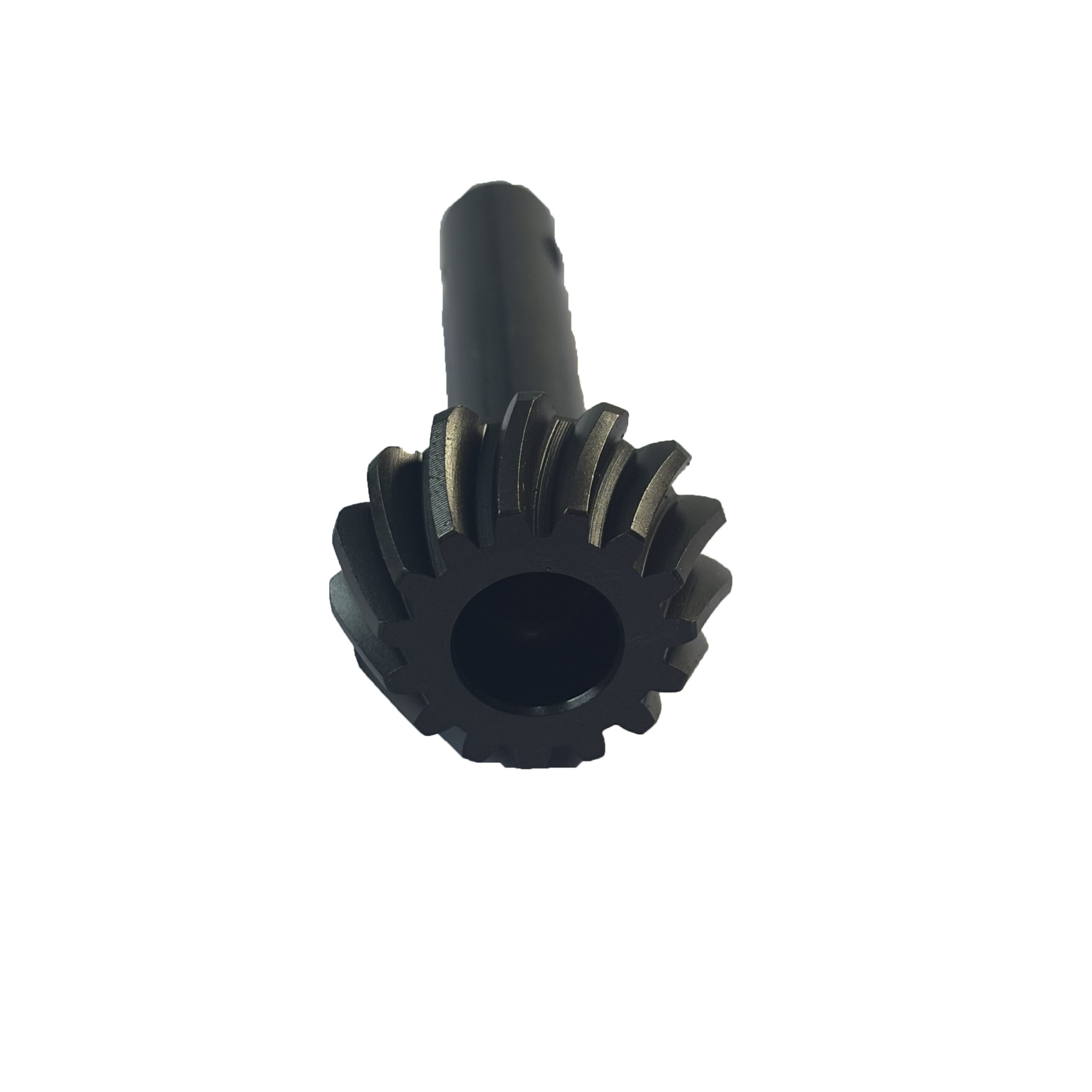

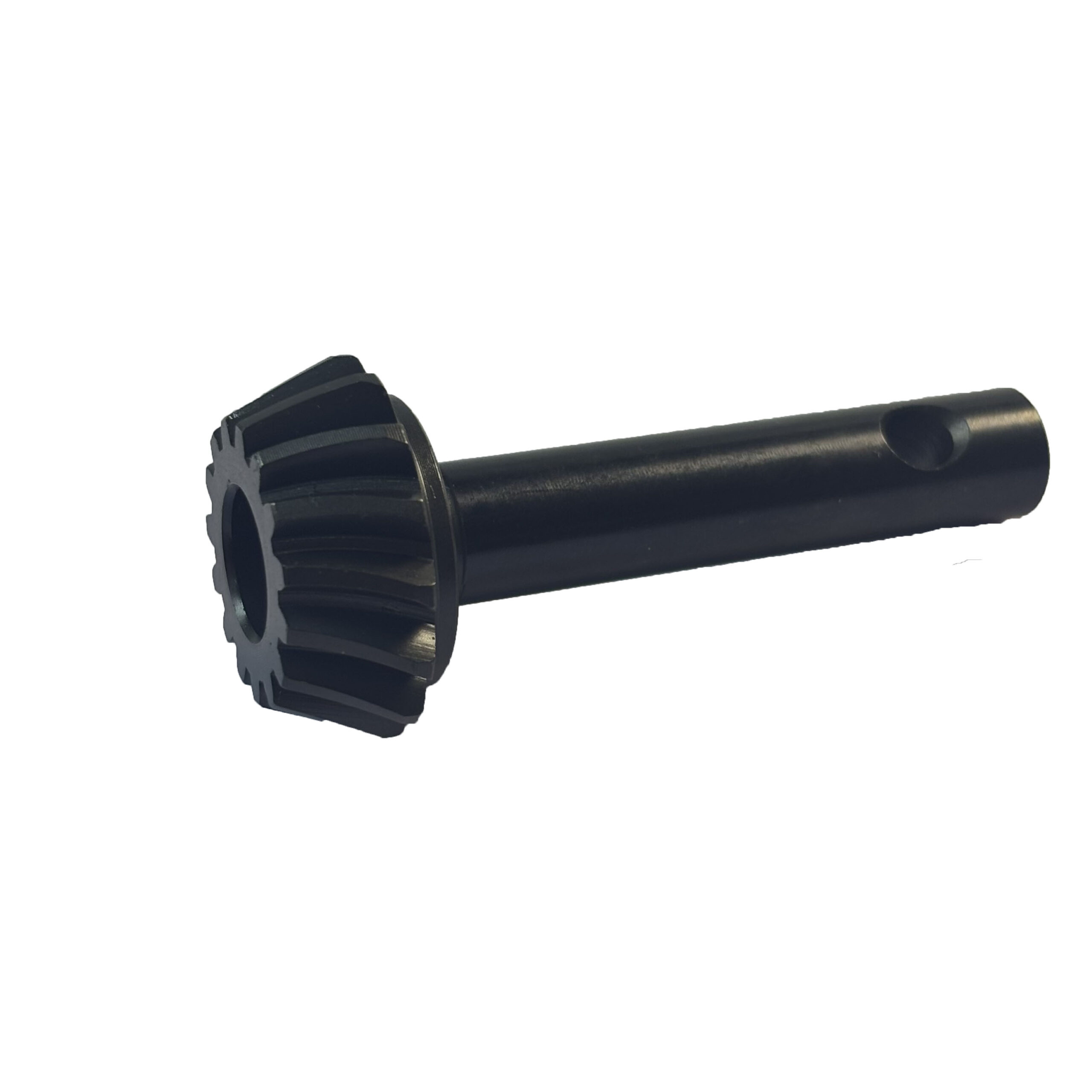

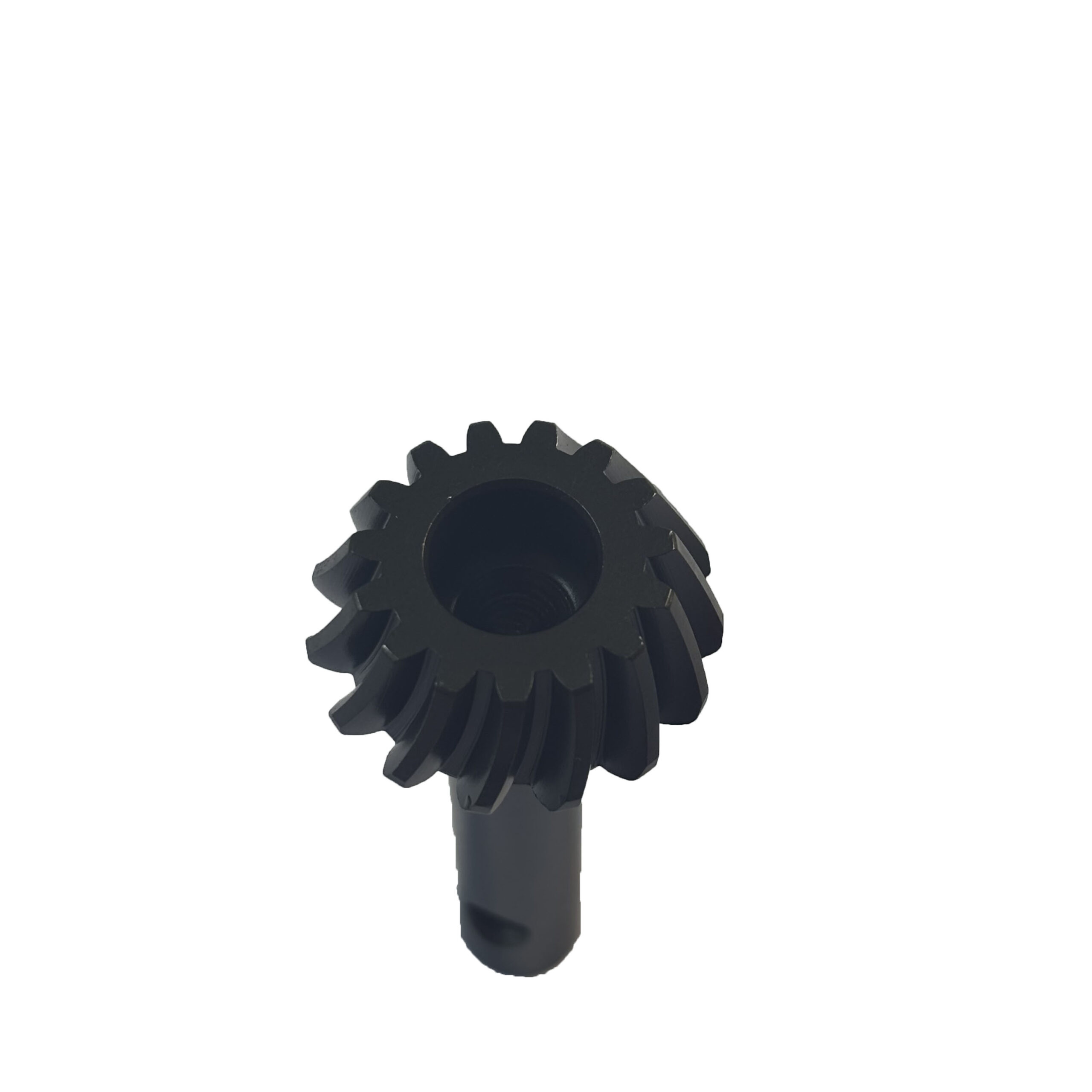

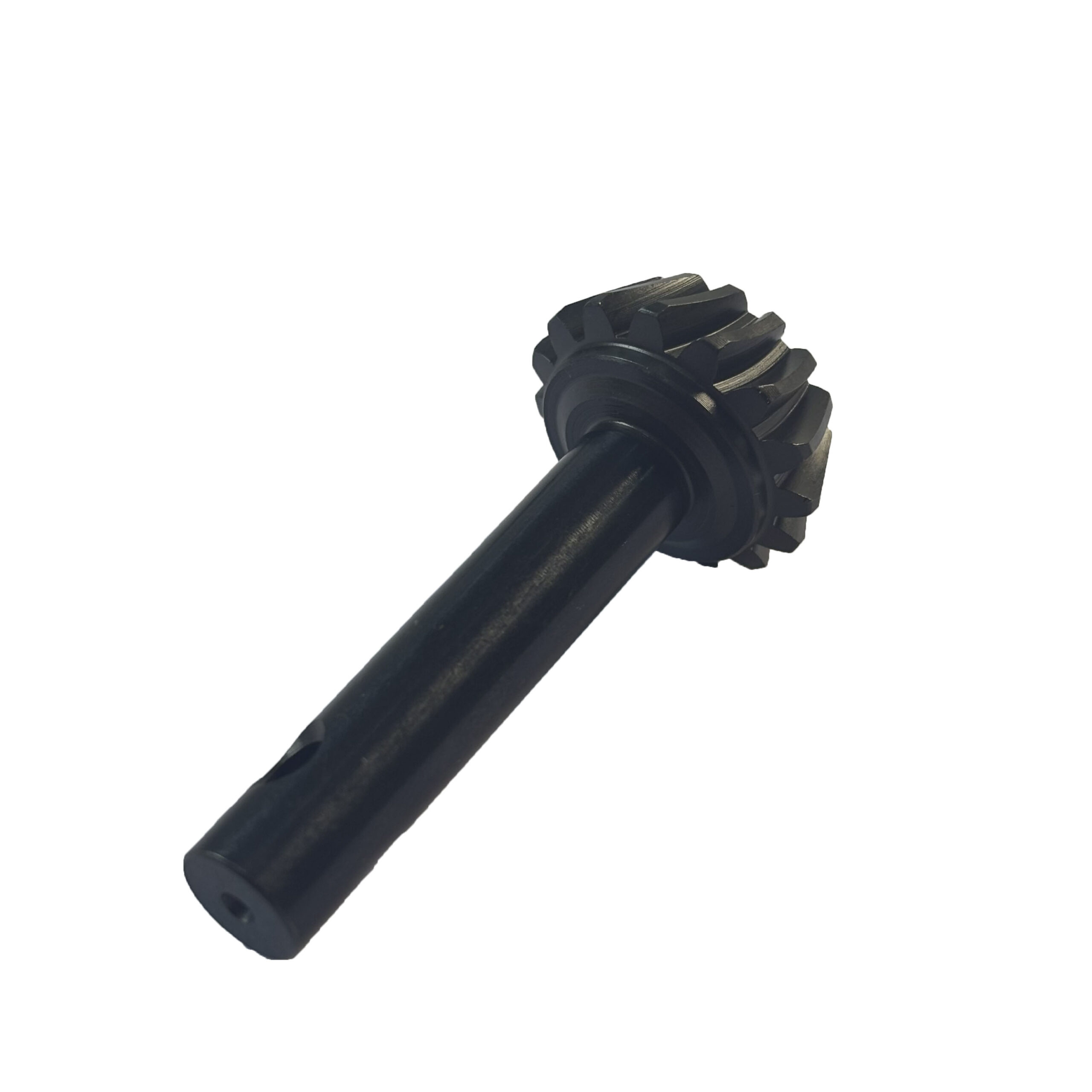

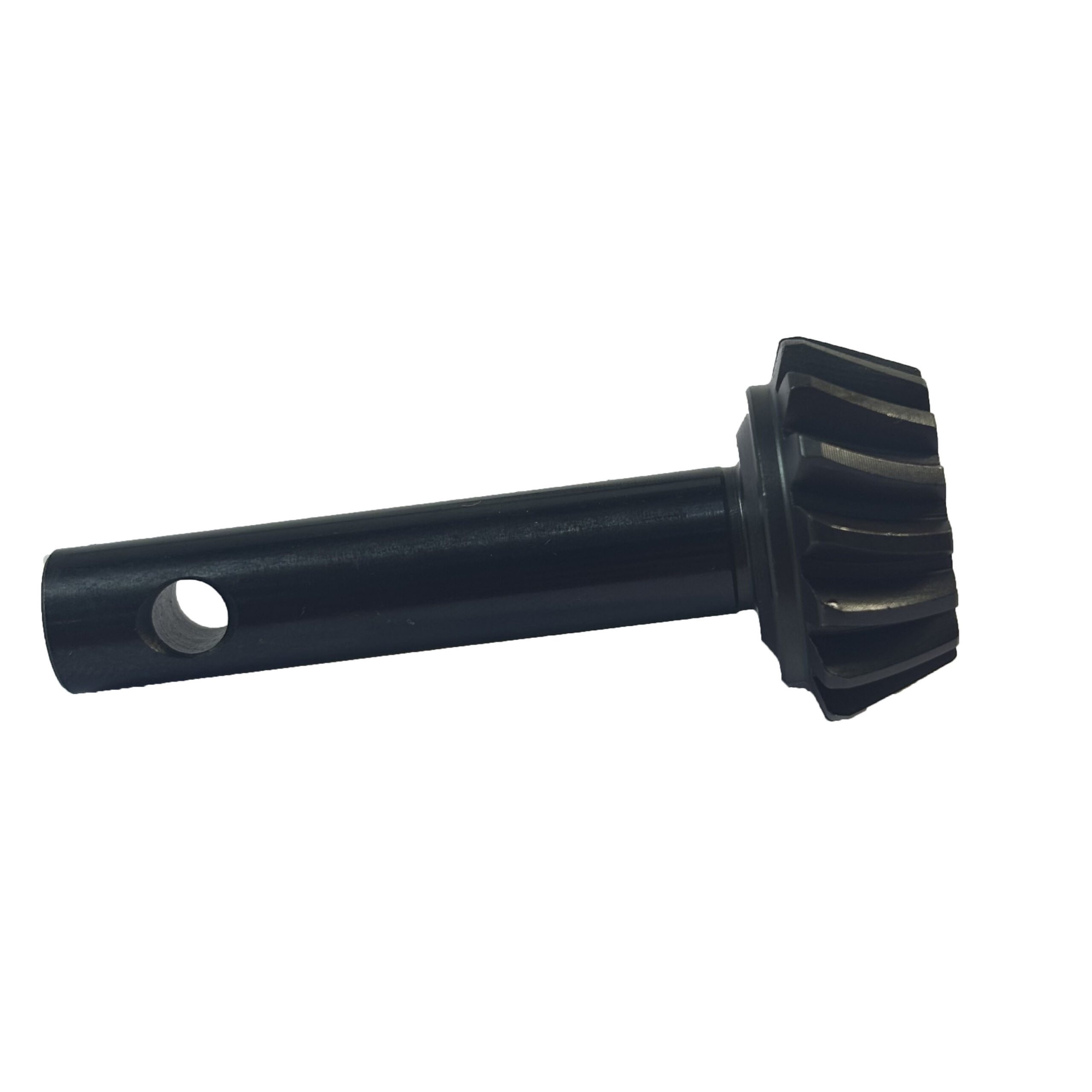

KA09104 Small Steel Gear 15T

KA09104 Small Steel Gear 15T is a spiral bevel gear specially designed for reducers. Its core parameters and precision manufacturing processes can fully meet the stable operation requirements of transmission systems.

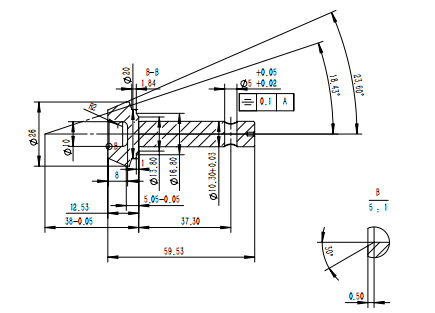

This gear features a pressure angle of 20°, a module of 1.54, 15 teeth, and a spiral angle of 10°/R. It has a shaft diameter of 10mm, an outer diameter of the tooth part of 28mm, a total length of 59.25mm, and a single weight of 0.0541kg. Made of high-quality 20CrMnTi alloy structural steel, it is precisely manufactured through a complete process route including normalizing, turning, rough grinding of clamping position, gear milling, heat treatment, shot blasting, blackening, and outer diameter grinding. Heat treatment and shot blasting processes endow the gear with excellent wear resistance and impact resistance; blackening treatment enhances the product’s rust prevention capability; the outer diameter grinding process ensures the gear’s assembly accuracy, making it suitable for high-load operation scenarios in reducer power transmission systems.
