SCK200-1-1-03 Bevel Gear Shaft
$2.90piece

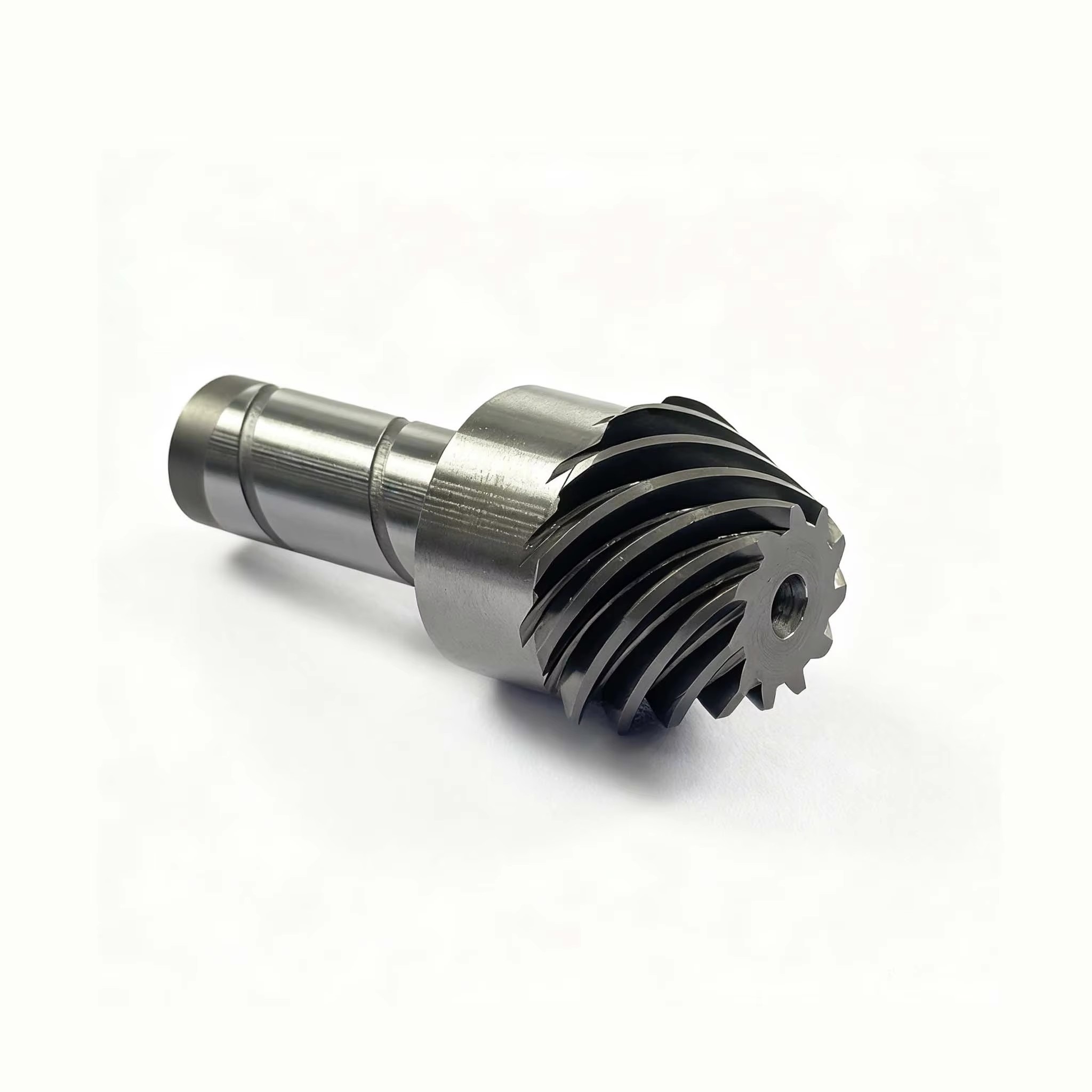

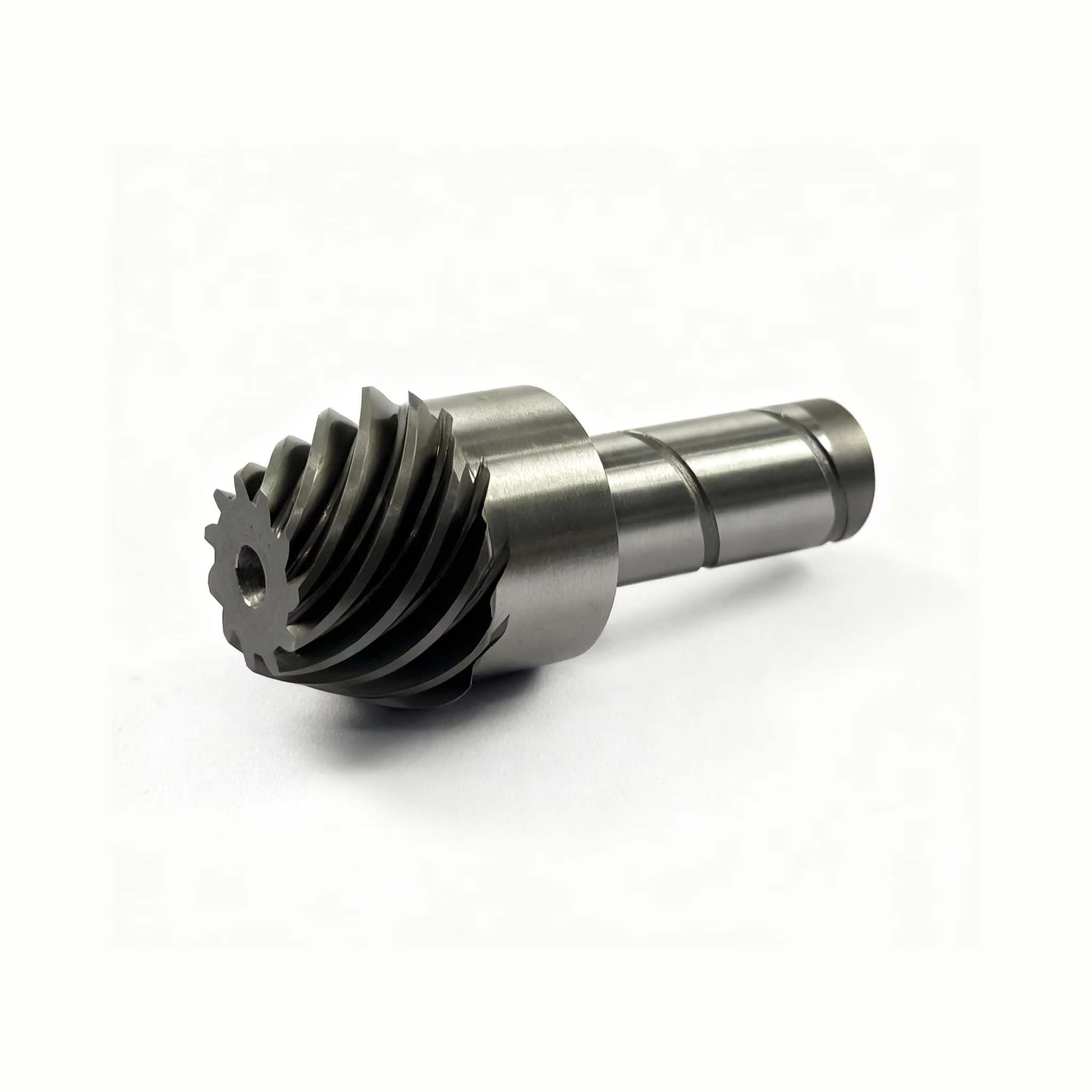

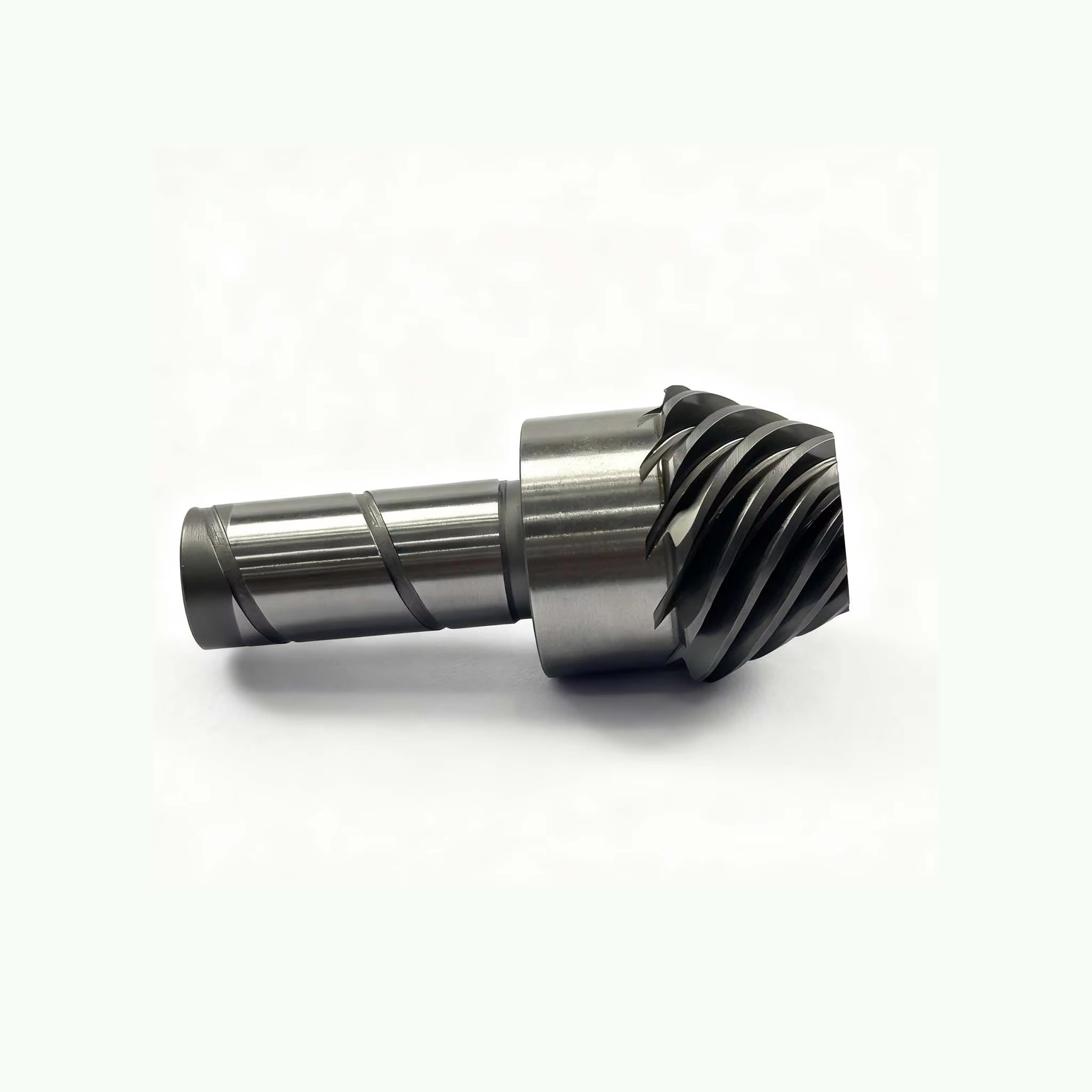

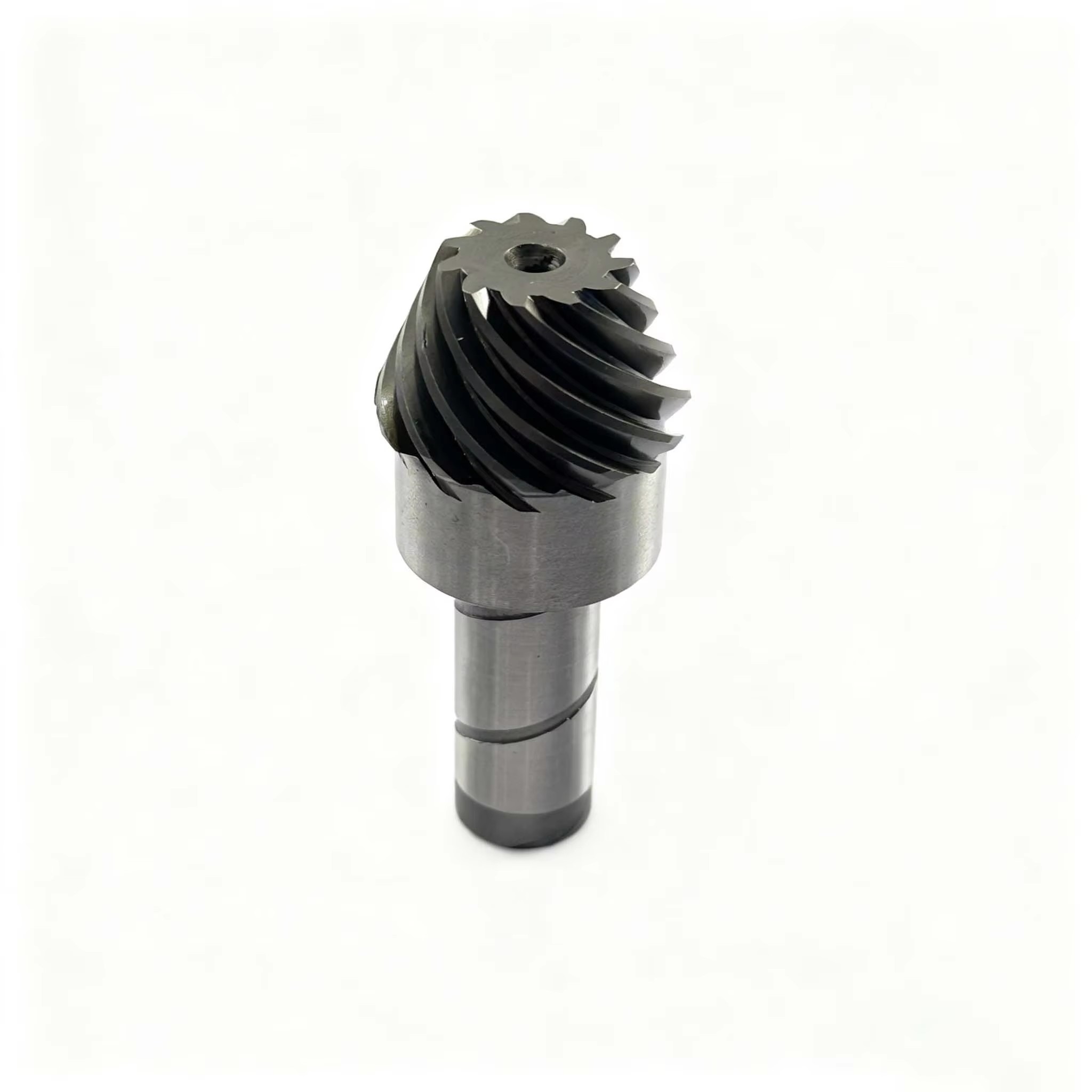

XG-011-C Hypoid Bevel Gear Shaft
Hypoid gear shaft for reducers, made of 20CrMnTi steel via precision machining and heat treatment.
Parameters: pressure angle 20°, module 1.55, 11 teeth, helix angle 48° LH, shaft diameter 14 mm, total length 62 mm, weight 0.136 kg.
Description
XG-011-C (SCK200-1-1-03 Bevel Gear Shaft)
This is a hypoid gear shaft with a pressure angle of 20°, module 1.55, 11 teeth, offset distance 12, and helix angle 48° left-hand. It has a shaft diameter of 14 mm, gear outer diameter of 28.62 mm, overall length of 62 mm, and a weight of 0.136 kg.
Manufactured from 20CrMnTi alloy steel, the gear shaft is produced through a precise process including normalizing, turning, rough grinding of clamping surfaces, gear milling, heat treatment, shot blasting, coating, outer diameter grinding, match lapping, marking, and full visual inspection.
It is mainly used as a transmission gear in reducers.
Additional information
| weight |
0.136 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Milling |
