M0341M10 (120-1:2) Input Bevel Gear and M0342M10 (120-1:2) Input Bevel Gear
$15.40piece
Two input spiral bevel gears for reducers made of 20CrMnTi, module 2.25, 20° pressure angle, precision-machined. AEP-05-C is 17-tooth left-hand (speed ratio 2), AEP-06-C is 34-tooth right-hand, used together for reducer input end transmission.
Description

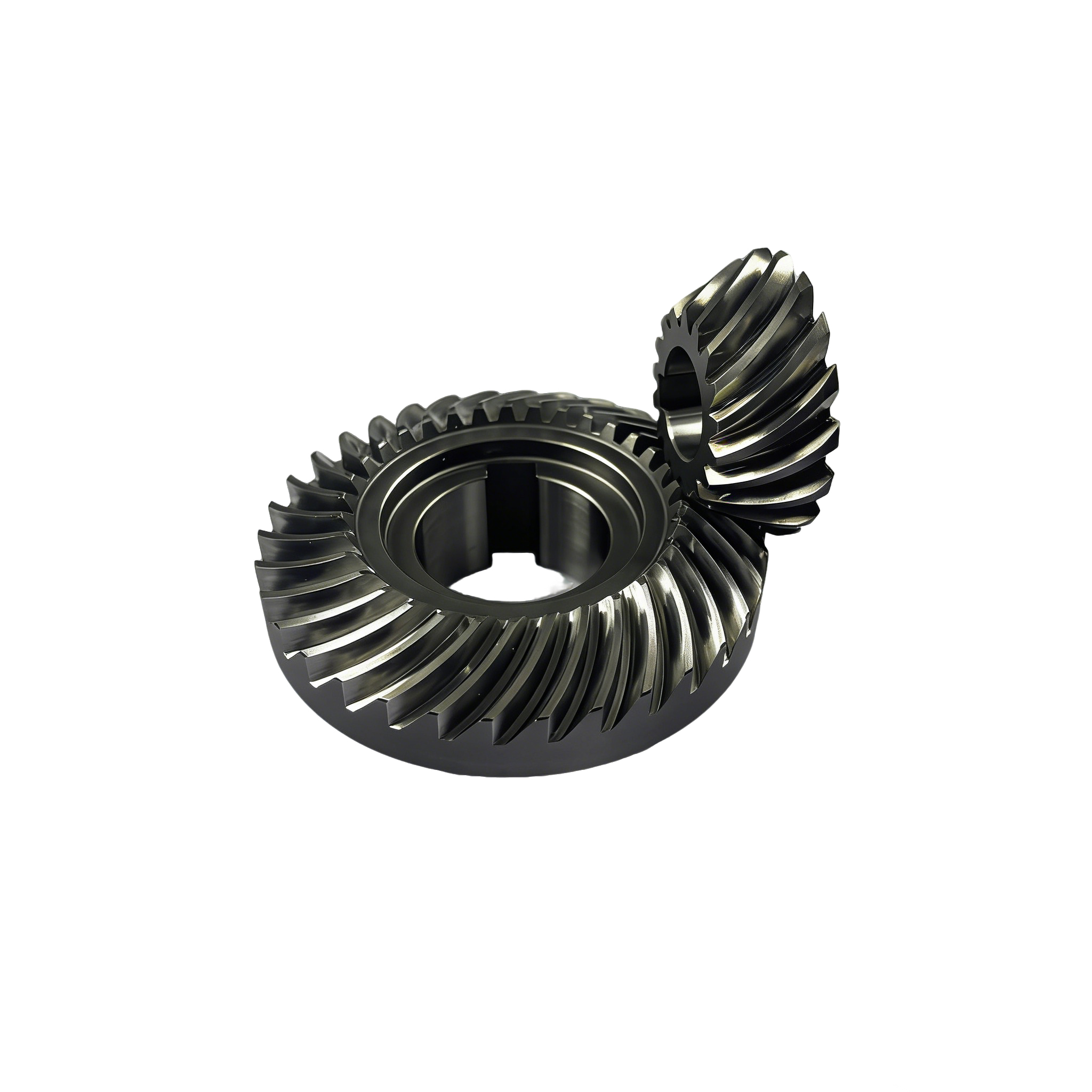

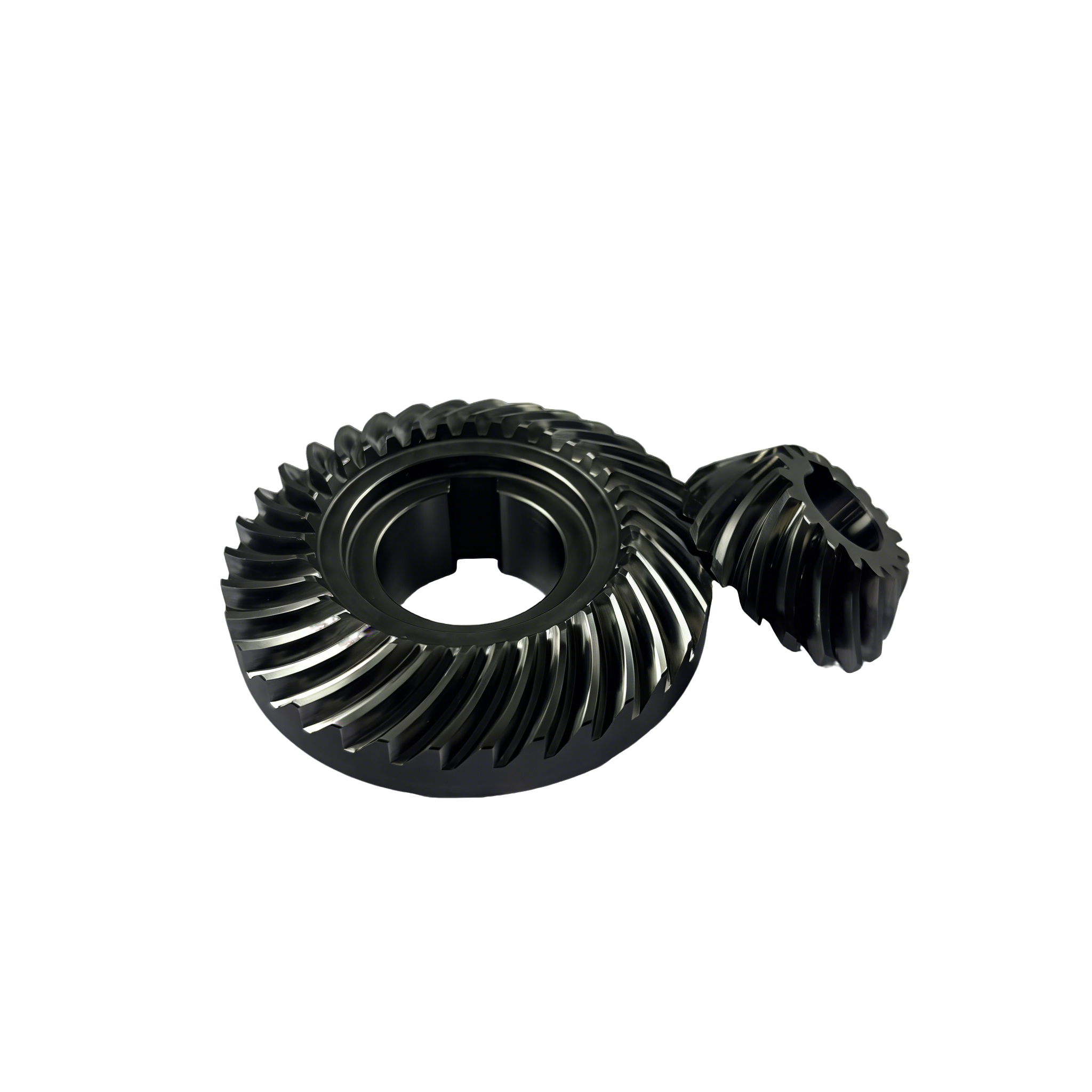

This series includes two input spiral bevel gears for reducers, with models AEP-05-C (M0341M10 (120-1:2)) and AEP-06-C (M0342M10 (120-1:2)), which are used in pairs and specially designed for power transmission at the input end of the reducer to ensure stable and efficient transmission.
Both gears are made of 20CrMnTi, with excellent strength, wear resistance and transmission stability. They both have a pressure angle of 20° and a module of 2.25, and are manufactured through precise processes including sawing, turning, keyway machining, gear milling, heat treatment, shot blasting, boring + end facing + guide arc chamfering, and gear grinding, ensuring that the gear precision meets the standard and adapts to the working conditions of the reducer.
Specific parameter details:

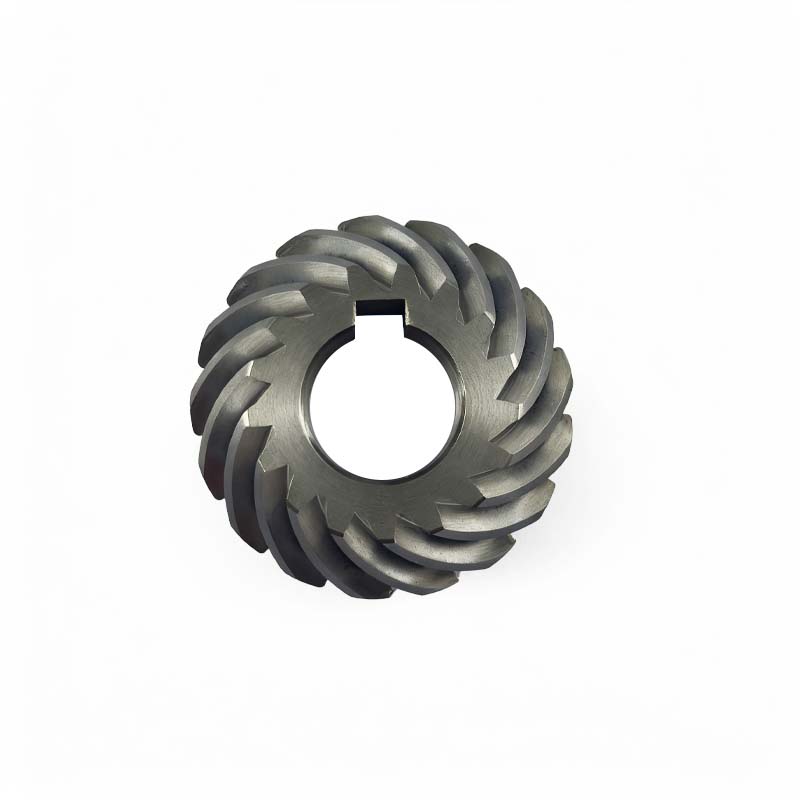

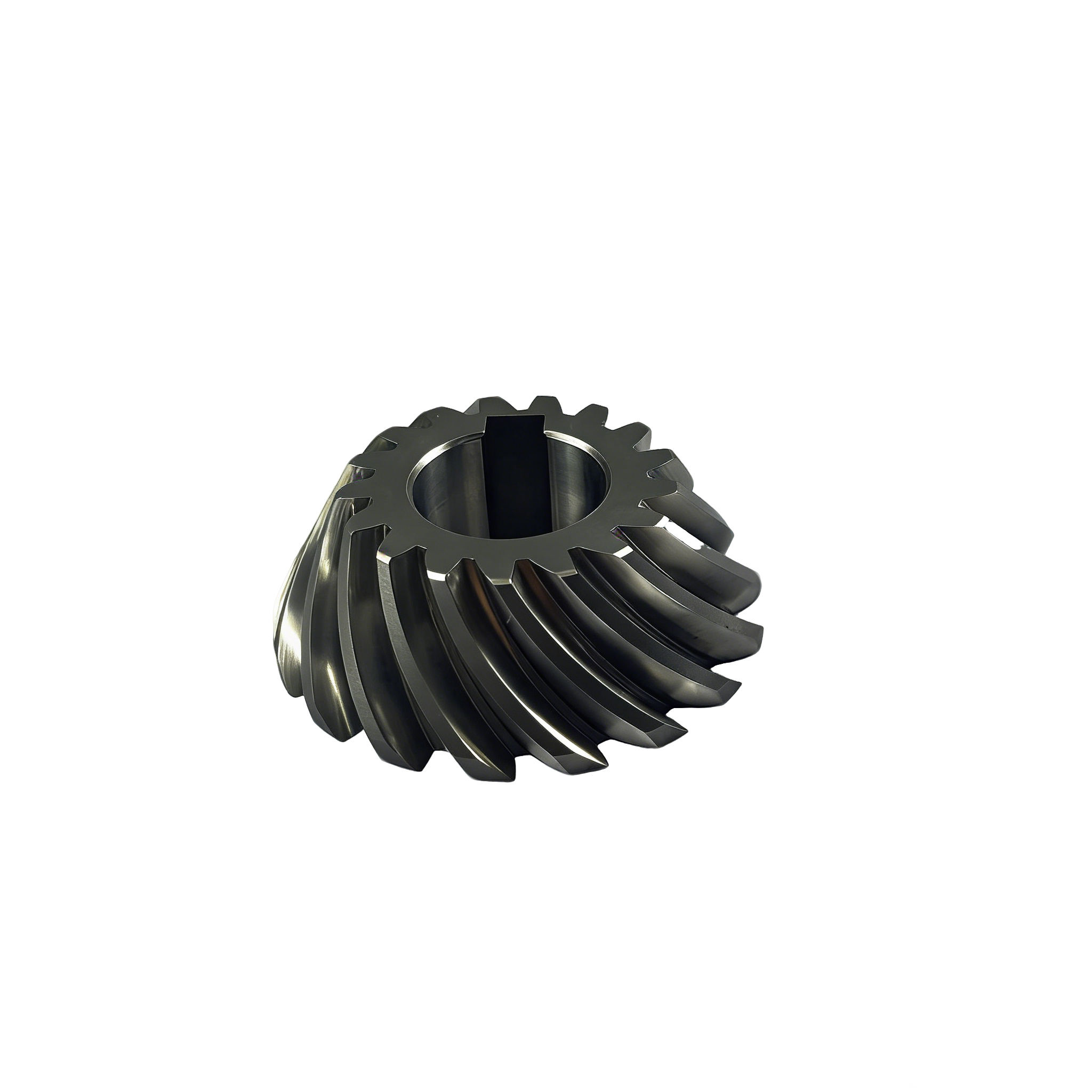

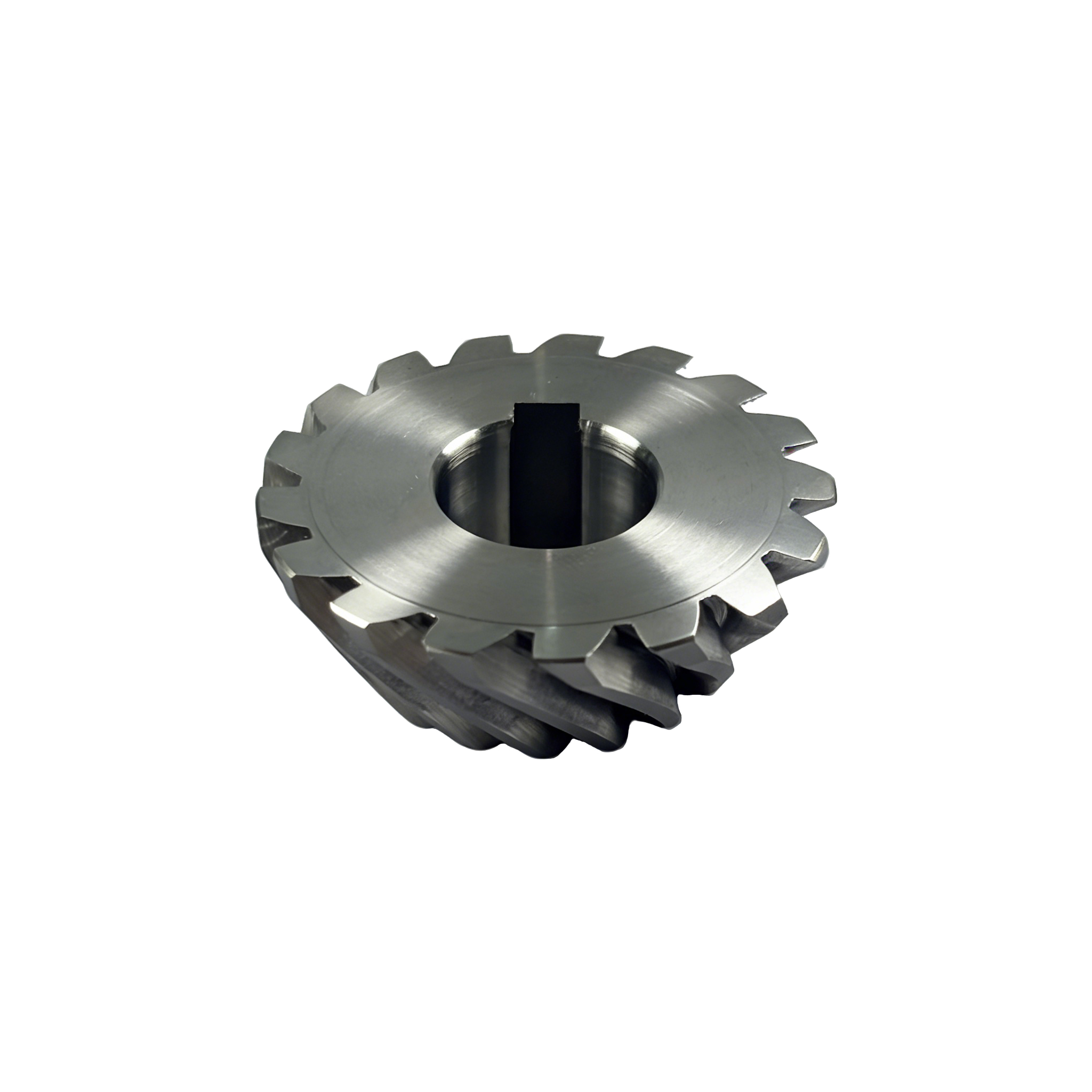

– AEP-05-C Input Bevel Gear: Left-hand (spiral angle 35°/L), 17 teeth, speed ratio 2, inner diameter 16mm, gear outer diameter 42mm, total length 14.5mm, weight 0.0773kg, suitable for the corresponding installation size at the input end of the reducer.

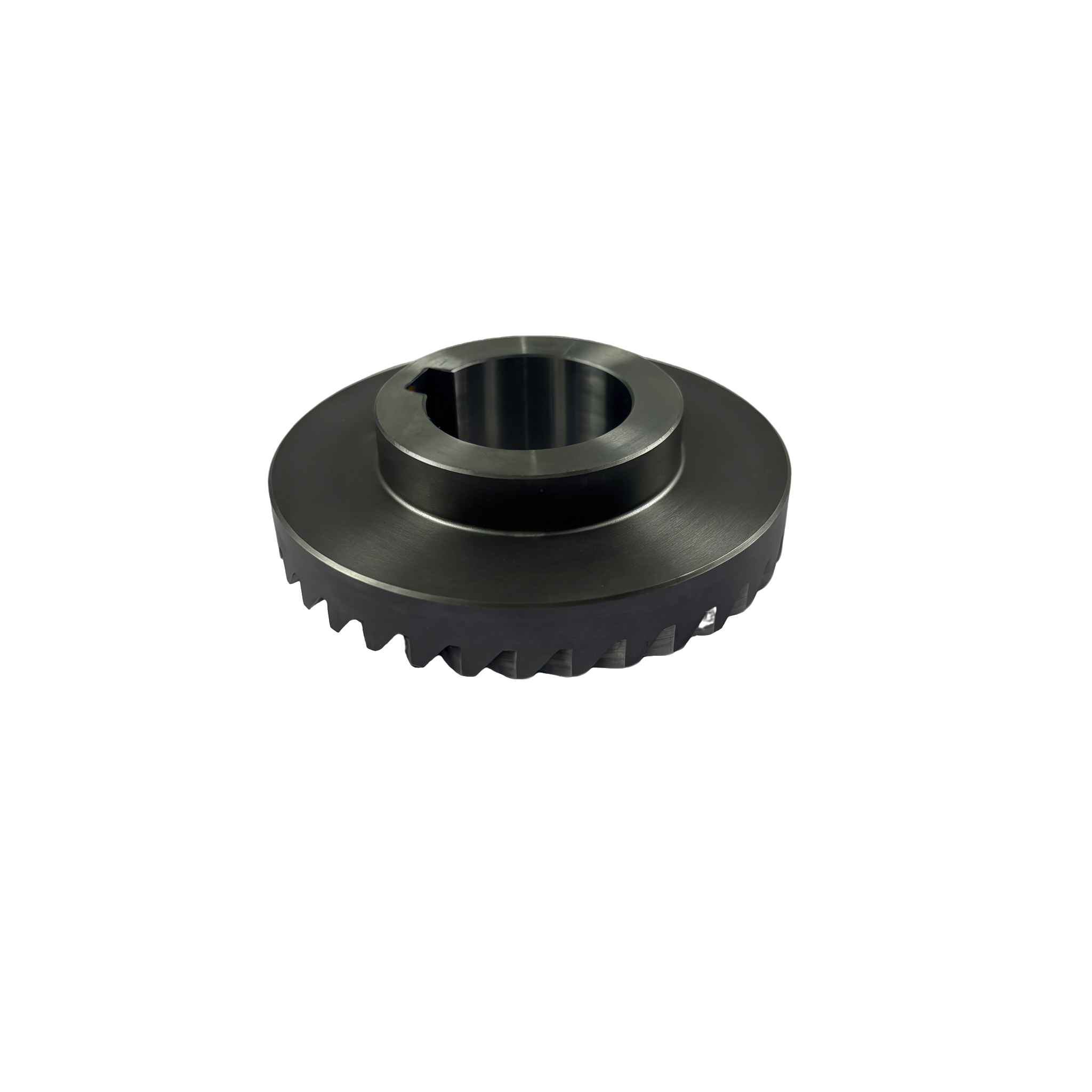

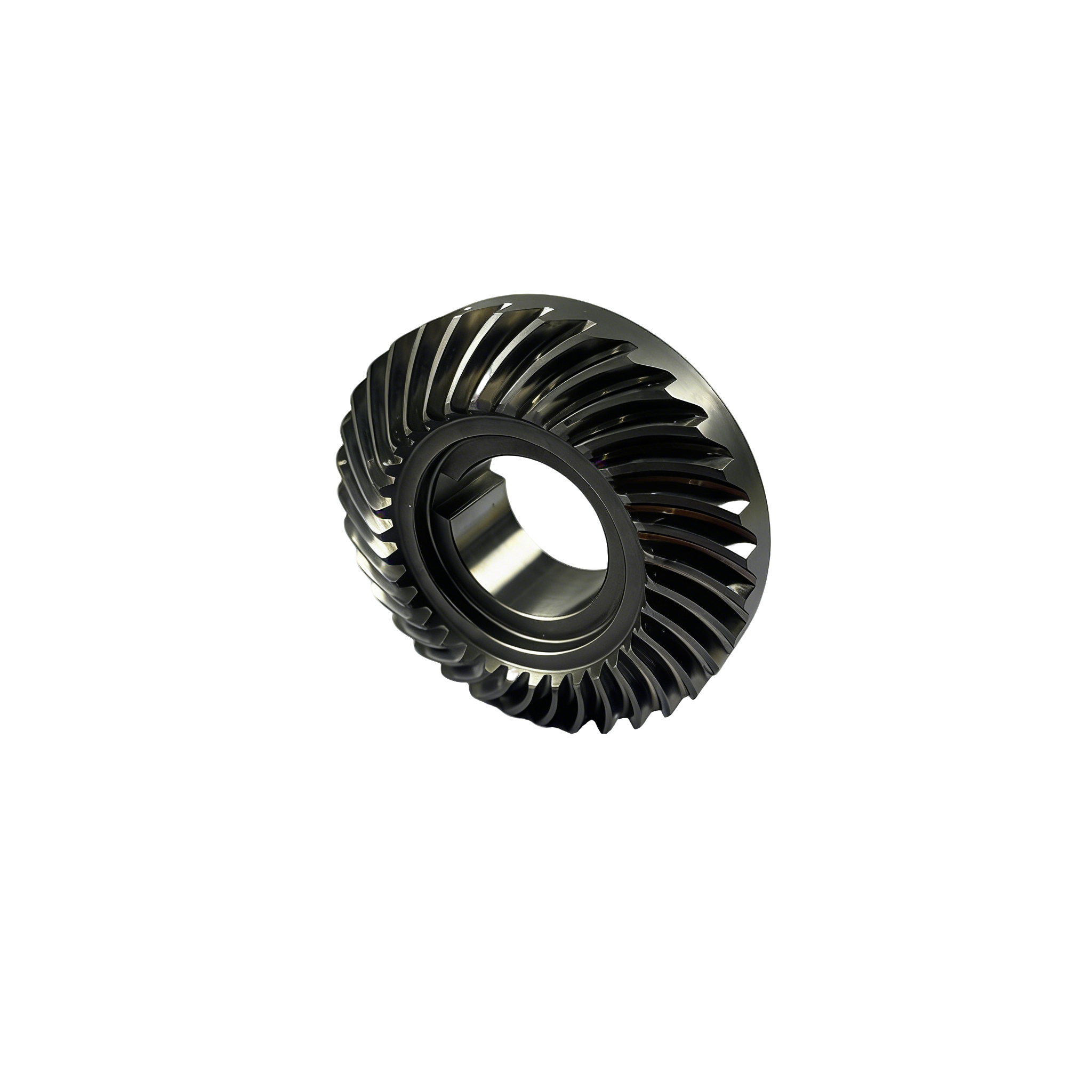

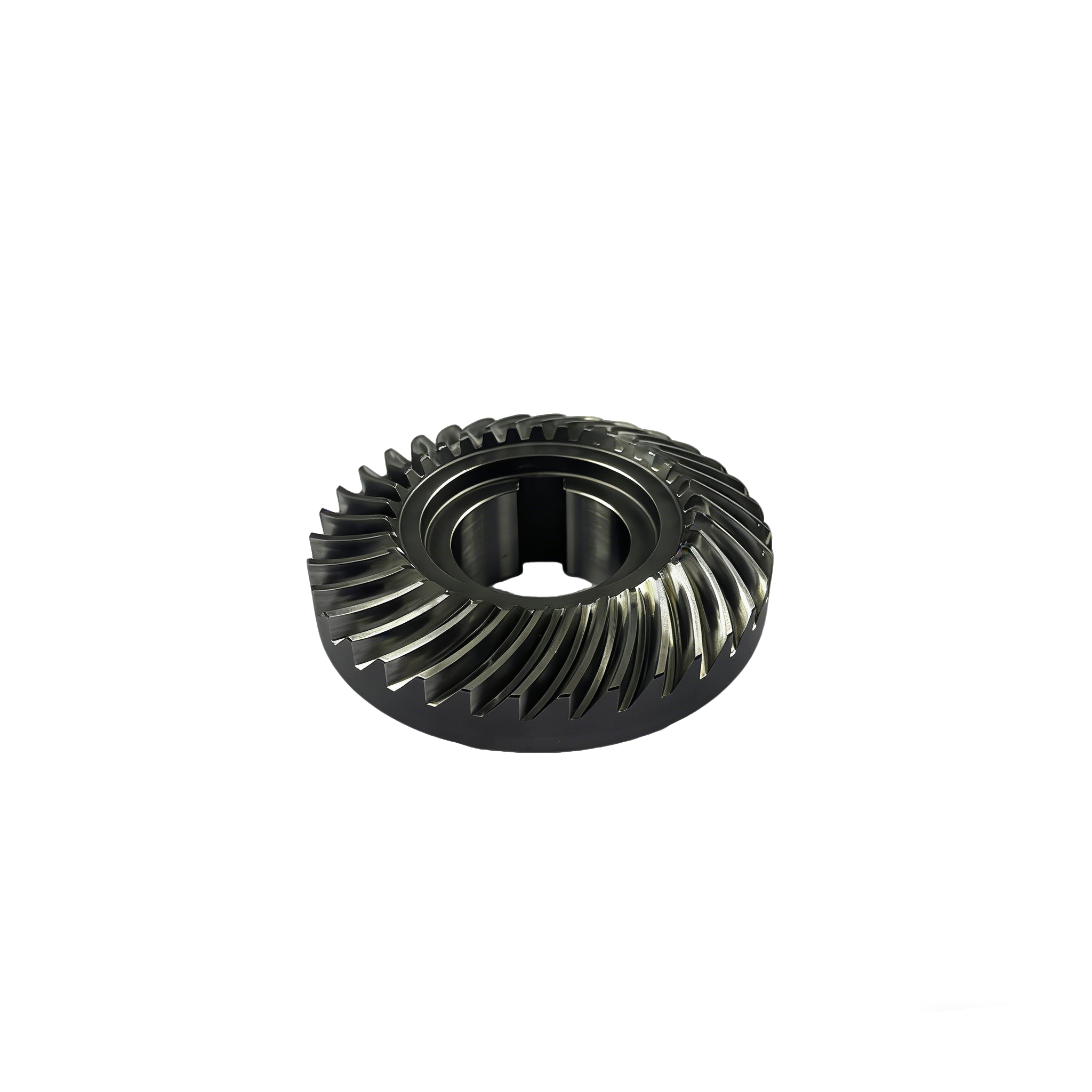

– AEP-06-C Input Bevel Gear: Right-hand (spiral angle 35°/R), 34 teeth, inner diameter 30mm, gear outer diameter 77mm, total length 26.5mm, weight 0.461kg, paired with AEP-05-C to meet the transmission needs of the reducer input end.
Additional information
| AEP-05-C and AEP-06-C weight |
0.0773and0.461 |
|---|---|
| AEP-05-C and AEP-06-C Core Components |
gear |
| AEP-05-C and AEP-06-C Craftsmanship |
Milling |
