J80610205 Helical Gear
$4.49piece
RJ-044-C (J80610205)

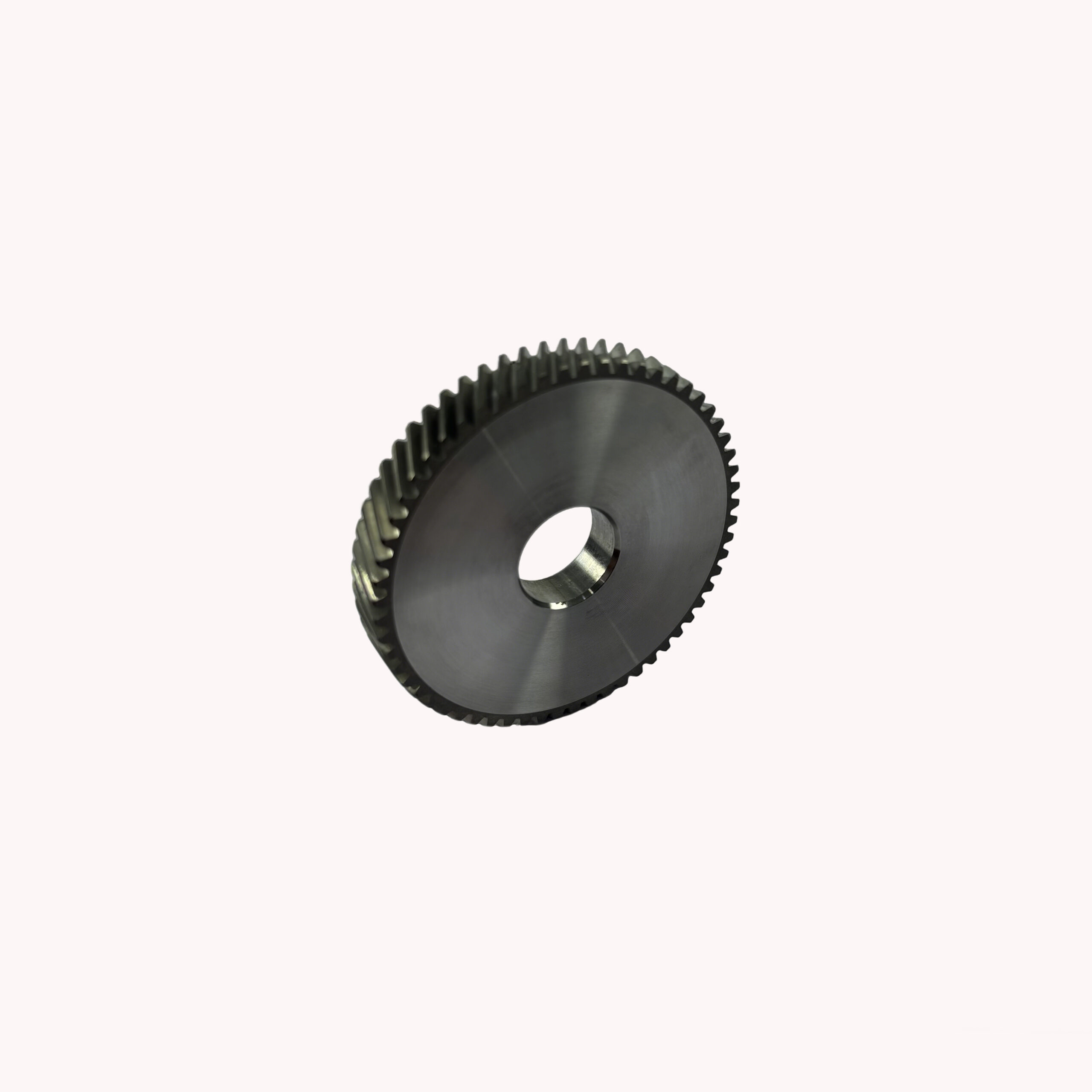

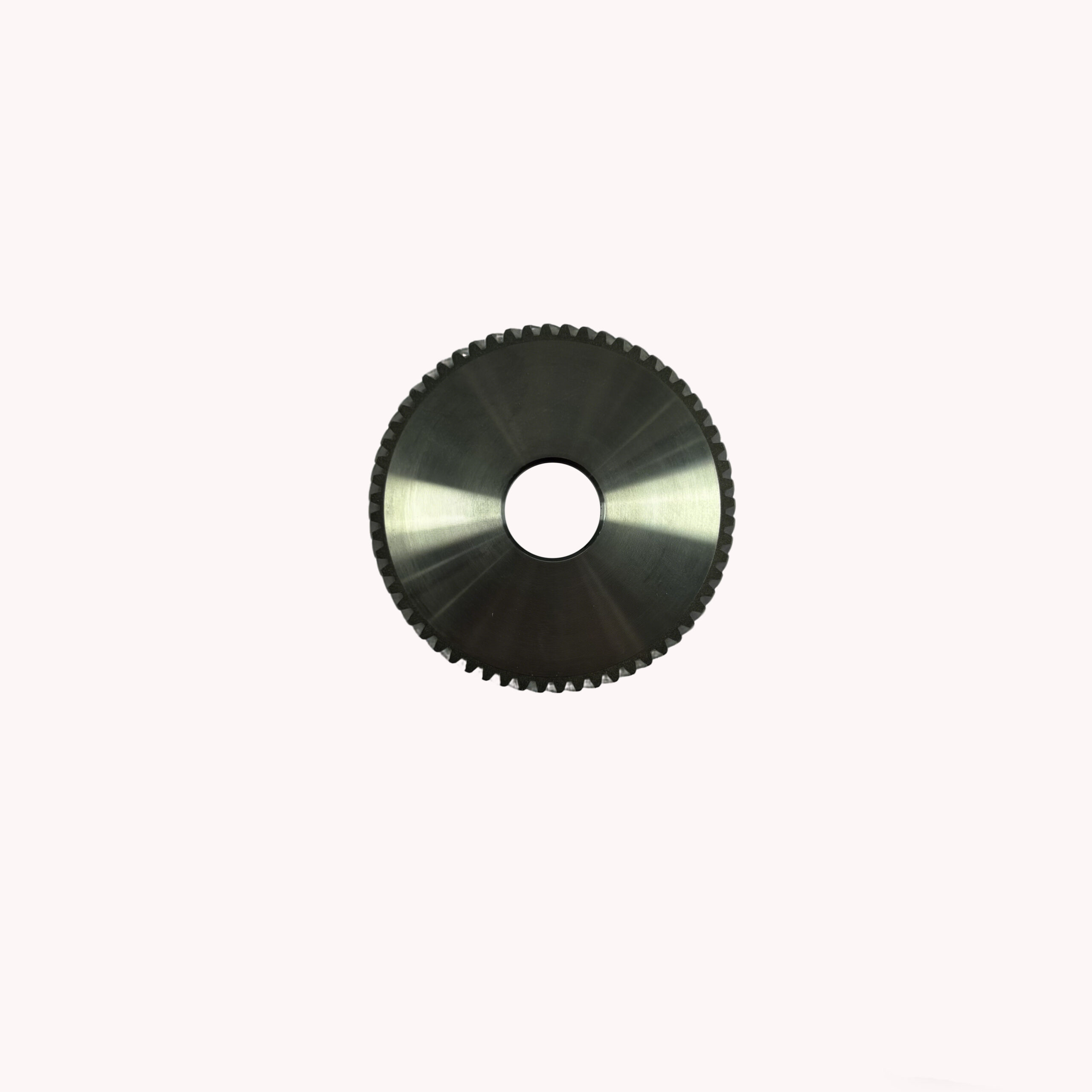

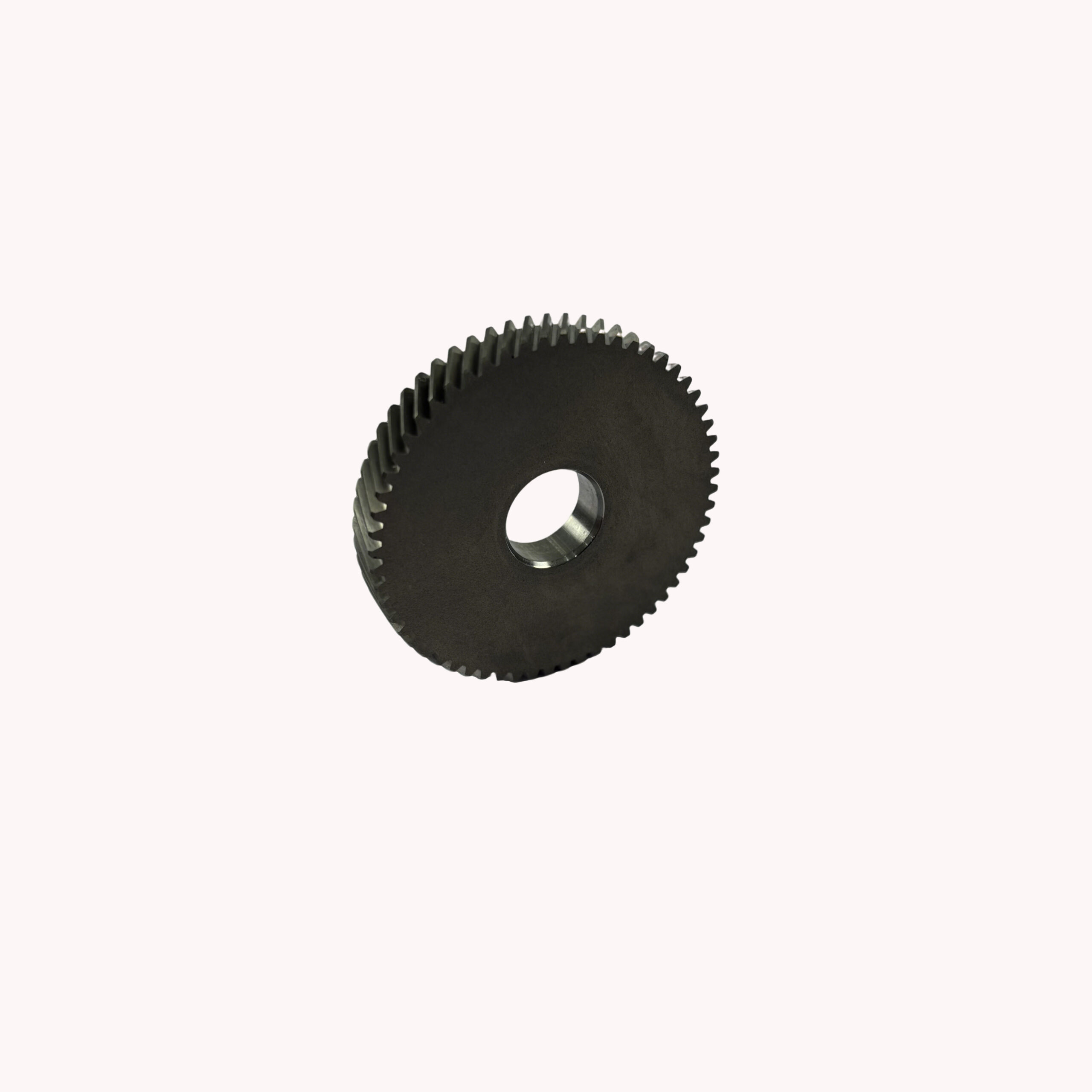

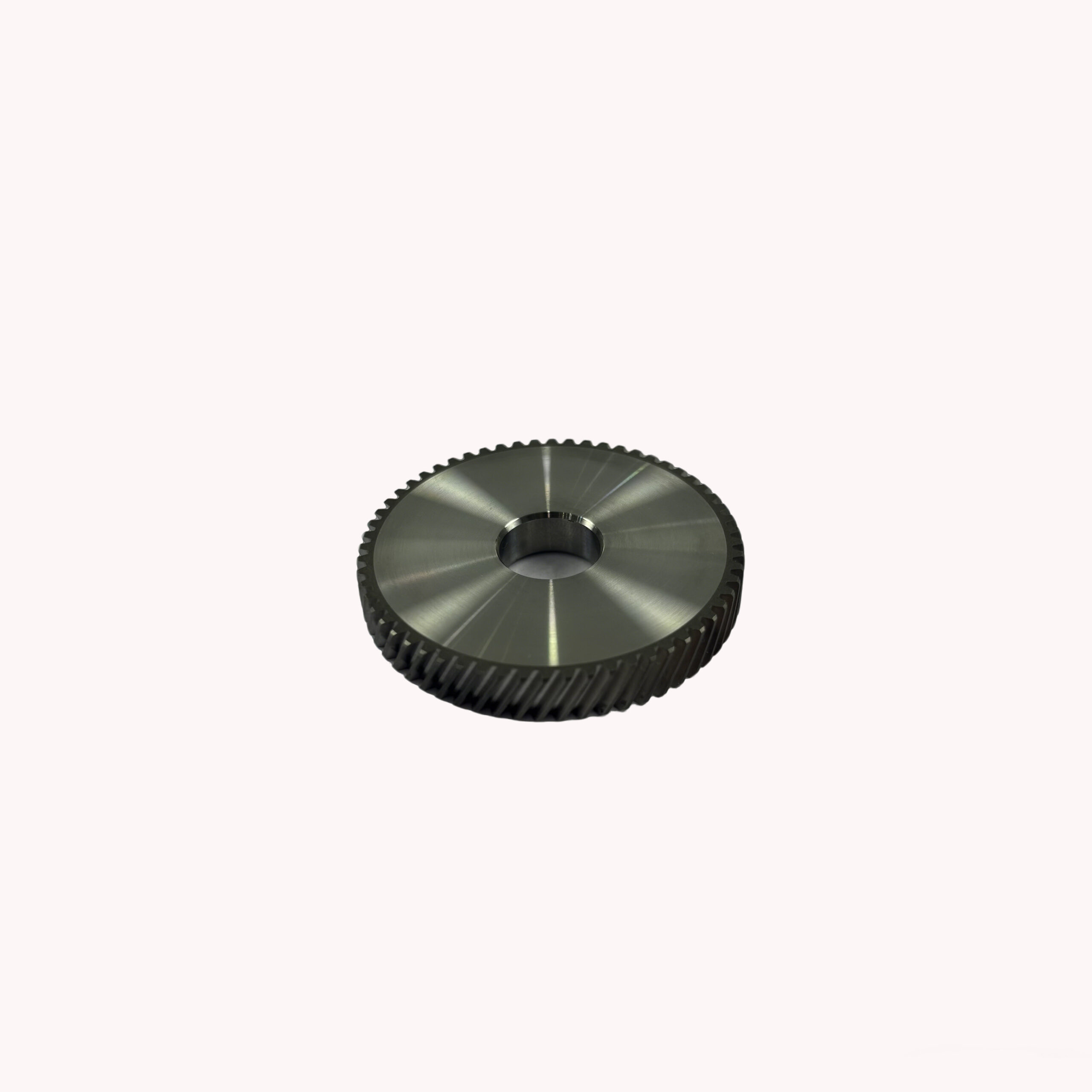

Right-hand helical gear. Parameters: pressure angle 20°, module 0.65, 60 teeth, helix angle 28°(R). Inner diameter 12 mm, outer gear diameter 45.51 mm, overall length 6.5 mm, weight 0.0736 kg. Produced from 20CrMo with precision machining and full inspection. Low noise and durable, suitable for speed reducers.
Description
RJ-044-C (J80610205 Helical Gear)
Model RJ-044-C is a right-hand helical gear. It has a pressure angle of 20°, module 0.65, 60 teeth and a right-hand helix angle of 28°. The inner diameter is 12 mm, outer gear diameter 45.51 mm, overall length 6.5 mm, and unit weight 0.0736 kg. Made of 20CrMo alloy steel, it delivers reliable overall performance. The processes include cutting, turning, rough hobbing, heat treatment, hanging shot blasting, rough boring, chamfering, finish boring, facing, gear grinding and full visual inspection. With high tooth accuracy, stable transmission and low noise, it is used for speed reducers.
Additional information
| RJ-044-C weight |
0.0736 |
|---|---|
| RJ-044-C Core Components |
gear |
| RJ-044-C Craftsmanship |
Hobbing |
