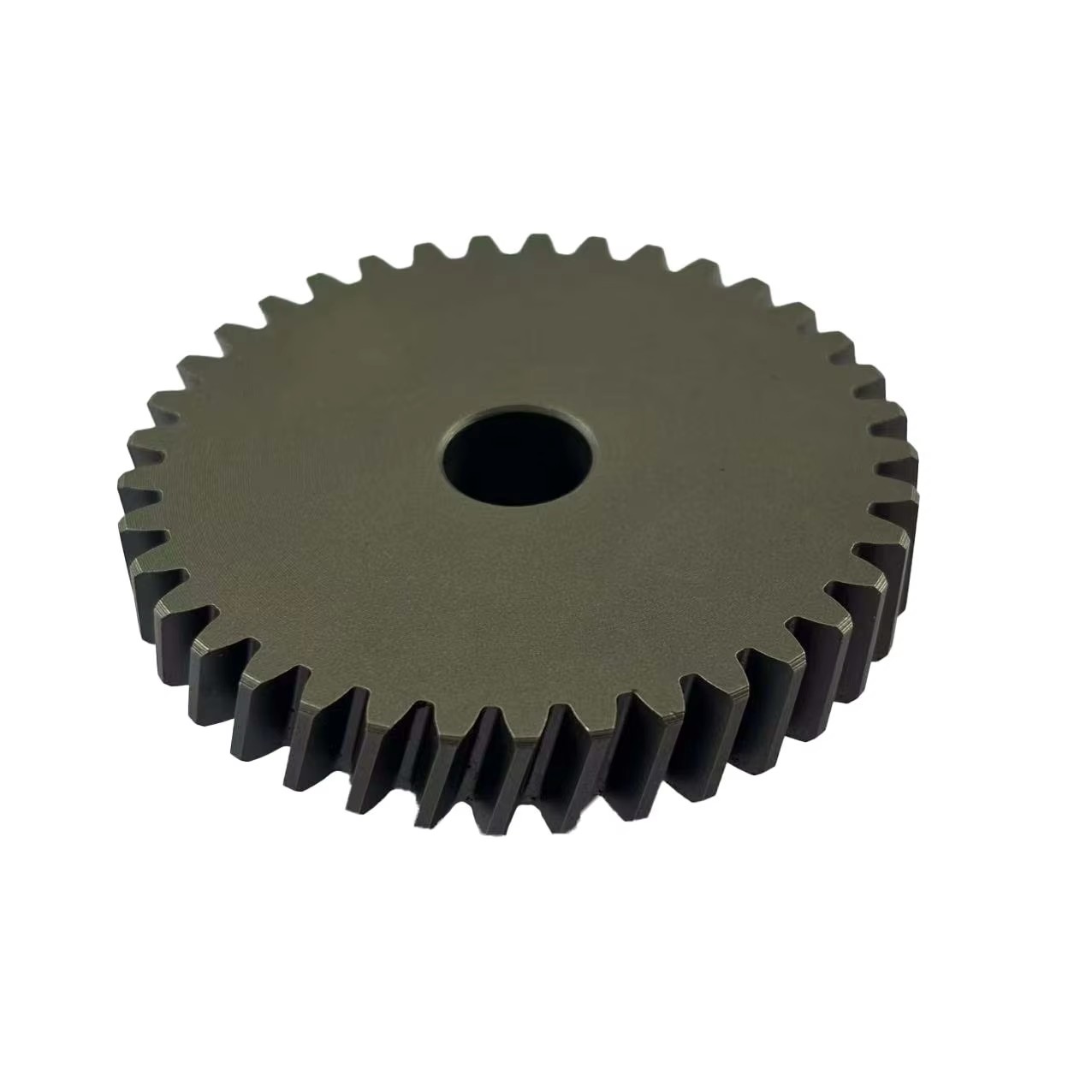

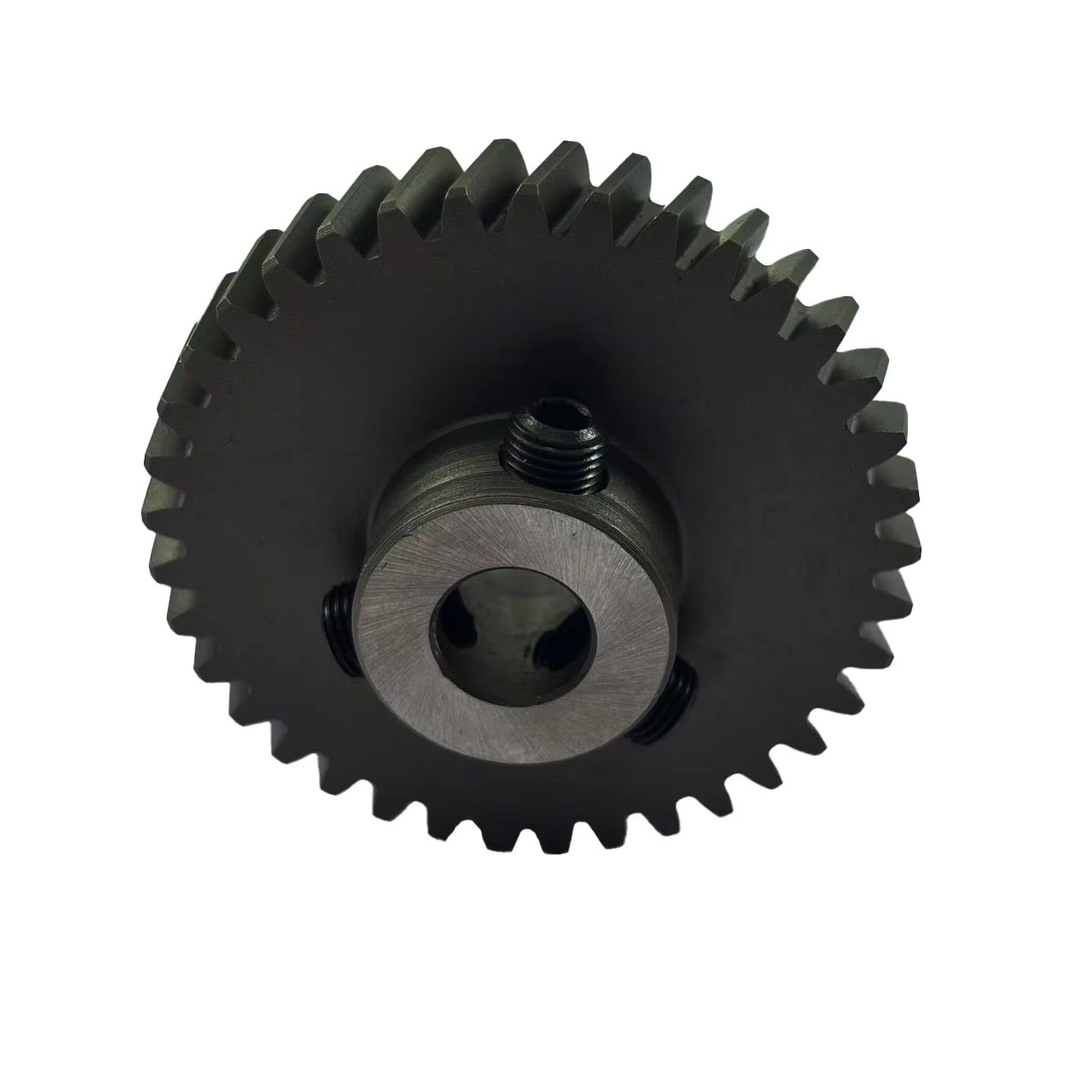

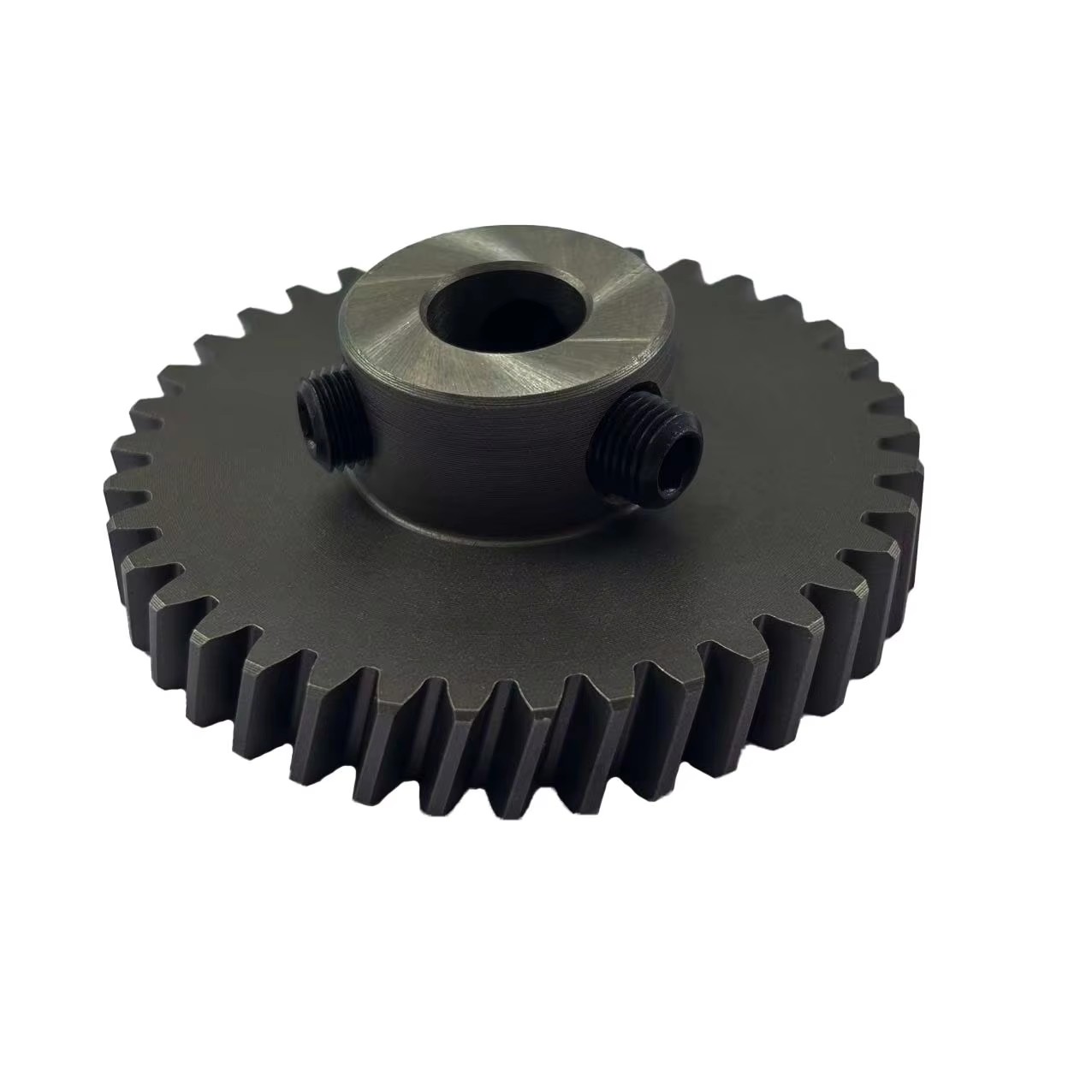

1560-4 Hook (Cylindrical Gear 37×1.25 – Left-hand)
$7.10piece
The helical gear matched with 1560-4 hook is made of 20CrMo. It has a module of 1.25, pressure angle of 20°, 37 teeth and a helix angle of -15° left-hand. Produced via multiple processes including hobbing and heat treatment, it has a tooth outer diameter of 50.38mm and a weight of 0.1225kg, serving as a dedicated transmission component for sewing equipment.
Description
Additional information
| weight |
0.1225 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Hobbing |
Reviews (0)
Shipping & Delivery
