J80672501(CIG18G-020)
$5.25piece
RJ-024-C (J80672501, CIG18G-020)

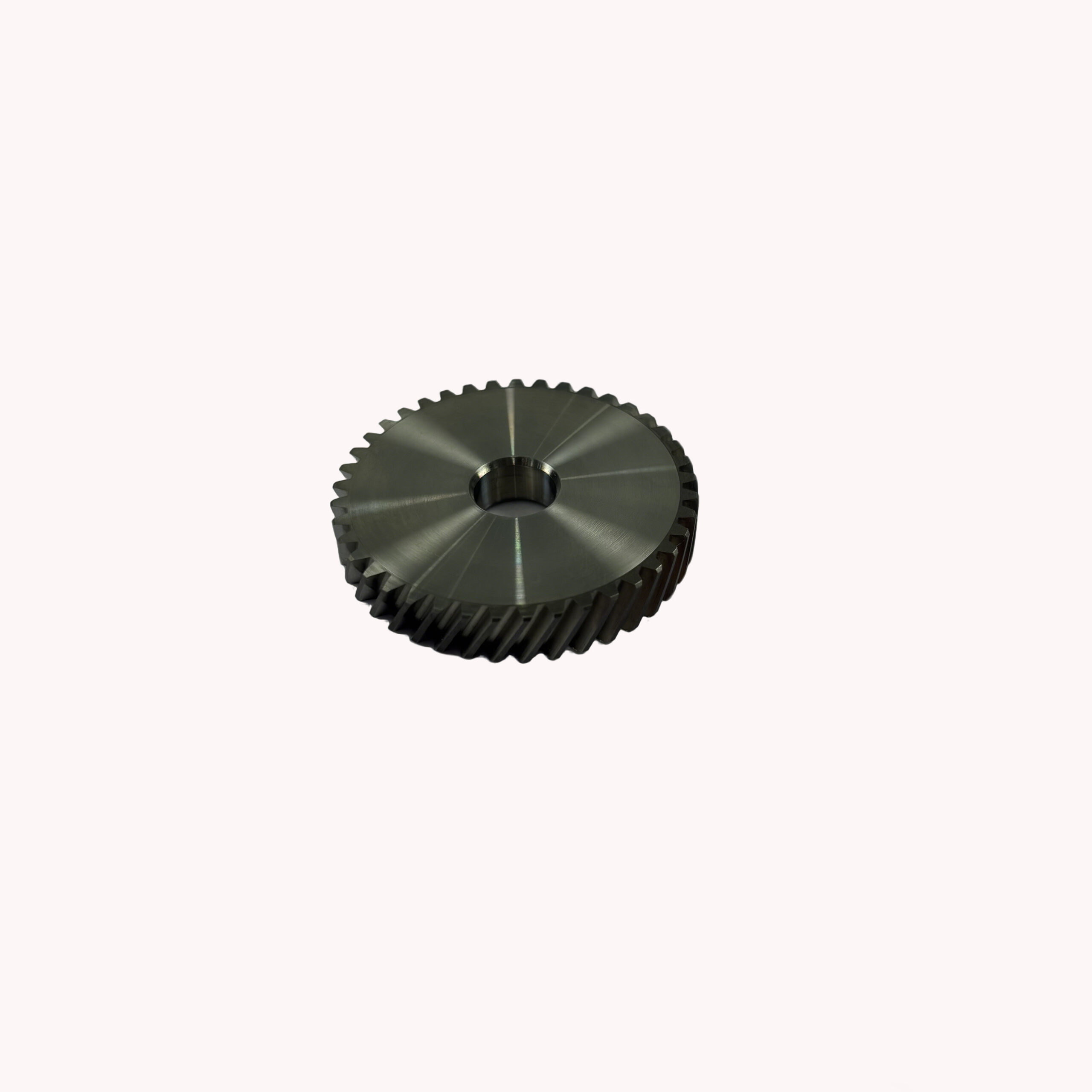

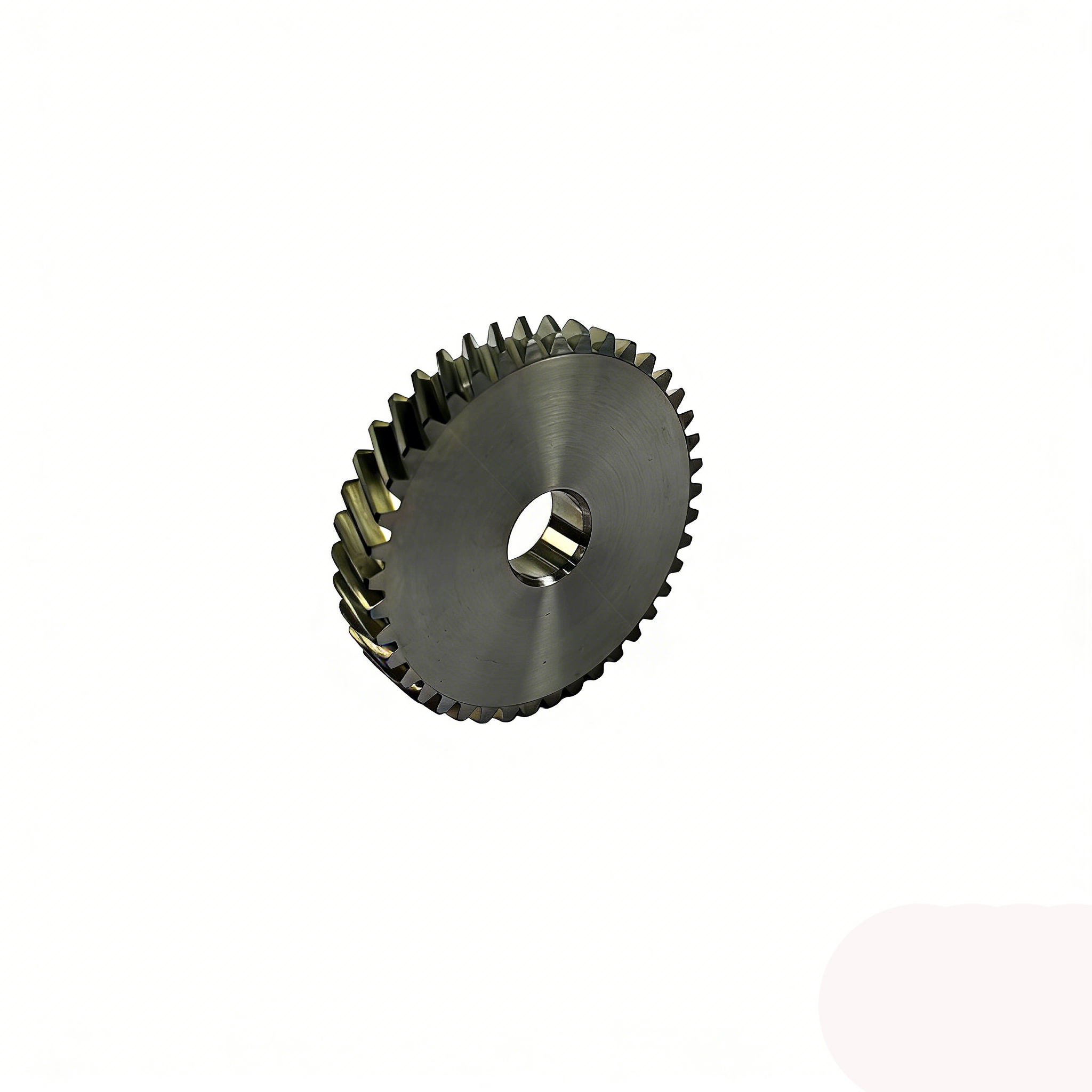

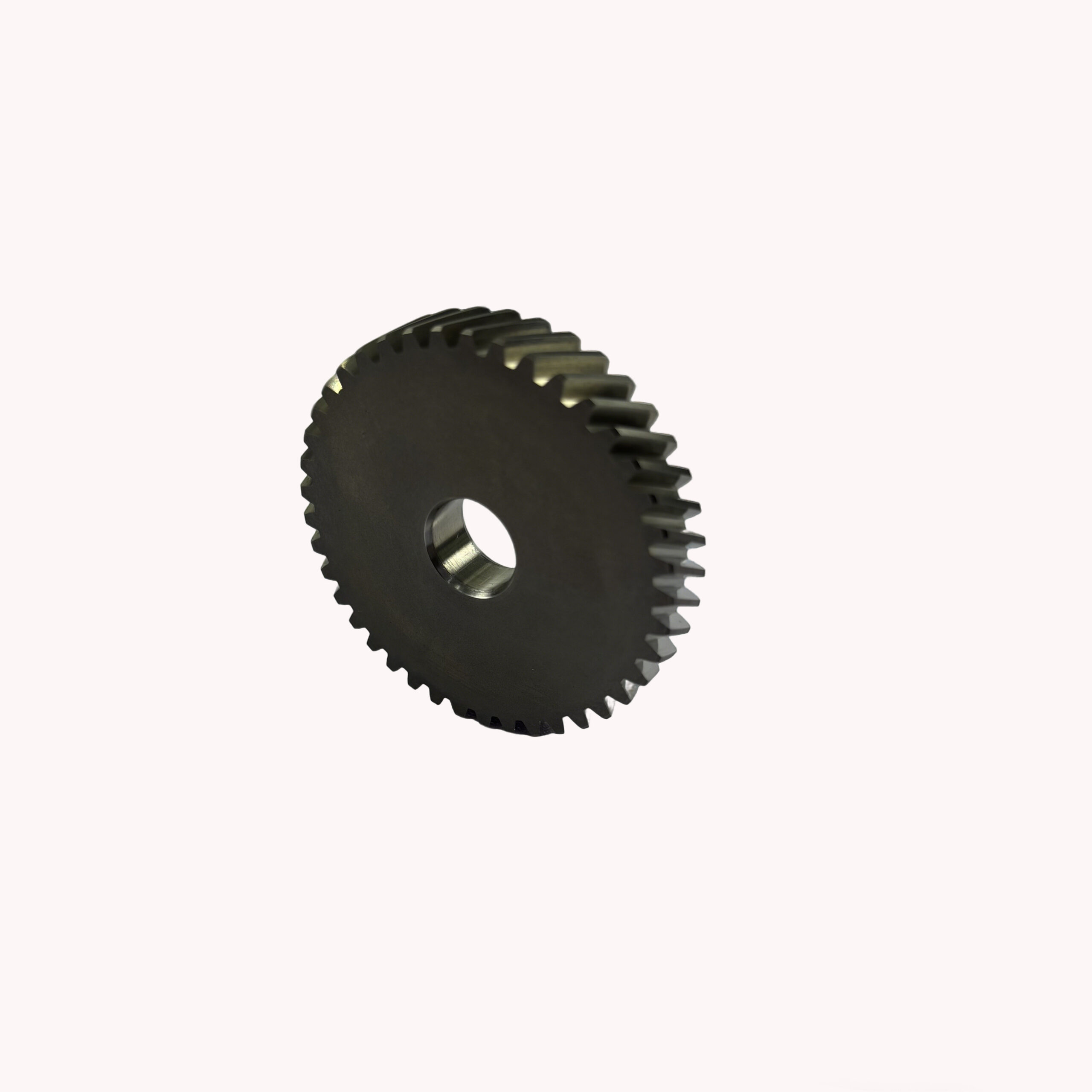

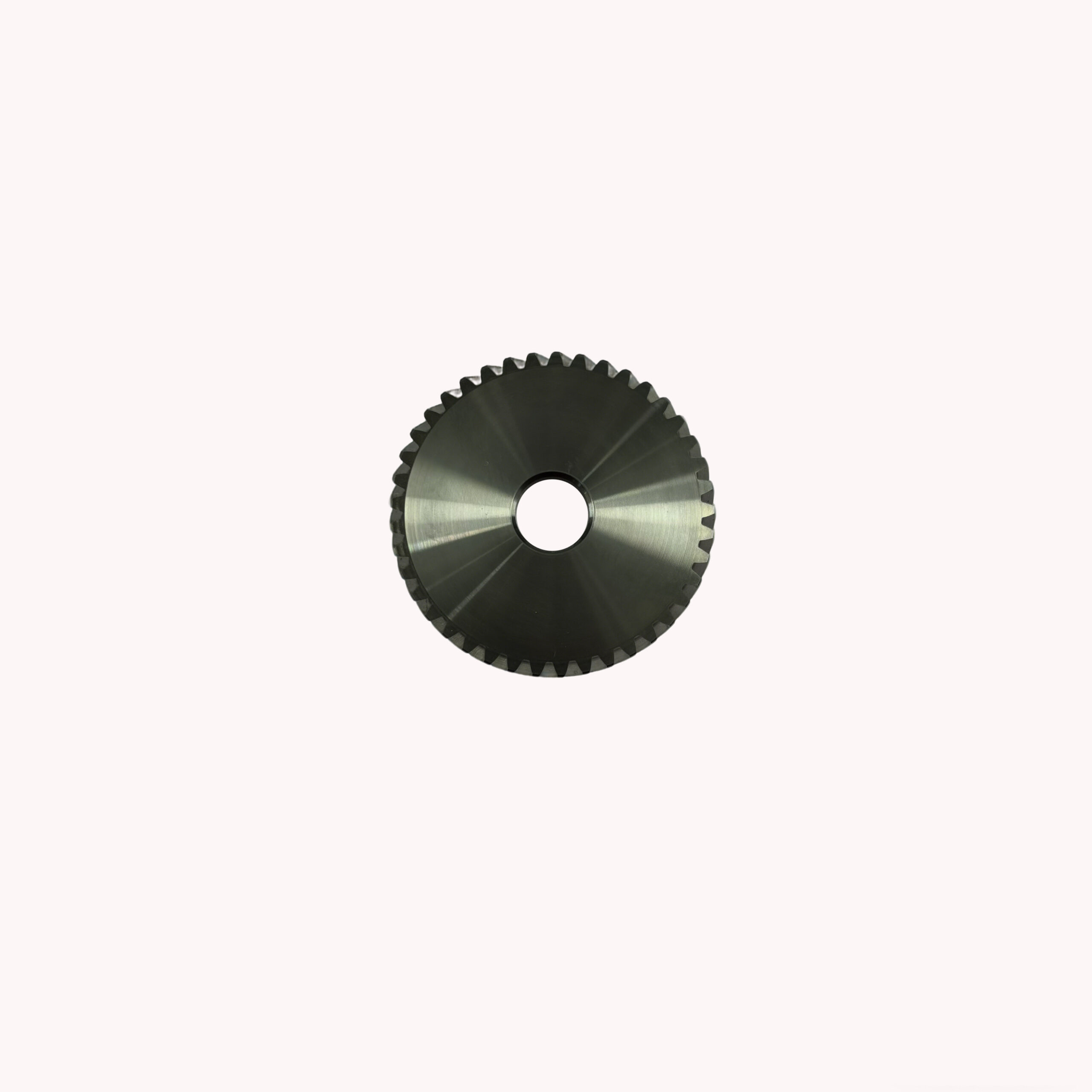

Right-hand helical gear. Parameters: pressure angle 20°, module 1, 41 teeth, helix angle 28°(R). Inner diameter 11 mm, outer gear diameter 48.34 mm, overall length 8 mm, weight 0.1033 kg. Manufactured from 20CrMo via precision machining and full inspection. Wear-resistant and low-noise, suitable for speed reducers.
Description
RJ-024-C (J80672501, CIG18G-020 Helical Gear)
Model RJ-024-C is a right-hand helical gear with a pressure angle of 20°, module 1, 41 teeth and a right-hand helix angle of 28°. The inner diameter is 11 mm, outer gear diameter 48.34 mm, overall length 8 mm, and unit weight 0.1033 kg. It is made of 20CrMo alloy steel with high strength and good wear resistance. The production processes include cutting, turning, rough hobbing, heat treatment, hanging shot blasting, rough boring, chamfering, finish boring, facing, gear grinding and full visual inspection. Featuring precise tooth profile, stable transmission and low noise, it is applied to speed reducers.
Additional information
| RJ-024-C weight |
0.1033 |
|---|---|
| RJ-024-C Core Components |
gear |
| RJ-024-C Craftsmanship |
Hobbing |
