J80610206 (C_IG_G-18-1.5) Helical Gear
$3.04piece
RJ-047-C (J80610206, C_IG_G-18-1.5)

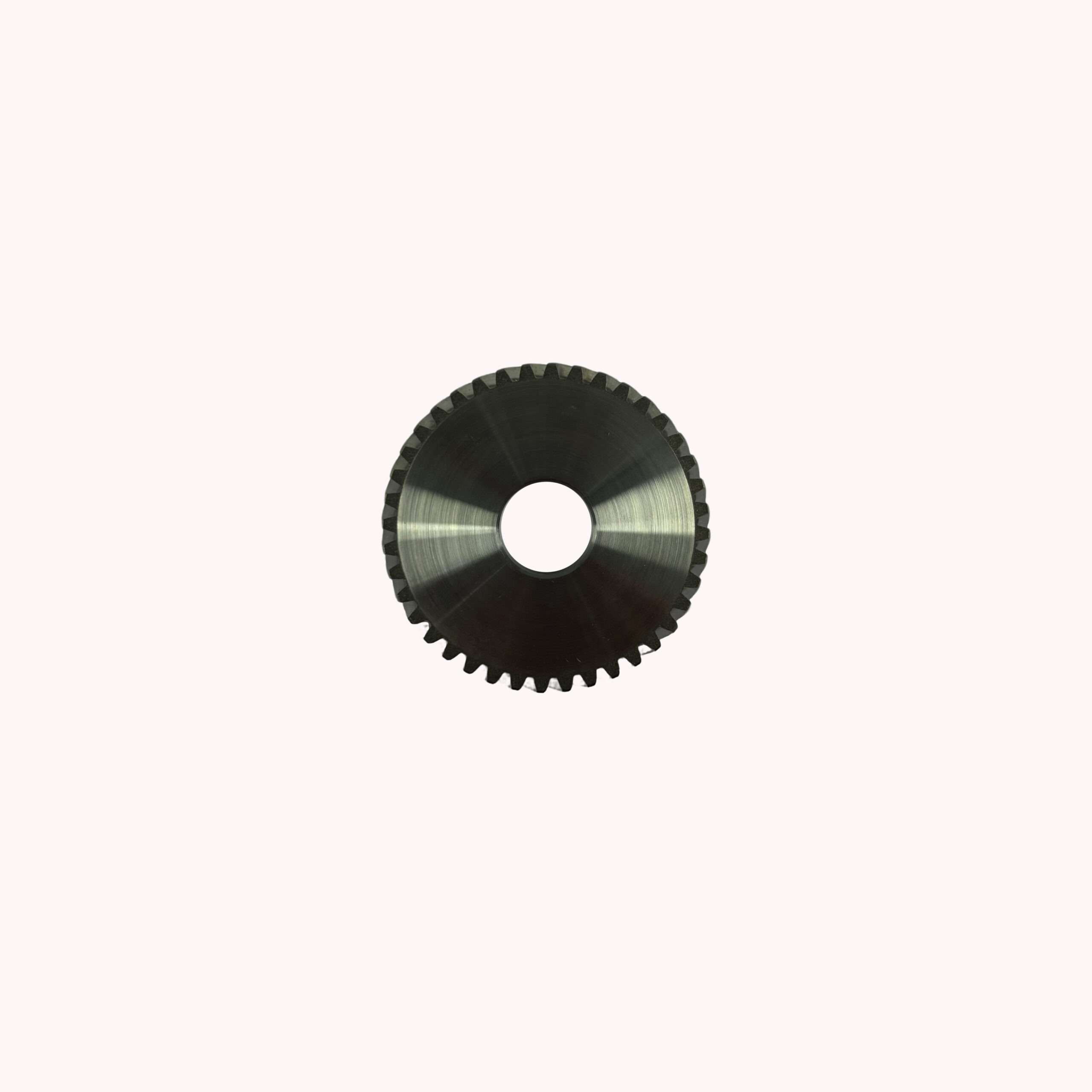

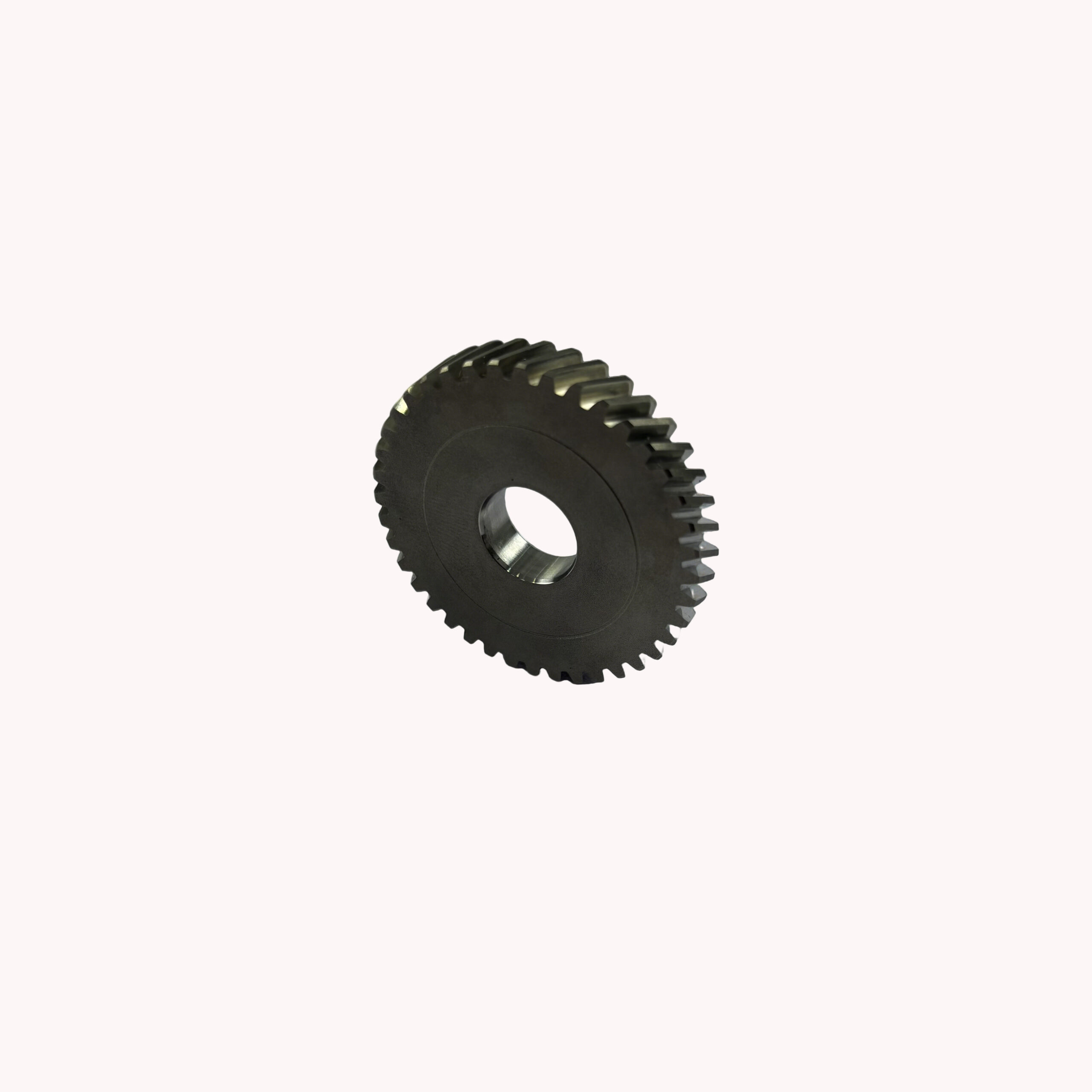

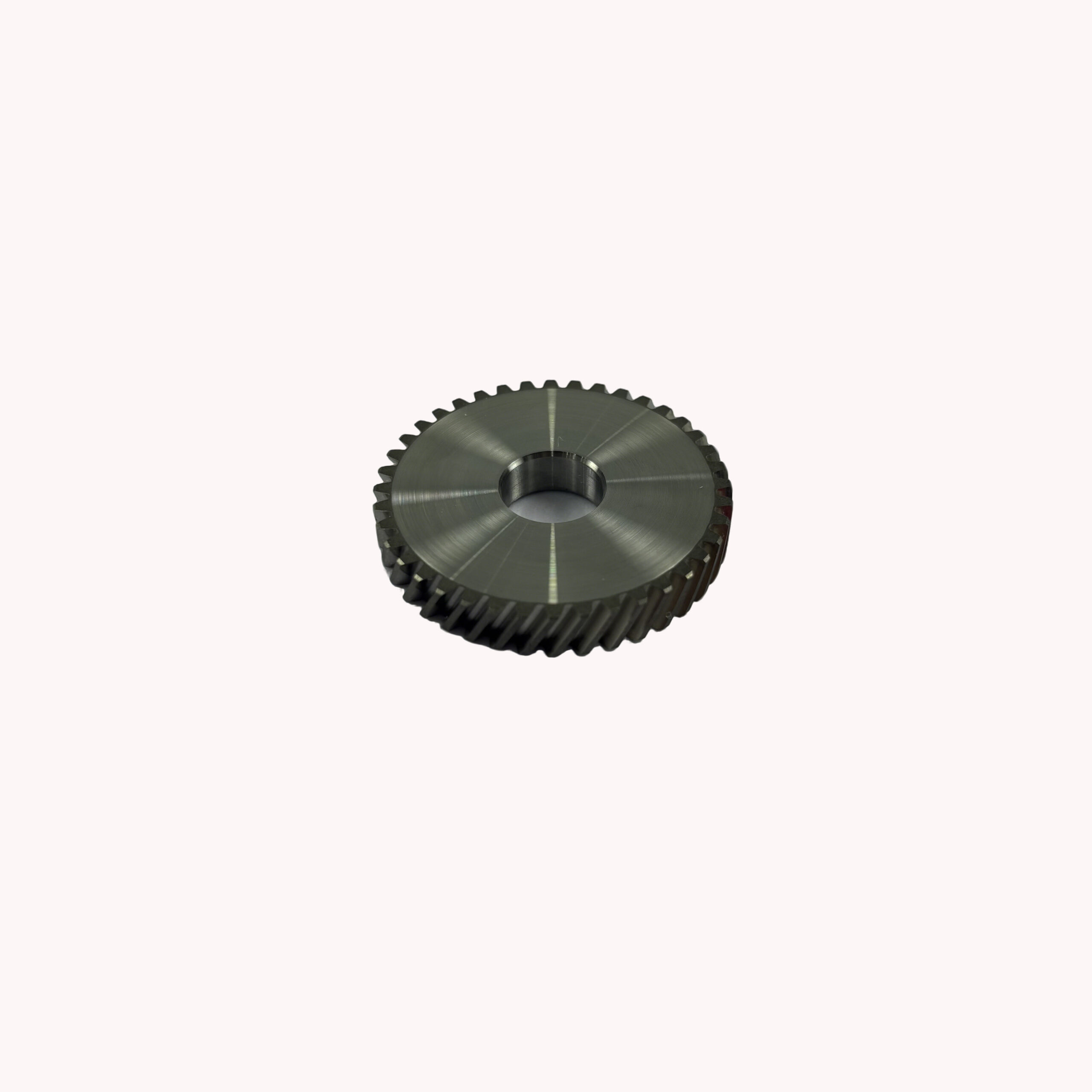

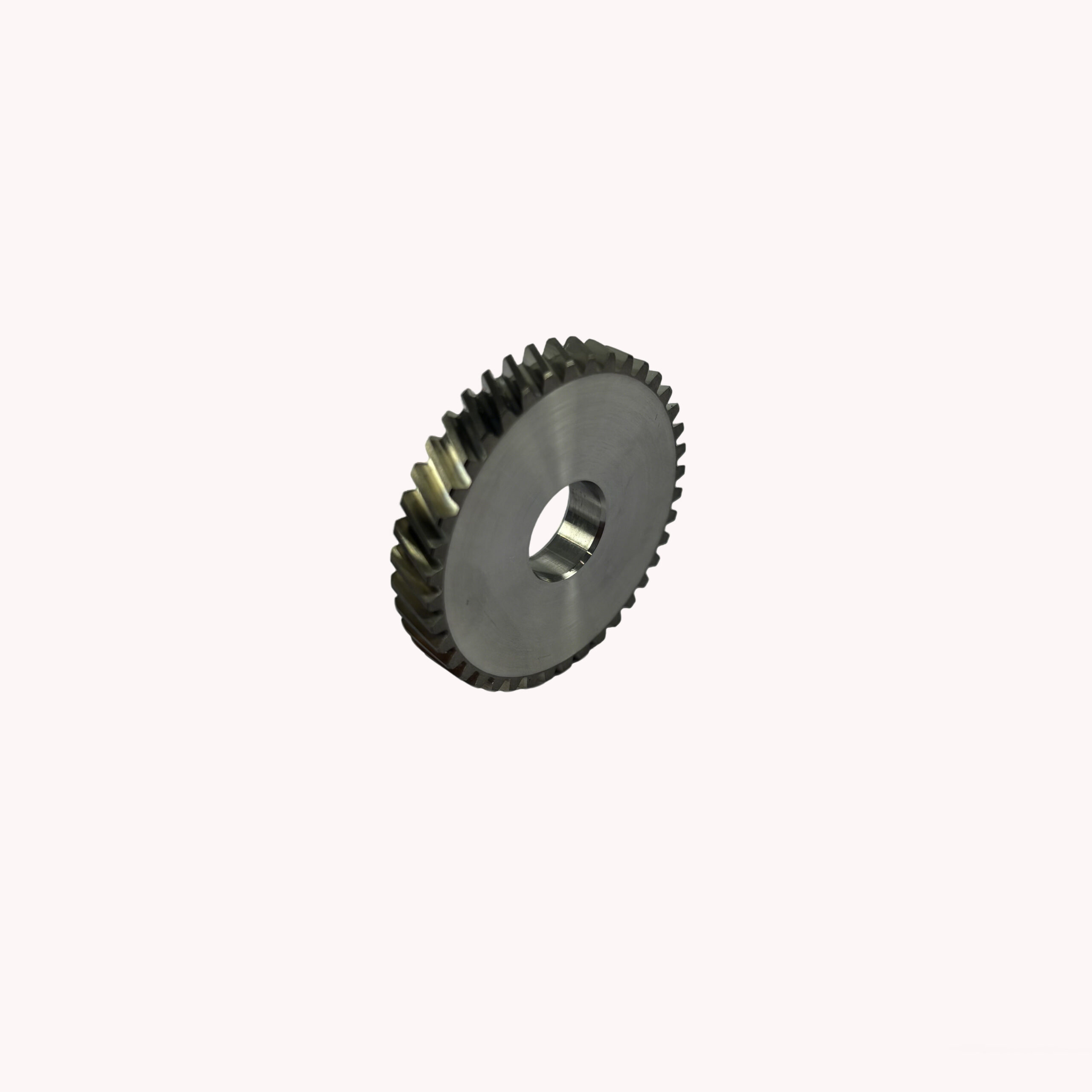

Right-hand helical gear. Parameters: pressure angle 20°, module 0.9, 40 teeth, helix angle 28°(R). Inner diameter 12 mm, outer gear diameter 42.15 mm, overall length 6.5 mm, weight 0.0614 kg. Fabricated from 20CrMo via precision machining and full inspection. Low noise and wear-resistant, suitable for speed reducers.
Description
RJ-047-C (J80610206, C_IG_G-18-1.5 Helical Gear)
Model RJ-047-C is a right-hand helical gear. It features a pressure angle of 20°, module 0.9, 40 teeth and a right-hand helix angle of 28°. The inner diameter is 12 mm, outer gear diameter 42.15 mm, overall length 6.5 mm, and unit weight 0.0614 kg. Made of 20CrMo alloy steel, it is stable and durable. The manufacturing procedures include cutting, turning, rough hobbing, heat treatment, hanging shot blasting, rough boring, chamfering, finish boring, facing, gear grinding and full visual inspection. With high tooth precision, it runs stably with low noise and is applied to speed reducers.
Additional information
| RJ-047-C weight |
0.0614 |
|---|---|
| RJ-047-C Core Components |
gear |
| RJ-047-C Craftsmanship |
Hobbing |
