FP22999704-075-3 Gear Shaft and FP22999704-075-3 Gear
$395.44piece

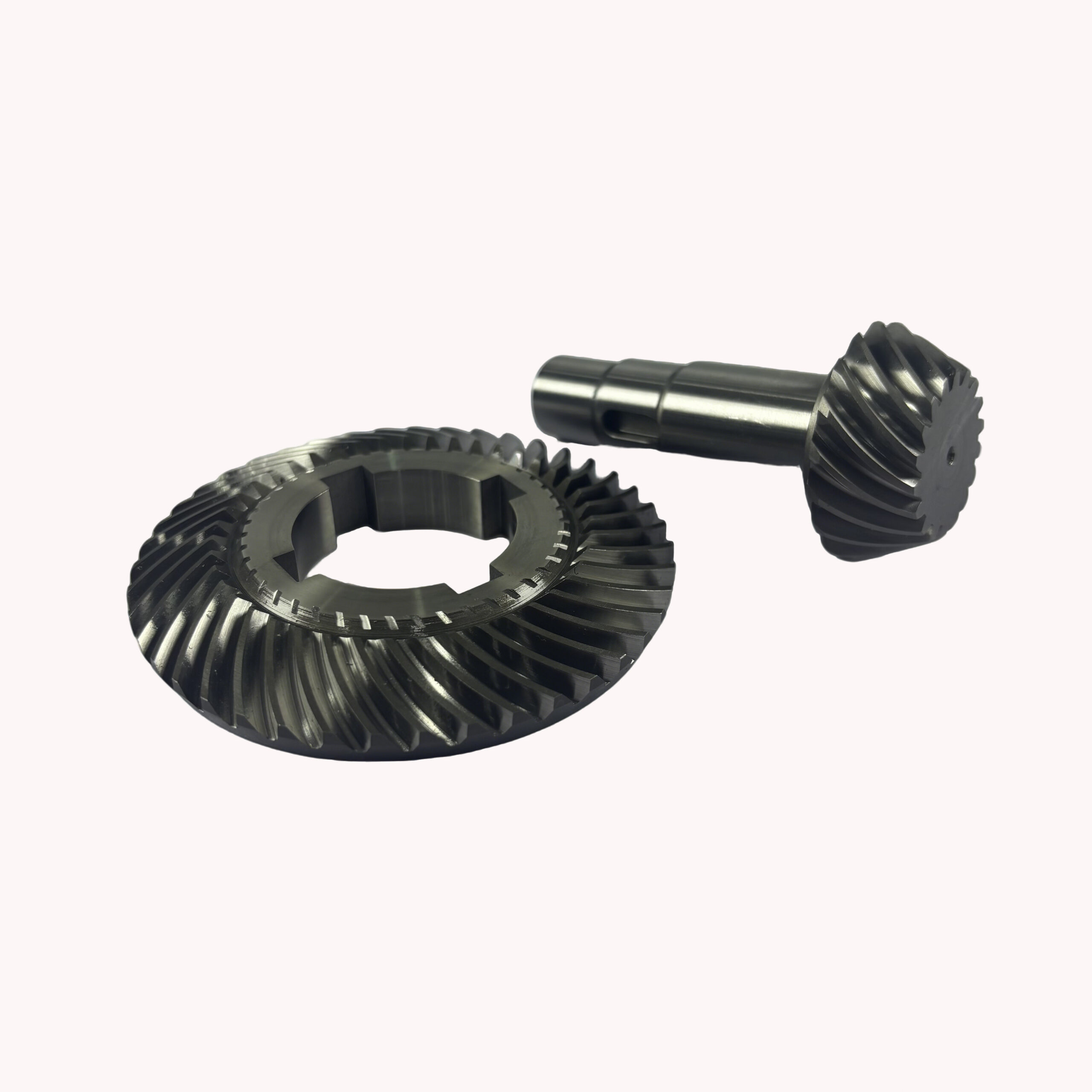

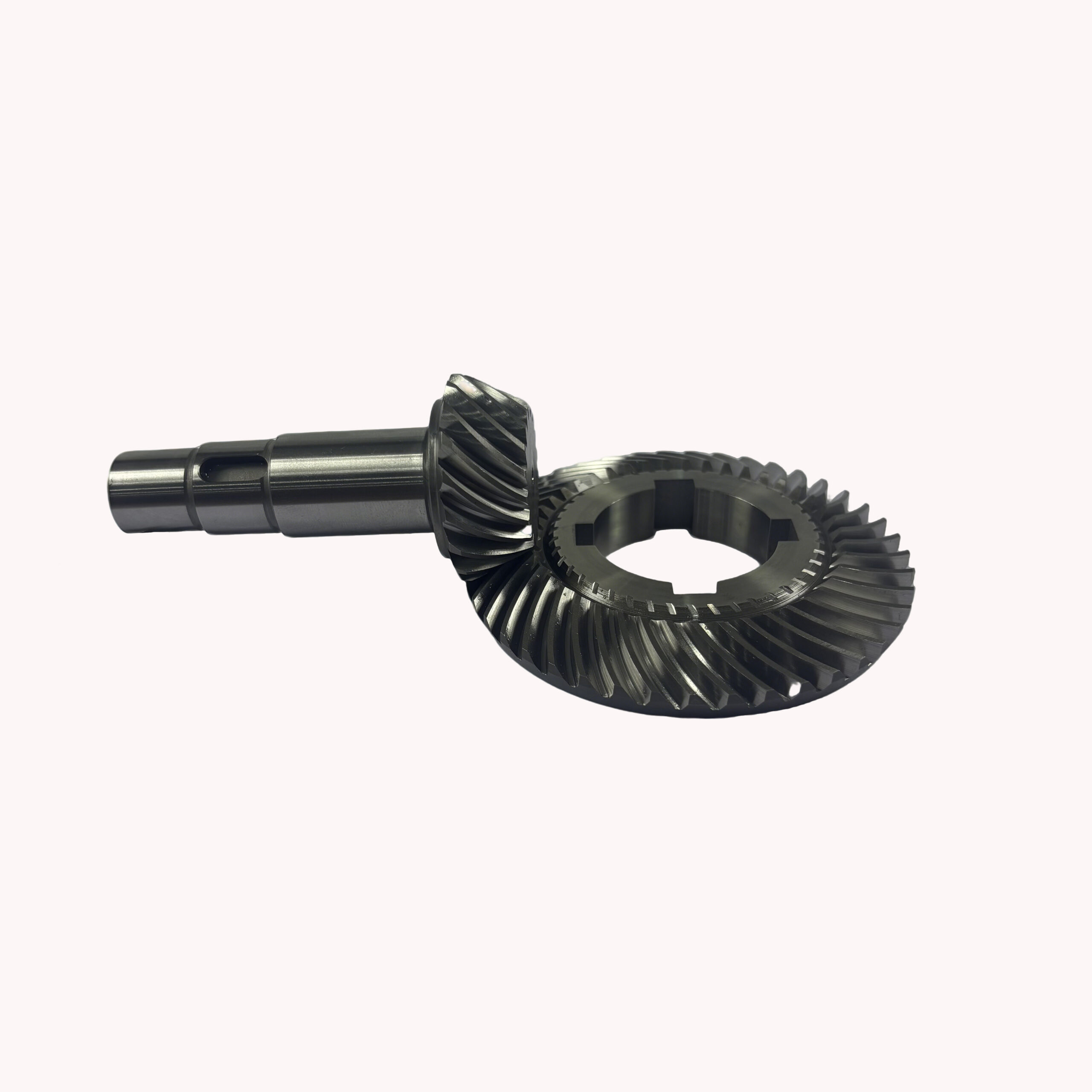

FuShi-001-C (FP22999704-075-3 left-hand spiral bevel gear shaft) and FuShi-002-C (FP22999704-075-3 right-hand spiral bevel gear) are a pair of 20CrMo reducer gear set.
With 20° pressure angle and module 2, they are designed with 18 teeth / 43 teeth and 35° left/right spiral angle, speed ratio 2.39.
Manufactured through turning, gear milling, heat treatment, shot peening, precision grinding and keyway processing.
The gear set owns high precision, good wear resistance, stable meshing and low noise, widely used for reducer power transmission assembly.
Description
These two matched parts are 20CrMo spiral bevel gear set, including FuShi-001-C (FP22999704-075-3 gear shaft) and FuShi-002-C (FP22999704-075-3 gear), specially applied as transmission components for reducers.

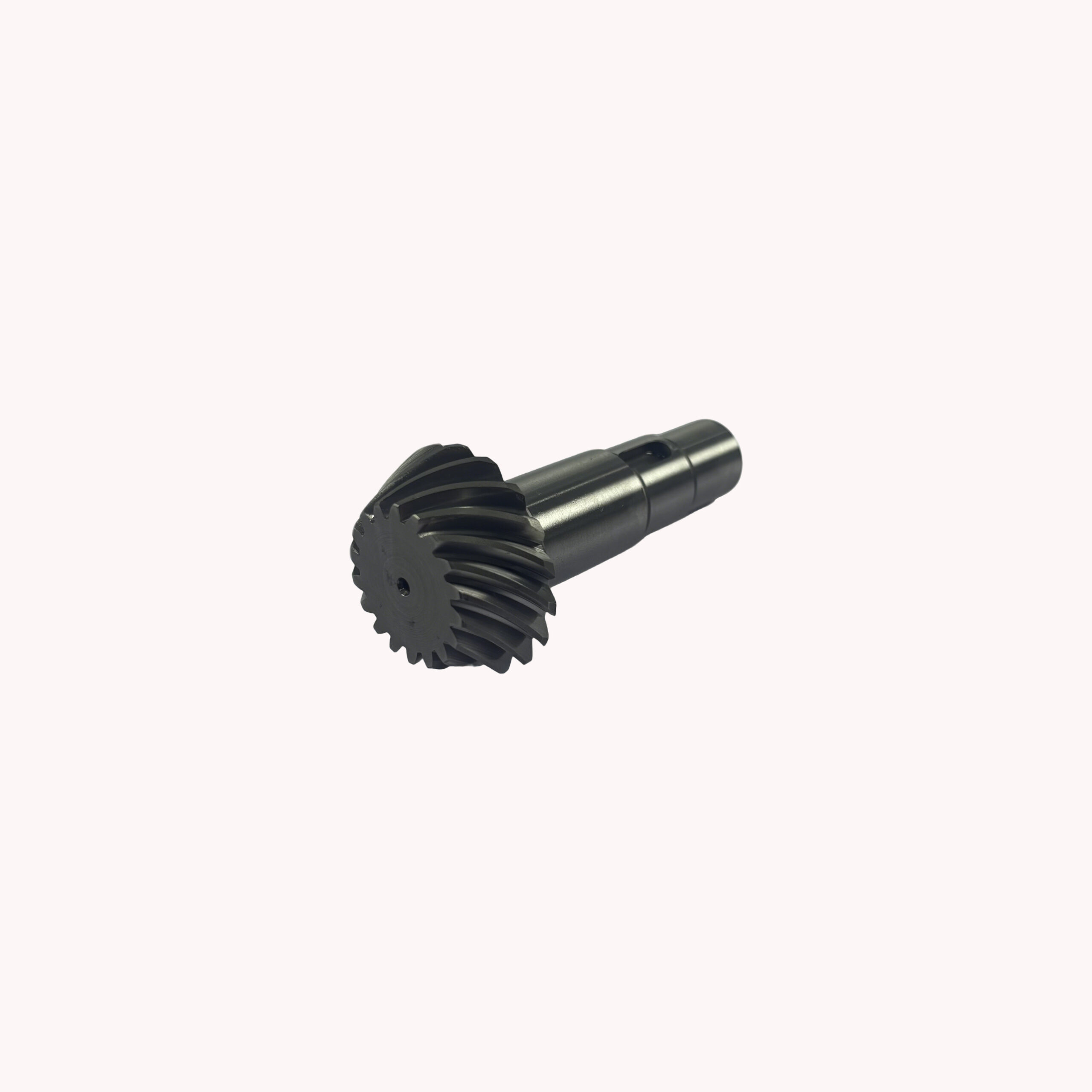

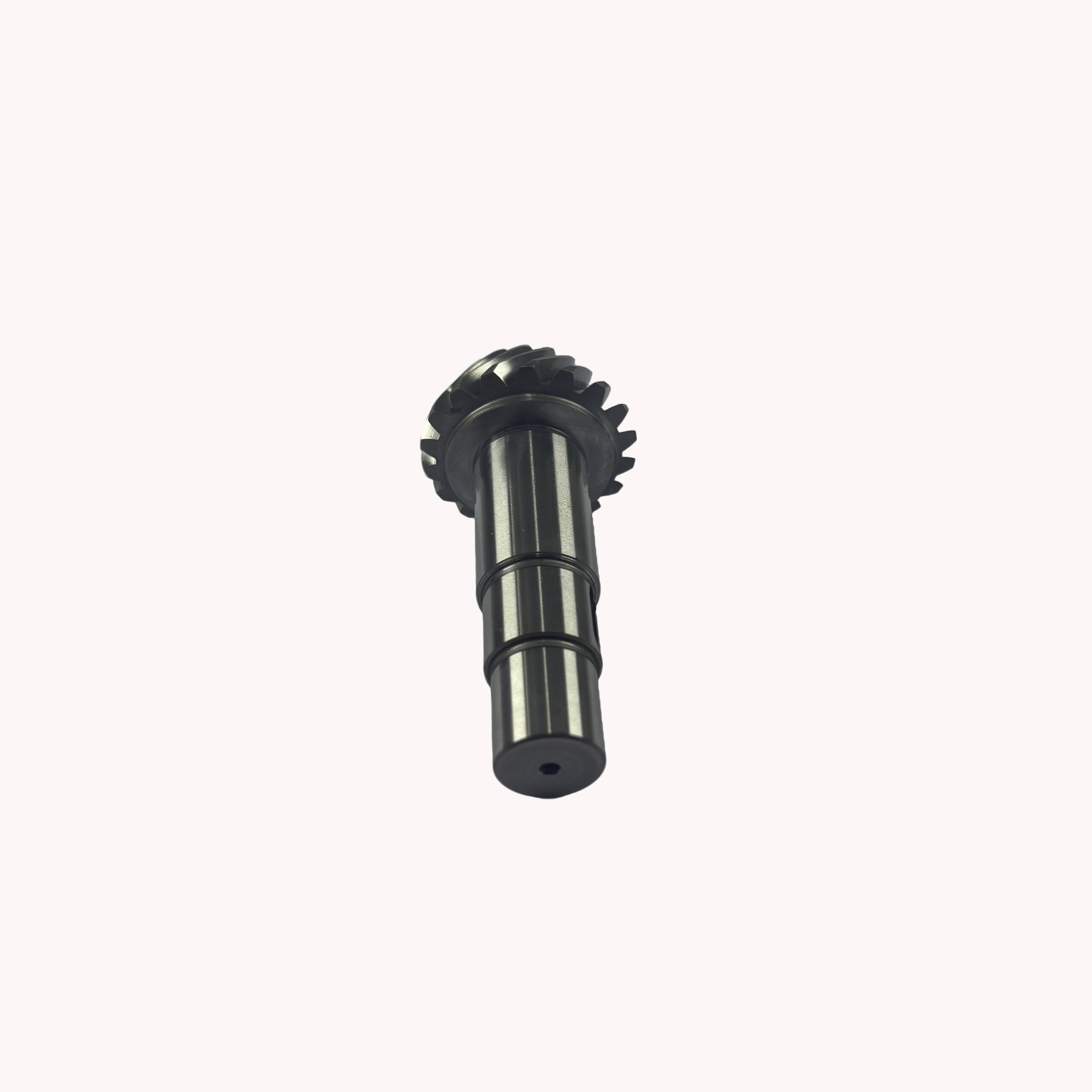

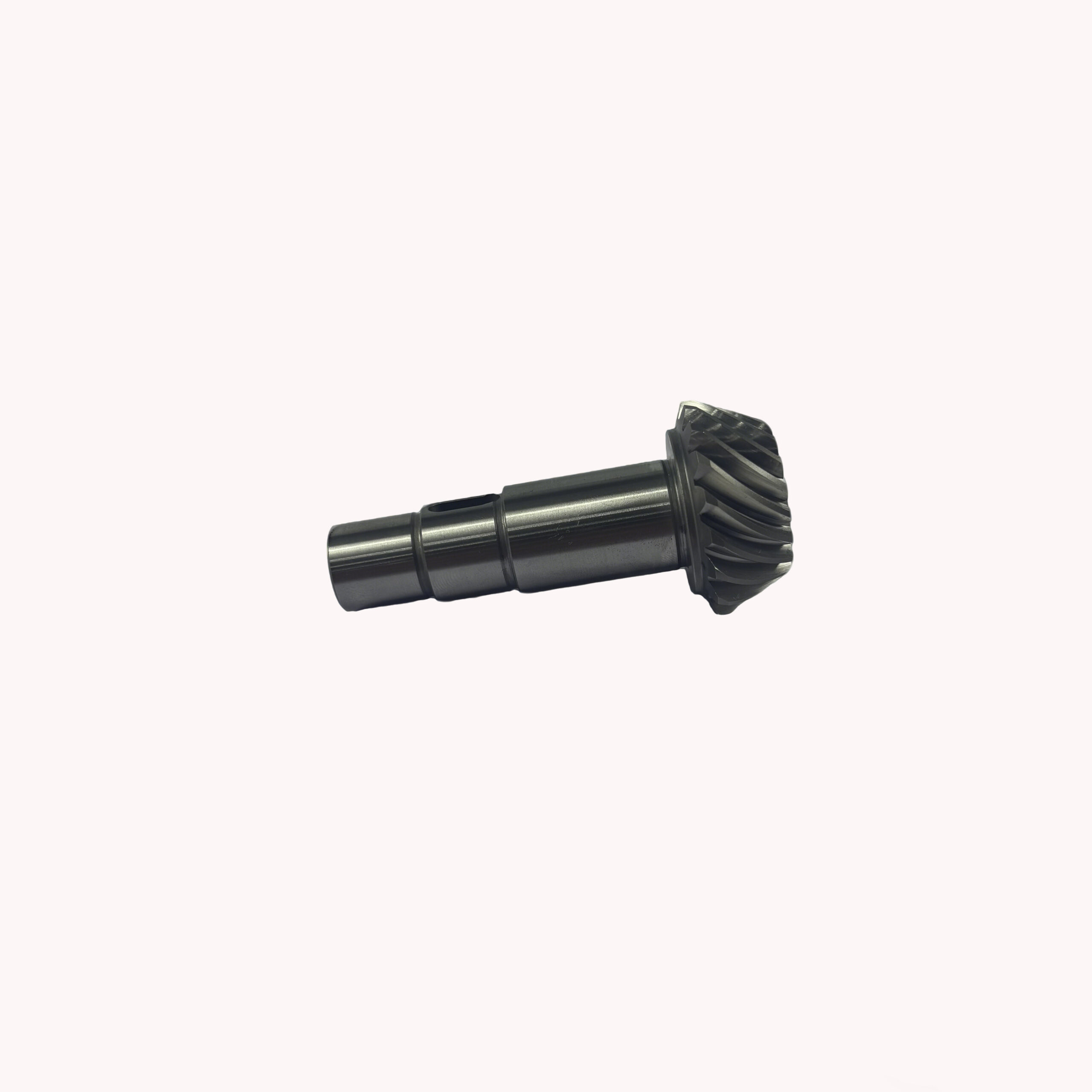

FuShi-001-C FP22999704-075-3 Gear ShaftPressure angle 20°, module 2, number of teeth 18, speed ratio 2.39, spiral angle 35° left-hand, shaft diameter 20mm, gear outer diameter 39mm, overall length 79.82mm, unit weight 0.2380kg.Processing procedure: Sawing → Turning → Rough grinding of clamping position → Keyway machining by machining center → Gear milling → Heat treatment → Hanging shot peening → Outer diameter grinding → Gear grinding.

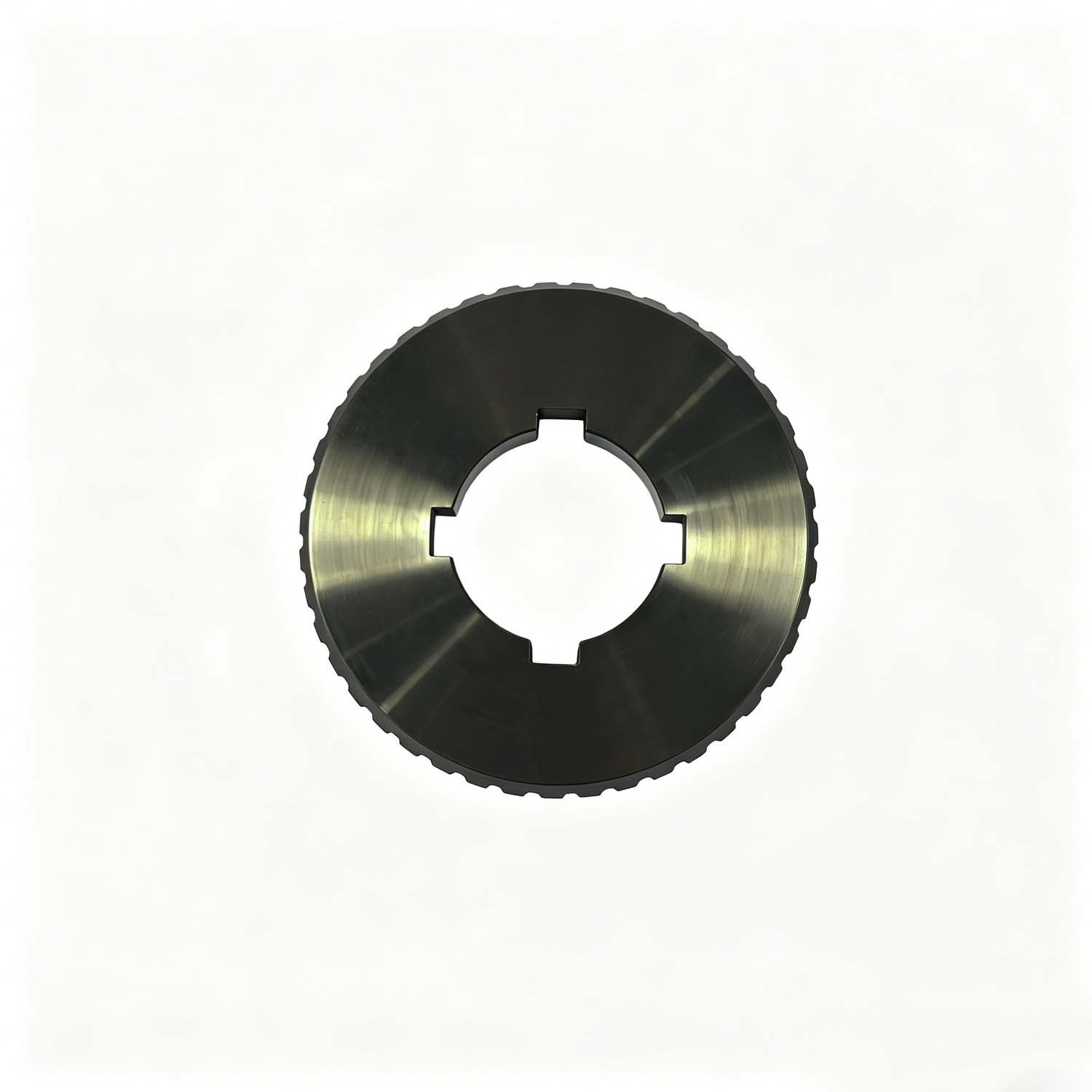

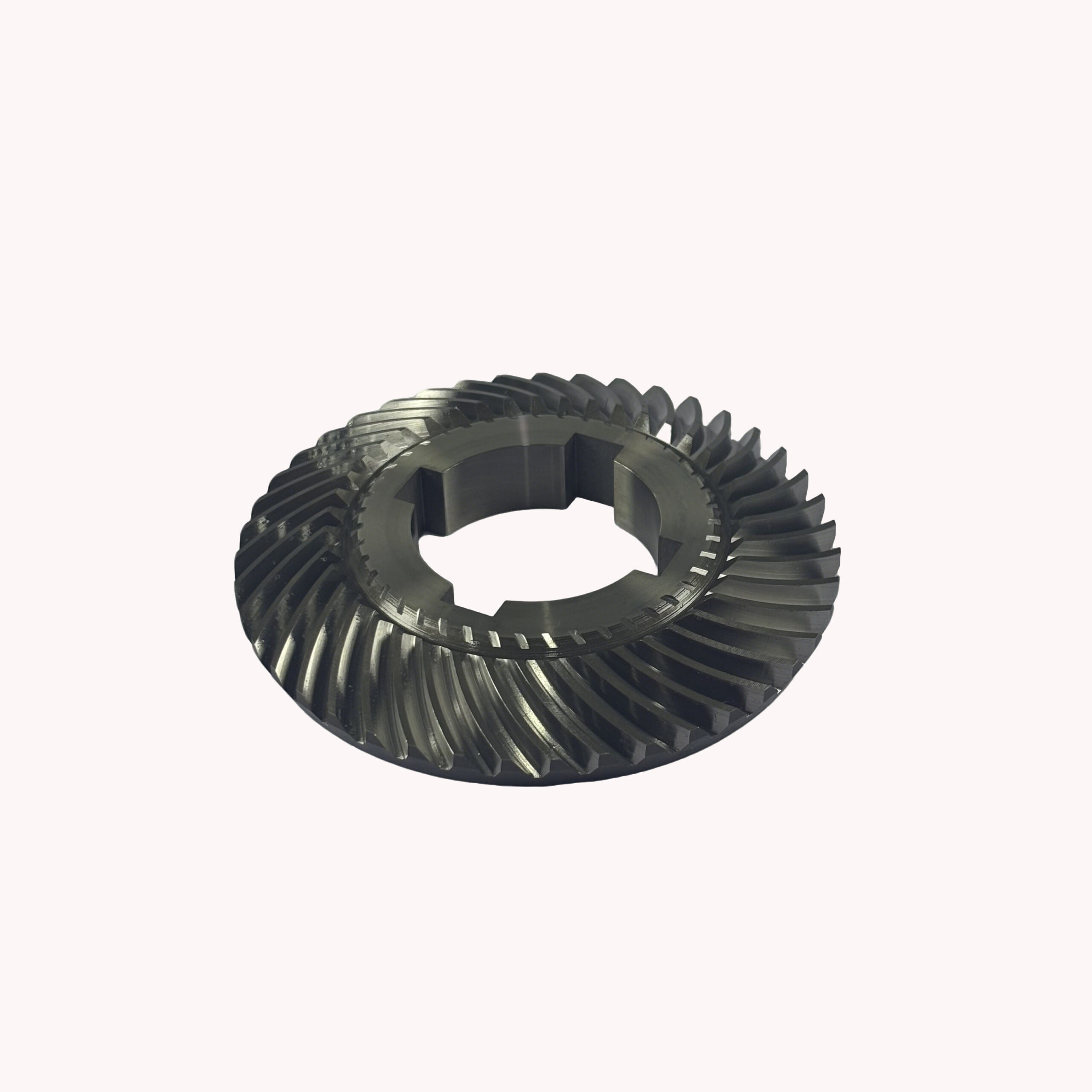

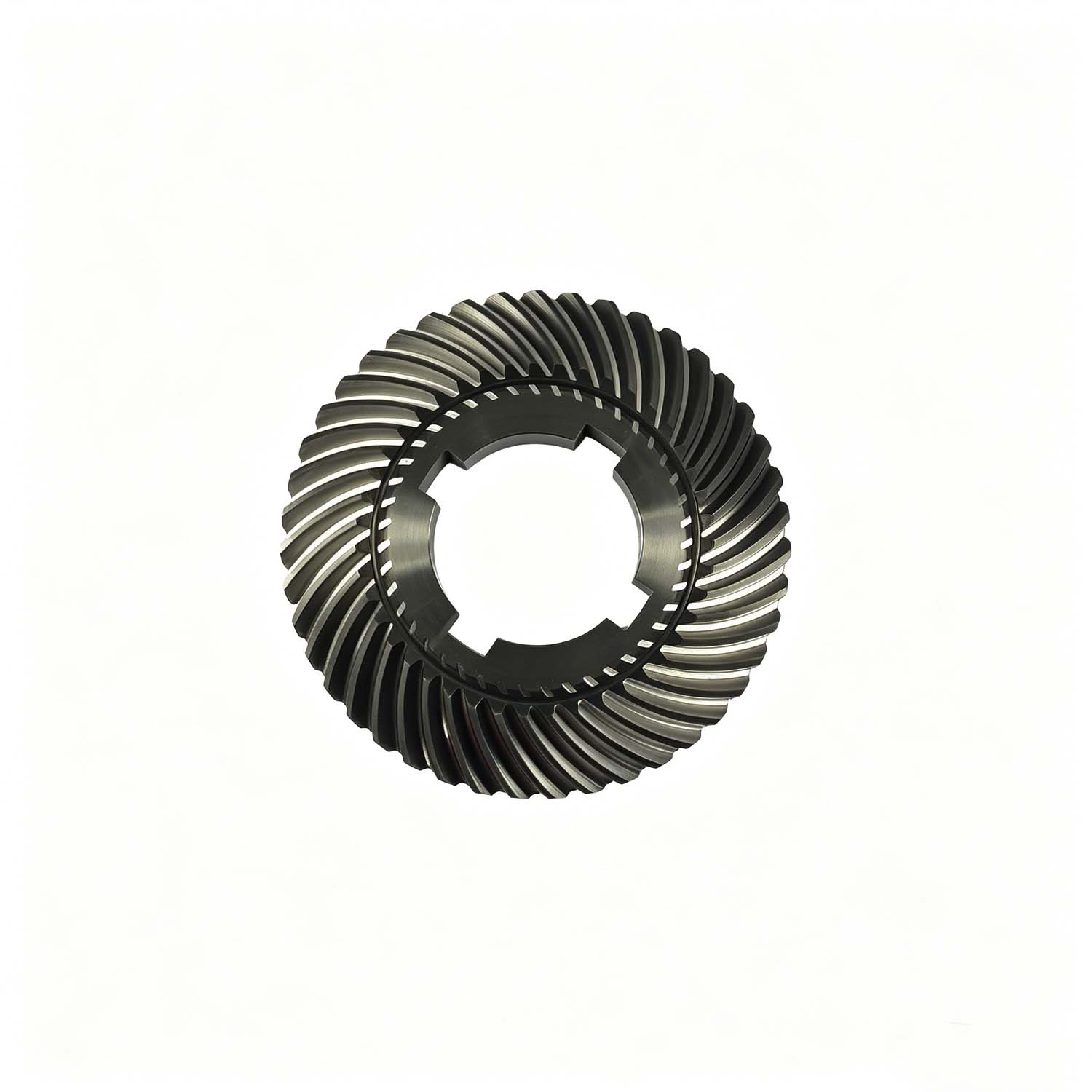

FuShi-002-C FP22999704-075-3 GearPressure angle 20°, module 2, number of teeth 43, spiral angle 35° right-hand, inner diameter 35mm, gear outer diameter 85.5mm, overall length 12.32mm, unit weight 0.3394kg.Processing procedure: Sawing → Turning → Gear milling → Heat treatment → Hanging shot peening → Boring & facing → Re-turning → Gear grinding → Wire-cut keyway.
Both products are made of 20CrMo alloy steel with good wear resistance, fatigue resistance and mechanical strength. After professional heat treatment, the gear tooth hardness is greatly improved for longer service life. Features high tooth profile accuracy, smooth transmission, low noise and excellent durability, perfectly matched for power transmission of reducers and ensure long-term stable operation of industrial equipment.
Additional information
| FuShi-001-C and FuShi-002-C weight |
0.2380 and 0.3394 |
|---|---|
| FuShi-001-C and FuShi-002-C Core Components |
gear |
| FuShi-001-C and FuShi-002-C Craftsmanship |
Milling |
