F142XF142-10-18 Left-Hand Bevel Gear, Gear Grinding
$14.56piece

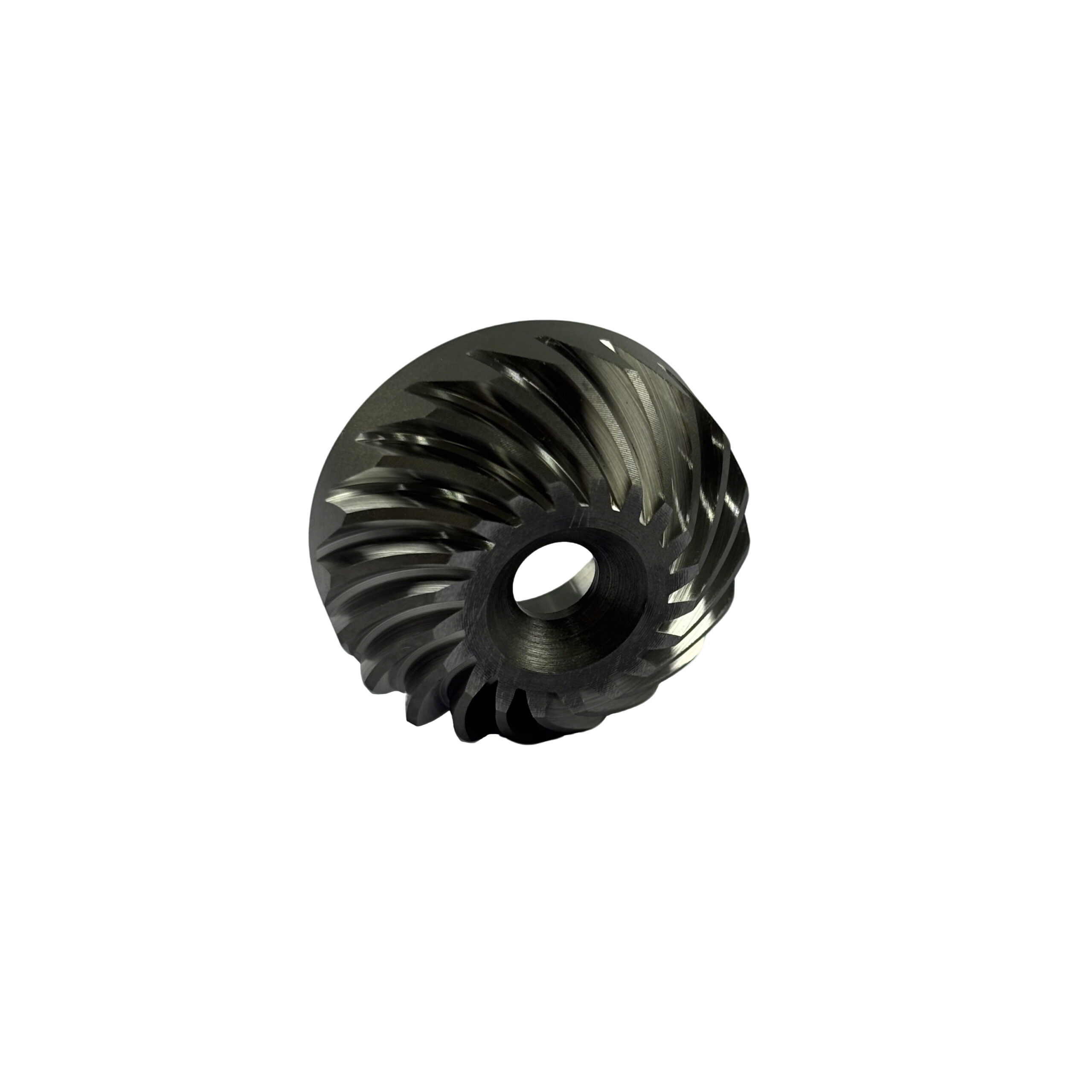

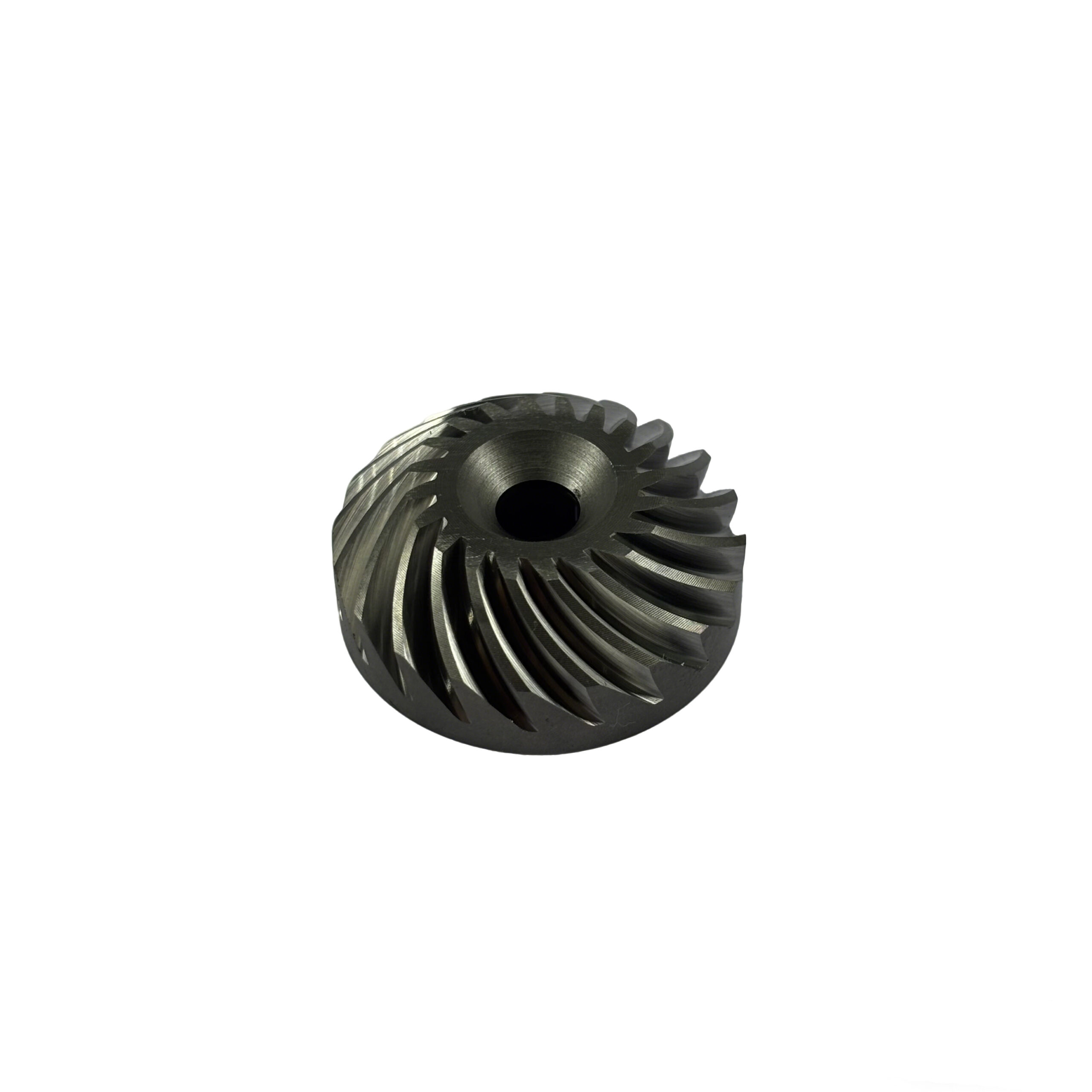

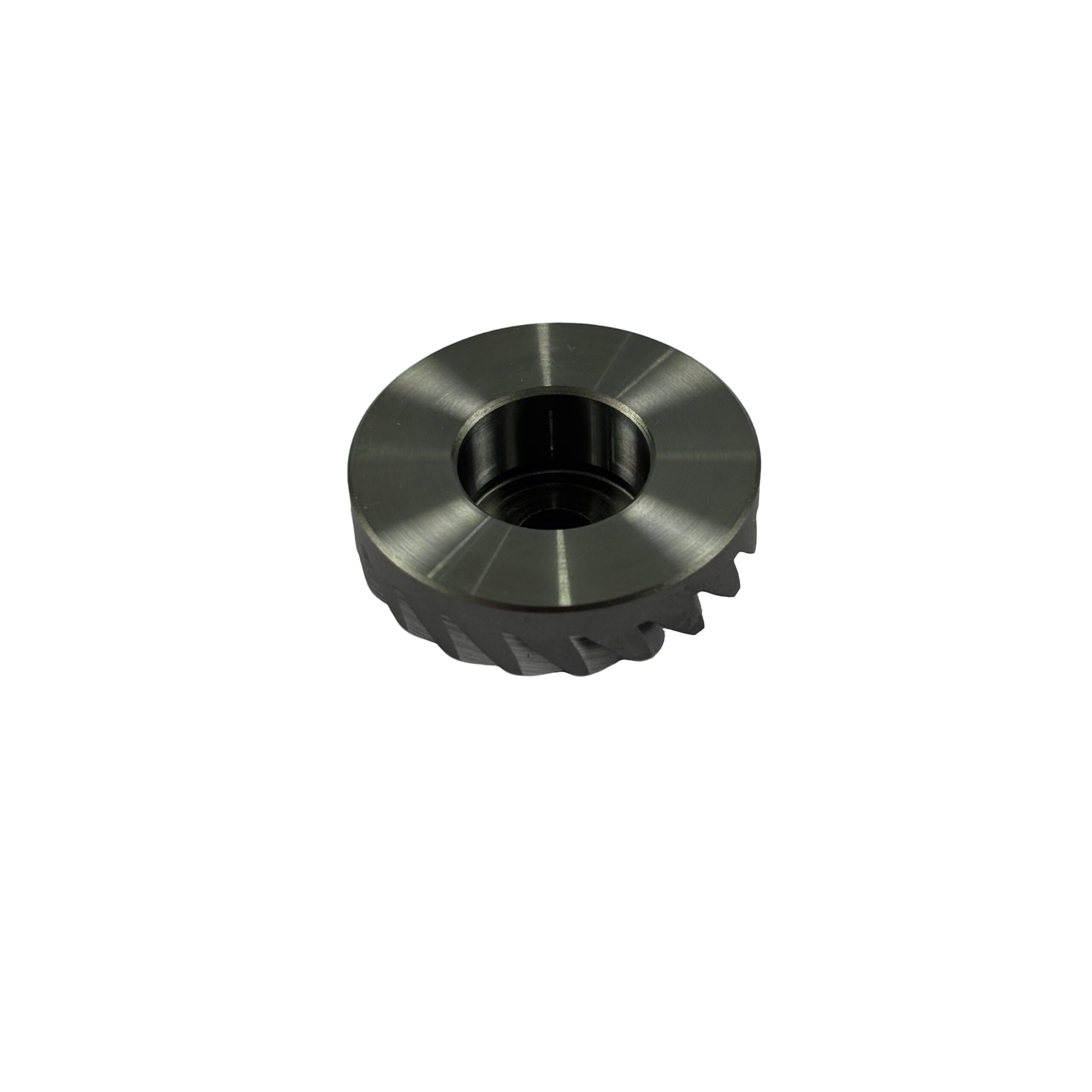

CL-003-C1 is a 20CrMo left-hand spiral bevel gear, model F142XF142-10-18.
Parameters: 20° pressure angle, module 1.5, 20 teeth, speed ratio 1, 35° left-hand spiral angle.
Processed by sawing, turning, gear milling, heat treatment, shot peening and precision gear grinding. With high precision and good wear resistance, it is an ideal transmission part for reducers.
Description
Model CL-003-C1 is a F142XF142-10-18 left-hand ground spiral bevel gear, specially used for reducer transmission.
Technical parameters: Pressure angle 20°, module 1.5, number of teeth 20, speed ratio 1, spiral angle 35° left-hand, inner diameter 15mm, gear outer diameter 32mm, overall length 12.6mm, unit weight 0.0499kg.
Made of 20CrMo alloy steel. Manufacturing process: Sawing → Turning → Gear milling → Heat treatment → Hanging shot peening → Boring & facing → Gear grinding.
It features high tooth profile accuracy, excellent wear resistance and stable transmission performance, widely applied as matching gear for reducers.
Additional information
| CL-003-C1 weight |
0.0499 |
|---|---|
| CL-003-C1 Core Components |
gear |
| CL-003-C1 Craftsmanship |
Milling |
