JY-FZ-T27 Input Power Head Gear
$10.92

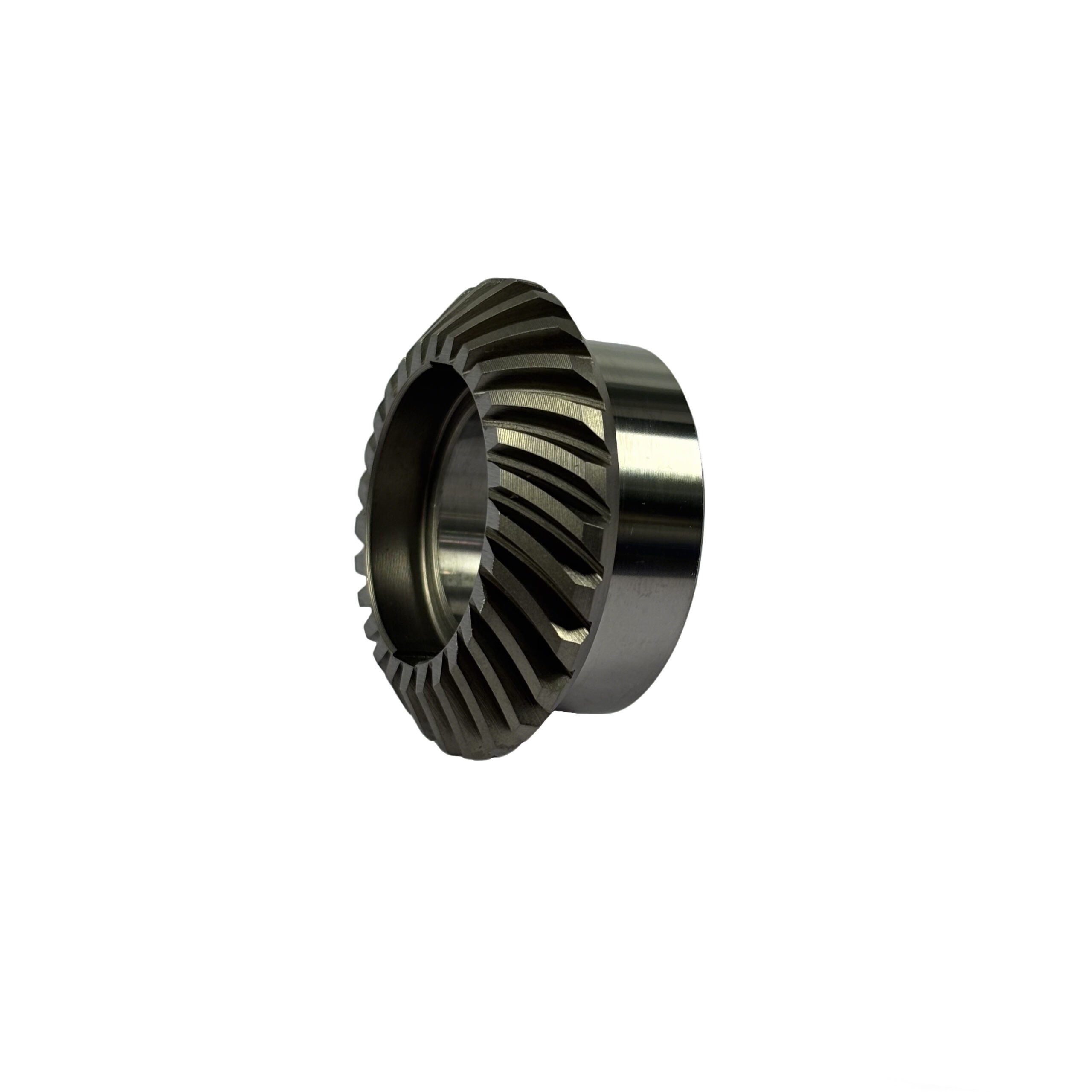

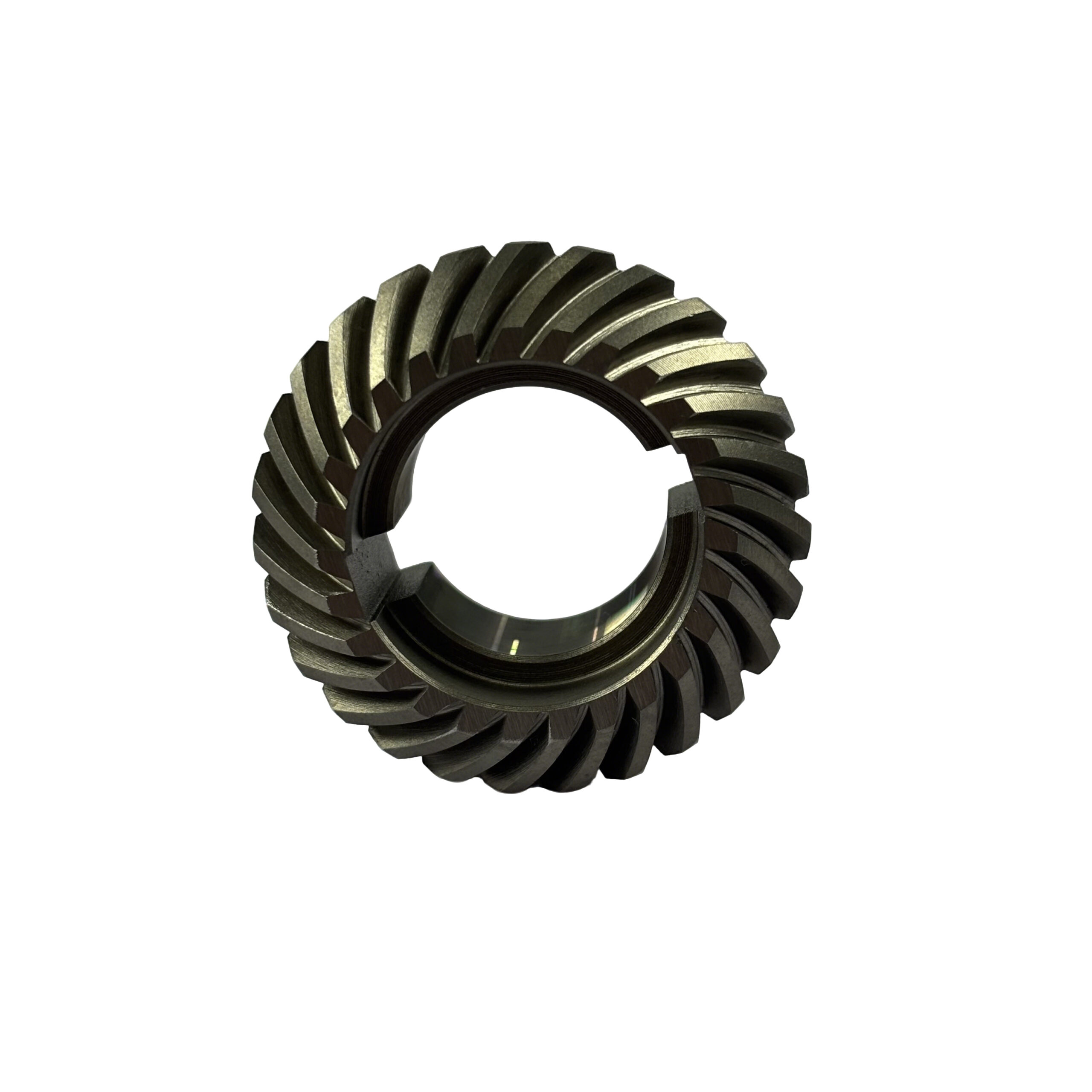

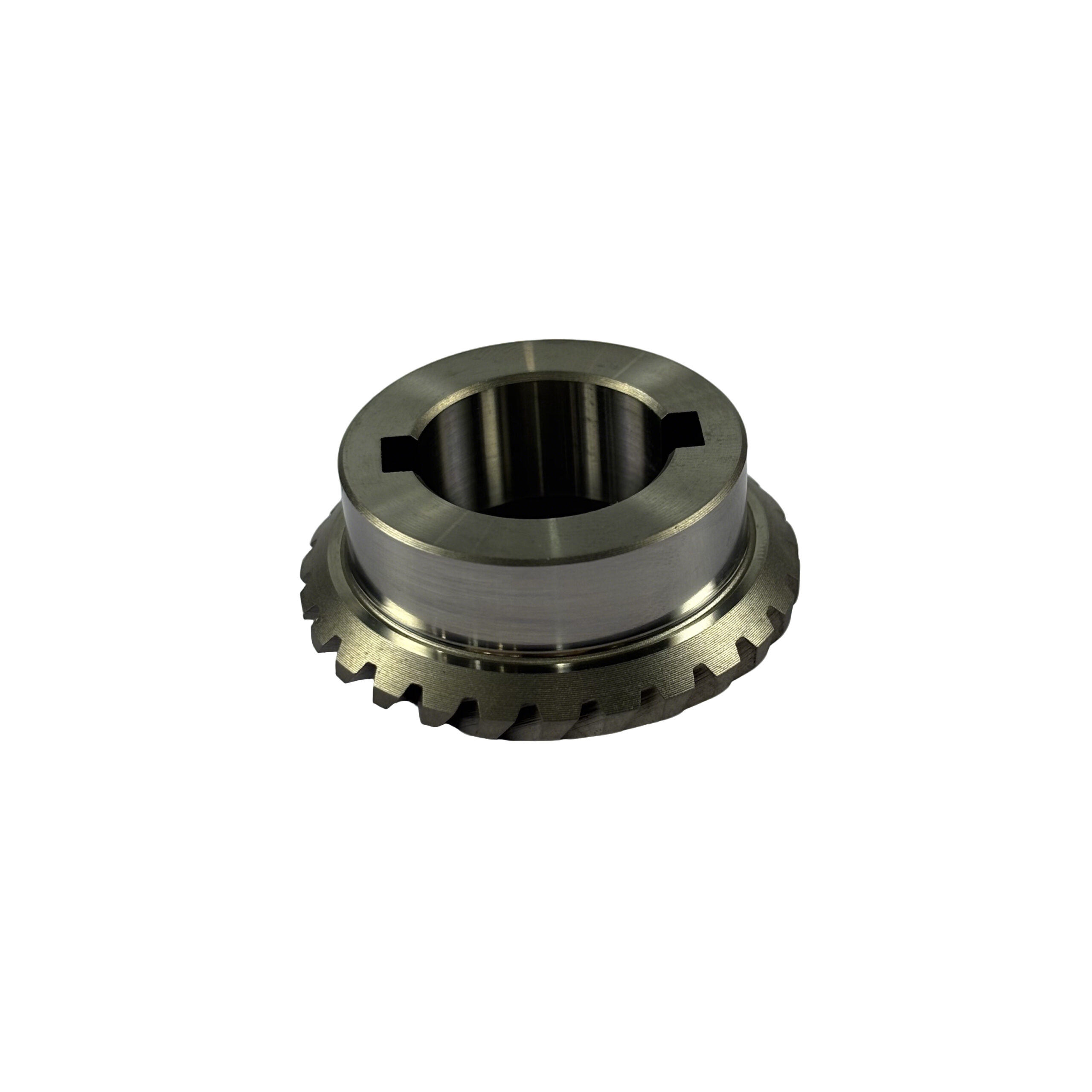

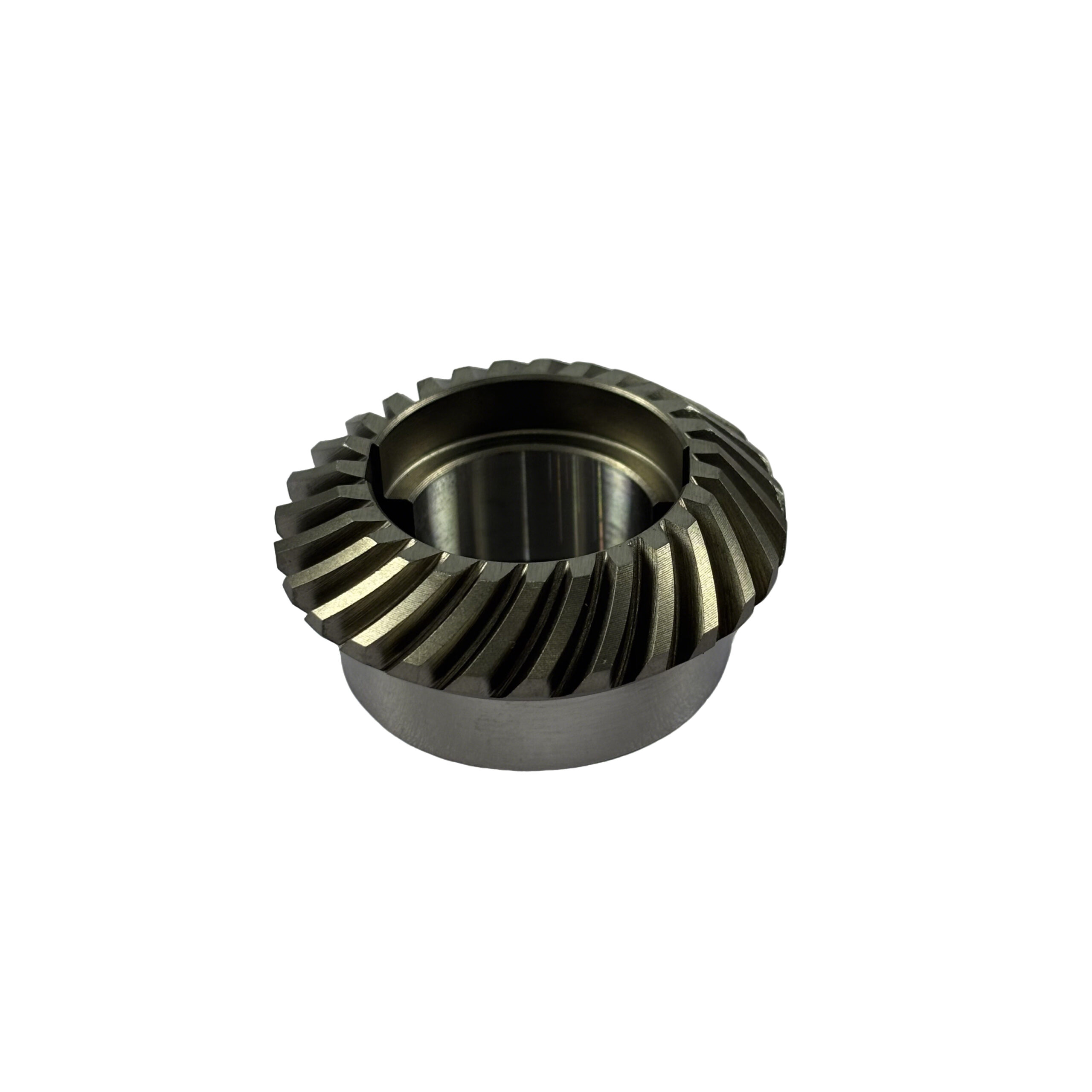

FZ-002-C is JY-FZ-T27 left-hand input power head spiral bevel gear for sewing equipment.
Parameters: 20° pressure angle, module 1.5, 27 teeth, speed ratio 1, 35° left-hand spiral angle.
Made of 20CrMo, processed by turning, gear milling, heat treatment, shot peening, wire-cut keyway and precision grinding.
It has high precision, good wear resistance and stable transmission, ideal for power head transmission of sewing machines.
Description
Model FZ-002-C is JY-FZ-T27 Input Power Head Spiral Bevel Gear, specially used for transmission matching of sewing equipment.
Technical parameters: Pressure angle 20°, module 1.5, number of teeth 27, speed ratio 1, 35° left-hand spiral angle, inner diameter 15mm, tooth outer diameter 36mm, overall length 23mm, unit weight 0.0764kg.
Made of 20CrMo alloy steel.
Processing flow: Sawing → Turning → Gear milling → Heat treatment → Hanging shot peening → Wire-cut keyway → Boring, facing & outer diameter turning → Overall length grinding → Gear grinding.
With high tooth profile accuracy, high hardness, excellent wear resistance and fatigue resistance, the gear features smooth meshing and low noise. It is professionally applied to the input transmission of power head for sewing equipment.
Additional information
| FZ-002-C weight |
0.0764 |
|---|---|
| FZ-002-C Core Components |
gear |
| FZ-002-C Craftsmanship |
Milling |
