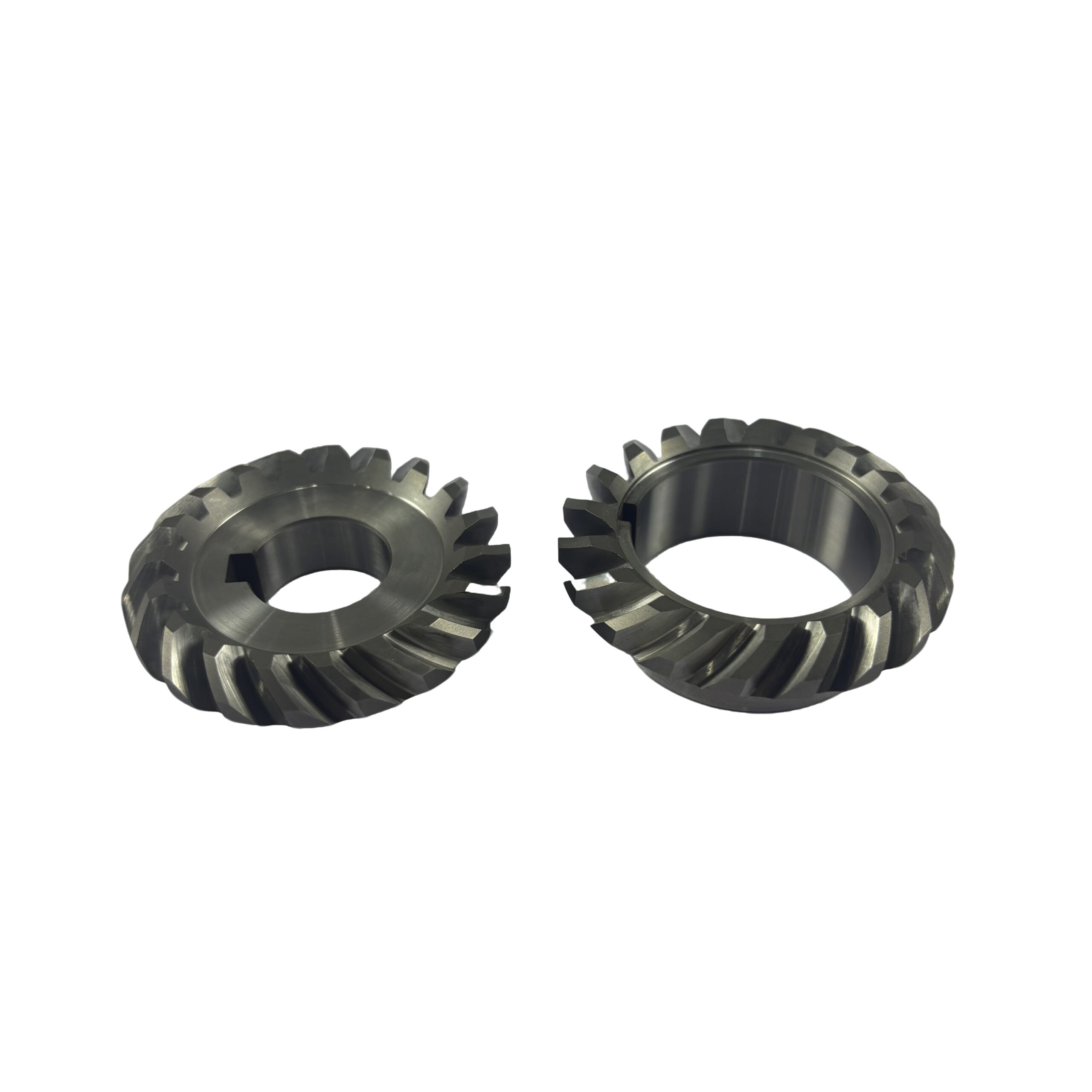

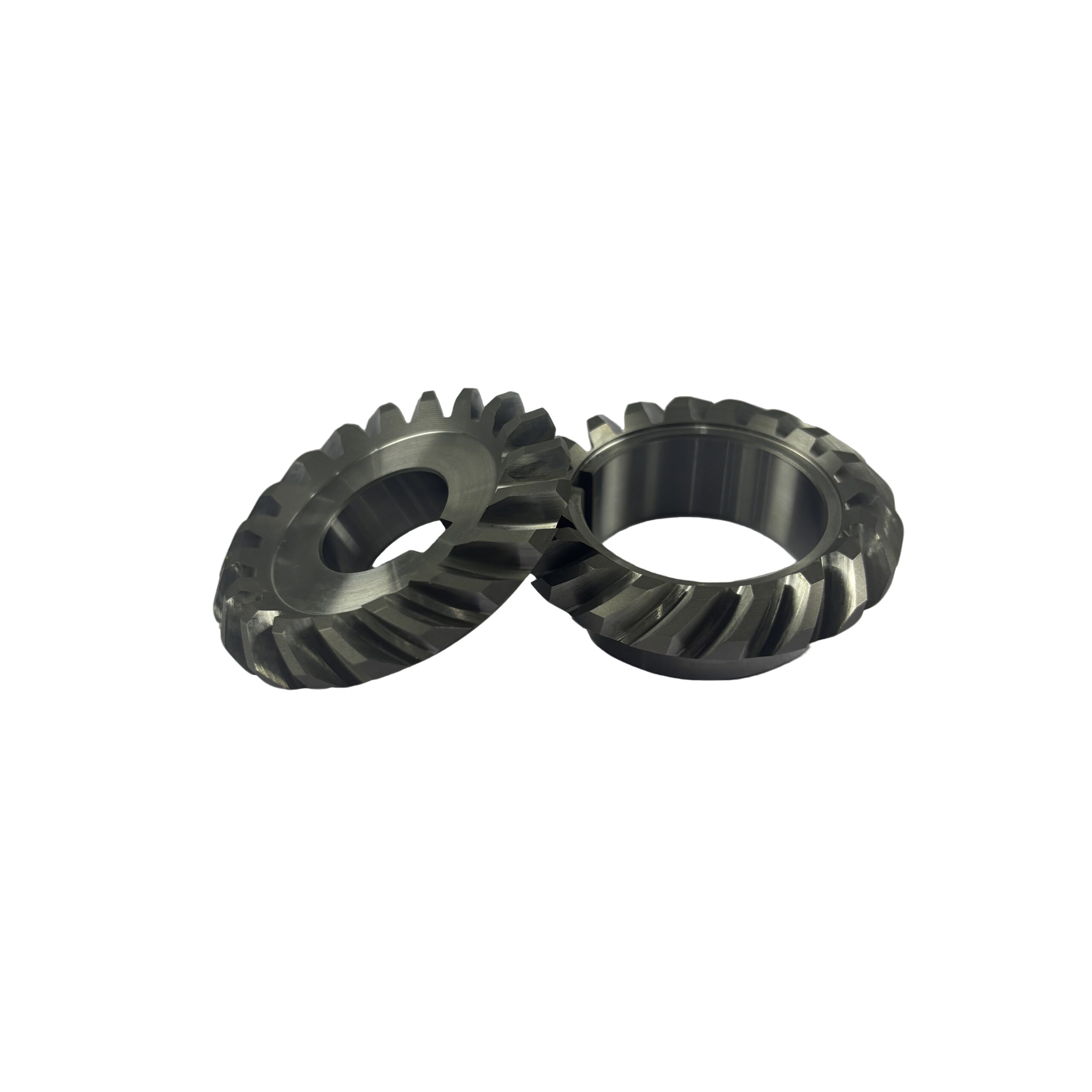

203366 Left Hand Spiral Bevel Gear and 203366 Right Hand Spiral Bevel Gear
$52.40piece
QZ-028-C
Module 2.0705 Left-Hand Spiral Bevel Gear, 20° pressure angle, 19 teeth, 35°L spiral angle. ID 20mm, OD 55mm, length 14.2mm, weight 0.1155kg. 20CrMo steel, precision processed for power tools.
QZ-029-C
Module 2.0705 Right-Hand Spiral Bevel Gear, 20° pressure angle, 19 teeth, 35°R spiral angle. ID 40mm, OD 55mm, length 18.2mm, weight 0.0966kg. 20CrMo steel, high precision for power tool transmission.
Description

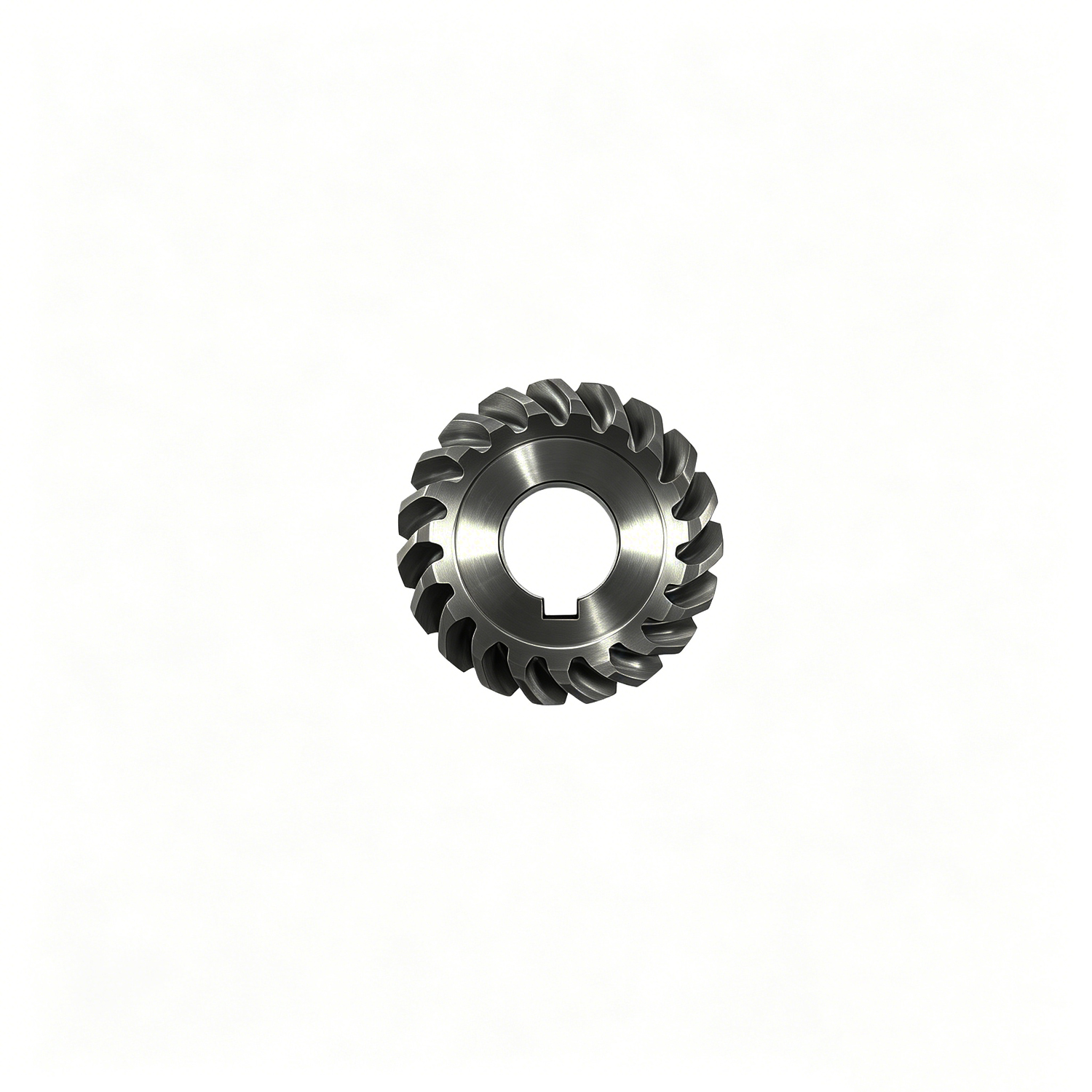

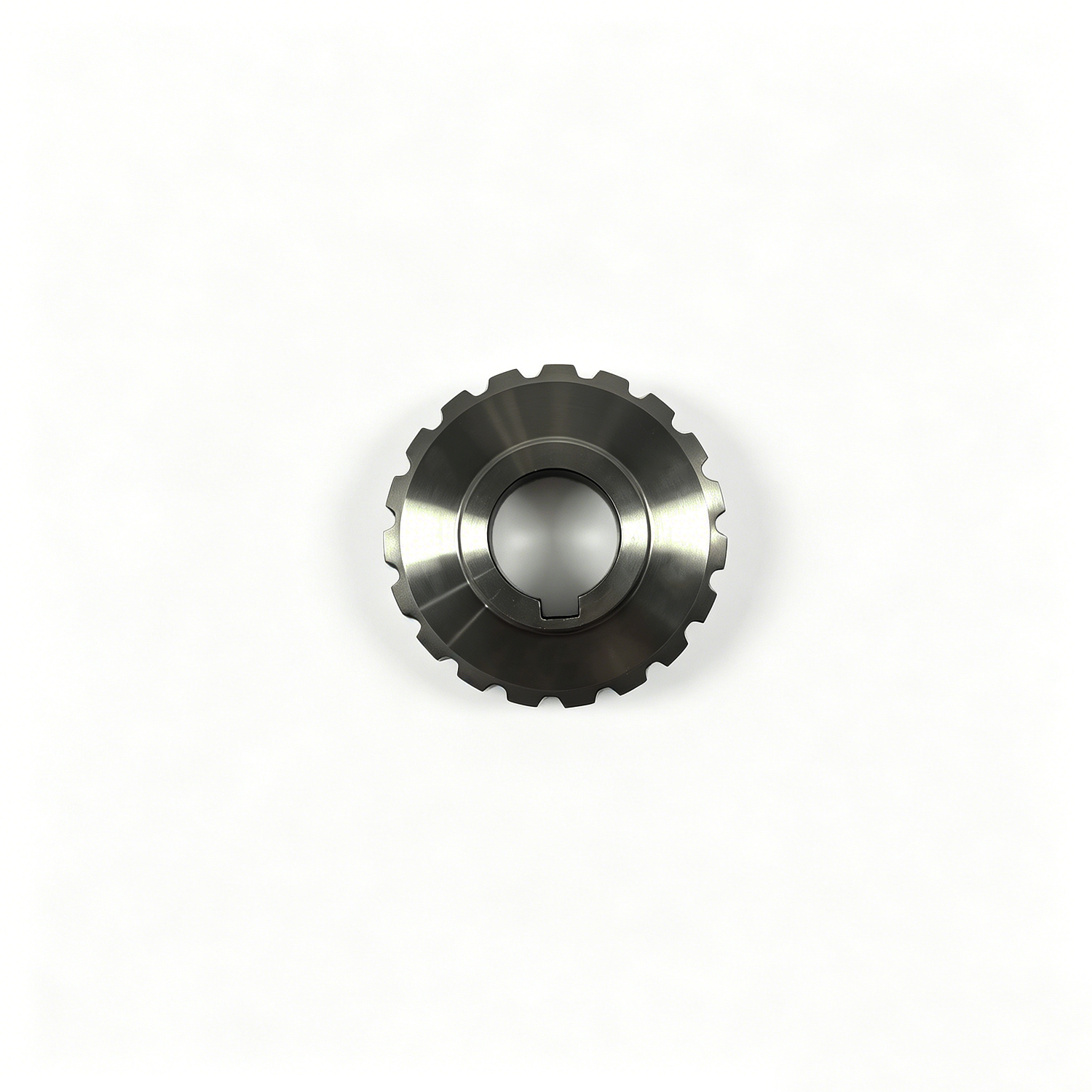

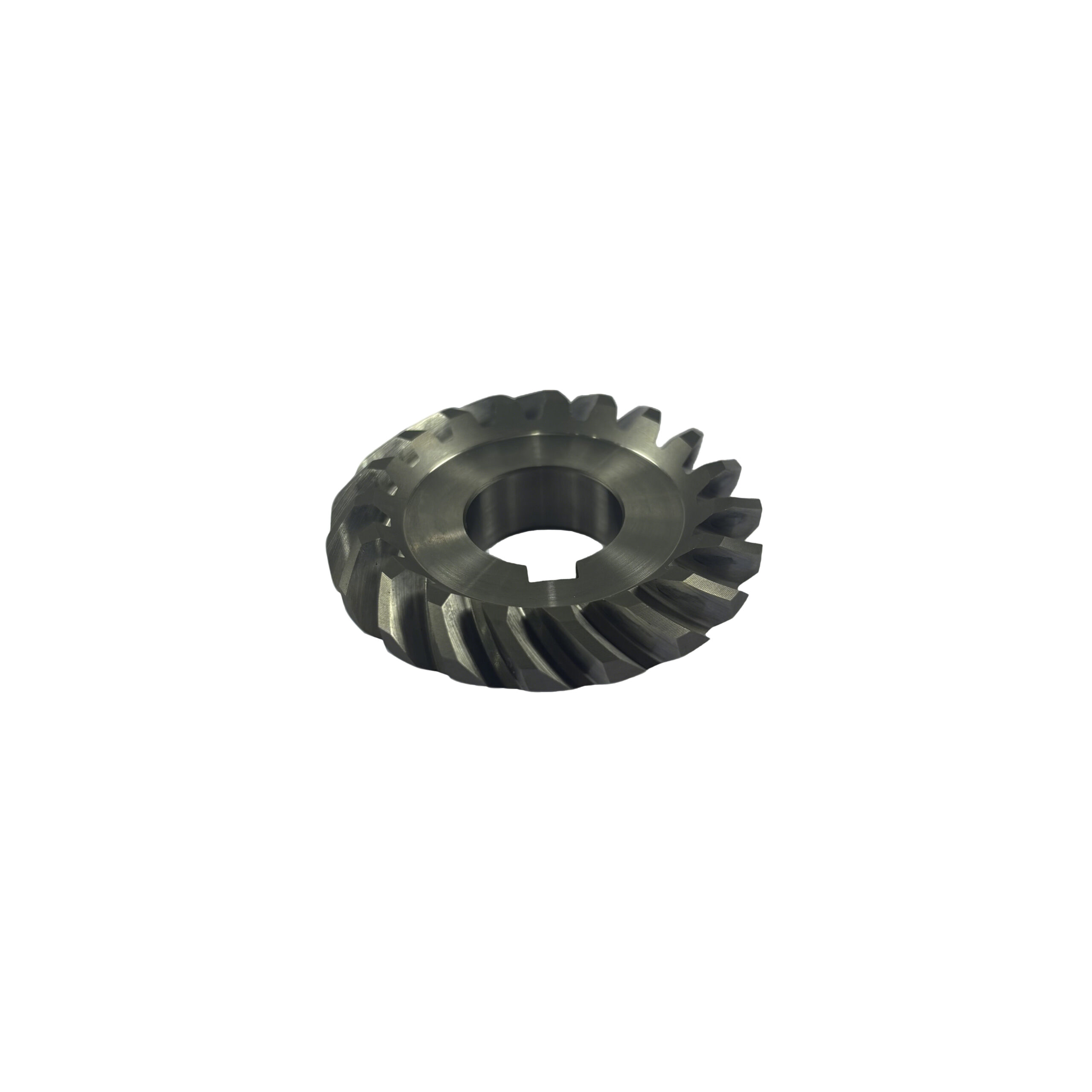

QZ-028-C（203366 Left Hand Gear）
Left-hand spiral bevel gear, pressure angle 20°, module 2.0705, 19 teeth, gear ratio 1, spiral angle 35°L.
Inner diameter 20mm, gear outer diameter 55mm, total length 14.2mm, weight 0.1155kg.
Material: 20CrMo alloy steel.
Process: Sawing, turning, gear milling, heat treatment, hanging shot blasting, boring & facing, length trimming, gear grinding, wire-cut keyway.
Applied for power tool transmission parts.

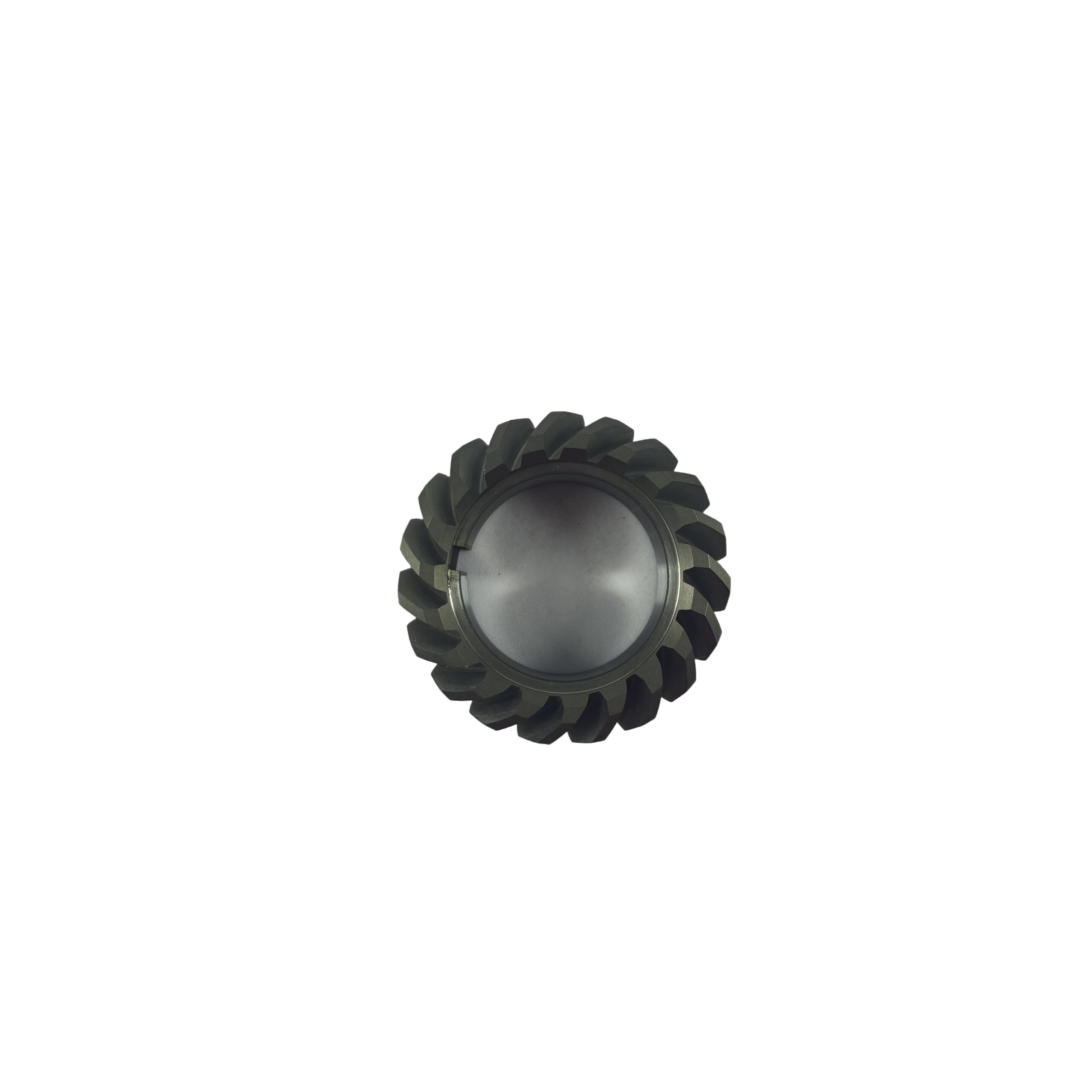

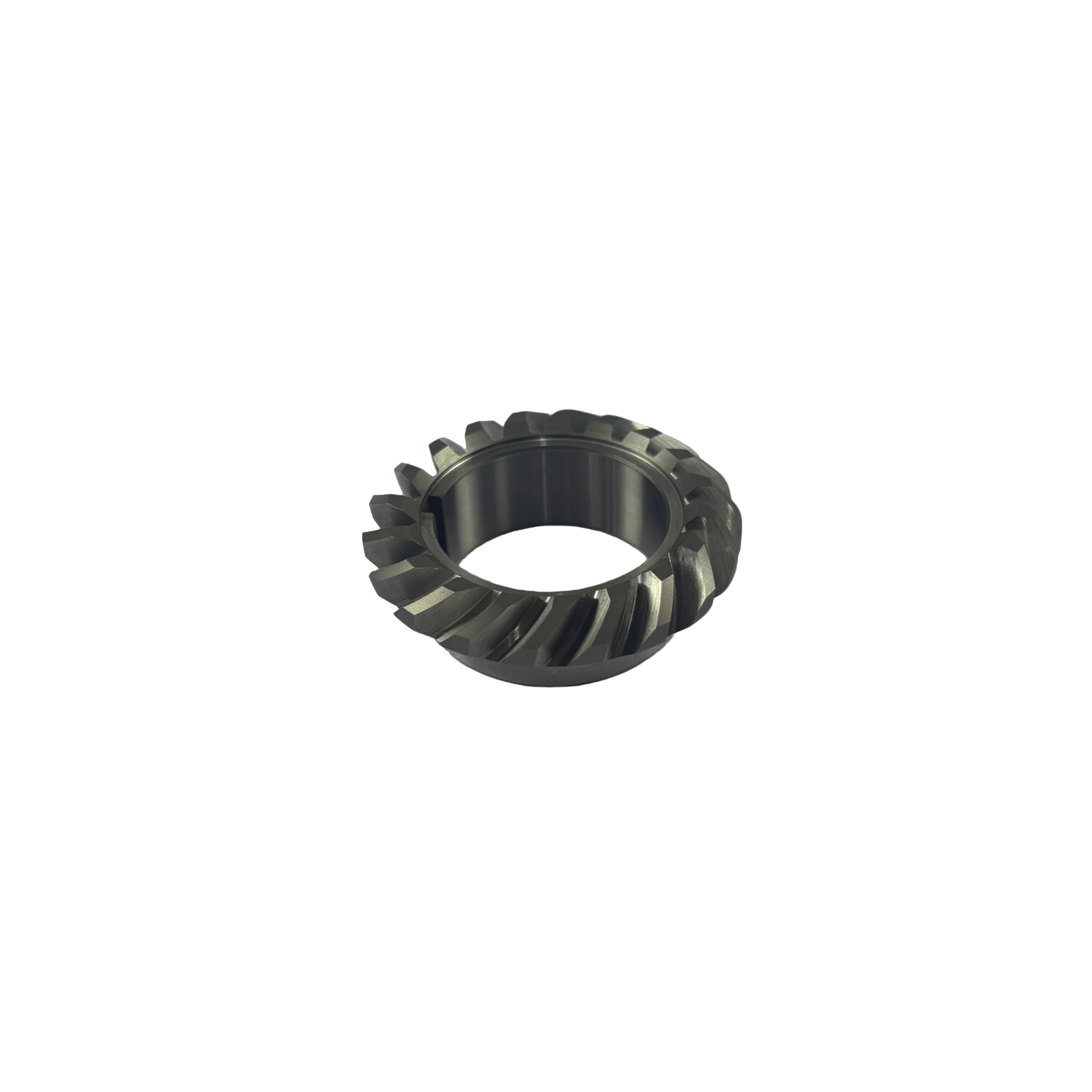

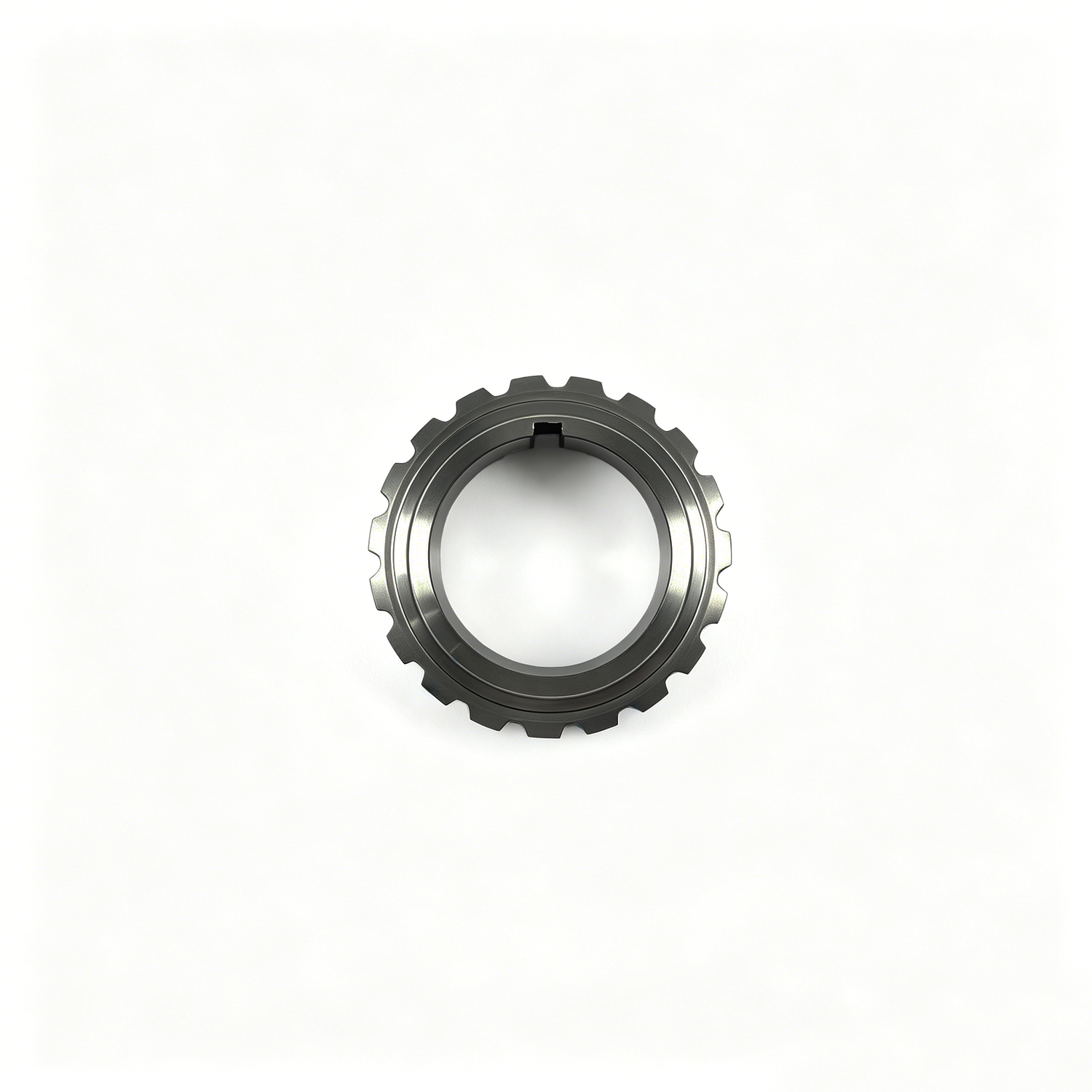

QZ-029-C（203366 Right Hand Gear）
Right-hand spiral bevel gear, pressure angle 20°, module 2.0705, 19 teeth, spiral angle 35°R.
Inner diameter 40mm, gear outer diameter 55mm, total length 18.2mm, weight 0.0966kg.
Material: 20CrMo alloy steel.
Process: Sawing, turning, gear milling, heat treatment, hanging shot blasting, boring & facing, length trimming, gear grinding, wire-cut keyway.
Used for power tool gear assembly.
Additional information
| QZ-028-C andQZ-029-C weight |
0.1155and0.0966 |
|---|---|
| QZ-028-C andQZ-029-C Core Components |
gear |
| QZ-028-C andQZ-029-C Craftsmanship |
Milling |
