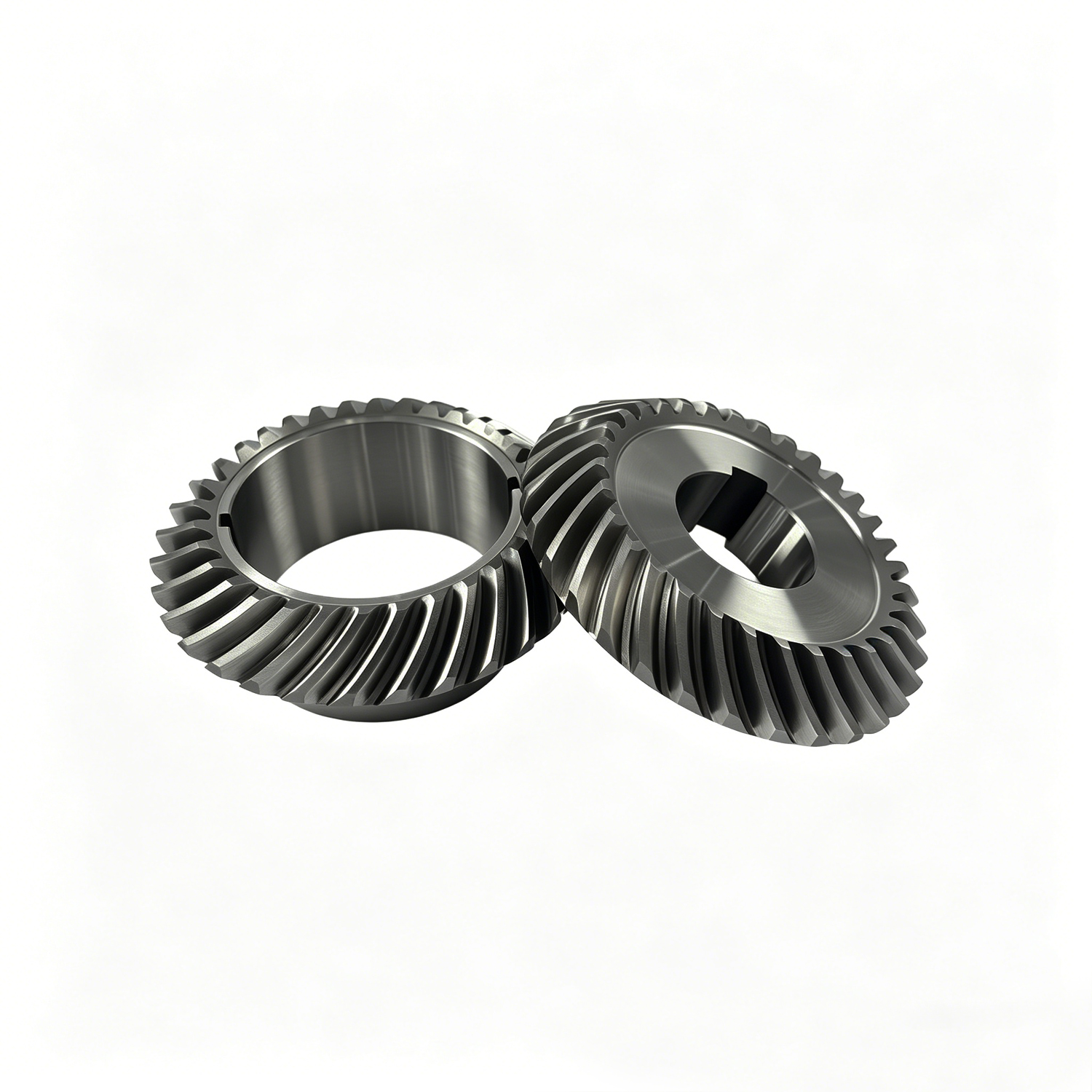

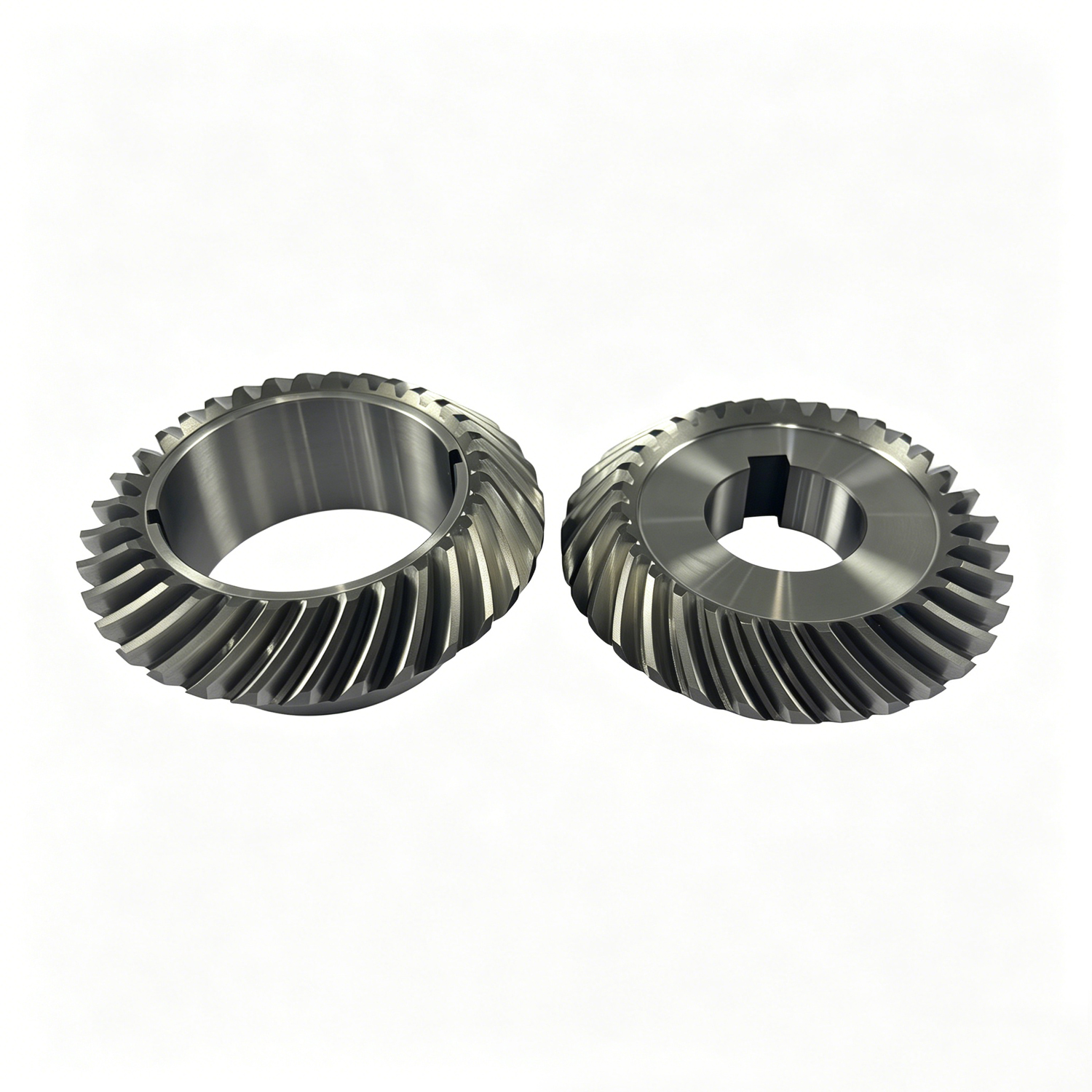

203364 Left Hand Spiral Bevel Gear and 203364 Right Hand Spiral Bevel Gear
$50.95piece
QZ-030-C
Module 1.32 spiral bevel gear, 20° pressure angle, 23 teeth, 35°L spiral angle; ID 13mm, OD 32mm, total length 38mm, weight 0.4459kg. Made of 20CrMo, precision machined for power tools.
QZ-031-C
Module 1.32 spiral bevel gear, 20° pressure angle, 23 teeth, 35°R spiral angle; shaft diameter 20mm, OD 32mm, total length 15mm, weight 0.4459kg. 20CrMo steel, high precision for power tool transmission.
Description

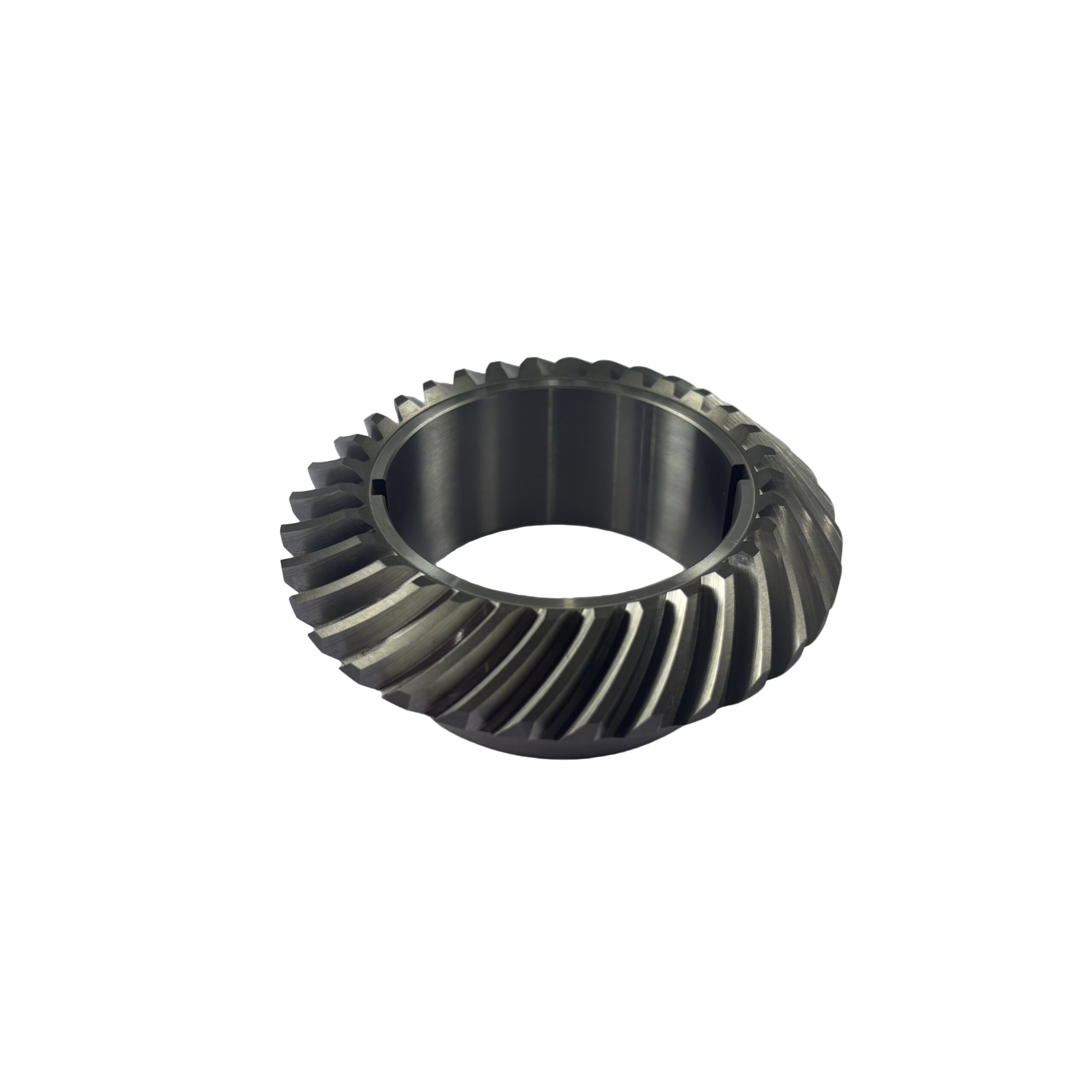

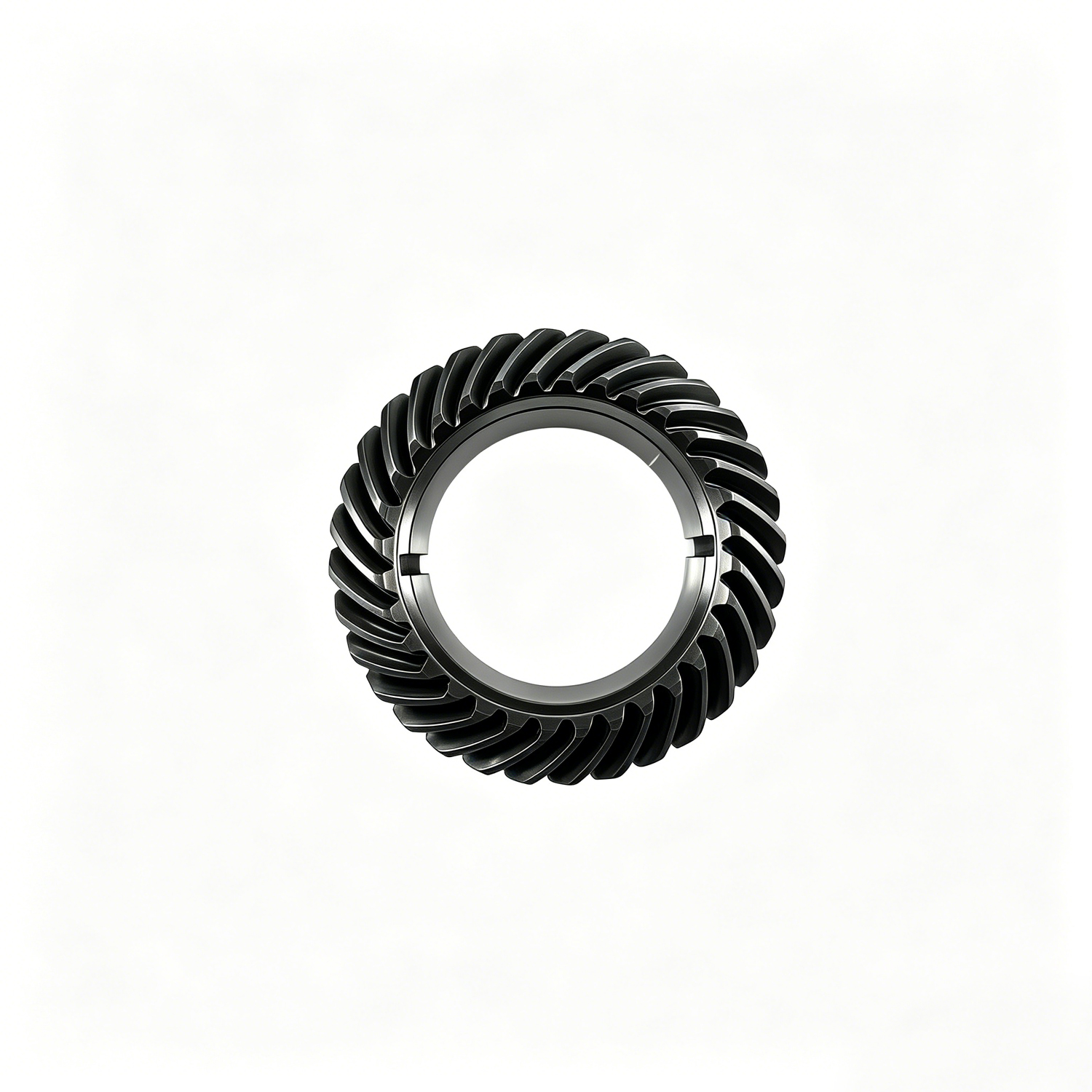

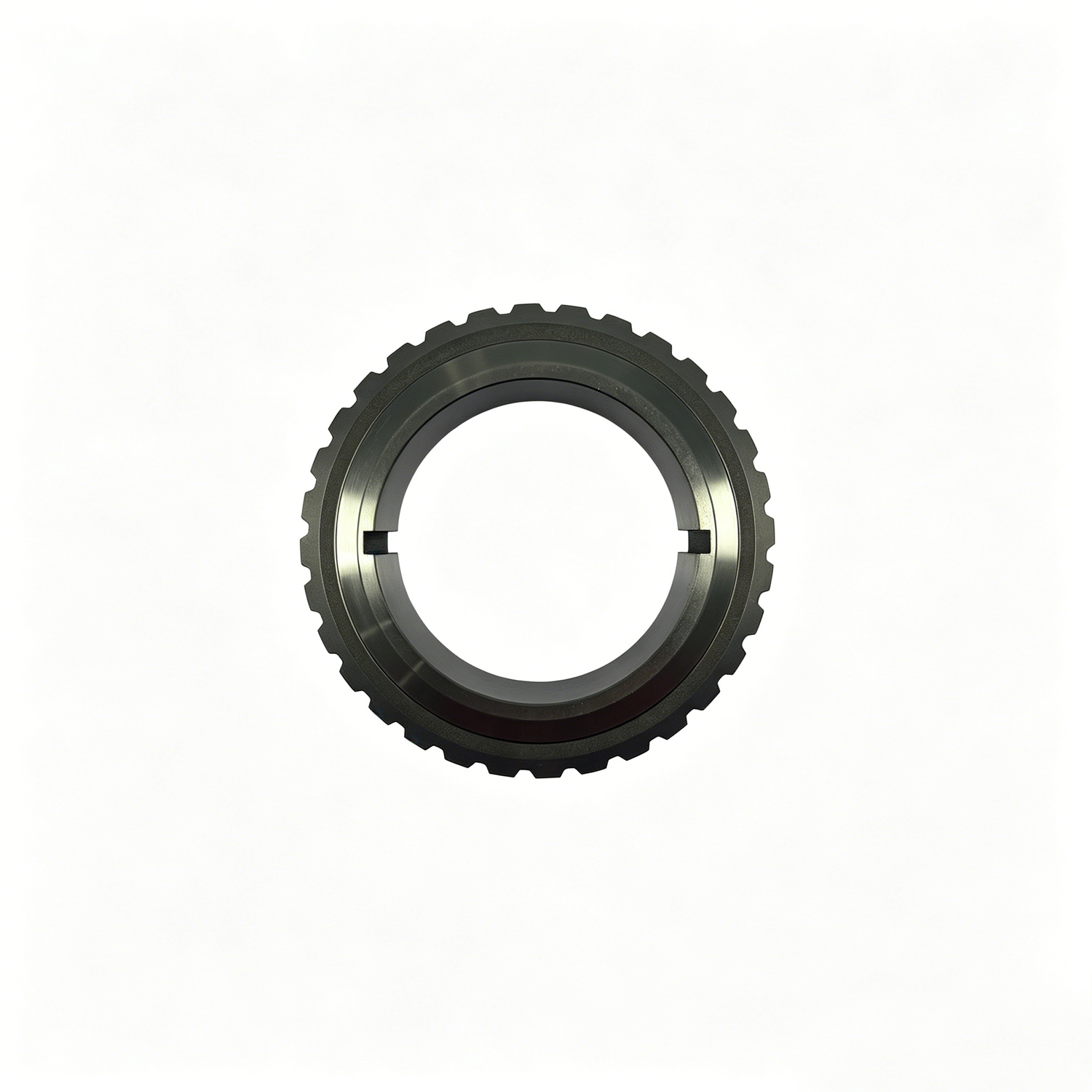

QZ-030-C（203364 Right Hand Gear）
Spiral bevel gear with 20° pressure angle, module 1.32, 23 teeth, gear ratio 1, spiral angle 35°L.
Inner diameter 13mm, gear outer diameter 32mm, total length 38mm, weight 0.4459kg.
Material: 20CrMo alloy steel.
Process: Sawing, turning, gear milling, heat treatment, hanging shot blasting, boring & facing, length finishing, gear grinding, wire-cut keyway.
Suitable for power tool transmission gears.

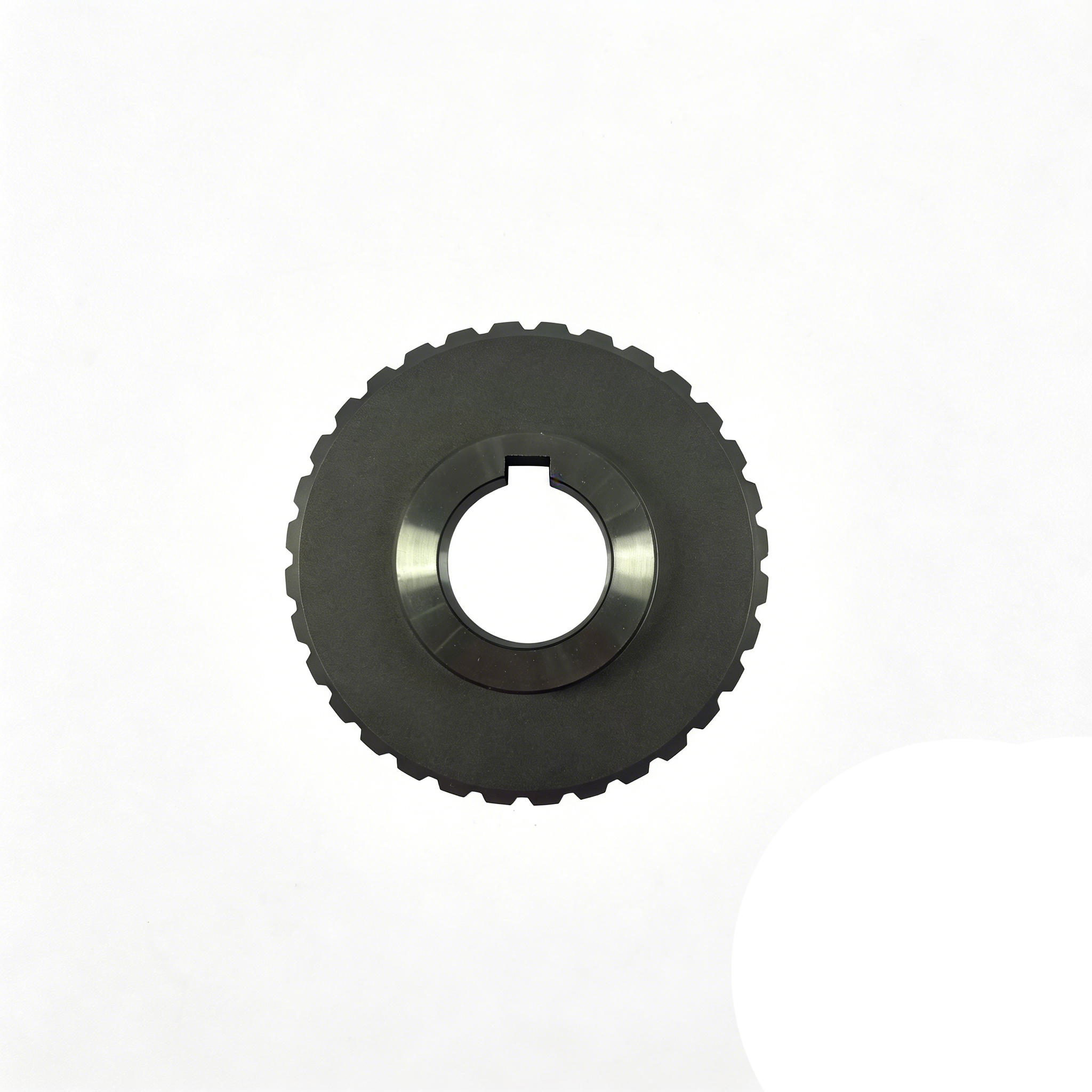

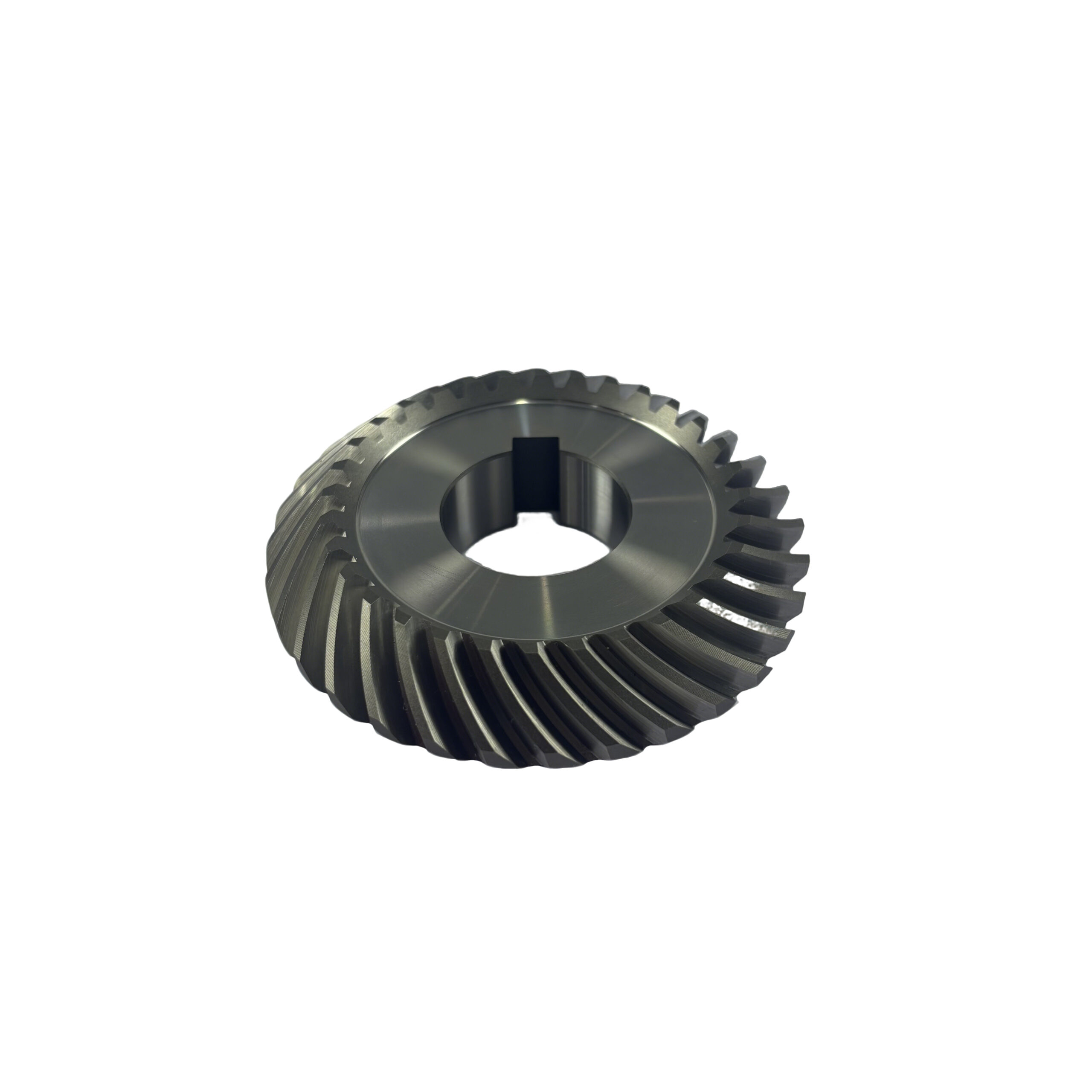

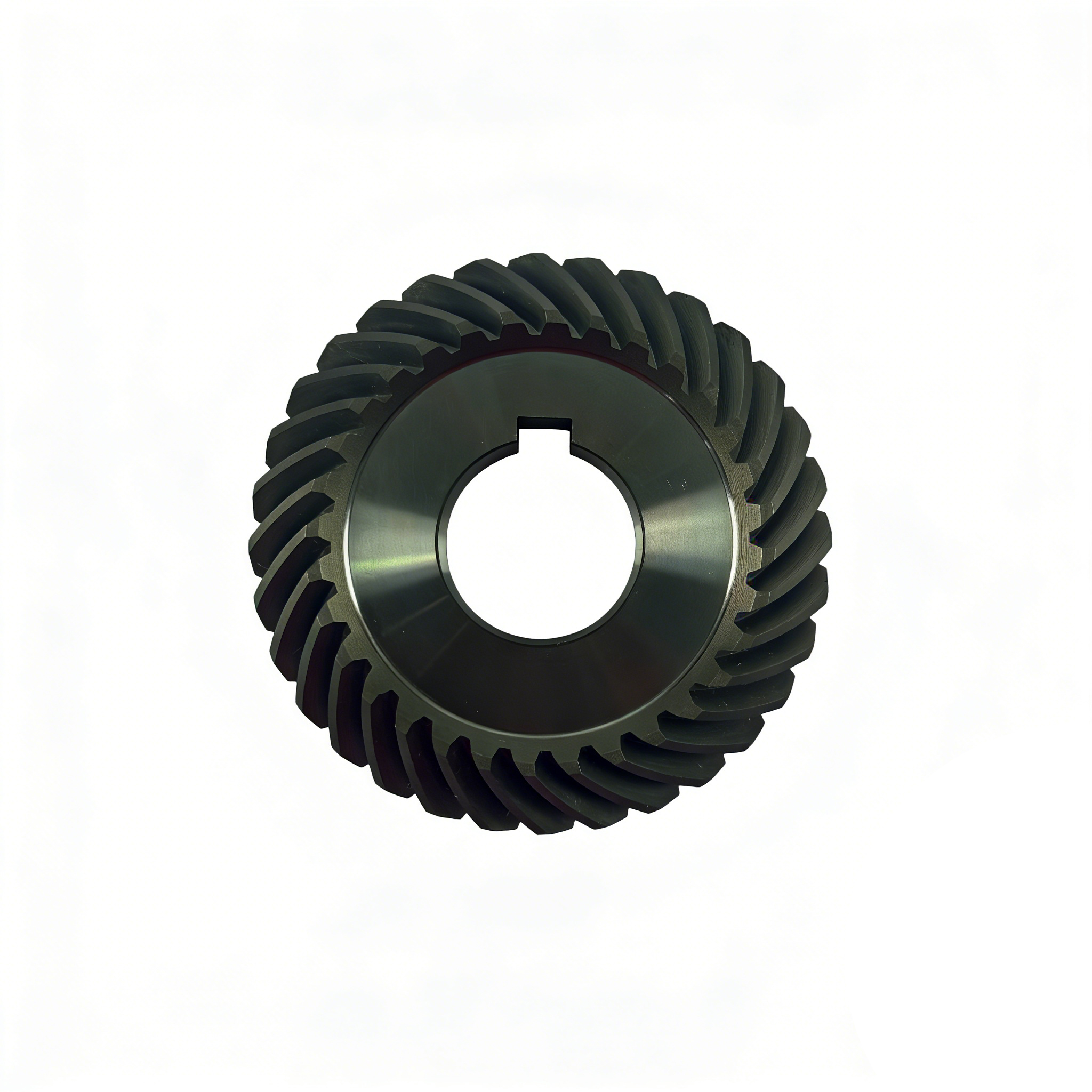

QZ-031-C（203364 Left Hand Gear）
Spiral bevel gear with 20° pressure angle, module 1.32, 23 teeth, spiral angle 35°R.
Shaft diameter 20mm, gear outer diameter 32mm, total length 15mm, weight 0.4459kg.
Material: 20CrMo alloy steel.
Process: Sawing, turning, gear milling, heat treatment, hanging shot blasting, boring & facing, length finishing, gear grinding, wire-cut keyway.
Applied to power tool gear assembly.
Additional information
| QZ-030-C and QZ-031-C weight |
0.4459and0.4459 |
|---|---|
| QZ-030-C and QZ-031-C Core Components |
gear |
| QZ-030-C and QZ-031-C Craftsmanship |
Milling |
