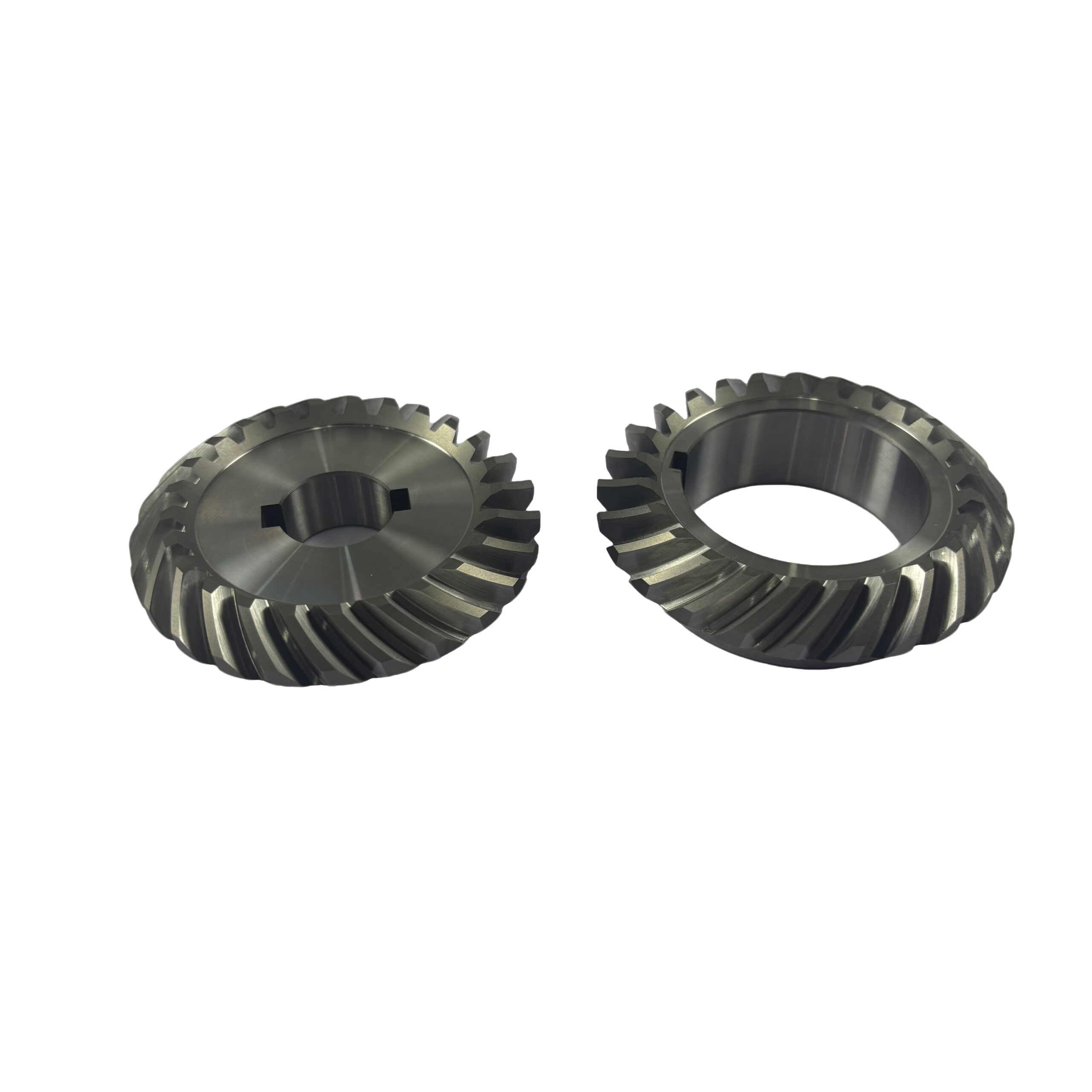

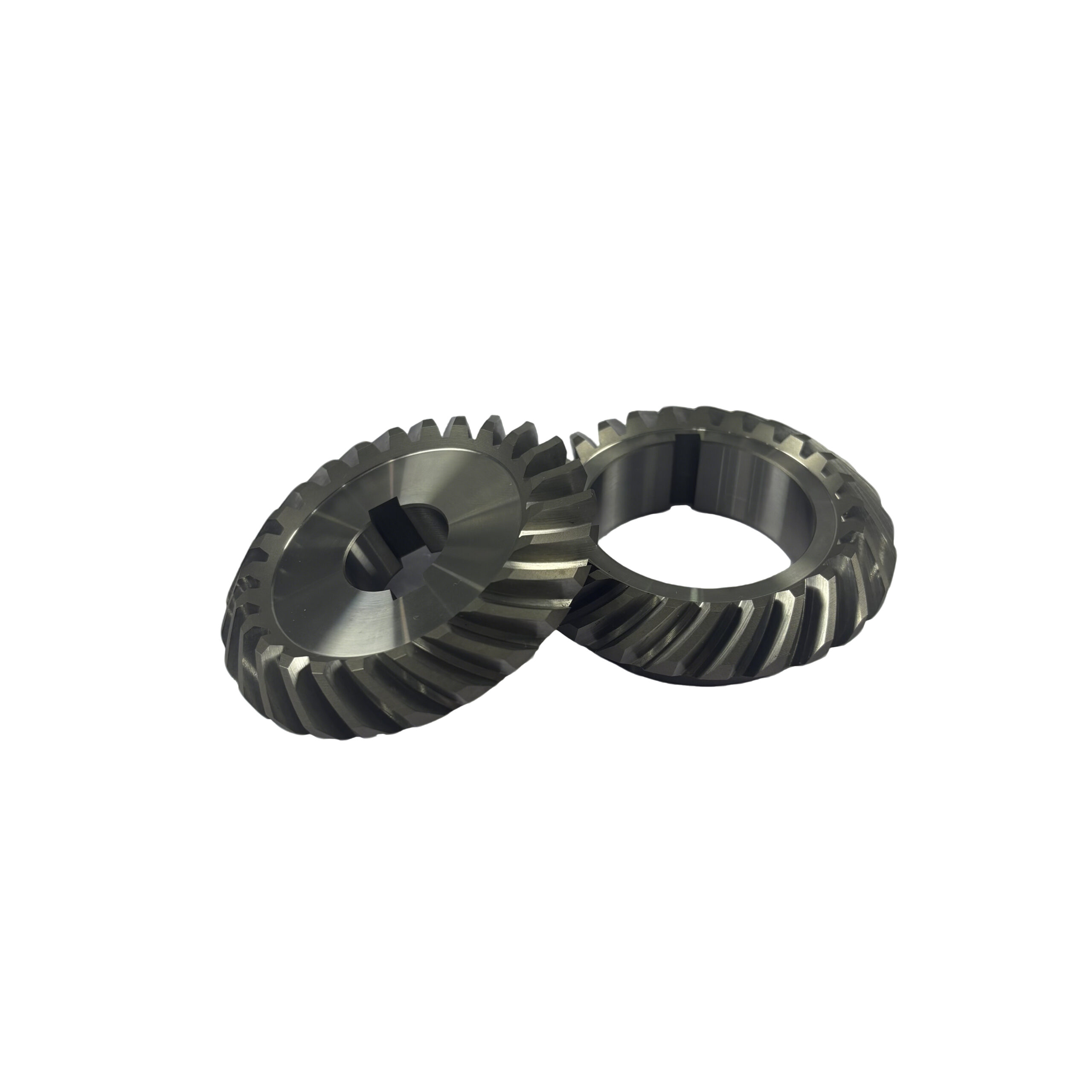

203365 Left Hand Gear and 203365 Right Hand Gear
$43.66piece
QZ-026-C
Left-hand spiral bevel gear, module 2.0962, 20° pressure angle, 25 teeth, 35°L spiral angle.
ID 20mm, gear OD 72mm, total length 16.7mm, weight 0.2602kg.
20CrMo steel, precision machined, heat treated and ground, for power tools.
QZ-027-C
Right-hand spiral bevel gear, module 2.0962, 20° pressure angle, 25 teeth, 35°R spiral angle.
ID 42mm, gear OD 72mm, total length 20.9mm, weight 0.2334kg.
20CrMo steel with complete processing, ideal for power tool gear parts.
Description
QZ-026-C（203365-Left Hand Gear）

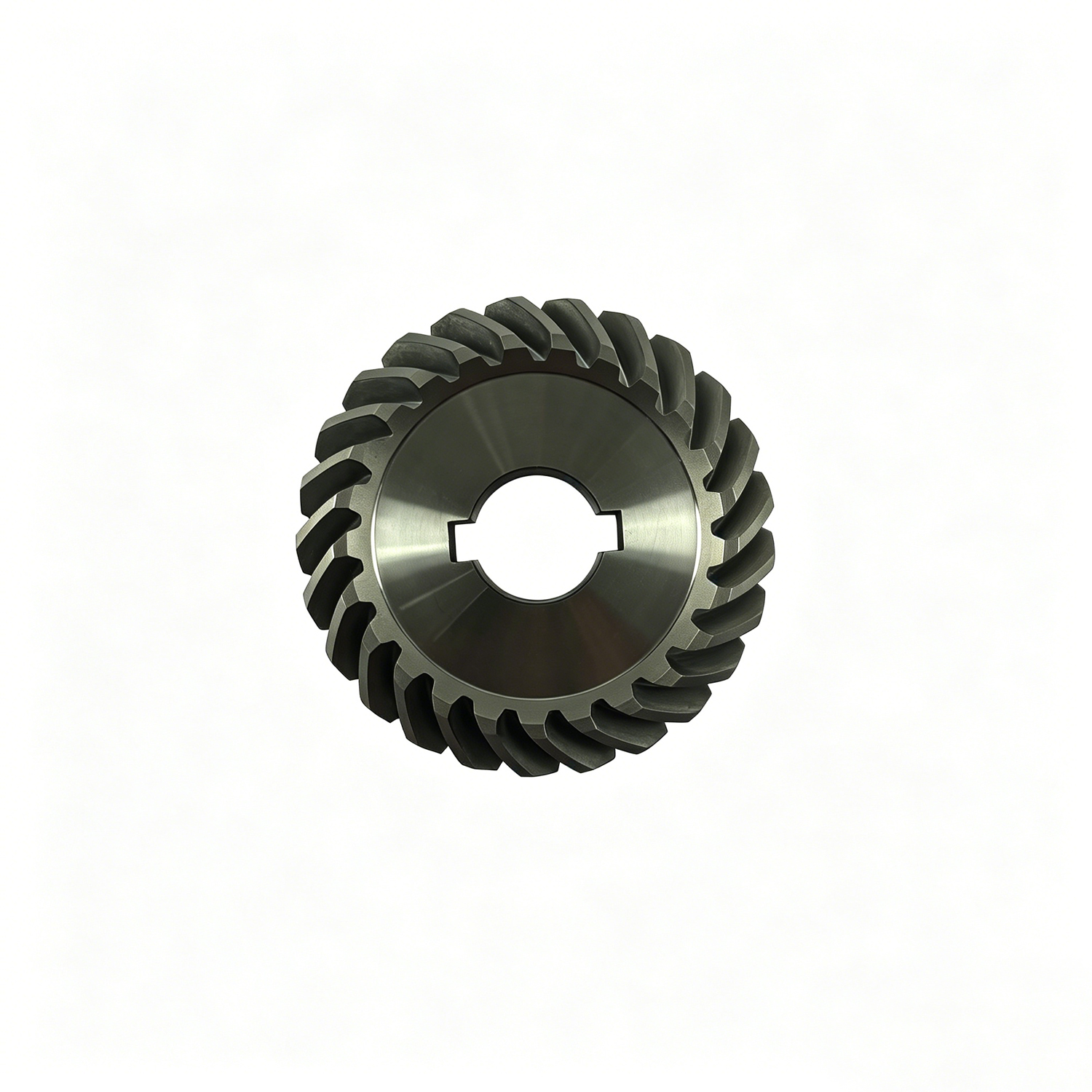

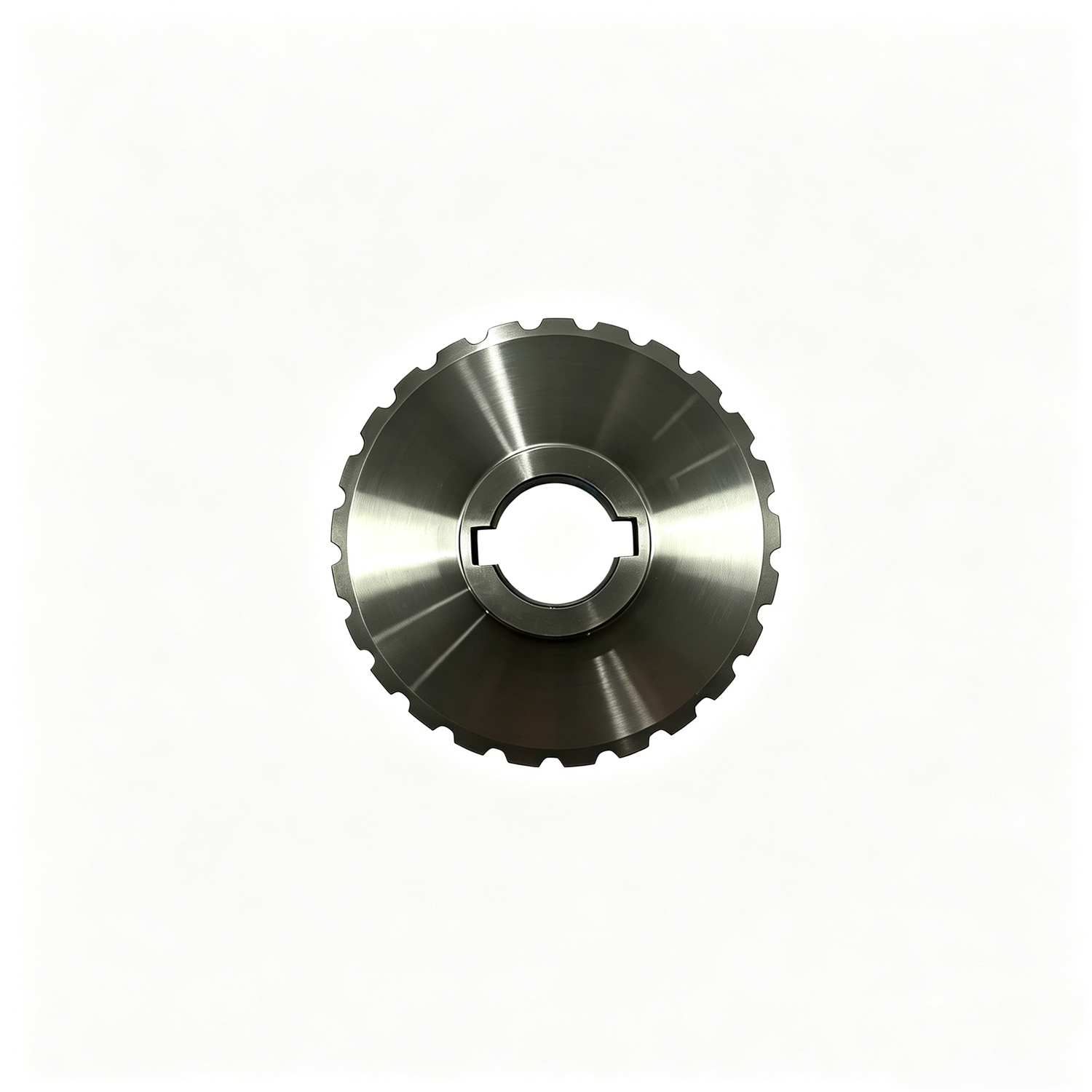

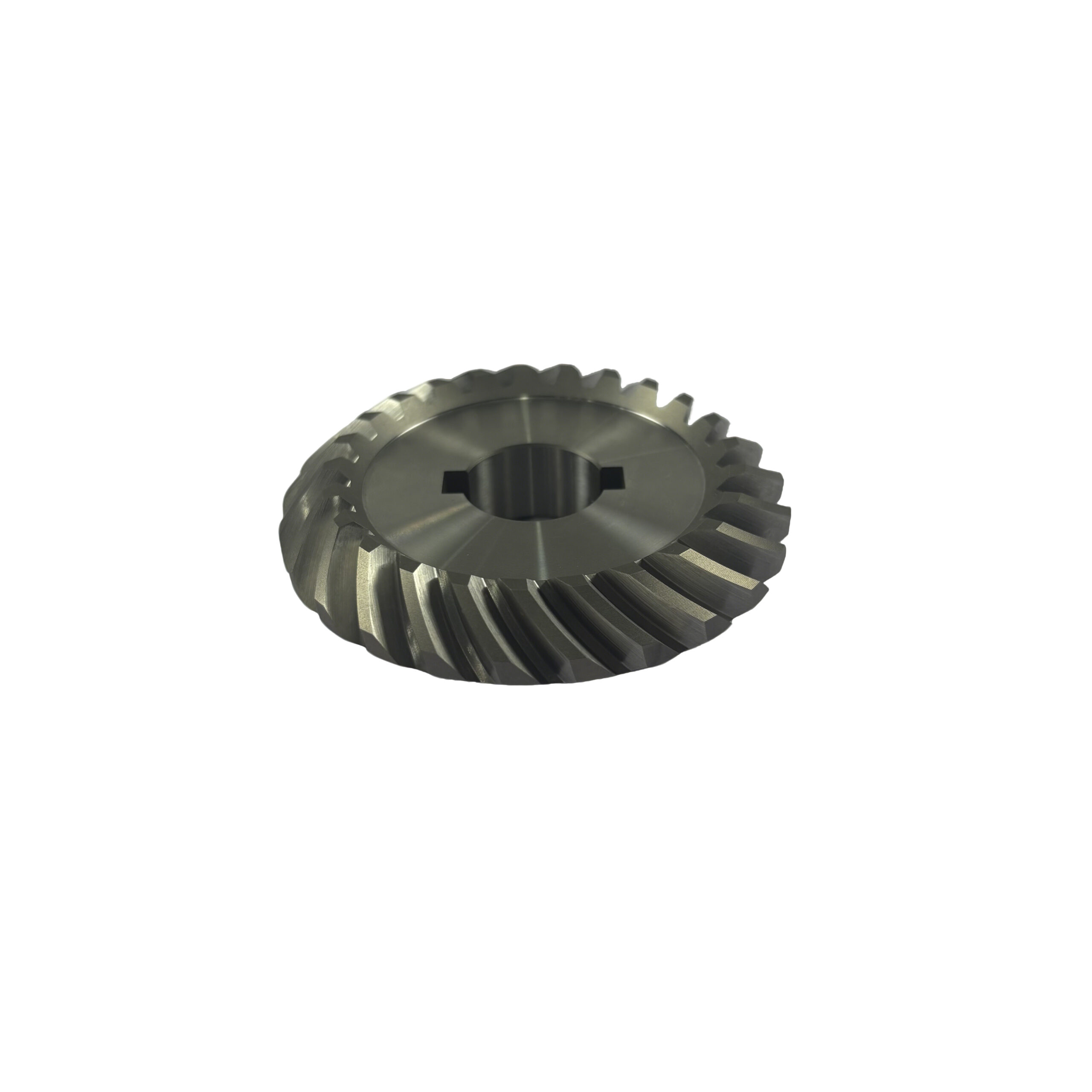

This is a left-hand spiral bevel gear.
Pressure angle 20°, module 2.0962, number of teeth 25, gear ratio 1, spiral angle 35°L.
Inner diameter 20mm, gear outer diameter 72mm, total length 16.7mm, weight 0.2602kg.
Made of 20CrMo alloy steel.
Process: Sawing, turning, gear milling, heat treatment, hanging shot blasting, boring & facing, length finishing, gear grinding, wire-cut keyway.
High precision and stable transmission, suitable for power tool gear transmission.
QZ-027-C（203365-Right Hand Gear）

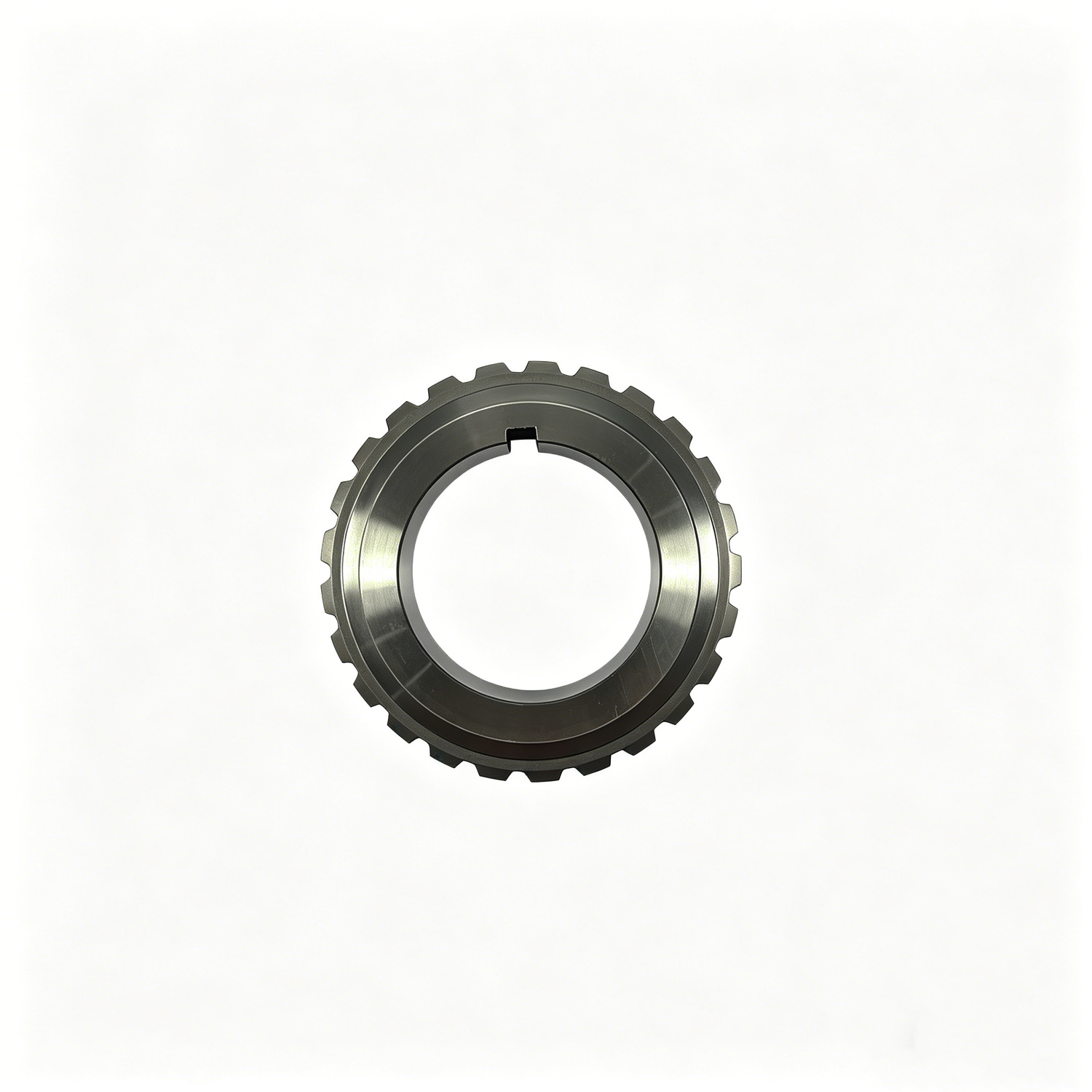

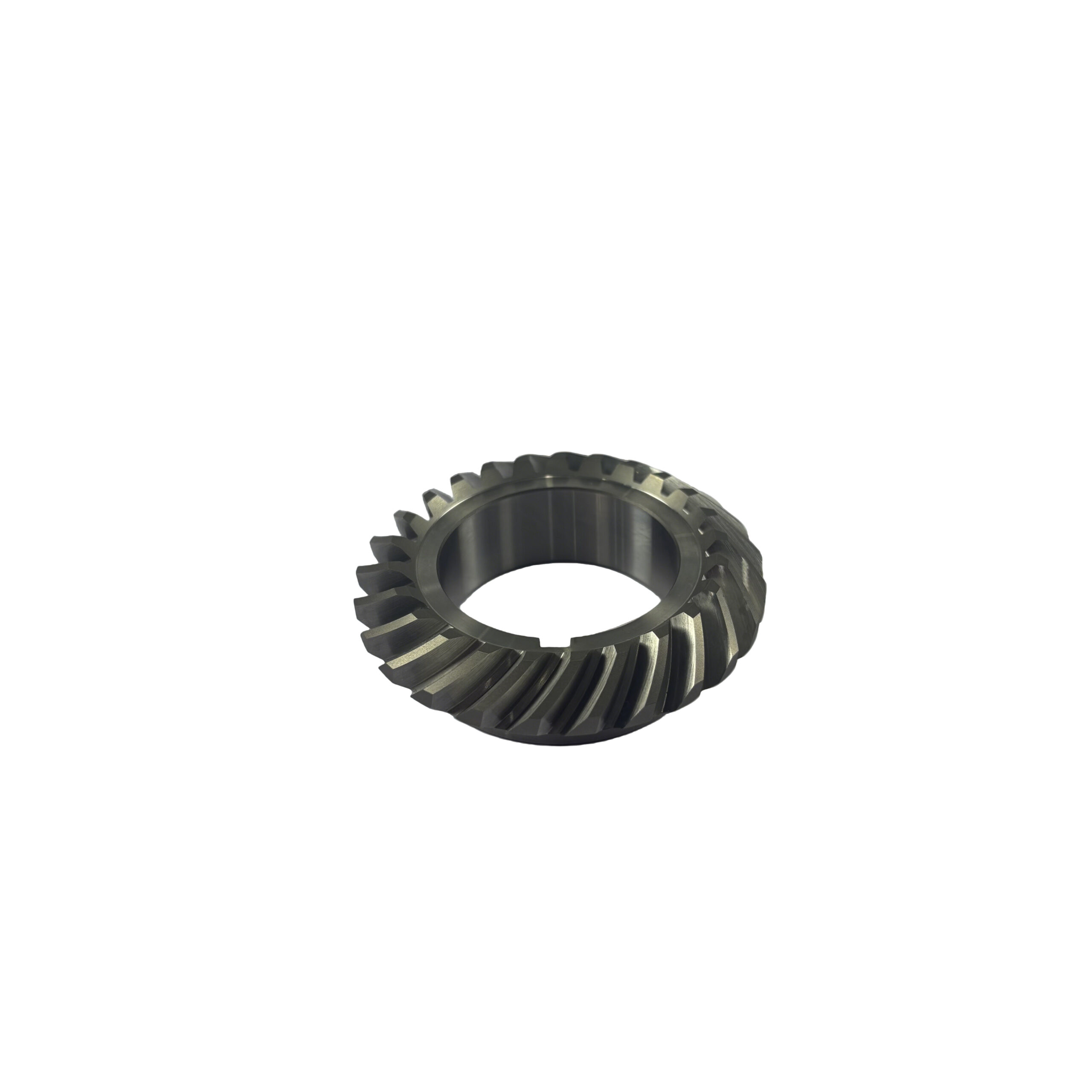

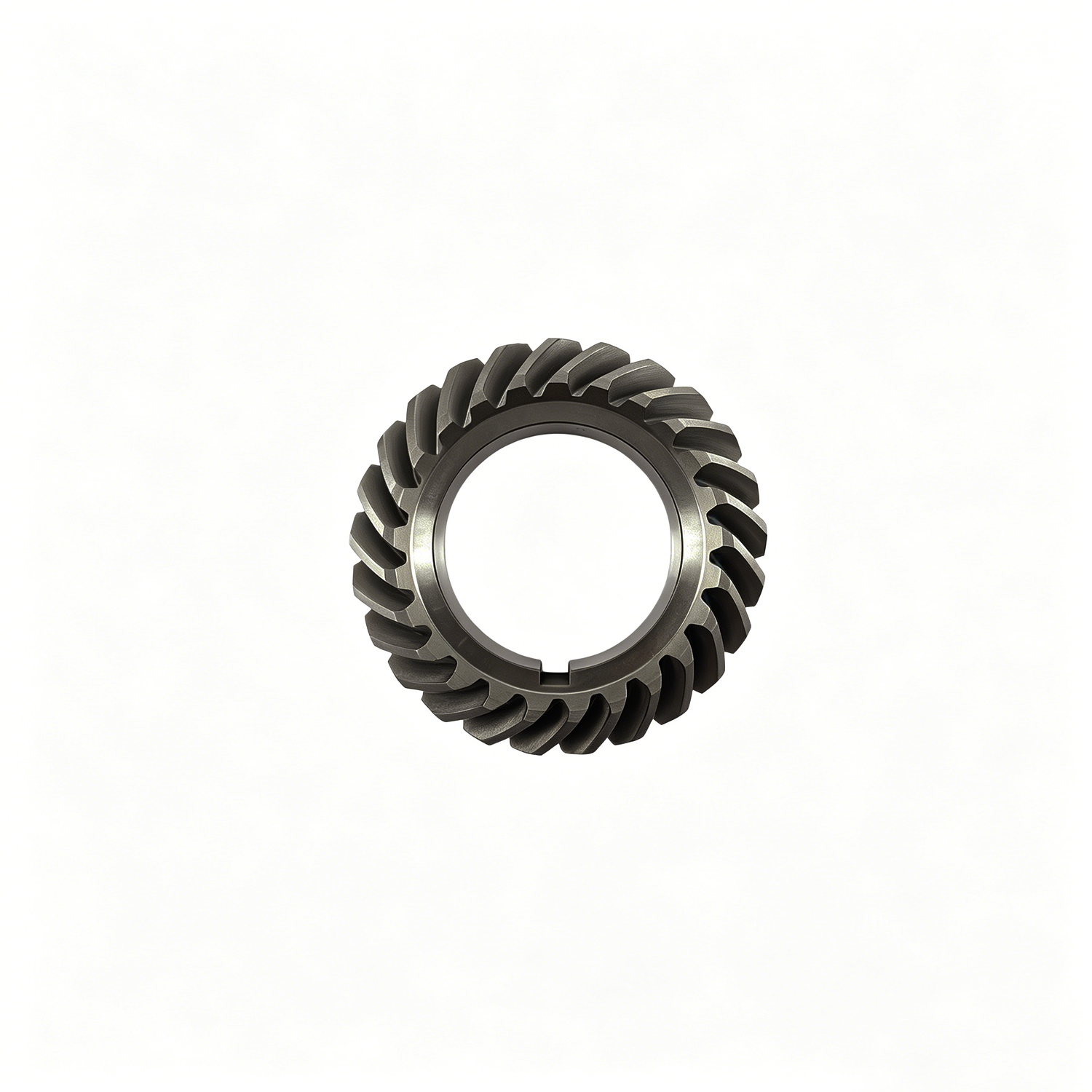

This is a right-hand spiral bevel gear.
Pressure angle 20°, module 2.0962, number of teeth 25, spiral angle 35°R.
Inner diameter 42mm, gear outer diameter 72mm, total length 20.9mm, weight 0.2334kg.
Adopts 20CrMo alloy steel.
Process: Sawing, turning, gear milling, heat treatment, hanging shot blasting, boring & facing, length finishing, gear grinding, wire-cut keyway.
Fine workmanship and good durability, applied to power tool transmission assembly.
Additional information
| QZ-026-C and QZ-027-C weight |
0.2602and0.2334 |
|---|---|
| QZ-026-C and QZ-027-C Core Components |
gear |
| QZ-026-C and QZ-027-C Craftsmanship |
Milling |
