531.06-78 45° Helical Gear (Driven) and 531.06-77 45° Helical Gear (Driving)

$3.50piece

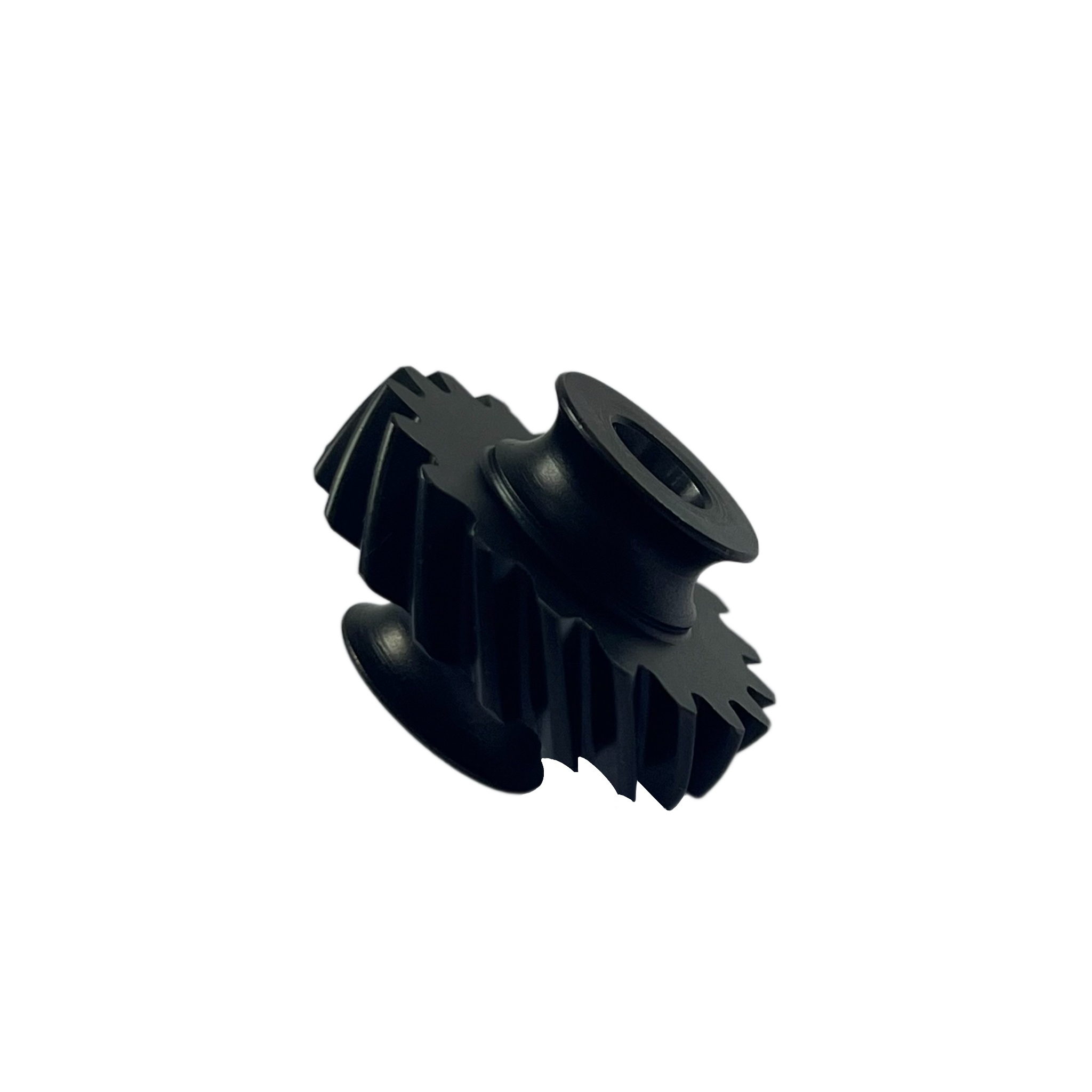

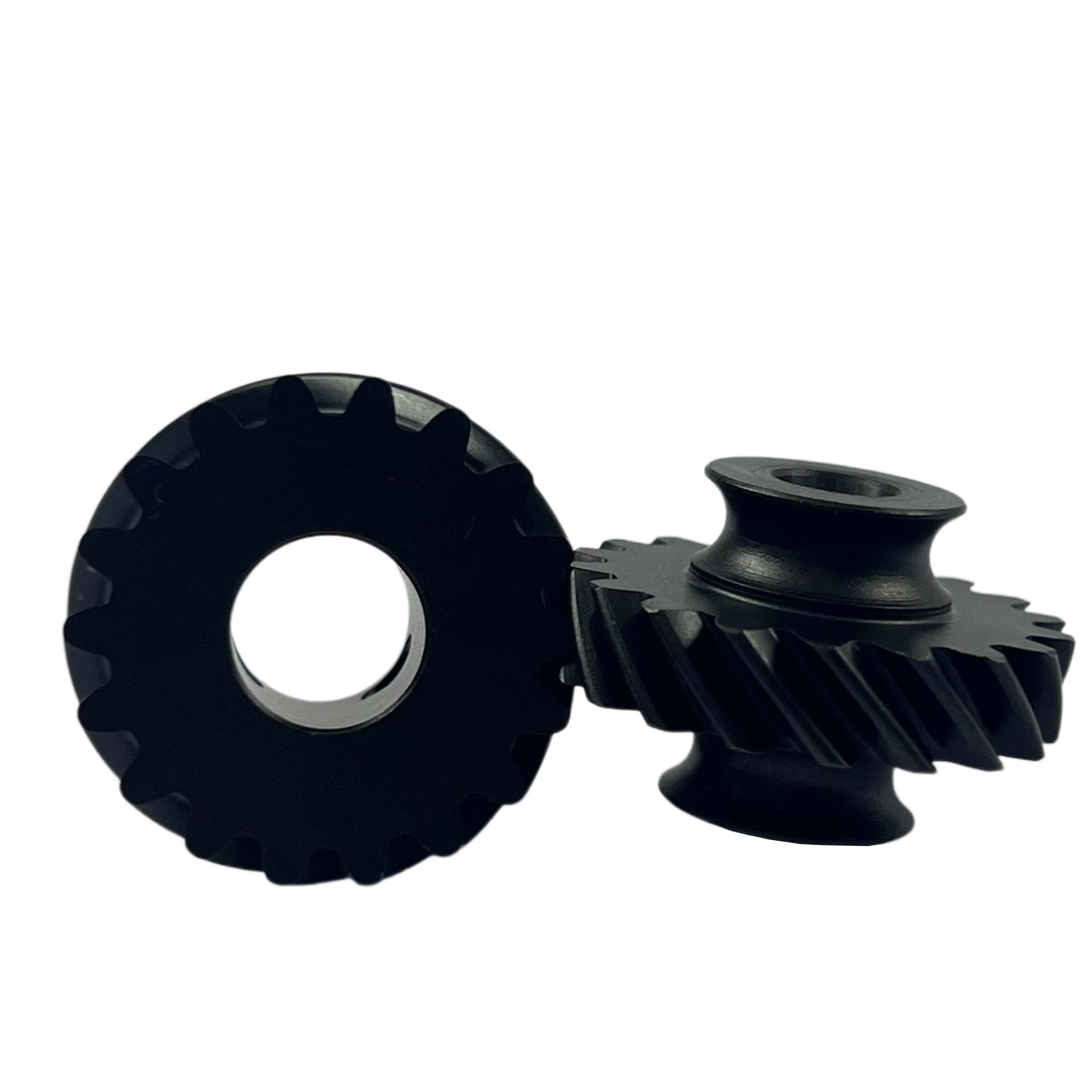

531.06-78 Driven Helical Gear and 531.06-77 Driving Helical Gear are 45° helical gears made of 20CrMo, with a pressure angle of 20°, a module of 1 and 18 teeth. Processed via multiple precision procedures, they realize precise meshing and stable transmission, and are suitable for the transmission system of sewing equipment.

Add to compare
Add to wishlist
SKU: FS-007-C and FS-008-C Category:
Description
This series of 531.06-78 45° Helical Gear (Driven) and 531.06-77 45° Helical Gear (Driving) are high-precision transmission helical gear components specially designed for sewing equipment. Made of high-quality 20CrMo alloy structural steel, they are tailored to meet the synchronous transmission requirements of the equipment and ensure stable operation.

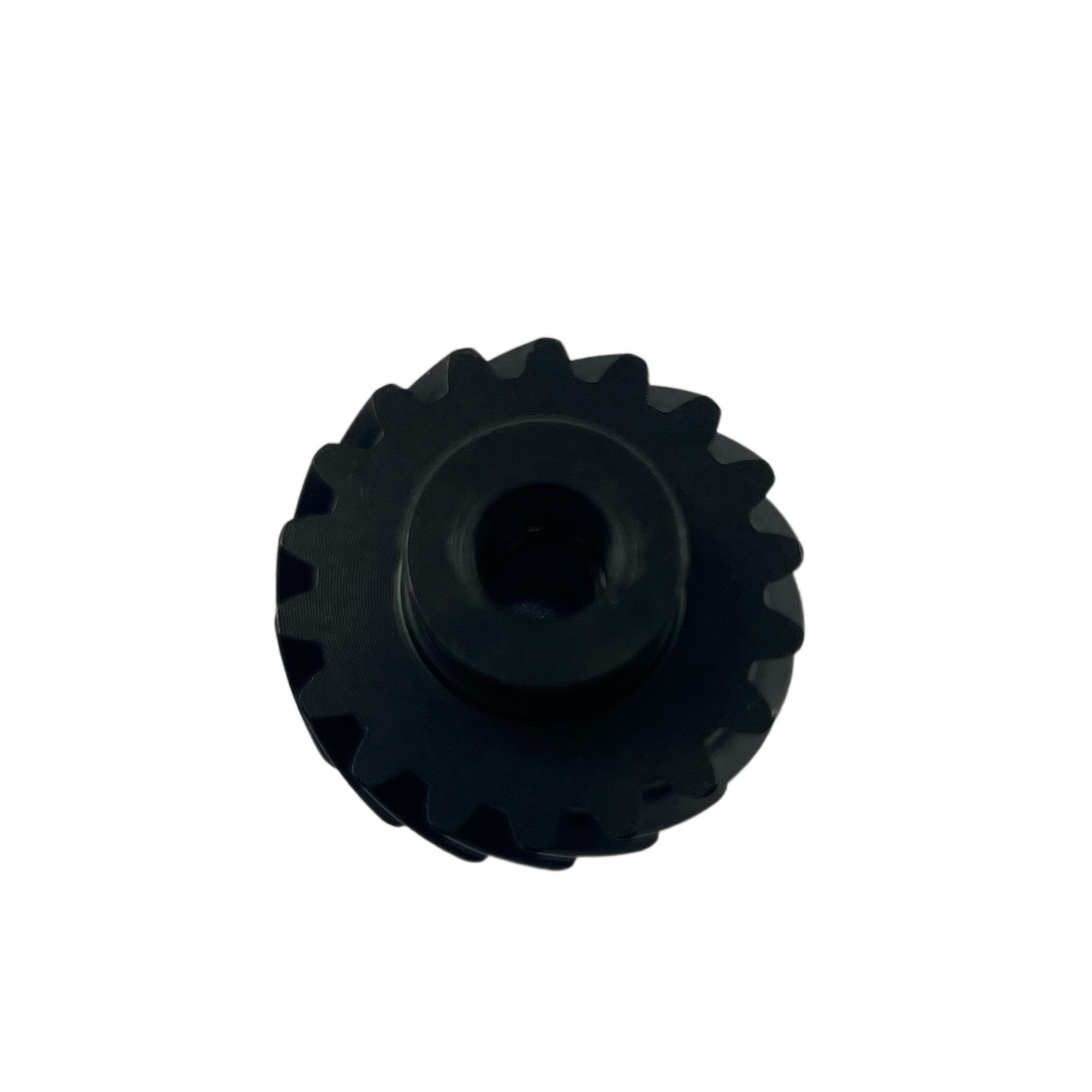

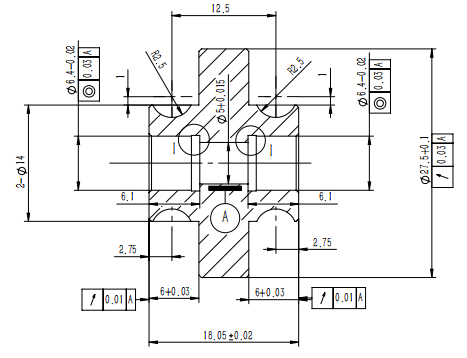

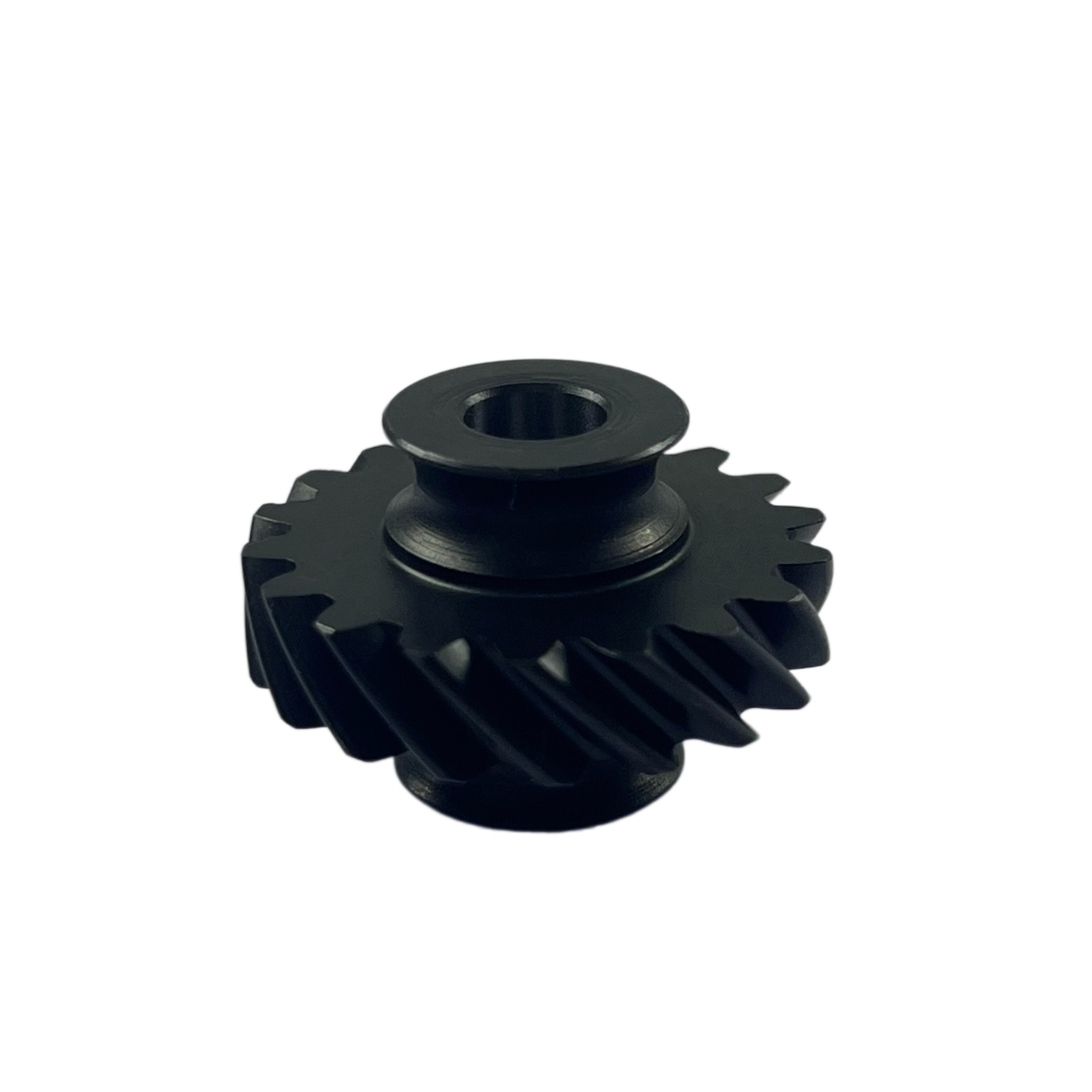

The 531.06-78 Driven Helical Gear features a pressure angle of 20°, a module of 1, 18 teeth, a speed ratio of 1, and a helix angle of 45°/L. It has an inner diameter of φ5mm, an outer tooth diameter of 27.5mm, and an overall length of 18mm. Manufactured through a series of precision processes including sawing, turning, hobbing, heat treatment, shot blasting, blackening, boring and facing, the gear surface obtains excellent corrosion resistance via blackening treatment. Heat treatment and shot blasting processes enhance the tooth hardness, enabling it to stably transmit the power from the driving gear and adapt to the continuous operation conditions of sewing machinery.

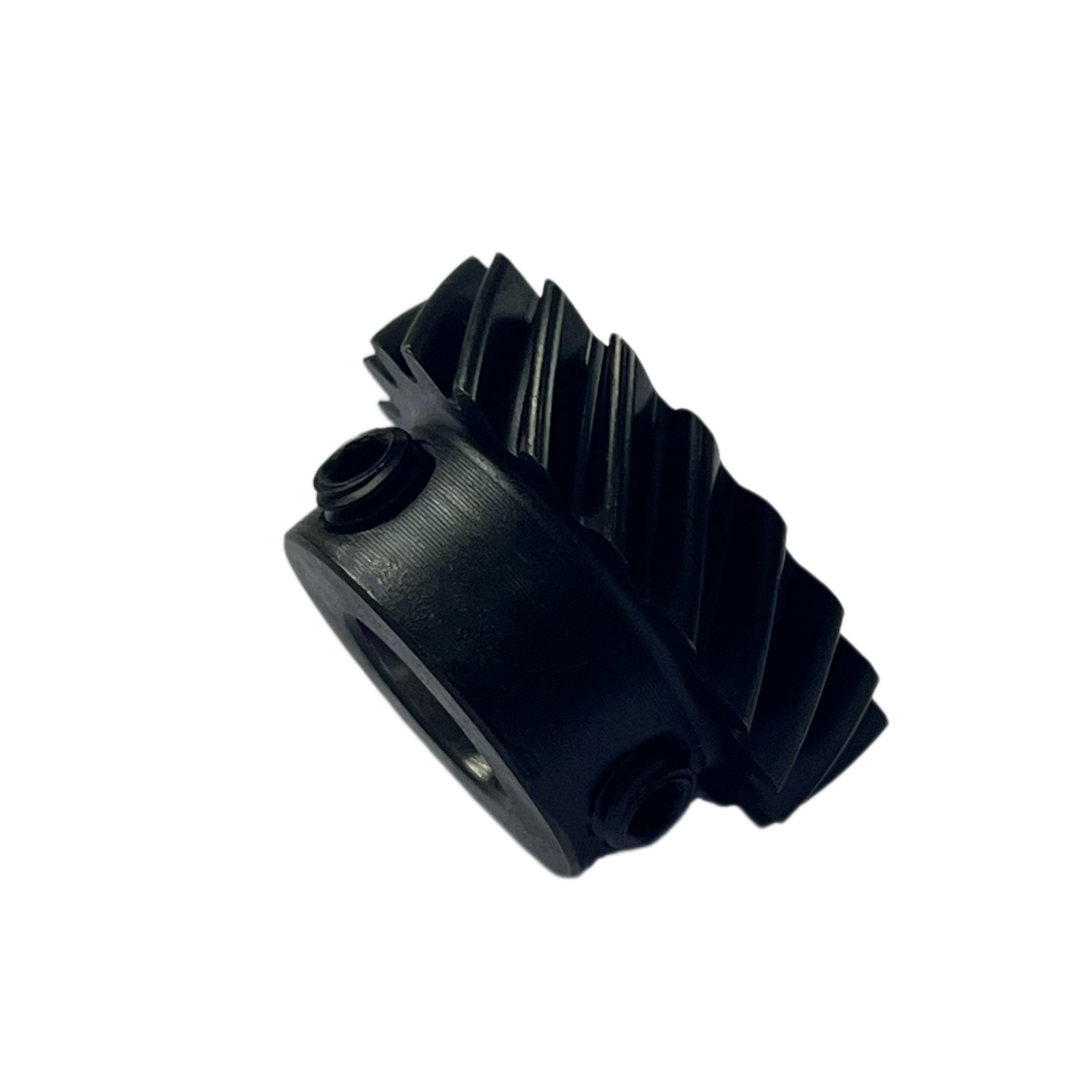

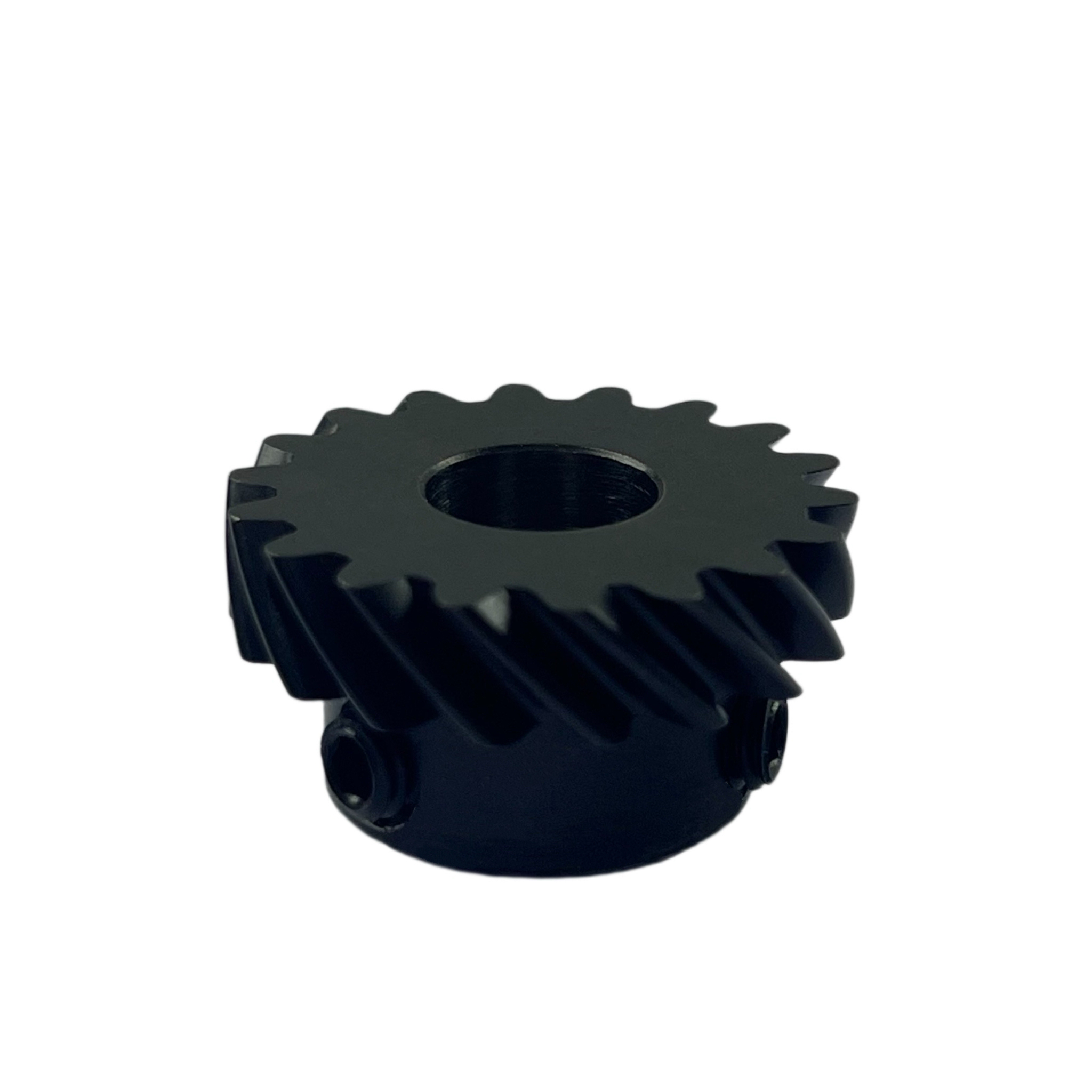

The 531.06-77 Driving Helical Gear comes with a pressure angle of 20°, a module of 1, 18 teeth, and a helix angle of 45°/L. It has an inner diameter of φ10mm, an outer tooth diameter of 27.5mm, and an overall length of 14mm. Its production process includes sawing, turning, threaded hole machining, reaming, hobbing, heat treatment, shot blasting, blackening, reaming and screw assembly. With high tooth profile accuracy, it meshes precisely with the driven gear and delivers excellent transmission efficiency. As the power input end gear, it can stably drive the operation of relevant mechanisms of sewing equipment.
Both gears feature high specification matching degree, excellent wear resistance and fatigue resistance, serving as key supporting components for the transmission system of sewing machinery.
