2020909 PINION GEAR
$1.20piece

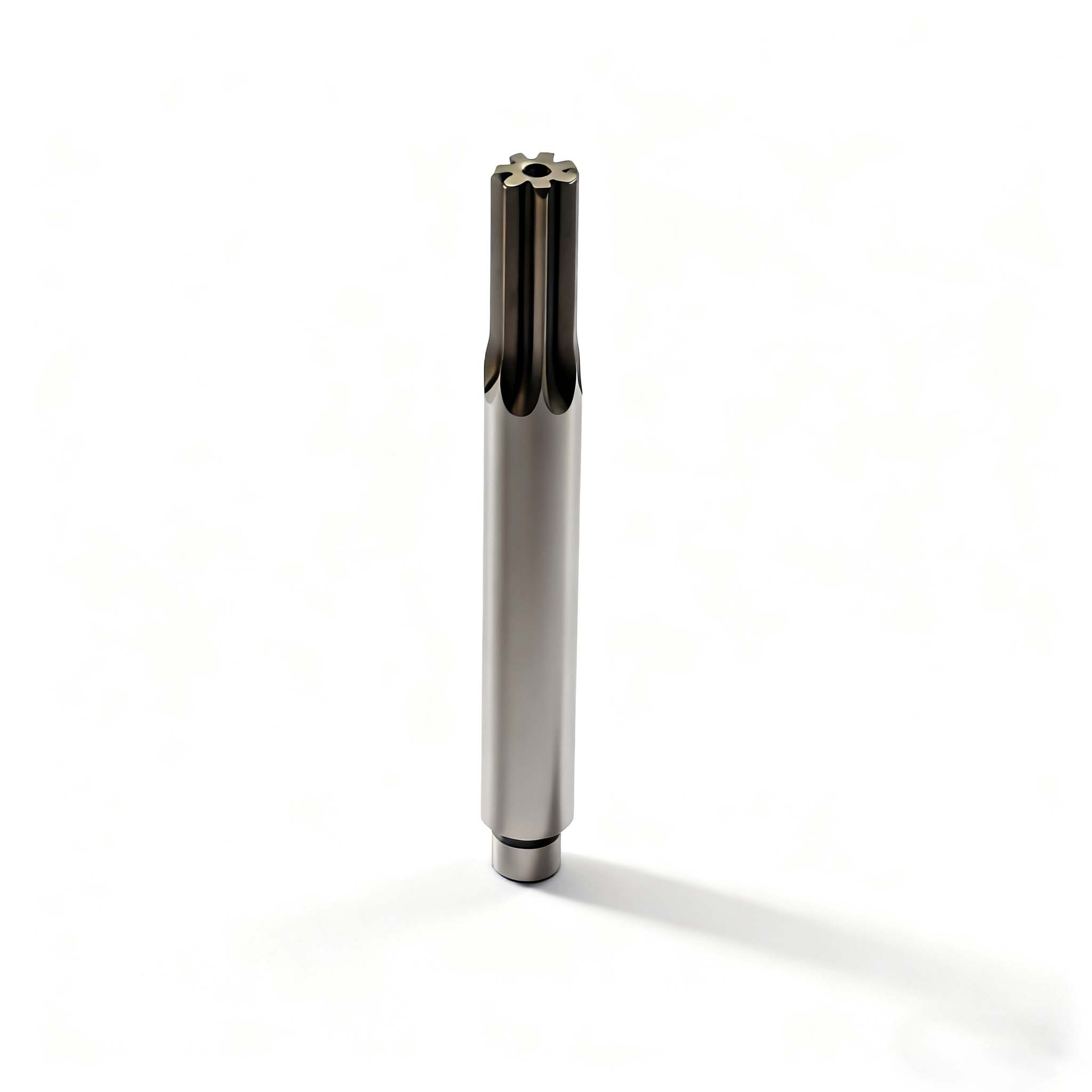

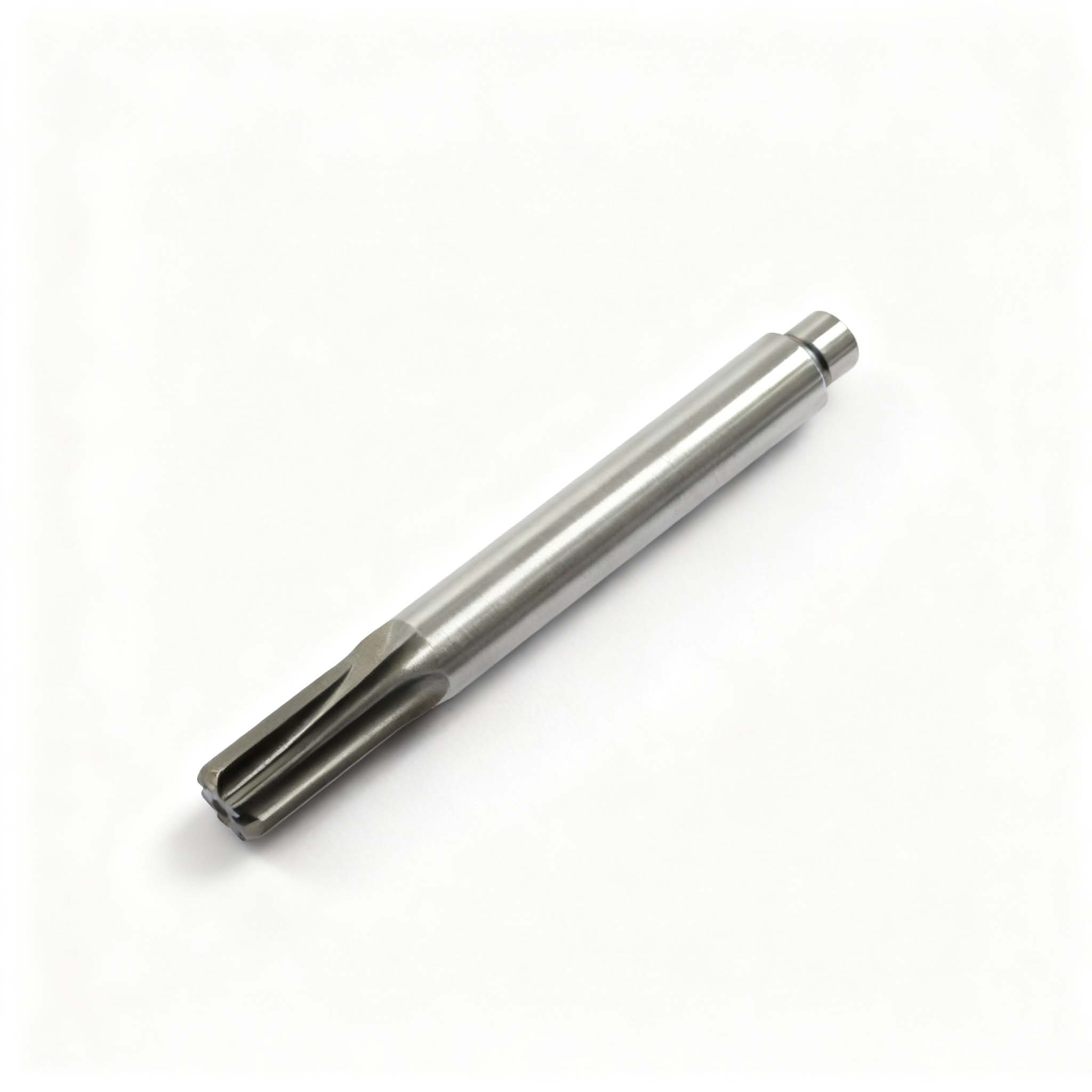

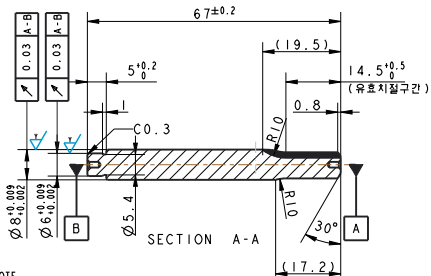

Model 2020909 helical gear is made of 20CrMo, refined through multiple processes including normalizing, hobbing and heat treatment. It has a pressure angle of 20°, module of 0.75, 7 teeth, shaft diameter of 8mm, tooth outer diameter of 7.3mm and weight of 0.0227kg, serving as a dedicated transmission component for power tools.
Description
Additional information
| weight |
0.0227 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Hobbing |
Reviews (0)
Shipping & Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
12925004 Small Helical Gear
The 12925004 small helical gear (helical gear type) has a module of 0.9769, pressure angle of 14.5° and helix angle of 45°/L, with 15 teeth. Made of 20CrMo material, it is fabricated via sophisticated processes including normalizing, hobbing and nitriding heat treatment. Boasting a compact size (addendum circle diameter 22.67mm, total length 17mm, weight 0.0171kg), it is a dedicated transmission component for sewing equipment, featuring stable transmission, wear resistance and long service life.
1533-6 Tooth Gear and 1533-T36 Gear
1533-6 Tooth Helical Gear: 20CrMo helical gear for sewing machines, module 0.8, 6 teeth, 15.12°R helix angle, precision-engineered, stable and efficient transmission
1533-T36 Helical Gear: 20CrMo helical gear for sewing equipment, module 0.8, 36 teeth, 15.12°R helix angle, high-precision, strong adaptability
1560-4 Hook (Cylindrical Gear 37×1.25 – Left-hand)
The helical gear matched with 1560-4 hook is made of 20CrMo. It has a module of 1.25, pressure angle of 20°, 37 teeth and a helix angle of -15° left-hand. Produced via multiple processes including hobbing and heat treatment, it has a tooth outer diameter of 50.38mm and a weight of 0.1225kg, serving as a dedicated transmission component for sewing equipment.
2024356
Model QY-011-C/2024356 helical gear is made of 20CrMo, with a pressure angle of 20°, module of 1.25, 41 teeth and 20° right-hand helix angle. Produced via multiple processes including hobbing and heat treatment, it has a tooth outer diameter of 56.8mm and weight of 0.138kg, serving as a dedicated transmission component for power tools.
211WF1-014 Finished Hook Shaft Pinion and 211WF1-005 Finished Lower Shaft Main Gear
211WF1-014 Finished Hook Shaft Pinion and 211WF1-005 Finished Lower Shaft Main Gear are finished helical gears made of 20Cr, with a pressure angle of 20° and a module of 1, and both have a helix angle of 45°/L. Processed via multiple precision manufacturing procedures, they are suitable for the transmission system of sewing equipment, delivering stable transmission with excellent wear resistance.
531.06-78 45° Helical Gear (Driven) and 531.06-77 45° Helical Gear (Driving)
531.06-78 Driven Helical Gear and 531.06-77 Driving Helical Gear are 45° helical gears made of 20CrMo, with a pressure angle of 20°, a module of 1 and 18 teeth. Processed via multiple precision procedures, they realize precise meshing and stable transmission, and are suitable for the transmission system of sewing equipment.
