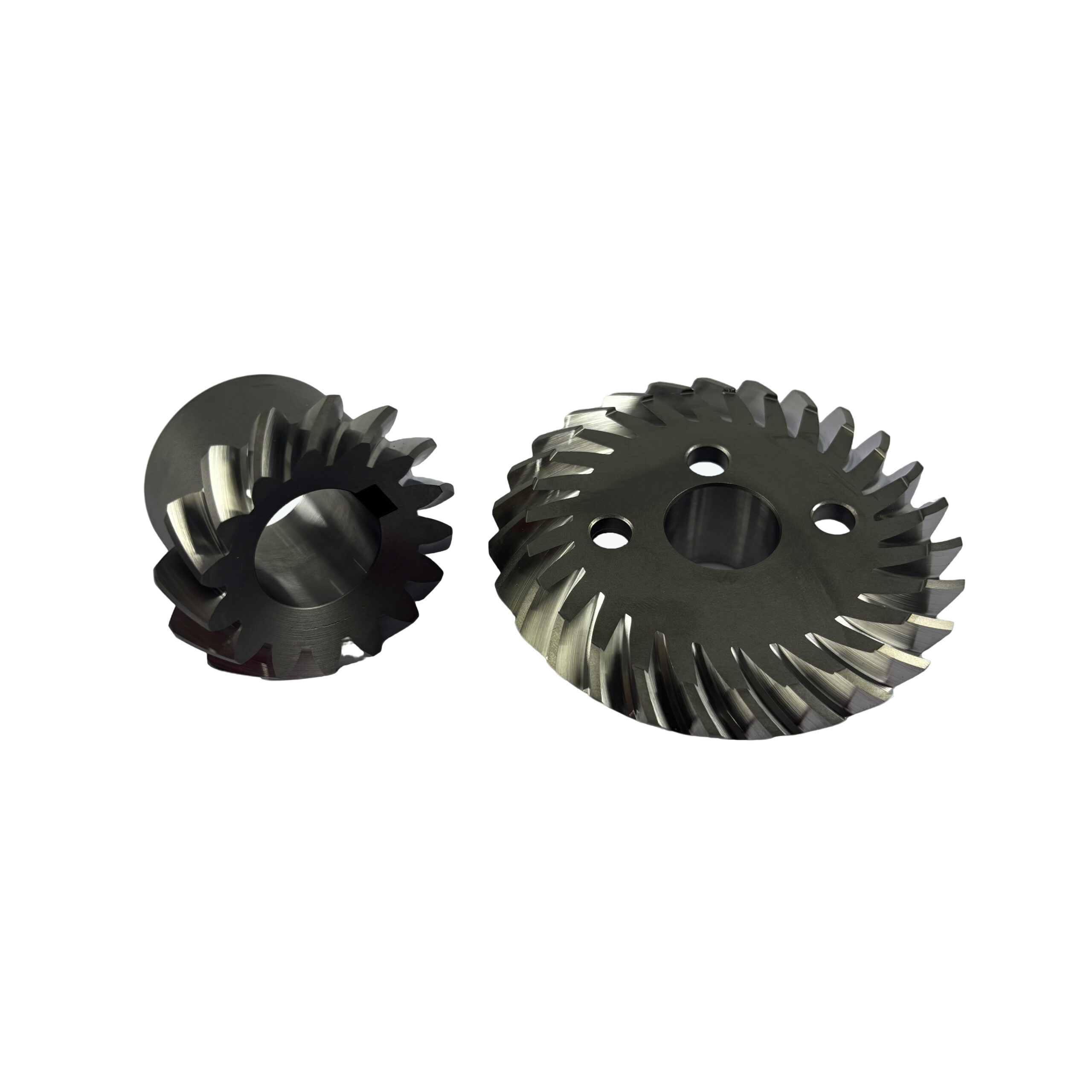

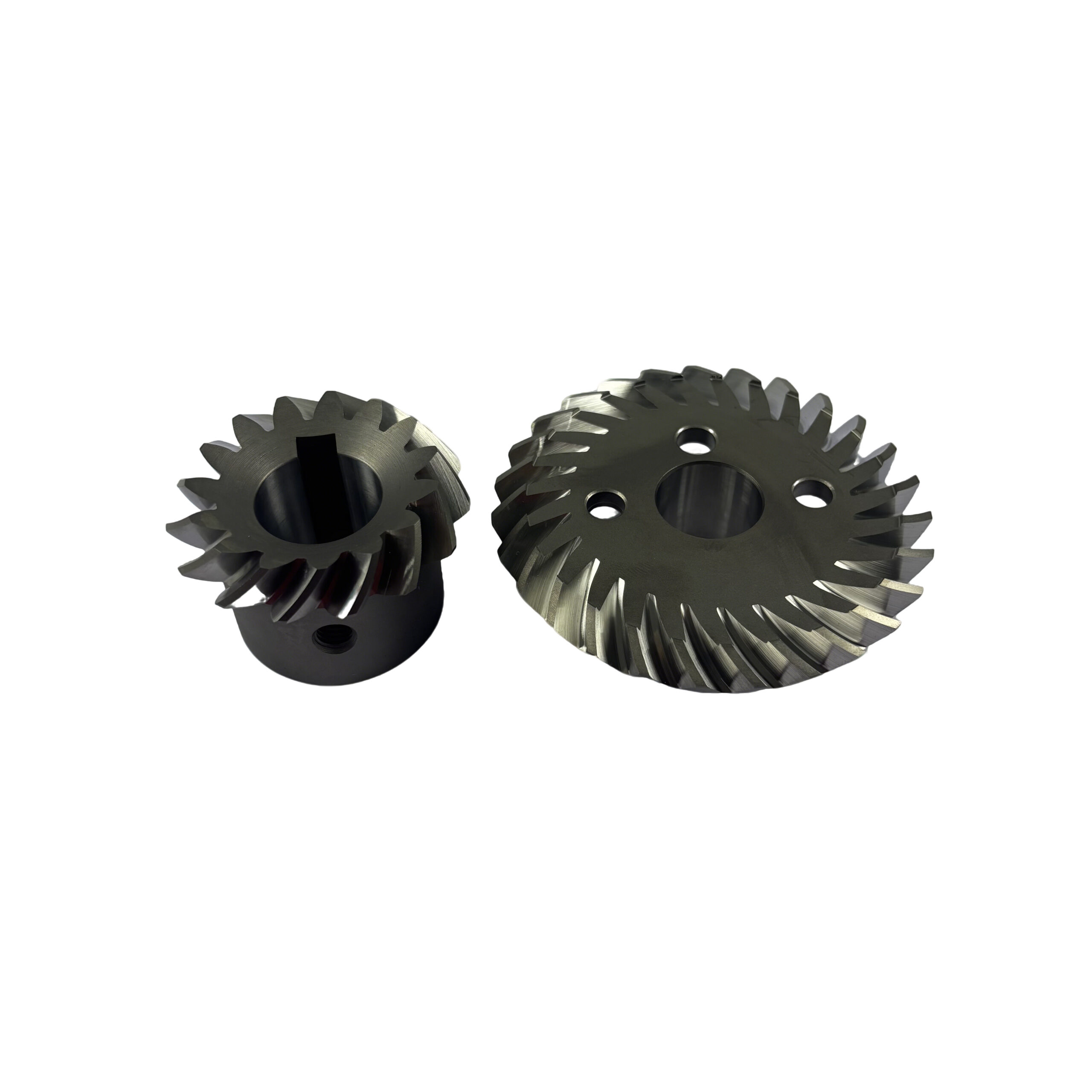

10170015 Small Gear for Submersible Oil Diaphragm Pump and 10170016 Large Gear for Submersible Oil Diaphragm Pump
$203.78piece
QZ-042-C
Module 3.5 left-hand spiral bevel gear, 20° pressure angle, 15 teeth, ratio 27/15, 35°L spiral angle; ID 25mm, OD 60mm, total length 40mm, weight 0.0350kg. 20CrMo steel, precision machined for submersible oil diaphragm pump and power tools.
QZ-043-C
Module 3.5 right-hand spiral bevel gear, 20° pressure angle, 27 teeth, 35°R spiral angle; ID 22mm, OD 92mm, total length 26mm, weight 0.0965kg. 20CrMo alloy steel, high precision grinding for submersible oil diaphragm pump transmission.
Description

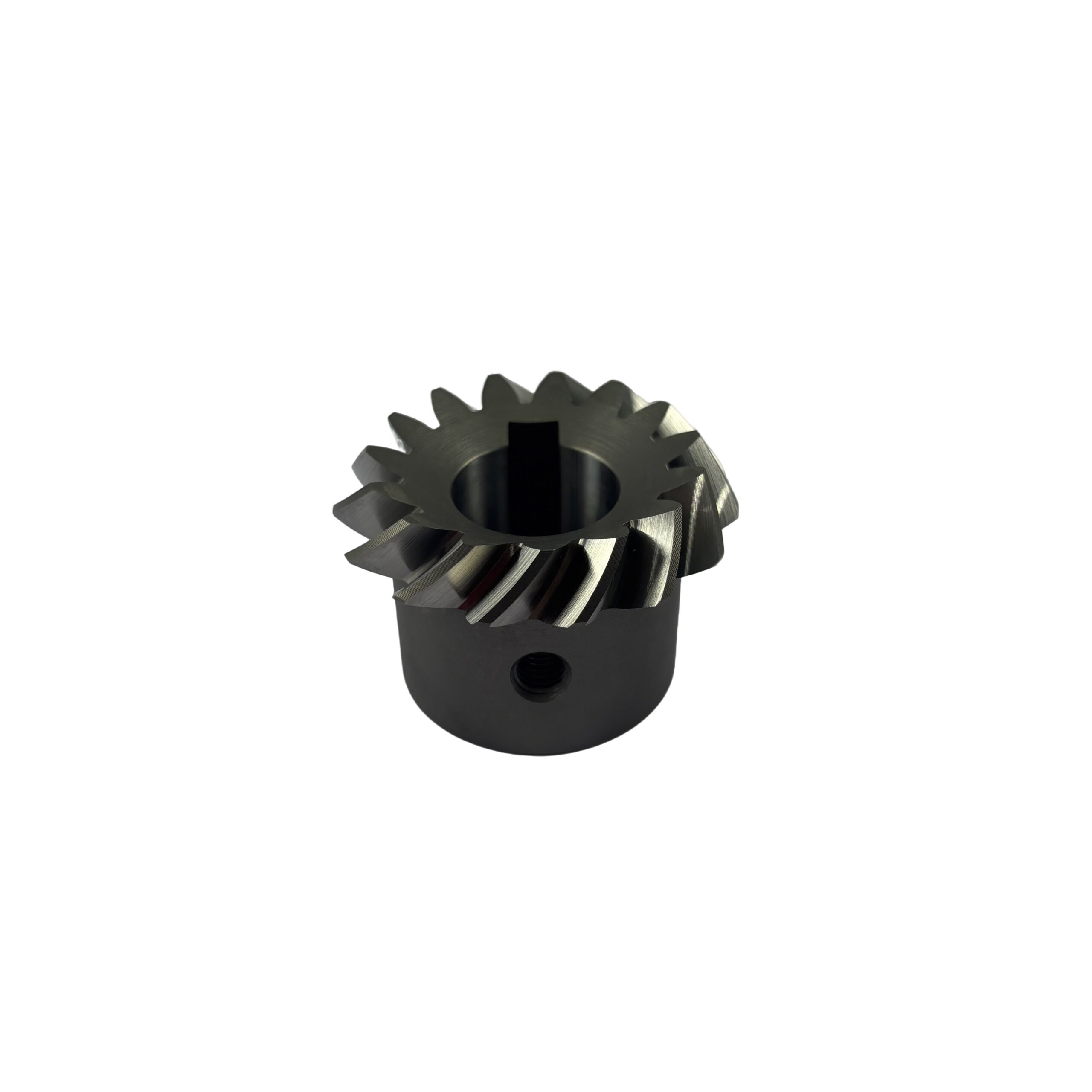

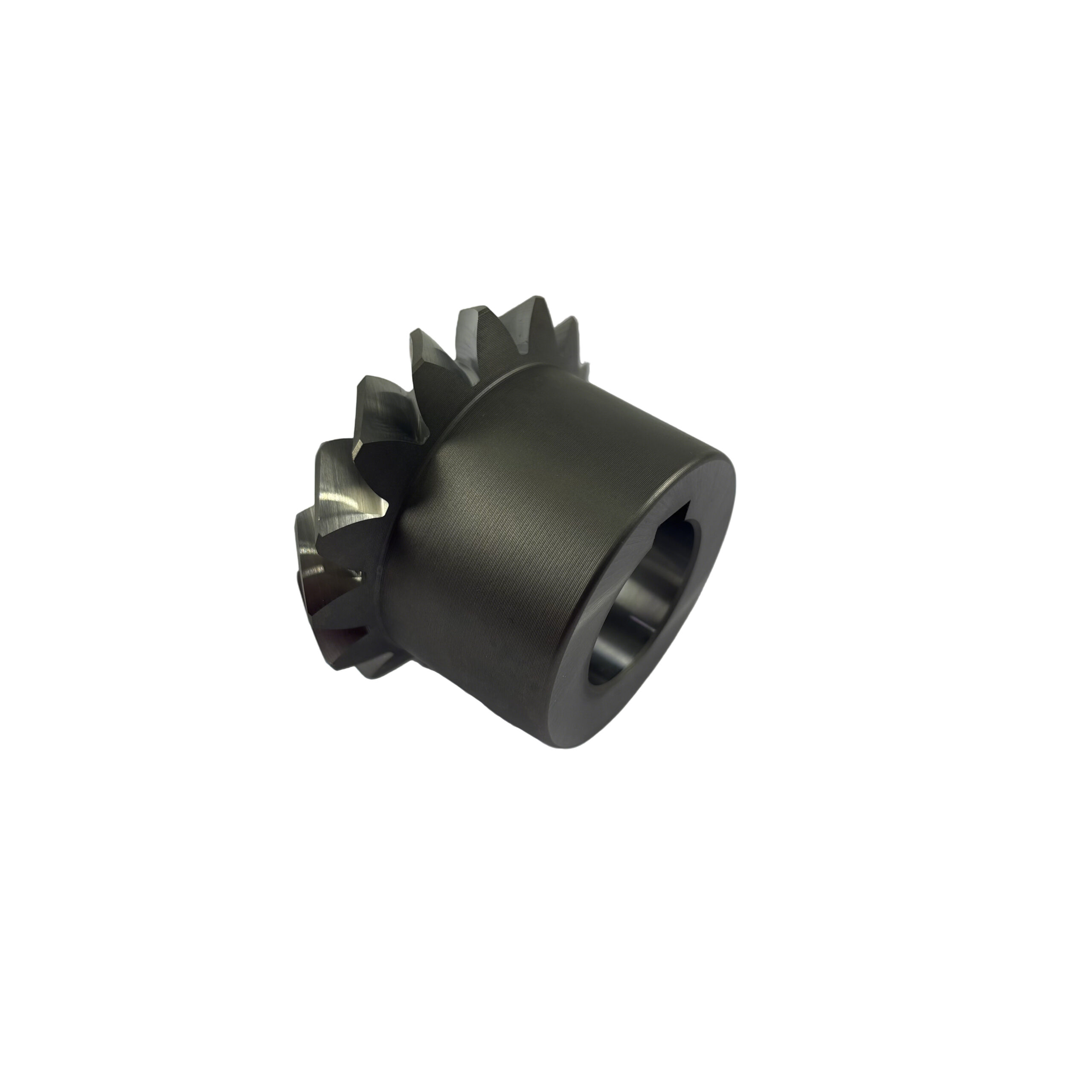

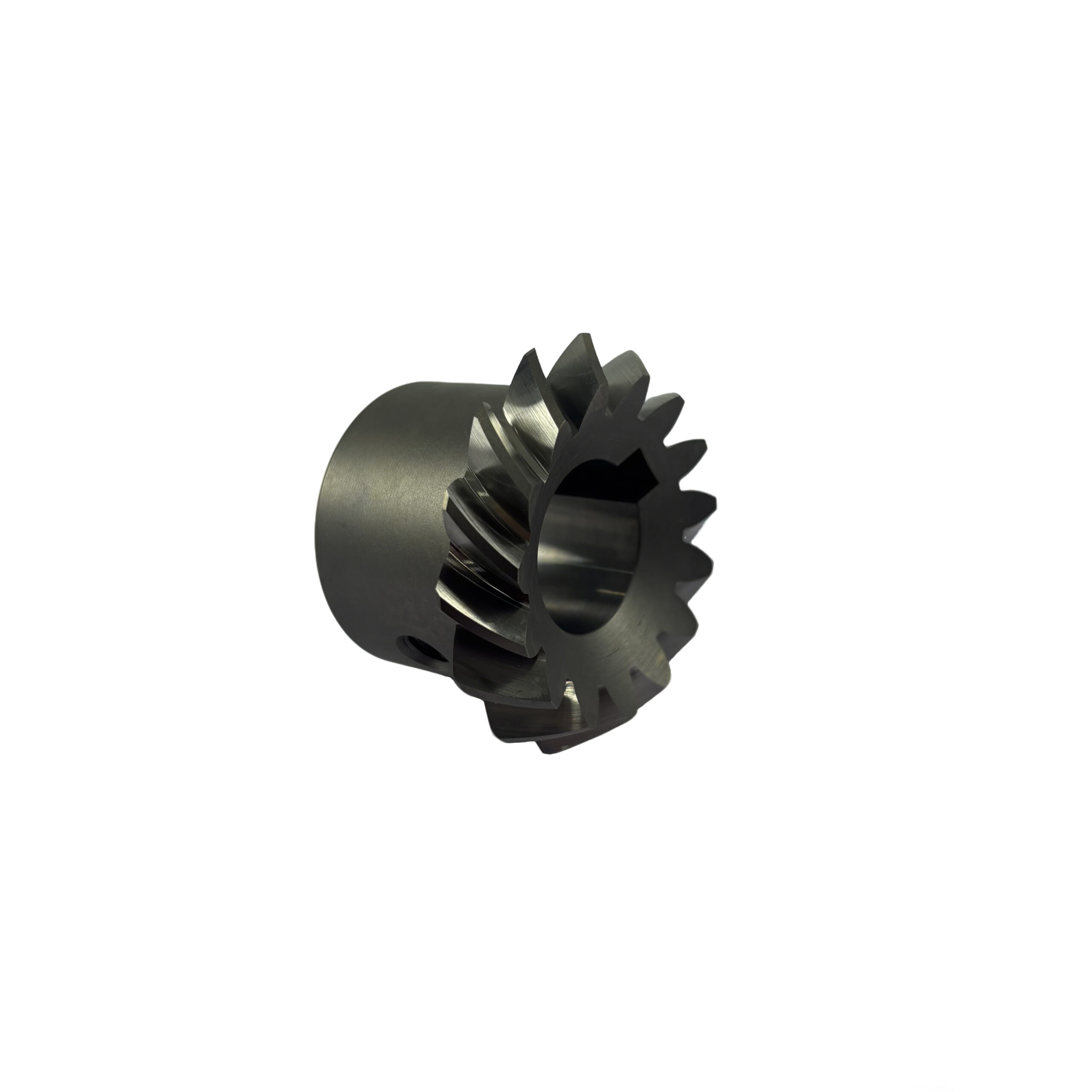

QZ-042-C 10170015 Small Gear for Submersible Oil Diaphragm Pump
Spiral bevel gear, pressure angle 20°, module 3.5, 15 teeth, gear ratio 27/15, spiral angle 35°L.
Inner diameter 25mm, gear outer diameter 60mm, total length 40mm, weight 0.0350kg.
Material: 20CrMo alloy steel.
Process: Sawing, turning, threaded hole machining, reaming, gear milling, heat treatment, hanging shot blasting, boring & facing, gear grinding, wire-cut keyway.
Applied for submersible oil diaphragm pump and power tool transmission.

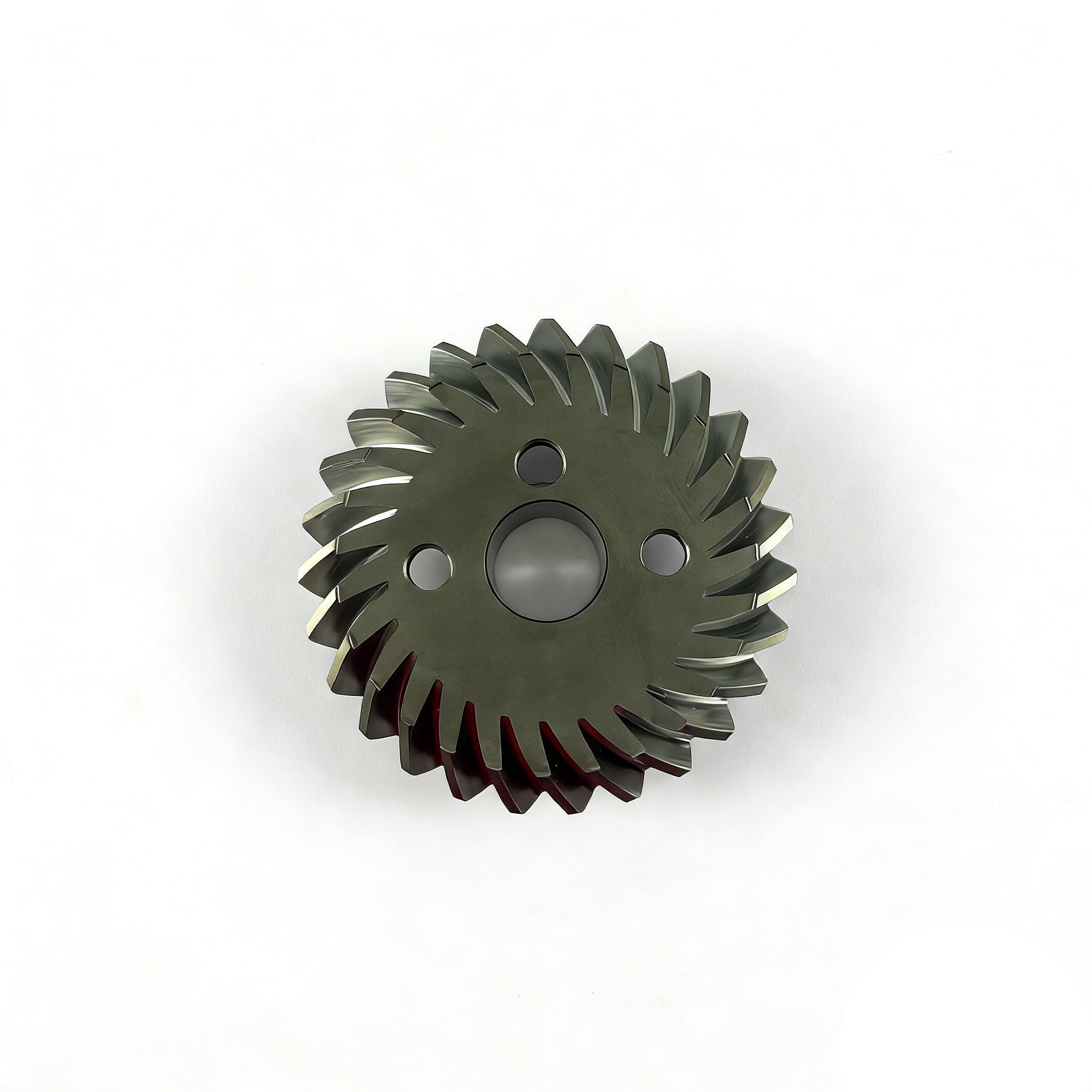

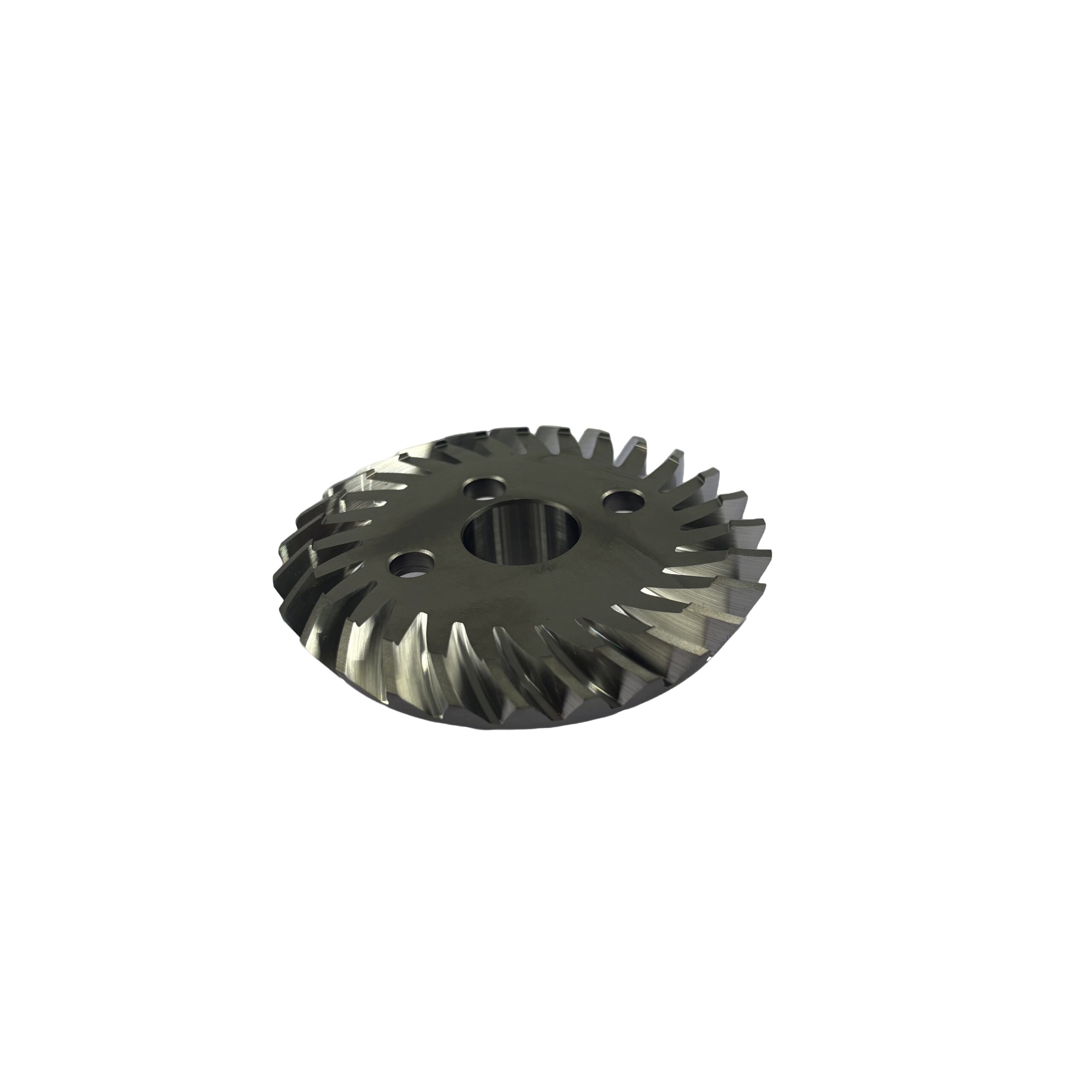

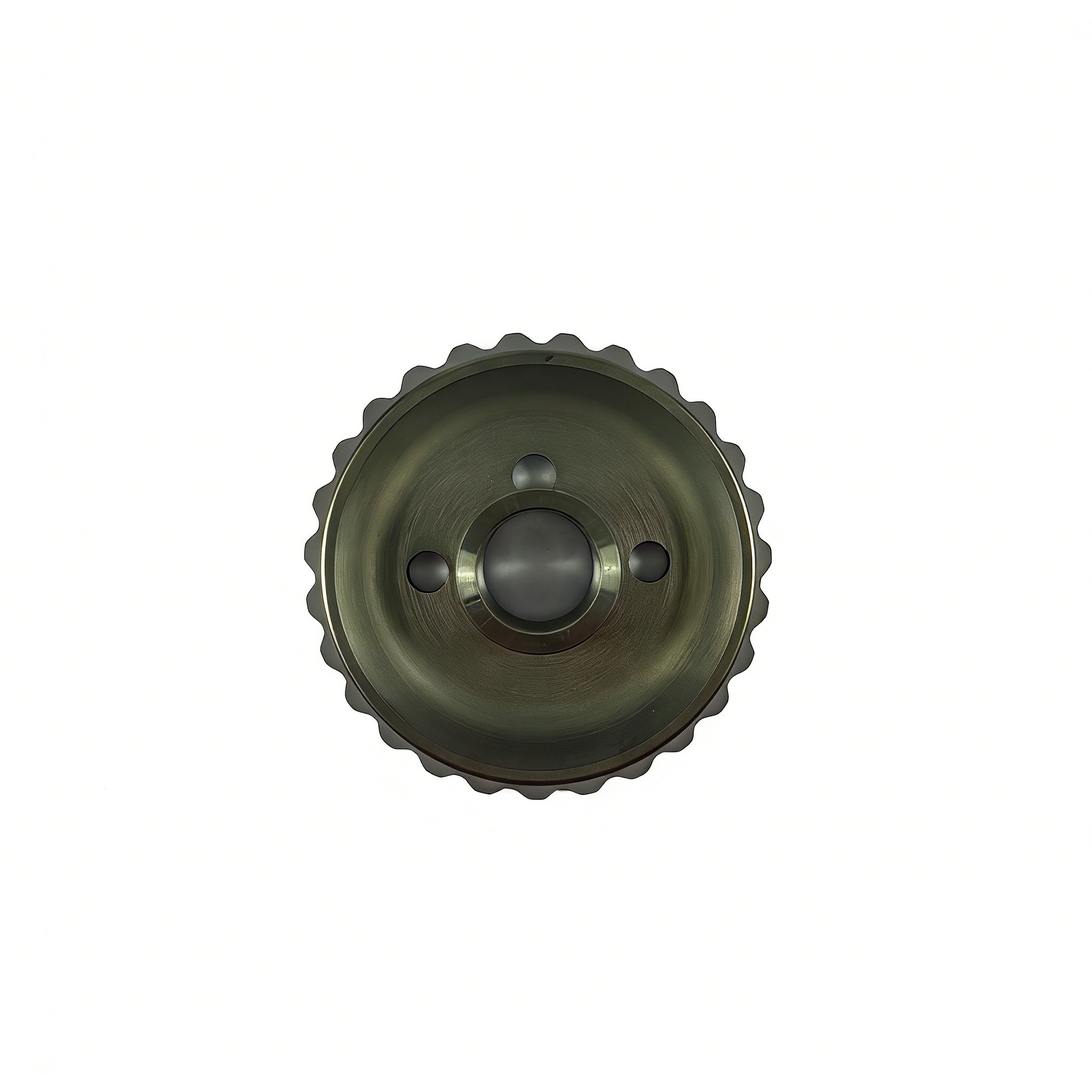

QZ-043-C 10170016 Large Gear for Submersible Oil Diaphragm Pump
Spiral bevel gear, pressure angle 20°, module 3.5, 27 teeth, spiral angle 35°R.
Inner diameter 22mm, gear outer diameter 92mm, total length 26mm, weight 0.0965kg.
Material: 20CrMo alloy steel.
Process: Sawing, turning, CNC machining center processing, gear milling, heat treatment, hanging shot blasting, boring & facing, outer diameter grinding, gear grinding.
Suitable for submersible oil diaphragm pump and power tool gear assembly.
Additional information
| QZ-042-C and QZ-043-C weight |
0.0350and0.0965 |
|---|---|
| QZ-042-C and QZ-043-C Core Components |
gear |
| QZ-042-C and QZ-043-C Craftsmanship |
Milling |
