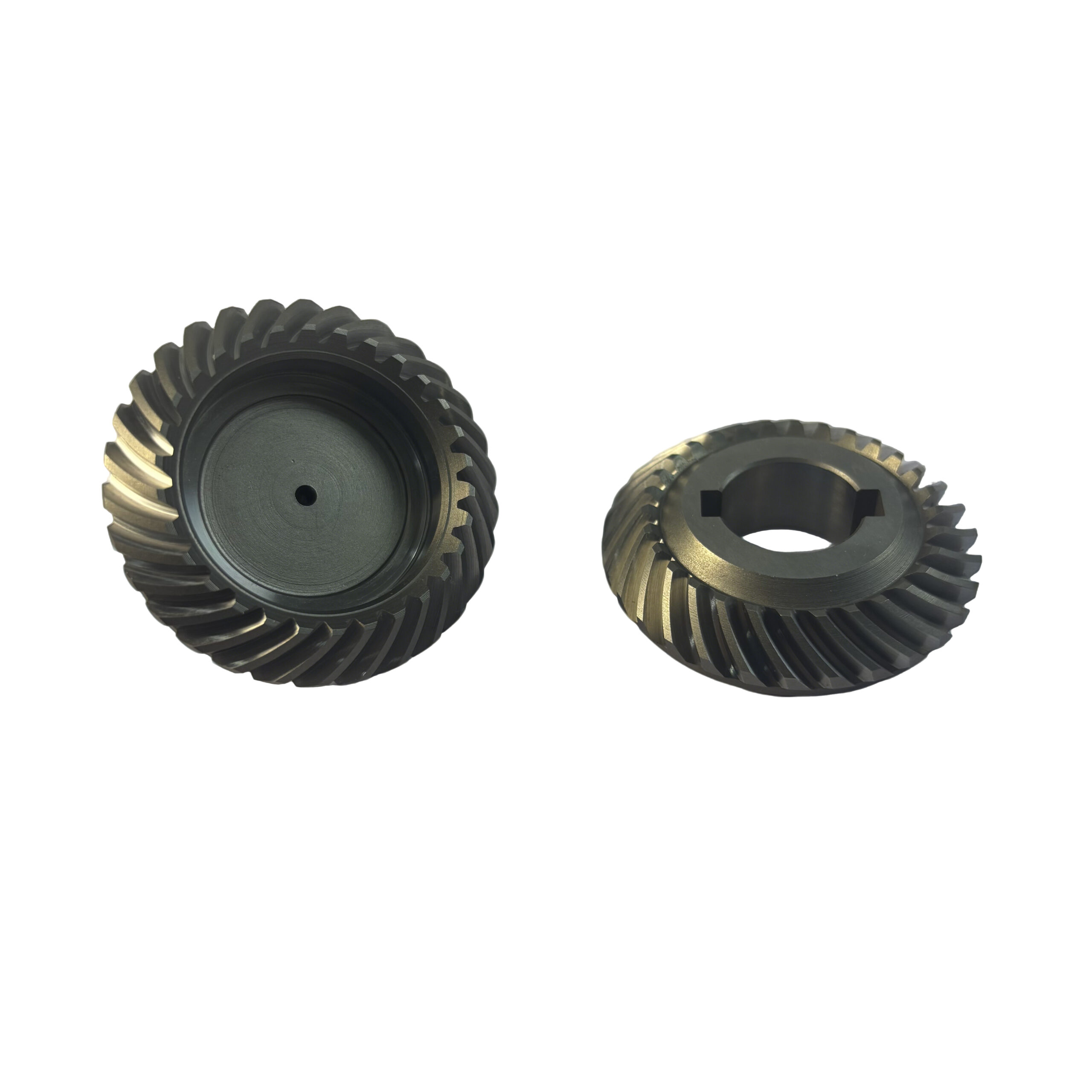

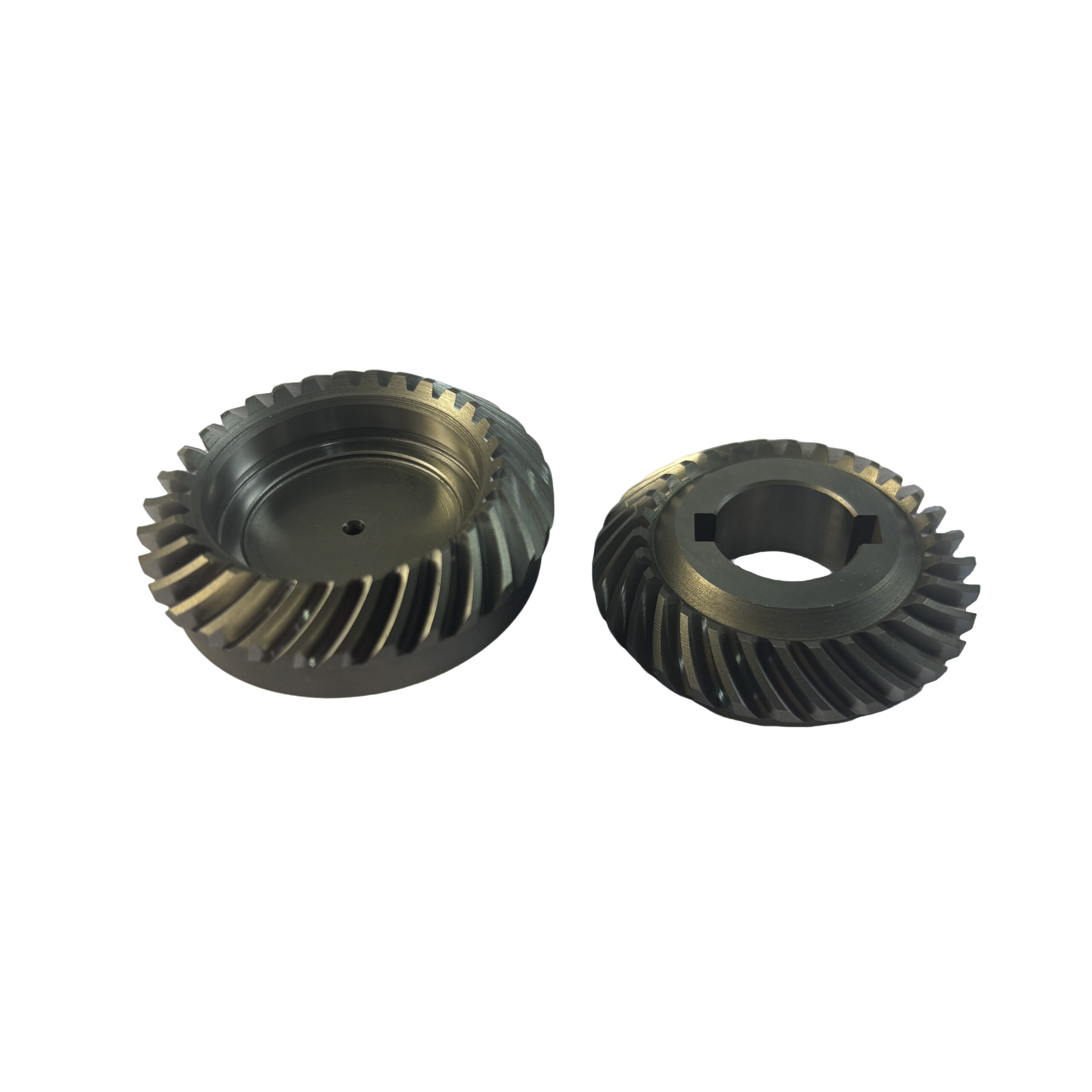

200942 Left Hand Spiral Bevel Gear and 200942 Right Hand Spiral Bevel Gear
$45.12piece
QZ-044-C
Module 1 left-hand spiral bevel gear, 20° pressure angle, 30 teeth, 35°L spiral angle; shaft diameter 17mm, OD 46.5mm, total length 26.5mm, weight 0.0965kg. Made of 20CrMo, precision processed for power tool transmission.
QZ-045-C
Module 1 right-hand spiral bevel gear, 20° pressure angle, 30 teeth, 35°R spiral angle; ID 17mm, OD 46.5mm, total length 12mm, weight 0.0965kg. 20CrMo steel, high precision finished for power tool gear set.
Description

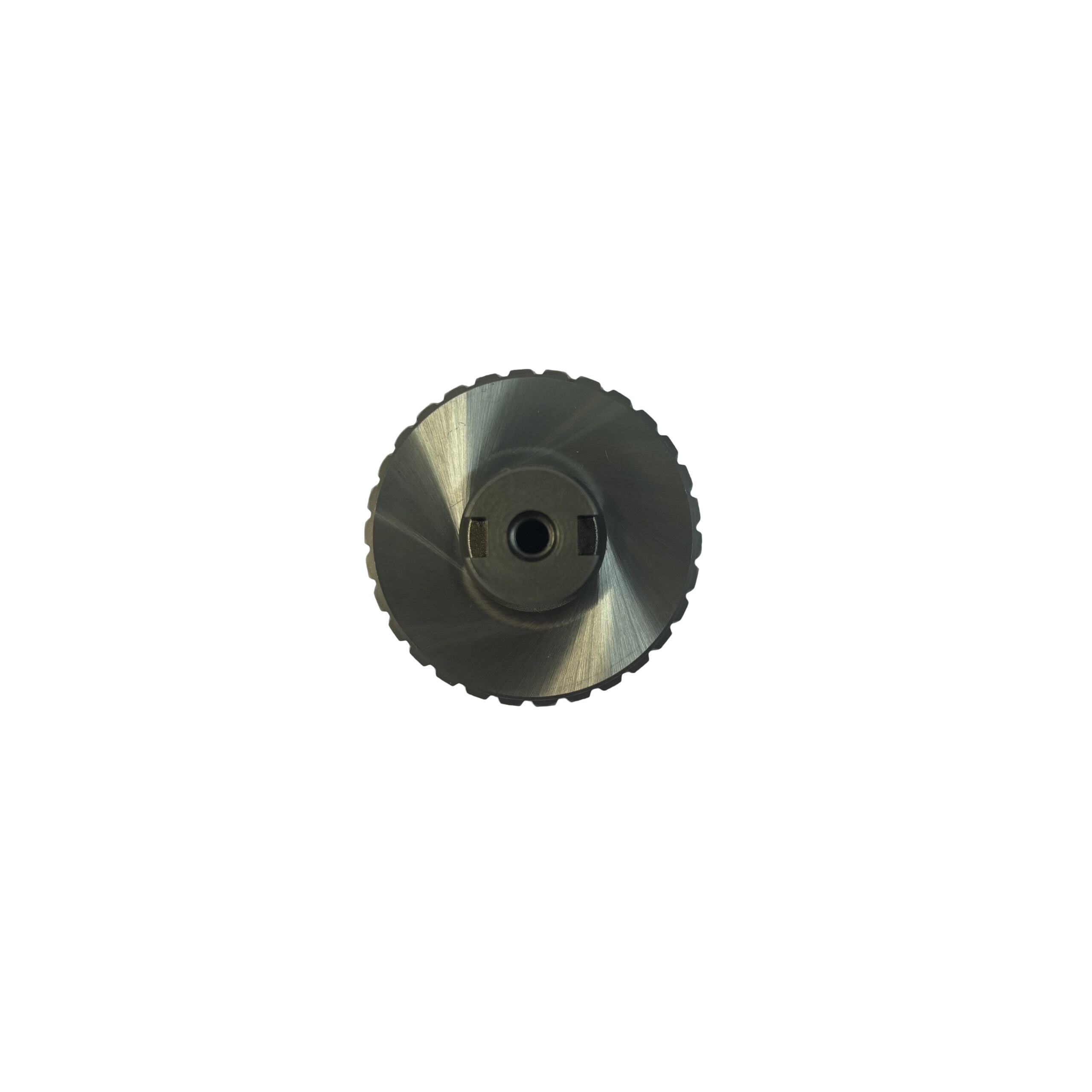

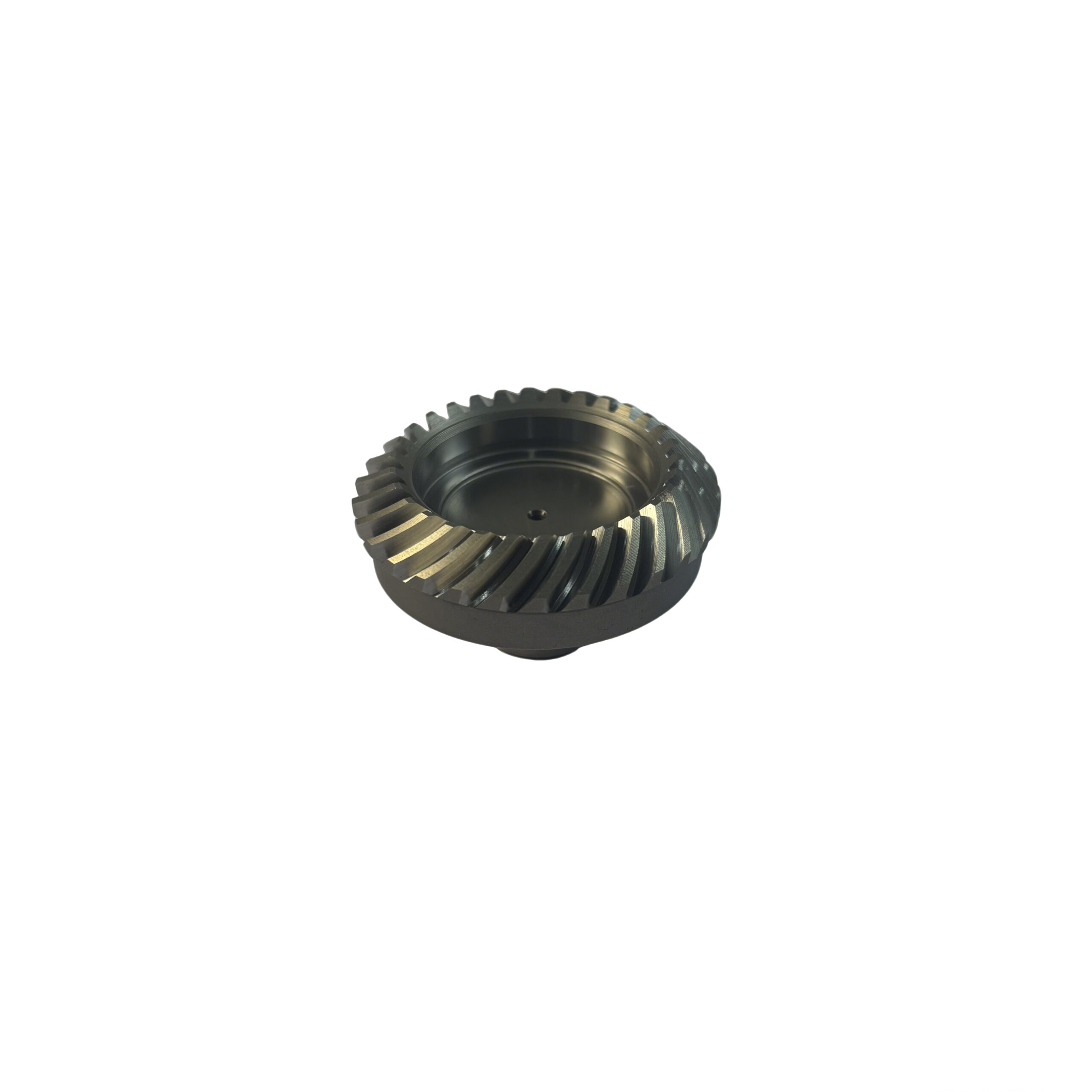

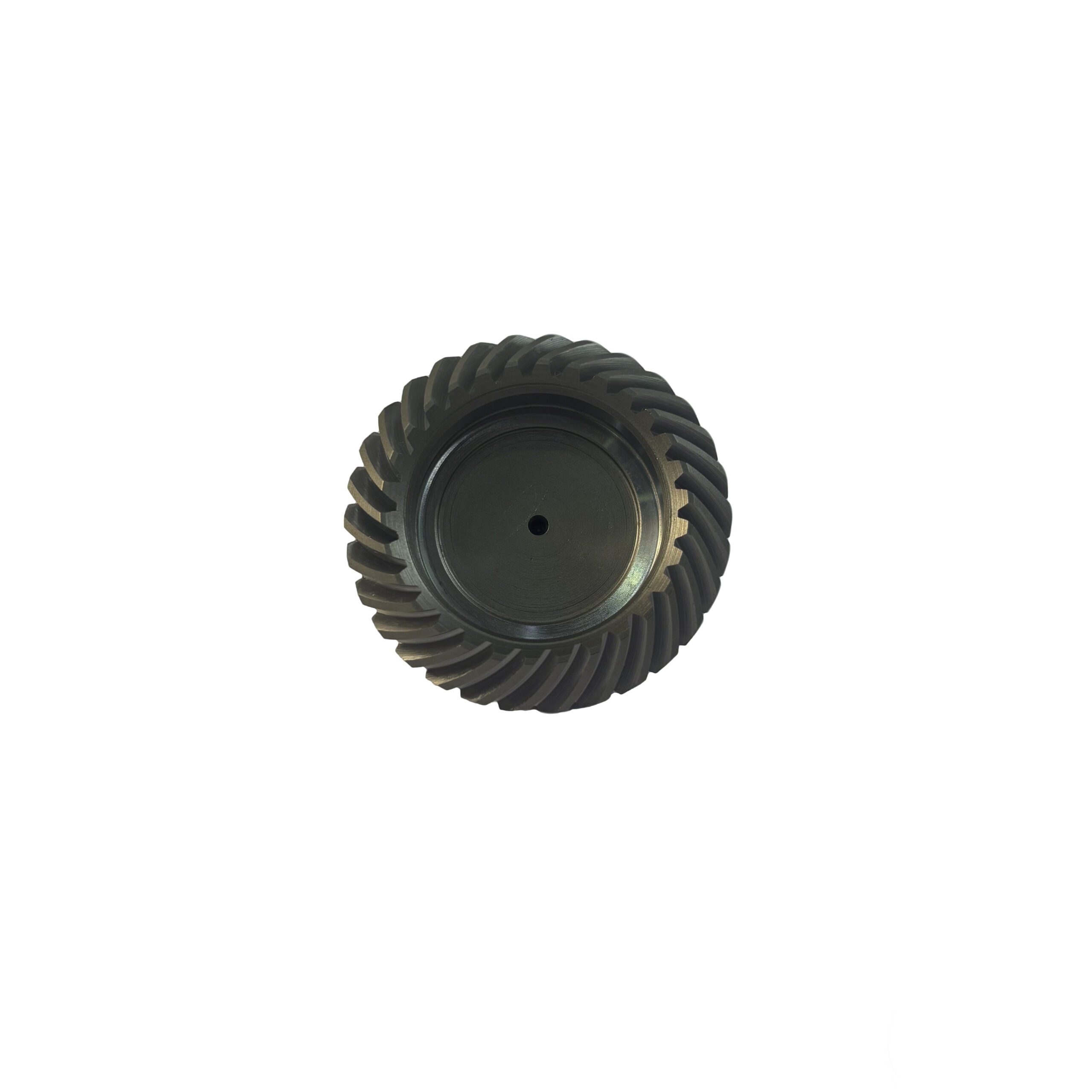

QZ-044-C 200942 Left Hand Gear
Left-hand spiral bevel gear, pressure angle 20°, module 1, 30 teeth, gear ratio 1, spiral angle 35°L.
Shaft diameter 17mm, gear outer diameter 46.5mm, total length 26.5mm, weight 0.0965kg.
Material: 20CrMo alloy steel.
Process: Sawing, turning, gear milling, heat treatment, hanging shot blasting, boring & facing & length grinding, gear grinding, wire-cut keyway.
Used for power tool transmission parts.

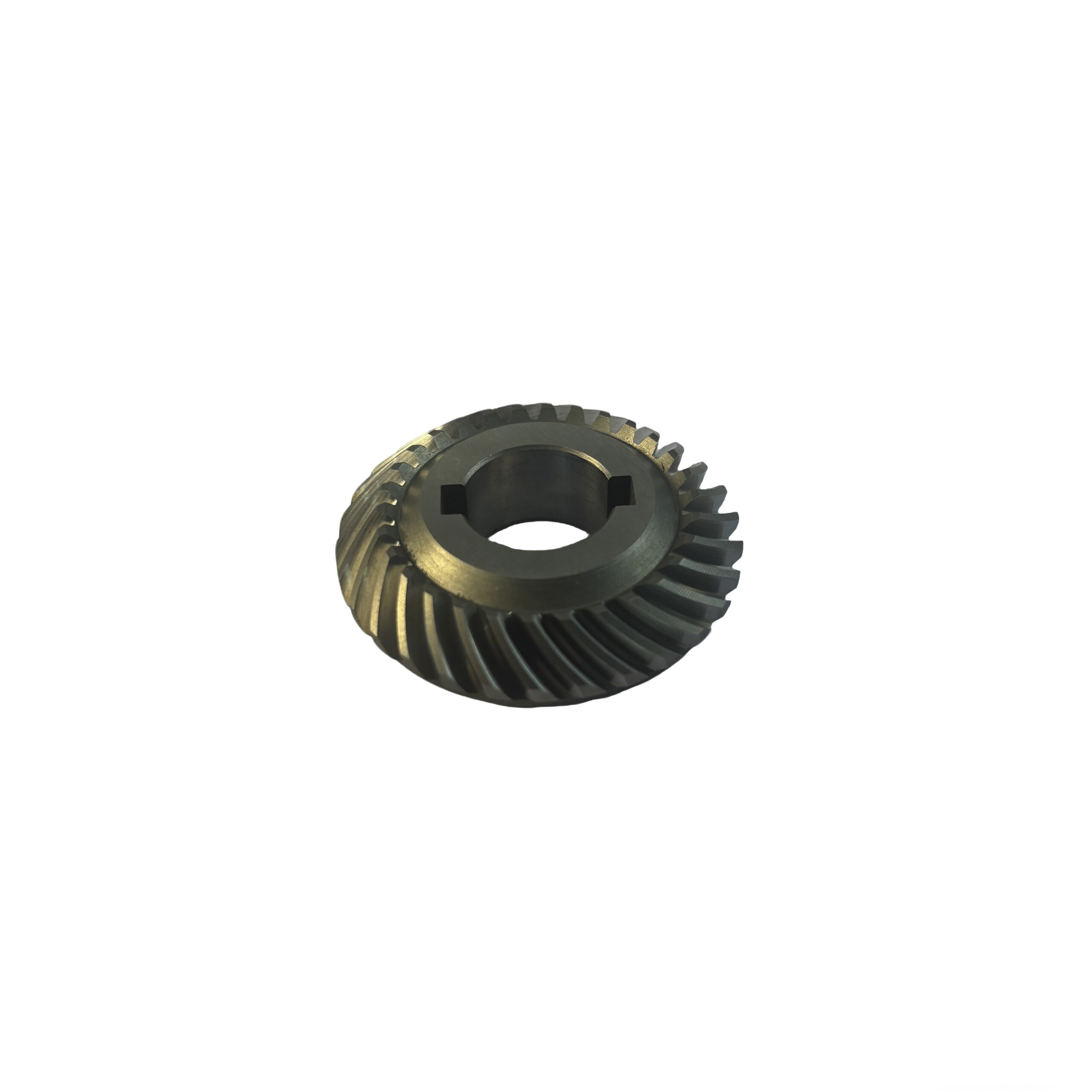

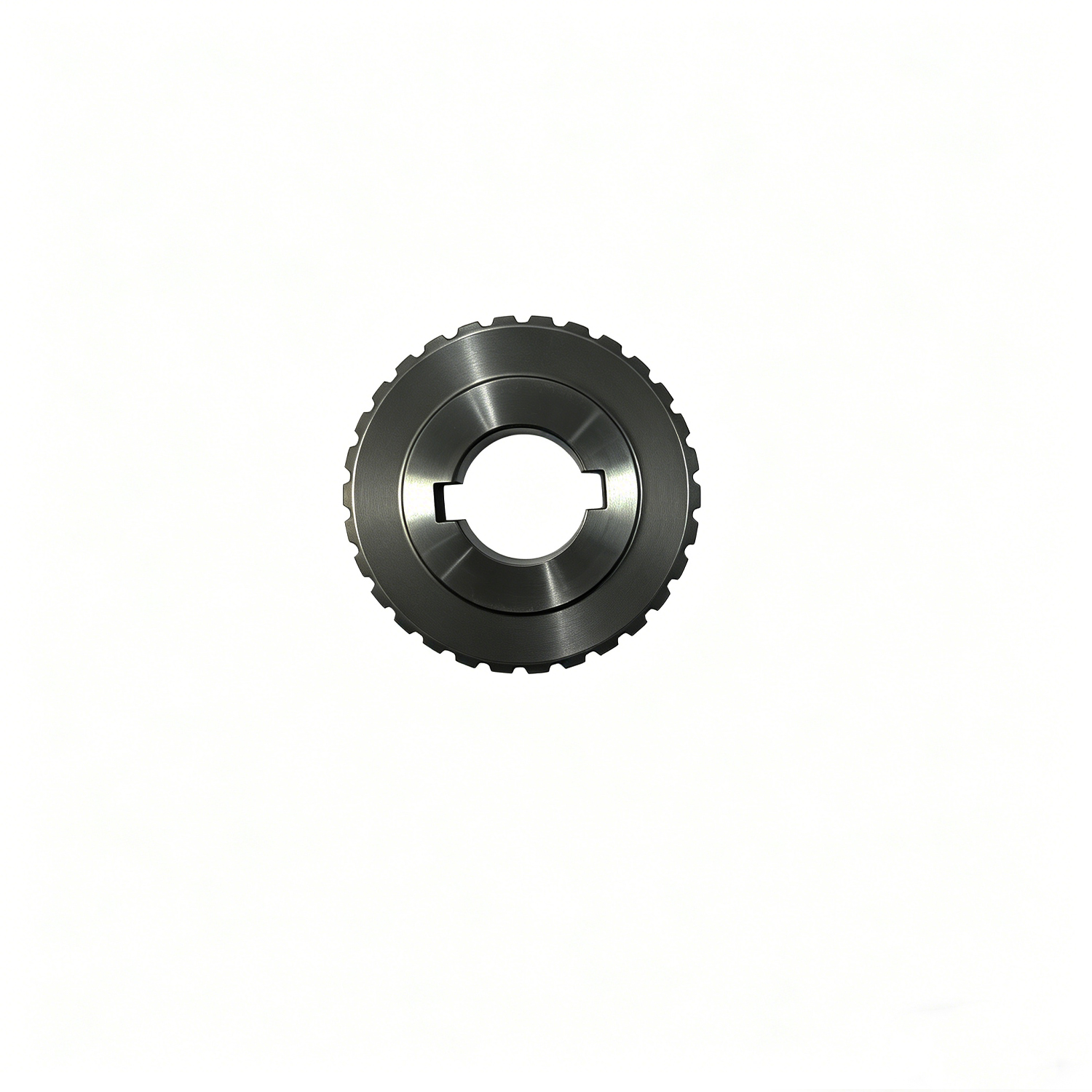

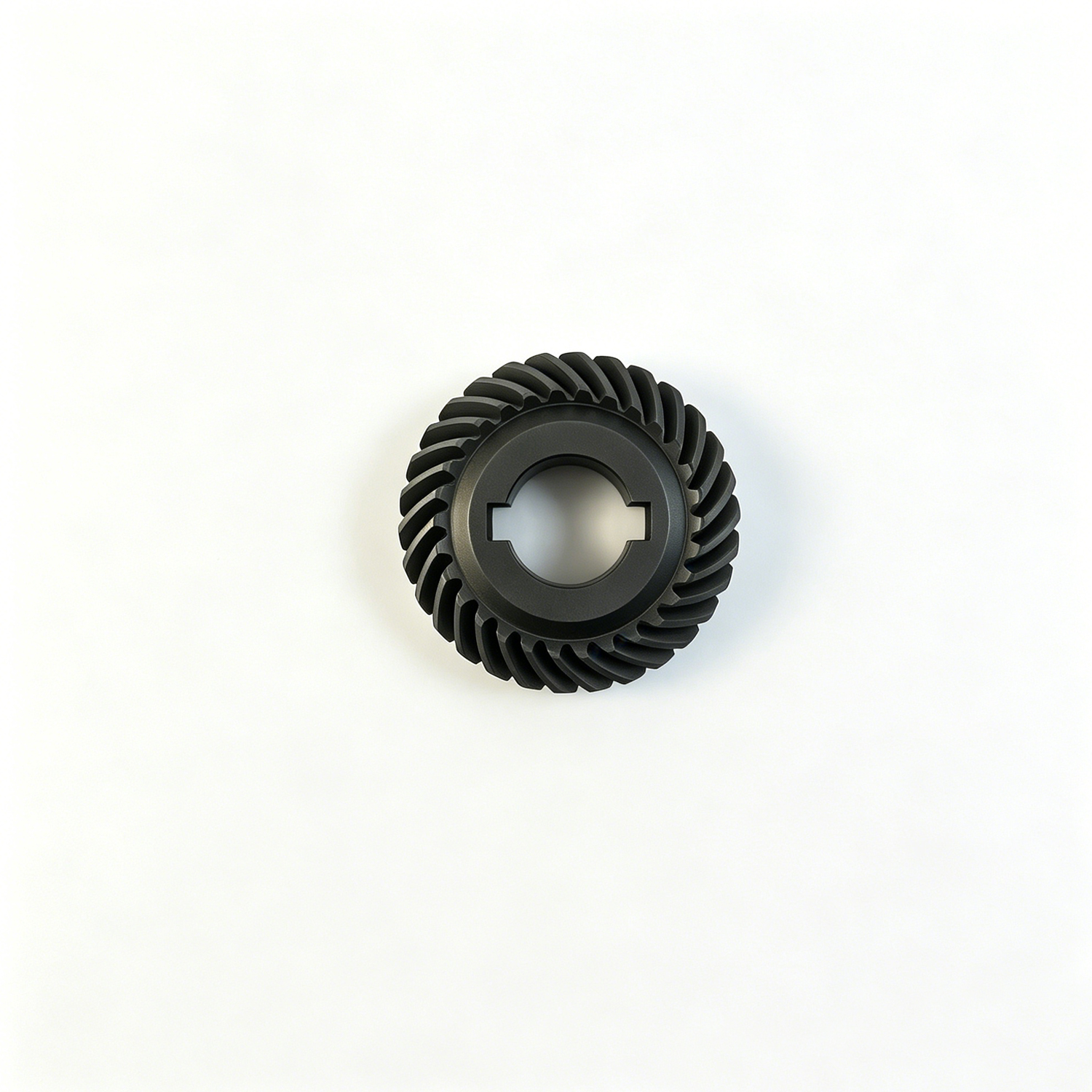

QZ-045-C 200942 Right Hand Gear
Right-hand spiral bevel gear, pressure angle 20°, module 1, 30 teeth, gear ratio 1, spiral angle 35°R.
Inner diameter 17mm, gear outer diameter 46.5mm, total length 12mm, weight 0.0965kg.
Material: 20CrMo alloy steel.
Process: Sawing, turning, gear milling, heat treatment, hanging shot blasting, boring & facing & length grinding, gear grinding, wire-cut keyway.
Suitable for power tool gear assembly.
Additional information
| QZ-044-C and QZ-045-C weight |
0.0965and0.0965 |
|---|---|
| QZ-044-C and QZ-045-C Core Components |
gear |
| QZ-044-C and QZ-045-C Craftsmanship |
Milling |
