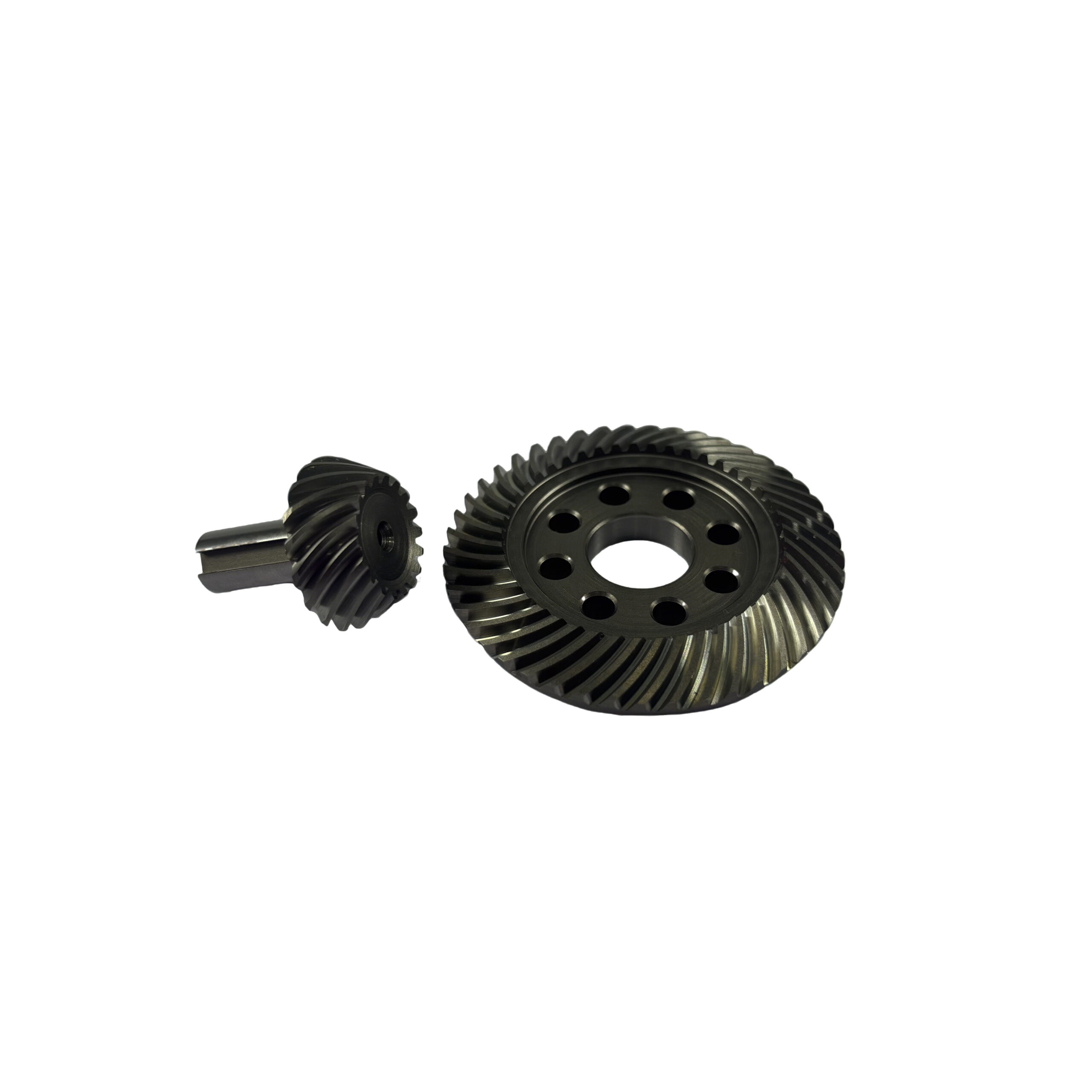

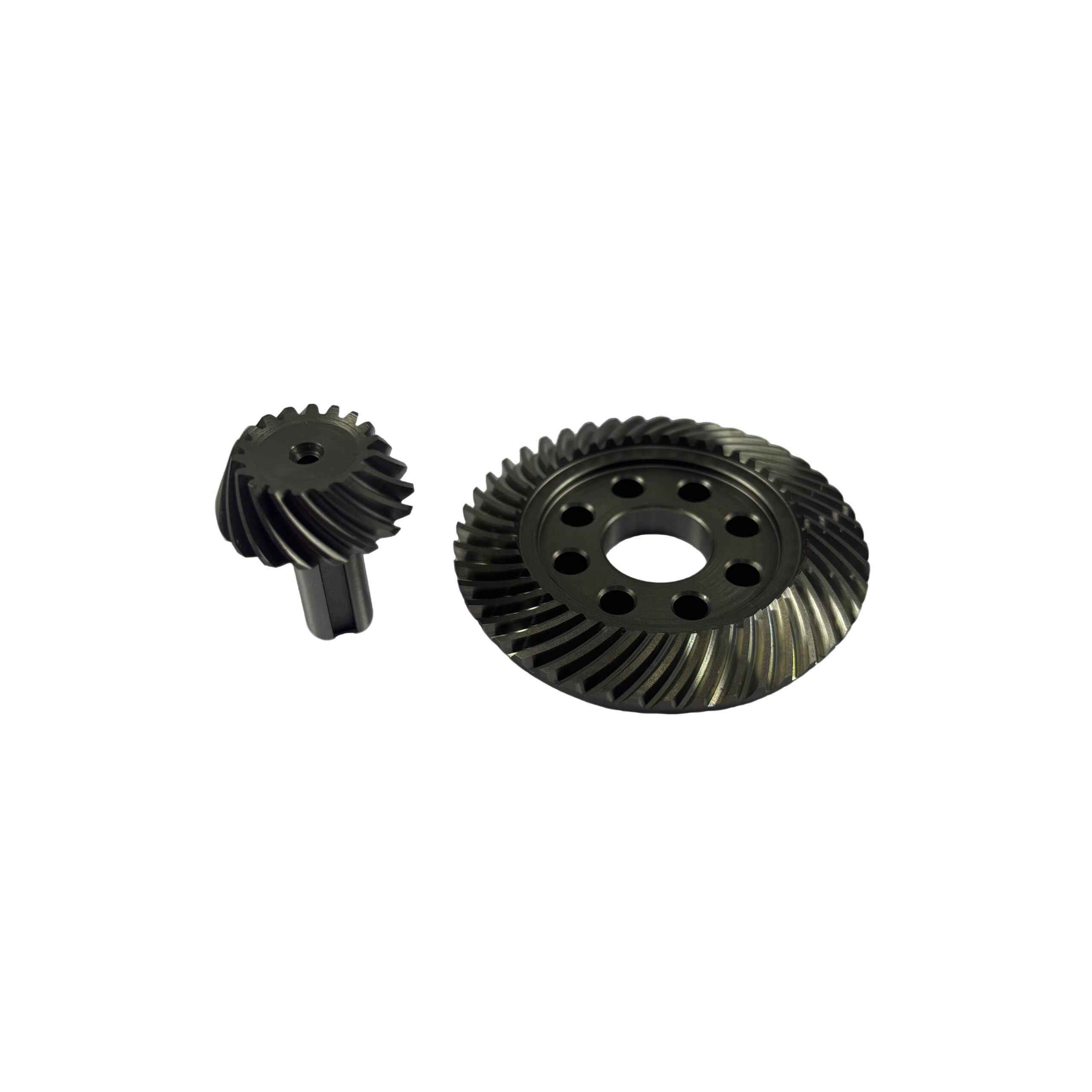

CK026-BG-EP-2.5 Gear Shaft and CK026-BG-EP-2.5 Gear
$27.66piece
QZ-034-C
Module 1.25 left-hand spiral bevel gear shaft, 20° pressure angle, 18 teeth, ratio 48/15, 35°L spiral angle; shaft diameter 9mm, OD 22mm, total length 29.5mm. 20CrMo steel, precision processed for power tool transmission.
QZ-035-C
Module 1.25 right-hand spiral bevel gear, 20° pressure angle, 45 teeth, 35°R spiral angle; ID 15mm, OD 56mm, total length 9mm. 20CrMo steel, heat treated and precision ground for power tool gear set.
Description

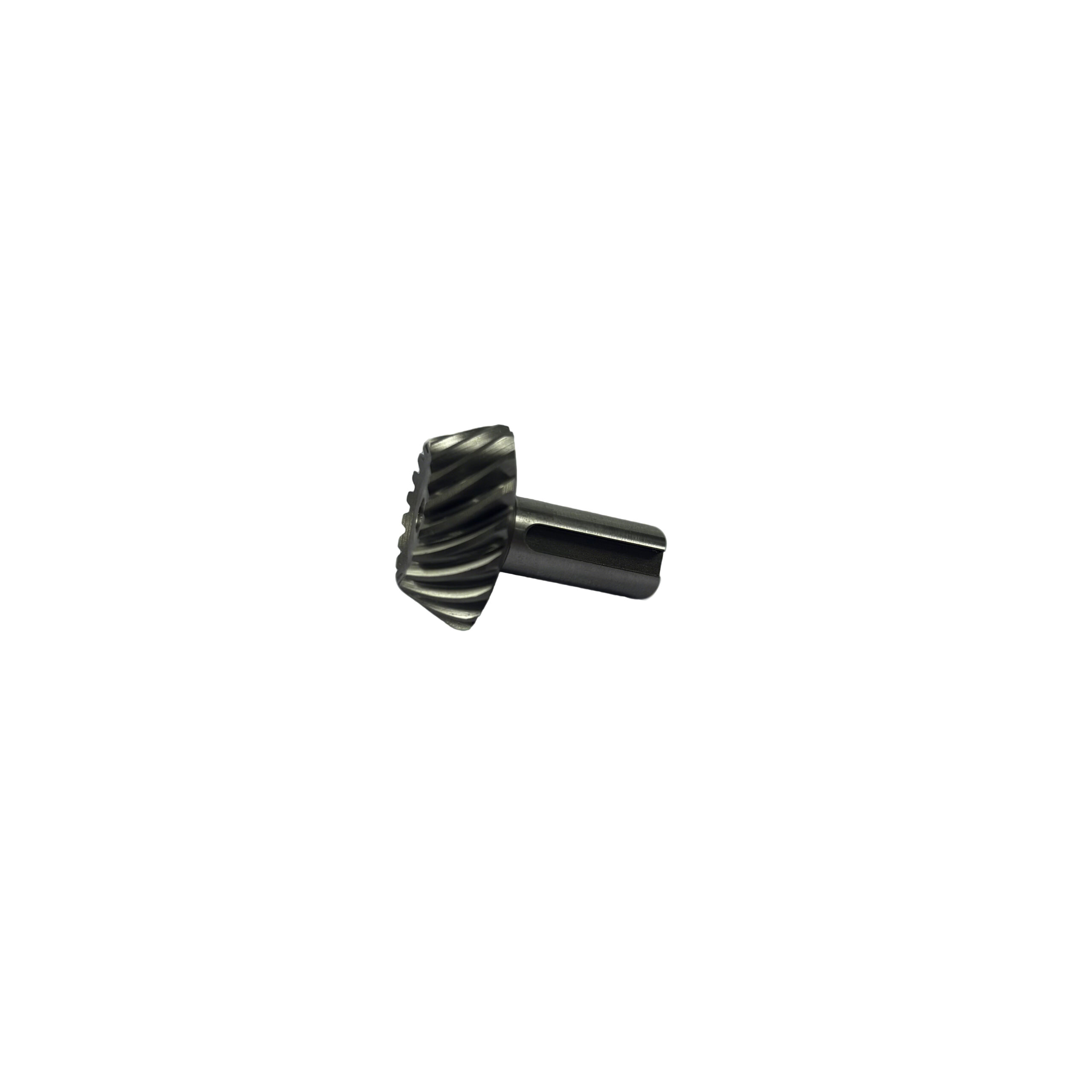

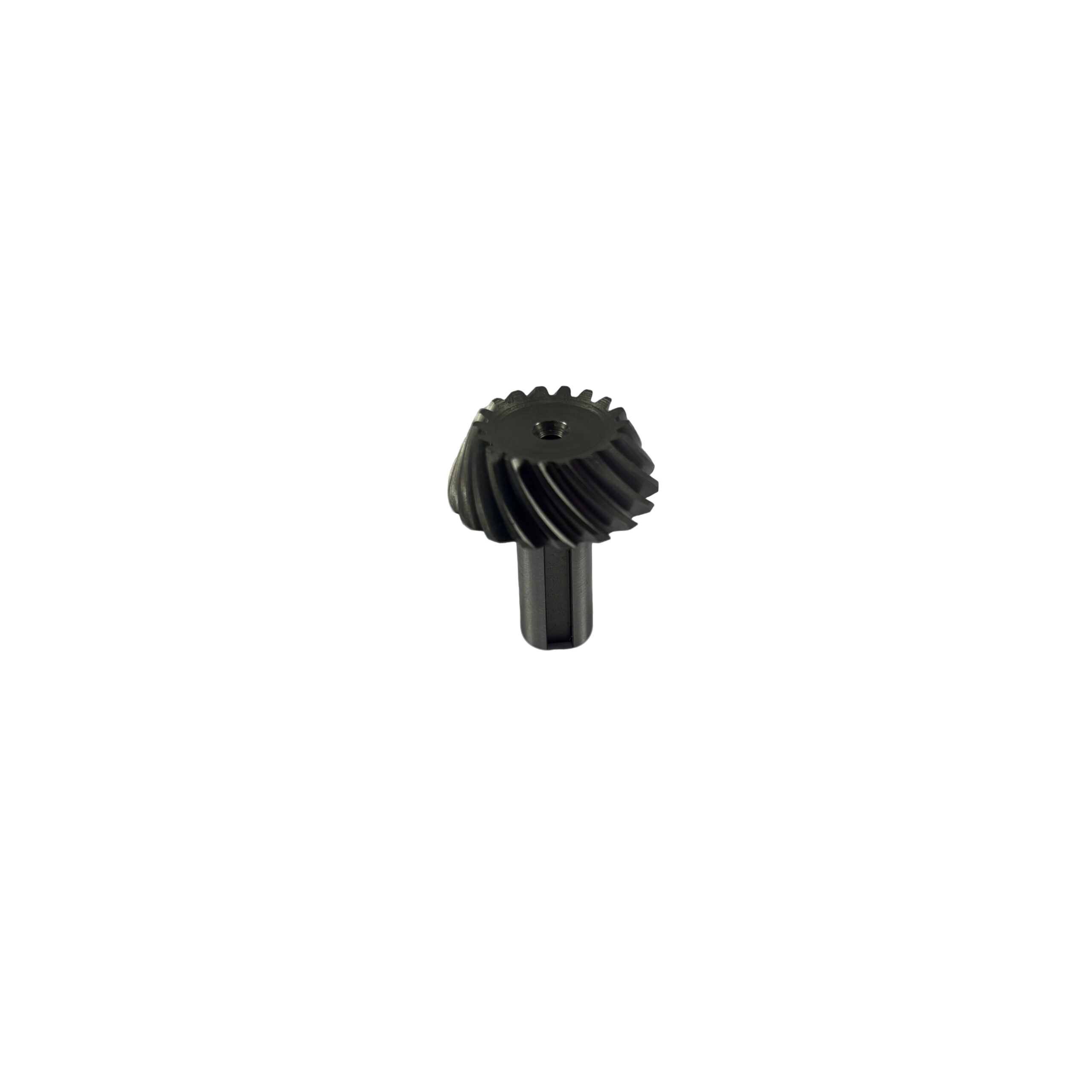

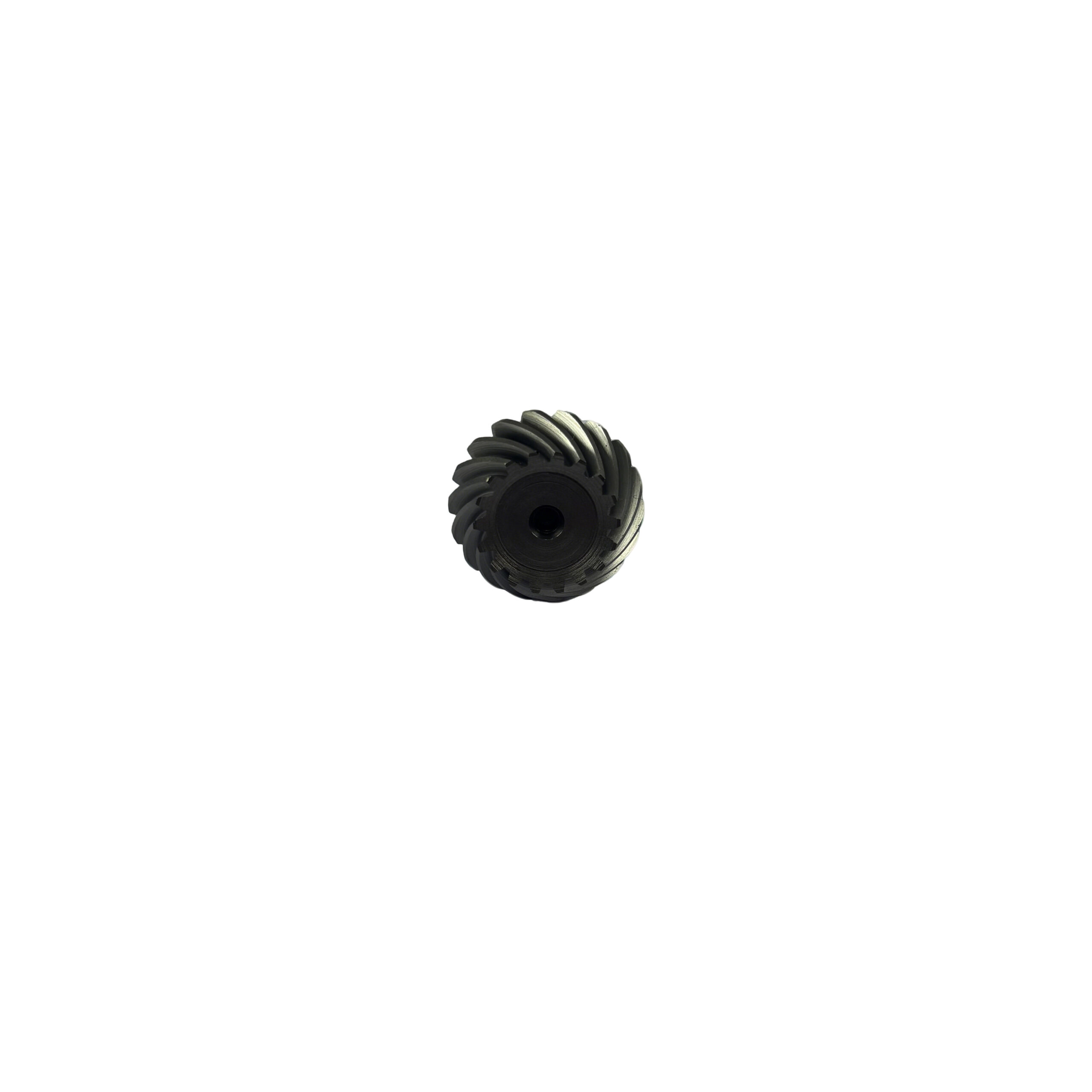

QZ-034-C CK026-BG-EP-2.5 Gear Shaft
Spiral bevel gear shaft, pressure angle 20°, module 1.25, 18 teeth, gear ratio 48/15, spiral angle 35°L.
Shaft diameter 9mm, gear outer diameter 22mm, total length 29.5mm.
Material: 20CrMo alloy steel.
Process: Sawing, turning, CNC keyway machining, threaded hole processing, rough grinding clamping position, gear milling, heat treatment, hanging shot blasting, facing, OD grinding, gear grinding.
Applied for power tool transmission assembly.

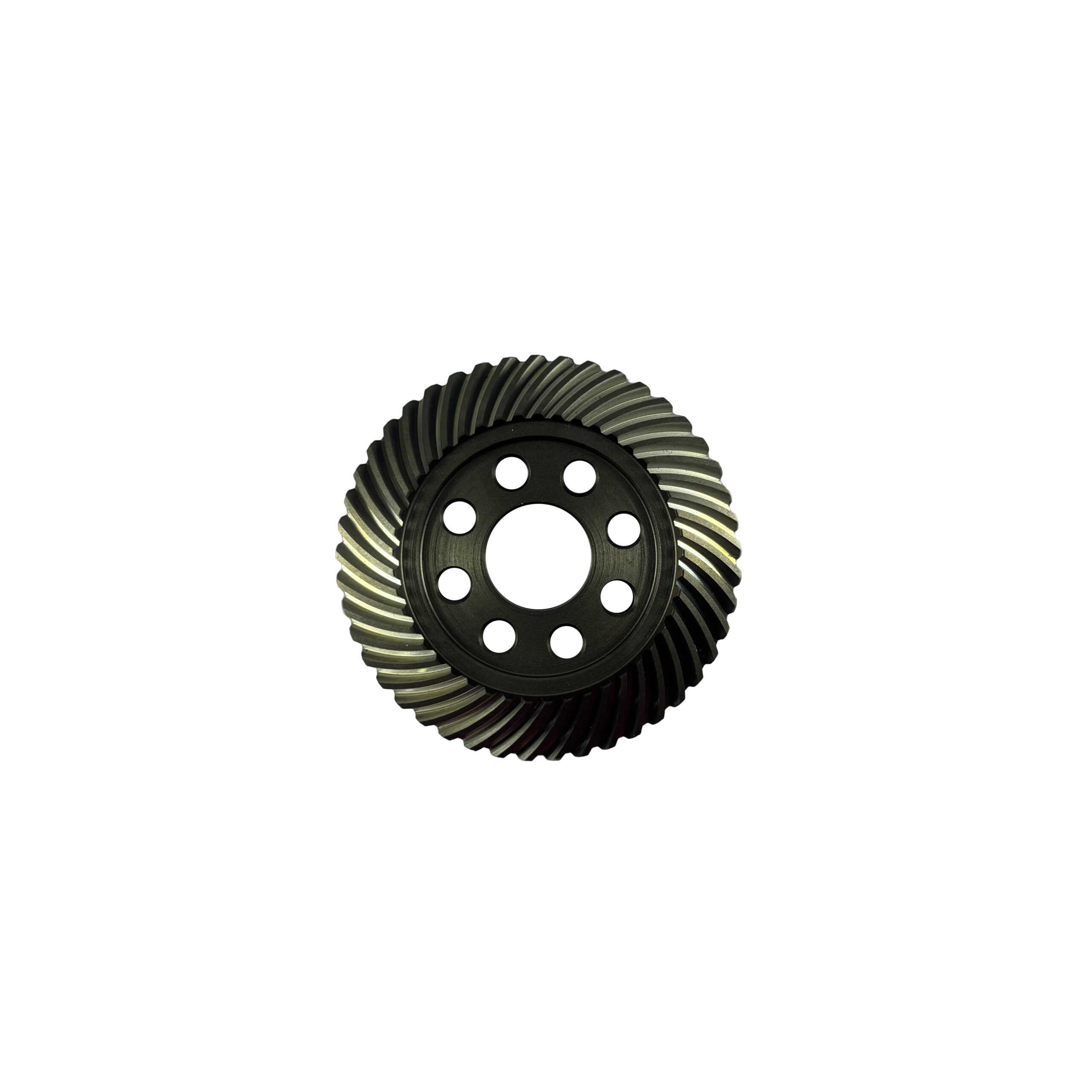

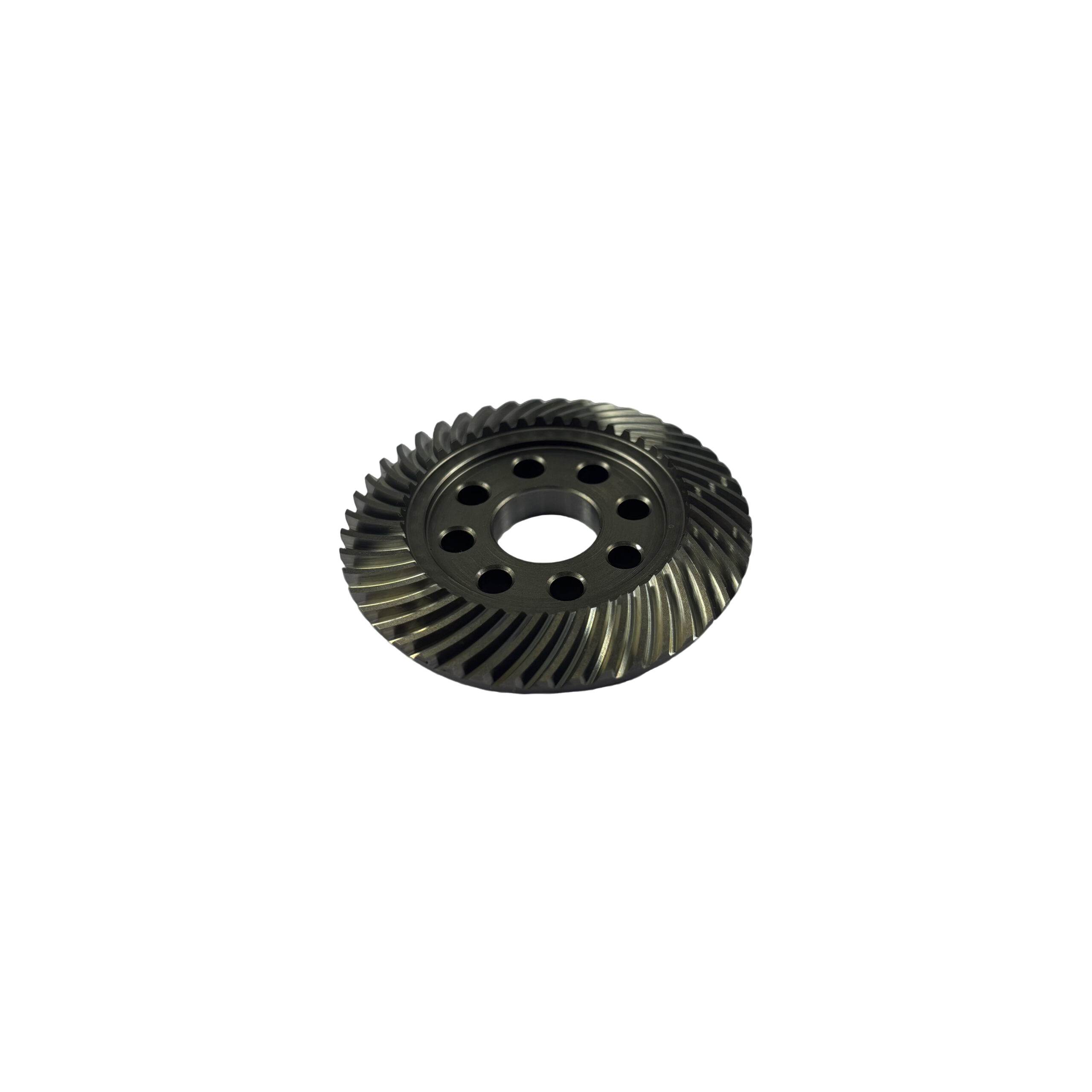

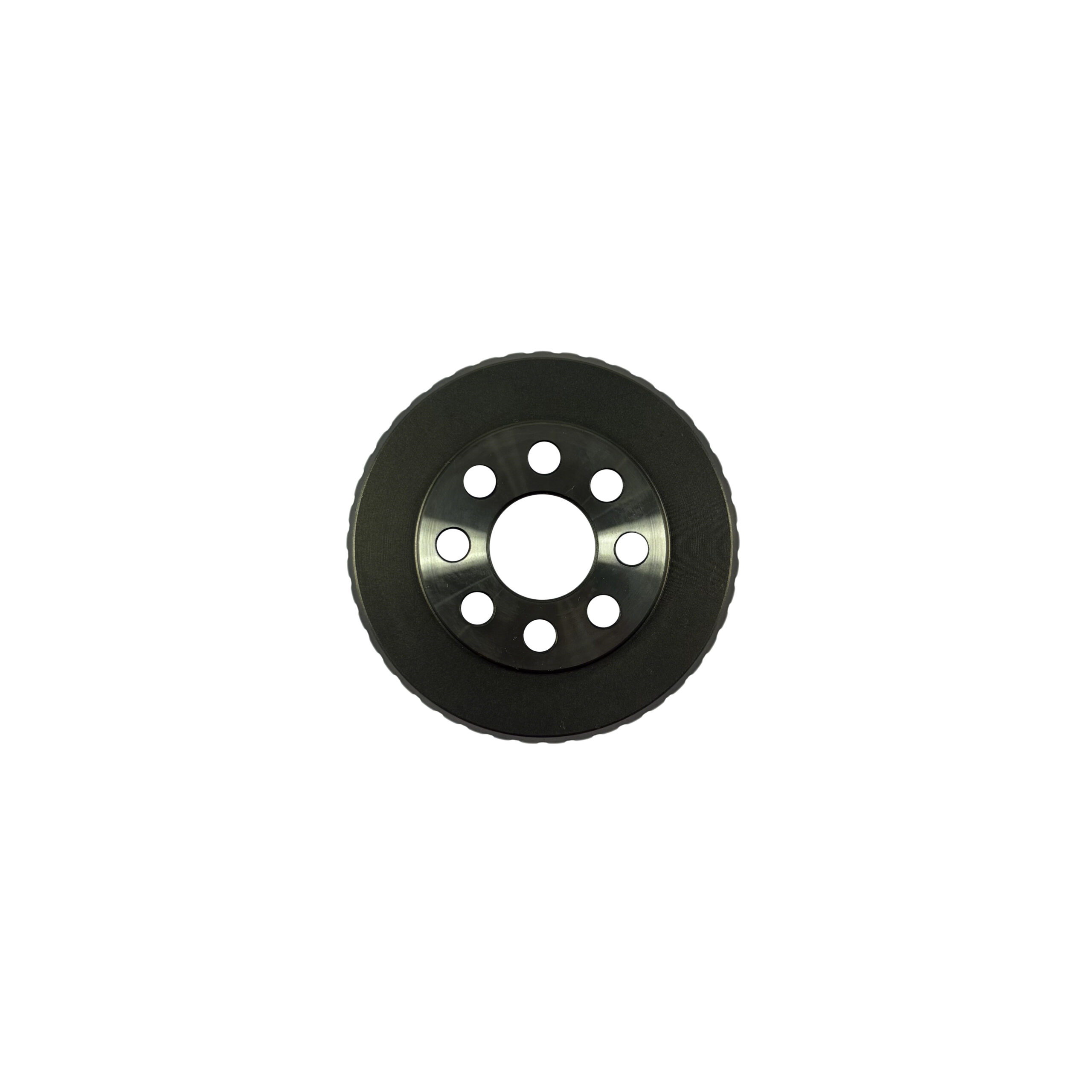

QZ-035-C CK026-BG-EP-2.5 Gear
Spiral bevel gear, pressure angle 20°, module 1.25, 45 teeth, spiral angle 35°R.
Inner diameter 15mm, gear outer diameter 56mm, total length 9mm.
Material: 20CrMo alloy steel.
Process: Sawing, turning, drilling, gear milling, heat treatment, hanging shot blasting, boring & facing, gear grinding.
Suitable for power tool gear matching.
Additional information
| QZ-034-C and QZ-035-C weight |
0.0297and0.0872 |
|---|---|
| QZ-034-C and QZ-035-C Core Components |
gear |
| QZ-034-C and QZ-035-C Craftsmanship |
Milling |
