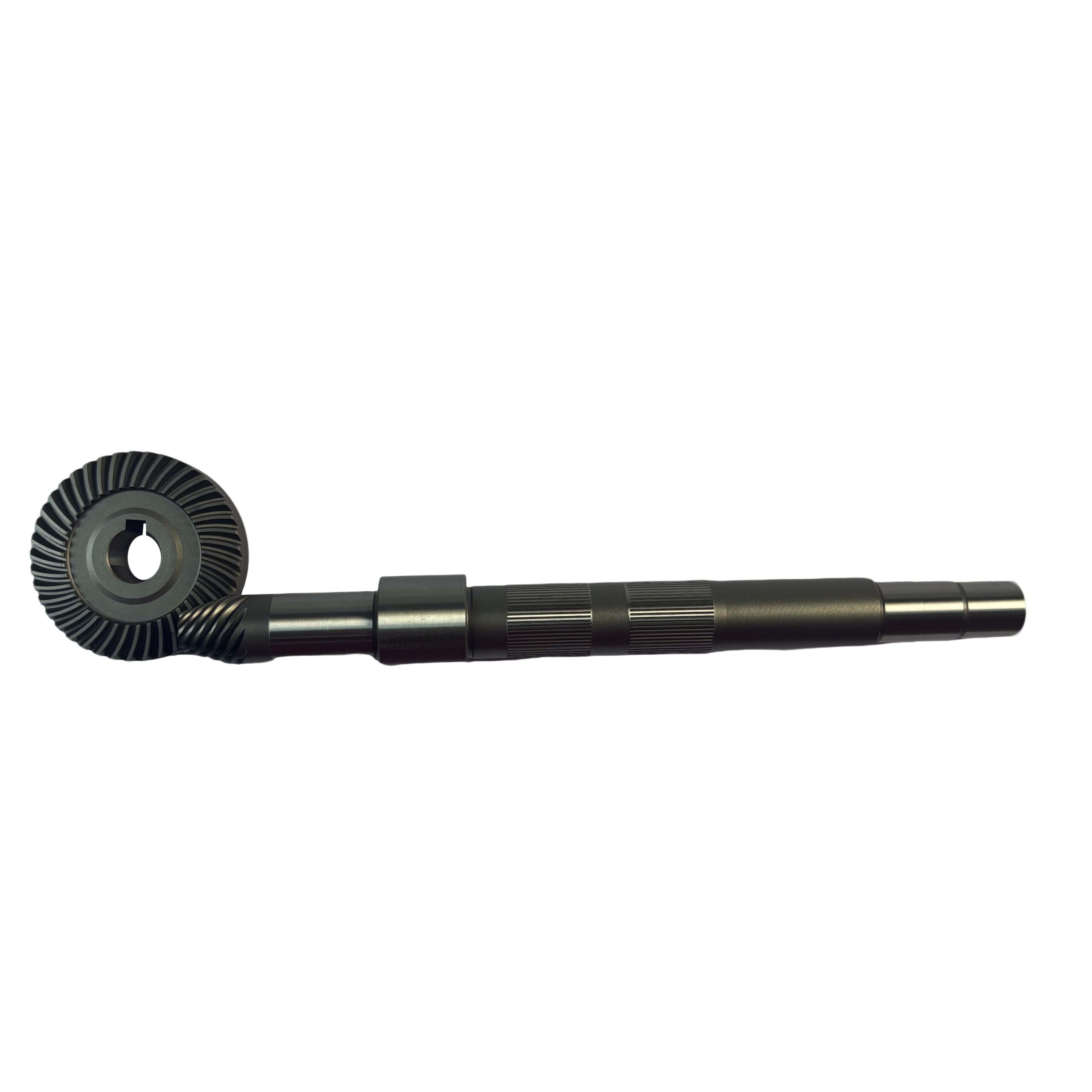

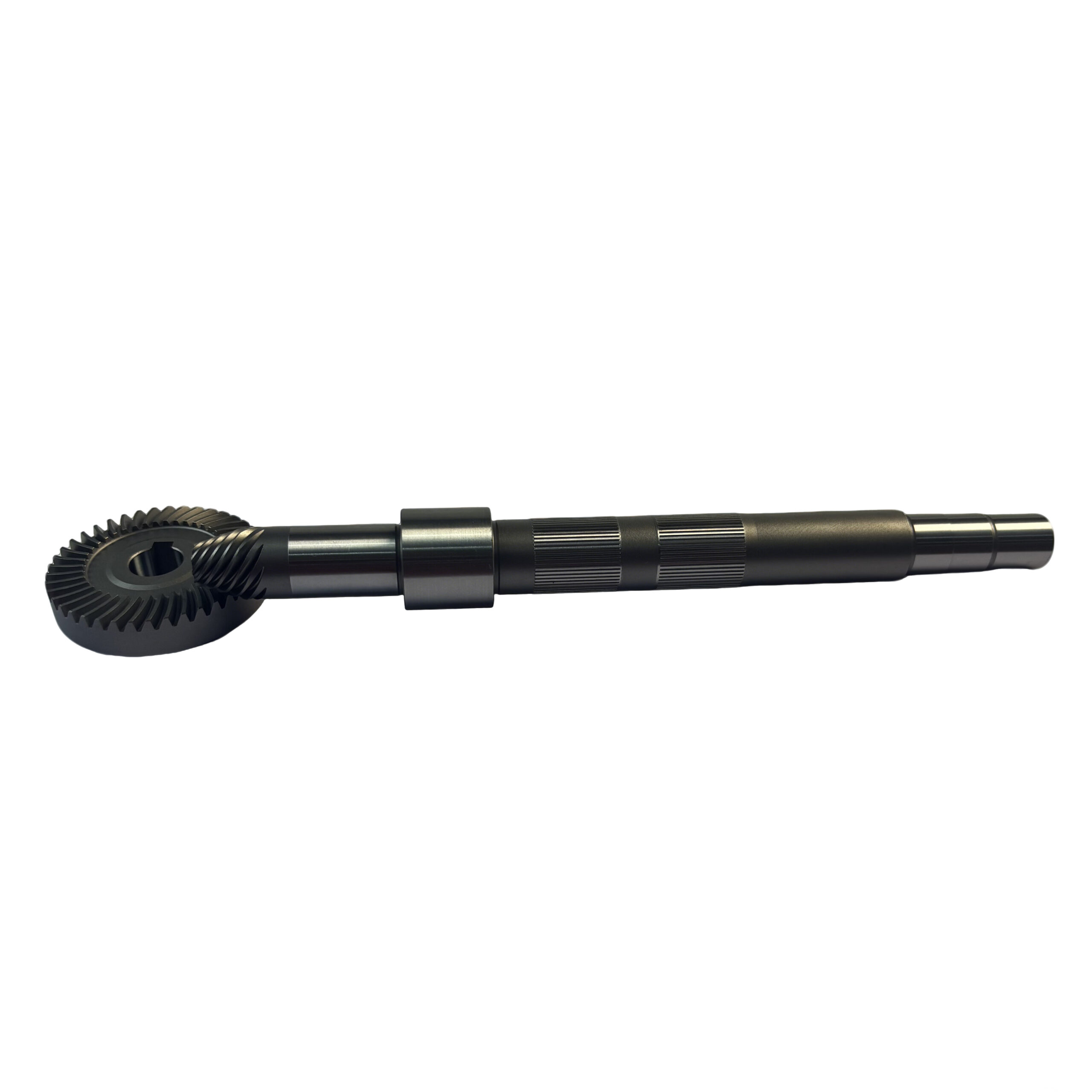

ZDF3-25H20-200-S3-013-00002 Shaft and ZDF3-25H240-100-516-002 Primary Driven Gear
$8.20piece
ZD-017-C is a hypoid gear shaft, made of 20CrMnTi. It has 4 teeth, 50° left-hand helix, module 1.27, total length 202.8mm, weight 0.36kg. Processed with precision, it is suitable for reducers, featuring stable transmission and wear resistance.
ZD-018-C is a hypoid primary driven gear, made of 20CrMnTi. It has 41 teeth, 50° right-hand helix, inner diameter 13mm, total length 15.5mm, weight 0.17kg. It is suitable for reducers, with stable transmission and good wear resistance.
描述

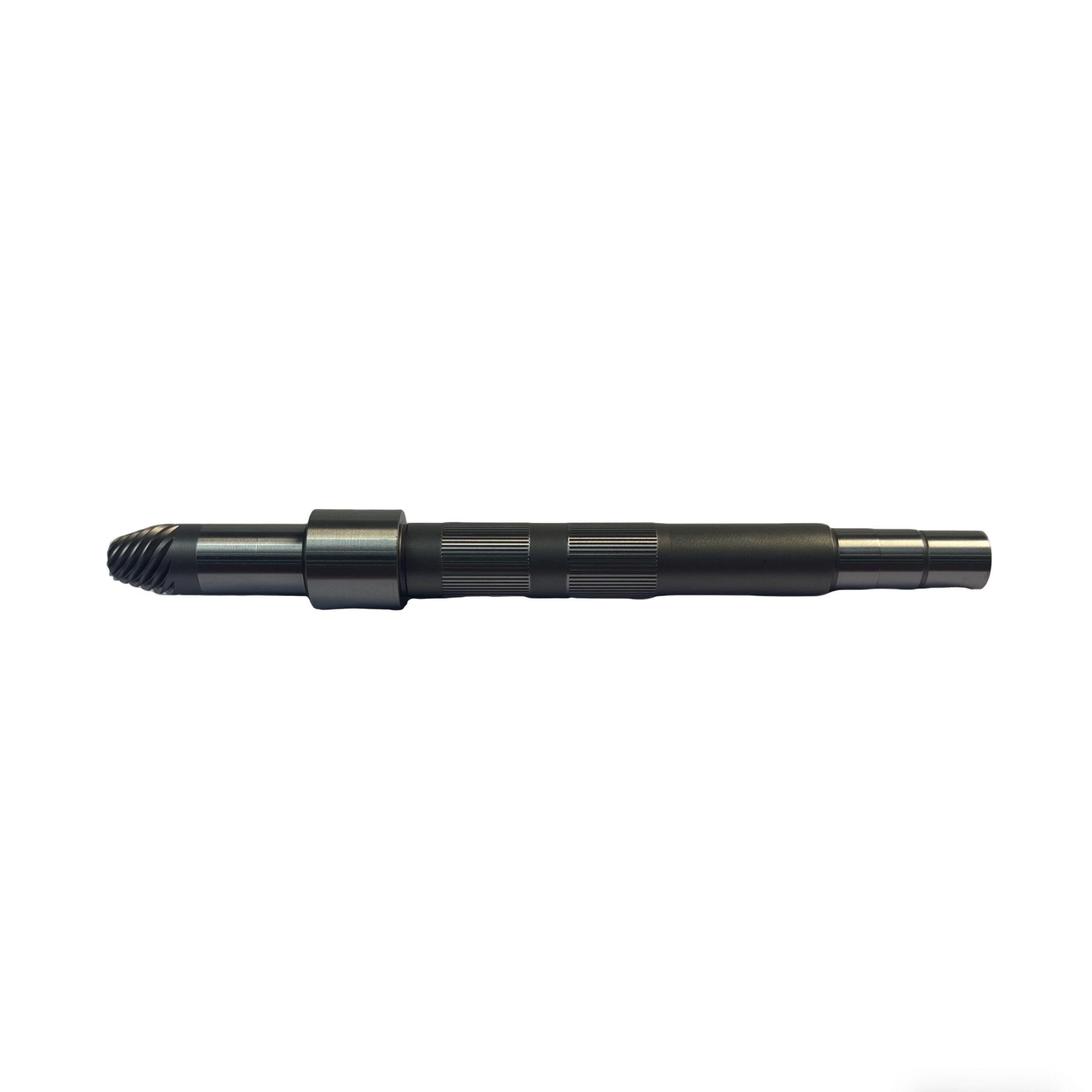

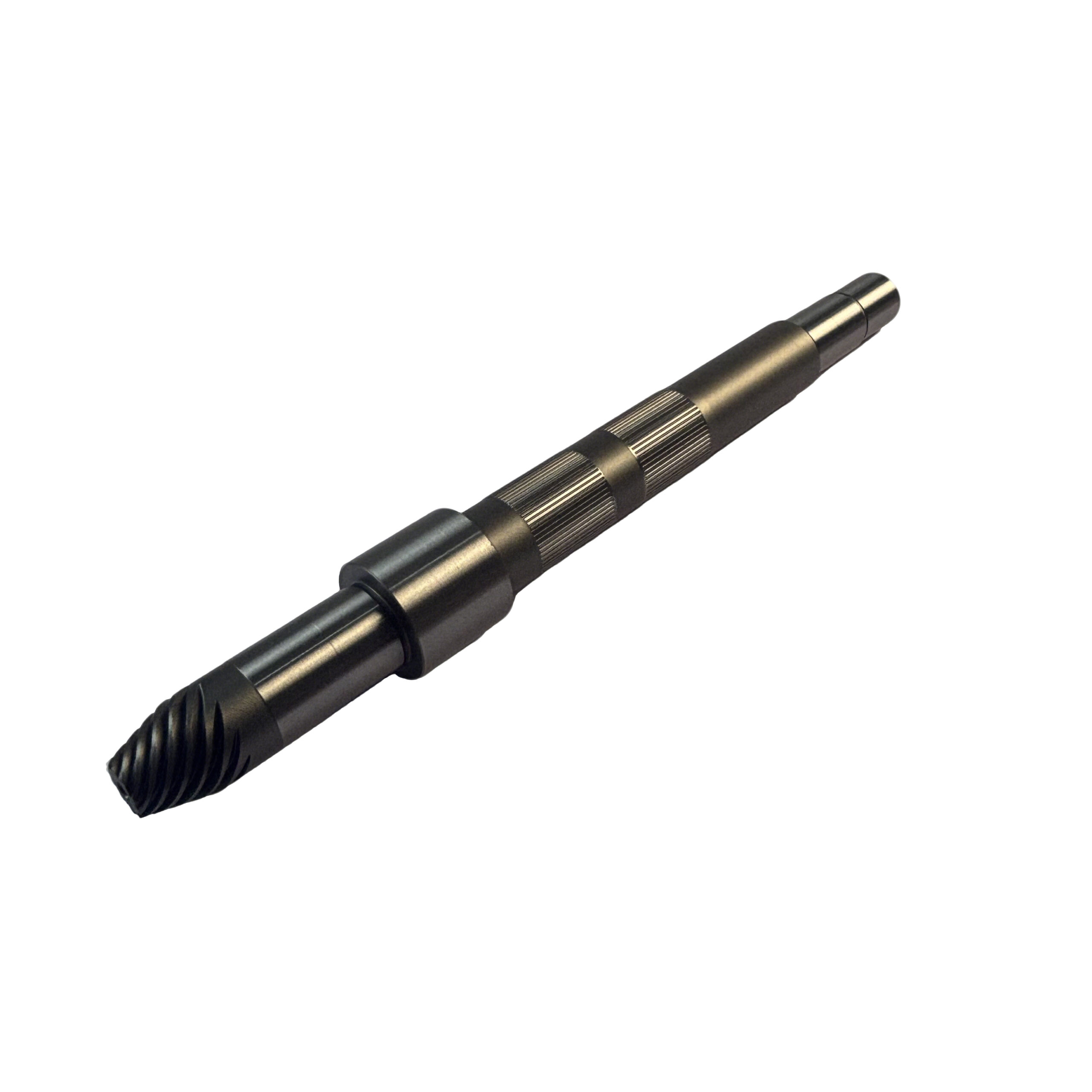

Model: ZD-017-C
Product Name: ZDF3-25H20-200-S3-00002 Shaft (Hypoid Gear Shaft)
Category: Hypoid Gear
Core Parameters: Pressure angle 20°, module 1.27, number of teeth 4, offset 11, helix angle 50° (Left-hand, LH), total length 202.8mm, weight 0.36kg
Material: 20CrMnTi (Alloy Structural Steel)
Processing Technology: Sawing → Rough Grinding Positioning → Gear Milling → Heat Treatment → Shot Blasting → Outer Diameter Grinding → Marking → Full Appearance Inspection
Application: Specialized for reducer, used as a hypoid gear shaft to transmit power stably, with high structural strength, good wear resistance and stable operation.

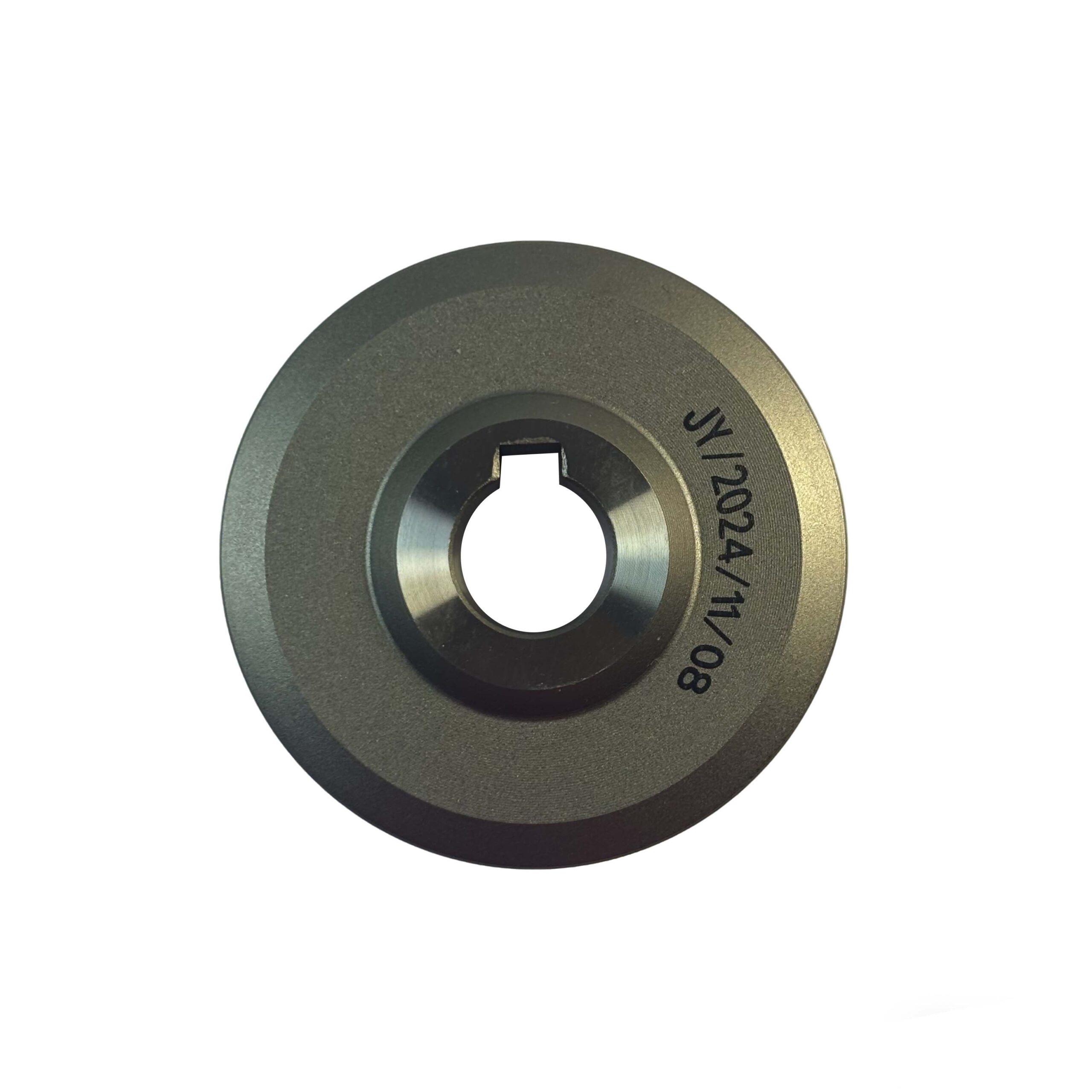

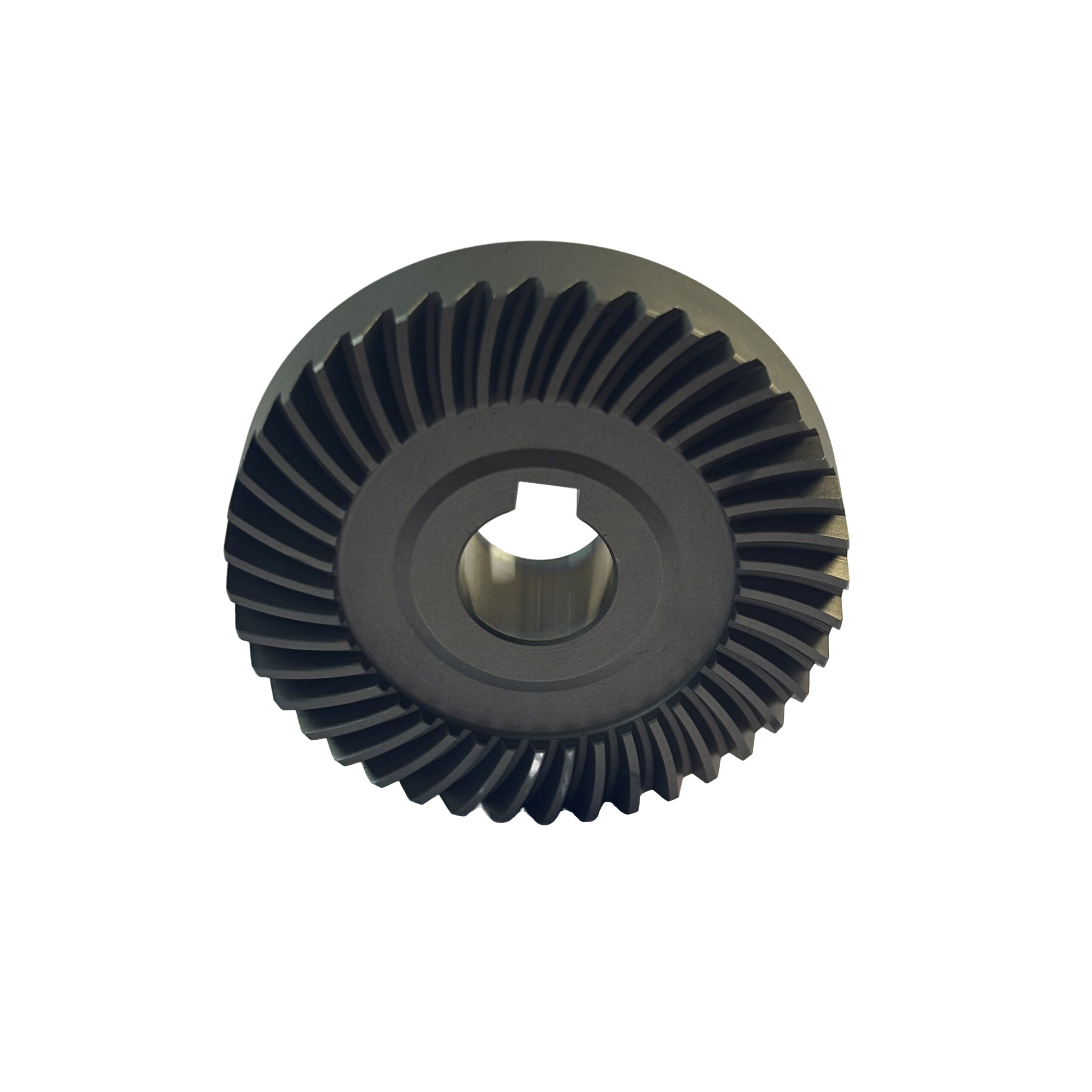

Model: ZD-018-C
Product Name: ZDF3-25H240-100-516-002 Primary Driven Gear
Category: Hypoid Gear
Core Parameters: Pressure angle 20°, module 1.27, number of teeth 41, offset 11, helix angle 50° (Right-hand, RH), inner diameter 13mm, total length 15.5mm, weight 0.17kg
Material: 20CrMnTi (Alloy Structural Steel)
Processing Technology: Sawing → Gear Milling → Heat Treatment → Shot Blasting → Boring → Full Appearance Inspection
Application: Specialized for reducer, used as a primary driven gear to transmit power stably, with high machining precision and reliable performance.
其他信息
| ZD-017-C and ZD-018-C weight |
0.3662and0.1763 |
|---|---|
| ZD-017-C and ZD-018-C Core Components |
gear |
| ZD-017-C and ZD-018-C Craftsmanship |
Milling |
