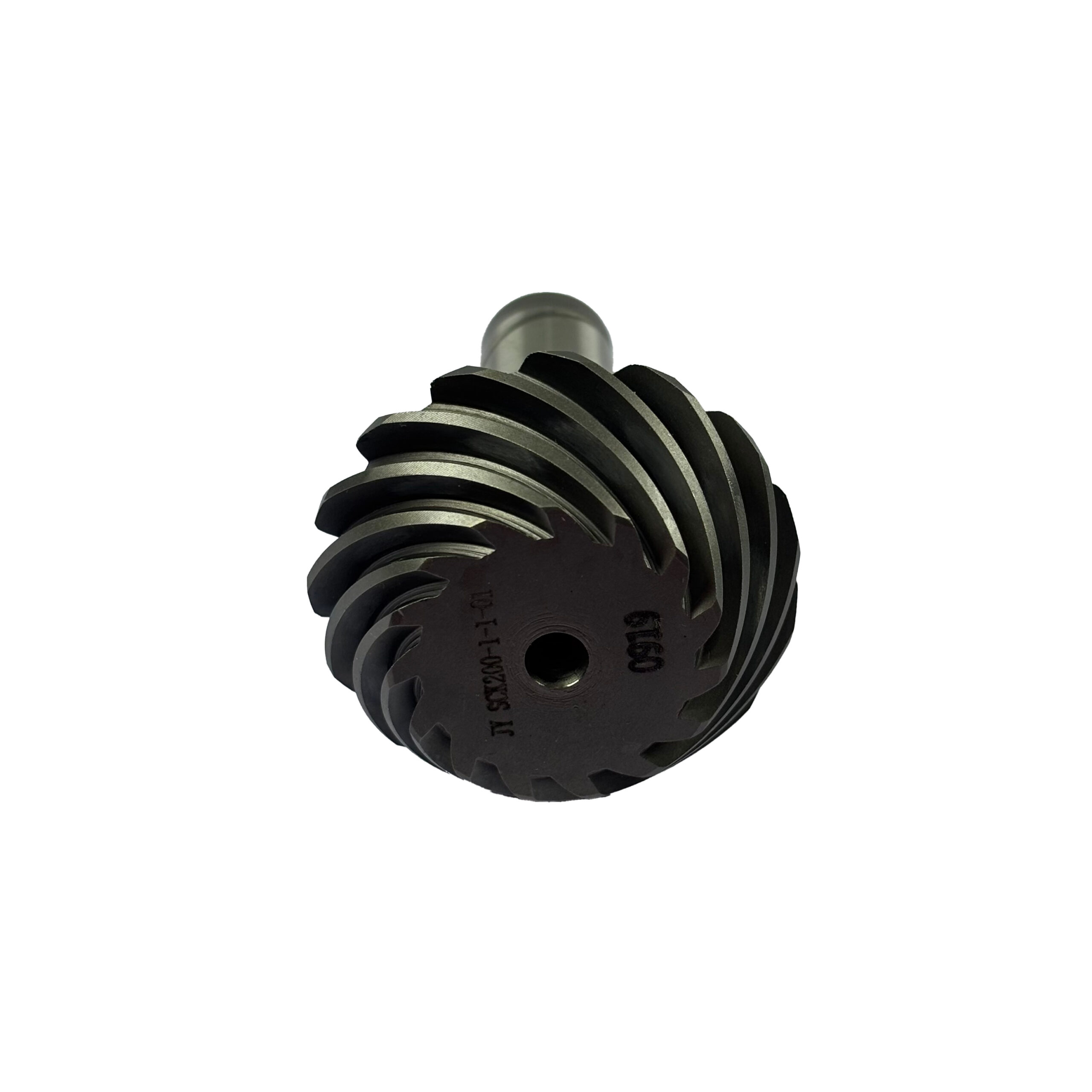

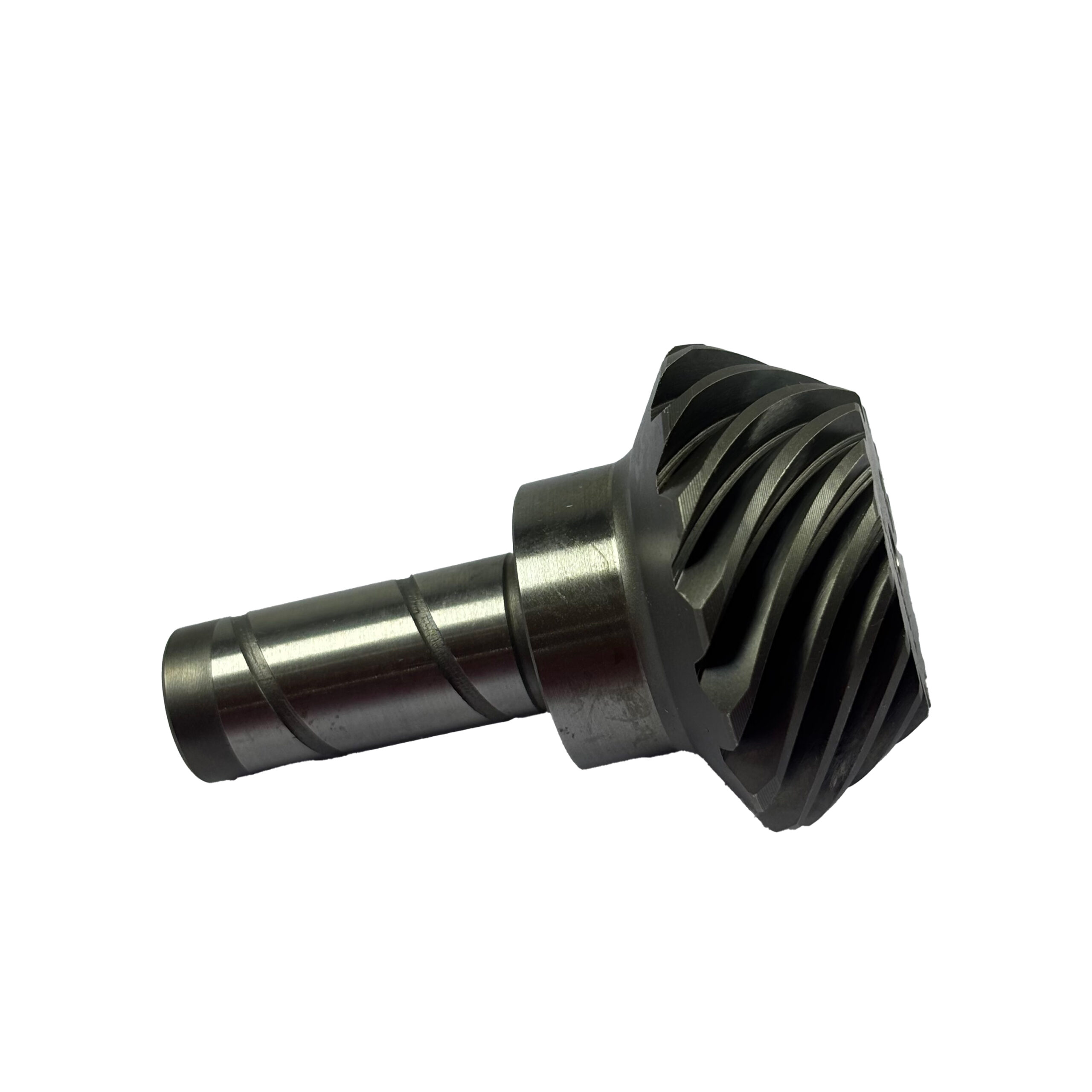

SCK200-1-1-01 Bevel Gear Shaft
$3.30piece
Made of 20CrMnTi, module 1.84, 15 teeth, helix angle 49°58′L, shaft diameter 14mm, gear OD 41.5mm, length 62.16mm, weight 0.2082kg. Precision lapped, suitable for reducer transmission.
Description
Model: SCK200‑1‑1‑01Product Name: Bevel Gear Shaft (Hypoid Gear Shaft)
This is a hypoid bevel gear shaft for reducers, made of 20CrMnTi alloy structural steel. Key parameters: pressure angle 20°, module 1.84, 15 teeth, helix angle 49°58′ Left Hand, shaft diameter 14mm, gear outer diameter 41.5mm, total length 62.16mm, weight 0.2082kg.Manufacturing processes: normalizing, turning, rough grinding, gear milling, heat treatment, shot blasting, facing, outer diameter grinding, matched lapping, marking and full visual inspection. With high meshing accuracy and stable transmission, it is mainly used for power transmission and direction change in reducers.
Additional information
| weight |
0.2082 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Milling |
