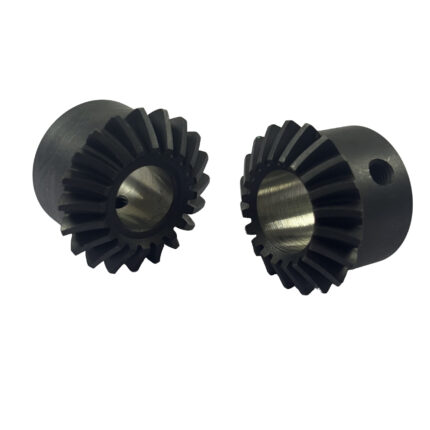

SM1.5-20 Straight Bevel Gear and SMB1.5-20 Straight Bevel Gear
SM1.5-20 Straight Bevel Gear and SMB1.5-20 Straight Bevel Gear $4.00piece
Back to products

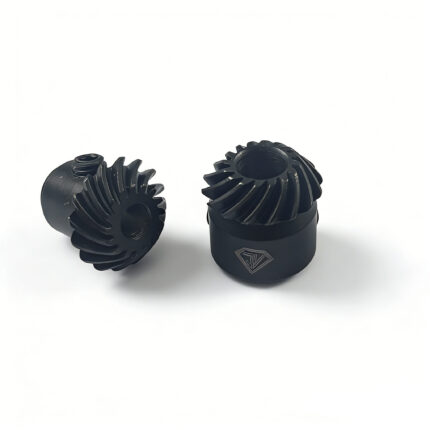

T16 φ5 Custom-made for Yinxiang and T16 Custom-made for Yinxiang φ7
T16 φ5 Custom-made for Yinxiang and T16 Custom-made for Yinxiang φ7 $2.00piece

Z-91-188080-15 Gear and Z-91-188032-15 Gear

$4.60piece

  1. Z-91-188080-15 Gear: Spiral bevel gear with module 1, pressure angle 20° and helix angle 0°/L. It has an inner diameter of 8mm and addendum circle diameter of 20mm, suitable for sewing equipment with stable transmission performance, serving as a dedicated transmission component for sewing machinery.
  2. Z-91-188032-15 Gear: Spiral bevel gear with module 1 and pressure angle 20°, as well as helix angle 0°/R. It has a compact size, high compatibility with sewing equipment, stable operation, and helps improve the working efficiency of sewing equipment.
Add to compare
Add to wishlist
SKU： ZJ-004-C and ZJ-005-C 分类：
描述

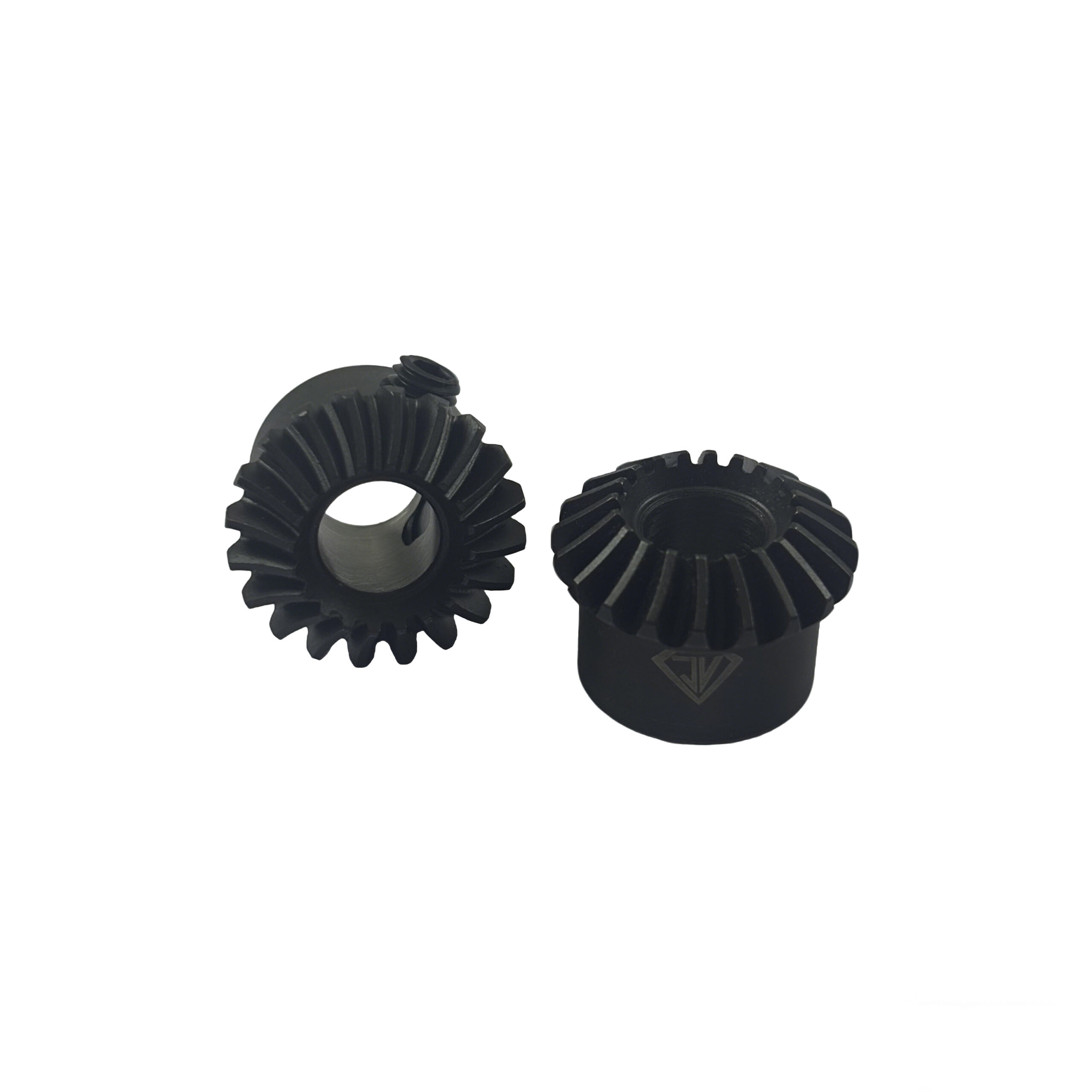

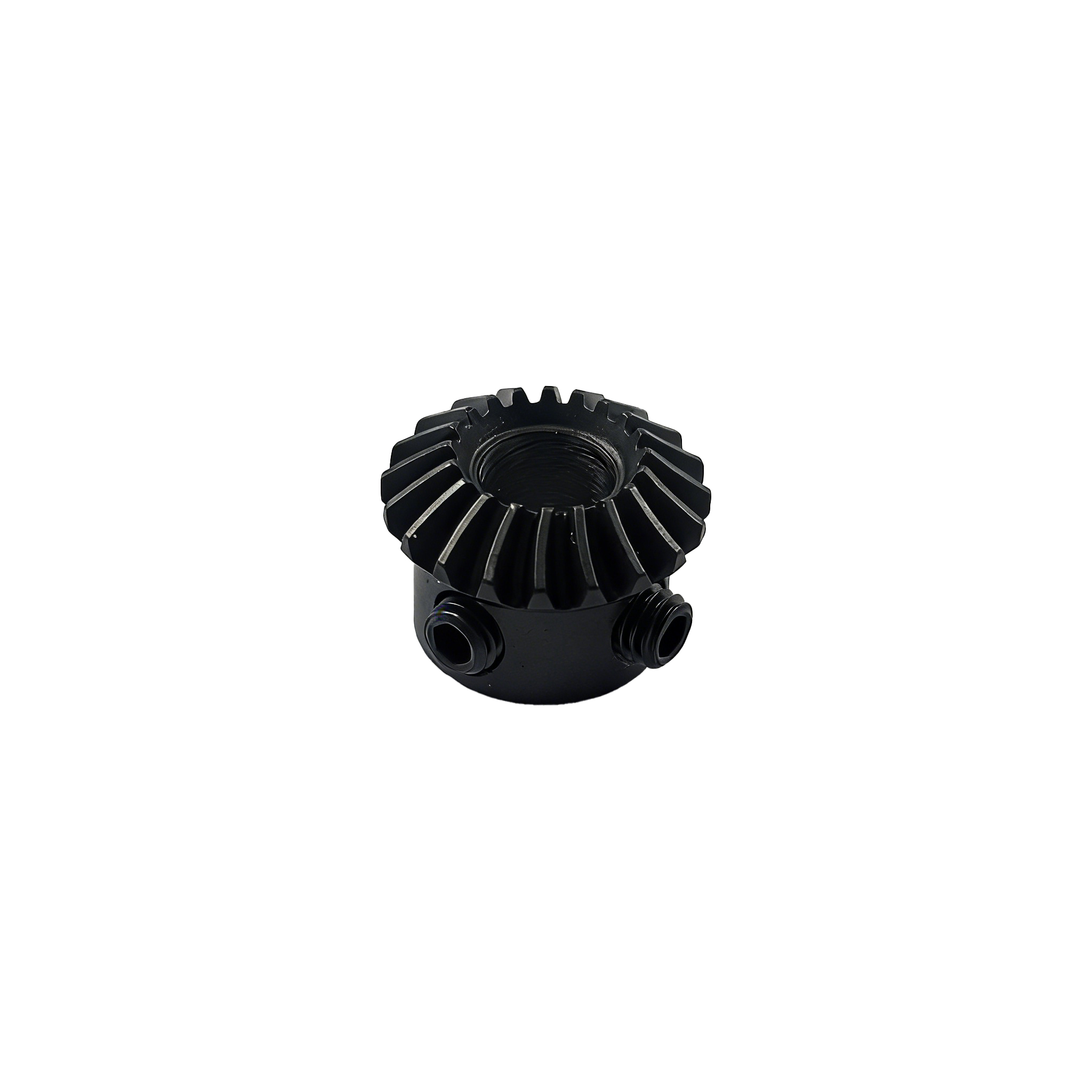

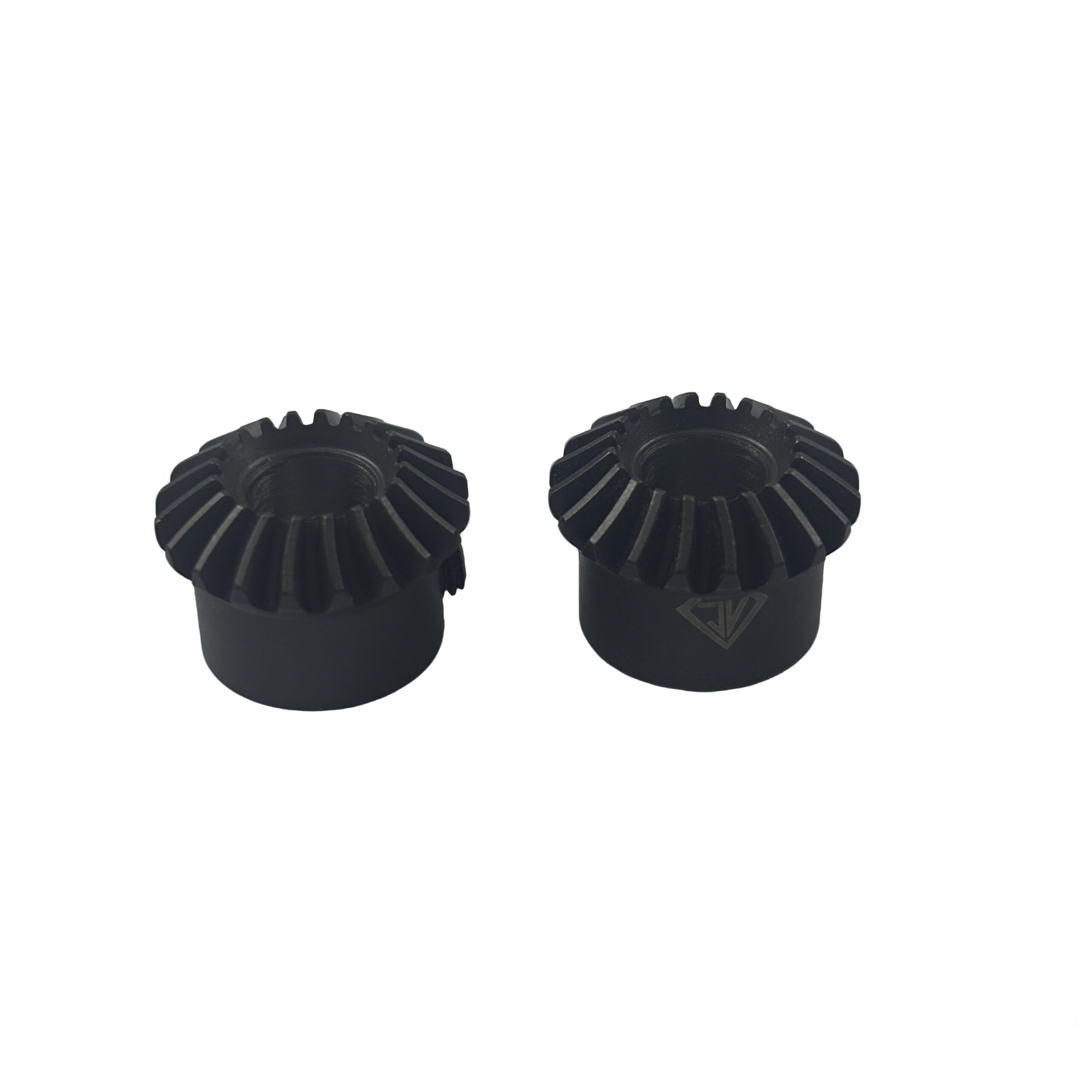

Z-91-188080-15 Gear

Product Name: Z-91-188080-15 GearProduct Category: Spiral Bevel Gear
This product is a dedicated transmission gear specially developed and designed for sewing equipment, suitable for the working conditions of high-frequency and continuous operation of sewing machinery. The core technical parameters of the product are precisely matched to the transmission system of the equipment: pressure angle of 20°, module of 1, 20 teeth, transmission ratio of 1, helix angle of 0°/L, inner diameter of 8mm, addendum circle diameter of 20mm, and overall length of 14mm. With a compact and small structure, it can be flexibly embedded into the narrow transmission space of sewing equipment.
As a key transmission component of sewing equipment, this gear can achieve efficient power transmission, ensure stable and non-stuck operation of the equipment during sewing operations, and effectively improve the fluency of sewing procedures and the precision of finished products. Its standardized parameter design can achieve seamless matching with the same type of sewing equipment, making it a high-quality matching component for the transmission system of sewing machinery.

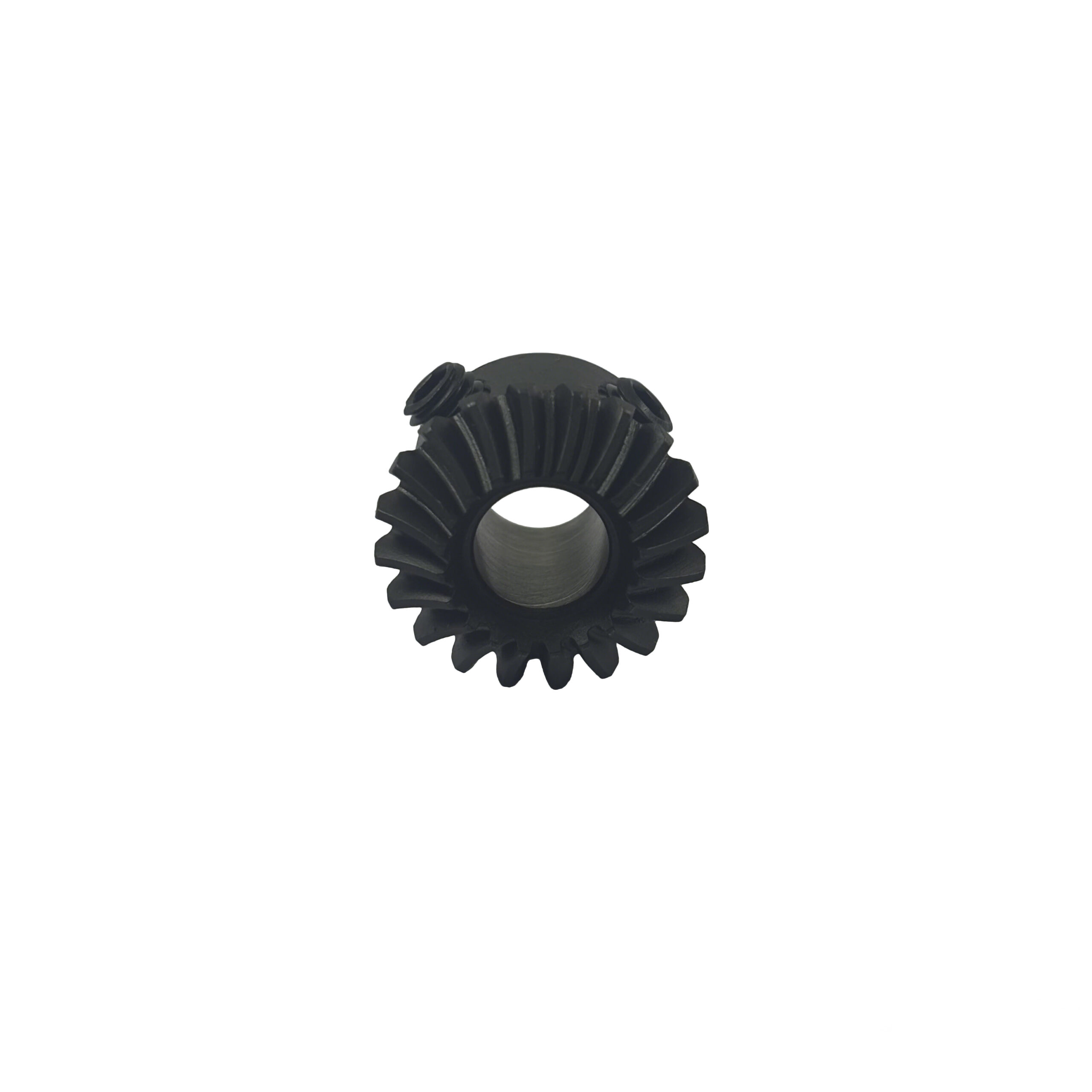

Z-91-188032-15 Gear

Product Name: Z-91-188032-15 GearProduct Category: Spiral Bevel Gear
This product is a dedicated spiral bevel gear matched with sewing equipment, forming a transmission accessory with complementary specifications to the Z-91-188080-15 Gear. The key parameters of the product are highly consistent with gears of the same series: pressure angle of 20°, module of 1, 20 teeth, helix angle of 0°/R, inner diameter of 8mm, addendum circle diameter of 20mm, and overall length of 14mm. It features regular dimensions and convenient installation.
Its symmetrical helix angle design can meet the power transmission requirements of sewing equipment in different directions. It can achieve precise meshing during equipment operation, ensure efficient and stable power transmission, and effectively reduce the operating noise of the equipment. Specifically built for sewing scenarios, this gear can be widely used in the core transmission systems of various sewing machines, providing reliable support for the stable operation of the equipment.
其他信息
ZJ-004-C and ZJ-005-C weight

0.0157and0.0157
ZJ-004-C and ZJ-005-C Core Components

gear
ZJ-004-C and ZJ-005-C Craftsmanship

Precision Casting
